Phonak SoundPilot2 User manual

hearing systems
Remote Control
SoundPilot2
User Guide

Welcome to the Phonak world of digital communication!
Congratulations on choosing a Phonak digital hearing system. Your new SoundPilot2
remote control is a very important part of it.
SoundPilot2 is a small, elegant and user-friendly remote control which offers you
"binaural" access to all the functions of your digital hearing computers as well as the
opportunity for easy management of your hearing programs. Binaural means that the
SoundPilot2 always tunes both of your instruments in the same way, maintaining
hearing balance at all times.
SoundPilot2 is a quality Swiss-made product from Phonak. Please read this manual
carefully to benefit from all the possibilities of your new digital hearing system.
Phonak – the leader in Hearing Technology!

7
6
FM+M
FM
+
-
A
123
4
3
21
5
Description
SoundPilot2 ON/OFF switch
LED indicator
Function keys
Volume control key (+ or –)
4
3
2
1
Additional keys (programs 4 and 5)
Battery* compartment cover
Clip
7
6
5
*Battery (1.5 V) type AAA, LR03 or AM4, Alcaline. Use of rechargeable batteries is not
recommended!
Note: The key functions are described in the user guides of your particular instruments.
SoundPilot2
1
Reverse side

Replacing the battery
2
Switch off the SoundPilot2.
The battery compartment is located on the bottom of the SoundPilot2. Press the
clip, and slide the battery cover in the direction of the arrow to remove it.
Press the clip and insert a new battery as shown in the drawing. Be sure to insert
the battery in the correct +/– position. Your SoundPilot2 needs only one battery
(1.5 V) type AAA.
2
1
+
13
2
+

3
While still pressing the clip, secure the battery cover by sliding it in the direction of
the arrow.
Note: Replace the SoundPilot2 battery if the LED indicator does not flash when a key is
pressed, while the SoundPilot2 is "ON".
3

4

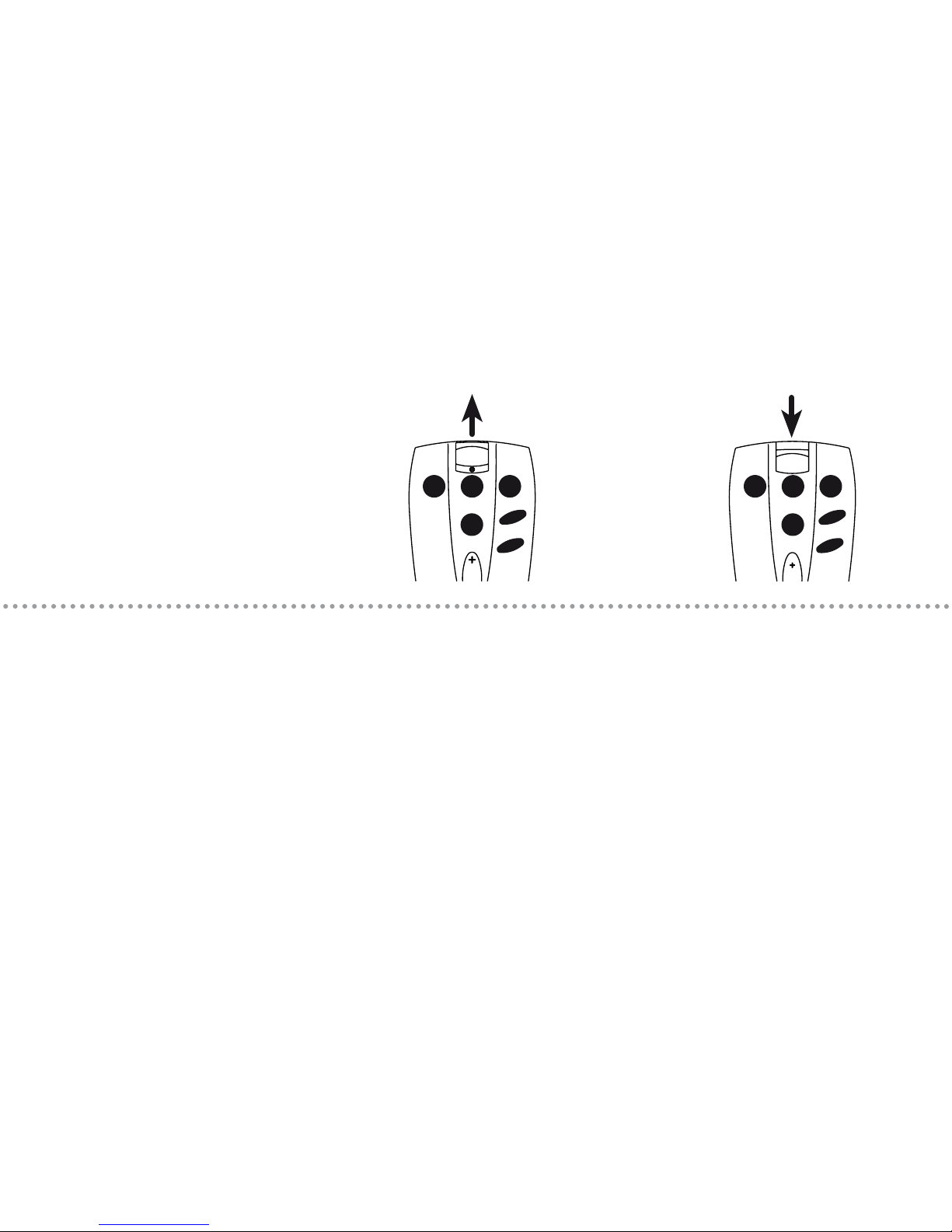

11..SSwwiittcchhiinnggtthheerreemmootteeccoonnttrroollOONNoorrOOFFFF
• The SoundPilot2 remote control is "ON" when the slider is pushed forward. The LED
indicator is then visible.
Note: The current required by the SoundPilot2 when not in use is very low. The
device may stay in the "ON" position without significantly reducing the life of the
battery.
Operating your hearing instrument with the SoundPilot2
remote control
OFF
ON
123
A
123
A
FM+M
FM
FM+M
FM
ON OFF

5
• Switch your remote control to "OFF" to avoid unintentional manipulation (while in
your bag or your pocket for example) or if the SoundPilot2 isn’t used for a long time.
To switch the SoundPilot2 remote control "OFF", pull the slider backward.

6
22..OOppeerraattiioonnddiissttaannccee
The SoundPilot2 remote control is designed to be used from approximately one arm’s
length.
Communication between the SoundPilot2 and your hearing instrument will function
best if you hold the remote control in your hand, as illustrated. You do not have to
point the remote at the hearing instrument. Placing the remote control directly against
or too close to the instrument may decrease the remote’s effectiveness.

7
33..OOppeerraattiinnggbbootthhiinnssttrruummeennttss
The SoundPilot2 remote control is designed for easy, simultaneous control of both
hearing instruments.
44..PPrreeppaarriinnggtthheehheeaarriinnggiinnssttrruummeennttss
Switch your hearing instrument(s) ON to make them ready to receive the commands of
the SoundPilot2. Refer to the user guide for your particular instrument.
55..UUssiinnggyyoouurrhheeaarriinnggpprrooggrraamm
Each key of the SoundPilot2 remote control activates a specific mode or program
saved in your hearing instrument by your hearing care professional. More information
about your specific programs are available in the user guide for your own
instrument(s).

8
CCoonnffiirrmmaattiioonnss
• The LED on your SoundPilot2 flashes to confirm you are pressing a key.
• Your hearing instrument(s) may beep to confirm that your selection was received.

9
66..TTooiinnccrreeaasseeoorrddeeccrreeaasseetthheevvoolluummeeooffyyoouurrhheeaarriinnggiinnssttrruummeennttss::
• Press on the sign "+" to increase the volume.
• Press on the sign "-" to decrease the volume.
Notes:
• This control allows fine adjustments around the optimal gain selected by your
hearing care professional during the fitting.
up
down
SoundPilot2
FM+M
FM
A
123

10
• Every flash of the light indicates that the remote control is sending a command to
the hearing instrument(s) to change the volume by one step. At the same time,
your instrument may beep. As long as the key is depressed, after a short period of
time, the volume will continue to increase or decrease until the maximum or the
minimum has been reached. You may then hear a double-beep.
The volume may be changed in each of your hearing programs.

Accessories
11
To protect your SoundPilot2, the instrument is delivered with an elegant softcase
(standard). The clip of the SoundPilot2 allows it to be clipped on your belt, to your bag
or in your pocket. Other softcase options are available:
• A softcase with a transparent front window and zipper closure to fully protect the
SoundPilot2 . This case may be used as a key holder.
• A softcase with a stronger clip like the style of a mobile telephone case .
Please ask your hearing care professional for details.

12
11..BBaatttteerriieessaarreettooxxiiccwwhheennsswwaalllloowweedd!!
Keep them out of reach of children and pets. If batteries are swallowed, please seek
the advice of a medical practitioner.
22..IInntteerrffeerreenncceewwiitthhmmeeddiiccaallddeevviicceess
The SoundPilot2 remote control uses low-power, digitally coded inductive transmission
to communicate to your hearing instrument(s). Although unlikely, interference with
medical devices such as pacemakers is possible. Interference should not occur with
normal use, holding the remote comfortably in the hand, 4 inches (10 centimeters) or
more from the body. Therefore, it is recommended that pacemaker users do not keep
the SoundPilot2 remote control in a breast pocket.
Warning

13
1. The digitally-coded, inductive transmission technology used in the SoundPilot2
remote control is extremely reliable and experiences virtually no interference from
other devices. It should be noted, however, that when operating the SoundPilot2
near a computer terminal or other strong electromagnetic fields, it may be necessary
to be at least 24 inches (60 centimeters) away to ensure proper operation. If your
hearing instrument(s) does not respond to the SoundPilot2 because of an unusual
field disturbance, move away from the disturbing field.
2. Your hearing instrument(s) and your SoundPilot2 were given a unique communica-
tion code during the fitting. Thanks to this code, your SoundPilot2 will not affect
hearing instruments worn by others.
3. If you will not be using the SoundPilot2 for a long period of time, be sure to switch
off the SoundPilot2 or to remove the batteries.
Important points and care instructions

14
4. When your SoundPilot2 is not in use, store it safely.
5. Always use a high quality, long-life battery as replacement, and dispose of the old
one in an environmentally-friendly way. Use of rechargeable batteries is not
recommended.
6. Protect your SoundPilot2 from excess moisture (bathing, swimming) and heat
(radiator, car dashboard in summer). Protect it from excessive shock and vibration.
7. If your SoundPilot2 fails to operate after you have correctly inserted a new battery,
contact your hearing care professional. For coding reasons, please always bring both
your SoundPilot2 and your hearing instruments for service questions.

15
The symbol with the crossed out disposal bin indicates that this remote control
shall not be treated as household waste. Please hand over your old or unused
remote control to the applicable collection point for the recycling of electrical
and electronic equipment or bring your old remote control to your hearing care
professional for appropriate disposal. By ensuring this product is disposed of correctly,
you will help prevent potential negative effects on the environment and human health.

Phonak distributors worldwide
GGrroouuppccoommppaanniieess::(detailed information on wwwwww..pphhoonnaakk..ccoomm))
Australia Phonak Australasia Pty. Ltd., Baulkham Hills N. S. W. 2153
Austria Hansaton Akustische Geräte GmbH, 5020 Salzburg
Belgium Lapperre N.V., 1702 Groot-Bijgaarden
Brazil CAS Produtos Médicos, São Paulo – SP 04363-100
Canada Phonak Canada Limited, Mississauga, Ontario L5S 1V9
China Phonak (Shanghai) Co. Ltd., Shanghai City 200233
Denmark Phonak Danmark A/S, Nitivej 10, 2000 Frederiksberg
France Phonak France SA, 69500 Bron
Germany Phonak GmbH, 70736 Fellbach-Oeffingen
Italy Phonak Italia S.r.l., 20159 Milano
Japan Phonak Japan Co., Ltd., Tokyo 101-0044
Jordan Phonak Middle East, 11181 Amman
Netherlands Phonak B.V., 3439 ME Nieuwegein
New Zealand Phonak New Zealand Ltd., Takapuna, Auckland 9
Norway Phonak AS, 0105 Oslo
Poland Phonak Polska Sp. z o.o., 00-567 Warszawa
Spain Phonak Ibérica S.A., 03008 Alicante
Sweden Phonak AB,117 43 Stockholm
Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa
United Kingdom Phonak UK Limited, Warrington, Cheshire WA1 1PP
USA Phonak LLC, Warrenville, IL 60555-3927
Independent A complete list of Phonak distributors is available at Phonak's
general agents: Internet site: wwwwww..pphhoonnaakk..ccoomm..Please visit us or ask your
hearing care professional for information.
Manufacturer: Phonak AG, Laubisrütistrasse 28, CH-8712 Stäfa, Switzerland

Service and Warranty
Phonak offers you a comprehensive global warranty which becomes effective on the date
of purchase. Please ask your hearing care professional about the details and duration.
This warranty covers any repairs due to defects in material and/or workmanship. The
warranty does not cover damage from improper handling or care, exposure to chemicals,
immersion in water or undue stress. Damage caused by third parties or non-authorized
service centers renders the Phonak warranty null and void. This warranty does not
include any services performed by a hearing professional in their office. This
warranty applies to the Phonak products listed below:
Serial number: Date of purchase:

Your hearing care professional:
