Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 3
Introduction 4
Validity of documentation 4
Retaining the documentation 4
Definition of symbols 4
Safety switch PSEN cs4.2 5
For your safety 5
Unit features 5
Function description 6
Block diagram 6
Operating distances 7
Lateral and vertical offset 7
Wiring 8
Pin assignment, connector and cable 8
Connection to evaluation devices 8
Single connection 9
Series connection 10
Connection to PNOZ X, PNOZpower, PNOZsigma, PNOZelog 11
Connection to PNOZmulti 13
Connection to PSS 13
Teaching in the actuator 13
Installation 13
Parallel assembly 14
Orthogonal assembly 16
Adjustment 17
Operation 17
Error display through flashing codes 17

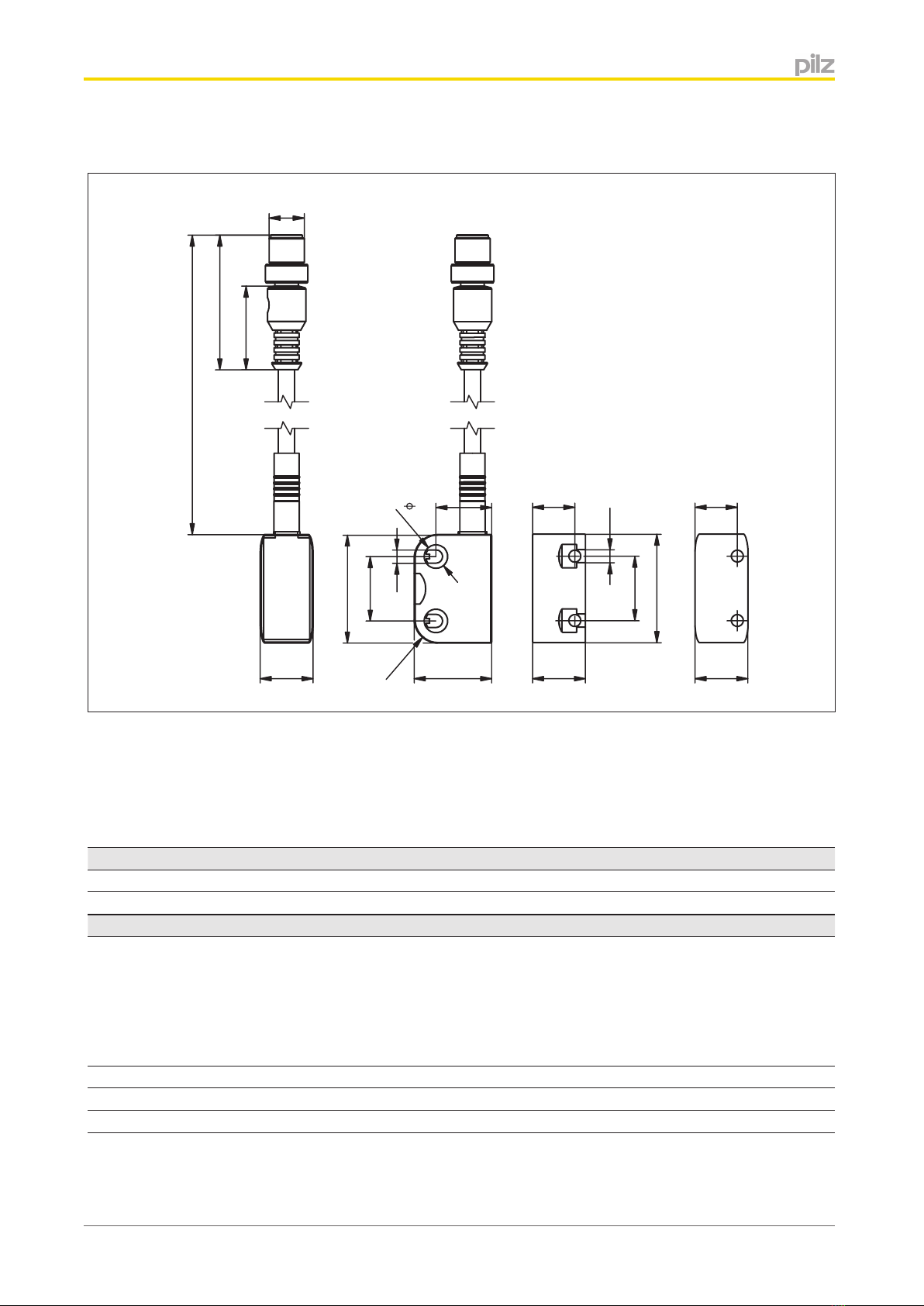

Dimensions in mm 19
PSEN cs4.2a, PSEN cs4.2b 19
PSEN cs4.2p 19
PSEN cs4.2 M12/8-0.15m 20
Technical details 20
Safety characteristic data 25
Order reference 26

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 4
Introduction
Validity of documentation
This documentation is valid for the product PSEN cs4.2a/b/p/M12. It is valid until new docu-
mentation is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Retaining the documentation
This documentation is intended for instruction and should be retained for future reference.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be tak-
en. It also highlights areas within the text that are of particular importance.
INFORMATION
This gives advice on applications and provides information on special fea-
tures.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 5
Safety switch PSEN cs4.2
The safety switch meets the requirements in accordance with:
}EN 60204-1 and IEC 60204-1
}EN 60947-5-3 with the actuator PSEN cs4.1
}EN 62061: SIL CL 3
}EN ISO 13849-1: PL e and Cat. 4
The safety switch may only be used with the corresponding actuator PSEN cs4.1.
The safety outputs must use 2-channel processing.
For your safety
}Only install and commission the unit if you have read and understood these operating
instructions and are familiar with the applicable regulations for health and safety at work
and accident prevention.
Ensure VDE and local regulations are met, especially those relating to safety.
}Any guarantee is rendered invalid if the housing is opened or unauthorised modifica-
tions are carried out.
}Do not remove the protective cap until you are just about to connect the unit.
Unit features
}Transponder technology
}Coding: uniquely coded
}Dual-channel operation
}2 safety inputs for series connection of multiple safety switches
}2 safety outputs
}1 signal output
}LED for:
– State of the actuator
– State of the inputs
– Supply voltage/fault
}1 direction of actuation
}Connection types:
– PSEN cs4.2a: Cable, 5 m
– PSEN cs4.2b: Cable, 10 m
– PSEN cs4.2p: 8 pin M8 connector
– PSEN cs4.2 M12/8-0.15m: Connector 8 pin M12

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 6
Function description
There is a high signal or a low signal at the safety outputs, depending on the position of the
actuator and the state of the inputs. The signal output Y32 signals the position of the actua-
tor.
State of the inputs and outputs:
Actuator in
the response
range Input S11 Input S21
Safety out-
put 12
Safety out-
put 22
Signal out-
put Y32
Yes High Low High Low High
Yes Low High Low High High
Yes High High High High High
Yes Low Low Low Low High
No x x Low Low Low
x: High or low signal
The outputs cannot be switched back on until there is a low signal at both inputs simultane-
ously.
Safety inputs S11 and S21 are monitored for feasibility. A high signal can be present at the
inputs at offset times; the low signal must be present at both inputs simultaneously (partial
operation lock).

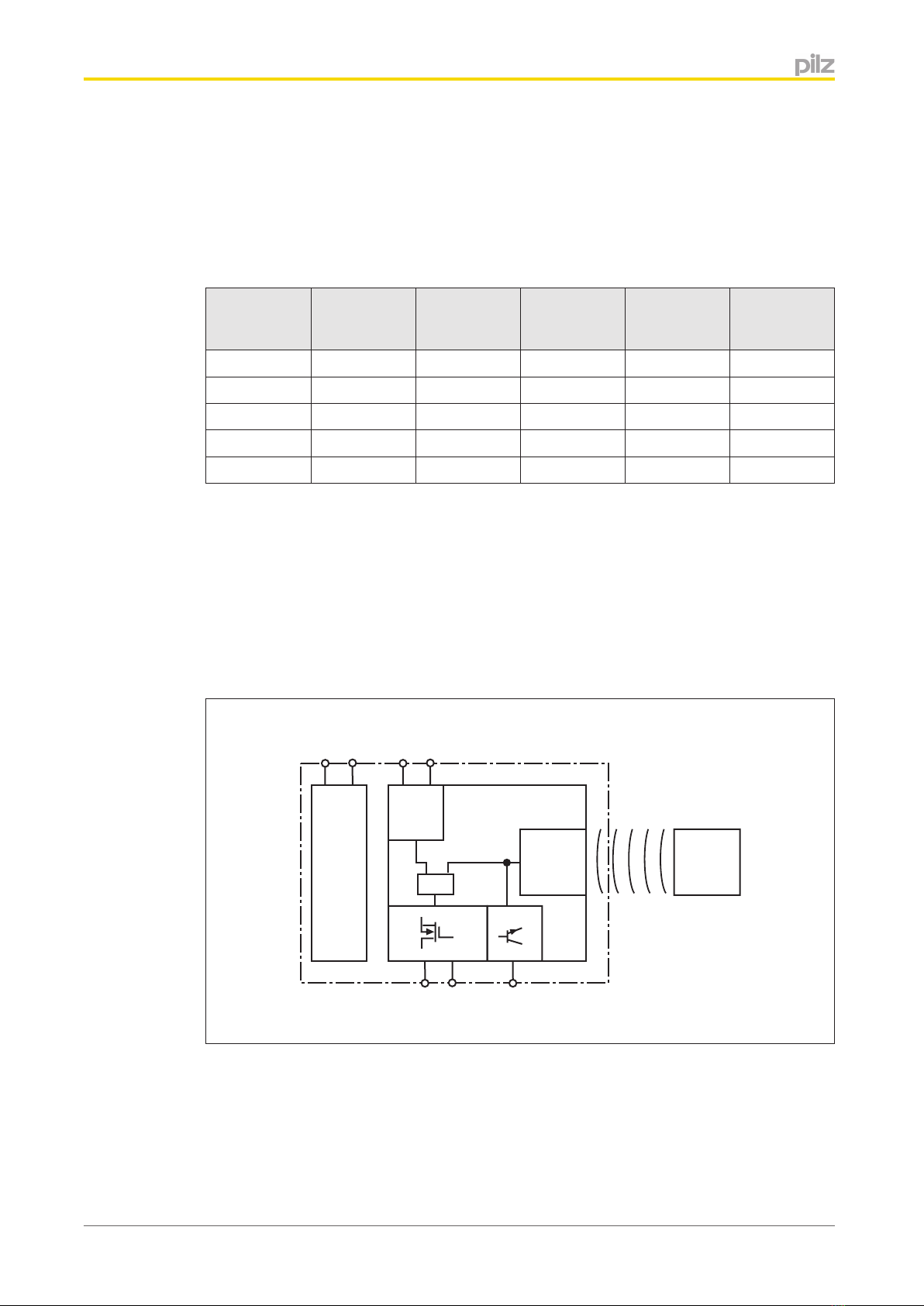

Block diagram

 


  
 


PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 7
Operating distances
On
Off
Legend:
}: Lateral offset
}: Vertical offset
}: Switch states (y-axis) dependent on operating distances (x-axis)
}Sao: Assured operating distance: 8,0 mm
}So: Typical operating distance: 11,0 mm
}Sr: Typical release distance: 14,0 mm
}Sar: Assured release distance: 20,0 mm
Lateral and vertical offset



 



















 



Legend:
}: Hysteresis
}: Typical operating distance SO
}: Typical release distance Sr
}: Offset in mm
}: Switching distance in mm
}: Response range

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 8
Wiring
Please note:
}Information given in the "Technical details" must be followed.
}Calculation of the max. cable length lmax in the input circuit:




Rlmax = Max. overall cable resistance (see Technical details [ 20]
Rl/ km = cable resistance/km
Pin assignment, connector and cable







Fig.: 8 pin M8/M12 connector
PIN
Pin
designation Function Wire colour
1 S21 Input, channel 2 White
2 A1 +24 VUB Brown
3 12 Output, channel 1 Green
4 22 Output, channel 2 Yellow
5 Y32 Signal output Grey
6 S11 Input, channel 1 Pink
7 A2 0 V UB Blue
8 - Do not connect Red
The wire colour also applies for the cable available from Pilz as an accessory.
Connection to evaluation devices
Please note:
}The power supply must meet the regulations for extra low voltages with safe separation
(SELV, PELV).
}The inputs and outputs of the safety switch must have a safe separation to voltages
over 60 V AC.
CAUTION!
The safety outputs must use 2-channel processing.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 9

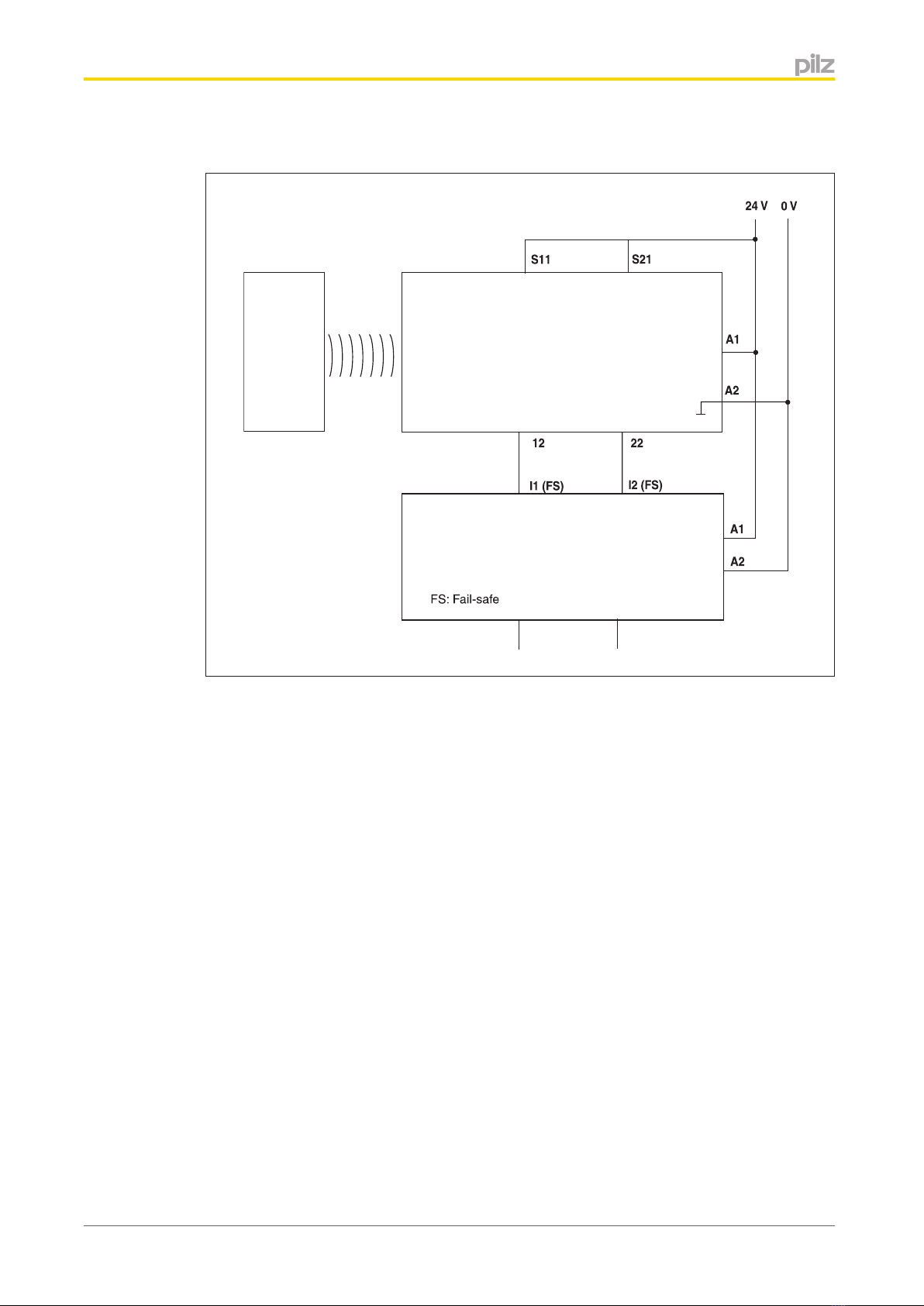

Single connection
Actuator Receiver
Evaluation device

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 10

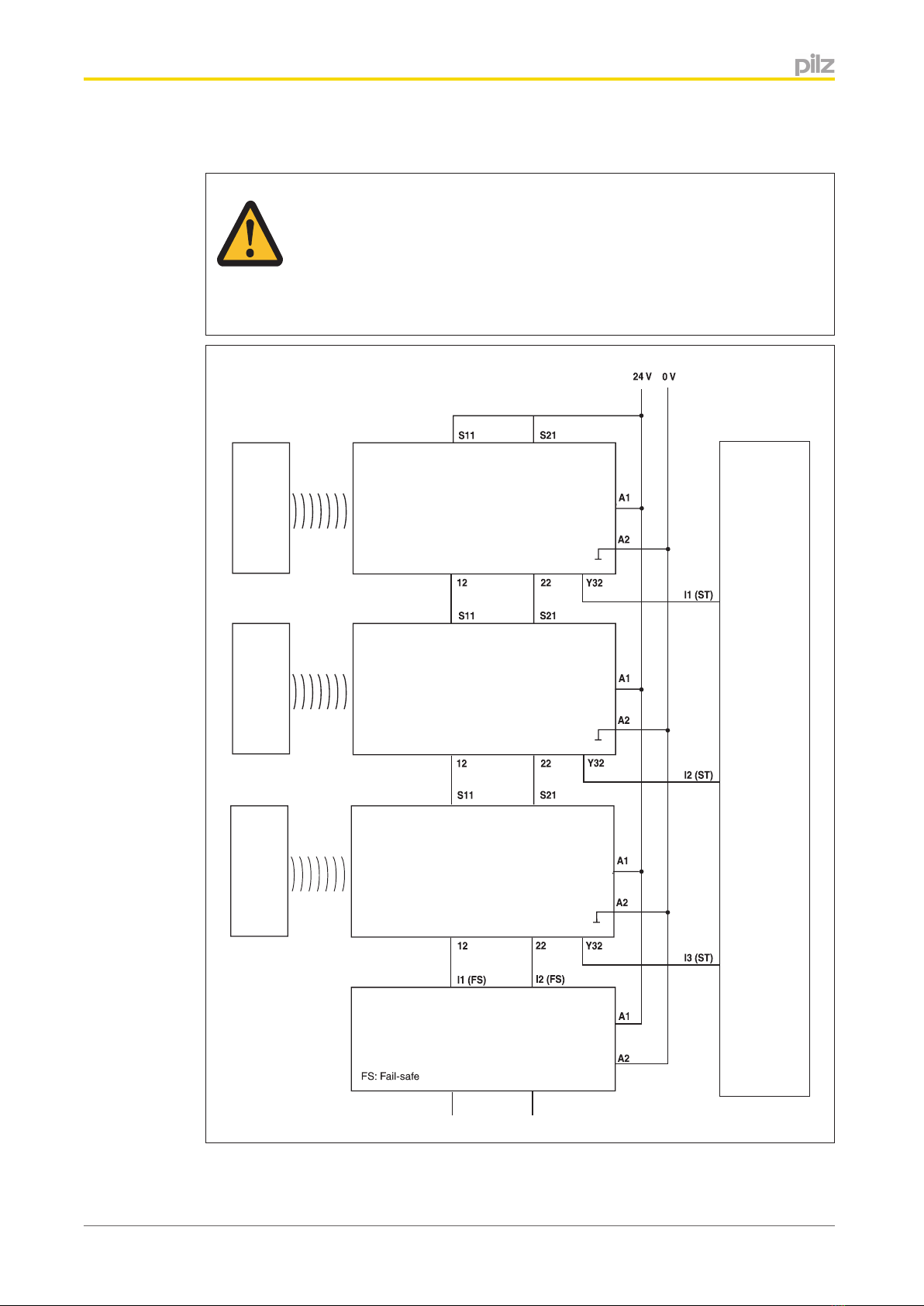

Series connection
CAUTION!
Extension of delay-on de-energisation
When several units are connected in series, the delay-on de-energisation
time increases in direct proportion to the number of interconnected safety
switches.
Actuator
Actuator
Control system
Evaluation device
Receiver
Receiver
ReceiverActuator

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 11

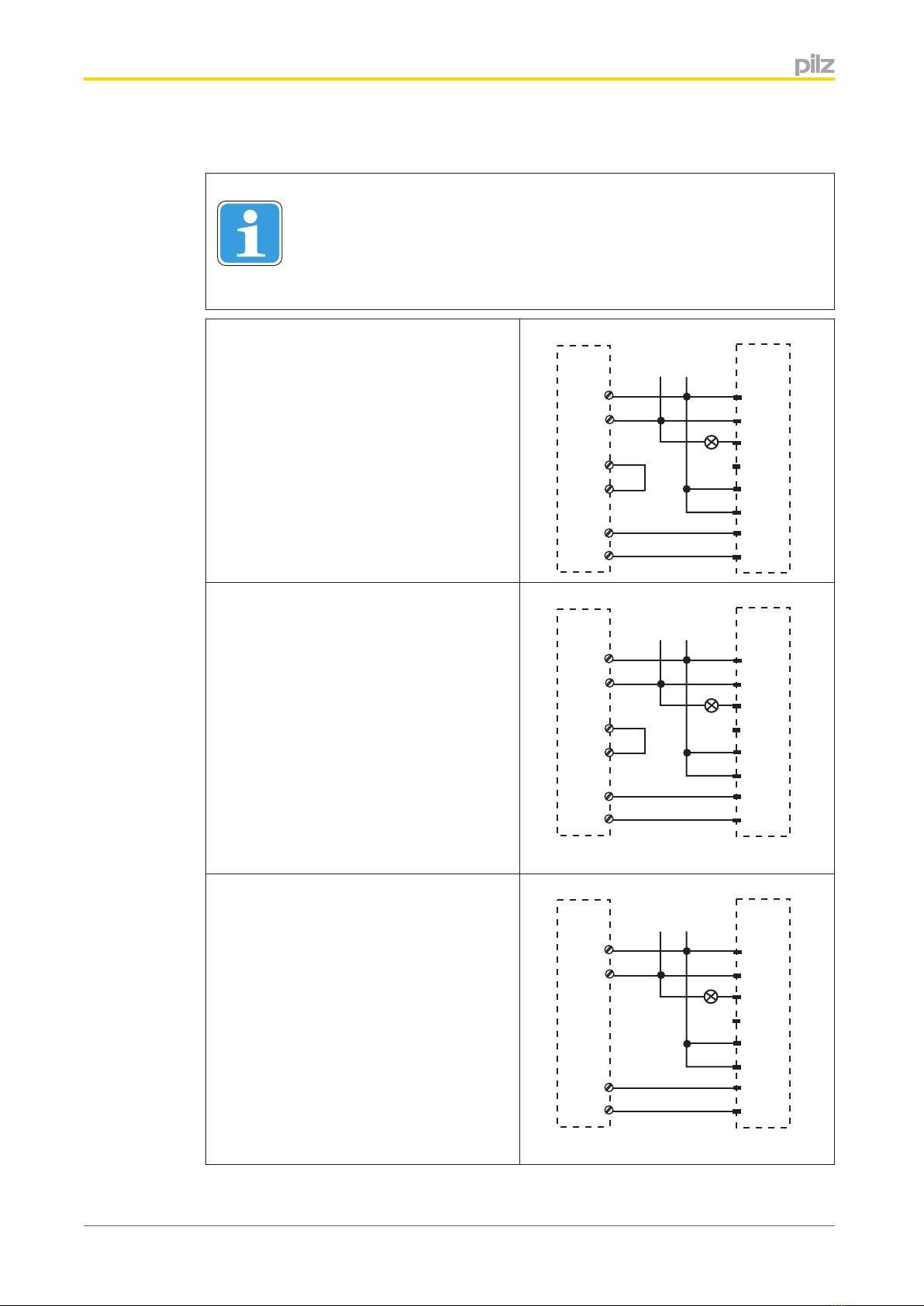

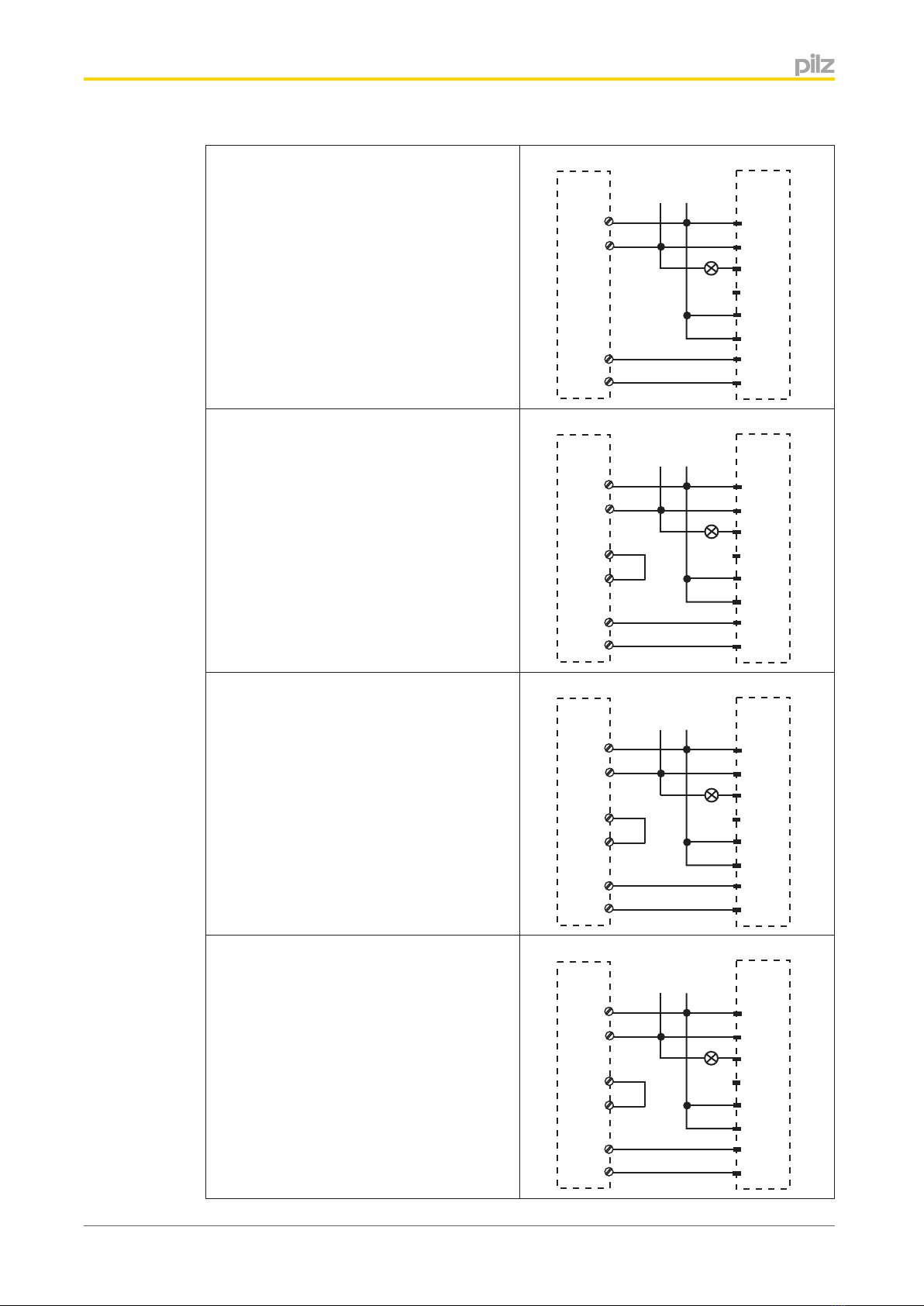

Connection to PNOZ X, PNOZpower, PNOZsigma, PNOZelog
INFORMATION
Only use safety relays with a 24 VDC supply voltage. Safety relays with uni-
versal power supply or in AC unit versions have internal potential isolation
and are not suitable as evaluation devices.
PNOZ X2.7P
PNOZ X2.8P
PNOZ X4
PNOZ X8P
PNOZ X9P 











 












PNOZ X3P
PNOZ X3.10P
PNOZ XV3P
PNOZ X3.1P 











 










 
PNOZ s3
PNOZ s4
PNOZ s4.1
PNOZ s5
PNOZ X5 











 








 

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 12
PNOZ X2.9P












 








 
PNOZ X10.1
PNOZ X10.11P












 










 
PNOZ e1.1p
PNOZ e1vp
PNOZ e6.1p
PNOZ e6vp 











 










 
PNOZ e5.11p
PNOZ e5.13p












 










 

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 13

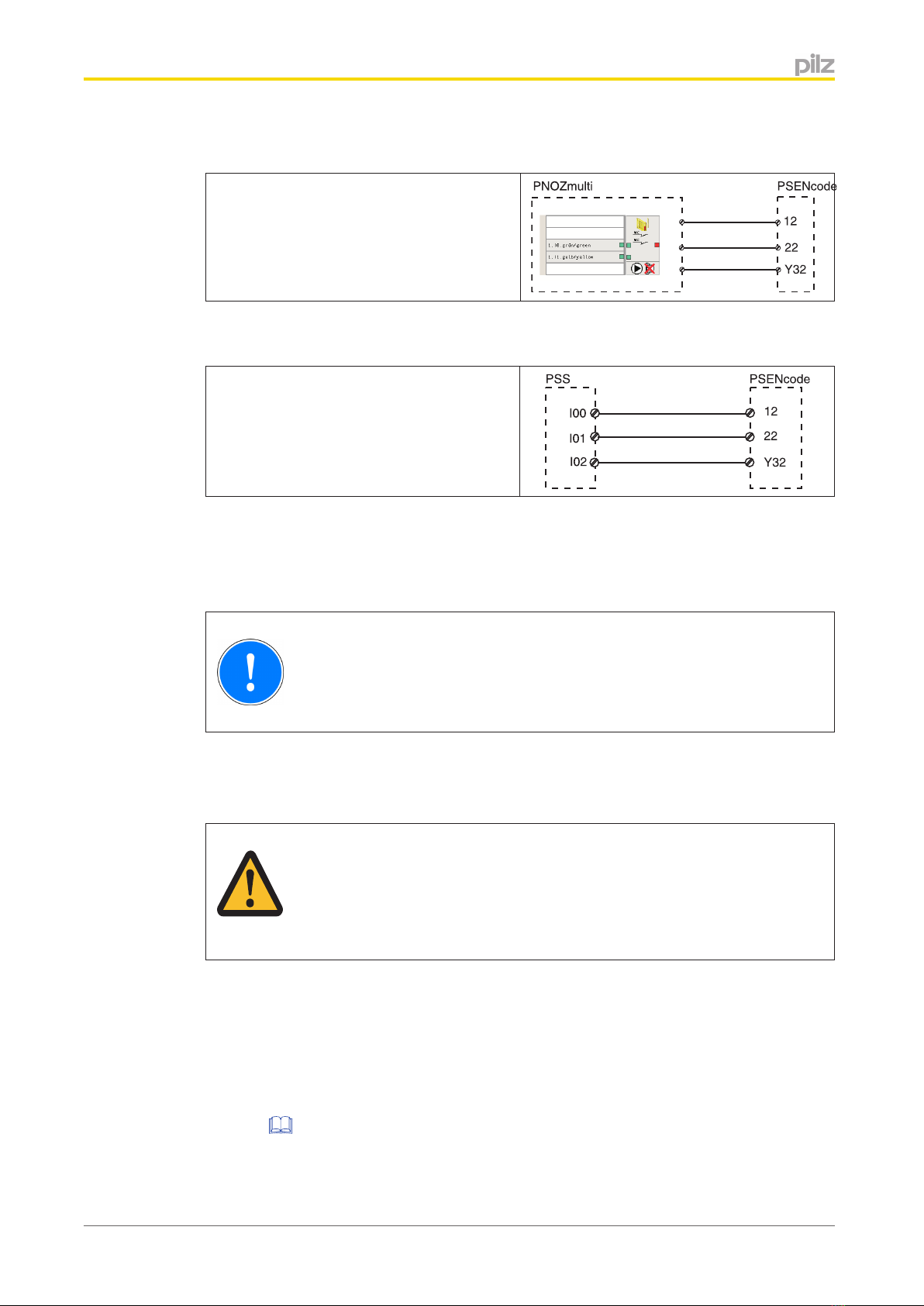

Connection to PNOZmulti
Safety gate with switch type 3
I0, I1: Inputs OSSD
I2: Signal input
I2
I0
I1
grün
grau
gelb
Connection to PSS
Safety gate standard block SB64
I00, I01: OSSD inputs
I02: Signal input grün
grau
gelb
Teaching in the actuator
The first actuator detected by the safety switch PSEN cs4.1 is automatically taught in as
soon as it is brought into the response range.
NOTICE
No other actuator may be taught in once this actuator has been taught.
Installation
}The safety switch and actuator should be installed opposite each other in parallel.
CAUTION!
The unit's properties may be affected if installed in an environment contain-
ing electrically or magnetically conductive material. Please check the oper-
ating distances and the assured release distance.
}Safety switches and actuators should only be secured using M4 screws with a flat head
(e.g. M4 cheese-head or pan head screws).
}The actuator should be protected from unauthorised removal and from contamination.
Close the mounting holes using the seals provided.
}Torque setting: Max. 0.8 Nm.
}The distance between two safety switches must be maintained (see Technical De-
tails [ 20]).
Safety switches and actuators
}Should not be exposed to heavy shock or vibration and
}Should not be used as a limit stop.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 14

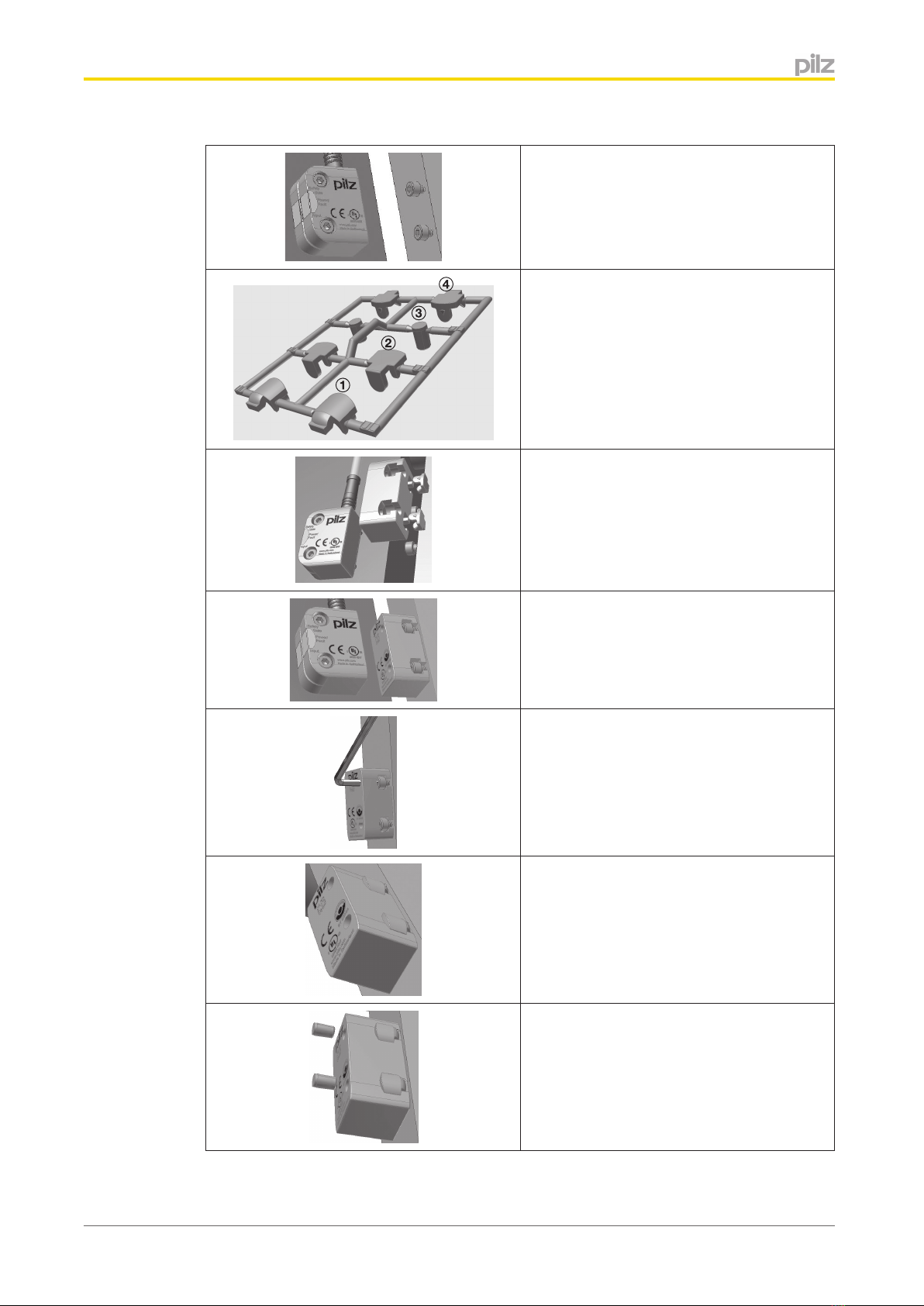

Parallel assembly
Drill holes in the mounting surface (see Di-
mensions [ 19]) and cut threads in the
holes for M4 screws.
Use a screw to fix the safety switch in place.
1. Do not fully tighten the 2nd screw on the
safety switch.
2. Attach the screws for the actuator, leav-
ing a distance of 3 … 6 mm between the
screw head and plate.
Slide the actuator on to the mounting sur-
face. The inscribed area on the actuator
(sensing face) should face the safety switch.
Slide the actuator on to the screws.
Align the safety switch and tighten the
screws.
Align the actuator and tighten the screws.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 15
For the next steps you will need the seals as
illustrated.
Use the seals to close the screws' mounting
holes on the actuator
}(4): Without UL approval
}(1): For UL approval
Use the seals (2) to close the unused
mounting holes on the actuator.
Use the seals (3) to close the mounting
holes on the sensing face of the safety
switch.
Orthogonal assembly
Drill holes in the mounting surface (see Di-
mensions [ 19]) and cut threads in the
holes for M4 screws.
Use a screw to fix the safety switch in place.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 16
1. Do not fully tighten the 2nd screw on the
safety switch.
2. Attach the screws for the actuator, leav-
ing a distance of 3 … 6 mm between the
screw head and plate.
For the next steps you will need the seals as
illustrated.
Use the seals (2) to close the unused
mounting holes on the actuator.
Slide the actuator on to the screws.
Align the actuator and tighten the screws.
Use the seals to close the screws' mounting
holes on the actuator
}(4): Without UL approval
}(1): For UL approval
Use the seals (3) to close the mounting
holes on the sensing face of the safety
switch.

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 17
Adjustment
}The stated operating distances (see Technical details [ 20]) only apply when the
safety switch and actuator are installed facing each other in parallel. Operating distanc-
es may deviate if other arrangements are used.
}Note the maximum permitted lateral and vertical offset (see Operating distances [ 7]
and Lateral and vertical offset [ 7]).
Operation
Check the function of the safety switch before commissioning.
Status indicators:
}"POWER/Fault" LED lights up green: The unit is ready for operation
}"Safety Gate" LED lights up yellow: Actuator is within the response range
}"Input" LED lights up yellow: There is a high signal at both inputs.
Error display through periodic flashing:
}"Input" LED lights up yellow: the signal switches from high to low at one input, while a
high signal remains on the other input (partial operation).
Remedy: Open both channels of the input circuit.
}"POWER/Fault" LED lights up red: Error message
Flashing codes for fault diagnostics are output to the "Safety Gate" and "Input" LEDs
(see Error display through flashing codes).
Remedy: Rectify fault and interrupt power supply.
Please note the different switch-on delay after UBis applied and after the recovery time of
the sensor and evaluation device.
Error display through flashing codes
The "Safetygate" and "Input" LEDs send flash signals; an error code can be established
from the number and sequence. The "Power/Fault" LED illuminates red.
Each error code is indicated by three short flashes of the "Input" or "Safetygate" LED. After
a longer pause, the LED will then flash at one second intervals. The number of LED flashes
corresponds to a digit in the error code. The error code can consist of up to 4 digits. The
digits are separated by a longer period without flashing. The entire sequence is constantly
repeated.
Number of flashes 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Decimal error code 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 18
Example:
Error code 1,4,1:
Flash frequency of the “Safetygate” or “Input” LED



 
Meaning of flash frequency:
Flash frequency Meaning
I 3 times, short Code for error message
II Once for one second Code for 1st digit
III 4 times, for one second each Code for 2nd digit
IV Once for one second Code for 3rd digit
V 3 times, short Code for error message repeated
Table of error codes
Error code
decimal
Number of flashes Description Remedy
1,4,1 3x short – 1x long –
4x long – 1x long – 3x
short
At least one of the two safety out-
puts 12 and 22 have voltage ap-
plied during system run-up
Check the wiring of safety outputs
12 and 22, rectify the wiring error
1,12 3x short – 1x long –
12x long – 3x short
During operation, short circuit be-
tween safety output 12 and 0 VDC
Rectify wiring error at safety output
12
1,13 3x short – 1x long –
13x long – 3x short
During operation, short circuit be-
tween safety output 22 and 0 VDC
Rectify wiring error at safety output
22
14 3x short – 14x long –
3x short
During operation, short circuit be-
tween safety output 12 and 24
VDC
Rectify wiring error at safety output
12
15 3x short – 15x long –
3x short
During operation, short circuit be-
tween safety output 22 and 24
VDC
Rectify wiring error at safety output
22

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 19
Dimensions in mm
PSEN cs4.2a, PSEN cs4.2b
18
19
R8
26,4
4,5
22 37
8
18
37 22
4,5
14,4
18
14,4
PSEN cs4.2p
18
26
33
14010
8M
8
19
26,4
R8
4,5
22
37
18
14,4
18
37
22
4,5
14,4
±

PSEN 4.2a/b/p/M12
Operating Manual PSEN 4.2a/b/p/M12
22188-EN-02 20
PSEN cs4.2 M12/8-0.15m
12M
18
48.5
31
160±10
R8
8
19
26,4
4,5
22
37
14,4
4,5
22
37
18
14,4
18
Technical details
PSEN cs4.2a and PSEN cs4.2b
General 541211 541212
Approvals CE, GOST, TÜV, cULus Listed CE, GOST, TÜV, cULus Listed
Sensor's mode of operation Transponder Transponder
Electrical data 541211 541212
Supply voltage
Voltage 24 V 24 V
Type DC DC
Voltage tolerance -20 %/+20 % -20 %/+20 %
Output of external power supply
(DC) 1,0 W 1,0 W
Max. switching frequency 3 Hz 3 Hz
Switching current per output 100 mA 100 mA
Breaking capacity per output 2,4 W 2,4 W
