Pilz PSEN cs6.21n User manual

PSEN cs6.21n
Operating Manual-1004128-EN-03
}PSEN sensor technology

Preface
This document is the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for the user's internal purposes. Suggestions and comments for improving this documenta-
tion will be gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PSEN cs6.21n
1004128-EN-03 3
Introduction 5
Validity of documentation 5
Using the documentation 5
Definition of symbols 5
Safety 6
Intended use 6
Safety regulations 7
Safety assessment 7
Use of qualified personnel 7
Warranty and liability 7
Disposal 7
For your safety 8
Unit features 8
Function description 9
Block diagram 9
Operating distances 9
Lateral and vertical offset 11
Wiring 12
Pin assignment, connector and cable 13
Connection to evaluation devices 13
Single connection 13
Connection to Pilz evaluation devices 14
Teaching in the actuator 15
Installation 16
Use in operating heights higher than 2000 m above sea level 18
Adjustment 18
Operation 19
Normal mode 19
Error display 19
Dimensions in mm 20
Technical details 22
Safety characteristic data 24
Supplementary data 25
Radio approval 25

Contents
Operating Manual PSEN cs6.21n
1004128-EN-03 4
Order reference 25
System 25
Accessories 26
EC declaration of conformity 27

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 5
Introduction
Validity of documentation
This documentation is valid for the product PSEN cs6.21n. It is valid until new documenta-
tion is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 6
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Safety
Intended use
The safety functions of the safety switch are:
}Safe shutdown of safety outputs when the actuator is removed beyond the assured re-
lease distance sar or when the actuator is not detected
}Remain shut down safely after the actuator has been removed
The safety switch meets the requirements in accordance with:
}EN 60947-5-3: PDDB with the actuator PSEN cs6.11 M12
}EN 62061: SIL CL 3
}EN ISO 13849-1: PL e (Cat. 4)
}ENISO14119: Coding level High, type 4
The safety switch may only be used with the corresponding actuator PSEN cs6.11 M12.
The safety level PL e (Cat. 4 )/SIL CL 3 is only achieved if
}the safety outputs use 2-channel processing.
The following is deemed improper use in particular
}Any component, technical or electrical modification to the product,
}Use of the product outside the areas described in this manual,
}Use of the product outside the technical details (see Technical details [ 22]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 7
Safety regulations
Safety assessment
Before using a device it is necessary to perform a safety assessment in accordance with
the Machinery Directive.
Functional safety is guaranteed for the product as a single component. However, this does
not guarantee the functional safety of the overall plant/machine. In order to achieve the re-
quired safety level for the overall plant/machine, define the safety requirements for the
plant/machine and then define how these must be implemented from a technical and organ-
isational standpoint.
Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is a qualified and knowledgeable person who, because of their train-
ing, experience and current professional activity, has the specialist knowledge required. To
be able to inspect, assess and operate devices, systems and machines, the person has to
be informed of the state of the art and the applicable national, European and international
laws, directives and standards.
It is the company’s responsibility only to employ personnel who
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion,
}Have read and understood the information provided in the section entitled Safety
}Have a good knowledge of the generic and specialist standards applicable to the spe-
cific application.
Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended,
}Damage can be attributed to not having followed the guidelines in the manual,
}Operating personnel are not suitably qualified,
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
Disposal
}In safety-related applications, please comply with the mission time TM in the safety-re-
lated characteristic data.
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 8
For your safety
DANGER!
Risk of malfunction of pacemakers or implanted defibrillators
The magnetic field of the safety switch may cause malfunctions of pace-
makers or implanted defibrillators.
People with a pacemaker or implanted defibrillators must maintain a dis-
tance of at least 100 mm to the safety switch and actuator.

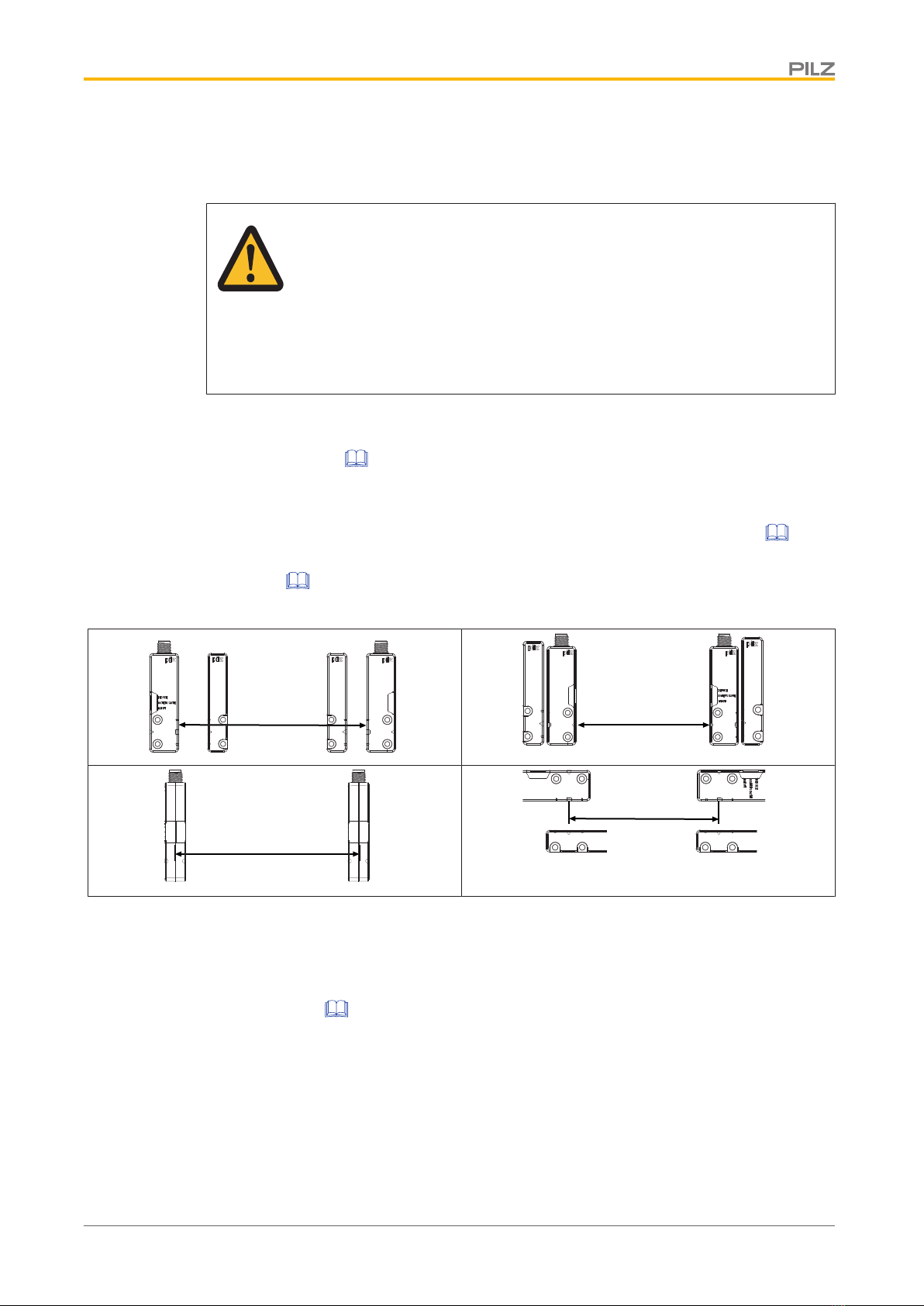

WARNING!
Loss of safety function due to manipulation of the interlocking device
Manipulation of the interlocking device may lead to serious injury and death.
– You should prevent any possibility of the interlocking device being
manipulated through the use of a spare actuator.
– Keep the substitute actuator in a safe place and protect it from unau-
thorised access.
– If spare actuators are used, these must be installed as described in
Installation [ 16].
– If the original actuators are replaced with substitute actuators, the ori-
ginal actuators must be destroyed before disposal.
}Do not remove the connector's protective cap until you are just about to connect the
unit. This will prevent potential contamination.
Unit features
}Transponder technology for presence detection
}Pilz coding type: uniquely coded
}Dual-channel operation
}2 safety outputs
}1 signal output
}Magnetic latching with permanent magnet, (holding force 30 N)
}LED display for:
– State of the actuator
– State of the inputs (always lights up yellow)
– Supply voltage/fault
}1 actuation direction with 3 approach directions (see Explanation of markings [ 9])
– Square marking
The guaranteed safe operating distances for the specified selections only apply when
the actuator approaches the switch vertically. With other approach directions, the oper-
ating distances may partly be considerably larger.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 9
Function description
The safety outputs may have a high or low signal, depending on the position of the actu-
ator.
State of the outputs:
Actuator in the re-
sponse range Safety output 12 Safety output 22 Signal output Y32
Yes High High High
No Low Low Low
Block diagram
A1 A2
Power Receiver Actuator
12 22 Y32

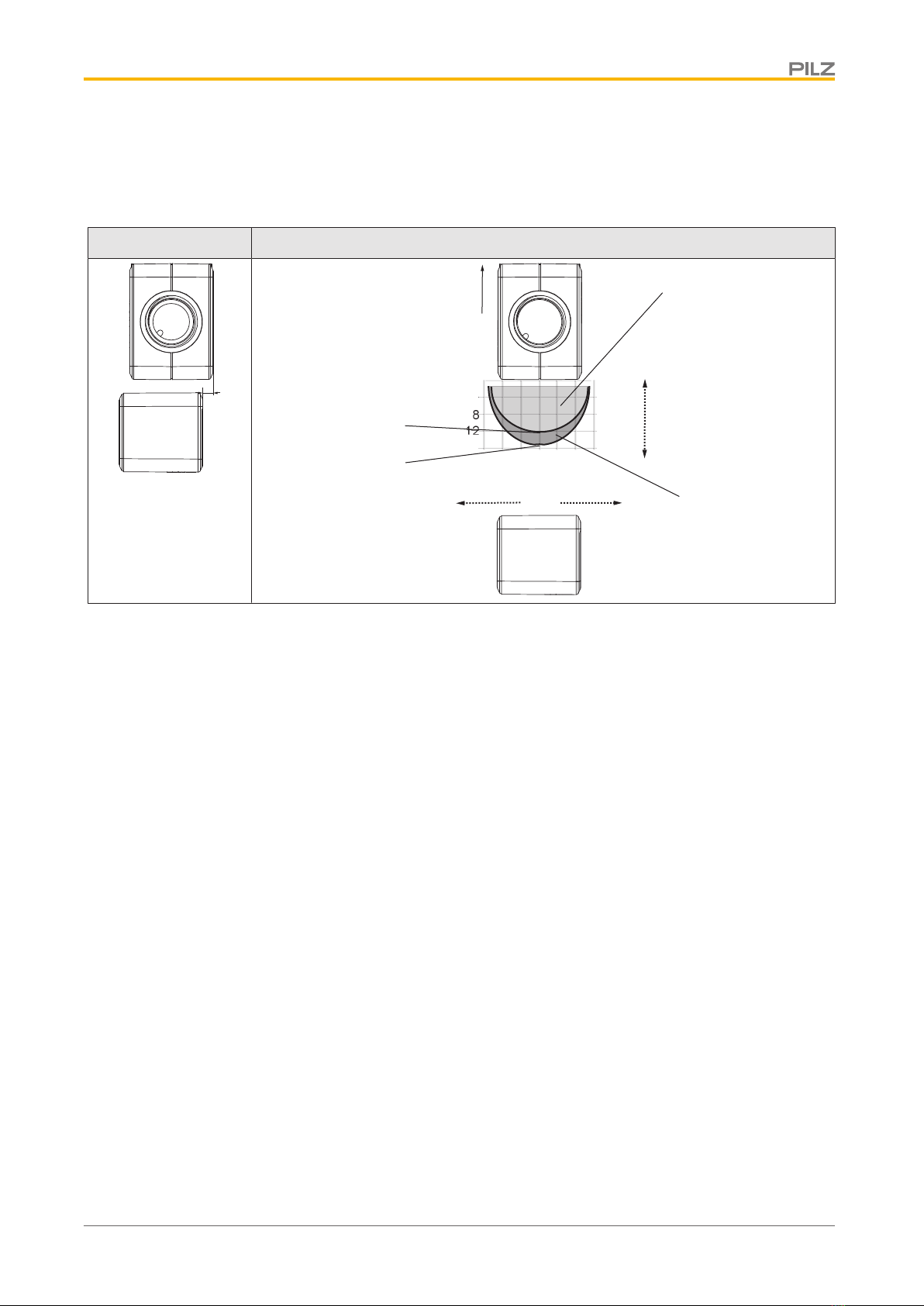

Operating distances
Alignment of the actuator Operating distances
[1]
DEVICE
INPUT
SAFETY GATE
[1] Actuator aligned to the square marking on the
switch
Sao Assured operating distance: 8 mm
Sar Assured release distance: 20 mm
So Typical operating distance: 11 mm
Sr Typical release distance: 14 mm

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 10
On
Off
Typical course of change in the holding force as the distance from the switch to the
actuator increases with frontal approach
0
5
10
15
20
25
30
35
0 5 10 15 20 25
holding force (N)
distance (mm)
Fig.: Change in the holding force for distances from 0-25 mm

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 11
Lateral and vertical offset
Lateral offset when aligning to the triangle marking
Actuator aligned to the square marking on the switch
[1]
[2]
[3]
[4] [4]
[5]
[6]
4
0
14
-12 -8 -4 0 1284
8
4
0
12
14
[7]
4
4
Legend
[1] Hysteresis
[2] Typical operating distance SO
[3] Typical release distance Sr
[4] Offset in mm
[5] Operating distance in mm
[6] Response range
[7] Status of LED

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 12
Lateral offset when aligning to the triangle marking
Actuator aligned to the square marking on the switch
[4]
[5]
[7] [8]
[1]
[3]
[2]
840
-12
-8
-4
0
12
8
4
1216
8 4 012
16
-16
16
[6]
Legend
[1] Hysteresis
[2] Typical operating distance SO
[3] Typical release distance Sr
[4] Offset in mm
[5] Operating distance in mm
[6] Response range
[7] Status of LED
[8] Square marking
Wiring
Please note:
}Information given in the "Technical details" must be followed.
}The power supply must meet the regulations for extra low voltages with protective sep-
aration (SELV, PELV).
}The inputs and outputs of the safety switch must have a protective separation to
voltages over 60 VDC.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 13
INFORMATION
Only use safety relays with a 24 VDC supply voltage. Safety relays with a
wide-range power supply or in AC device versions have internal potential
isolation and are not suitable as evaluation devices.
}The supply voltage to the safety switch must be protected with a 2 A to 4A quick-acting
fuse.
}Ensure the wiring and EMC requirements of EN 60204-1 are met.
Pin assignment, connector and cable
12
3
5
4
5-pin M12 male connector
PIN
Pin
designation Function Wire colour
1 A1 +24 V UB brown
2 12 Output, channel1 white
3 A2 0 V UB blue
4 22 Output, channel2 black
5 Y32 Signal output grey
The wire colour also applies for the cable available from Pilz as an accessory.

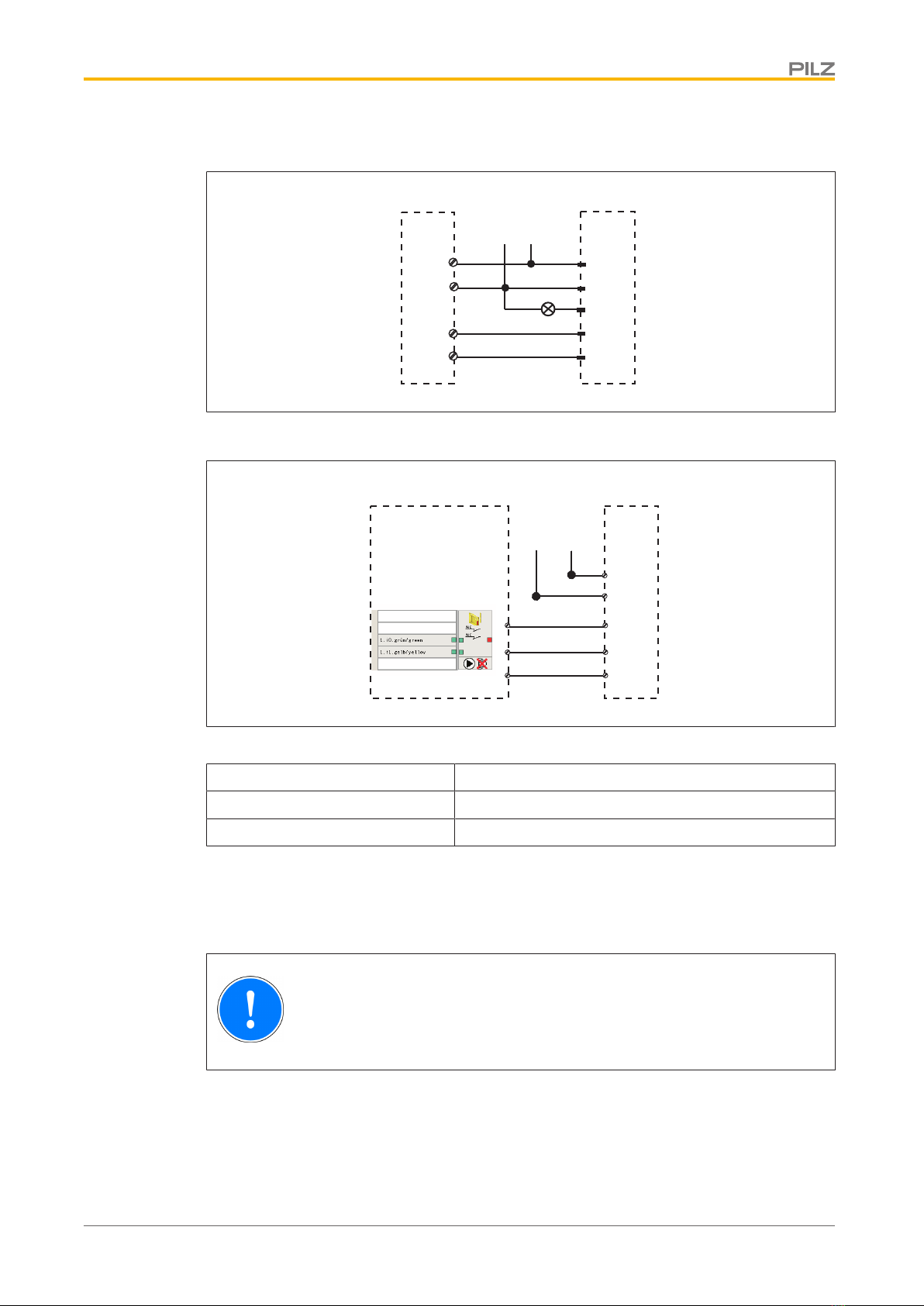

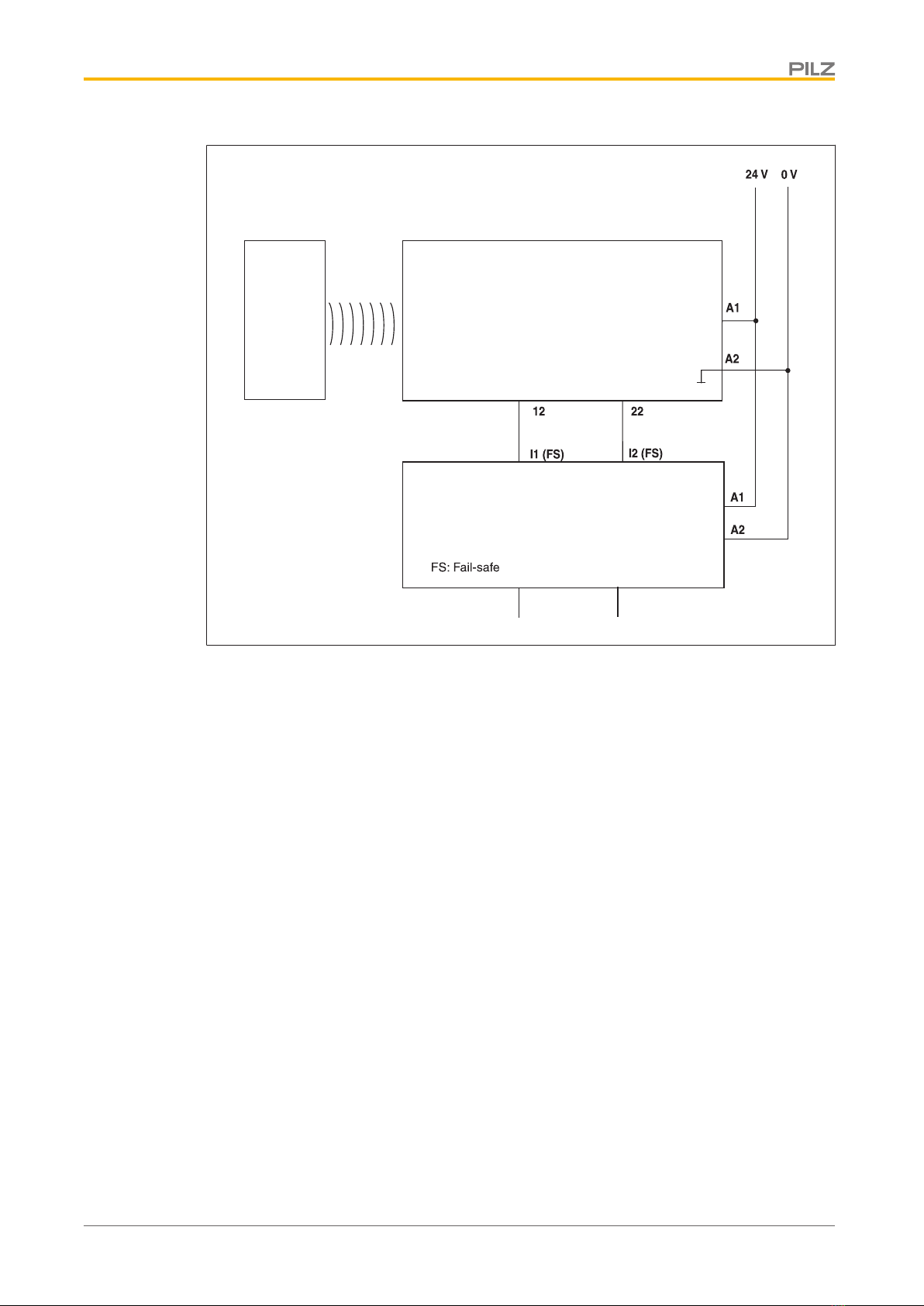

Connection to evaluation devices
Make sure that the selected evaluation device has the following properties:
}2-channel with feasibility monitoring
}OSSD signals are evaluated
Single connection
CAUTION!
Do not connect the signal output to 0 V!
If the signal output Y32 is connected to 0 V, the safety switch may be dam-
aged as a result. Connect the signal output Y32 to a consumer, e.g. to the
input on a control system, or leave the signal output unconnected. Also note
the max. current (see Technical details [ 22]).

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 14
Actuator Receiver
Evaluation device
Connection to Pilz evaluation devices
The safety switch PSEN cs6.21n can be connected to Pilz evaluation devices, for example.
Suitable Pilz evaluation devices are, for example:
}PNOZelog for safety gate monitoring
}PNOZpower for safety gate monitoring
}PNOZsigma for safety gate monitoring
}PNOZ X for safety gate monitoring
}PNOZmulti for safety gate monitoring
Configure the switch in the PNOZmulti Configurator with switch type 3.
}PSS for safety gate monitoring with standard function block SB064, SB066 or
FS_SafetyGate
The correct connection to the respective evaluation device is described in the operating
manual for the evaluation device. Make sure that the connection is made in accordance
with the specifications in the operating manual for the selected evaluation device.
The connections to two evaluation devices are shown on the following pages, by way of ex-
ample:
}PNOZ s3 and
}PNOZmulti

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 15
PNOZ s3
PSENcode
0 V
24 V
A1
A2
S12
A1
A2
Y32
12
22
2
1
3
4
5
PNOZ s3
S22
PNOZmulti
I0
I1
12
22
1
3
A1
A2
0 V 24 V
4
2
5 Y32
PNOZmulti PSENcode
I2
Legend:
I0 Input OSSD
I1 Input OSSD
I2 Signal input
Teaching in the actuator
The first actuator PSEN cs6.11 M12 detected by the safety switch is automatically taught
in as soon as it is brought into the response range.
NOTICE
No other actuator may be taught in once this actuator has been taught.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 16
Installation
CAUTION!
Potential loss of safety function due to changed device properties
The unit's properties may be affected if installed in an environment contain-
ing electrically or magnetically conductive material.
– Please check the operating distances and the assured release dis-
tance.
}The safety switch and actuator should be installed opposite each other in parallel.
Make sure that the actuator is aligned to the square marking on the sensor (see Oper-
ating distances [ 9]).
}Safety switches and actuators should only be secured using M4 screws with a flat head
(e.g. M4 cheese-head or pan head screws).
}Torque setting: Please note the information provided under Technical details [ 22].
}The distance between two safety switches must be maintained (see Technical
details [ 22]).
The distance can be undershot in certain application cases (see diagrams).
DEVICE
INPUT
SAFETY GATE
235
DEVICE
INPUT
SAFETY GATE
95
155
DEVICE
INPUT
SAFETY GATE
125
}If using angled connector plugs, note the defined angle of the cable routing.
}When installing make sure you comply with the requirements of EN ISO 14119.
}Make sure that the safety switch and actuator cannot be used as an end stop.
}For simpler installation, the mounting brackets (see Order reference for
Accessories [ 26]) can be used.
}The actuator should be protected from unauthorised removal and from contamination.
Close the mounting holes using the seals provided (see diagrams). The use of seals
should be regarded as equivalent to using permanent fastenings in accordance with
Clause 7.2c of ENISO14119.

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 17
[4]
[4]
[3]
[2]
[1]
[1]
[4]
[4]
[3]
[2]
[1]
[1]
Fig.: Seals
[1]: 4 seals for actuators
[2]: 2 seals for actuators
[3]: 2 seals for actuators
[4]: 2 seals for switches and 2 seals for actuators
[4]
DEVICE
SAFETY GATE
INPUT
DEVICE
SAFETY GATE
INPUT
Fig.: Applying the screw cover [4] on the switch

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 18
[1]
[4] [3]
[2]
Fig.: Applying the screw covers [1] and [3] on the actuator
Procedure:
1. Drill holes (for M4 screws) in the mounting surface to secure the actuator and sensor
(see Dimensions in mm [ 20]).
2. Use a screw to fix the sensor to the mounting surface.
Make sure that the square marking on the sensor can be operated using the actuator
from the right side.
3. Do not fully tighten the second screw on the safety switch.
4. Use a screw to fix the actuator to the mounting surface.
Make sure that the actuator with the triangle marking points towards the triangle mark-
ing on the sensor.
5. Do not fully tighten the second screw on the actuator.
6. Align the safety switch and tighten the screws.
7. Align the actuator and tighten the screws.
Use in operating heights higher than 2000 m above sea level
When using the PSEN cs6.21n note the reduced max. ambient temperature of +60 °C at a
height of 2000m to 4000 m.
Adjustment
}The stated operating distances (see Technical details [ 22]) only apply when the
safety switch and actuator are installed facing each other in parallel. Operating dis-
tances may deviate if other arrangements are used.
}Note the maximum permitted lateral and vertical offset (see Operating distances [ 9]
and Lateral and vertical offset [ 11]).

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 19
Operation
NOTICE
The safety function should be checked after initial commissioning and each
time the plant/machine is changed. The safety functions may only be
checked by qualified personnel.
Status indicators:
Legend
LED off
LED on
LED flashes (500 ms on, 500 ms off)
LED flashes quickly (50 ms on, 950 ms off)
Normal mode
LED status Switch status
Device
green
Ready for operation
Safety gate
yel-
low
Actuator is within the response range
Off
Actuator is outside the response range
Input
yel-
low
The unit is ready for operation
Error display
LED status
Switch status Remedy / measureDevice Safety Gate Input
red
Off Off
Internal error on
switch
Change the switch.
red yellow yellow
Supply voltage is
outside the toler-
ance range
Ensure the voltage supply
corresponds to the Tech-
nical details [ 22].
yellow
Display not
definitive
Display not
definitive
Supply voltage is at
the limit of the toler-
ance range
Ensure the voltage supply
corresponds to the Tech-
nical details [ 22].

PSEN cs6.21n
Operating Manual PSEN cs6.21n
1004128-EN-03 20
LED status
Switch status Remedy / measureDevice Safety Gate Input
red
Display of
last status
Display of
last status
Outputs in fault con-
dition
Check the outputs and
switch the voltage off and
then on again.
green yellow
Display not
definitive
Wrong actuator Use the actuator PSEN
cs6.11 M12.
Off
yellow yellow
Switch doesn't start Change the switch.
Dimensions in mm
Safety switch
[1] [2]
90
26,4
7,5 22
7,4
11,6
[3]
DEVICE
INPUT
SAFETY GATE
[4] [4]
101,6
19
