Pioneer PDK-50HW2 User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
ARP3109
HANDWRITING DEVICE
PDK-50HW2
1. SAFETY INFORMATION ...................................... 3
2. EXPLODED VIEWS AND PARTS LIST................ 4
3. SCHEMATIC DIAGRAM ...................................... 10
4. PCB CONNECTION DIAGRAM.......................... 45
5. PCB PARTS LIST ............................................... 74
6. ADJUSTMENT .................................................... 76
CONTENTS 7. GENERAL INFORMATION ................................ 77
7.1 Circuit Description ....................................... 77
7.1.1 Block Diagram ................................... 77
7.2.2 Block Diagram of Assy for each
LED-A to LED-G ................................ 78
7.3.3 Block Diagram of Assy for each
SENSOR-H to SENSOR-N ............... 79
8. PANEL FACILITIES AND SPECIFICATIONS .... 80
T – ZZB NOV. 2001 Printed in Japan
For details, refer to "Important symbols for good services" on the next page.
THIS MANUAL IS APPLICABLETOTHE FOLLOWING MODEL(S) ANDTYPE(S).
Type Model
PDK-50HW2
UCYVLDP AC100 – 240V
Power Requirement Remarks
with AC adapter

PDK-50HW2
2
[ NOTES ON SERVICING ]
7 CLEARNING
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools:
Position to be cleaned Cleaning tools
Pickup leneses Cleaning liquid : GEM1004
Cleaning paper : GED-008
Position to be cleaned Cleaning tools
Cassette heads
Pinch rollers Cleaning paper : GED-008
Capstans
Position to be cleaned Cleaning tools
Fans Cleaning paper : GED-008
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

PDK-50HW2
3
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
INGTHE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test

4
PDK-50HW2
(BATTERY)
1 (×8)
10
9
8
14
6
5
11
13 (×2)
3
4
12
7
2.1 HAND WRITING DEVICE [ PDK-50HW2 ]
2. EXPLODED VIEWS AND PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
2.1.1 PACKING

5
PDK-50HW2
PACKING PARTS LIST
1 Knurled Fingerbolts AZB1443
2• • •••
3 RS-232C Cable AZD1110
4 AC Power Cord(for US) AZD1114
4 AC Power Cord(for Europe) ADG1173
5 Packing Set AZH1146
6 Pen Stand AZN2485
7 Mounting Bar AZN2486
8 Operating Instractions AZR1053
(Japanese, English, French, German)
9 Driver Software AZR1054
10 AC Adapter AZX1057
11 Pen AZX1058
12 Allen Bolt SMZ80H200FNI
13 Replacement Tip AZE1119
14 Operating Instractions AZR1057
(Italian, Dutch, Spanish)
Mark No. Description Part No.

6
PDK-50HW2

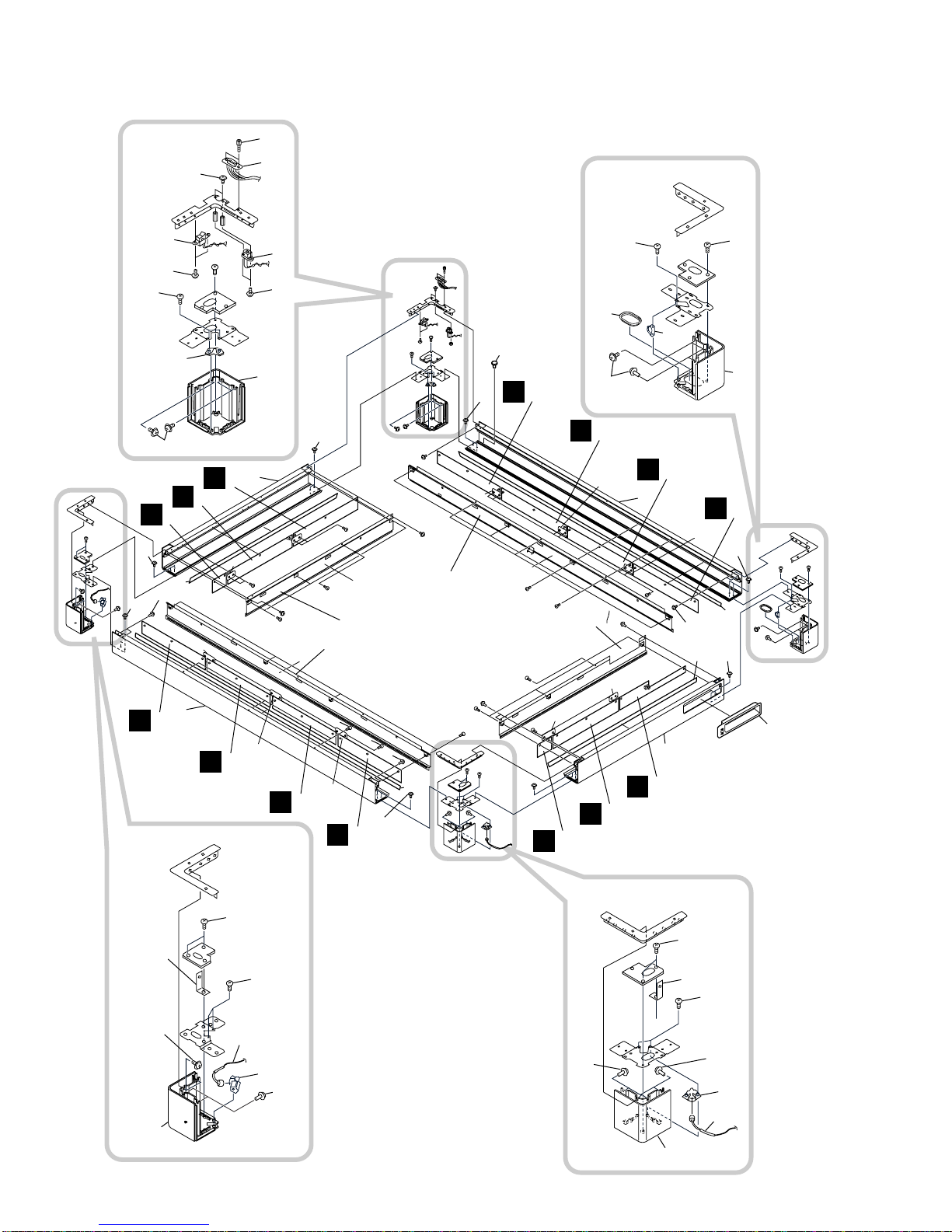

2.1.2 CORTING SECTION
11
42
22
42
38
14
23
1
6
7
42
43
13
40
18
43
43
43
43 39
39
43
45
45
45 45
45
45
45
45
45
45
41
16
(PCB COVER(Upper))
(PCB COVER(Under))
(PCB COVER(L)) (PCB COVER(R))
19
13
40
9
8
18
40
43
43
43
40
12
41
41
41
10
19
15 14
17
13
38 43
40
40
21
14
38
43
40
20
43
38
14
40
22
20
41
41 40
43
43
41
43
43
39
39
43 40
41
N
36
A
37
G
29
H
30
F
28
E
27
M
35
L
34
I
31
J
32
K
33
B
24
C
25
D
26

7
PDK-50HW2
1 Hexagon Nat AZB1432
2 Nat AZB1433
3 3P Assy AZD1106
4 10P Assy AZD1107
5 14P Assy AZD1108
6 232C Assy AZK1138
7 DC Assy AZK1139
8 Frame(Lower) AZN2418
9 Frame(Upper) AZN2419
10 Frame(Right) AZN2484
11 Frame(Left) AZN2421
12 Escutcheon AZN2422
13 Corner AZN2423
14 Sensor Holder AZN2425
15 Filter RC AZN2426
16 Filter LED AZN2429
17 Corner R AZN2449
18 Filter UL AZN2450
19 Filter LR AZN2451
20 Earth Plate AZN2454
21 SS Sensor A AZP1161
22 SS Sensor B AZP1162
23 SW Assy AZS1137
24 LED-B Assy AZW1170
25 LED-C Assy AZW1171
Mark No. Description Part No.
CORTING SECTION PARTS LIST Mark No. Description Part No.
26 LED-D Assy AZW1172
27 LED-E Assy AZW1185
28 LED-F Assy AZW1174
29 LED-G Assy AZW1175
30 Sensor-H Assy AZW1176
31 Sensor-I Assy AZW1177
32 Sensor-J Assy AZW1178
33 Sensor-K Assy AZW1179
34 Sensor-L Assy AZW1180
35 Sensor-M Assy AZW1181
36 Sensor-N Assy AZW1182
37 LED-A Assy AZW1184
38 Screw PBZ20P080FMC
39 Screw PMA30P080FMC
40 Screw PMB30P080FMC
41 Screw PMF30P060FMC
42 Screw PMB20P060FMC
43 Screw PBZ30P060FMC
44 14P Assy (Red) AZD1112
45 Plate AZN2491
44
3
3734
5
30
36
3
527
26
3
4
A
D
EH
N
L

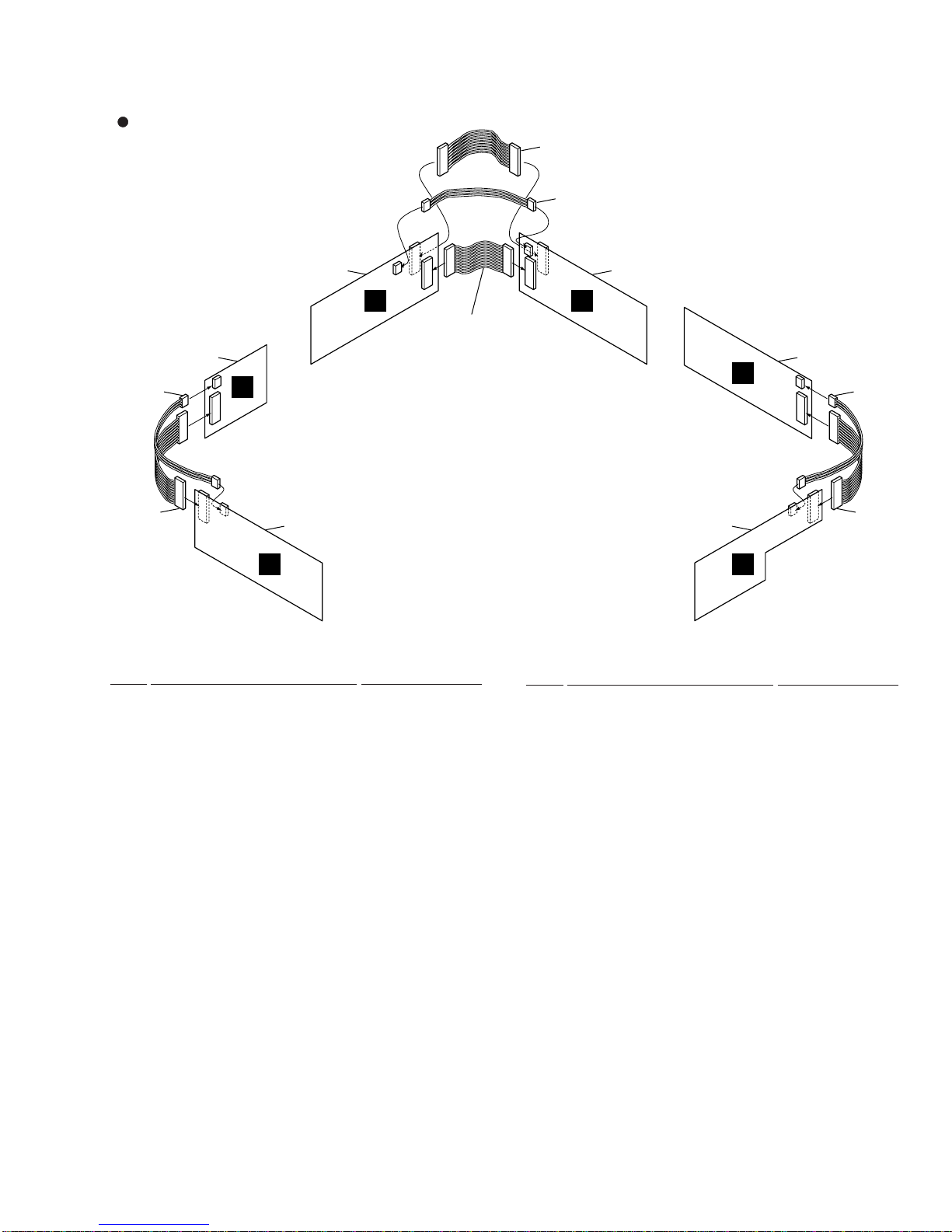

WIRING DIAGRAM

8
PDK-50HW2
1 Replacement Tip (Felt) AZE1119
2 Cap AZN2438
3 Holder AZN2439
4 Cover T AZN2440
5 Cover B AZN2441
6 Key Top (Large) AZN2443
7 Key Top (Small) AZN2444
8 Filter AZN2446
9 Cushion Rubber AZN2447
10 Battery Cover Assy AZN2455
11 Pen PCB Assy AZW1183
12 Screw PBZ20P080FMC
Mark No. Description Part No.
PEN PARTS LIST

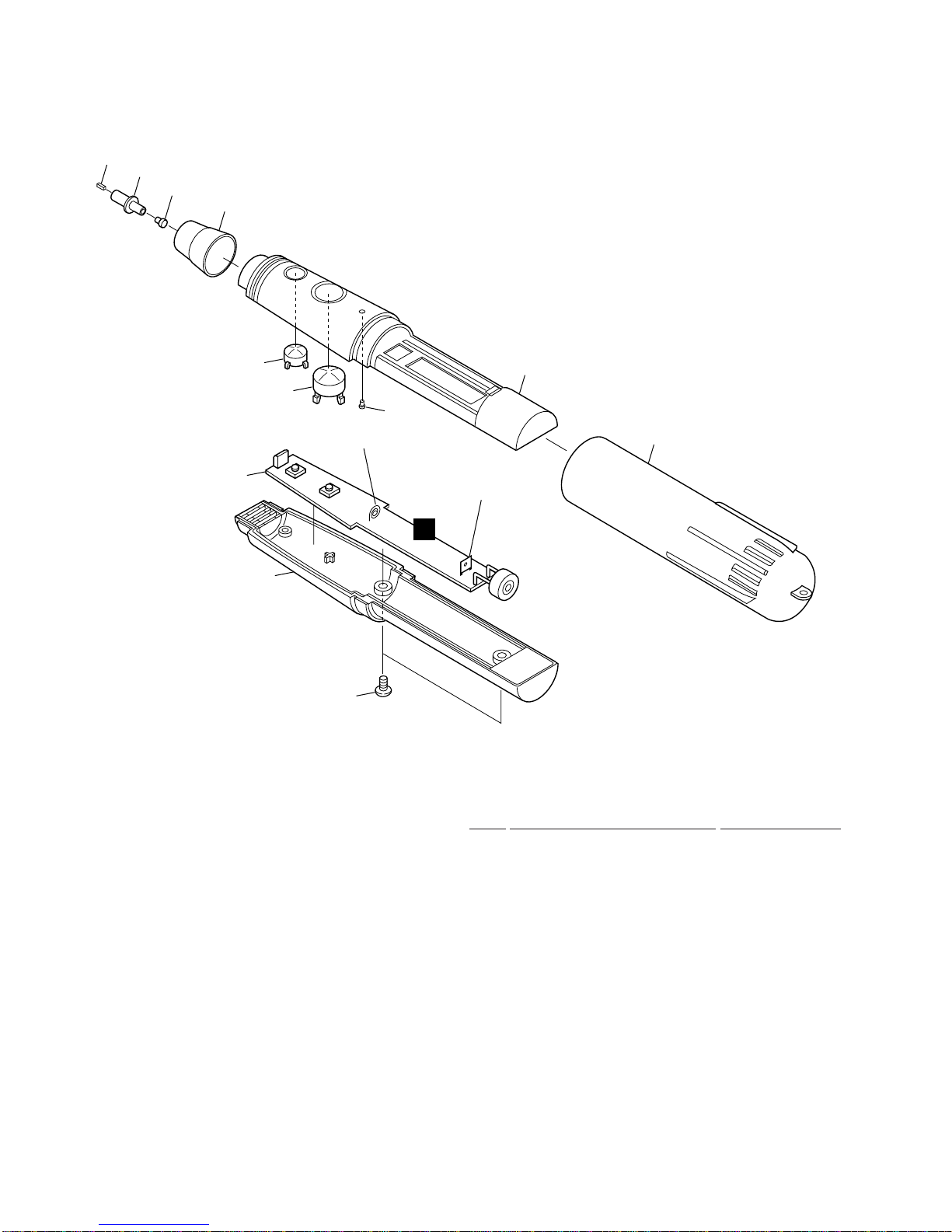

2.1.3 PEN
1392
4
(CONTACT-)
(CONTACT+)
10
11
7
6
12
8
5
O

9
PDK-50HW2

PDK-50HW2
10
A
B
C
D
1234
1234
CN4
CN1
CN4
CN1
CN4 CN1
CN5
CN3 CN2
CN6
CN1
CN1 CN4 CN4
LED-D ASSY
(AZW1172)
D
LED-E ASSY (AZW1185)
E
LED-F ASSY (AZW1174)
F
LED-C ASSY
(AZW1171)
C
SENSOR-K ASSY
(AZW1179)
K
SENSOR-J ASSY
(AZW1178)
J
LED-G ASSY
(AZW1175)
G
<BACK SIDE VIEW>

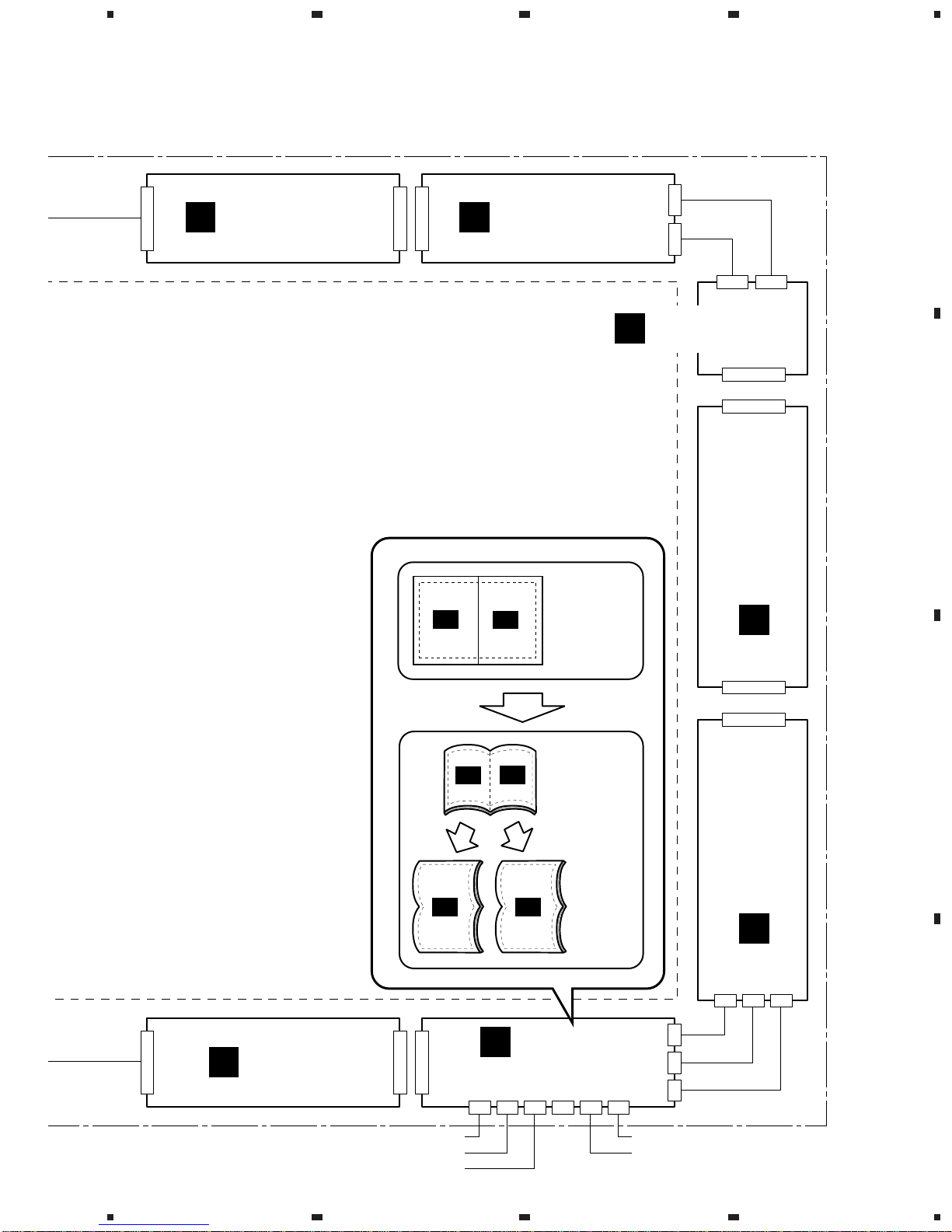

3.1 OVERALL CONNECTION DIAGRAM

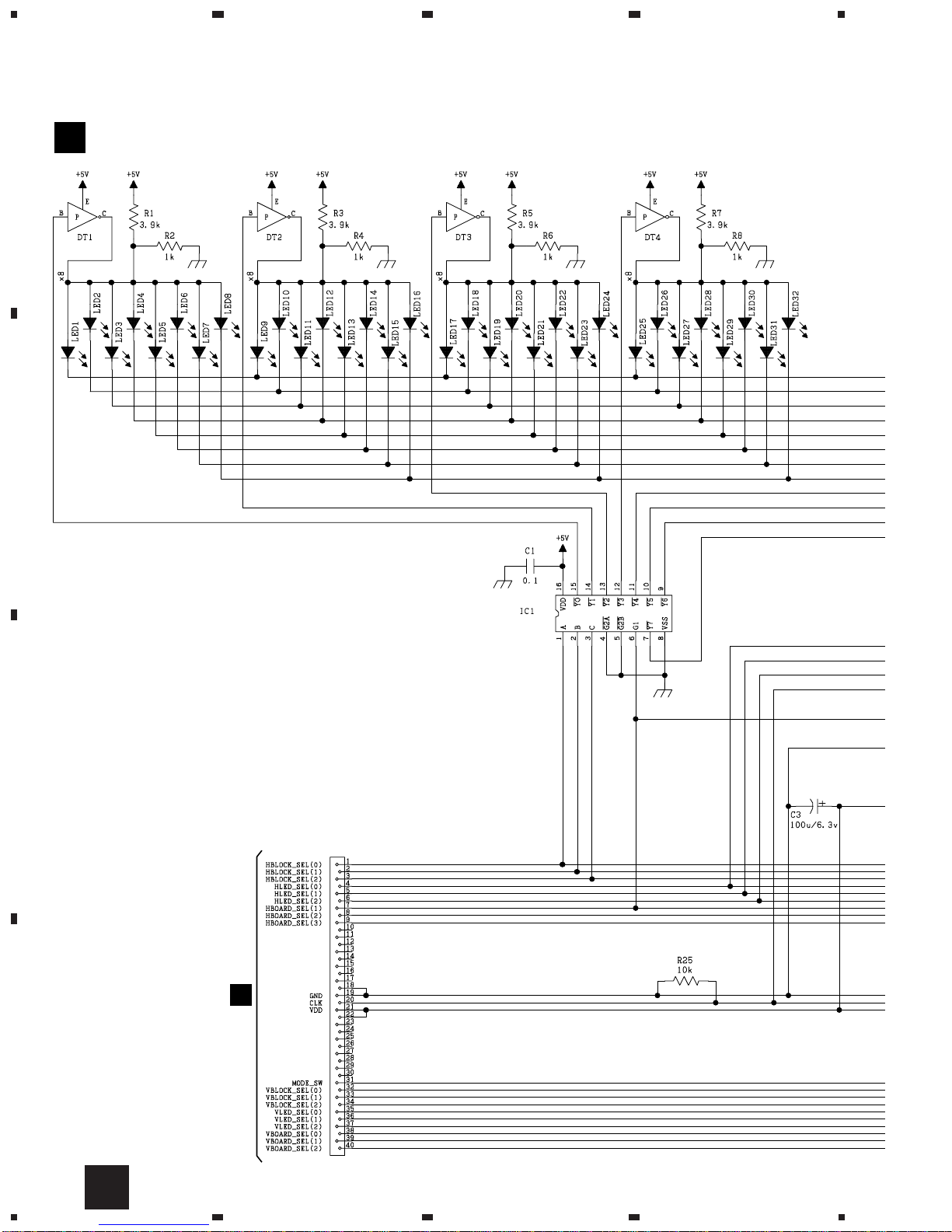

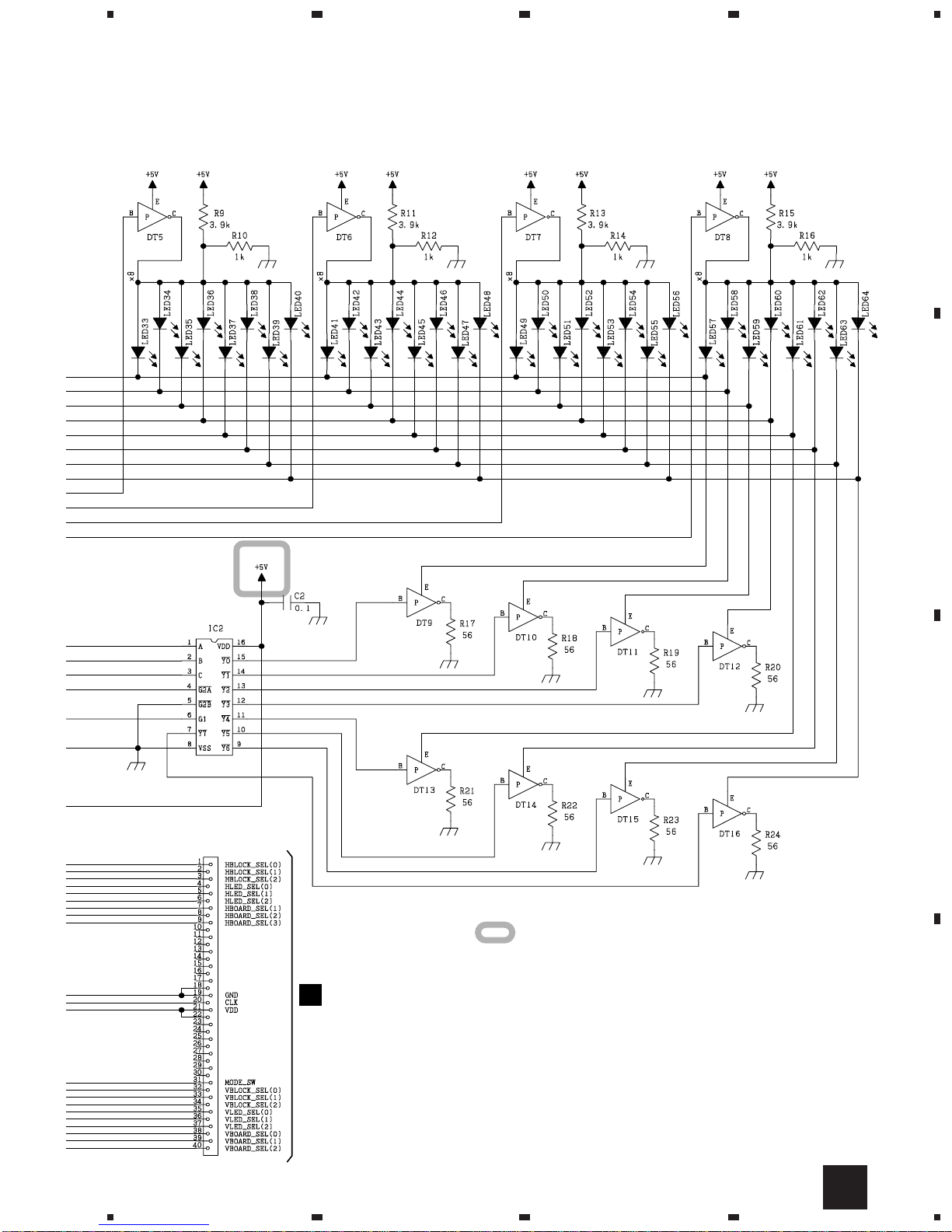

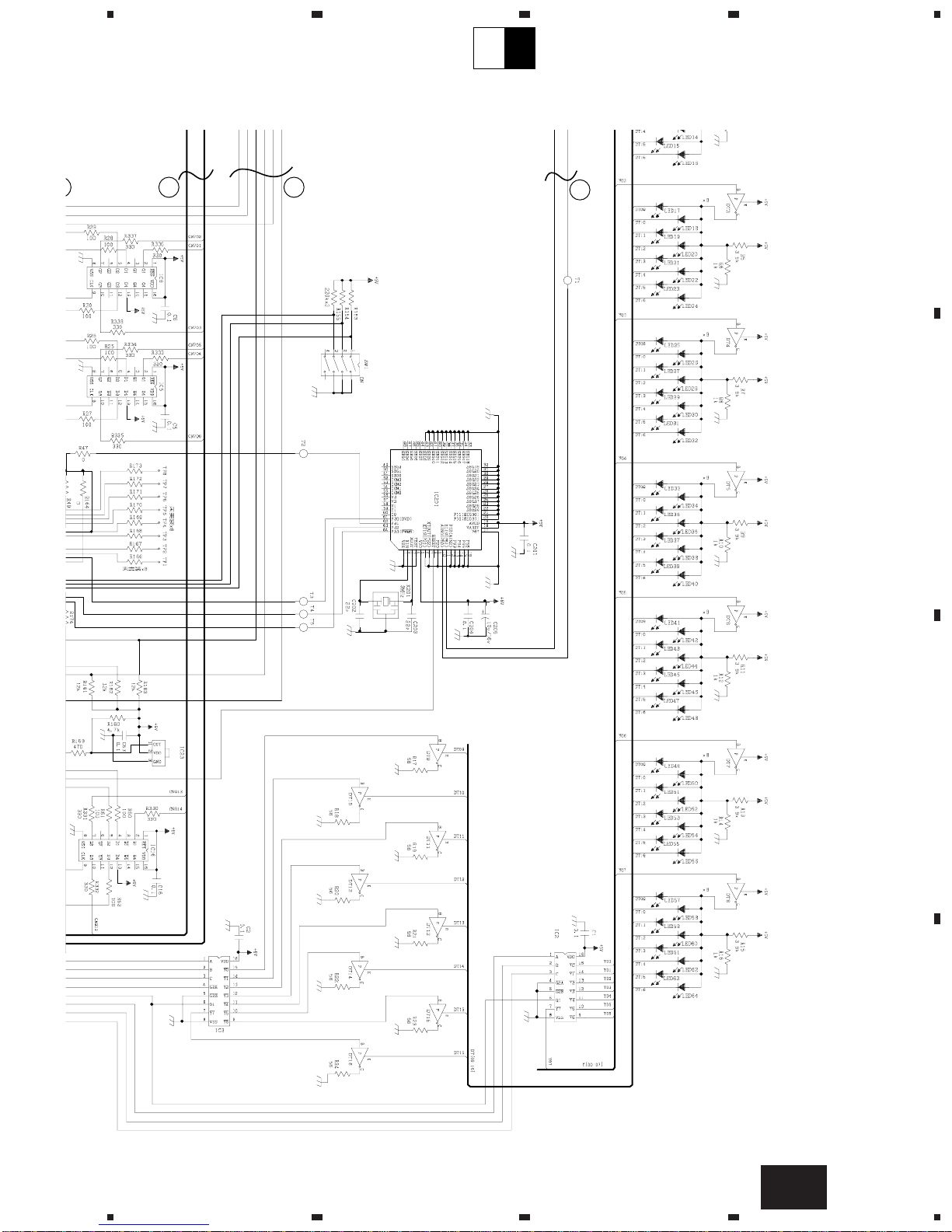

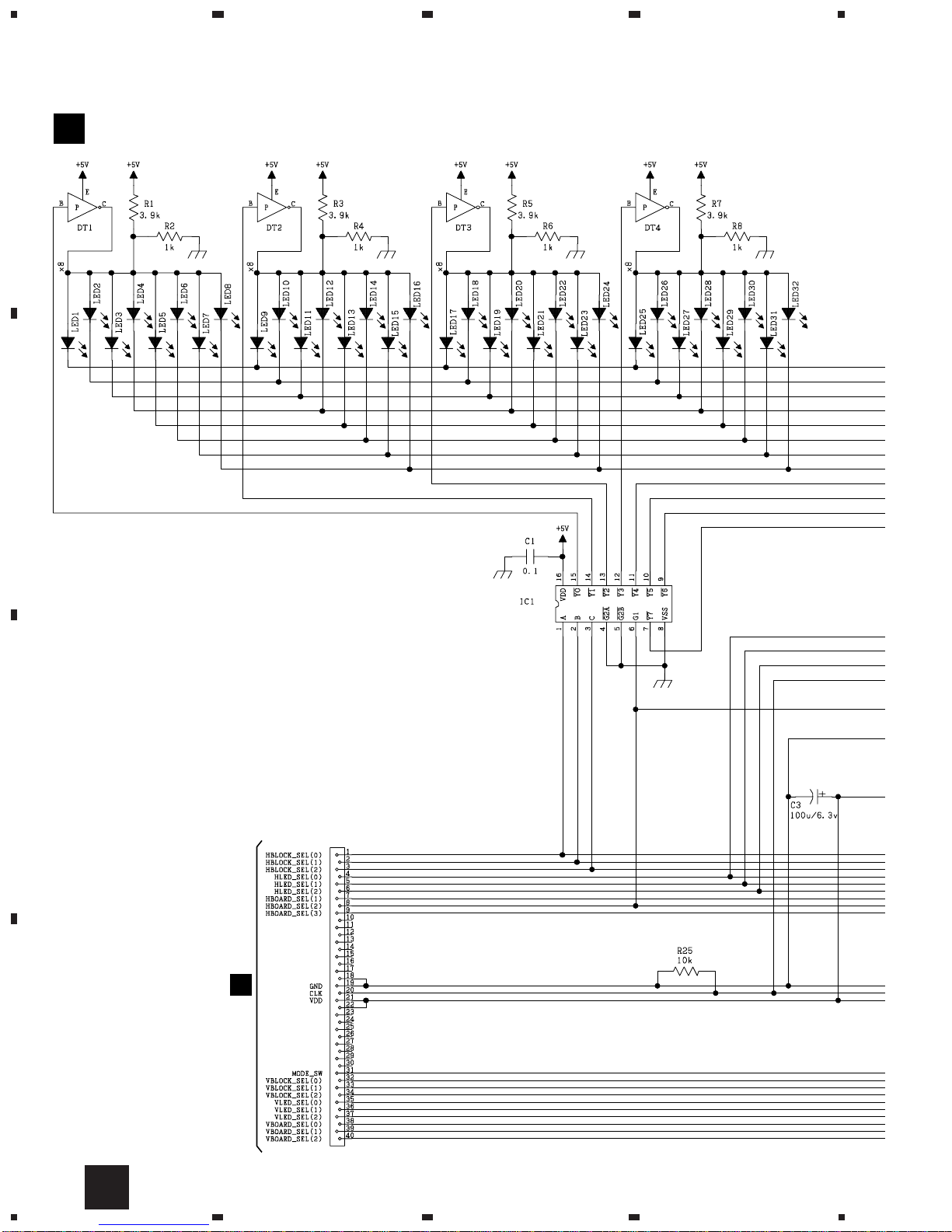

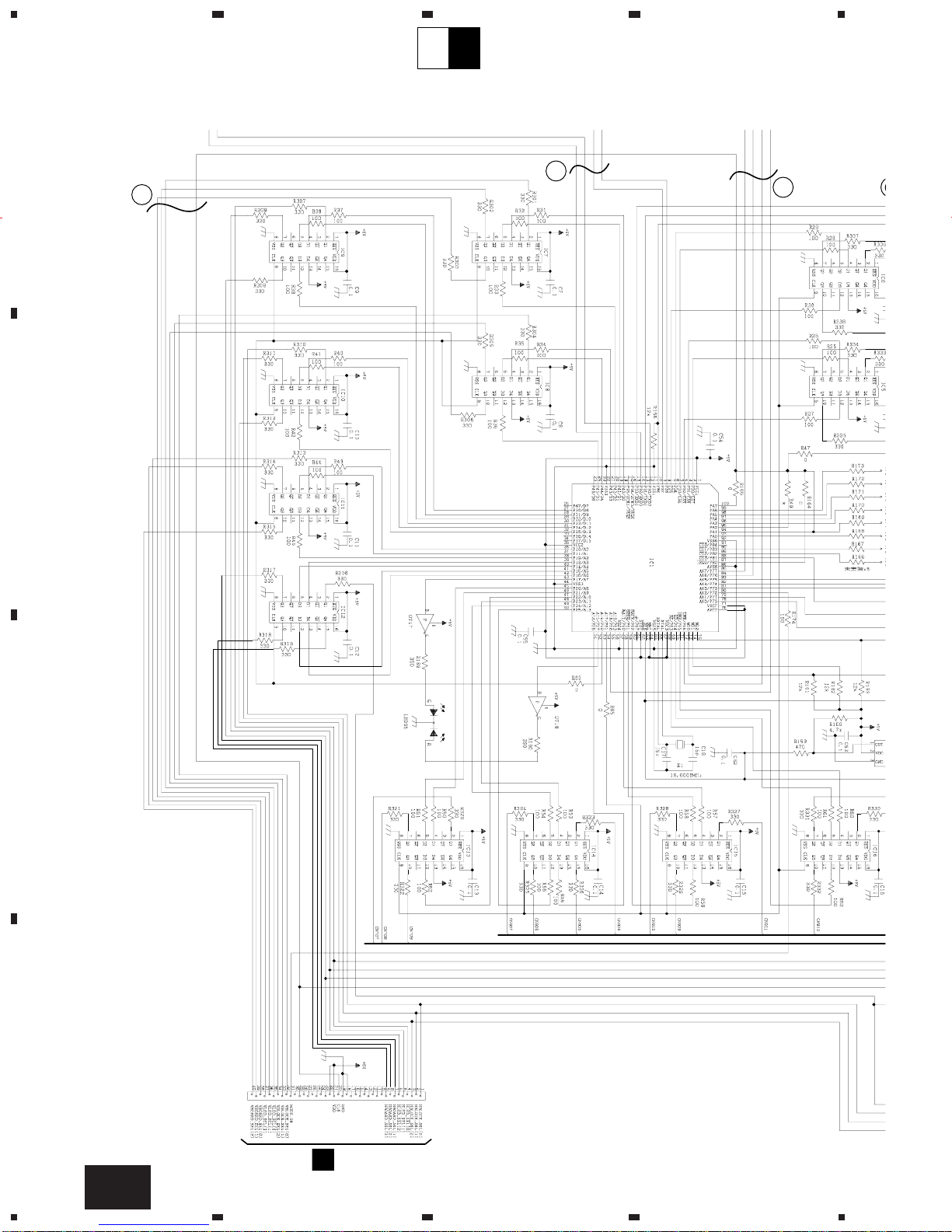

3. SCHEMATIC DIAGRAM

PDK-50HW2
11
A
B
C
D
5678
5678
Note :When ordering service parts, be sure to refer to “EXPLOEDVIEWS and PARTS LIST” or“PCB PARTS LIST”.
CN7
CN8
CN9
CN10
CN4 CN1
CN1
CN4
CN1
CN4
CN4
CN1 CN4 CN1
CN11 CN12 CN13 CN14 CN15
DC ASSY
232C ASSY
SW ASSY SENSOR HOLDER SENSOR HOLDER
CN4 CN5 CN6
LED-A ASSY
(AZW1184)
A
LED-B ASSY
(AZW1170)
B
SENSOR-I ASSY
(AZW1177)
I
SENSOR-H ASSY
(AZW1176)
H
SENSOR-N ASSY
(AZW1182)
N
SENSOR-M ASSY (AZW1181)
M
SENSOR-L ASSY (AZW1180)
L
CN5
CN3CN2
CN6
<BACK SIDE VIEW>
Large size
SCH diagram
Guide page
Detailed page
A -a
A -a
A -a
A -c
A -b
A -b
A -b
A -d

PDK-50HW2
12
A
B
C
D
1234
1234
∗
marked parts are not used.
(They are standby parts)
CN13
CN7
CN8
CN9
CN11
CN10
CN12
CN15
CN14
680
680
AZQ1114
AZQ1097 AZQ1097
AZQ1116
AZQ1116
AZQ1097
AZQ1103
AZQ1102 AZQ1102
AZQ1097
AZQ1102 AZQ1102
AZQ1103
µPD4721GS-GJG
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1103
AZQ1102
AZQ1102
AZQ1102 AZQ1102
AZQ1103
TC74HC00AF TC4538BF
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
TC74HC4066AF
AZQ1115
AZQ1113
CN4
L
CN5
L
CN6
L
SW ASSY
SENSOR
HOLDER
SENSOR
HOLDER
DC ASSY
232C
ASSY
LED-A ASSY (AZW1184)
A
A
B
C
D
E
F
: The power supply is shown
with the marked box.
3.2 LED-A ASSY
A-a
A

PDK-50HW2
13
A
B
C
D
5678
5678
CN4
AZQ1096
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1100
AZQ1100
AZQ1100
AZQ1100
AZQ1105
AZQ1105
AZQ1111
AZQ1109
AZK1141
AZQ1100
AZQ1100
AZQ1100 AZQ1100 AZQ1100 AZQ1100
AZQ1100
TC74HC138AF
TC74HC138AF
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZS1138
AZQ1100 AZQ1100
AZQ1098
CN1
B
A
B
C
D
E
F
A-b
A

PDK-50HW2
14
A
B
C
D
1234
1234
∗
marked parts are not used. (They are standby parts)
CN8 CN9
CN11 CN10 CN12
AZQ1114
AZQ1097 AZQ1097
AZQ1116
AZQ1116
AZQ1097
AZQ1103
AZQ1102 AZQ1102
AZQ1097
AZQ1102 AZQ1102
AZQ1103
µPD4721GS-GJG
CN4 CN5
L
CN6
L
SW ASSY
DC ASSY
232C
ASSY
D
E
F
: The power supply is shown
with the marked box.
A-bA-a
1/2
A-a

PDK-50HW2
15
A
B
C
D
5678
5678
CN13
CN7 CN8 CN9
CN15 CN14
680
680
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1102
AZQ1103
AZQ1102
AZQ1102
AZQ1102 AZQ1102
AZQ1103
TC74HC00AF TC4538BF
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
TC74HC4066AF
AZQ1115
AZQ1113
CN4
L
CN5
L L
SENSOR
HOLDER
SENSOR
HOLDER
LED-A ASSY (AZW1184)
A
A
B
C
A-bA-a
2/2
A-a

PDK-50HW2
16
A
B
C
D
1234
1234
CN4
AZQ1100
AZQ1100 AZQ1100 AZQ1100
AZQ1105
AZQ1105
AZQ1111
AZQ1109
AZK1141
AZQ1100 AZQ1100 AZQ1100 AZQ1100 AZQ1100 AZQ1100
AZQ1100
AZQ1100 AZQ1100
CN1
B
C
D
E
F
A-bA-a
1/2
A-b

PDK-50HW2
17
A
B
C
D
5678
5678
AZQ1096
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1100
TC74HC138AF
TC74HC138AF
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZQ1105 AZQ1105
AZS1138
AZQ1100 AZQ1100
AZQ1098
A
B
C
D
A-bA-a
2/2
A-b

PDK-50HW2
18
A
B
C
D
1234
1234
3.3 LED-B ASSY
CN1
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
TC74HC138AF
AZK1140
CN4
A
LED-B ASSY (AZW1170)
B
B

PDK-50HW2
19
A
B
C
D
5678
5678
B
CN4
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1105
AZQ1105
AZQ1105
AZQ1105
AZQ1105
AZK1141
TC74HC138AF
AZQ1105
AZQ1105
AZQ1105
CN1
C
: The power supply is shown with the marked box.

PDK-50HW2
20
A
B
C
D
1234
1234
CN1
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
AZQ1108
AZQ1105
TC74HC138AF
AZK1140
CN4
B
LED-C ASSY (AZW1171)
C
3.4 LED-C ASSY
C
