Pitco SG User manual

There's Always Something Cooking!
Installation and Operation Manual
For Gas Fryers
ALL OPTIONS
Covering Models
SG & SGF
14, 14R, 14T, 18, 18F, 24P, 24F, 34P & 34F
Pitco Frialator, Inc., P.O. Box 501, Jct I-89 & I-93 Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304
[phone] • [phone] • FAX [phone]
www.pitco.com
FRANCAIS ENGLISHFRANÇAIS
ESPAÑOL
®®

THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE
FOR YOUR SAFETY
DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.
WARNING
Improper installation, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
TO THE PURCHASER
Post in a prominent location the instructions to be followed in the event that an operator smells gas. Obtain this
information from your local gas supplier.
WARNING
The fryer is equipped with an oil proof, electrical supply cord with a three prong safety plug. This is to protect
operators from electrical shock hazard in the event of an equipment malfunction. DO NOT cut or remove the
grounding (third) prong from this plug.
WARNING
There is an open flame inside the fryer. The unit may get hot enough to set near by materials on fire. Keep the
area around the fryer free from combustibles.
WARNING
DO NOT supply the fryer with a gas that is not indicated on the data plate. If you need to convert the fryer to
another type of fuel, contact your dealer.
WARNING
DO NOT use an open flame to check for gas leaks!
WARNING
Wait 5 minutes before attempting to relight the pilot to allow for any gas in the fryer to dissipate.
WARNING
Never melt blocks of shortening on top of the burner tubes. This will cause a fire, and void your warranty.
WARNING
Water and shortening DO NOT mix. Keep liquids away from hot shortening. Dropping liquid frozen food into the
hot shortening will cause violent boiling.
WARNING
Ensure that the fryer can get enough air to keep the flame burning correctly. If the flame is starved for air, it can
give off a dangerous carbon Monoxide gas. Carbon monoxide is a clear odorless gas that can cause suffocation.
WARNING
A cooker equipped with casters and a flexible gas line, must be connected to the gas supply with a quick
disconnect device. This quick disconnect must comply with ANSI Z24.41. To limit the movement of the cooker
without depending on the connector or quick disconnect, a restraining cable must also be installed.
WARNING
The power supply must be disconnected before servicing or cleaning the appliance
WARNING
Do not attempt to move the appliance when the unit is at operating temperature.
Hot oil will cause serious personal injury if it comes in contact with you skin

1
L20-206 Rev2(07/02)
INSTALLATION
Although it is possible for you to install and set up your new fryer, it is STRONGLY recommended that you have it
done by qualified professionals. The professionals that install your new fryer will know the local building codes and
ensure that your installation is safe.
WARNING
DO NOT obstruct the flow of combustion/ventilation or air openings around
the fryer. Adequate clearance around the fryer is necessary for servicing and
proper burner operation. Ensure that you meet the minimum clearances
specified in this manual.
Installation Clearances
The fryer needs clearance around it for proper operation. Adequate clearances allow for servicing and proper burner
operation. The clearances shown below are for cooker installation in combustible and noncombustible construction.
Combustible Non-Combustible
Construction Construction
Back 6'' 0''
Sides 6'' 0''
Floor - Combustible 9'' 9''
Counter top must be constructed of a non-combustible material for SG14C counter top fryer installations.
In addition to the clearances required for proper fryer operation, there must be at least 21 inches of aisle space
in front of the fryer to remove/install the filter pan/module.
WARNING
The fryer must be properly restrained to prevent movement or tipping. This restraint must prevent the
fryer from movements that would splash hot liquids on personnel, which could cause severe burns or
injuries. Always wear oil proof gloves when moving or handling equipment or hot liquids.
Leveling
When you receive your fryer it is completely assembled. The fryer will need to be leveled once it is in place. Leveling
the fryer is done with a large pair of water pump pliers. The casters provide the necessary height to meet sanitation
requirements and assure adequate air supply to the burner.
a. Adjust the height and level the fryer by adjusting the leveling devices on the caster with the water pump
pliers.
b. Move the fryer to the desired location and lock the wheels using the locking devices on the sides of the
casters.
CHECKING YOUR NEW FRYER
Your new fryer has been carefully packed into one crate. Every effort has been made to ensure that your fryer is
delivered to you in perfect condition. As you unpack your new fryer, inspect each of the pieces for damage. If something
is damaged, DO NOT sign the bill of lading. Contact the shipper immediately, the shipper is only responsible for 15
days after delivery. Check the packing list enclosed with your fryer to ensure that you have received all of the parts
to the fryer. If you are missing any parts, contact the dealer from whom the fryer was purchased.
CAUTION
To prevent equipment damage, don't tilt the fryer onto any two of it's casters or pull the unit by the flue
vents.
Locate your Pitco Frialator warranty and fill in the serial number of the fryer and the date received. You will find the
serial number on the plate inside the door. Put your warranty card in a safe place for future reference. DO NOT return
the card to Pitco Frialator.
ENGLISH

2
L20-206 Rev2(07/02)
Fuel Types - Each fryer is equipped to work with one type of fuel. The type of fuel with which the appliance is intended
to operate is stamped on the data plate attached to the inside of the door.
NOTICE
NEVER use an adaptor to make a smaller gas supply line fit the cooker connection.
This may not allow proper gas flow for optimum burner operation, resulting in poor
cooker performance.
Quick Disconnect Gas Connection
Gas fryers equipped with casters must be installed with connectors that comply with the Standard for Connectors for
Movable Gas Appliances, ANSI Z223.1 Latest Edition, and Addenda Z21.69A Latest Edition. This connection should
include a quick disconnect device that complies with the Standard for Quick Disconnect Devices for Use With Gas
Fuel , ANSI Z223.1 Latest Edition. When installing a quick disconnect you must also install a means for limiting the
movement of the fryer. This device will prevent the gas line or the quick disconnect from being strained. The
restraining device should be attached to the cooker on the back panel.
Fuel Supply Line Leak and Pressure Testing
The fuel supply system must be tested before the fryer is used. If the fuel line is going to be tested at a pressure greater
than (>)1/2 PSIG (3.45 kPa), make sure that the fryer is disconnected from the fuel line. If the fuel line is to be tested
at a pressure equal to or less than (<) 1/2 PSIG (3.45 kPa), the fryer can be connected but the unit's gas valve must be
shut. Test all gas line connections for leaks with a solution of soap and water when pressure is applied.
ELECTRICAL CONNECTION
The electrical service used by the fryer must comply with local codes. If there are no local codes that apply, refer to
the National Electrical Code (NEC), ANSI/NFPA 70 to install the service. In Canada refer to CSA Standard C22.1
and local codes. Wiring diagrams are provided inside the fryer control box. The power requirements for the fryer are
shown below.
North America International
Input Voltage 120 VAC, 60Hz 220 (or 240) VAC, 50Hz
Current per fryer 0.5 Amps 0.5 Amps
Filter System 7.0 Amps 4.0 Amps
The fryer must be grounded in accordance with local code; if there is not a local code, comply with NEC ANSI/NFPA
No. 70-1990. It is advised that this power supply be plugged into a wall receptacle that is controlled by the ventilation
control. This will prevent the fryer from being operated without the ventilator on.
c. Once the unit is in place, check and readjust the levelness as necessary.
GAS CONNECTION
Your fryer will give you peak performance when the gas supply line is of sufficient size to provide the correct gas flow.
The gas line must be installed to meet the local building codes or National Fuel Gas Code ANSI Z223.1 Latest Edition.
In Canada, install the fryer in accordance with CAN/CGA-B149.1 or .2 and local codes. Gas line sizing requirements
can be determined by your local gas company by referring to National Fuel Gas Code, Appendix C, Table C-4 (natural
gas) and Table C-16 (propane). The gas line needs to be large enough to supply the necessary amount of fuel to all
appliances without losing pressure to any appliance.
WARNING
NEVER supply the fryer with a gas that is not indicated on the data plate. Using the incorrect gas type will
cause improper operation. If you need to convert the fryer to another type of fuel, contact your dealer.

3
L20-206 Rev2(07/02)
Table 1-2 Ventilation and Fire Safety References
TOPIC UNDERWRITERS LABORATORY NATIONALFUELGAS
DOCUMENT CODE DOCUMENT
EXHAUST HOODS ANSI/UL 710 ANSI/NFPA 96
POWER VENTILATORS ANSI/UL 705 ANSI/NFPA 96
FILTER UNIT ANSI/UL 586 ANSI/NFPA 96
ANSI/UL 900
TYPES OF FIRE EXTINGUISHERS
AND DETECTION EQUIPMENT
CO2ANSI/UL 154 ANSI/NFPA 12
DRY CHEMICAL ANSI/UL 299 ANSI/NFPA 17
WATER ANSI/UL 626 ANSI/NFPA 13
FOAM ANSI/UL 8 ANSI/NFPA 11
SPRINKLERS ANSI/UL 199 ANSI/NFPA 13
SMOKE DETECTORS ANSI/UL 268 ANSI/NFPA 72
FIRE DETECTION THERMOSTATS ANSI/UL 521 ANSI/NFPA
Gas pressure check
Gas pressure should be measured at the burner manifold and should match the pressure requirement
VENTILATION AND FIRE SAFETY SYSTEMS
Your new fryer must have proper ventilation to function safely and properly. Exhaust gas temperatures can reach as
high as 1000°F. Therefore, it is very important to install a fire safety system. Your ventilation system should be designed
to allow for easy cleaning. Frequent cleaning of the ventilation system and the fryer will reduce the chances of fire. Table
1-2 provides a list of reference documents that provide guidance on ventilation and fire safety systems. This table is
not necessarily complete. Additional information can be obtained from CSA International, 8501 East Pleasant Valley Road,
Cleveland,OH44131.
Excessive ventilation causes drafts, which will interfere with the proper operation of the pilot and the burner.
Leave at least 18 inches of open space between the fryer's flue vent opening and the intake of the exhaust hood.
CAUTION
Ensure that your ventilation system does not cause a down draft at the fryer's flue
opening. Down drafts will not allow the fryer to exhaust properly and will cause
overheating which may cause permanent damage. Damage caused by down drafts will
not be covered under equipment warranty. NEVER allow anything to obstruct the
flow of combustibles or ventilation exiting from the fryer flue. DO NOT put anything
on top of the flue area.
NOTICE
NEVER connect the blower directly to the flue openings. The direct flow of air will
cause poor temperature recovery, poor ignition, inefficient operation of the fryer, and
could extinguish the pilot.
ENGLISH

4
L20-206 Rev2(07/02)
listed on the data plate mounted on the inside of the fryer door..
LIGHTING INSTRUCTIONS
a. Fill kettle before lighting.
b. Turn combination gas valve knob to “ON” position.
c. 1. Solid State Thermostat: Switch melt switch to desired position. Turn the Thermostat
knob to desired temperature. Turn the power switch to the "ON" position, the fryer is equipped
with a matchless ignition system and will automatically light the pilot, and heat up to set
temperature.
2. Digital Controller: Press the button on the controller panel to turn fryer ON, the fryer is
equipped with a matchless ignition system and will automatically light the pilot, and heat up to
set temperature.
3. Computer Controller: Press the button on the controller panel to turn fryer ON, the fryer is
equipped with a matchless ignition system and will automatically light the pilot, and heat up to set
temperature.
d. Delighting - wait 5 minutes before attempting to relight the pilot to allow for any gas in the fryer to
dissipate.
WARNING
DO NOT TURN COMBINATION GAS VALVE KNOB TO THE “ON” POSITION UNTIL
VESSELIS FULL OFWATER OR SHORTENING. TURNING THE KNOB TO “ON” WITH VESSEL
EMPTYWILL DAMAGE THE VESSELOR COMPONENTSAND VOID WARRANTY.
INITIALCLEANING
When the fryer is shipped, many of its parts are covered with a thin coat of oil for protection. Before the fryer is ready
for cooking it must be cleaned. This will remove the oil coating and any foreign matter that may have accumulated during
storage and shipment. Perform the cleaning as described below.
a. Fill the tank with water and add one packet of Pitco fryer cleaner or a mild detergent, and turn gas valve knob
to ON position.
b. 1. Solid State Thermostat: Turn melt switch to the "MELT" position. Turn the Thermostat
knob to the lowest temperature setting (2500F). Turn the power switch to the "ON" position,
the fryer is now in the boil-out mode which will prevent the fryer from boiling over. Note:
do not leave the fryer unattended during this operation. Once the fryer has heated up to
approximately 1950F, allow it to operate for 15 minutes to allow any build up in the tank to
soften.
2. Digital Controller: Press the button on the controller panel to turn fryer ON. The fryer
will automatically switch into the boil-out mode which will prevent the fryer from boiling
over. Note: do not leave the fryer unattended during this operation. Once the fryer has
heated up to approximately 1950F, allow it to operate for 15 minutes to allow any build up
in the tank to soften.
3. Computer Controller: Press the button on the controller panel to turn fryer ON. The
fryer will automatically switch into the boil-out mode which will prevent the fryer from
boiling over. Note: do not leave the fryer unattended during this operation. Once the fryer
has heated up to approximately 1950F, allow it to operate for 15 minutes to allow any build
up in the tank to soften.
NOTE
Do not leave the fryer unattended during cleaning. Never let the
water level go below the "Min Level" mark on the back of the tank.

5
L20-206 Rev2(07/02)
c. While wearing protective gloves, use the fryer cleaning brush to scrub the inside of the fryer to remove
protective coating.
d. When cleaning is complete, turn off the fryer main burners and turn gas valve knob to the OFF
position. While wearing protective gloves, drain the water into a container suitable for hot water and dispose
of it.
e. When the tank has cooled, rinse it thoroughly with cool water. Continue to rinse the tank until the cleaner
has been rinsed, thoroughly from the tank.
f. Using a clean dry cloth, wipe out all of the water. Be very thorough removing the water, because any residual
water will cause hot oil to splatter out of the fryer.
CAUTION
Mildsteeltanksmustbewipeddown/coatedwithoiltokeepthetankfromrusting.
g. Now that the tank is clean, you are ready to fill and operate the fryer.
WARNING
Gas units installed with casters must have a restraining device. This device must be connected at all times
that the fryer is connected to the gas supply. If it is disconnected for any reason, it must be reconnected.
Filling the fryer with solid shortening
a. Make sure the drain valve is completely closed.
b. Cut the solid shortening into 1" (2.54CM) sqare cubes andcompletely pack fry tank up to oil level mark with
cubes making sure there are no air pockets.
c. 1. Solid State Thermostat: Switch melt switch to melt position. Turn the Thermostat
knob to desired temperature. Turn the power switch to the "ON" position.
(Note: if using solid shortening, set melt switch to the ON position)

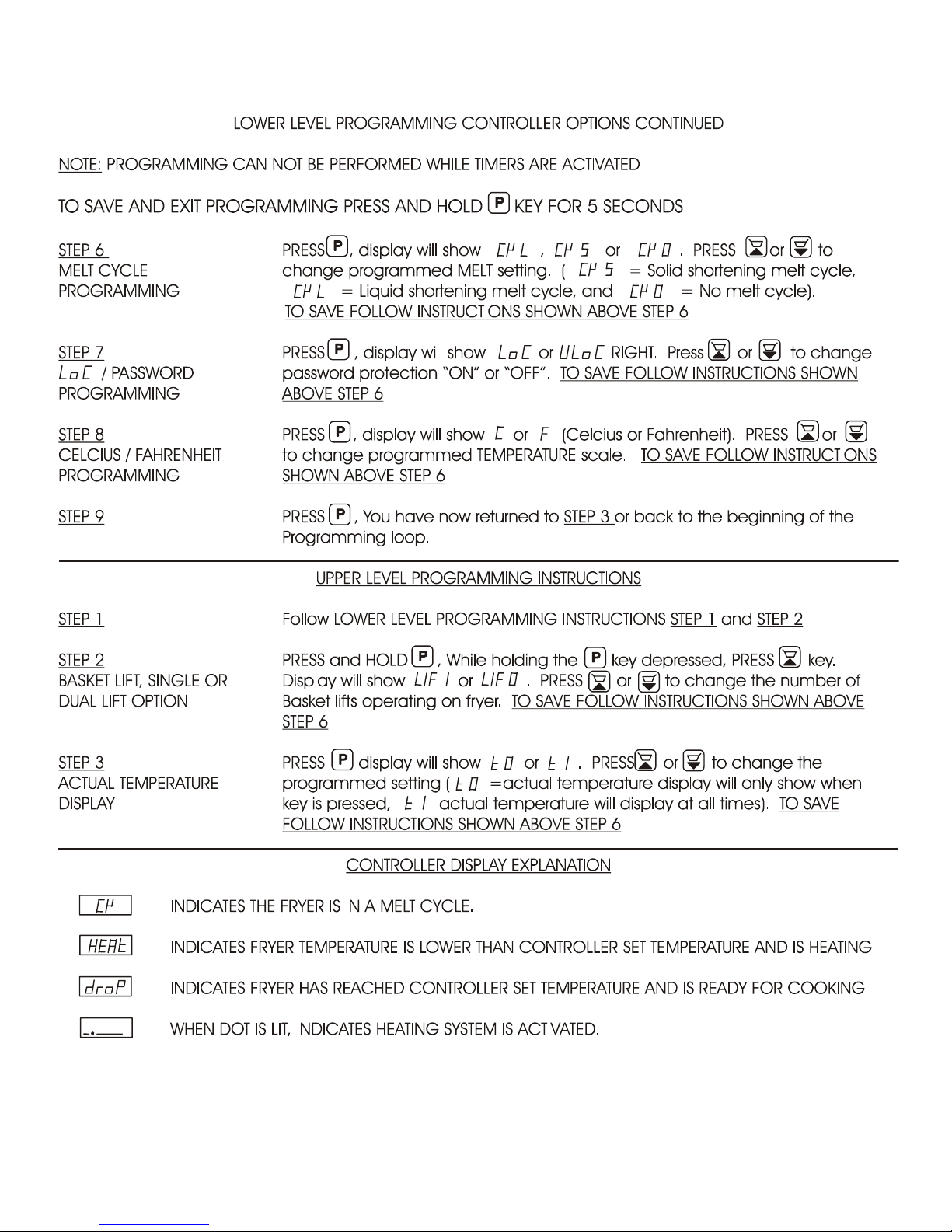

2. Digital Controller: Press the button on the controller panel to turn fryer ON,
(Note: if using solid shortening, ensure digital controller is programming is set on the solid
shortening melt cycle setting, by following digital programming instructions in manual)
3. Computer Controller: Press the button on the controller panel to turn fryer ON,
(Note: if using solid shortening, ensure computer controller is programming is set on the solid
shortening melt cycle setting, by following digital programming instructions in manual)
d. Allow unit to heat to operating temperature, unit is now ready for use.
Filling the fryer with liquid shortening
a. Make sure the drain valve is completely closed.
b. Fill the fryer with shortening up to the oil level mark indicated on the back splash of the fry tank.
c. Once the fryer has been filled with shortening, turn the unit ON and allow to heat up to set temperature.
THERMOSTATCALIBRATION
SOLID STATE THERMOSTAT
ENGLISH

6
L20-206 Rev2(07/02)
a. Set the thermostat dial, computer, or digital controller to 350o F.
b. Remove fryer tube rack and place a thermometer 1" above fryer temperature probe.
c. Compare thermometer reading to thermostat or controller setting, if readings are not close, contact
local warranty service agent.
d. When the calibration check is complete, remove the thermometer and replace the tube screen.
FryerShut-Down
There are two shutdown modes of fryer operation, STANDBY and COMPLETE. The standby mode removes the ability
for the fryer's main burners to cycle. Complete shutdown turns off the gas supply to the fryer. Shut down the fryer by:
STANDBY Turn the thermostat or controller OFF. The cooker is now in
Standby and can remain this way for only brief periods of
time. NEVER leave the cooker in standby overnight.
COMPLETE To completely shut down the cooker, push and turn the gas
valve to the OFF position. The fryer is now completely
shut down and can be cleaned and filtered.

7
L20-206 Rev2(07/02)
ENGLISH

8
L20-206 Rev2(07/02)

9
L20-206 Rev2(07/02)
ENGLISH

10
L20-206 Rev2(07/02)

11
L20-206 Rev2(07/02)
FILTERPROCEDURES
NOTE
When working with hot oil ALWAYS wear oil-proof, insulated gloves.
WARNING
NEVER • Run the filter system without a filter bag/paper.
NEVER • Empty the oil from the fryer before turning OFF the fryer burners.
NEVER • Store the UFM Filter Unit anywhere other than in the fryer filter cavity.
a. Slide the filter pan out. Carefully remove filtered residue off the filter media. Examine the filter media for
clogged or torn areas. Refer to filter media replacement instructions following this section. Reinstall the pan.
b. Turn the fryer that is to be filtered OFF (See Standby Shutdown). Remove the baskets from the fryer tank(s).
Use the clean out brush to lift out the tube screens. If there are excess crumbs in the fryer tank, remove them
with the crumb scoop.
c. If you have replaced the filter media or remove crumbs and debris, sprinkle Precoat Filter Aid on the filter paper.
d. Check the drain spout to ensure that it is in the drain tower and over the filter pan opening.
e. Slowly open the green handled drain valve for the tank being filtered. If necessary use the clean-brush to clear
the crumbs from the drain. Use the brush to clean the sides of the tank as the oil drains.
WARNING
This filter pan is only large enough to hold the contents
of one (1) tank at once, during the filter process.
f. When the tank is empty, close the green handled drain valve. Open the red handled return valve to the tank
you are filtering. This will start the pump and return the oil to the bottom of the fry tank.
g. When bubbles are seen coming out of the oil return spout, close the red handled valve to turn the pump off.
If necessary add more oil to the tank to return the oil level to the fill mark. The fryer is now ready for use.
DRAININGATANK
The filter system is also used to drain the fryers. You will need a container capable of holding 4000F oil and protective
gloves.
a. Rotate the drain down spout so that it extends in the container that you want to drain the shortening into.
b. Open the green handled drain valve for the tank to be drained. The oil will drain into the container you have
shosen. When the container is full or the fry tank is empty, close the green handled drain valve. If the container
was full repeat this step until fryer tank is empty.
c. Once tank is completely empty add new shortenning and follow fryer start up procedures.
ENGLISH

12
L20-206 Rev2(07/02)
WARNING
The power supply must be disconnected before servicing or cleaning the
appliance.
FILTER MEDIA REPLACEMENT
The filter module stores neatly under the fryer when not in use. The unit is very easy to use and allows for quick
installation and filtration, even under the busiest conditions. Follow the procedures below to change the filter media.
WARNING
At operating temperature, the shortening in the fryer may be hotter than
375°F (190°C). This hot, melted shortening will cause severe burns. Do not
let the hot shortening touch your skin or clothing. Always wear insulated oil-
proof gloves when working on the filter system. It will be easier and safer if
the filter assembly has cooled to room temperature before handling any filter
parts.
a. With the filter pan empty of oil, remove the filter media by grasping the filter pan handle and gently pull the
assembly toward the front of the fryer.
b. Separate the filter pickup tube from the filter pickup screen assembly by pulling up on the pickup tube just above
where it connects to the pickup screen assembly. Lift pickup tube and swing it to the left, until it rests on the
left hand side of the filter pan.
c. Grab filter screen pickup assembly lift handles and carry it to a trash barrel and shake off heavy discard any debris
that may be built upon the top of the assembly.
d. Unscrew the filter paper clip bracket from the filter paper support screen and slide the filter paper support screen
out of the filter paper clip bracket.
e. Remove filter paper support screen from the filter envelope.
f. All of the filter pick up assembly parts can be washed in a dish washer or a pot sink. Flush out the suction tube
assembly with hot water. After cleaning, it is very important to thoroughly dry the parts before reassembling.
Water and oil do not mix. Water in hot oil will cause the oil to splatter.
g. Start reassembling the filter pick up assembly by sliding the new filter paper on to the filter paper support rack.
Ensure that the hole in the filter paper goes over the pick up tube assembly threaded connector.
h. Fold the open end of the bag in two folds. The first fold should be approximately 1 inch from the end and the
second should be over the edge of the rack assembly.
i. Slide the clip screen over the folded end of the filter paper. Ensure the opening of the clip screen goes over
the pick up tube connection. Screw the suction tube connection onto the threaded connection.
j. Place the filter pickup assembly into the filter pan and slide the filter pan assembly back into the fryer cabinet.
k. Filter unit is now ready for use.

13
L20-206 Rev2(07/02)
FRYER CLEANING
Daily
Your fryer should be clean every day to maintain peak performance and appearance. Perform the procedures below
every day.
a. Wipe up any shortening that spills onto the exterior of the fryer. This should be done with a clean soft cloth
while the oil is still warm.
b. Use warm water with a mild detergent to clean surfaces. Be careful not to get water in the shortening and to
remove any detergent from the fry tank.
c. Use a nonabrasive scouring powder or pad to clean stains if necessary.
Weekly (Boilout)
The fryer should be thoroughly cleaned once a week. This cleaning should include a complete draining of the fryer
and a boil out. This would also be a good time to check the filter media for damage.
CAUTION
Completely shut down the fryer when the oil is to be replaced by water, and
when the heating portion of the cleaning is complete. This will prevent the
heating system from coming on during the oil draining and water filling
procedure.
a. Drain the oil from the fryer using the fryer drain procedures. When the oil has been pumped into the oil shuttle,
disconnect the filter pan and remove from the fryer.
WARNING
Do not use the filter pan to drain cleaning water into. The only way to remove
liquid from the filter pan is via the filter pump. Do not use the filter pump to
pump water. Water can remain in the filter lines and mix with hot oil during
filter procedures creating a problem.
b. Remove tube rack/mesh tube screens and remove any large debris from the bottom of the fry tank. Close
the drain valve and fill the fry tank with water and noncaustic detergent. For best results use Pitco Fryer
Cleaner part number P6071397.
c. Place a large pan under the drain. This pan will be used to catch the cleaning water. The pan must be of
sufficient size to hold all of the water.
d. Restart your fryer. When the water temperature reaches 212°F the computer will automatically go into Boil
mode. To get the fryer out of BOIL mode you must turn the fryer power off.
e. After the water has reached a slow boil, turn the fryer off. Allow the fryer to soak for 20 minutes to soften
shortening deposits and carbon. Use fryer brush to remove any residue from tank, heating tubes, and side
walls. Perform the daily cleaning procedures.
f. Drain the water into the pan by slowly opening the green handled drain valve.
g. Wipe the tank dry with clean cloth wipes. Close the drain valve and remove the large container.
h. Refill the fryer.
ENGLISH

L20-206 Rev 2 (07/02)
In the event of problems with or questions about
you equipment, please contact the Pitco Frialator
Authorized Service and Parts representative
(ASAP) covering you area, through the National
Service Network at:
[phone] US only, 24 hours
In the event of problems with or questions about
you order, please contact the Pitco Frialator fac-
tory, from 8:00 a.m. - 5:00 p.m., Eastern Standard
Time, Monday through Friday, toll-free at:
[phone] US and Canada only or
[phone] World Wide

Il y a Toujours Quelque Chose qui Mijote chez Nous !
Manuel d’Installation et de Fonctionnement
Pour Friteuses à Gaz
TOUTES OPTIONS
Modèles
SG et SGF
14, 14R, 14T, 18, 18F, 24P, 24F, 34P et 34F
FRANÇAIS
Pitco Frialator, Inc., P.O. Box 501, Jct I-89 & I-93 Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304
[phone]• [phone]•FAX [phone]
www.pitco.com
®
®

AVERTISSEMENT
Toute mauvaise installation, altération, réparation et tout mauvais réglage ou entretien risque
de provoquer des dégâts matériels, des blessures graves, voire la mort. Veuillez lire
attentivement les manuels d’installation, de fonctionnement et d’entretien avant d’installer ou
d’effectuer l’entretien de cet équipement.
CONSERVEZ CETTE NOTICEAFIN DE POUVOIR LACONSULTER ULTÉRIEUREMENT
POUR VOTRE SÉCURITÉ
NE PAS stocker de l’essence ni d’autres liquides ou vapeurs inflammables à proximité de cet
appareil ni de tout autre appareil.
AVISÀ L’ACHETEUR
Affichez en évidence les instructions à suivre si l’utilisateur sent une odeur de gaz. Cette information est disponible
auprès de votre fournisseur de gaz local.
AVERTISSEMENT
Cette friteuse est équipée d’un cordon électrique étanche à l’huile avec une prise (de terre) à trois fiches contre tout
choc électrique pour votre protection et en cas de mauvais fonctionnement de la machine. NE PAS couper ou retirer la
broche de mise à la terre (troisième broche) de cette fiche.
AVERTISSEMENT
Il existe une veilleuse à flamme nue à l’intérieur de la friteuse. La machine peut chauffer à des températures très élevées
et risque d’enflammer des matériaux placés à proximité. Veillez à ce qu’il n’existe aucun élément combustible autour de
la friteuse.
AVERTISSEMENT
NE PAS alimenter en gaz la friteuse avec un gaz ne figurant pas sur la plaque signalétique. Si vous devez convertir la
machine afin de l’utiliser avec un gaz différent, contactez votre revendeur.
AVERTISSEMENT
NE JAMAIS approcher de flamme nue afin de rechercher une fuite de gaz!
AVERTISSEMENT
Attendre 5 minutes avant de tenter de rallumer la veilleuse afin de permettre à tout gaz à l’intérieur de la friteuse de se
dissiper.
AVERTISSEMENT
Ne jamais faire fondre les barres de matière grasse sur les tubes du brûleur. Ceci risque de provoquer un incendie et
annulera la garantie.
AVERTISSEMENT
NE PAS mélanger d’eau avec la matière grasse. Conserver tout liquide à l’écart de la matière grasse chaude.Tout
aliment surgelé tombant dans la matière grasse chaude entraînera une ébullition intense.
AVERTISSEMENT
Veiller à ce que la friteuse soit suffisamment alimentée en air afin que la veilleuse brûle correctement. Si la flamme
n’est pas suffisamment alimentée en air, elle dégagera un gaz dangereux, à savoir de l’oxyde de carbone. L’oxyde de
carbone est un gaz incolore et inodore qui peut provoquer l’asphyxie.
AVERTISSEMENT
Toute machine équipée de roulettes et d’un tuyau de gaz flexible doit être raccordée à une source de gaz par
l’intermédiaire d’un dispositif de déconnexion rapide. Cette prise à déconnexion rapide doit être conforme à la norme
ANSI Z24.41. Pour limiter au maximum le déplacement de la friteuse sans dépendre du connecteur ou du dispositif de
déconnexion rapide, un câble de sécurité doit être installé.
AVERTISSEMENT
Débrancher de cordon d’alimentation électrique avant de procéder à l’entretien et à la maintenance de la machine.
AVERTISSEMENT
Ne pas tenter de déplacer la machine lorsque cette dernière fonctionne à sa température de fonctionnement.
Tout contact direct avec l’huile bouillante entraînera des blessures graves
L20-206 Rev 2 (07/02)

19
L20-206Rev2(07/02)
INSTALLATION
Bien qu’il vous soit possible d’installer votre nouvelle friteuse, il est VIVEMENT conseillé que des professionnels
qualifiés effectuent l’installation. Les professionnels qui installeront la nouvelle friteuse connaissent la réglementation
locale et les codes du bâtiment en vigueur et procéderont à l’installation en toute sécurité.
AVERTISSEMENT
NE PAS gêner la ventilation ni le flux des gaz de combustion en bouchant les ouvertures
d’aération autour de la friteuse. Il doit y avoir un espace suffisant autour de la friteuse pour
accéder à cette dernière et effectuer toute réparation nécessaire et afin d’assurer le bon
fonctionnementdubrûleur.Veillercequecetespacesoitconformeauxdimensionsdelanotice.
Distances de sécurité
Il doit y avoir un espace suffisant autour de la friteuse afin d’assurer son bon fonctionnement. Cet espace est nécessaire
pour accéder à cette dernière et effectuer toute réparation nécessaire et afin d’assurer le bon fonctionnement du brûleur.
Les dimensions indiquées ci-dessous sont pour l’installation de l’appareil dans un environnement combustible et non-
combustible.
Construction Construction
Combustible Non - Combustible
Dos 6 po.(15 cm) 0 po. (0 cm)
Côtés 6po. (15cm) 0 po. (0 cm)
Sol- Combustible 9po. (22,8cm) 9po. (22,8cm)
Il doit également y avoir un espace d’au moins 21 po. (53 cm) devant la friteuse afin de pouvoir retirer ou installer le filtre et
les éléments associés.
Le comptoir doit être construit avec un matériau non-combustible pour les comptoirs destinés à accueillir des friteuses
SG14C. L’espace autour de la friteuse doit non seulement être suffisant afin que l’appareil fonctionne à plein rendement,
mais il doit également y avoir une distance de 50 cm devant la friteuse afin de pouvoir retirer ou installer le bac ou module
de filtrage.
AVERTISSEMENT
La friteuse doit être fermement fixée. Pour éviter tout risque de blessures graves, fixez
la friteuse afin qu’elle ne puisse être déplacée ou penchée et risquer d’éclabousser le
personnel avec de l’huile bouillante. Veillez à toujours porter des gants étanches à l’huile
lorsque vous transportez ou déplacez tout appareil ou liquide chaud.
Mise à niveau
Votre friteuse est déjà complètement assemblée à sa réception. Une fois en place, la friteuse doit être mise à niveau. Il
est possible de mettre à niveau la friteuse à l’aide d’une paire de pinces multiprises. Les roulettes sont d’une hauteur
suffisante. Cette hauteur est conforme aux codes sanitaires et aux besoins en air du brûleur.
a. Réglez la hauteur et le niveau de la friteuse en réglant les roulettes à l’aide des pinces multiprises.
b. Déplacez la friteuse afin de la placer à l’emplacement désiré puis bloquez les roues en verrouillant les
dispositifs de blocage situés sur les côtés des roues.
c. Après avoir installé la machine, vérifiez que cette dernière est à niveau ou corrigez si nécessaire.
VÉRIFICATION DE LA NOUVELLE FRITEUSE
Votre nouvelle friteuse a été emballée avec précaution dans une caisse. Tout a été prévu afin que la friteuse vous soit
livrée en parfaite condition. Lorsque vous déballez votre nouvelle friteuse, vérifiez toutes les pièces afin de vous assurer
qu’elles ne sont pas endommagées. Si une des pièces a été endommagée, veuillez NE PAS signer le connaissement (lettre
de transport). Contactez immédiatement le transporteur car ce dernier ne peut être tenu responsable que pendant les 15
jours suivant la livraison. Vérifiez le bordereau d’expédition fourni avec la friteuse afin de vous assurer que vous êtes
en possession de toutes les pièces. Si des pièces s’avèrent manquantes, contactez le revendeur auprès duquel vous avez
acheté la friteuse.
ATTENTION
Afin d’éviter d’endommager l’appareil, ne pas pencher la friteuse sur
deux de ces roues ni tirer sur le carneau ou conduit de fumée.
Cherchez la garantie Pitco Frialator et inscrivez le numéro de série sur la friteuse et la date de réception. Le numéro de
série se trouve sur la plaque à l’intérieur de la porte. Conservez la garantie dans un endroit sûr afin de pouvoir la consulter
ultérieurement. NE PAS renvoyer la carte à Pitco Frialator.
FRANÇAIS

20
L20-206Rev2(07/02)
Typesdecarburants: Chaquefriteuseestéquipée afinde fonctionneravec unseul typede carburant.Letypedecarburant
destiné à cet appareil est indiqué sur la plaque signalétique fixée à l’intérieur de la porte.
REMARQUE
NE JAMAIS utiliser un adaptateur afin de raccorder un tuyau de gaz plus petit. Vous risquez de nuire au
rendement de la machine en au bon fonctionnement du brûleur en empêchant un débit de gaz optimal.
Raccord de gaz à déconnexion rapide
Les friteuses à gaz à roulettes doivent être installées avec des connecteurs conformes à la dernière édition de la norme
ANSI Z223.1 et de l’addenda Z21.69A consacrée aux connecteurs pour appareils à gaz mobiles. Ce raccord doit
comporterun dispositifàdéconnexion rapideconformeà ladernièreédition delanorme ANSIZ223.1 pour lesdispositifs
à déconnexion rapide utilisés avec des appareils à gaz. Lorsque vous installez un dispositif à raccord rapide, il vous faut
également installer un dispositif limitant le déplacement de la friteuse. Ce dispositif évitera que le tuyau ou le raccord
à déconnexion rapide ne se tende excessivement. Le dispositif de retenue doit être fixé à la friteuse, au dos du panneau
arrière.
Fuite au niveau du tuyau d’alimentation en gaz et vérification de la pression
Le circuit d’alimentation doit être testé avant d’utiliser la friteuse. Si vous comptez tester le tuyau d’alimentation en
gaz à une pression supérieure à 1/2 PSIG (3.45 kPa), veillez à ce que ce dernier ait été débranché de la friteuse. Si vous
comptez tester le tuyau d’alimentation en gaz à une pression égale ou inférieure à 1/2 PSIG (3.45 kPa), la friteuse peut
être raccordée mais la commande de gaz de la friteuse doit être fermée. Une fois la pression rétablie, testez tous les tuyaux
de gaz afin de vous assurer qu’ils ne comportent aucune fuite avec le l’eau savonneuse.
RACCORDEMENTÉLECTRIQUE
L’alimentation électrique de la friteuse doit être conforme aux codes de votre localité. En l’absence de réglementation
locale, reportez-vous au Code électrique national des États-Unis (NEC) et aux normes ANSI/NFPA pour l’installation
électrique. Au Canada, reportez-vous à la norme CSA C22.1 et à la réglementation de votre localité. Les diagrammes
decâblages sont visibles à l’intérieur de la boîte de commande de la friteuse. Les caractéristiques techniques de la friteuse
sont indiquées ci-dessous:
Amérique du Nord International
Tension d'entrée 120 VCA, 60Hz 220 (ou 240) VCA, 50Hz
Courant par friteuse 0.5 ampères 0.5 ampères
Système de filtrage UFM 7.0 ampères 4.0 ampères
La friteusedoitêtre miseà laterre conformémentà laréglementationlocale.Enl’absencederéglementation locale,suivez
le Code électrique national des États-Unis (NEC) et la norme ANSI/NFPA No.70-1990. Il est recommandé de brancher
le cordon d’alimentation sur une prise murale contrôlée par la commande de ventilation. Cela empêchera ainsi la friteuse
de fonctionner sans que le ventilateur ne soit allumé.
RACCORDEMENT DU GAZ
Votrefriteuseoffre unrendementoptimal lorsqueletuyau d’alimentationengaz estd’unetaille suffisanteafinde permettre
un débit de gaz adéquat. Le tuyau de gaz doit être installé conformément aux codes du bâtiment de votre localité et à la
normeANSIZ223 deladernièreéditiondu Codenationald’installation desappareils àgaz.Au Canada,installezlafriteuse
conformémentauxnormesCAN/CGA-B149.1ou2etàlaréglementationlocale.Latailledutuyaudegazpeutêtredéterminée
par la compagnie du gaz de votre localité en se référant au Code national d’installation des appareils à gaz, paragraphe
C, tableau C-4 (gaz naturel) et tableau C-16 (propane). Le tuyau de gaz doit être suffisamment large afin d’alimenter
pleinement tous les appareils sans qu’il ne se produise une perte de pression au niveau de ces derniers.
AVERTISSEMENT
NE JAMAIS alimenter en gaz la friteuse avec un gaz ne figurant pas sur la plaque
signalétique. L’emploi de tout autre gaz entraînera un dysfonctionnement de la machine.
Si vous devez convertir la machine afin de l’utiliser avec un gaz différent, contactez votre
revendeur.
