Pite 3932T User manual

PITE 3932T Battery Charger/Discharger
1
PITE3932T Battery Charger/Discharger
User Manual
P-120323-V1.1
4/F, BldgA, Chiwan Industrial Park, Shaodi Rd.,
Chiwan, Shekou Area, Shenzhen, China
TEL: [phone]
FAX: [phone]
www.pitetech.com

PITE 3932T Battery Charger/Discharger
2
Catalogue
1. INTRODUCTION .............................................................................................................3
1.1.Accessories ...........................................................................................................3
1.2. Safety Information.................................................................................................4
1.3 Precautions.............................................................................................................5
2. OVERVIEW......................................................................................................................5
2.1 About PITE 3932T..................................................................................................5
2.2 Display and Keypad................................................................................................6
2.3 Features..................................................................................................................6
2.4 Specifications..........................................................................................................6
2.5 Measurement Flowchart.........................................................................................7
2.6 Definition of Abbreviation........................................................................................7
3. MEASURE PREPARATION............................................................................................8
4. MEASUREMENT.............................................................................................................8
4.1 Power On and Off...................................................................................................8
4.2 Cell Charge.............................................................................................................9
4.3 Cell Discharge......................................................................................................11
4.4 Cell Activation.......................................................................................................13
4.5 Cell Resistance.....................................................................................................17
4.6 Data Management................................................................................................17
4.7 System Management ...........................................................................................18
4.7.1 Time Setting ...............................................................................................18
4.7.2 System Update...........................................................................................19
4.7.3 System Language......................................................................................19
5. ANALYZING SOFTWARE.............................................................................................19
5.1 Installing the Software..........................................................................................19
5.2 Software Startup...................................................................................................19
5.3 Main Operation.....................................................................................................21
5.3.1 Read the Data............................................................................................21
5.3.2 Analyzing for Discharging ..........................................................................22
5.3.3 Analyzing for Charging...............................................................................23
5.3.4 Analyzing for Activation..............................................................................23
6. SERVICE AND MAINTENANCE...................................................................................24
6.1. Cleaning ..............................................................................................................24
6.2 Storage.................................................................................................................25
6.3 Trouble-shooting...................................................................................................25
7. CONTACT PITE.............................................................................................................25

PITE 3932T Battery Charger/Discharger
3
1. INTRODUCTION
This Users Manual gives full information on how to use PITE 3932T Battery
Charger/Discharger safely and effectively. Please read the manual carefully so as to
obtain maximum performance of the unit and its accessories.
WARNING: Read this manual completely before connecting and powering on the unit
to avoid possible damage caused by improper use of this instrument.
1.1. Accessories
After receiving the PITE 3932T, please check it carefully as below:
Ensure that no damage occurred during transportation. Upon any damage or failure
of operation based on this instrument, please contact your supplier immediately.
Make sure you have each items below
1. PITE 3932T main unit (1)
2. Carrying case (1)
3. Voltage testing lead with two clamps (1)
4. Load cable (black & red) (2)
5. User Manual (1)
6. Analyzing software CD (1)
7. AC power cord (1)
PITE 3932T main body
Red load cable
Black load cable
Users manual

PITE 3932T Battery Charger/Discharger
4
Analyzing Software CD
AC power Cord
Voltage testing lead with two
clamps
1.2. Safety Information
For your protection, please read this safety information completely before operating the
PITE 3932T. Carefully observe all warnings, precautions and instructions.
WARNING: Servicing described in this manual is to be done only by qualified
personnel. To avoid electrical shock, do not service the instrument unless you are
qualified to do so.
DANGER
Safety testing has been done on this instrument thoroughly
before shipment. However, mishandling during use could result
in injury or other bad consequences, as well as damage to the
instrument. Make sure that you understand the instructions and
precautions in the
manual before use. We disclaim any
responsibility for accidents or injuries not resulted directly from
instrument defects.
Safety Symbols
Description of symbols used in this manual.
DANGER
Indicates correct operation to prevent an extreme hazard that
could result in seri
ous injury or other bad consequences to
users.
WARNING
Indicates correct operation to prevent a significant hazard that
could result in serious injury or other bad consequences to
users.
CAUTION Indicates correct operation to prevent possible injury to users
or damage to the instrument.
NOTE Indicates advisory items related to perfor
mance or correct
operation of the instrument.

PITE 3932T Battery Charger/Discharger
5
1.3 Precautions
To avoid electrical shock or fire, read these precautions first before using the unit:
Except as explained in this manual, do not attempt to service this equipment yourself.
Do not operate the PITE 3932T around explosive gas or vapor.
Use only insulated load cables, and test leads as supplied with the PITE 3932T
Before use, inspect the PITE 3932T, load cables, test leads and accessories for
mechanical damage and replace when damaged. Look for cracks or missing plastic.
Pay special attention to the insulation surrounding the connectors.
Remove all clamps, test leads and accessories that are not in use.
Do not apply input voltages above the rating of the instrument.
Before use, check that the selected/indicated voltage ranges on the PITE 3932T
matches the local line power voltage and frequency.
Proper installation is essential to the correct functioning of your analyzing software
CD. If you have any questions about installation, please contact us for assistance.
After testing battery, there is high temperature inside the main body of PITE 3932T.
Therefore, please keep the unit powered on to evaporate the heat for at least 5
minutes. Do not shut down the unit right after testing. This is very important ensure
the good performance of all electronic parts inside the main body.
This manual describes the general installation and use of the test equipment. If your
system has features or accessories not addressed in this manual, please contact us.
2. OVERVIEW
2.1 About PITE 3932T
PITE 3932T is a compact unit for daily maintenance of single cell, especially for old cells.
It plays three roles: charger, discharger and activator, which will facilitate your
maintenance for batteries. These three functions could be used individually or
comprehensively. When used comprehensively, lag-out battery will experience low-volt
constant current charging and discharging singly or in multi-circles (1~99). By activating
the disabled active material on battery electrode plate, it amends the battery malfunction
caused by chemical failure and thus boosts the capacity of old battery. Activation curve
and certain parameters (e.g.: voltage and resistance) will display on screen as activation
ends.
Battery activation is very significant for resources utilization and efficiency increasing.
However, it is important to know that not all weak batteries could be activated by PITE
3932T. It can only amend the weak batteries whose bad condition is caused by chemical
malfunction instead of physical failure such as short-circuit of electrode plate.

PITE 3932T Battery Charger/Discharger
6
2.2 Display and Keypad
PITE 3932T main body has two ways of operation, by touch screen and keypad.
Both ways have same operation effect. Operation of keypad will be as below:
Keys Operation:
Key
Functions
▼▲Change the numbers of parameters
◄►Move to orient different options for changing.
1. Confirm the selection or option
2. Confirm input
1. Return to the previous page
2. End testing.
2.3 Features
Portable device
User friendly
Well designed and easy-to-do
Powerful functions with 3 in 1 (discharger, charger and activator)
Accurate data results and vivid waveforms
Integrated functions for displaying, controlling and loading
Password management in key parts
Safety circuits to prevent damage to cells
Longtime monitoring of cell condition
Direct USB drive for data transferring
Convenient analysis software in PC
Software system updatable
2.4 Specifications
Technical Specification
Measurement Mode
Resolution
Accuracy
Charging Current 1-100A (cell: 2V) 1-30A (cell: 12V)
1-30A(cell:6V) 1A 1A
Discharging Current
1-100A(cell:2V) 1-30A(cell:12V )
1-30A(cell:6V)
1A 1A
Charging Voltage 1.7-2.4V(2V) 5.4-7.2V(6V)
10.2-15V(12V) 0.1V 0.25%
ENT
ESC

PITE 3932T Battery Charger/Discharger
7
Discharging Voltage
1.7-2.4V(2V) 5.4-7.2V(6V)
10.2-15V(12V)
0.1V
0.25%
Power Supply
AC 220V±10%
LCD Display
128*64 pixels
Operating Temperature
5℃～50℃
Operating Humidity
5%
～
90%RH
Dimension
40x30x20cm
Net Weight
10Kg
Communication Port
USB
2.5 Measurement Flowchart
The measurement workflow is described below
Measurement
Preparations
1. ConnectAC power cord
2. Connect testing leads
3. Turn the power on
Start Measurement
1. Select measuring mode 2. Read testing results
Ending of Measurement
1. Disconnect the testing leads from the testing cell
2. Turn off the power
3. Pulling out the AC power cord
Data uploading
1. To load the measuring data to PC, insert a USB drive in PITE 3932T and transfer the data
2. Data system management on PC
WARNING: There are high voltage and current in the cell and PITE 3932T
components. Only qualified personnel can perform all these measuring procedure. Pay
attention to electrical and chemical safety precautions in cell installation and removing,
testing leads connection and measurements.
2.6 Definition of Abbreviation
Below are the definitions of all the abbreviated words used in the operating software of
PITE 3932T Battery Charger/Discharger.
Abbreviation
Full name
Abbreviation
Full name
Act-res activation result I current
adj adjust imin short time
Alr already M minute
C
capacity
Paral
Parallel
calib
calibration
param
parameter
Case
acquisition case
pls
please
CHG
charge
S
second

PITE 3932T Battery Charger/Discharger
8
comm communication span time span
cyc
cycling
StableU
voltage-stabilization
del
delete
strg/stg
string
dir
direction
syst
system
DIS
discharge
T
time
EX
exit
tot
total
Factory
Factory parameter
U
voltage
H
hour
3. MEASURE PREPARATION
This section describes how to connect testing leads andAC power cord properly in correct
sequence:
1. Connect the PITE 3932T to an appropriate AC power supply via power cord.
2. Connect the black load cable with PITE 3932Tmain unit and negative pole of cell, and
red cable the positive pole. Please DO NOT connect them reversely.
3. Connect one end (one-port-one-cable) of the voltage testing lead with unit. And
connect the other two ends with cells: the black clamp with negative pole and red with
positive.
Fig.3.1.1 Fig.3.1.2 Fig.3.1.3
WARNING: Make sure that these cables are correctly connected; otherwise the PITE
3932T may not work properly and may become significant damage.
4. MEASUREMENT
4.1 Power On and Off
Press power switch to ON.After initialization of about 10 seconds, you will come to the
main menu as below:

PITE 3932T Battery Charger/Discharger
9
Fig. 4.1
4.2 Cell Charge
To charge one single battery, please connect the testing leads well and select [Charge] in
main menu to enter cell charge mode. Press ENT to confirm:
NOTE: The PITE 3932T has 3 options for different battery types: 2V, 6V and 12V.
Fig. 4.2.1 Fig. 4.2.2
Press ESC to go back to upper menu, or press [continue] to continuing charge mode,
screen will display as below:
Fig. 4.2.3
Use the arrow keys for different parameters setting. Charge time should not exceed 48
hours. Press ENT or [Start] to start charging, or press ESC to go back.
NOTE:

PITE 3932T Battery Charger/Discharger
10
1. Setting of cutoff voltage is for the protection of cell. Correct setting of cutoff voltage
value will prevent the cell from over charging or over discharging and thus avoid
damage to the cell. Following settings are for your reference:
2V cell---Cutoff discharge voltage:1.8 V; cutoff charge voltage: 2.45V
12V cell---Cutoff discharge voltage:10.8 V; cutoff charge voltage: 14.5V
2. Also pay attention to the current setting for cell of small capacity. You are suggested to
charge and discharge it with speed of 0.1C, which means that working current is 0.1
time of cell capacity.
After pressing ENT, the PITE 3932T will enter charging status as below:
Fig. 4.2.4
You can click [Param] to check the charging parameter. Or you can click [Trend] to check
the current & voltage charging curve
Fig. 4.2.5 Fig. 4.2.6
After charging is done, wait for 5 minutes for resistance testing and then it will show the
charging result to you as below screen. Press ← or → arrow key to choose the item you
want to check, such as [Param], [Trend] , Press ESC or [Back] to go back to cell charge
menu.

PITE 3932T Battery Charger/Discharger
11
Fig. 4.2.7
4.3 Cell Discharge
To have a discharge testing, please connect the testing leads well and go to main menu
and choose [Discharge] as below:
Fig. 4.3.1
Press ENT to go to parameters setting screen as below, choose the cell voltage type first:
Fig. 4.3.2 Fig. 4.3.3
There are five parameters for setting including cell capacity, cell number, cutoff voltage,
discharge current and discharge time. Press ←/→to orient different parameters and ↑/↓ to
change the setting values.
NOTE: Total discharge time should not exceed 48 hours.
After the above setting, please press ENT or [Start] for discharge confirmation. You will
see the discharge status as below:

PITE 3932T Battery Charger/Discharger
12
Fig. 4.3.4

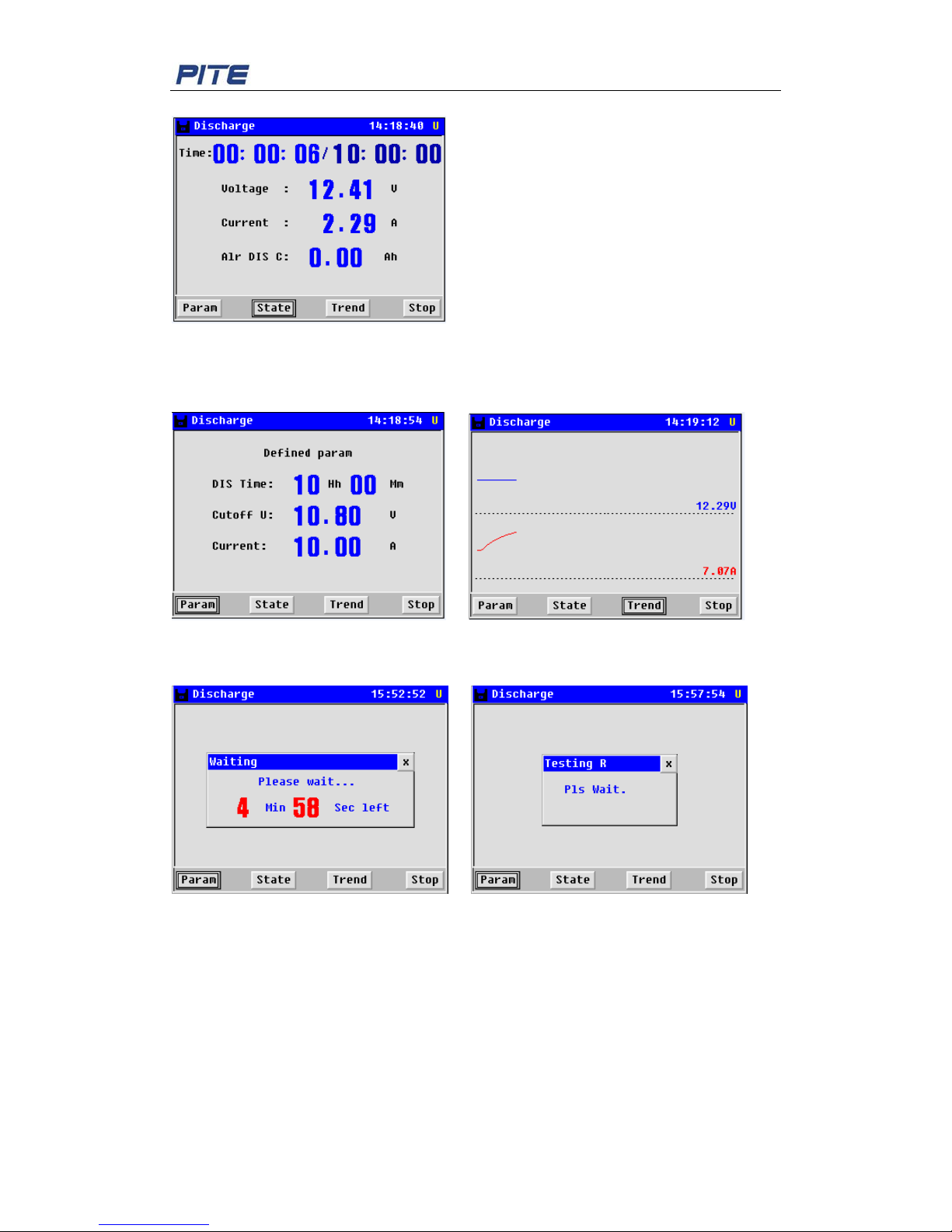

You can click [Param] to check the discharging parameter. Or you can click [Trend] to
check the current & voltage discharging curve.
Fig. 4.3.5 Fig. 4.3.7
When discharging finished, wait 5 minutes for resistance testing as in the below screen
Fig. 4.3.8 Fig. 4.3.9

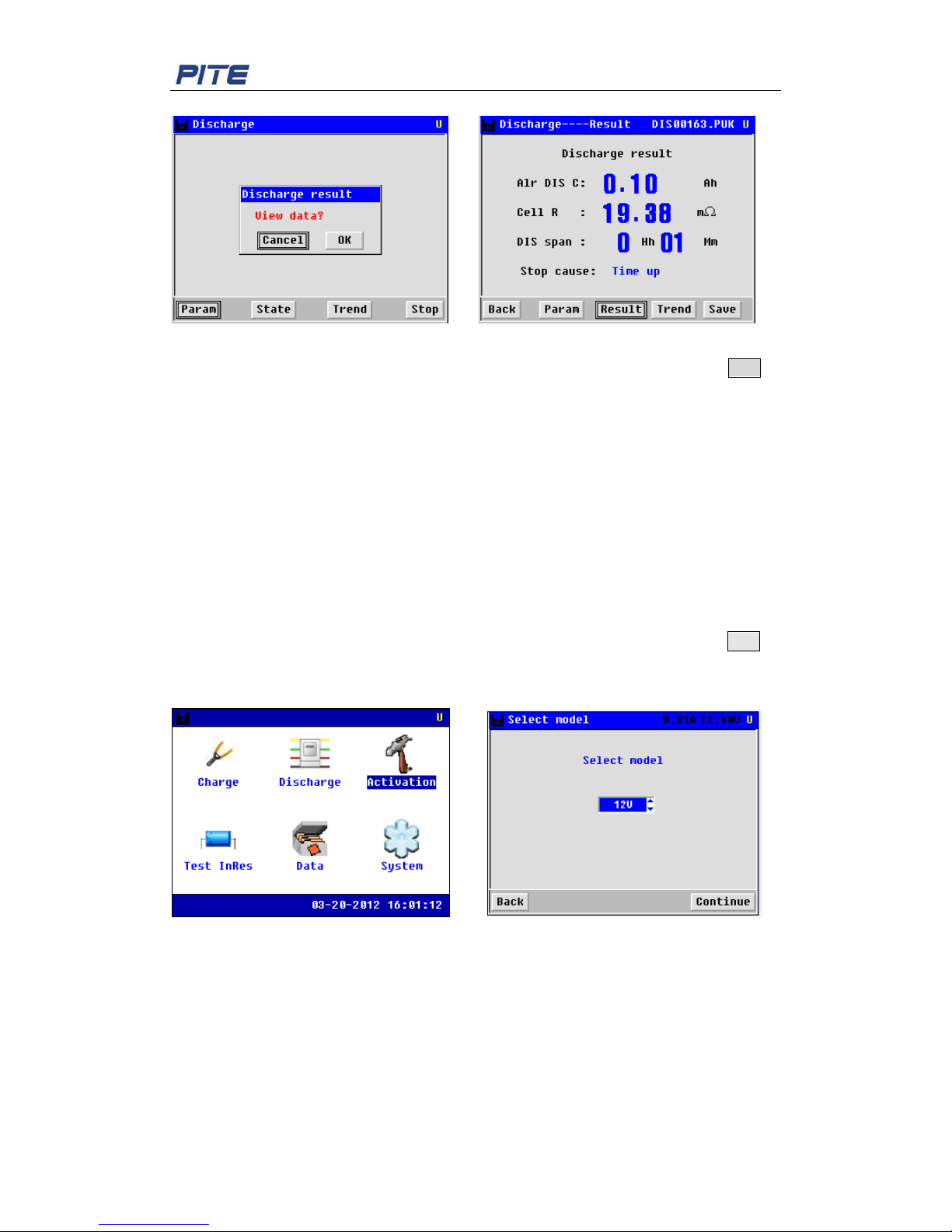

After testing resistance, press [OK] to view discharging result in the below screen:

PITE 3932T Battery Charger/Discharger
13
Fig. 4.3.10 Fig. 4.3.11
Press ↓ arrow key to page down, you will see changing curve of current. Press ESC to
return back to the upper menu.
4.4 Cell Activation
Like the function of charge and discharge, setting for activation parameters is necessary
before operation of activation. Selection of cell type could be 2V, 6V or 12V. Also set cell
serial number, discharge voltage lower limit, charge voltage upper limit and cycle times in
the same way by using arrow keys. Maximum activation cycle is 9.
Activation process is:
Test battery resistance→Discharging→Test battery resistance→Charging
Highlight and select [Activate] in main menu by using the arrow keys. Press ENT to
confirm. PITE 3932T allows 3 options: 2v, 6v and 12v, choose the right model for the
battery.
Fig. 4.4.1 Fig. 4.4.2
Press [Continue] to next step, it will show the below page, Use the arrow keys for setting
different parameters.After parameter setting , press [Continue].

PITE 3932T Battery Charger/Discharger
14
Fig. 4.4.3
If the cycles are more than 1, press [Continue] to set the parameters of each cycle after
the previous setting (In the below screen, I have set the cycle time). Parameters in each
cycle include discharge current, discharge time, charge current and charge time. In all
cycles of activation, charge time and discharge time should not exceed 18 hours. And total
cycle time should not exceed 100 hours.
Fig. 4.4.4 Fig. 4.4.5

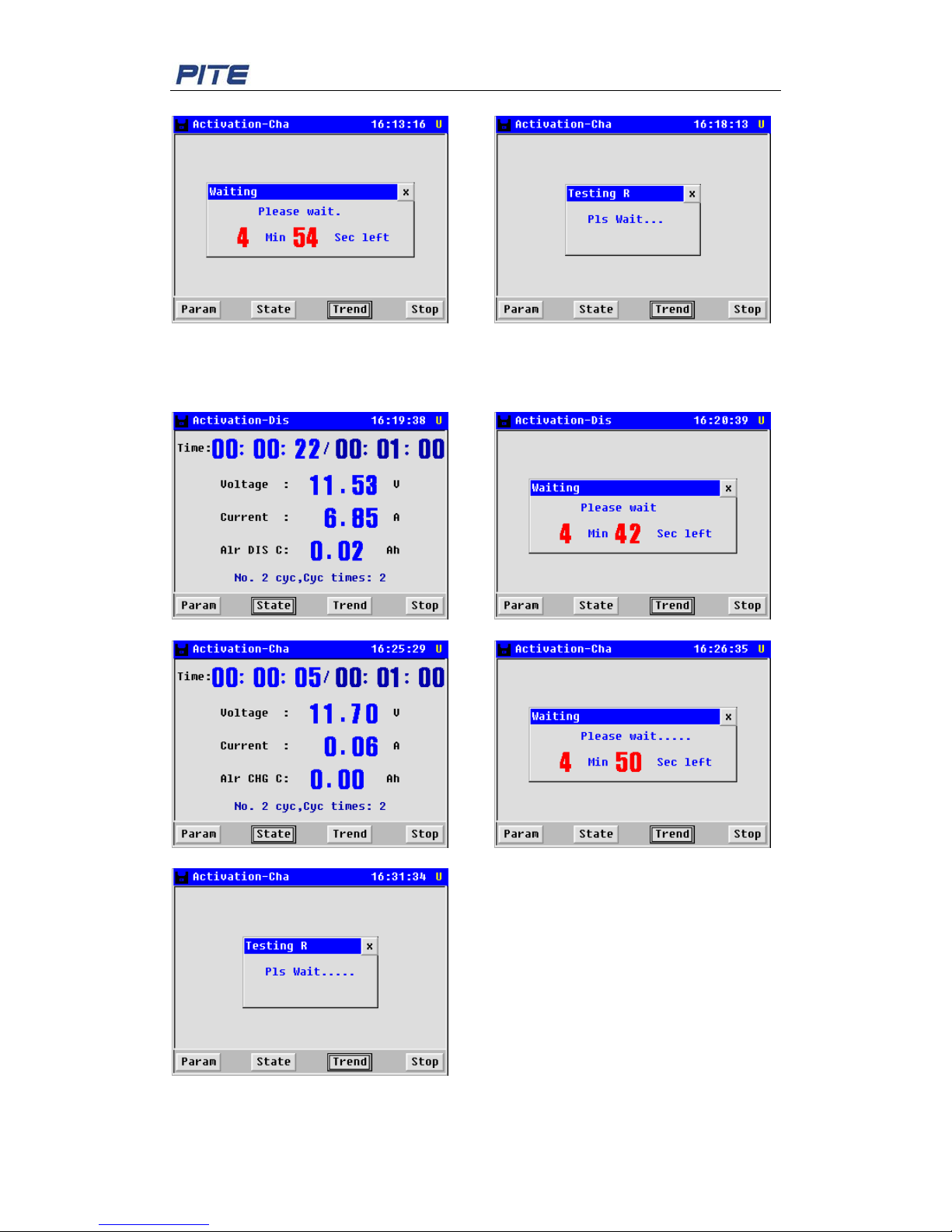

After all the settings are confirmed, Press [Continue] and please wait 5 minutes, it is
testing resistance of the battery. When finishing resistance testing, it begin to discharging,
it will show the testing state as below.
Fig. 4.4.6 Fig. 4.4.7

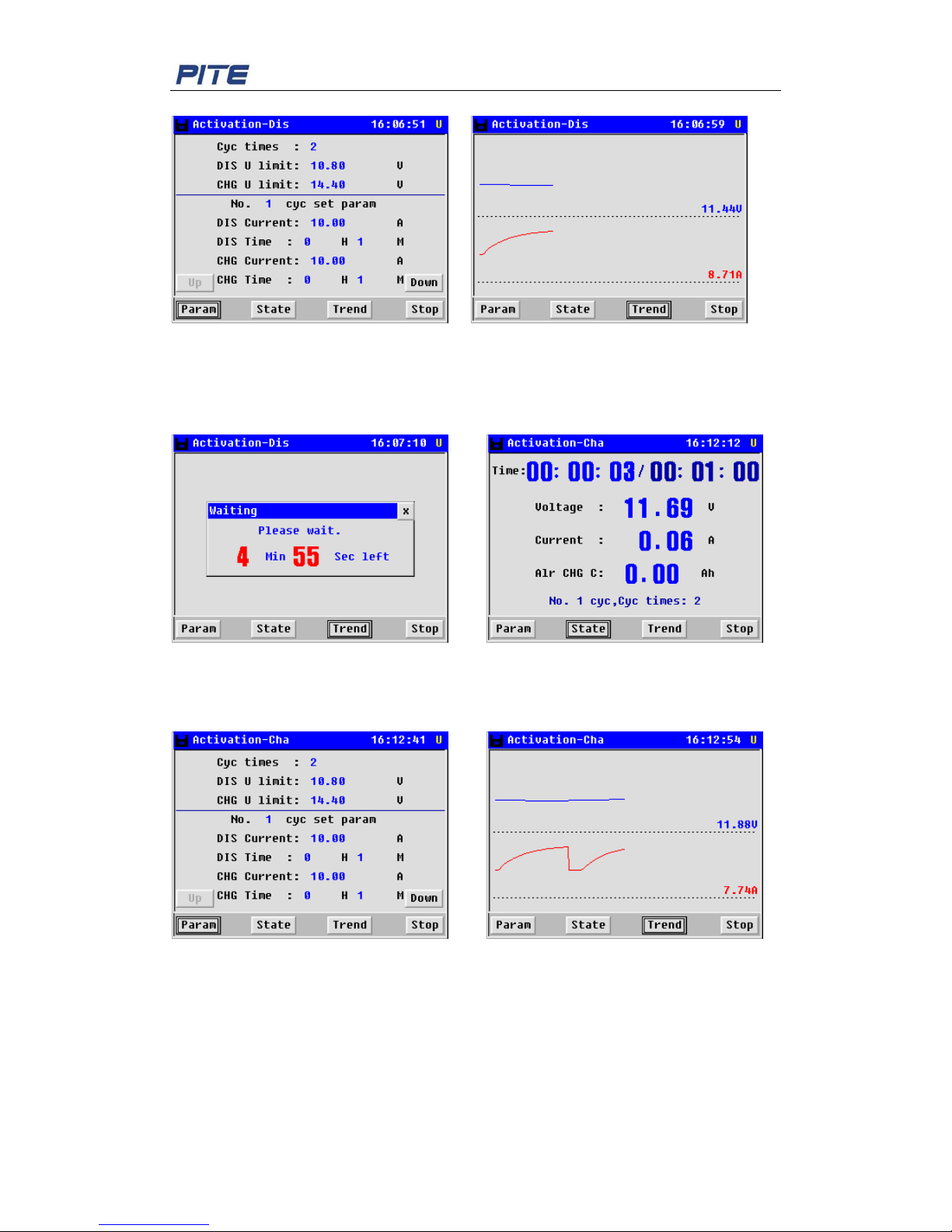

You can press [Param] to check the activation-discharge parameters, or you can press
[Trend] to check the Voltage&Current curve.

PITE 3932T Battery Charger/Discharger
15
Fig. 4.4.8 Fig. 4.4.9
When finishing activation-discharging, please wait for 5 minutes, it will test the battery
resistance again, when finished resistance testing, it begin to activation-charging, below
shows the charging state
Fig. 4.4.10 Fig. 4.4.11
You can press [Param] to check the activation-charge parameters, or you can press
[Trend] to check the Voltage&Current curve.
Fig. 4.4.12 Fig. 4.4.13
When cycle 1 finished, it begins cycle 2.
It will test the battery resistance first

PITE 3932T Battery Charger/Discharger
16
Fig. 4.4.14 Fig. 4.4.15
Then it will proceed with discharge→resistance testing→ charge → resistance testing as
the same in cycle 1.
Fig. 4.4.16

PITE 3932T Battery Charger/Discharger
17
4.5 Cell Resistance
It is for testing internal resistance of battery. Select [Test InRes] in the main menu, and
Press ENT to confirm. It will show the below screen. Setting of capacity and current is for
the calculation of testing resistance. After inputting the capacity value, press [Test] or
ENT to begin resistance test. Resistance value will come out in 15 to 20 seconds.
Fig. 4.5
4.6 Data Management
Please return to the main menu as below for data management: Choose the item in "Data
for" option, it has three choices: charger, discharger and activator
Fig. 4.6.1
Use arrow keys to select data, and double click what you choose, you will see data for
previous operations:

PITE 3932T Battery Charger/Discharger
18
Fig. 4.6.2
If you want to save the data to USB, you can click [save] button, it will transfer the data to
USB. Make sure that the USB drive has already been inserted in the PITE 3932T main
unit.
In the same screen as above, select [Delete] and relevant testing date for data deleting.
4.7 System Management
Please return main menu, you will see the option [System] for management.
Fig. 4.7
4.7.1 Time Setting
After enter [System], select [Time] as below, Use arrow keys on main unit and orient and
change the numbers and press ENT to save the numbers as below:
Fig. 4.7.1

PITE 3932T Battery Charger/Discharger
19
4.7.2 System Update
Save the updating program （PITE3932.bin and SCRIPT00.TXT）got from PITE in USB
drive and insert the USB drive in the PITE 3932T main unit. After restarting the main unit,
the program will be updated automatically. It is simple and convenient.

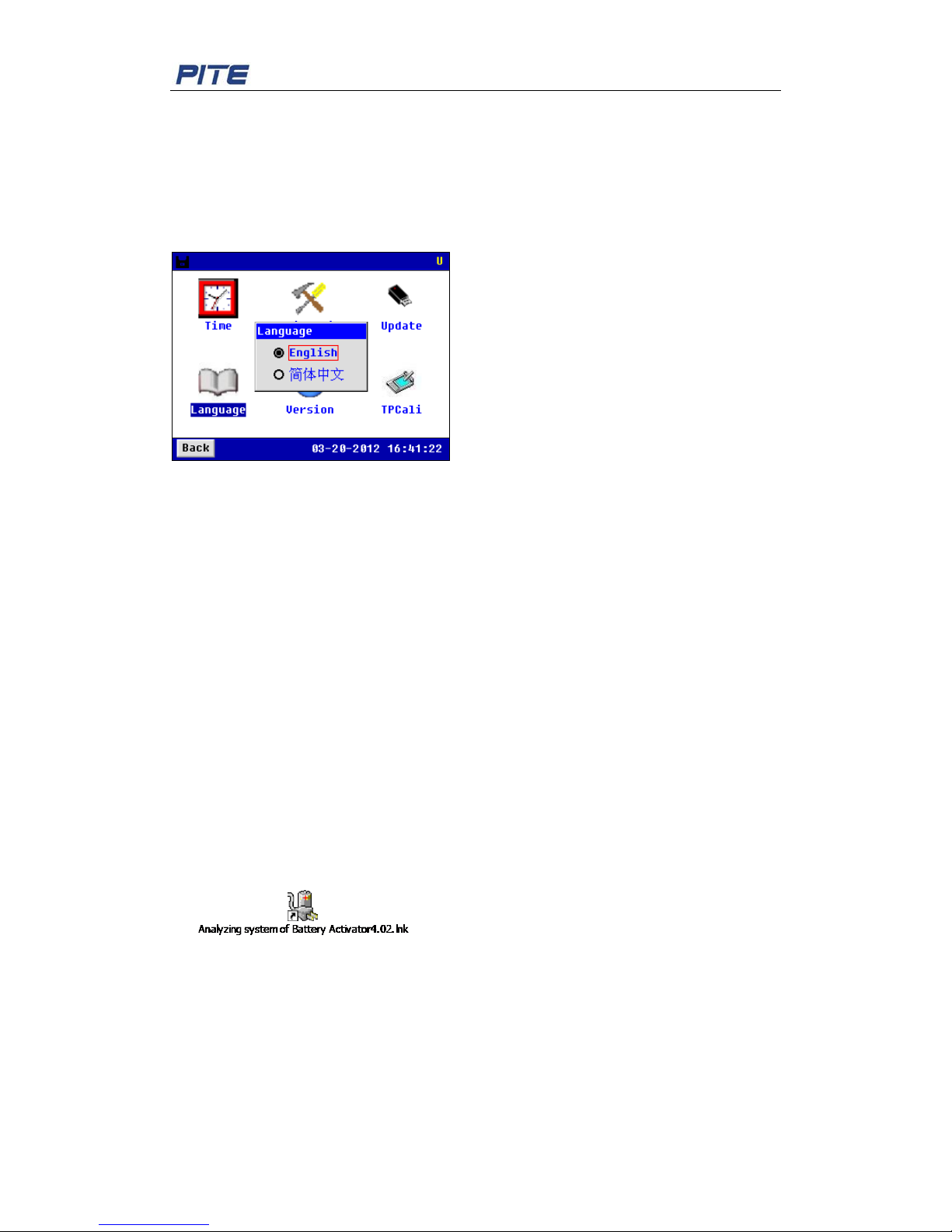

4.7.3 System Language
Please return to system menu and choose [Language], change the language you need.
Fig. 4.7.3
5. ANALYZING SOFTWARE
Testing data saved in the PITE 3932T could be transferred to a personal computer via
USB drive for data analyzing. Before the analyzing, please install the following software
first. NOTE: You are recommended to run this software in Operation System of Windows
XP.
5.1 Installing the Software
1. Start the PC.
2. Stop all applications that are running on the PC (recommended).
3. Insert the CD for analyzing software of PITE 3932T into the CD-ROM drive.
Note: If the [install] dialog is not displayed automatically, run the installation program in
the following location: X:\ setup.exe. ("X" indicates the CD-ROM drive. “X” may vary by
computers.)
4. Once the computer detects the CD-R, screen of [install] will pop up. Follow the screen
instructions to install the program. After installation, you will find PITE 3932T program icon
on the PC desktop.
5.2 Software Startup
A. Double click the software icon on desktop. A window will pop up to remind you
connecting the central database first. This database will be used to save the data when
this analyzing software is running. Click [OK] to start in the following step.

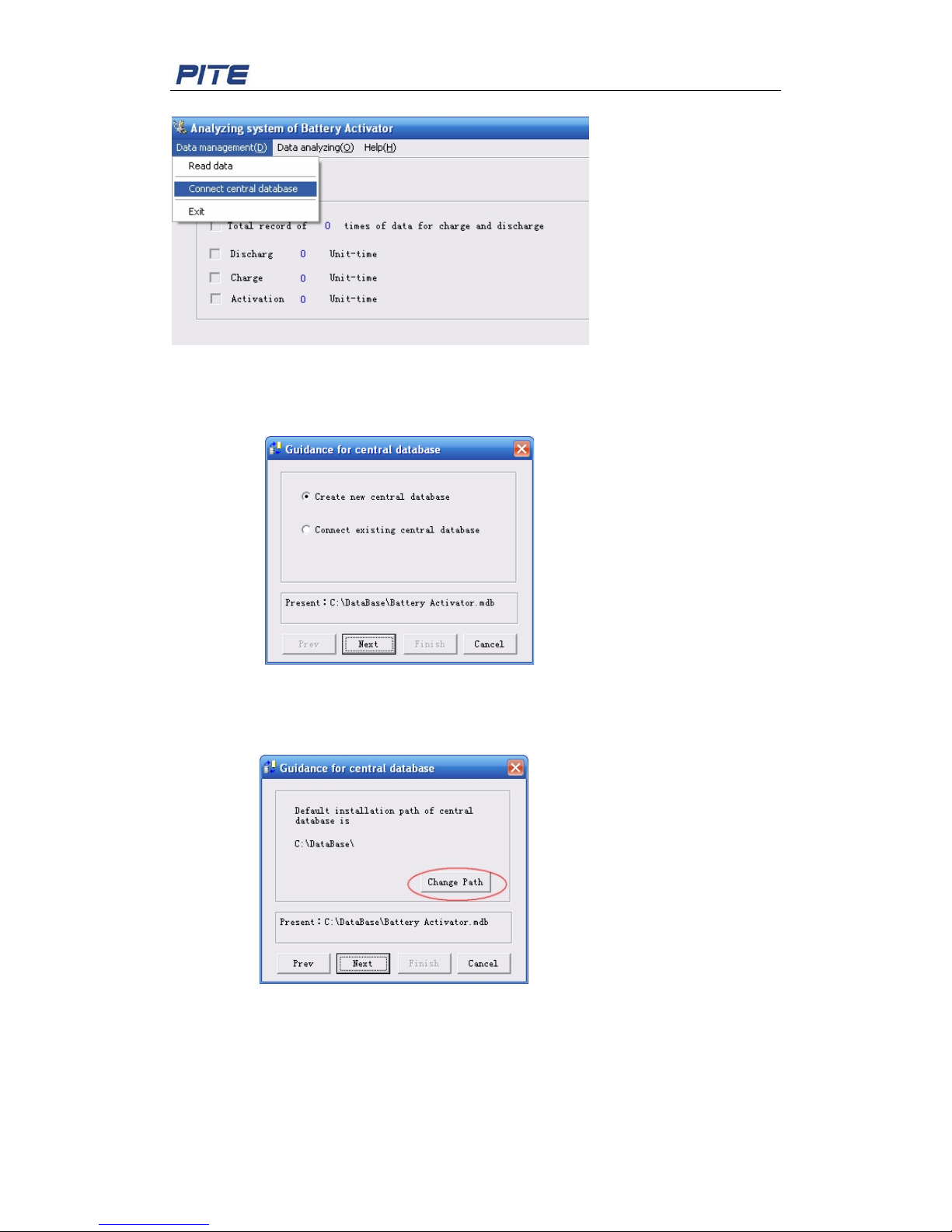

B. Click [Data Management] →[Connect central database]:

PITE 3932T Battery Charger/Discharger
20
Fig.5.2.B
C. Select [Create new central database] and follow the screen instructions to install the
default database
Fig.5.2.C1
Note: Click [Change Path] to change the installation path for database, click [Next]and
then [Finish] to complete the setting.
Fig.5.2.C2
D. Or you could select [Connect existing central database], click [Next] and then
[Finish] to confirm the path setting.
