PiXORD P-600 User manual

User’s Manual
PiXORD H.264 Series 2-Megapixel
Network Camera
P600 / P600E
Version: 1.4
Date: 06/07/2013

1
Contents
Notices .........................................................................................................................................................2
Introduction..................................................................................................................................................4
Installation....................................................................................................................................................5
Access to the Camera.................................................................................................................................11
Web browser access ...........................................................................................................................11

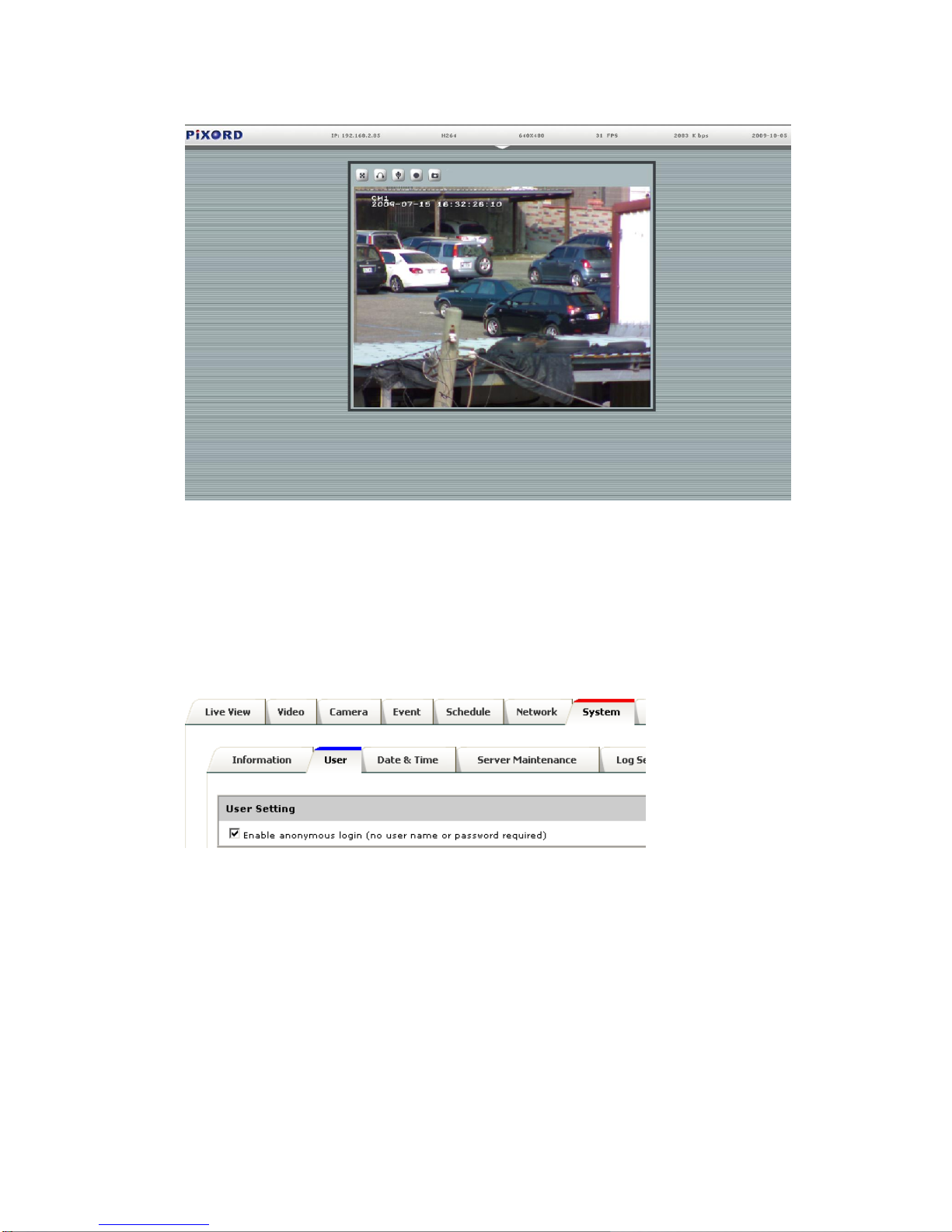

Access restriction...............................................................................................................................12

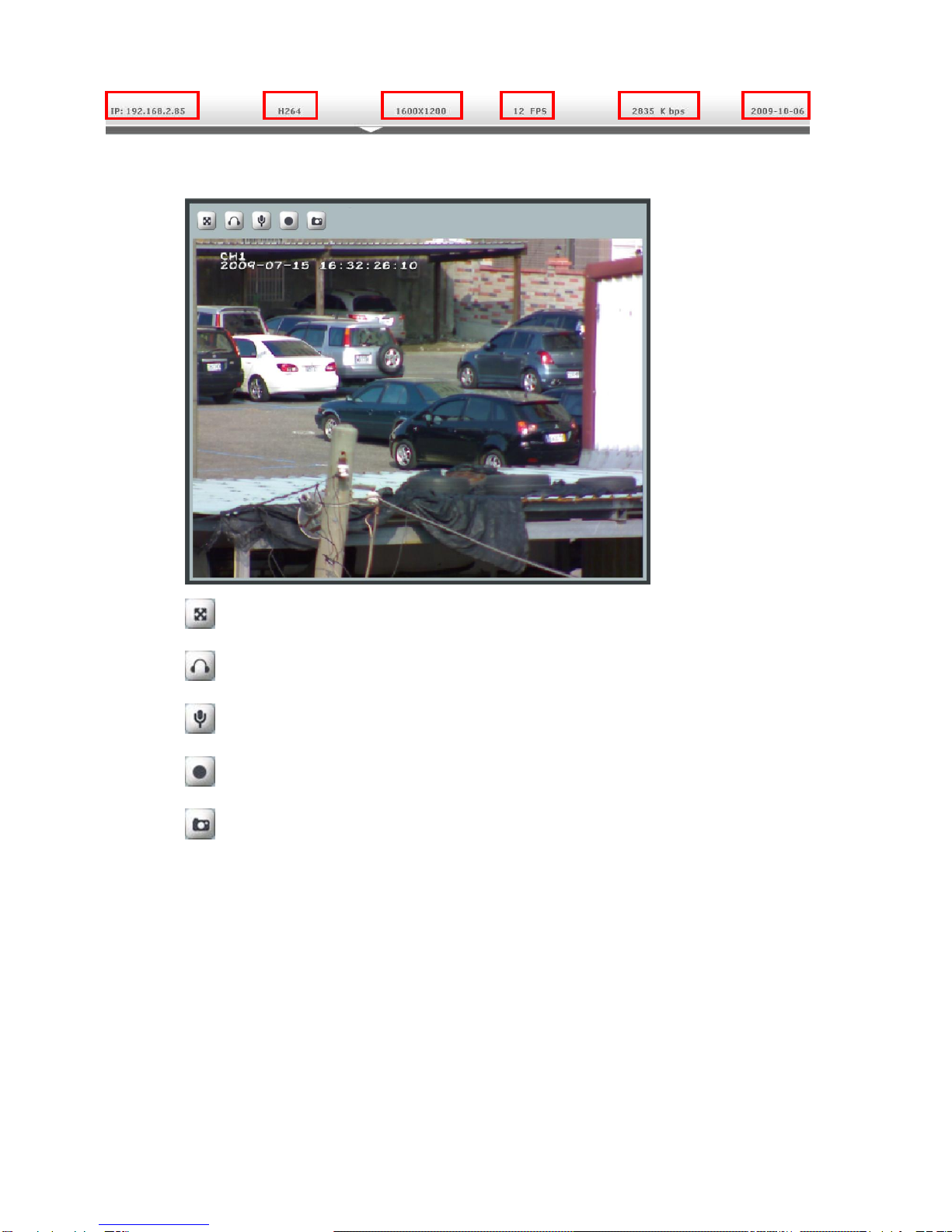

The Live View Page...........................................................................................................................12
Video and Image Configuration.................................................................................................................15

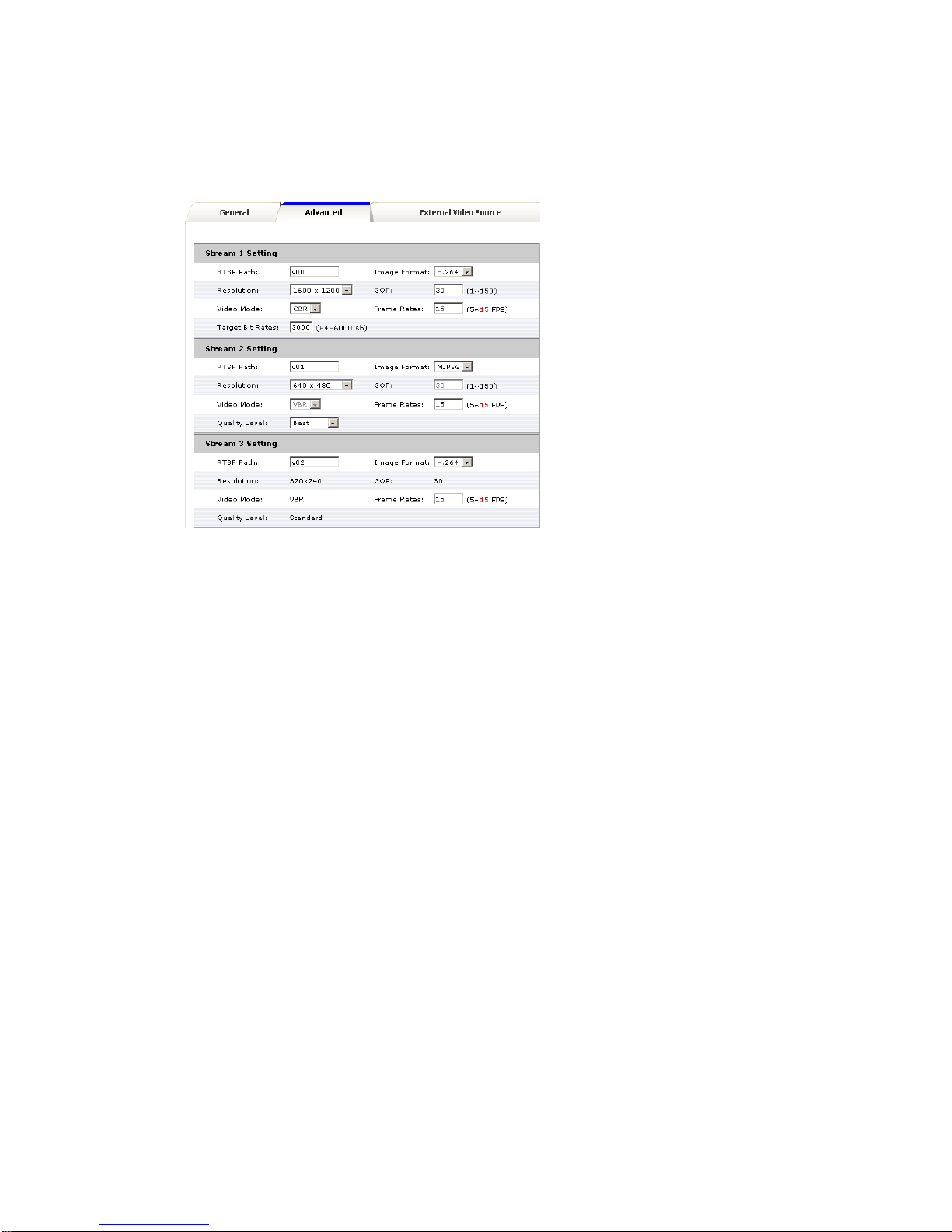

Video..........................................................................................................................................15
Camera.......................................................................................................................................21
Event Handling ..........................................................................................................................................23
Local Storage and Schedule Recording.....................................................................................................27
Network Configurations.............................................................................................................................29
System Options..........................................................................................................................................40
Web Interface Customization.....................................................................................................................45
Connectors .................................................................................................................................................47
View of Back panel............................................................................................................................47
DC-Iris ...............................................................................................................................................47
Composite Video Output....................................................................................................................48
Audio Out...........................................................................................................................................48
SD Card Slot......................................................................................................................................49
I/O Terminal Connector - Pin Assignment.........................................................................................50
Troubleshooting.........................................................................................................................................52
Check firmware version.....................................................................................................................52
Upgrade device firmware...................................................................................................................53
Restore Factory Default Settings .......................................................................................................54
Technical Specifications ............................................................................................................................55
Product Specifications .......................................................................................................................55
Video Streams Specification..............................................................................................................58

2
Notices
This user manual is intended for administrators and users of the PiXORD P600 Series Network Camera, including
instructions for using and managing the camera on your network. The use of surveillance devices may be
prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is legal
before installing this unit for its intended use.
Before the Network Camera is installed, all the safety and operating instructions should be carefully read and
followed to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as
intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power connection with wet
hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could damage this equipment.
Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
Please use PoE switch that current output of each port should be over 0.5 Amp for P600E.
All work related to the installation of this product should be made by qualified service personnel
or system installers.
Liability
PiXORD Corporation reserves the right to make corrections, modifications, enhancements, improvements, and
other changes to its products and services at any time and to discontinue any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such
information is current and complete. All products are sold subject to PiXORD Corporation’s terms and conditions of

3
sale supplied at the time of order acknowledgment.
PiXORD is not responsible or liable for the resale of its products with statements different from or beyond the
specification/parameters stated by PiXORD. Customers are responsible for their applications using PiXORD
products. To minimize the risks associated with customer applications, customers should provide adequate
operating safeguards. PiXORD is under no obligation to provide any further technical support service or
product/software alteration beyond PiXORD's representation.
PiXORD products are not authorized for use in safety-critical applications where a failure of the PiXORD product
would cause severe personal injury or death, unless officers of the parties have executed an agreement specifically
governing such use.
Reproduction of PiXORD information or datasheets with alteration is an unfair and deceptive business practice.
PiXORD is not responsible or liable for any such statements.
Every care has been taken of this manual. If there are any inaccuracies or omissions, please inform your local
office. PiXORD Corporation cannot be held responsible for any typographical or technical errors. PiXORD
Corporation is not liable or responsible for incidental or damages caused by mishandling.
Trademarks
All names used in this manual for hardware and software are probably registered trademarks of respective
companies. PiXORD is a registered trademark of PiXORD Corporation. All rights reserved.
Support
If you require any technical assistance, please contact your PiXORD reseller. You can connect to the Internet
PiXORD’s website: www.pixord.com for below information,
Download user documentation and firmware updates at PiXORD Support
( http://www.pixord.com/support/support.asp)
Find answers to resolved problems in the FAQ database. Or contact our FAE at technical support
(http://www.pixord.com/contact2.asp)

4
Introduction
PiXORD P600 Series Network Camera delivers superior H.264-AVC performance, state of the art design and
function. P600 Series is specifically adapted for maximum performance indoor applications, such as commercial,
banking, government buildings, schools, universities and airports.
H.264-AVC video compression can lower bandwidth and storage requirements without compromising image
quality; Motion JPEG is supported for increased flexibility, as well as multiple independent video streaming.
P600 Series value-added features include; on-board video motion detection, SD slot for storage recording, and
two-way audio. P600E, the PoE model, is available with full PoE (IEEE-802.3af) feature that supplies function of
power to the camera via the network, eliminating the need for power cables, reducing installation costs and
complexity. Consequently, P600 Series is “Best in Class” for maximum performance IP video surveillance
systems, demanding superior image quality, ease of installation, and intelligent video capabilities.

5
Installation
1. Hardware Connection

6
2. Software Installation
The following software is necessary for the proper display and use of the P600 from the Web site. The
software will be available from the Software Package CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on the LAN. This utility is
useful for conveniently configuring the network settings of the device, or for finding a device once the network
settings have been modified. To install the IP Installer, from the Software Package CD UI, select IP installer,
then follow the on screen instructions.
VLC
Though not necessary, this can be used for viewing the streaming without a Web browser.

7
3. Network Configuration
IP Installer is a utility that provides an easier, more efficient way to configure the IP address and network
settings of the devices. It even provides a convenient way to set the network settings for multiple devices
simultaneously using the batch setting function. Moreover, IP Installer can save the network settings for all
devices as a backup and restore them when necessary. NOTE: Default mode for P600 is DHCP.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server in order to avoid
using a previously assigned IP address.
2. Ensure the P600 is powered on and correctly connected to the network.
3. MAC Address: Each device has a unique Ethernet address (MAC address) shown on the label of the device
as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any P600 on the LAN except those that are behind a
router, it is a good idea to set the host PC to the same subnet. In order to connect to the Web-based user
interface of the camera, the host PC must be in the same subnet. For more information about subnets, please
consult your network administrator.
Using IP Installer to Assign an IP Address to P600
1. Once IP Installer has been successfully installed on the PC, double click the IP Installer icon on the desktop,
or select it from Start > Programs > Pixord > Device Search > IP Installer.
2. Click the menu bar Tool > Search Network Device to search the device in the LAN.
*0004290000
B1

8
3. From the list, select the device with the MAC Address that corresponds to the P600 that is to be configured.
The MAC Address is identical to the unit’s S/N (Serial Number).
4. Double click the item to open the Property Page for the selected device or click the menu bar View > Property.
5. After filling in the properties, click [Set] button to complete the configuration settings in the remote device
while saving configuration in the PC.
Open the Web-based UI of the selected camera
1. To access the Web-based UI of the selected unit, run the View > Open Web on the menu bar.
2. If the device has been configured correctly, the default Web browser will open to the home page of the
selected device.
3. If you find your browser is opened and automatically connected to the camera Home Page, it means you’ve
assigned an IPAddress to the unit successfully. Now you can close the IP Installer and start using your

9
camera.
Verify and Complete the Installation from Your Browser
When browsing the Home Page for the first time with the Microsoft Internet Explorer TM, you must temporarily lower
your security settings to perform a one-time-only installation of the ActiveX component onto your workstation, as
described below:
1. From the Tools menu, select [Internet Options]
2. Click the [Security] tab and then click [Custom Level] button to see your current security settings.
3. Set the security level to Low and click [OK].

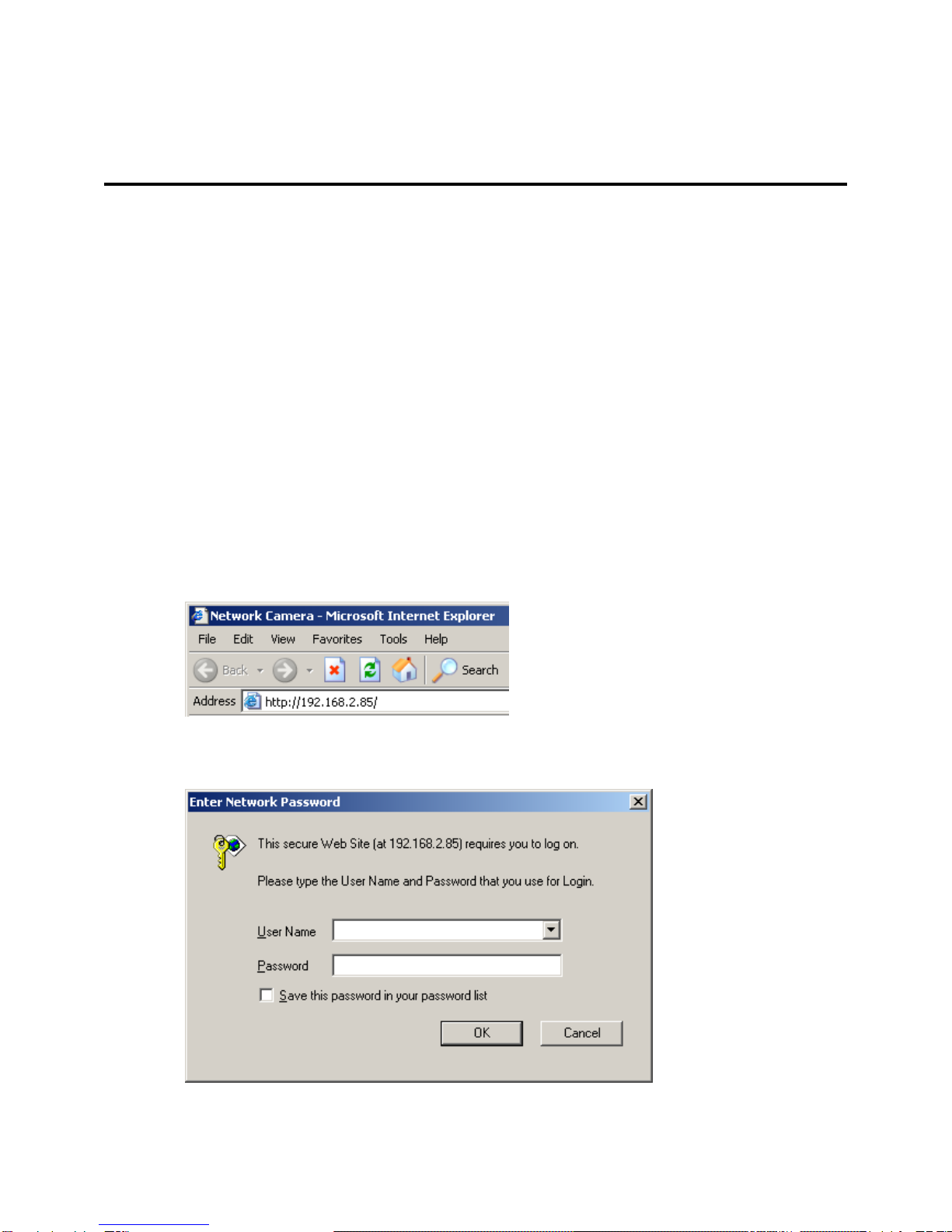

4. Type the URL or IP address of your camera into the Address field.
5. A dialog box will pop up asking if the ActiveX control should be installed. Click [Yes] to start the installation.
Once the ActiveX installation is complete, return the security settings to their original value, as noted above.
