PiXORD PB670 User manual

H.264 Series Fish-Eye Compact
Network Camera
PB670 / PB670E
User’s Manual
Rev. 1.03
Released Date: 07/05/2012

1
Table of Contents
Revision History...................................................................................................................2
Notices.................................................................................................................................3
Introduction..........................................................................................................................5
Installation............................................................................................................................6
Using the Web UI...............................................................................................................14
1. Live View................................................................................................................15
2. Video ......................................................................................................................18
General................................................................................................................18
Advanced ............................................................................................................20
3. Camera...................................................................................................................21
General................................................................................................................21
4. Event...................................................................................................................28
Event Server........................................................................................................29
Motion Detection..................................................................................................31
I/O Ports ..............................................................................................................33
Event Configuration.............................................................................................34
5. Schedule.................................................................................................................35
General................................................................................................................35
Storage................................................................................................................36
6. Network ..................................................................................................................38
General................................................................................................................38
Advanced ............................................................................................................39
SMTP (E-Mail).....................................................................................................40
DDNS ..................................................................................................................41
7. System....................................................................................................................42
Information...........................................................................................................42
User.....................................................................................................................43
Date & Time.........................................................................................................44
Server Maintenance ............................................................................................45
Log Service..........................................................................................................46
8. Customize...............................................................................................................47
FAQ....................................................................................................................................49
I/O Terminal Connector - Pin Assignment...................................................................49
Restore Factory Default..............................................................................................50
Upgrade device firmware............................................................................................51

2
Revision History
Version
Description
Author
1.01
Original document
Anthony
1.02
Modify the GPIO picture
Eric_Y
1.03
Change Wall 720PMount
SamKao

3
Notices
This user manual is intended for administrators and users of the PB670 Series Network Camera, including
instructions for using and managing the camera on your network. The use of surveillance devices may be
prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is
legal before installing this unit for its intended use.
Before the Network Camera is installed, all the safety and operating instructions should be carefully read and
followed to avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power connection with
wet hands
Risk of short circuit, electric shock or fire.
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit.
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could damage this
equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified service
personnel or system installers.

4
Liability
PiXORD Corporation reserves the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without
notice. Customers should obtain the latest relevant information before placing orders and should verify that
such information is current and complete. All products are sold subject to PiXORD Corporation’s terms and
conditions of sale supplied at the time of order acknowledgment.
PiXORD is not responsible or liable for the resale of its products with statements different from or beyond the
specification/parameters stated by PiXORD. Customers are responsible for their applications using PiXORD
products. To minimize the risks associated with customer applications, customers should provide adequate
operating safeguards. PiXORD is under no obligation to provide any further technical support service or
product/software alteration beyond PiXORD's representation.
PiXORD products are not authorized for use in safety-critical applications where a failure of the PiXORD
product would cause severe personal injury or death, unless officers of the parties have executed an
agreement specifically governing such use.
Reproduction of PiXORD information or datasheets with alteration is an unfair and deceptive business
practice. PiXORD is not responsible or liable for any such statements.
Every care has been taken of this manual. If there are any inaccuracies or omissions, please inform your local
office. PiXORD Corporation cannot be held responsible for any typographical or technical errors. PiXORD
Corporation is not liable or responsible for incidental or damages caused by mishandling.
Trademarks
All names used in this manual for hardware and software are probably registered trademarks of respective
companies. PiXORD is a registered trademark of PiXORD Corporation. All rights reserved.
Support
If you require any technical assistance, please contact your PiXORD reseller. You can connect to the Internet
PiXORD’s website: www.pixord.com for below information,
Download user documentation and update firmware at PiXORD Support
( http://www.pixord.com/support/support.asp)
Find answers to resolved problems in the FAQ database. Or contact our FAE at technical support
(http://www.pixord.com/contact2.asp)

5
Introduction
PB670 is a Fish-Eye Network Camera; it is featured with superior H.264-AVC performance and rich functions.
Fish-Eye Camera includes a fish-eye lens for 360°wide angle view without blind spot. Thus Fish-Eye Camera
is very suitable to view a wide area with single camera such as hallway, store, office, and etc.
The H.264-AVC video compression enables to lower bandwidth and storage requirements without
compromising image quality; motion JPEG is supported for increased flexibility, as well as multiple
independent video streaming.
The hardware based on the processing ability of panorama video can provide user modes of multiple video,
including source image, double broad view, triple mode view and quad view. And it supports wall mount,
ceiling mount, and wall mount 720P.
The e-PTZ function including preset point without moving parts, can replace part of traditional PTZ camera
and thus save lots of cost for maintaining traditional mechanical Pan/Tilt.
The camera offers optional PoE type for installation. The PoE (IEEE802.03af) feature provides an easy
installation through a single Ethernet cable, which lessens the installation of power plugs or extensions.
Further functions include two-way audio and micro SD card for local storage application.

6
Installation
1. Hardware Connection
1. Prepare a PC with Ethernet link to the network
2. Connect LAN port (RJ45) of the camera to a network switch/hub
3. Connect power jack / POE ; POE support only for PB670E
4. Ensure the power adaptor specification matching the power system (110V or 220V) and connect the
adaptor to the outlet
5. Check LED status (Power/Network)

7
2. Software Installation
The following software is necessary for the proper display and use of the Fish-eye camera from the Web
site. The software will be taken from the Software CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on the LAN. This
utility is useful for conveniently configuring and finding the network settings of the device.
Install the IP Installer from the software CD. Click the IP installer to launch the program.
XVID Codec
An H.264 codec is applied for displaying the video stream and playing the recoded AVI files. If the video
stream can’t be displayed, or the recorded AVI files, or played on PC, install the XVID Codec from the
software CD.
VLC
VLC can be used for viewing the streaming without a Web browser.

8
3. Network Configuration
IP Installer is a utility that provides an easier and more efficient way to configure the IP address and
network setting of the device. It even provides a convenient way to set the network settings and use the
batch setting function simultaneously. Moreover, IP Installer can save the network settings for all
devices as a backup and restore them when necessary.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server in order to
avoid using a previously assigned IP address.
2. Ensure the camera is powered on and correctly connected to the network.
3. MAC address: Each device has a unique Ethernet address (MAC address) shown on the label of the
device as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any device on the LAN except those that are
behind a router, it is a good idea to set the host PC to the same subnet. In order to connect to the
web-based user interface of the camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.
Using IP Installer to Assign an IP Address to PB670
1. Once IP Installer has been successfully installed on the PC, double click the IP Installer icon on the
desktop,
2. Click the [Device Search] to search the device in the LAN.
*0004290000
B1

9
3. From the list, select the device with the MAC address that corresponds to the camera that is to be
configured. The MAC address is identical to the S/N of unit. (S/N = Serial Number).
4. Double click the select item to open the property page or right click the item to select the
[Single Device Setting].
5. Modify the network settings of the camera.

10
6. After filling in the properties, click [Set] button to complete the configuration settings.
7. Click the [Batch Device Setting] to set several devices.

11
8. Supported languages: Traditional Chinese, English and Spanish.

12
Open the Web-based UI of the Selected camera
1. To access the web-based UI of the selected unit, run the View > Open web on the menu bar.

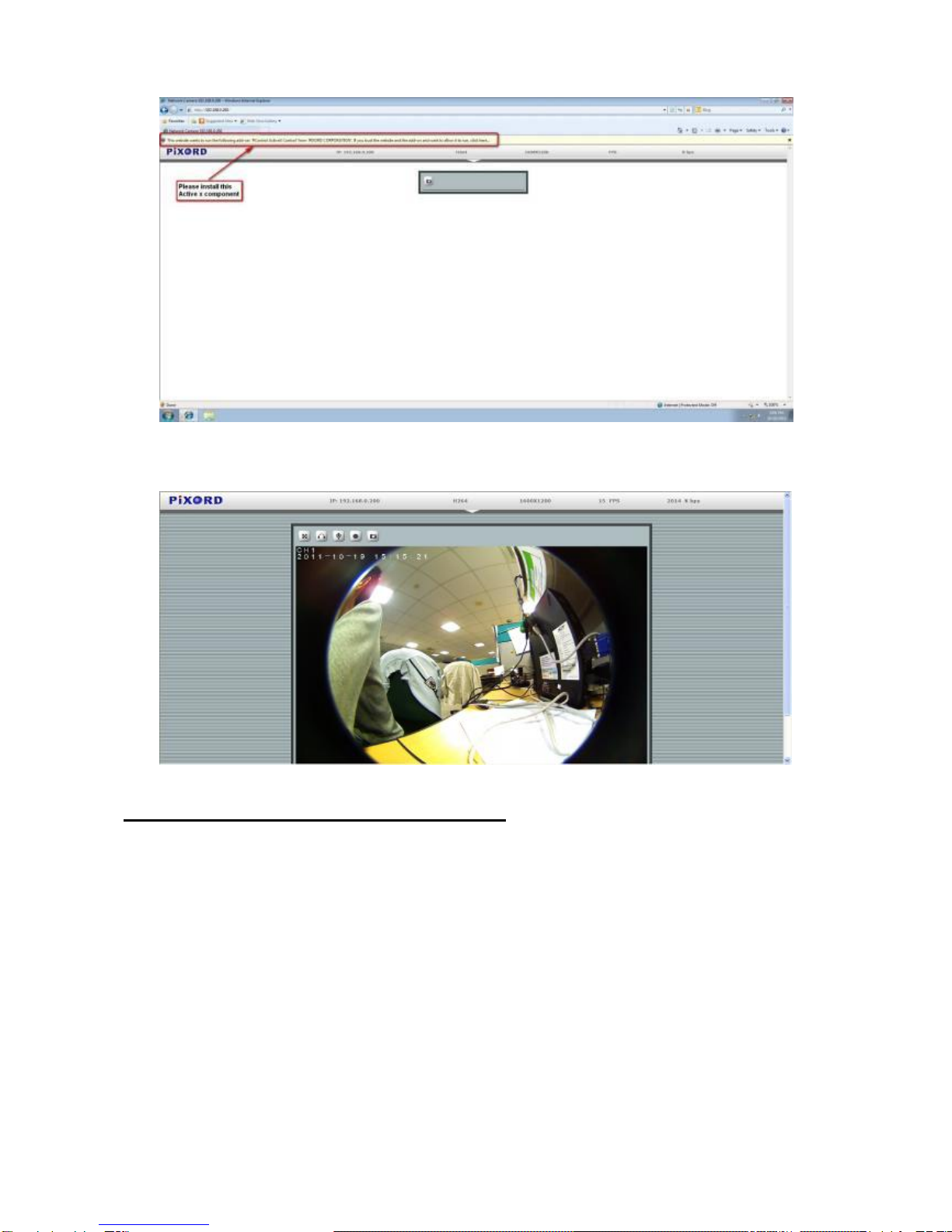

2. For first-time use, there will be a prompt to install the ActiveX control. Confirm the installation as it is
required to view the video stream and some operations.

13
3. If the device has been configured correctly, the default web browser will open to the home page of the
selected device.
Verify and Complete the Installation from Your Browser
When browsing the home page at the first time with the Microsoft Internet ExplorerTM, you must temporarily
lower your security settings to perform a one-time-only installation of the ActiveX component onto your
workstation, as described below:
1. From the Tools menu, select [Internet Options]
2. Click the [Security] tab and then click [Custom Level] button to see your current security settings.
3. Set the security level to Low and click [OK].
4. Type the URL or IP address of your camera into the address field.
5. A dialog box will pop up asking if the ActiveX control should be installed. Click [Yes] to start the
installation.
Once the ActiveX installation is complete, return the security settings to their original value, as noted above.

14
Using the Web UI
Start your web browser and enter the URL or IP address in the address field. The home page of the
camera is now displayed.

15
1. Live View
Button
Description
Click this button to access general/advance camera settings.
Choose a language for the user interface.
Languages options are English, traditional Chinese and simplify Chinese.
Click this button to display different views.
Check this button to view the resolution of the image.
Click this button to manually trigger a preset event in the configuration page.
Choose a stream for viewing.
IPaddress of the
camera
Video
format
Resolution
Frame
Rate
Bit
rate

16
Button
Description
Click this button to switch to full screen mode.
Click this button to listen the audio input from local end.
Click this button to talk to people around the Network Camera.
Click this button to record video clips to your computer.
Click this button to capture and save still images.

17
Configuration Pages List
Video
General
Advanced
Camera
General
Advanced
Event
Event Server
Motion Detection
I/O ports
Event Configuration
Schedule
General
Storage
Network
General
Advanced
SMTP (E-mail)
DDNS
System
Information
User
Date & Time
Server Maintenance
Log Service
Customize
Style Layout

18
2. Video
General
OSD Setting
Enable the On Screen Display (OSD) information. A line of text message (e.g. Camera Name or Position) and the
date/time string are available to be selected for displaying or hiding on the images.
The PTZ function will display in quad with source view, double with source view, double view of wall mount and wall
mount 720P, triple view of wall mount and wall mount 720P.
Click the PTZ icon, the web will pop up the control panel to control e-PTZ function of PB670.
Double with source view PTZ control panel:

19
1. Step: Set the speed of Pan function. (1~10)
2. Pan Arrow: Click this button to control Pan.
3. Move the control panel.
4. Close the control panel.
5. Zoom: Digital zoom in/out.(1~10)
6. Preset Point: List of preset points. (1~16)
Triple & Quad with source & Double view PTZ control panel:
1. Ch: Select the channel. (1~4) & (2~4)
2. Step: Sets the speed of Pan/Tilt function. (1~10)
3. Pan Tilt Arrow: Click this button to control Pan/Tilt.
4. Zoom: Digital zoom in/out. (1~10)
5. Move the control panel.
6. Close the control panel.
7. Preset Point: List of preset points. (1~16)
1
3
4
2
1
2
6
5
7
4
3
5
6
