2 Mega-Pixel Fish-eye Panorama IP Camera
ICA-HM830
Quick Installation Guide

Table of Contents
Chapter 1. Introduction .................................................................................... 3
1.1 Before Installation ............................................................................... 4
1.2 System Requirements .......................................................................... 4
Chapter 2. Physical Description and Installation.................................................. 5
2.1 ICA-HM830 Package Content ................................................................ 5
2.2 ICA-HM830 Physical Details .................................................................. 5
2.3 ICA-HM830 Installation ........................................................................ 8
2.3.1 Wall/Ceiling Mount Installation Procedure ...................................... 9
Chapter 3. Camera Windows Utility ..................................................................10
3.1 NetworkConguration ........................................................................10
3.2 Open the Web-based UI .....................................................................12
Further Information ........................................................................................14

3
Chapter 1. Introduction
Thank you for purchasing the PLANET H.264 2Mega Pixel Fish-Eye Fixed Dome
IP camera, the ICA-HM830 is include a sh-eye lens for 360° panoramic wide
angle view without blind spot. The ICA-HM830 delivers clear image through Multi-
streaming H.264 and Motion JPEG video up to UXGA (1600 x 1200 pixels). The
sh-eye lens with 2Mega Pixel high resolution images provides 360 degree wide
view surveillance and the panorama function with quad view enables four different
angles images to display simultaneously for monitoring and recording.
The ICA-HM830 digital Pan/Tilt and zoom function can provide users 9 different
video modes including:
360°Sourceimagel
360°Tableviewl
180°doublebroadviewl
180°doubletablebroadviewl
360°sourceviewwith3PTZl
Quad viewl
360°broadviewwith2PTZl
180°sourceviewwith3PTZl
180°broadviewwith2PTZl
Furthermore, the ICA-HM830 applies perspective correction software to eliminate
the rounding normally associated with sh-eye lenses and thus save lots of
traditional mechanical Pan/Tilt maintenance cost.
The ICA-HM830 is highly exible to be applied in various kinds of IP surveillance
environment.  It has built-in ICR (IR-cut lter Removable) for day / night
surveillance and is compatible with IEEE 802.3af PoE (Power over Ethernet) for
easy installation without concerning the outlet / socket locations. In addition, the
ICA-HM830 provides surveillance functions including DI/DO alarm, MicroSD card
support for local storage, and 2-Way audio that enables audio communication
between local and remote ICA-HM830 installed sites by connecting the external
microphone and speaker.
The ICA-HM830 is the perfect panoramic surveillance application for the hallway,
stores or ofces so customers do not need to install multiple IP cameras and thus
can save lots of installation and maintenance cost. Moreover, the ICA-HM830 can
be managed by PLANET Cam Viewer 3 IP-Surveillance management software for
multi-camera video surveillance application and provides monitoring, recording and
event management functions to secure your property and life.

4
1.1 Before Installation
Before installation, please be sure to read this quick installation guide and user’s
manual (CD) carefully to complete machine installation. This guide shows how to
quick set up the IP Cameras, unless model name specied terms “IP Camera” will
be used for this model.
1.2 System Requirements
CPU Intel®Core2 Duo E5300 2.6GHz
RAM 1 GB
Video RAM 128 MB
Display Chip nVIDIA GeForce 8500GT or ATI Radeon HD 4350 or
above
Display Resolution 1024 x 768 24bits
Operating System Windows 2000 SP4 / Windows XP Pro SP2 / Windows
2003 / Vista
DirectX 9.0c or above
Network Wired Ethernet 100Base-TX

5
Chapter 2. Physical Description and Installation
2.1 ICA-HM830 Package Content
IP camera unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s manual CD x 1
Wall Mount Kit x 1
GPIO Connector x 1
2.2 ICA-HM830 Physical Details
ICA-HM830 Front Panel:
Speaker
Light sensor Reset Button
MIC

6
Interface Description
Light Sensor
The Light sensor is for detect IP Camera environment
illuminant, and if IP Camera in the dark/night environment
thatwillletIRcutlteroffforclearlynightview.
MIC
The IP Camera has built-in an internal microphone. This
microphone is hidden in the pinhole located on the front
panel.
Reset Button This button is hidden in the pinhole. Please refer to the
user’s manual for more information.
Speaker The IP Camera has built-in an internal speaker. This
speaker is hidden in the pinhole located on the front panel.
ICA-HM830 Bottom Panel:
DC 12V
MICRO SD
1 2 3 4 5 6 7
AUDIO
OUT
RJ 45
AUDIO
I N
DC 12V
RJ-45
MICRO SD
Audio Out
Audio In
GPIO

7
Interface Description
Power Jack
The input power is DC 12V, 2A.
Note: ONLY use package power adapter supplied with the
internet. Otherwise, the product may be damaged.
RJ-45 LAN socket
Connect to PC or Hub/Switch.
For connect to 10Base-T Ethernet or 100Base-TX Fast
Ethernet cabling. This Ethernet port built auto-negotiaiton
protocol can detect or negotiate the transmission speed
of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub.
Note: ONLY use one power source, either from DC or from
802.3af Power over Ethernet..
MicroSD Card Slot The IP Camera has built-in a MicroSD card slot accepts
MicroSD memory card for image / video event recording.
Audio Out Connect a loud speaker to the IP Camera. This is for voice
alerting and two-way audio.
Audio In Connect a microphone to the IP Camera.
GPIO The 7 pin terminal block includes 4 input ports and 1
output ports.
Terminal block for I/O connectors:
Name Pin Function
GND 1Four sets of Digital Input, DI1 until DI4; the internal
device is also photo-coupled electrical relay. In practice,
the external device can be simply an On/Off switch.
Four sets of On/Off switch can be connected as
different trigger source.
Digital input 4 2
Digital input 3 3
Digital input 2 4
Digital input 1 5
DO_NO 6
Digital output implementation; Pin6 to COM (Pin7) is a
Photo-coupled relay on Normal Open status. External
device can directly connect to the terminals. However
the current that will go through the 2 nodes must
notexceed130mA.Anexternal“Relay”canalsobe
connected to the terminals as an implementation. In
thiscase,current(or/andvoltage)limitationisspecied
by the external Relay.
DO_COM 7

8
2.3 ICA-HM830 Installation
Step 1. Prepare a PC with Ethernet link to the network
Step 2. Connect an Ethernet cable
Connect LAN port (RJ-45) of the IP Camera to a network switch. When
this switch is a PoE device, you can ignore the next step.
Note
If there has an IEEE 802.3af PoE switch in your network, you can
connect the IP Camera’s LAN cable to this PoE switch to obtain
power. The power adapter is unnecessary when IP Camera is
powered by PoE switch.
Step 3. Attach the power supply
Plug in power adapter to IP Camera and connect another end to power
outlet.
Note
Only use the power adapter supplied with IP Camera otherwise, the
product may be damaged.
Step 4. Plug Power on 100V ~ 240V
 Ensurethepoweradaptorspecicationmatchesthepowersystem(100~
110VACor220~240VAC)andconnecttheadaptortotheoutlet
Step 5. Check LED status
 The Power LED is dened to identify IP Camera status. When IP Camera
bootingtheLEDwillbeashingandwhileIPCameraisreadytheLEDwill
be green.

9

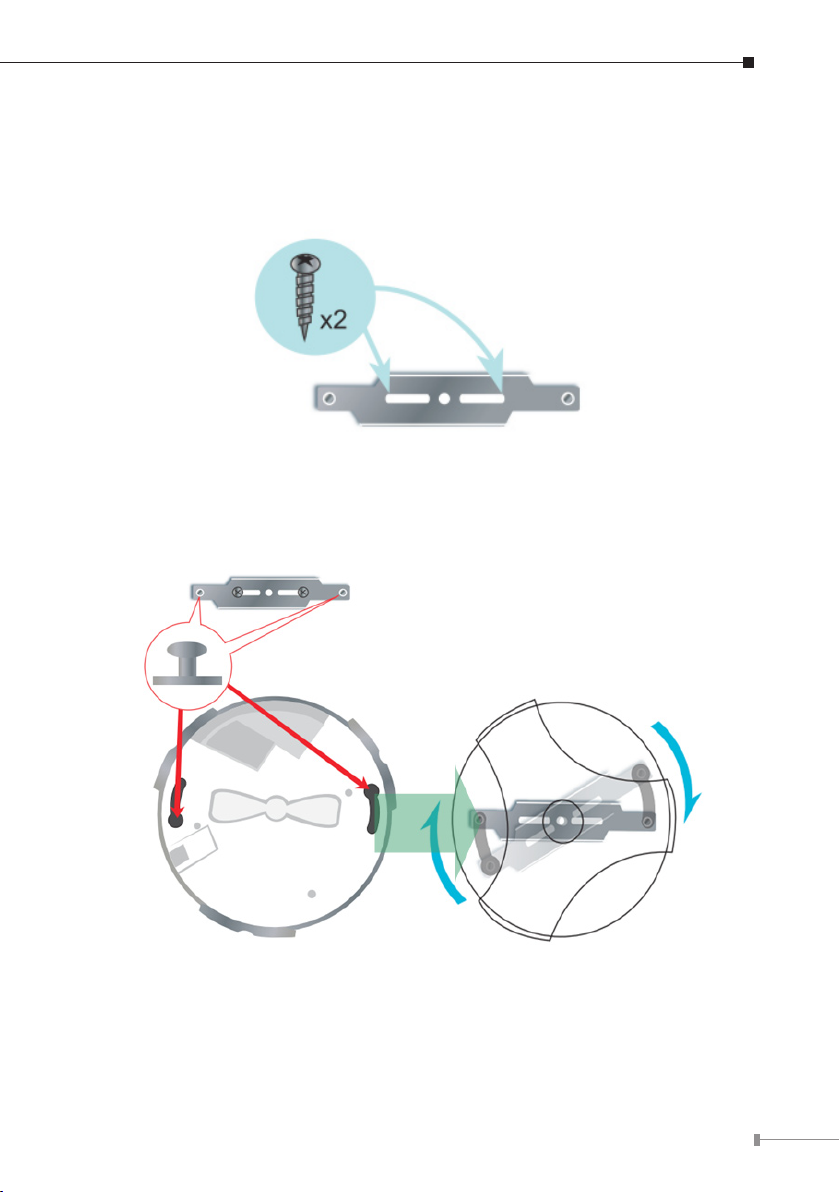

2.3.1 Wall/Ceiling Mount Installation Procedure
Step 1. Takethewallmountbracket,putitonthetargetplaceandxitwiththe
supplied screws (total of 2).
Step 2. Load the camera into the wall mount, be sure the camera are mated with
twoxedscrew,androtatethecameratolockitinposition.

10
Chapter 3. Camera Windows Utility
This chapter shows how to quick set up your IP Camera. The IP Camera is with
the default settings. However to help you nd the networked IP Camera quickly
the Windows utility (PLANET IPInstaller) can search the IP Cameras in the network
that shall help you to congure some basic setting before you start advanced
management and monitoring.
Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome
web page appears, please click your IP Camera name on the IP Camera list i.e.
ICA-HM830. Then click on the utility IPInstaller to start the program.
3.1 Network Conguration
Please click “Search Network Device” button. PLANET IPInstaller will list all
networked IP Camera in the LAN. If the IP Camera doesn’t be found, you may
check whether this IP Camera is connect to network properly and press the search
button again.
1. Click the menu bar Tool > Search Network Device to search the device in the
LAN.
2. Select IP Camera with the MAC Address corresponds to the IP Camera that is to
becongured.

11
3. Double click the item to open the Property Page or click the menu bar View >
Property.
4.After lling the desired settings in the properties, click on “Set” button to
completethecongurationsettings.

12

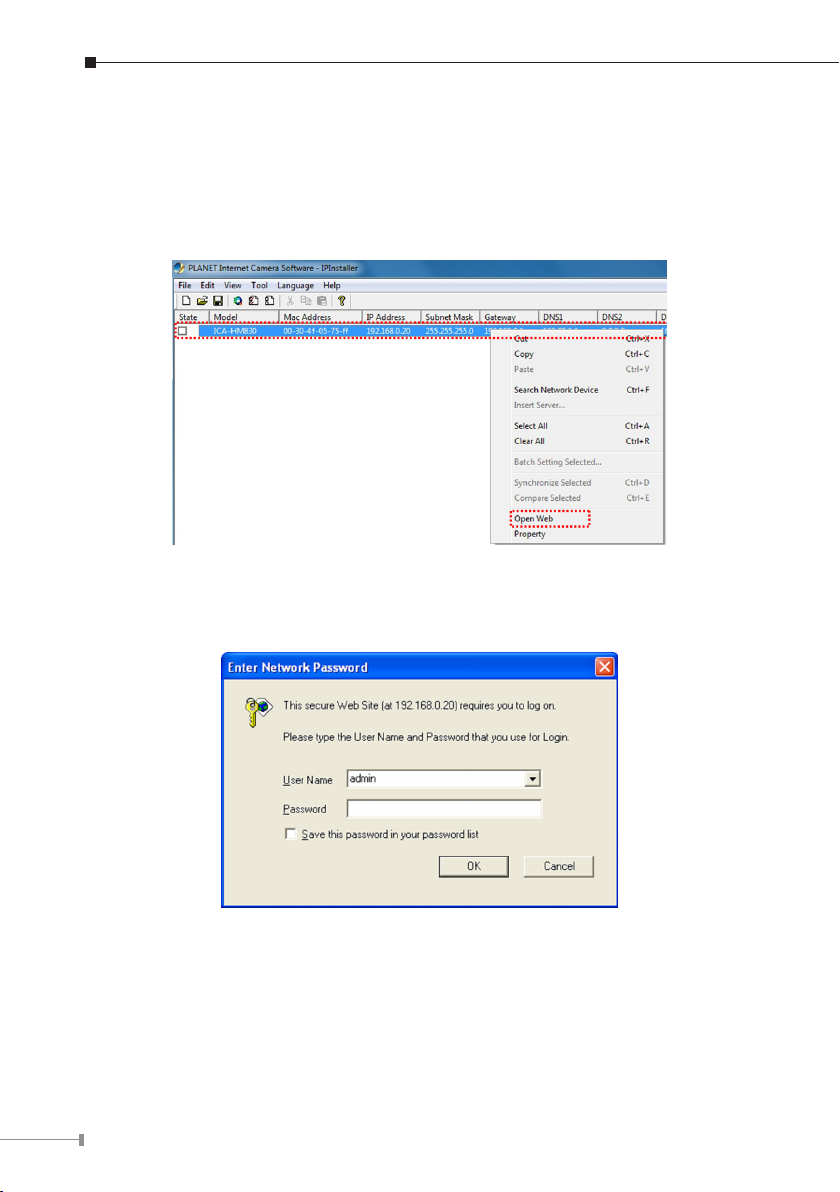

3.2 Open the Web-based UI
If IPInstaller nds IP Camera, please select the device you want to view and click
the “Open Web” button. Then you could see the video from IP Camera directly.
1. To access the Web-based UI of the selected unit, run the View > Open Web on
the menu bar.
2. After connected to IP Camera, it will prompt for User Name and Password,
please enter admin/admin to continue Web Management. Conrm the installa-
tion as it is required to view the video stream and some operations.
Ifdifcultyismet,pleaserefertothefollowingstepstoestablishtheconnection:
- The IP Camera must be installed and powered ON.
- If the IP Camera’s default IP Address (192.168.0.20) is already used by
another device, the other device must be turned OFF until the device is allocated
anewIPAddressduringconguration.

13

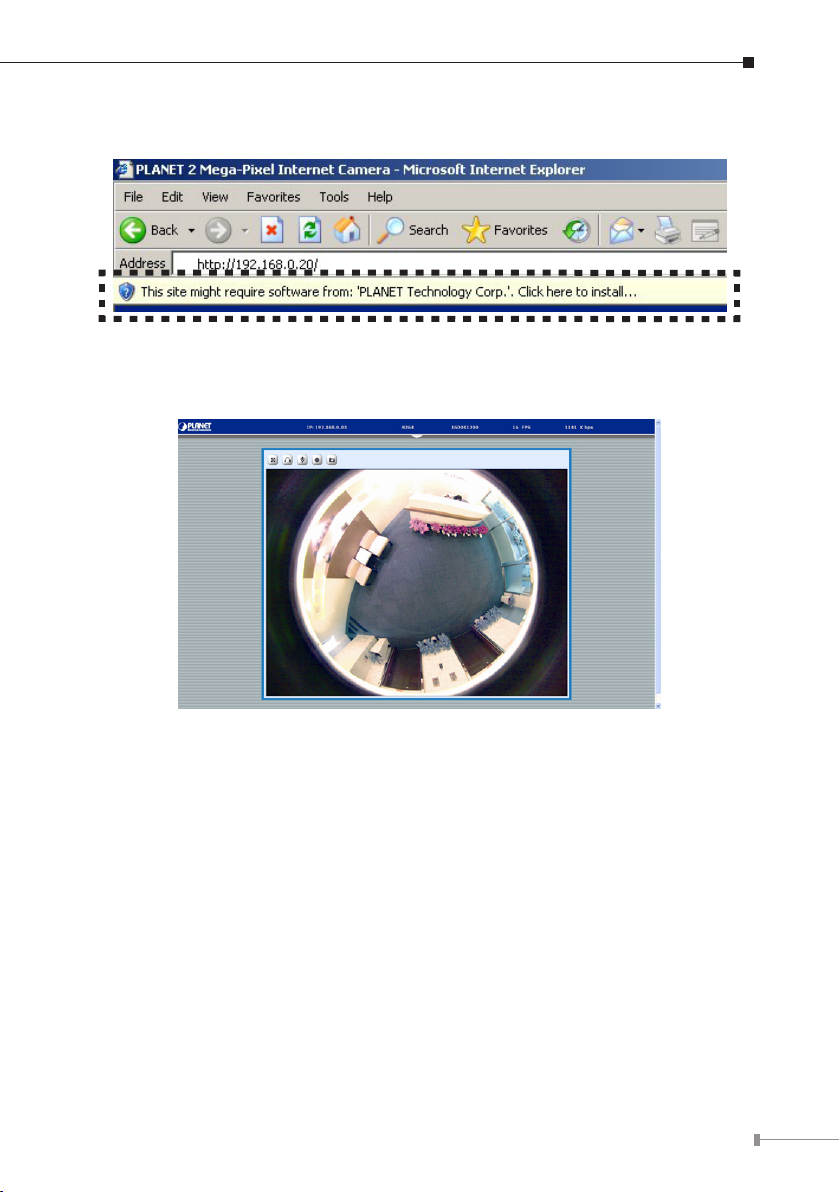

3.Fortherstinstallaiton,therewillbeaprompttoinstalltheActiveXcontrol.
4.Ifthedevicehasbeenconguredcorrectly,thedefaultWebbrowserwillopento
the home page of the selected device.

14
Further Information
This guide is used to help you startup your Fisheye IP Camera settings. It is also
recommended to check the user manual in CD disk for more details of the system
anduserconguration.
