Planet ICA-4200V User manual

Full HD 20M IR Vari-focal
Dome IP Camera
ICA-4200V

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
2
Copyright
Copyright ©2014 by PLANET Technology Corp. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness for
any particular purpose. Any software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the buyer (and not PLANET,
its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and
any incidental or consequential damages resulting from any defect in the software. Further,
PLANET reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices.Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of
the presence of hazardous substances in electrical and electronic equipment, end
users of electrical and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste and have to collect such WEEE separately.
Revision
User’s Manual of PLANET Full HD 20M IR Vari-focal Dome IP Camera
Model: ICA-4200V
Rev: 2.00 (October, 2014)
Part No. EM-ICA-4200V_v2.0
3

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
4
Table of Contents
Chapter 1. Product Introduction.............................................................................. 6
1.1 Package Contents....................................................................................... 6
1.2 Overview....................................................................................................... 6
1.3 Features...................................................................................................... 10
1.4 Product Specifications............................................................................... 10
Chapter 2. Hardware Interface.............................................................................. 13
2.1 Physical Descriptions................................................................................ 13

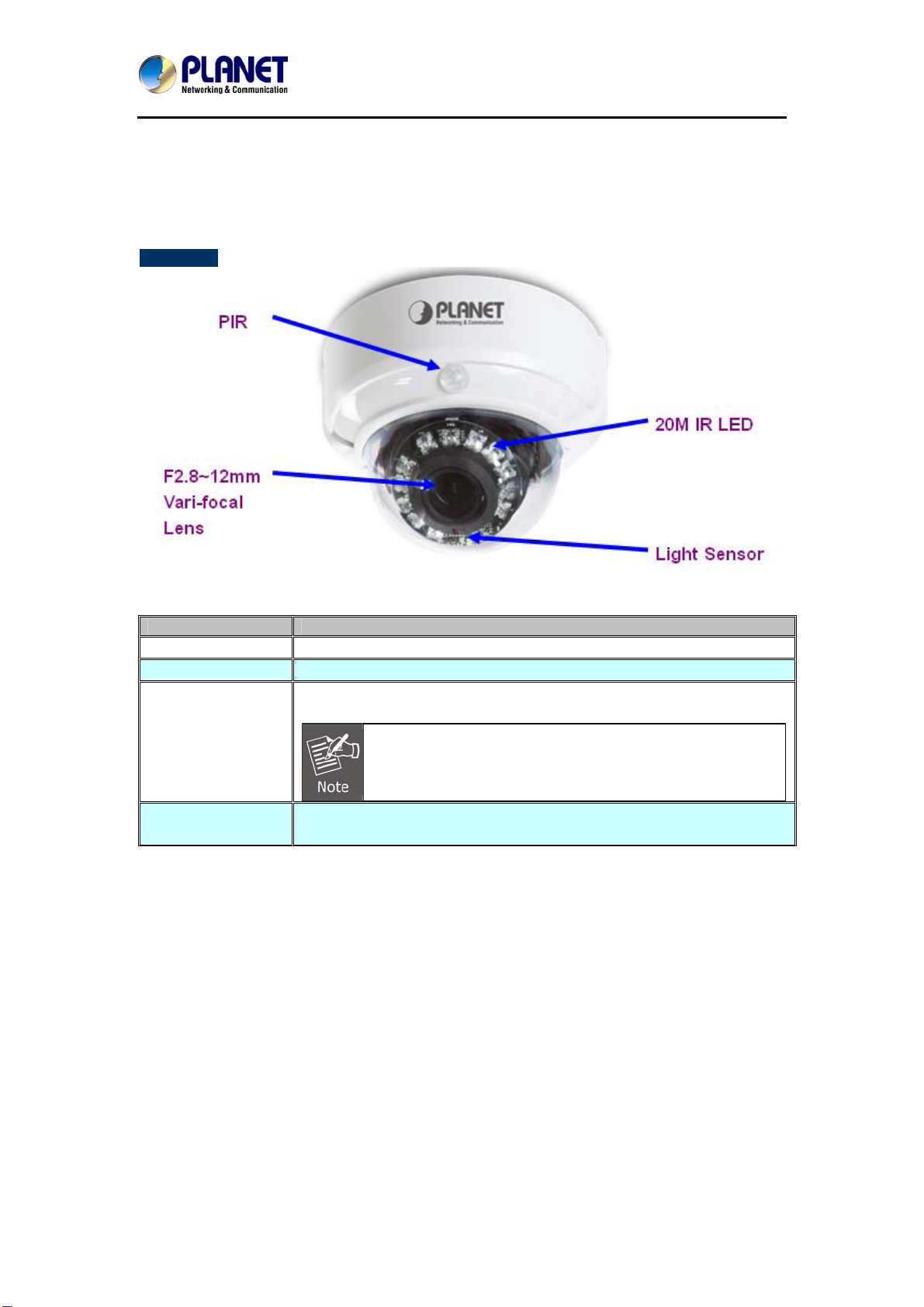

2.1.1 Identification of ICA-4200V Physical Details.............................. 13
2.1.2 I/O Control Instruction.................................................................... 14
2.1.3 Connector board............................................................................. 15

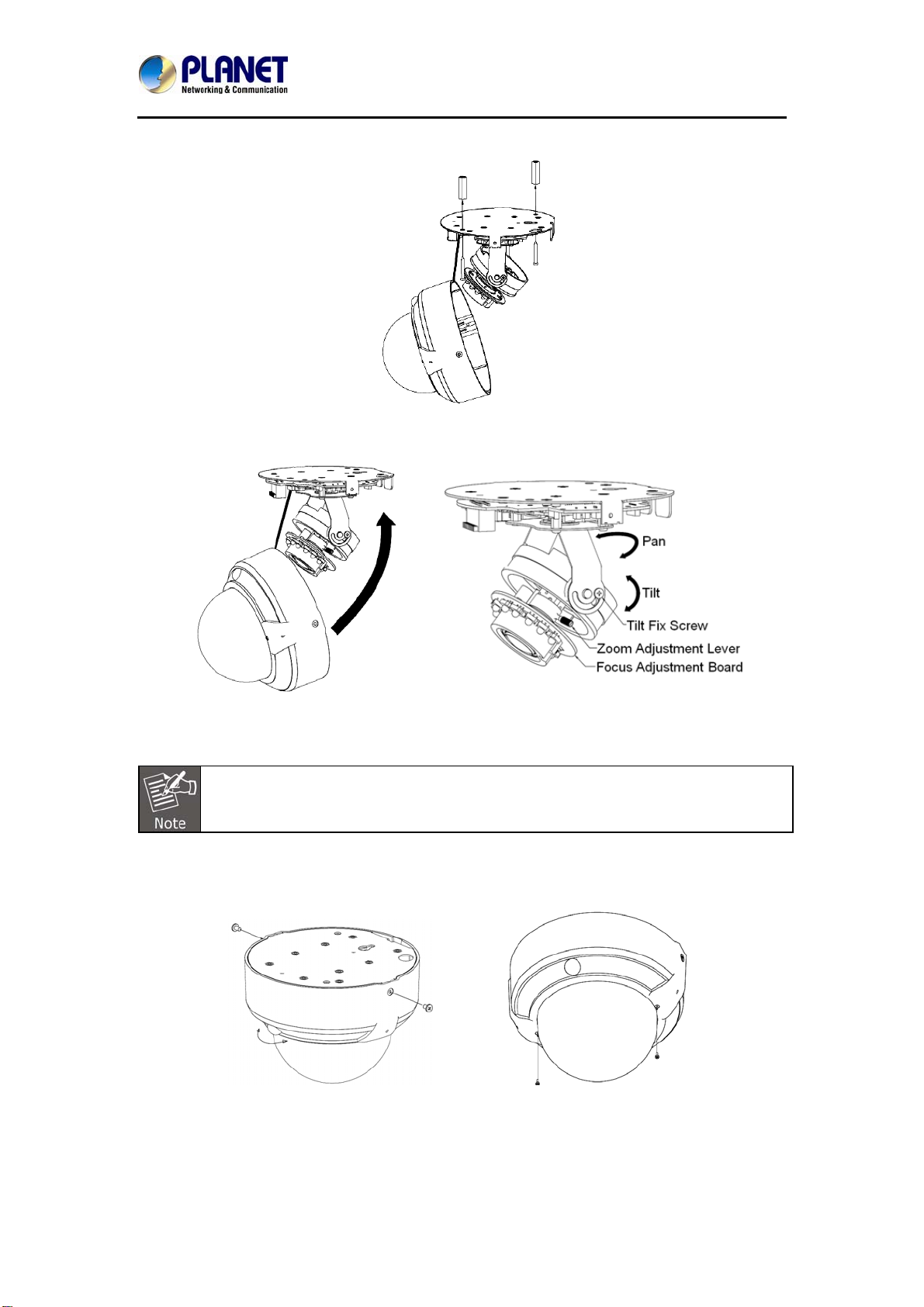

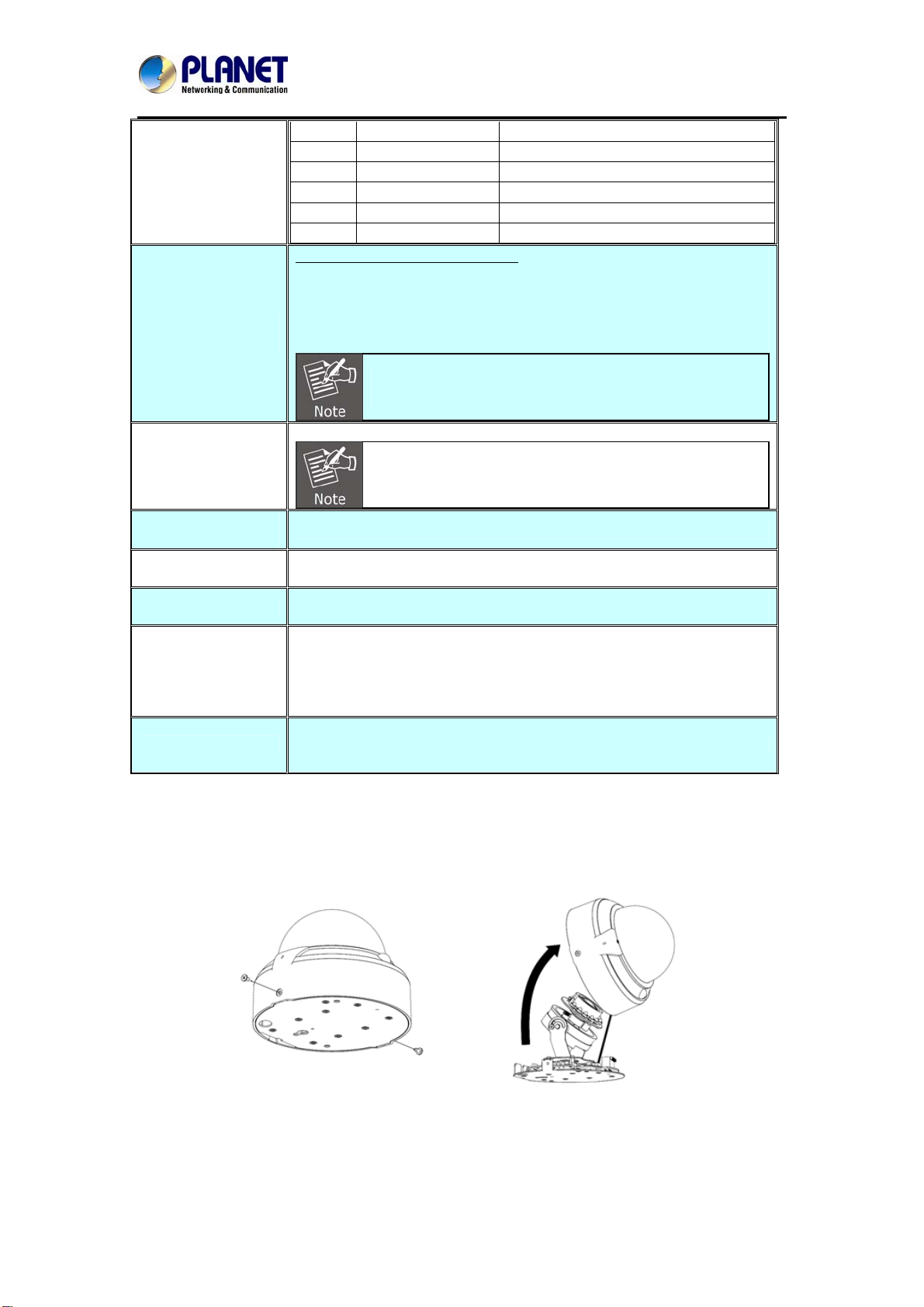

2.2 Hardware Installation................................................................................ 16
2.3 Initial Utility Installation ............................................................................. 17
2.4 Preparation................................................................................................. 20
2.4.1 Search and View by PLANET IP Wizard II................................. 20
2.4.2 Configuring Network by PLANET IP Wizard II........................... 22
2.5 Using UPnP of Windows XP or 7............................................................ 23
2.5.1 Windows XP.................................................................................... 23
2.5.2 Windows 7....................................................................................... 27
2.6 Setup ActiveX to use the Internet Camera............................................ 28
2.6.1 Internet Explorer 6 for Windows XP............................................ 29
2.6.2 Internet Explorer 7 for Windows XP............................................ 29
2.6.3 Internet Explorer 7 for Windows Vista......................................... 30
Chapter 3. Web-based Management................................................................... 32
3.1 Introduction................................................................................................. 32
3.2 Connecting to Internet Camera............................................................... 32
3.3 Live View..................................................................................................... 34
3.4 ActiveX Control........................................................................................... 35
3.4.1 Digital Zoom.................................................................................... 35
3.4.2 Snapshot.......................................................................................... 35
3.4.3 Record.............................................................................................. 36
3.4.4 Volume............................................................................................. 37
3.4.5 About ................................................................................................ 37
3.5 Network Configuration.............................................................................. 37
3.5.1 Network............................................................................................ 38
3.5.2 IPv6................................................................................................... 39
3.5.3 HTTPS ............................................................................................. 40
3.5.4 DDNS server................................................................................... 40
3.5.5 PPPoE.............................................................................................. 41
3.5.6 Streaming......................................................................................... 42
3.5.7 UPnP................................................................................................ 43
3.5.8 Bonjour............................................................................................. 44
3.5.9 IP Filter............................................................................................. 44
3.5.10 IP Notification................................................................................ 45
3.5.11 Qos................................................................................................. 46
3.6 Camera Configuration............................................................................... 46
3.6.1 Picture.............................................................................................. 46
3.6.2 Exposure Control............................................................................ 48

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
5
3.6.3 Privacy Mask................................................................................... 49
3.7 System Configuration................................................................................ 49
3.7.1 System............................................................................................. 50
3.7.2 Date & Time..................................................................................... 51
3.7.3 Maintenance.................................................................................... 52
3.8 Video Configuration................................................................................... 53
3.8.1 Common.......................................................................................... 54
3.8.2 Overlay Image................................................................................. 54
3.8.3 Video Profile.................................................................................... 55
3.8.4 ONVIF Profile.................................................................................. 57
3.8.5 ROI ................................................................................................... 58
3.8.6 AOI.................................................................................................... 59
3.8.7 Pixel Counter................................................................................... 60
3.9 Audio Configuration................................................................................... 60
3.10 User Configuration.................................................................................. 61
3.11 Protocol Configuration ............................................................................ 62
3.11.1 ONVIF ............................................................................................ 62
3.11.2 SNMP............................................................................................. 62
3.12 E-mail Configuration ............................................................................... 62
3.13 Event Detection Configuration............................................................... 63
3.13.1 Motion Detection.......................................................................... 64
3.13.2 Camera Tampering ...................................................................... 65
3.13.3 Audio Detection............................................................................ 65
3.14 Storage Configuration............................................................................. 66
3.14.1 SD Card......................................................................................... 66
3.14.2 SAMBA Server.............................................................................. 67
3.15 Continuous Recording Configuration................................................... 67
3.16 Recording List Configuration................................................................. 68
3.16.1 Recording List............................................................................... 68
3.16.2 Continuous Recording List ......................................................... 69
3.17 Event Server Configuration.................................................................... 69
3.17.1 FTP Server.................................................................................... 69
3.17.2 TCP Server.................................................................................... 70
3.17.3 HTTP Server................................................................................. 71
3.17.4 SAMBA Server.............................................................................. 72
3.18 Event Schedule Configuration............................................................... 72
3.18.1 Setting............................................................................................ 73
3.18.2 Record ........................................................................................... 76
3.18.3 Port Status..................................................................................... 76
Appendix A: Ping IPAddress................................................................................ 77
Appendix B: Bandwidth and Video Size Estimation.......................................... 78
Appendix C: DDNS Application............................................................................. 79
Appendix D: Configuring Port Forwarding Manually ......................................... 80
Appendix E: Power Line Frequency..................................................................... 83
Appendix F: Troubleshooting & Frequently Asked Questions......................... 84

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following:
zIP Camera Unit x 1
zPower Adapter x 1
zCamera Screw Kit x 1
zUser’s Manual CD-ROM x 1
zQuick Installation Guide x 1
1. If any of the above items are missing, please contact your dealer
immediately.
2. Using the power supply that is not the one included in Internet Camera
packet will cause damage and void the warranty for this product.
1.2 Overview

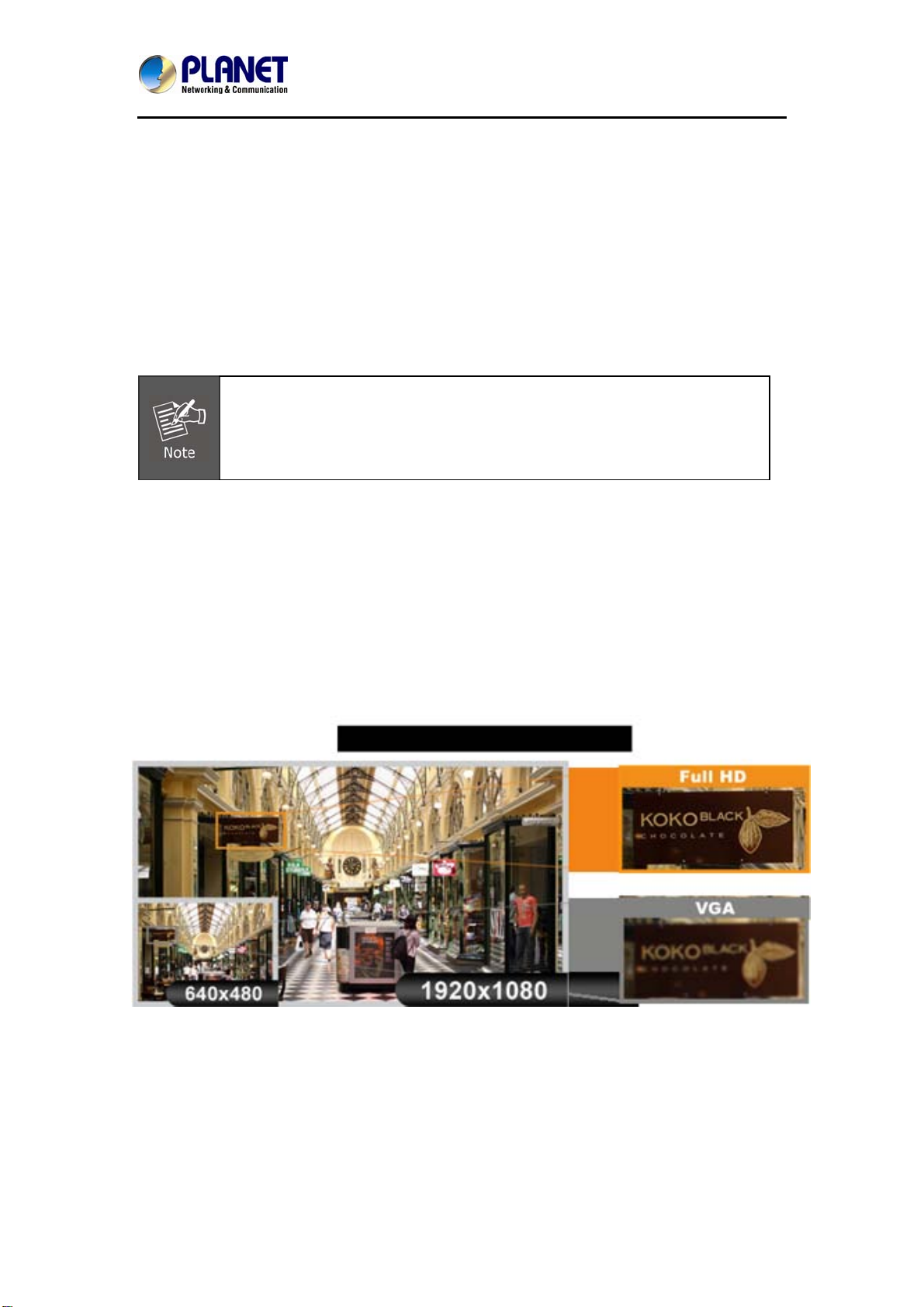

High Resolution Surveillance in Day and Night
PLANET ICA-4200V Network Camera with IR Illuminator is a high resolution camera for
round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression
formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second
(fps). Incorporating the new CMOS image sensor, which is specially designed for surveillance
applications, the ICA-4200V provides high quality images under all lighting conditions. It is
perfect for remote and discreet monitoring of indoor areas such as stores, banks, hotels, office
lobbies, and warehouses.
6

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-4200V comes with a removable
IR-cut filter and built-in IR illuminators, which enable the camera to provide color video when
there is sufficient light, and black/white video in dark conditions. The ICA-4200V is able to
maintain clear images 24 hours a day.
Exceptional Image quality
Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital
Noise Reduction (3DNR) technology, the ICA-4200V is able to filter the intense backlight
surrounding a subject and remove noises from video signal. It brings an extremely clear and
exquisite picture quality even under any challenging lighting conditions.
7

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
Passive Infrared (PIR) Sensor
When people pass by or in an emergency situation, the built-in PIR motion detection sensor in
the ICA-4200V will “detect” and start recording automatically. It is able to detect movement as
far as 6 meters away. When motion is detected in the specified areas, the additional function of
alarm notification can send an e-mail alert or send captured images via FTP upload to a
designated storage server.
Camera Tampering and Audio Detection
Provided with three individually configurable motion detection zones, the ICA-4200V can
record video or trigger alarms and alerts when motion is detected in a designated area. Also,
its built-in microphone enables the system to record the sound that is within the camera’s
surveillance range. The system will trigger the audio detection alarm when sounds like
screams, glass breaking, etc. are detected.
8

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-4200V
supports a number of advanced features including auto-iris to avoid over exposure, AV out to
perform the two-way audio function.
Flexible Installation and Power Functionality
The ICA-4200V, incorporating IEEE 802.3af Power over Ethernet standard, is able to be
powered via the network cable from a PoE power sourcing equipment such as PoE switch and
PoE injector. It thus eliminates the need for extra power cables and reduces installation costs
while increases the deployment flexibility. The ICA-4200V is ONVIF compliant and therefore
interoperable with other manufacturers’ products. It also includes 64-CH central management
software for ease of maintenance and remote monitoring. The ICA-4200V is indisputably the
top choice for reliable and high performance surveillance.
9

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
10
1.3 Features
¾Camera
1/2.7" 2 mega-pixel progressive scan CMOS sensor
2.8~12.0 mm vari-focal, DC auto-iris lens
0.5 lux minimum illumination at F1.2
Maximum resolution 1920 x 1080
Removable IR-cut filter for Day & Night function
Built-in PIR sensor (6m/120 degrees coverage) for thermal / motion detection
¾Video / Audio
H.264 and M-JPEG video compression simultaneously
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. resolution 1080p at 30fps
3DNR to improve picture quality at low lux
WDR Enhancement for enhancing visibility under extremely bright or dark environments
Two-way audio support with enhanced audio quality
Tamper and audio detection for unauthorized changes
¾Network and Configuration
Compliant with IEEE 802.3af PoE interface for flexible deployment
Auto MDI/MDI-X supported
Supports both IPv6 and IPv4
RTSP / UPnP / HTTP / HTTPS protocols selectable
¾Easy Installation & Management
ONVIF compliant for interoperability
Built-in 12 IR illuminators, effective up to 20 meters
Intelligent motion / tampering / audio detection alarm triggers
Built-in Samba client for NAS
Micro SD card local video recording supported
Digital Input/Output for integration with sensors and alarms
Cam Viewer 3 central management software supported
1.4 Product Specifications
Model ICA-4200V
Camera
Image device 1/2.7" 2 mega-pixel progressive scan CMOS sensor
Lens
Vari-focal 2.8~12.0mm, DC auto-iris
Mechanical IR cut filter
Angle of view
Horizontal: 35.8 ~ 100.5 degrees
Vertical: 26.8 ~ 73.4 degrees
Min Illumination 0.5 lux (color) @ F1.2
0.1 lux (B/W)
IR Illuminations IR LED x 12, 850nm Built-in IR illuminators, effective up to 20 meters
*The IR distance is based on the environment
Effective Pixels 1920 x 1080 pixels
Video Compression H.264 / M-JPEG
Video Resolution 1080p mode
H.264: 1080p / 720p / 640 x 360 / 320 x 180

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
11
M-JPEG: 1080p / 720p / 640 x 360 / 320 x 180
720p mode
H.264: 720p / 640 x 360 / 320 x 180 / 160 x 80
M-JPEG: 720p / 640 x 360 / 320 x 180 / 160 x 80
Frame Rate Up to 30fps for all resolutions
Image Setting
AE, AWB
3D noise reduction
WDR
Color, hue, brightness, sharpness, contrast
Mirror/Flip
90oRotation
De-fog
Anti-false color
Lens distortion correction
10 Privacy Masks
Text, time and date overlay
Overlay image on video
Streaming
Simultaneously multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
AOI
ROI
Audio
Audio Streaming Two-way audio
Audio Compression RTSP: G.711 64kbps, G.726 32kbps
Microphone External microphone input
Audio Output Adjustable audio output gain
Network and Configuration
Standard IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
Protocol IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE,
Samba, ICMP, SNMP, QoS
Security Password protection, IP address filtering, HTTPS encrypted data
transmission, user access log
Users 8 clients on-line monitoring at the same time
System Integration
Application Programming
Interface Open API for software integration
ONVIF compliant
Alarm Triggers Intelligent motion / tampering / audio detection / network disconnect and
external input
Alarm Events
File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Video Buffer Pre- and post-alarm buffering
General
Power Requirements 12V DC, 1A
IEEE 802.3af Class 3

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
12
Power Consumption 8W max.
Operating Temperature 0 ~ 50 degrees C
Operating Humidity 20 ~ 80% (non-condensing)
Weight 635g
Dimensions (Φx L) 152 x 109 mm
Emission CE, FCC
Connectors
10/100 Mbps Ethernet, RJ45
DC power jack
Terminal block for 1 alarm input and 1 output
External mic input
Audio out
Composite video out (max. resolution: D1 720 x 480 pixel)
Micro SD/SDHC card (max. 32GB, Class 6)
Factory default reset button

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
Chapter 2. Hardware Interface
2.1 Physical Descriptions
2.1.1 Identification of ICA-4200V Physical Details
Real Panel
Item Description
Lens Keep the lens clean for an excellent video quality.
IR LED Emits infrared light to provide light source in dark places
Light Sensor
Detects the illumination level or the place where this IP camera is
installed, and switches IR LEDs on when it’s required.
When IR LEDs are switched on, this IP camera will switch
to black and white video mode to enhance video quality. Do
not cover light sensor or this IP camera will work in black
and white mode only.
PIR PIR sensor is used to sense motion or detect whether a human has
moved in or out of the sensor range.
13

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
2.1.2 I/O Control Instruction
Description of I/O cabling:
Interface Description
DC Power
The input power is 12V DC, 1A.
ONLY use the power adapter supplied in the
package. Otherwise, the product may be
damaged.
RJ45
(LAN Socket, PoE )
Connecting to PC or Hub/Switch
For connection to 10BASE-T Ethernet or 100BASE-TX or
Fast Ethernet cabling, this Ethernet port built
auto-negotiation protocol can detect or negotiate the
transmission speed of the network automatically. Please
use CAT-5 cable to connect the Network Camera to a
100Mbps Fast Ethernet network switch or hub.
ONLY use one power source, either from DC or
from 802.3af Power over Ethernet.
Audio Output
(Green, Line Out) Connect a loud speaker to the IP camera. This is for voice
alert and two-way audio.
Microphone Input
(Pink, Audio In) Connect a microphone to the IP camera.
Reset
(Factory Default) This button is used to restore all the factory default settings.
14

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
DI/DO The 4-pin terminal block includes 1 input port and 1 output
port.
Terminal block for I/O connectors:
Name Cable Color Function
12V DC 1 12V DC, 50mA (maximum)
DI 2 Digital signal input
GND 3 GND
DO 4 Digital signal output
2.1.3 Connector board
15
Pin1
Terminal
Block
Pin12 Factory
Default
Reset
Micro SD
Card Slot
Interface Description
Terminal Block
Pin Name Function
1 12V DC in 12V DC power input
2 Mic in- External Mic input-
3 Mic in+ External Mic input+
4 Audio out+
5 Audio out-
6 GND Ground
LAN
Reset & LAN
LED
DIDO
Video out
Audio
in/out (red)
12V DC
(red)
RJ45

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
7 12V DC out 12V DC output, 50mA (maximum)
8 DI Digital signal input
9 GND Ground
10 DO Digital signal output
11 N/A
12 N/A
RJ45
(LAN Socket, PoE )
Connecting to PC or Hub/Switch
For connection to 10BASE-T Ethernet or 100BASE-TX Fast Ethernet
cabling, this Ethernet port built auto-negotiation protocol can detect
or negotiate the transmission speed of the network automatically.
Please use CAT-5 cable to connect the Network Camera to a
100Mbps Fast Ethernet network switch or hub.
ONLY use one power source, either from DC or from
802.3af Power over Ethernet.
12V DC in & Power
NDG
The input power is DC 12V, 1A.
ONLY use the power adapter supplied in the package.
Otherwise, the product may be damaged.
Mic in
(audio in) Connect an external microphone to the camera.
Audio out +/- Connect a loud speaker to the camera. This function is for voice alert
and two-way audio.
Video out Connect a TV monitor to the camera. User can check the focus/zoom
and view angle of the camera.
Factory Default
esetR
This button is used to restore all the factory default settings.
Restore the device:
a. Press the button down continuously.
b. Hold the button for at least 5 seconds and release it. The device
has been restored to default settings and reboot again.
Micro SD Card Slot User can insert a micro SD card into this slot for recording.
2.2 Hardware Installation
1. Please select the most suitable position on ceiling to install the camera.
2. Remove two screws to release the top cover of the dome and open it.
16

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
3. Set the mounting base onto ceiling and center it through the mounting hole, using the
two retaining screws for the main body, supplied by the appurtenance bag.
4. To adjust lens, move the camera body by pan and/or tilt manually and set the
zoom/focus by turning the lens to the left or right direction.
5. Connect the LAN cable to Ethernet’s switch or hub and the DC-Jack to the power
source.
Use the power adapter, 12V DC, included in the package and connect it to
wall outlet for AC power. And connect the other cables and connectors if
necessary.
6. When the camera cabling is completed, close the top cover dome housing and
secure it by two screws. And then adjust PIR sensor to proper position. Once the
PIR sensor is well-positioned, secure it by two screws.
7. Done
2.3 Initial Utility Installation
This chapter shows how to quickly set up your IP camera. The camera is with the default
17

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
settings. However to help you find the networked camera quickly, the windows utility PLANET
IP Wizard II can search the cameras in the network that can help you to configure some basic
settings before you start advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once
completed, a welcome menu screen will appear.
2. Click the “IP Wizard II” hyperlink and a dialog box will appear as shown below:
If the welcome screen does not appear, click “Start” at the taskbar. Then,
select “Run” and type “D:\Utility\IPWizard II\setup.exe”, assuming D is your
CD-ROM drive.
3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on
the screen and click “Next” to continue.
18

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V

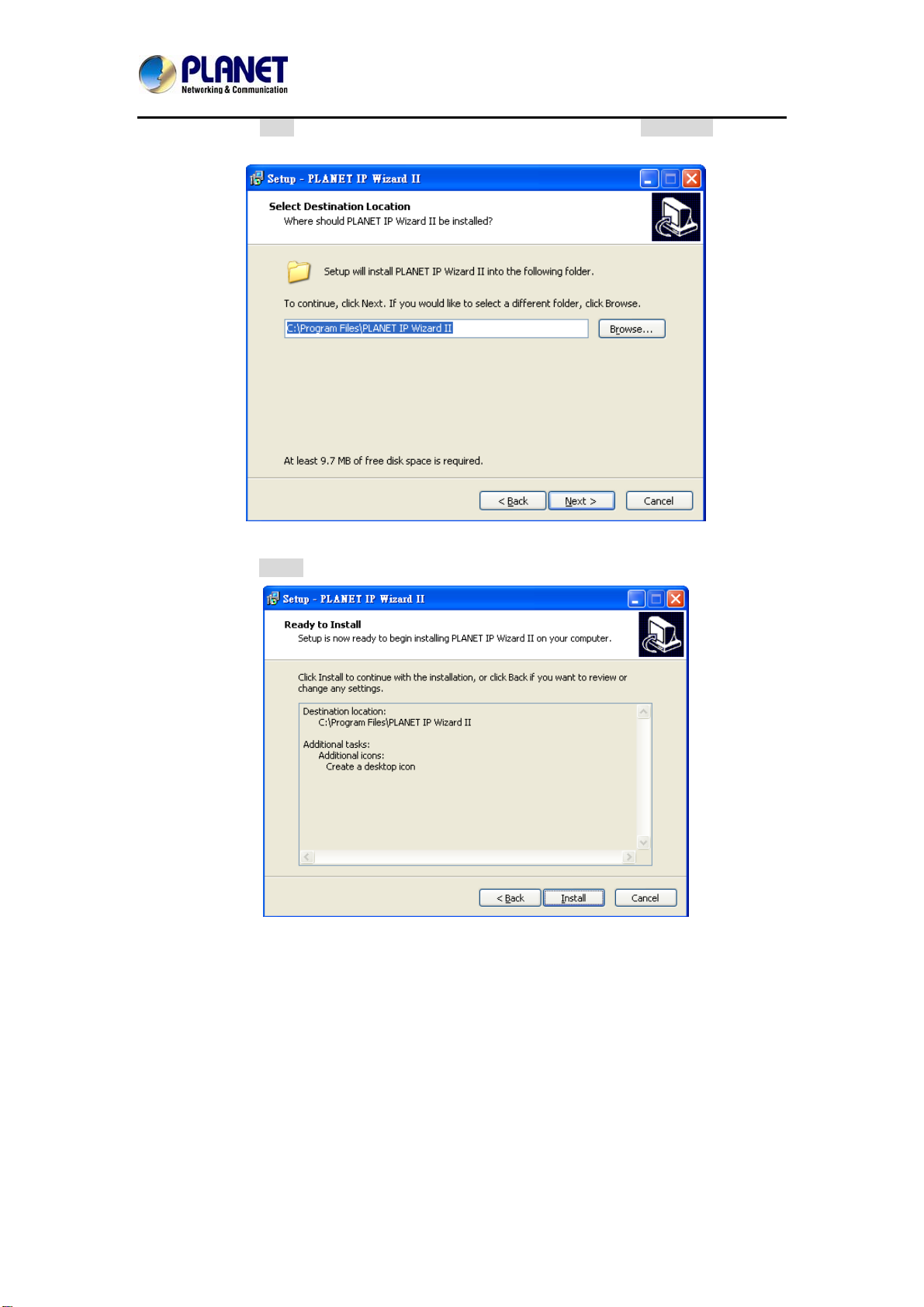

4. Please click “Next” to install with original settings, or you may click “Change…” button to
modify the install folder and then press “Next” to continue.
5. Please click “Install” to start the installation.
19

Full HD 20M IR Vari-Focal Dome IP Camera
ICA-4200V
6. Please click “Finish” to complete the installation and launch program immediately.
2.4 Preparation
When you install the Internet camera in a LAN environment, you may execute PLANET IP
Wizard II to discover camera’s IP address and set up related parameters in the camera.
2.4.1 Search and View by PLANET IP Wizard II
When you install the Internet Camera in a LAN environment, you have two easy ways to
search your cameras either by PLANET IP Wizard II or UPnP discovery. Here is the way to
execute PLANET IP Wizard II to discover camera’s IP address and set up related parameter in
a camera.
Search
20
