Planet XGS-6350-48X2Q4C User manual

Layer 3 24-/48-Port 10G SFP+ plus 4-Port 100G
QSFP28 Managed Switch
XGS-6350-24X4C/XGS-6350-48X2Q4C
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
4.1 Logging on to the Console.................................................................... 7
 4.2 ConguringIPAddress......................................................................... 8
 4.3 Setting1000BASE-Xfor10GSFP+Port................................................. 9
 4.4 Setting40GBASE-Xfor100GSFP+Port ...............................................10
 4.5 ChangingPassword.............................................................................10
 4.6 SavingtheConguration .....................................................................11
5. Starting Web Management .........................................................................12
 5.1 LoggingintotheManagedSwitchfromManagementPort .....................13
 5.2 SavingCongurationviatheWeb ........................................................14
6. LEDIndicators...........................................................................................15
 6.1 XGS-6350-24X4C ...............................................................................15
 6.2 XGS-6350-48X2Q4C ...........................................................................16
7. Customer Support .....................................................................................18

3
1. Package Contents
Thank you for purchasing PLANET Layer 3 24-/48-Port 10G SFP+ plus 4-Port 100G
QSFP28ManagedSwitch,XGS-6350-24X4C/XGS-6350-48X2Q4C.
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheXGS-6350-24X4C/XGS-6350-48X2Q4C.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
XGS-6350-24X4C XGS-6350-48X2Q4C
QuickInstallationGuide  
DB9toRJ45InterfaceRS232
Console Cable  
RackMountAccessoryKit  
ACPowerCord  
SFPDustCap 28 54
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitch providestwo managementoptions:
Out-of-Band Management and In-Band Management.
Out-of-Band Management
Out-of-band management is the management through console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP,orusing SNMPmanagement softwaretocongure the
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired
toenablein-bandmanagement:
1. Log on to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.
The Managed Switch is shipped with Management Port IP
address 192.168.1.1/24 assigned and VLAN1 interface IP
address 192.168.0.254/24 assigned by default. User can assign
another IP address to the Managed Switch via the console inter-
face to be able to remotely access the Managed Switch through
Telnet or HTTP.

5
3. Requirements
zWorkstations running Windows XP/2003/Vista/2008/7/8/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerial Port Connection(Terminal)
 The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
 The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
 Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zManagement Port Connection
 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
 TheabovePCisinstalledwithWebbrowser.
Note
Itis recommended touse InternetExplorer8.0 orabovetoaccess
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.

6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 4-1 Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click STARTmenu,thenPrograms,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:9600
Parity:None
Databits:8
Stopbits:1
Flowcontrol:None
Figure 4-2 Tera Term COM Port Conguration

7
4.1 Logging on to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure4-3appears.
Username:admin
Password:admin
Figure 4-3 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.Forsecurity reason,please changeand memorizethenew pass-
wordafterthisfirstsetup.
2.Accept command in lowercase or uppercase letter under console
interface.

8
4.2 ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
Switch#cong
Switch_cong#interface vlan 1
Switch_cong_v1#ip address 192.168.1.254 255.255.255.0
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0
Figure 4-4 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
Show the current IP address
1. On “Switch#”prompt,enter“show ip interface brief”.
2.The screen displays the current IP address, subnet mask and gateway as shown
inFigure4-5.
Figure 4-5 Showing IP Information Screen

9
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
4.3 Setting1000BASE-Xfor10GSFP+Port
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP
transceivers by manual setting and the default SFP+ port speed is set to 10Gbps.
For example, to establish the ber connection with 1000BASE-X SFP transceiver in
the tgigaethernet 0/1,thefollowingcommandcongurationisrequired:
Switch#cong
Switch_cong#interface tgigaethernet 0/1
Switch_cong_tg1/1#speed 1000
Switch_cong_tg1/1#exit
Switch_cong#interface range tgigaethernet 0/2-24
Switch_cong_if_range#speed 1000
Switch_cong_if_range#
Figure 4-6 Setting 1000BASE-X Screen

10
4.4 Setting40GBASE-Xfor100GSFP+Port
The Managed Switch supports both 40GBASE-X and 100GBASE-X SFP
transceiversbymanual settingand the defaultSFP+ portspeed isset to100Gbps.
For example, to establish the ber connection with 40GBASE-X SFP transceiver in
the cgigaethernet 0/1,thefollowingcommandcongurationisrequired:
Switch#cong
Switch_cong#interface cgigaethernet 0/1
Switch_cong_cg0/1#speed 40000
Switch_cong_cg0/1#exit
Switch_cong#interface range cgigaethernet 0/2-4
Switch_cong_if_range#speed 40000
Switch_cong_if_range#
Figure 4-7 Setting 40GBASE-X Screen
4.5 Changing Password
The default password of the switch is “admin”. For security reason, it is
recommended to change password and the following command conguration is
required:
Switch#cong
Switch_cong#username admin password planet2018
Switch_cong#
Figure 4-8 Changing Password Interface Screen

11
4.6 SavingtheConguration
InManagedSwitch, therunningcongurationle storesinthe RAM.Inthe current
version, the running conguration sequence running-cong can be saved from the
RAM to FLASH by write command, so that the running conguration sequence
becomesthestart-upcongurationle,whichiscalledcongurationsave.
Switch#write
Figure 4-9 Write Screen

12
5. Starting Web Management
The Managed Switch provides a built-in browser interface. You can manage it
remotely by having a remote host with Web browser, such as Microsoft Internet
Explorer,MozillaFirefox,GoogleChromeorAppleSafari.
RJ45/UTP Cable
PC/Workstation with
Web Browser
192.168.1.x
PC/Workstation with
Web Browser
192.168.0.x
Managed Switch
IP Address:
192.168.1.1
Managed Switch
TG1~TG24
CG1~CG4
IP Address:
192.168.0.254
10G/40G/100G Fiber Cable
MGMT
Figure 5-1 IP Management Diagram
The following shows how to start up the Web Management of the Managed
Switch. Please note the Managed Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set to the same IP subnet
address.
For example, the IP address of the Managed Switch is congured with
192.168.0.254 on Interface VLAN 1 and 192.168.1.1 on Management Port,
then the manager PC should be set to 192.168.0.x or 192.168.1.x (where x is
a number between 2 and 253, except 1 or 254), and the default subnet mask is
255.255.255.0.
Thefactorydefaultusernameandpasswordareasfollows:
DefaultIPofManagementPort:192.168.1.1
DefaultIPofInterfaceVLAN1:192.168.0.254
Username:admin
Password:admin

13

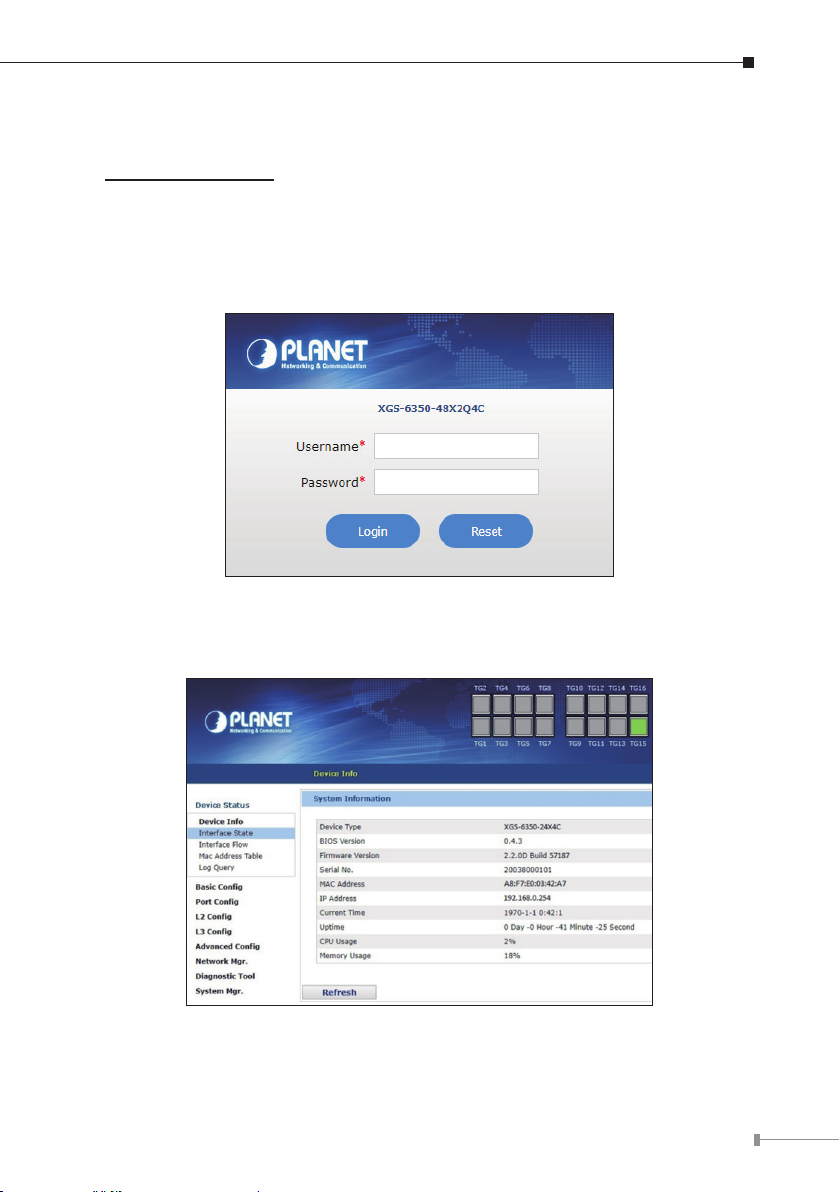

5.1 Logging in to the Managed Switch from Management Port
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.1.1 (that you have just set in console) to access the Web
interface.
2.When the following dialog box appears, please enter the congured username
“admin”and password“admin”(or theusername/password youhavechanged
viaconsole).TheloginscreeninFigure5-2appears.
Figure 5-2 Login Screen
3.Afterenteringthepassword,themainscreenappearsasshowninFigure5-3.
Figure 5-3 Web Main Screen of Managed Switch

14
4.The Switch Menu on the left of the Web page lets you access all the commands
andstatisticstheSwitchprovides.
Now, you can use the Web management interface to continue the Switch
management or manage the Managed Switch by console interface. Please refer to
theusermanualformore.
5.2 SavingCongurationviatheWeb
The conguration area is to show the content that is selected in the navigation
area. The conguration area always contains one or more buttons, such as
“Refresh”,“Apply”and“Reset”.
The “Apply” button indicates applying the modied conguration to the device.
The application of the conguration does not mean that the conguration is saved
inthecongurationle.
To save the conguration, you have to click “Save All” on the top control bar.
“Save All”functionisequivalenttotheexecutionofthewritecommand.
Figure 5-4 Save Cconguration

15
6. LED Indicators
6.1 XGS-6350-24X4C
System
LED Color Function
PWR
Green LightstoindicatethattheSwitchhaspower.
O Poweriso.
SYS Green Blinks to indicate the system diagnosis is completed;
lightstoindicatethesystemisnormallystartingup.
Interfaces
LED Color Function
LNK/ACT Green
Blinks to indicate the data is transmitting and receiving
through the port; lights to indicate the link on the port is
normal.
40GStatusLED(Dividedinto410G)
LED Color Function
LNK/ACT
(CG1~CG4) Green
Operating in 100G mode, the LED does not light; when
the QSFP+ corresponding port indicator is lit, 4 indicators
indicate the LINK/ACT status of the 4 10GE ports
correspondingtotheQSFP+port.

16
6.2 XGS-6350-48X2Q4C
System
LED Color Function
PWRA
PWRB
Green LightstoindicatethattheSwitchhaspower.
O Poweriso.
SYS Green Blinks to indicate the system diagnosis is completed; lights
toindicatethesystemisnormallystartingup.
MNG
Green Lights to indicate that the Switch has connected the
Ethernetcabletomanagementport.
O Lights to indicate that the Switch has not connected the
Ethernetcabletomanagementport.
Interfaces
LED Color Function
LNK/ACT Green
Blinks to indicate the data is transmitting and receiving
through the port; lights to indicate the link on the port is
normal.
40GStatusLED(Dividedinto410G)
LED Color Function
LNK/ACT
(1~4) Green
Operating in 100Gbps on 4 QSFP28 ports and 40Gbps on 2
QSFP+ ports, the BREAKOUT LED does not light; when you
congure the interface dividing into 4 10G ports through
conguration,theBREAKOUTLEDindicatorswilllightup.

17
35 36 37 38 39 40 41 42 43 44 45 46 47 48
4
3
2
1
SYS
PWRA
PWRB
MNG
40GE
BREAKOUT
Note
When you finish the BREAKOUT setting, the LED indicator of each
interface will be lighted in a circular mode about 5 seconds then
switch to next interface. For example, suppose I divide interface
QTGigaEthernet0/1andQTGigaEthernet0/2into410Gports.
At this time, all 4 10G ports of interface QTGigaEthernet0/1 must
be connected. The BREAKOUT LED indicators will light up with the
LEDindicator ofinterfaceQTGigaEthernet0/1about 5secondsthen
switch to light with the LED indicator of QTGigaEthernet0/2. There
isaloopevery5seconds.

18
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resource at the PLANET Web site rst to check if it could solve your issue. If you
needmoresupportinformation,pleasecontactPLANETsupportteam.
PLANETonlineFAQs:
http://www.planet.com.tw/en/support/faq.php?type=1
Switchsupportteammailaddress:
[email protected]
XGS-6350-24X4C/48X2Q4CUser’sManual
http://www.planet.com.tw/en/support/download.php?view=3&key=XGS-6350-24X4C#list
Copyright ©PLANET Technology Corp. 2021.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
