Planet GS-5220 Series User manual

L2+ Managed Gigabit/10 Gigabit Ethernet Switch
GS-5220 Series
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
3.1 Logon to Console................................................................................. 6
 3.2 ConguringIPAddress......................................................................... 7
 3.3 Storecurrentswitchconguration......................................................... 8
4. Starting Web Management .......................................................................... 9
 4.1 LoggingintotheManagedSwitch .......................................................10

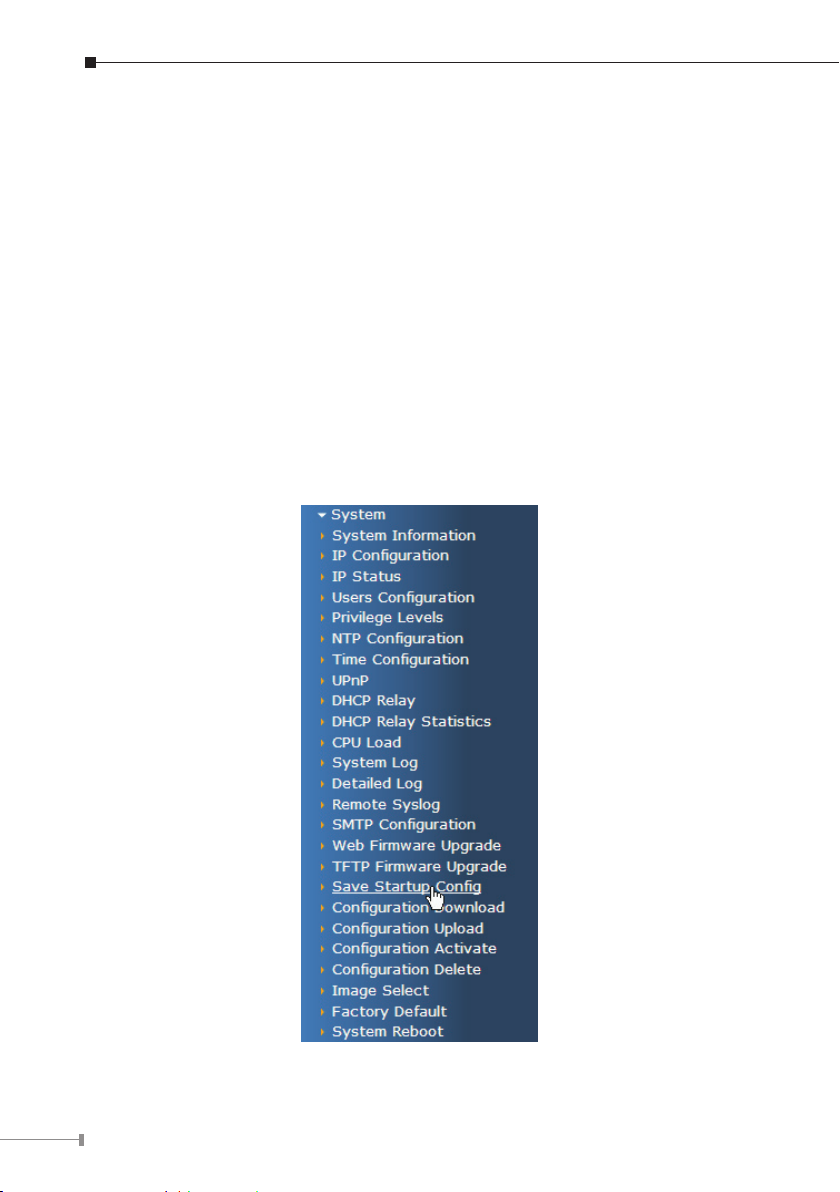

 4.2 SavingConguration...........................................................................12
5. RecoveringBacktoDefaultConguration.....................................................14
6. Customer Support .....................................................................................15

3
1. Package Contents
Thank you for purchasing PLANET L2+ Managed Gigabit/10 Gigabit Ethernet
Switch.Thedescriptions oftheGS-5220seriesareshownbelow:
Model Name Gigabit RJ45
Ports
Gigabit SFP
Slots
10G SFP+
Slots
GS-5220-16S8C 8 combo 24 -
GS-5220-16S8CR 8 combo 24 -
GS-5220-16T4S2X 16 4 2
GS-5220-16T4S2XR 16 4 2
GS-5220-20T4C4X 24 4 combo 4
GS-5220-20T4C4XR 24 4 combo 4
“Managed Switch” is used as an alternative name in this Quick Installation
Guide.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedSwitch
zQuickInstallationGuide
zRJ45 to RS232 Cable
zRubber Feet
zTwoRack-mountingBracketswithAttachmentScrews
zPowerCord
zSFPDust-proofCaps
Items SFP Dust-proof Caps
GS-5220-16S8C(R) 24
GS-5220-16T4S2X(R) 6
GS-5220-20T4C4X(R) 8
If any item is found missing or damaged, please contact your local reseller for
replacement.

4
2. Requirements
zWorkstationsrunningWindowsXP/2003/2008/2012/Vista/7/8/10,MACOSXor
later,Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
 The above Workstations have been installed with terminal emulator, such as
TeraTerm,PuTTYorHyperTerminal.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernet Port Connection
Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.
 TheabovePCisinstalledwithWeb browser.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.

5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedSwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 3-1: Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
Flowcontrol:None
Figure 3-2: COM Port Conguration

6
3.1 Logon to Console
Once the terminal is connected to the device, power on the Managed Switch, and
the terminal will display “running testing procedures”. Then, the following message
asks to log in user name and password. The factory default user name and
passwordareshownasfollowsandtheloginscreeninFigure3-3appears.
Username:admin
Password:admin
Figure 3-3: Managed Switch Console Login Screen
The user can now enter commands to manage the Managed Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.

7
3.2 ConguringIPAddress
TheManagedSwitchisshippedwithdefaultIPaddressshownbelow.
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please
usetheproceduresasfollows:
 ShowthecurrentIPAddress
1.Atthe“#”prompt,enter“show ip interface brief”.
2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.
Figure 3-4: IP Information Screen
 ConguringIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure3-5.
GS-5220Series#congure terminal
GS-5220Series(cong)#interface vlan 1
GS-5220Series(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPAddress:192.168.1.100
SubnetMask:255.255.255.0
Figure 3-5: Conguring IP Address Screen
4.Repeatstep1tocheckiftheIPaddresshaschanged.

8
3.3 Storingcurrentswitchconguration
Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
# copy running-cong startup-cong
Figure 3-6: Saving Current Conguration Command Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of the Managed
SwitchthroughthenewIPaddress.
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.

9
4. Starting Web Management
The following shows how to start up the Web Management of the Managed
Switch. Note the Managed Switch is congured through an Ethernet connection.
Please make sure the manager PC must be set to the same IP subnet address.
For example, the default IP address of the Managed Switch is 192.168.0.100,
then the manager PC should be set to 192.168.0.x (where x is a number
between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.100
Figure 4-1: IP Management Diagram

10
4.1 Logging in to the Managed Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.0.100(thefactorydefaultIPaddressortheonethatyouhave
justchangedinconsole)toaccesstheWebinterface.
2.When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure4-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin
Figure 4-2: Login Screen
