Plantronics ENCORE H91 User manual

Plantronics Ltd, Interface Business Park, Bincknoll Lane, Wootton Bassett,
Wiltshire SN4 8QQ. ENGLAND
www.plantronics.com
Plantronics, the name, logo design and Encore are Registered Trademarks
of Plantronics Inc. Quick Disconnect is a Trademark of Plantronics Inc.
© Plantronics Inc. All Rights Reserved.
Printed in the U.K.
Plantronics Ltd
Interface Business Park
Bincknoll Lane
Wootton Bassett
Wiltshire
SN4 8QQ
ENGLAND
Tel: + 44 1793 842200
Fax: + 44 1793 848853
Plantronics Denmark
Anderson Nexø vej 29
2860 Søborg
Denmark
Tel: [phone]
Fax: [phone]
Plantronics B.V.
South Point, Building C
Scorpius 140
2132 LR Hoofddorp
The Netherlands
Tel: 0800 PLANTRONICS
0800 7526876
Fax: + 31 2356 48015
Plantronics France
424, La Closerie Mont d’Est
93194 Noisy-le-Grand Cedex
Tel: + 33 (0)1 41 67 41 41
Fax: + 33 (0)1 41 67 41 40
Plantronics GmbH
Gildenweg 7
50354 Hürth
Germany
Tel: + 49 22 33 3990
Fax: + 49 22 33 399399
Plantronics Acoustics Italia S.R.L.
Palazzo G/2, Via Roma 108
20060 Cassina dé Pecchi MI
Tel: + 39 02 9511900
Fax: + 39 02 9511903
Plantronics Spain
Europa Empresarial
Ctra. de la Coruña Km. 24
Edifcio Londres, Of. 7
Las Rozas 28230
Madrid, Spain
Tel: + 34 91 640 47 44
Tel: [phone]
Fax:+ 34 91 640 47 46
Plantronics Nordic Region
Oskarsvägen 10
S-702 14 Örebro
Sweden
Tel: + 46 19 121930
Fax: + 46 19 121933
Plantronics MEEA
Sales Region
262 Regents Park Road
Finchley
London N3 3HN
Tel: [phone]
Fax:[phone]
33644-01 Rev. F
4694 Encore User paginated 19/2/01 4:48 pm Page 1

User Guide
Brugsanvisning
Gebruiksaanwijzing
Käyttöopas
Notice d’utilisation
Benutzerhinweise
Manuale d’istruzioni
Brukerveiledning
Guia do Utilizador
Manual del usuario
Bruksanvisning
ENCORE®
4694 Encore User paginated 19/2/01 4:48 pm Page 2

3

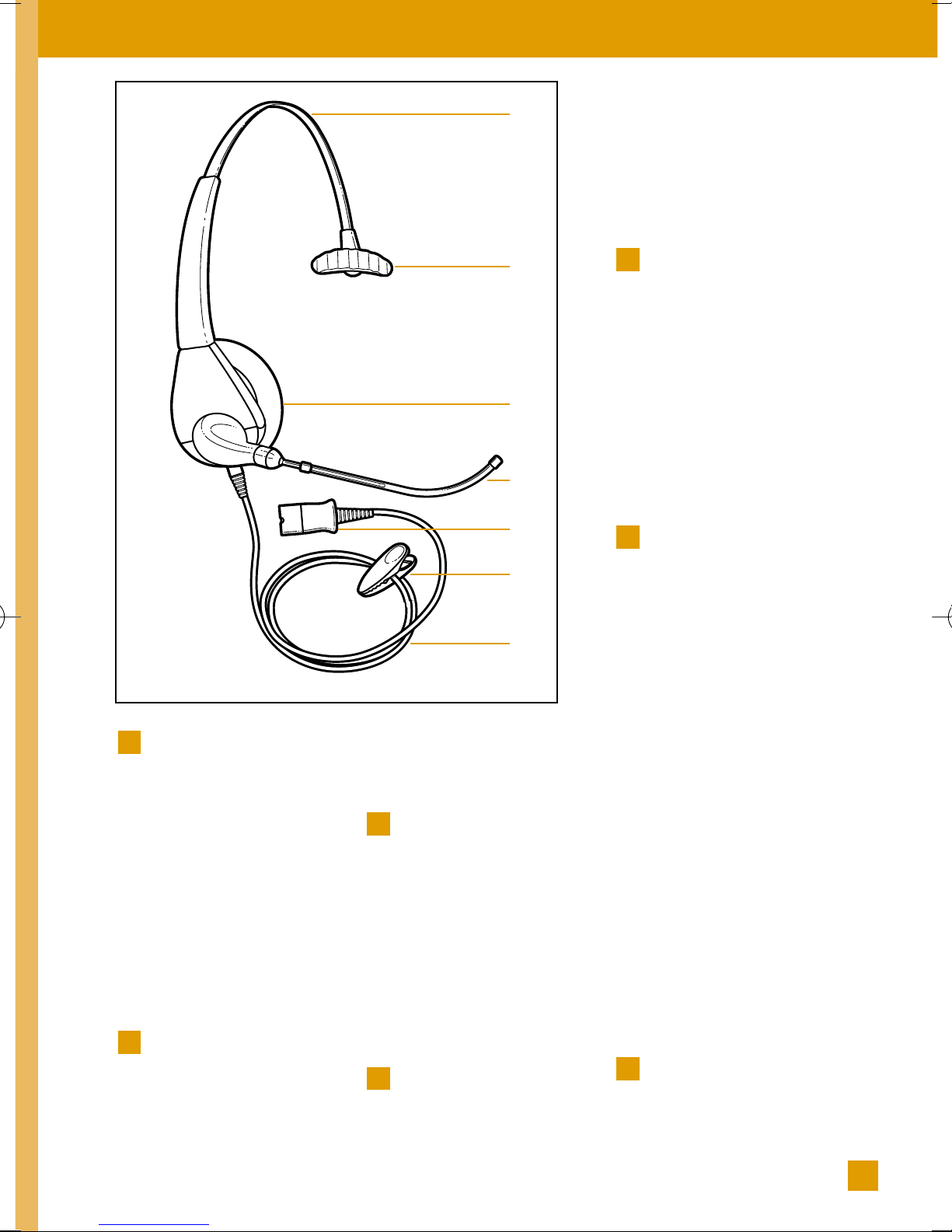

DIAGRAM KEY
Adjustable Headband
Justérbar Hovedbøjle
Instelbare hoofdband
Säädettävä sanka
Serre-tête réglable
Verstellbarer Ohrbügel
Archetto posizionabile
Justerbart hodebøyle
Banda de cabeça
ajustável
Muelle ajustable para la
cabeza
Justerbar huvudbygel
T-Bar
T-Stang
T -Balk
T-kappale
Stabilisateur
T-Bügel
Bande a T
T-Stang
Barra em T
Barra en T
T-Stycke
Receiver
Højttaler
Ontvanger
Kuuloke
Ecouteur
Empfänger
Ricevtore
Mottaker
Auscultador
Auricular
Hörkapsel
Ear Cushion
Skumpude
Oorkussentje
Korvatyyny
Oreillette
Ohrkissen
Cuscinetto auricolare
Ørepute
Almofada para a
orelha
Almohadilla para
el oído
Öronkudde
Voice Tube
Mikrofonrør
Spreekbuis
Mikrofoniputki
Tube vocal
Sprechröhrchen (Voice
Tube)
Tubo vocale
Talerør
Tubo de voz
Tubo de comunicación
Mikrofon
Quick DisconnectTM
Connector
Quick-Stik
Quick Disconnect
Connector
Quick Disconnect -
pikaliitin
Connecteur de
déconnexion rapide
Quick Disconnect
Schnellkupplung
Morsetto Quick
Disconnect per
disinserimento rapido
Stikk-kontakt
Quick Disconnect
(Hurtigkobling)
Ligação Quick
Disconnect
Conectador Quick
Disconnect
(de desconexión rápida)
Quick Disconnect
koppling
Clothing Clip
Tøjklemme
Kledingsklem
Vaatepidike
Pince à vêtement
Kleiderclip
7
6
5
4
3
2
1
1
1
2
3
4
5
6
7
8
4694 Encore User paginated 19/2/01 4:48 pm Page 3

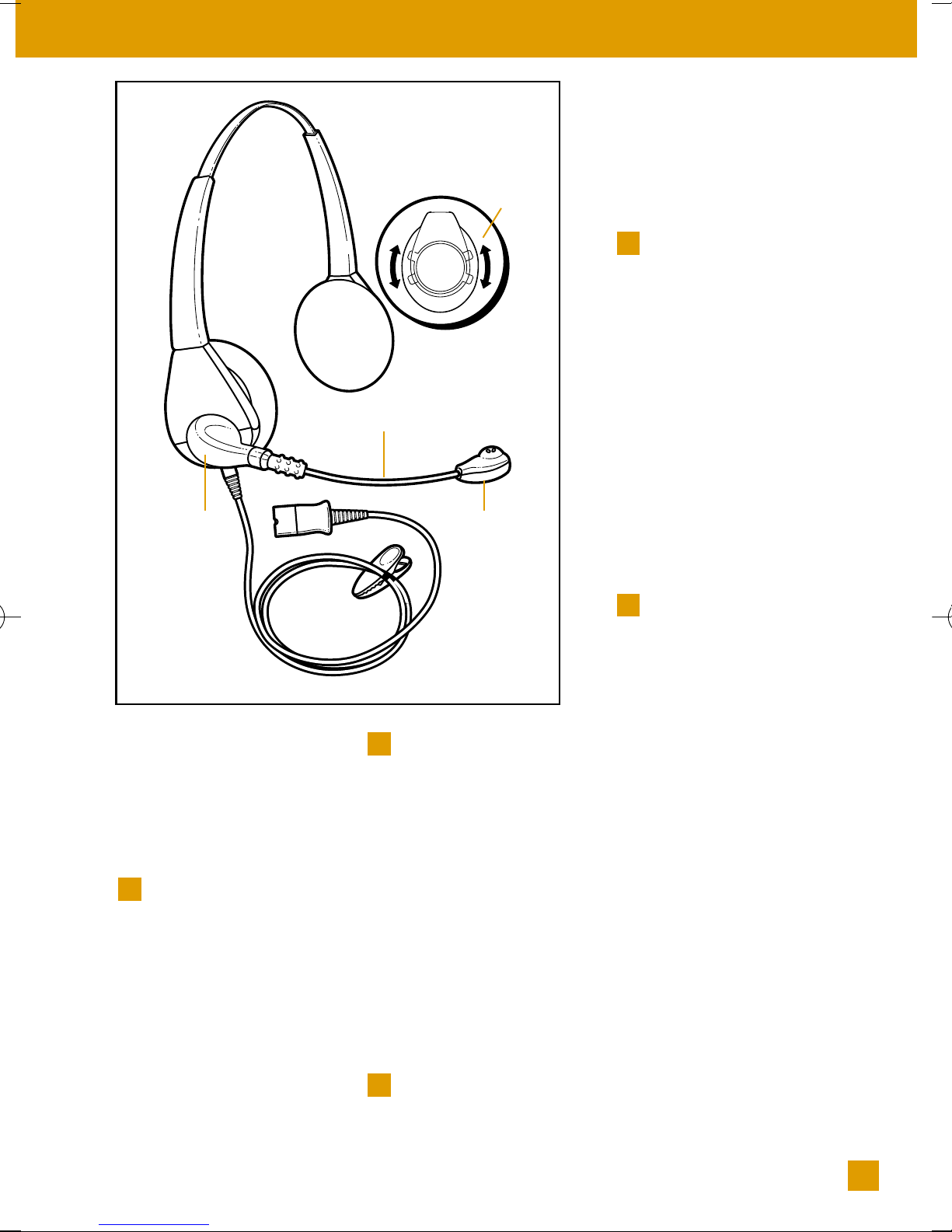

DIAGRAM KEY
Clip fermacavetto
Klesklype
Clip para a roupa
Pinza de contacto con
la ropa
Klådes klämma
Headset Cable
Høretelefonledning
Koptelefoonkabel
Korvakuulokkeiden
johto
Cordon de
raccordement
Headset-Kabel
Cavetto
Hodesetkabel
Cabo do auscultador
Cable del casco
Kabel
Tone Control Tabs
Tonekontrolskiver
Toonregelinglipjes
Äänensävyn säätimet
Pattes de réglage de la
tonalité
Tonsteuerungs-Hebel
Interruttore per regolare
il tono
Tonereguleringstapper
Patilhas de controlo do
tom
Orejetas de regulación
de tono
Tonkontroll
Boom
Mikrofonarm
Hengelmicrofoon
Mikrofonin sanka
Perche microphone
Stiel
Stelo portamicrofono
Stang
Braço do microfone
Brazo
Hållare
Click-Stop Turret
Klik-Stop Drejearm
Klik-Stop revolverkop
Porrastettu
sangansäädin
Tourelle à cliquet
Einrastende
Stielwinkelverstellung
Capsula girevole con
scatto di bloccaggio
Klikk-Stopp Anordning
Cápsula giratória de
encaixe
Portabrazo giratorio
clic-stop
Klick-stop hållaren
Noise Cancelling
Microphone
Støjdæmpet Mikrofon
Geluidsverbreek-
microfoon
Melunpoistomikrofoni
Microphone
directionnel
Noise Cancelling
Mikrofon (d.h. mit
Geräuschunterdrückung)
Microfono con
eliminazione del
rumore di fondo
Støydempningsmikrofon
Microfone com
supressão de ruído
Micrófono con anulación de
ruidos
Bullerdàmpaude
mikrofon (Noice
Cancelling)
12
11
10
9
8
2
9
10
12
11
4694 Encore User paginated 19/2/01 4:48 pm Page 4

3
DIAGRAMS
Fig. 1 Fig. 2
Fig. 4
Fig. 5
Fig. 3
Fig. 6
4694 Encore User paginated 19/2/01 4:48 pm Page 5

DIAGRAMS
4
Fig. 7 Fig. 8
Fig. 9 Fig. 10
Fig. 11
4694 Encore User paginated 19/2/01 4:48 pm Page 6

GB DIAGRAM KEY

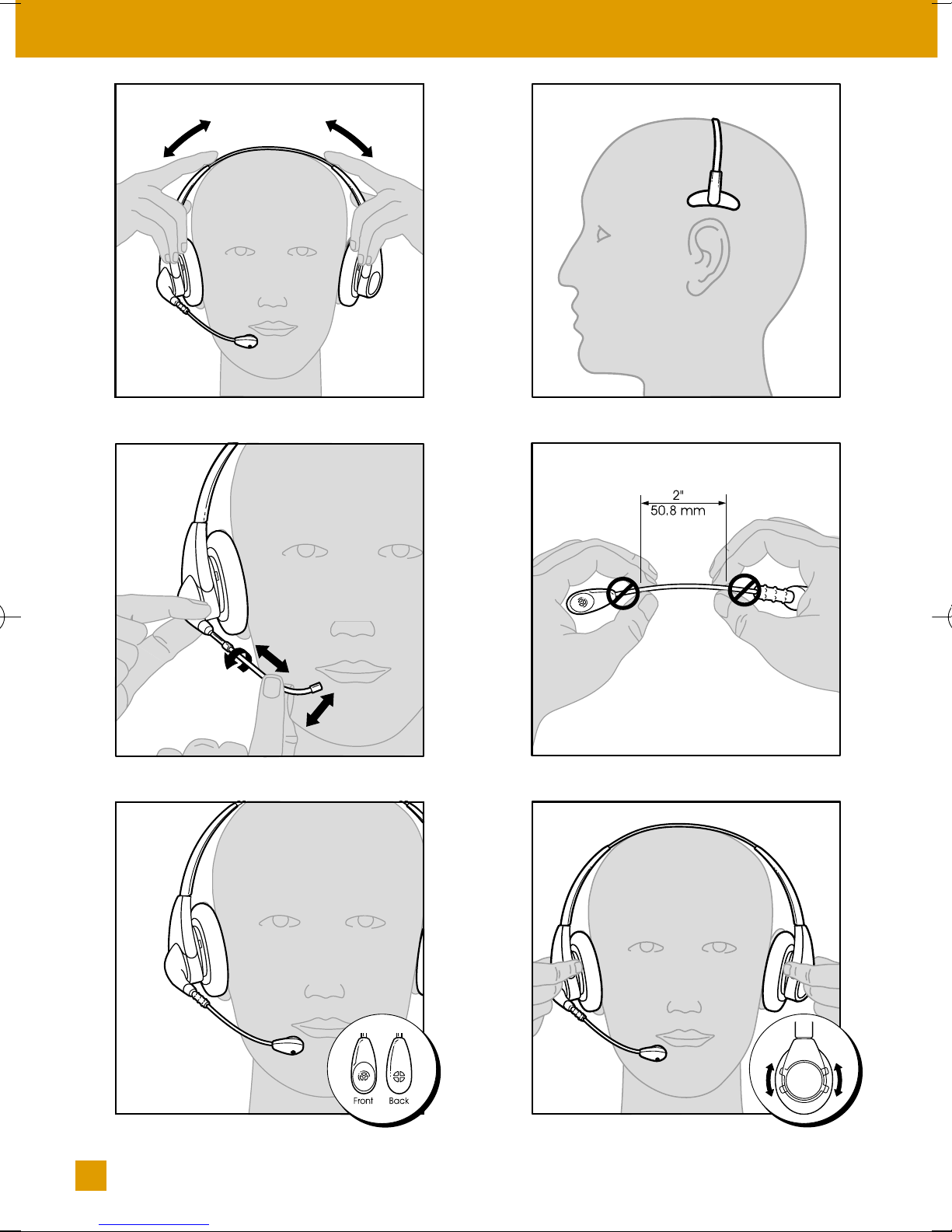

Fig. 1 Adjusting the Headband and Receivers
To adjust the headband, lengthen or shorten the band until it
fits comfortably. The click-stop feature keeps the headband
securely adjusted.
Position the headset receivers so that the foam cushions sit
comfortably over the centre of your ears.
Fig. 2 On models with only one receiver, position the stabiliser T-bar
above your ear.
Fig. 3 Standard Models
Hold the receiver securely against your ear with one hand.
With the other hand, adjust the click-stop mounting and the
voice tube so that the tip sits two finger-widths from the corner
of your mouth. (To prevent breath noise, avoid putting the voice
tube in front of your mouth).
Fig. 4 Noise Cancelling Models
Carefully shape boom with both hands as shown. Do not bend
or twist the boom within 50mm of the microphone.
Fig. 5 Position the click-stop mounting and boom so that the
microphone is two finger-widths from the corner of your mouth.
Make sure that the front of the microphone faces your mouth. If
necessary, carefully rotate the microphone into the proper
position. However, you should try to avoid repeated twisting of
the boom.
Fig. 6 Adjusting the Tone Control
Adjust the tone by moving the tabs on the receiver as shown.
To equalise the sound in both ears, move the tabs to the same
setting on each receiver.

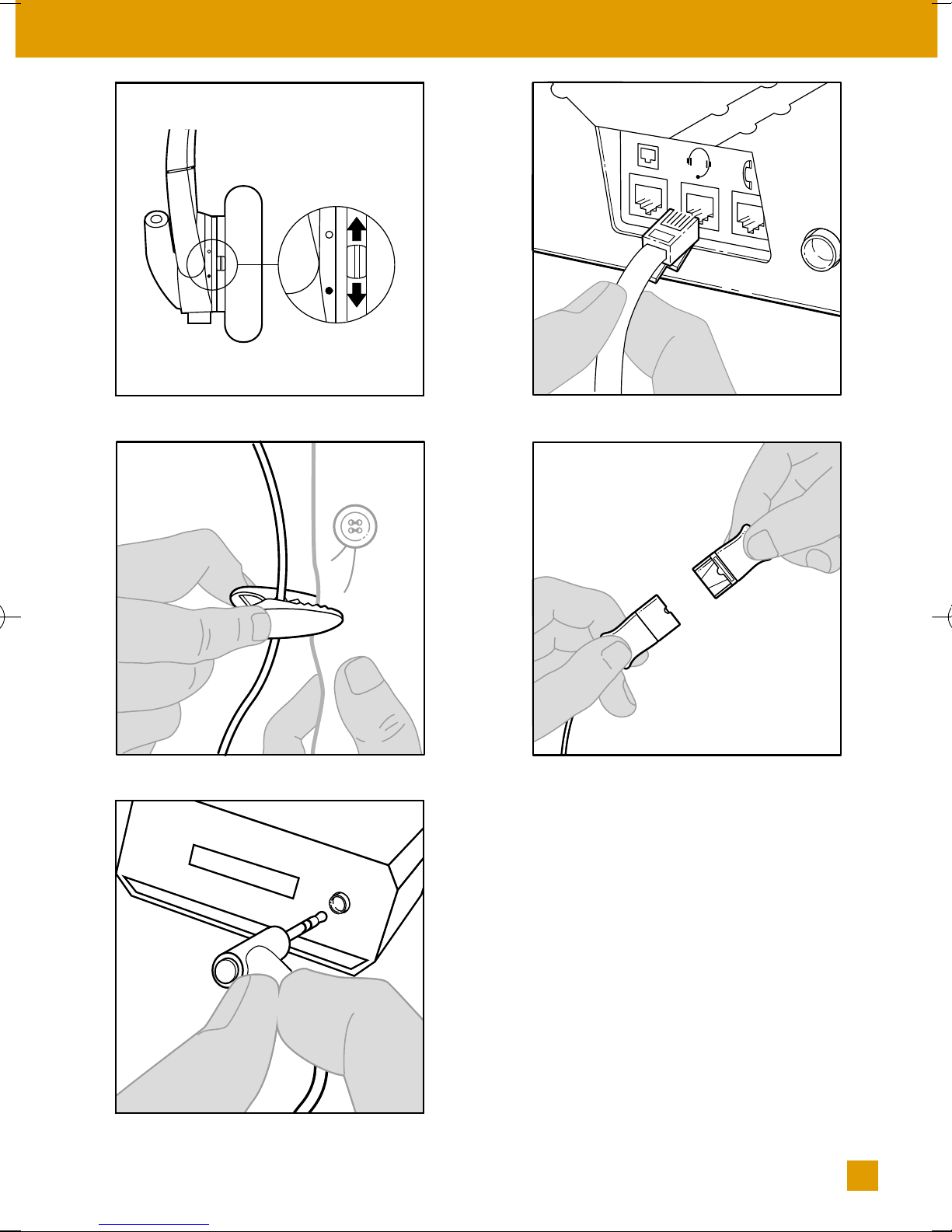

Fig. 7 To emphasise lower, or bass tones, move the receiver tabs to the
position marked "o".
To emphasise higher, or treble tones, move the receiver tabs to
the position marked “•”.
5
4694 Encore User paginated 19/2/01 4:48 pm Page 7

4694 Encore User paginated 19/2/01 4:48 pm Page 8

37
SW FELSÖKNINGSGUIDE
ANVÄNDARTIPS FÖR BÄSTA PRESTANDA
Byt ut talröret var sjätte månad.
Byt ut öronkuddarna var sjätte månad.
Rengör kabeln med en fuktad trasa en gång.
PROBLEM
De uppringande kan inte höra dig
Kontrollera följande
På modeller med talrör, kontrollera om talröret är tilltäppt eller
positionerat felaktigt.
På modeller med bullerdämpande mikrofon, se till att mikrofonen
är riktad mot munnen och korrekt positionerad.
PROBLEM
Du kan inte höra de uppringande
Kontrollera att Quick Disconnect anslutningen är inkopplad.
Se till att öronkudden är korrekt positionerad.
PROBLEM
Huvudbygeln är obekväm
Justera huvudbygeln genom att förlänga eller förkorta den.
PROBLEM
Headsetet låter "burkigt"
Justera ton kontrollen till "o".
PROBLEM
Headsetet låter "dovt"
Justera ton kontrollen till “•”.
4694 Encore User paginated 19/2/01 4:48 pm Page 9

3
6
DIAGRAM KEY GB
Fig. 8 Polaris Headset Models
The Polaris headset models are fitted with a standard modular
connector.
To use the Polaris headset models, simply insert the modular
connector into the headset port of a compatible telephone.
Fig. 9 Clothing Clip
The clothing clip helps to keep the headset properly positioned
and free from the cord's weight. Attach the clothing clip at a
comfortable level.
Fig. 10 Quick Disconnect™ Connector
Some models are equipped with a Quick Disconnect connector.
When you separate the Quick Disconnect, you place an ongoing
conversation on 'hold' without removing the headset.
Before using your headset, join the Quick Disconnect to the
mating connector of your adaptor cable.
To put your call on 'hold' grasp the Quick Disconnect, as shown,
and pull straight apart.
To resume your conversation, reconnect the two halves.
Fig. 11 DECT&GSM Models
If you are using a DECT or GSM telephone, plug the 2.5mm
connector into the headset port of the telephone or adapter.
