PlayMechanix Big Buck Hunter Pro Open Season Operation manual

Big Buck Hunter® Pro Open Season™Copyright 2009 Play Mechanix™ Inc. All rights reserved.
27” DEDICATED GAME
Operation and Service manual

Service Manual Table of Contents
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 2
Table of Contents
Safety ............................................................................................................................................................ 3
Product Specifications...................................................................................................................................5
Setup ............................................................................................................................................................. 6
Adjustments, Audits and Diagnostics ........................................................................................................... 8
Maintenance ...............................................................................................................................................29
Wiring.......................................................................................................................................................... 32
Troubleshooting..........................................................................................................................................35
Parts ............................................................................................................................................................37

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 3 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Safety
OPERATION
Before operating game, read this manual. Failure to properly install and operate this game could result in
malfunction or accident. Operate the game in accordance with the manual.
TRANSPORTING
The cabinet is very heavy. Because the monitor is high, the cabinet is also very top-heavy. Use appropriate care
when moving or transporting cabinet. It contains fragile glass and electronic components. Avoid rough handling.
HANDLING COMPONENTS
Many components are extremely sensitive to handling, environmental and Electrostatic Discharge (ESD) events—
especially the computer. Do not handle it roughly. Before servicing, call your distributor and inquire about the PC
warranty. Use proper ESD procedures when servicing. Protect components from harmful environmental
conditions, such as extreme temperatures, excessive moisture or other damaging effects.
DISCONNECT POWER
Always turn the power off and unplug the unit before servicing or making adjustments unless otherwise instructed.
Installing or repairing components while power is on can damage the components and void the warranty.
GROUNDING
Avoid electrical shock. Do not plug in AC power until you have inspected and properly grounded the unit. Only plug
into a grounded, three-wire outlet. Do not use a “cheater” plug or cut off the ground pin on the line cord.
ELECTRICAL SHOCKS
There is no isolation transformer in the cabinet. Disconnect AC power before servicing. However, be aware that
lethal voltages can remain in the electronic components even when AC power is disconnected. Use extreme
caution when servicing. Verify that there is a working ground connection. If the unit sustains water damage, cease
using it immediately and unplug AC power.
MONITOR
Extremely high voltages exist in the video monitor at all times. These high voltages exist even when the monitor is
off and the AC line cord is disconnected. These voltages are extremely lethal and will cause death. The monitor
contains no user serviceable parts. Do not attempt to service the monitor.
POWER SELECTOR
Before installing game, ensure the voltage on the PC is set properly. There is a 115/230 VAC selector switch that
must be set for the correct voltage for your site. Verify the fluorescent lamp rating. The rating must match the line
voltage at the installation site.
CONNECTORS
Ensure all connectors mate properly. If connectors do not slip in easily, do not force them. Connectors are often
keyed and only connect one way. Check for correct orientation.

Service Manual Safety
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 4
COMPUTER
The computer contains sensitive components, including a hard drive. Do not handle it roughly. Call your distributor
before servicing its internal components. Ask about warranty information as it relates to the PC.
Do not turn the PC power switch on or off. It should remain permanently in the ON position.
Cycle AC power on or off with the cabinet power switch.
A dongle has been inserted into one of the USB ports. This is required for game play.
Do not remove the dongle except for troubleshooting purposes.
FLUORESCENT TUBES
A dropped fluorescent tube may break and implode. Shattered glass from the implosion can travel long distances
and cause bodily injury. Use proper procedures when handling broken materials, as these items can contain
hazardous material such as mercury or lead.
POWER CORD
If the power cord is damaged or lost, replace it with an identical cord as supplied by the manufacturer or an
authorized service agent.
WATER JETS
Do not install or operate game within operating perimeter of a water jet. Do not clean equipment using water jet.
HAZARD TO EPILEPTICS
A small portion of the population has an epileptic condition that may cause seizures. Affected persons experience
seizure while watching some television pictures or playing certain video games. People who have not had seizures
may still have an undetected epileptic condition. If anyone in your family has experienced epilepsy symptoms
(seizures or loss of awareness), consult your physical before using video games. While children play video games, a
parent should observe. Be alert to the following symptoms: dizziness, altered vision, eye or muscle twitching,
involuntary movements, loss of awareness, disorientation or convulsions. If you or your child experiences these
symptoms, discontinue use immediately and consult your physician.
MANUAL
Keep this manual available and ready for use. If the game fails to function properly, turn off the machine and
unplug the AC line cord. Contact your local distributor. Your warrantee, when applicable, lasts 60 days from your
purchase date. You may not reproduce this document or any of its contents without written authorization from
Raw Thrills™, Inc. or Play Mechanix™Inc.
SPECIFICATIONS
For reasons such as performance, this product’s specifications may change without notice. Federal patent,
copyright and other intellectual property laws protect the content, devices and design of the game and its
equipment.

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 5 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Product Specifications
Electrical Power
Domestic, international users and Japan
120 VAC @ 60 Hz, 5 amps
240 VAC @ 50 Hz, 2.5 amps
100 VAC @ 50 Hz, 5 amps
DC Power Fuse Guide
+5 VDC 2 amp Slow Blow
+12 VDC 7 amp Slow Blow
Temperature
32 degrees F to 100 degrees F
(0 degrees C to 38 degrees C)
Humidity
Must not exceed 95% relative humidity
Dimensions
height: 76 3/16” (1.94 meters)
width: 29” (0.74 meters)
depth: 29 3/4” (0.76 meters)
Carton Weight
535 lbs. (242.67 kg)

Service Manual Setup
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 6
Setup
1. Place the shipping crate on a flat stable surface.
2. Cut the banding straps and remove the cardboard lid.
3. Lift off the large cardboard container surrounding the cabinet and any shipping cleats.
4. With at least two people and a dolly, remove the cabinet from the shipping pallet.
5. Remove the coin door key from the coin return chute.
6. Open the top coin door.
7. Locate the key for the back door and the cash box.
8. Open the cash box and remove the plastic tube.
9. Remove the items inside the tube. These include this service manual, AC line cord, bag of tools
and a warranty card.
10. Using a wheeled cart and at least one assistant, transport the cabinet to a suitable playing area.
11. Remove packing material from the guns.
12. Ensure the game cabinet is level and stable.
With at least one assistant, adjust the leg levelers.
13. Check the AC line cord for visible signs of damage.
Pay particular attention to the plug and line cord insulation.
14. Check for shipping damage to the following:
Gun assembly: Left and right guns, gun holders, and cable
Cabinet glass: Marquee and monitor
Cabinet back door
Cabinet coin door
Cabinet and gun decals
15. Verify the voltage in the nearest AC outlet.
16. Verify the AC outlet ground connection is present and working.
17. Open the back door of the cabinet.
18. Near the AC power transformer, verify the voltage selector switch is set for the correct AC
voltage.
19. Remove the marquee.
20. Verify the fluorescent fixture in the marquee is set for the correct voltage.
21. Plug the line cord into the AC outlet.
22. Replace the back door.
23. Turn the power switch to ON.
24. Verify that the cooling fan located on the bottom back of the VGM is working.
If not, turn off AC power and disconnect line cord. Refer to the diagnostic section of this manual.
25. Check that no component is excessively hot or emitting foul odors.
If not, turn off AC power and disconnect line cord. Refer to the diagnostic section of this manual.
26. Once software loads, you will be asked to calibrate the guns.
If not, enter the service menu by pressing the TEST button located on the bracket inside the top
coin door.

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 7 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
First Calibration
Upon first startup and reboots, the game enters calibration mode. Note that weekly gun recalibration
helps maintain gun performance, improve player enjoyment and enhance revenue.
+
LEFT GUN
CALIBRATIOM
+
SHOOT UPPER LEFT TARGET
PRESS TEST TO CANCEL
+
1. Remove left gun from the rack and hold the muzzle about three feet from the monitor. Follow
the on screen instructions to shoot the target.
2. Once satisfied with the calibration, press the START button corresponding with the gun color.
3. Replace the gun into its rack.
4. Repeat steps 1-3 with the right gun.
Other Tests
See the Diagnostic Section for further information.
1. Enter the SWITCH TEST menu and verify all switches function.
2. Enter the SCREEN TEST menu and verify that video is acceptable.
3. Enter the SOUND TEST menu and verify the audio works and is not distorted.
4. Enter the COIN METER TEST menu and verify the operation of the coin meter.
5. Enter the START BUTTON LAMPS menu and verify that the lamps of the buttons work correctly.
6. Enter the WATCHDOG TEST menu, which re-boots the game.
7. Upon a successful re-boot, you are ready to make adjustments to pricing, volume and other
functions found in the Diagnostic Section.

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 8
Adjustments, Audits and Diagnostics

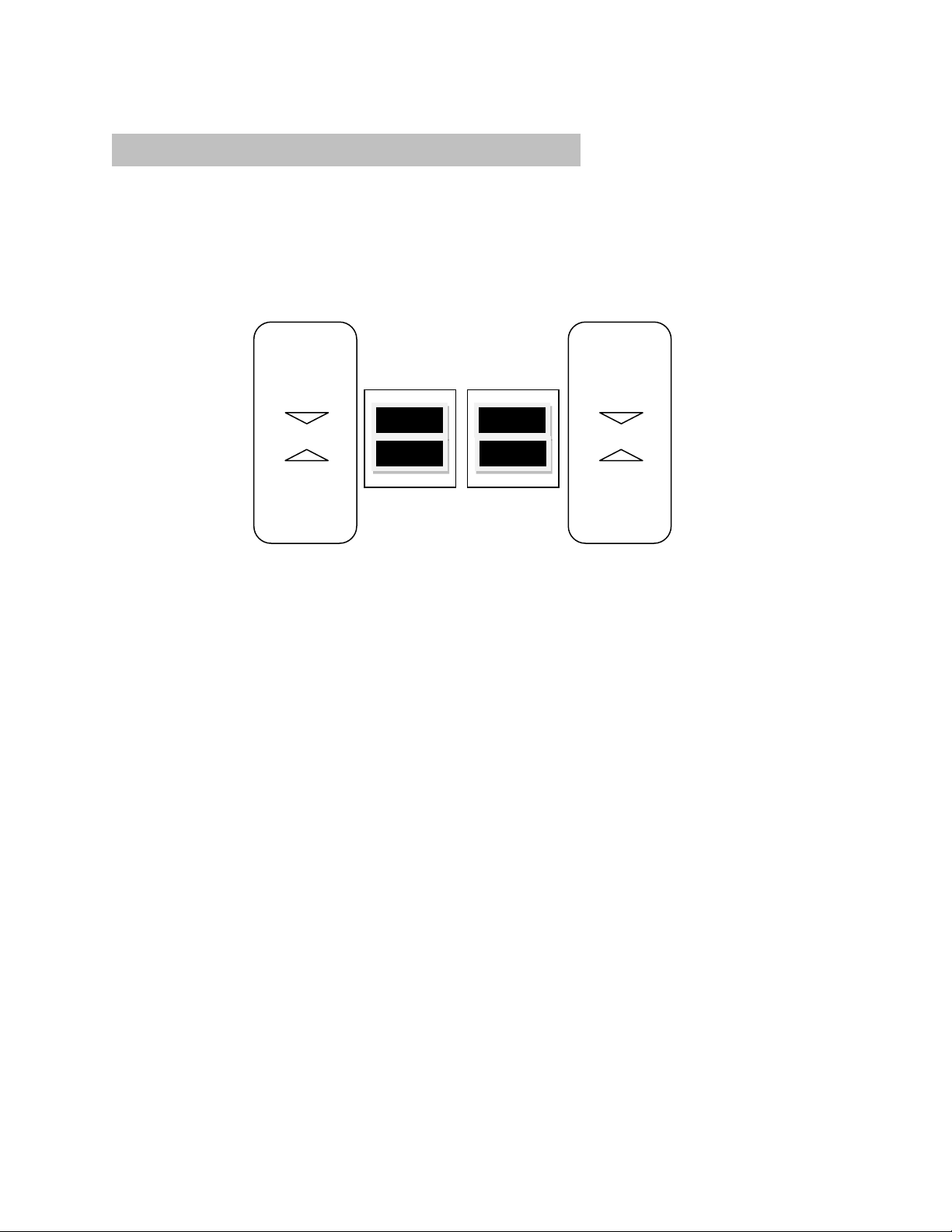

Diagnostic Menu System
The Service Button Panel should have four buttons, three of which can navigate the menu system.
But it is easiest to navigate with a Start button and trigger/ pump.
Service Panel TEST button enters diagnostic system.
Either Start button or
TEST button selects the highlighted option.
Service Panel VOL - button or
Squeezing either trigger moves down through menu or setting choices.
Service Panel VOL + button or
Pumping either gun moves up through menu or setting choices.
Highlight and select Exit to return to previous screen.
An on-screen message acknowledges changes or when you exit a selection without making a change.
At the bottom of each screen there is a brief description of the menu option’s function. A complete
description is available here for all menu functions.
TEST
SERVICE
Volume
UP
Volume
DOWN

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 9 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Menu Screens and Descriptions
Main Menu
For clarity, all subsequent menu screens in this manual will not include the header, footer or background
image.
Main Menu
Operator Adjustments Menu
This menu controls gameplay, coinage and sound adjustments.
OPERATOR ADJUSTMENTS
EXIT
GAME ADJUSTMENTS
COIN ADJUSTMENTS
PLAYER COST
VOLUME
You can improve collections by customize performance with game adjustments. Each variable on an
adjustment menu changes an aspect of game play or appearance. Optimizing these settings can
maintain player interest and improve earnings. Monitor the effects of adjustments by comparing audit
information and earnings before and after changes.

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 10
Main Menu
Operator Adjustments Menu
Game Adjustments Menu
This controls elements of the player experience and the time the game contacts the CoinUp® server to
check for software updates.
GAME ADJUSTMENTS
EXIT
VIOLENCE NORMAL
BIG BUCK GIRLS ON
SKILL LEVEL NORMAL
INITIALS TYPE INITIALS ONLY
GAME UPDATE HOUR 4:00 AM-5:00 AM
Settings, Defaults and Choices
Setting
Description
Default
Choices
Violence
Changes visual effect of shot animals.
NORMAL. Some blood appears on shot animals. Red star
appears on kills.
NO BLOOD. No blood appears on shot animal. In No Blood
Mode, small blue star replaces red star on kills.
Normal
No Blood / Normal
Big Buck
Girls
This setting allows operator to permit or eliminate images of
Big Buck Girls.
ON: Big Buck Girls appear in Attract and Gameplay modes
OFF: No Big Buck Girls appear.
On
On / Off
Skill Level
Adjusts game difficulty by changing how shotgun reloads after
each trigger pull.
EASY. After each trigger pull, shotgun reloads itself without
pumping. To fire another shot, pull trigger again.
NORMAL. After each trigger pull, reload by pumping.
Normal
Normal / Easy
Initials
Type
Adjusts how players can enter their names.
FULL NAME. Players user two screens. The first name
screen allows up to 13 characters.
The last name screen allows up to 15 characters.
INITIALS. Players can enter up to three characters.
Warning: changing to Initials Only clears high score tables.
Initials
Only
Full Name / Initials Only
Game
Update
Hour
The 60-minute period during which tournament-enabled
games contact the server to check for software updates.
4-5 AM
24 hours

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 11 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Main Menu
Operator Adjustments Menu
Coin Settings Menu
This menu does not set game price, but specifies how much game credit is given for money added to the
machine. The smallest accepted coin is a quarter, the typical setting for both coin values in the U.S. The
DBV value is also a multiple of 25¢.
COIN SETTINGS
EXIT
FREEPLAY OFF
CURRENCY TYPE Dollar
COIN 1 VALUE $0.25
COIN 2 VALUE $0.25
COIN 3 VALUE/DBV PULSE $0.25
MAXIMUM CREDITS $500.00
BONUS AWARD $0.00
UNITS FOR BONUS $0.00
Settings, Defaults and Choices
Setting
Description
Default
Choices
Freeplay
Players can start games without money by pressing
START. Use this for promotions, non-commercial
applications or to test the machine.
Off
On / Off
Currency Type
Changing currency type resets coin door values. The
denomination symbol changes on screen with each
currency.
Dollar
Yen, Won, Ruble, Real, Peso, Krona,
Guilder, Franc, Can. Dollar, Coins, Euro,
NZ Dollar, Rand, Pound, Aus. Dollar
Coin 1 Value
Lets you set coin slot pricing.
$0.25
$0.25 - $63.75 in $.25 increments
Coin 2 Value
Lets you set coin slot pricing.
$0.25
$0.25 - $63.75 in $.25 increments
Coin 3 Value /
DBV Pulse
The bill validator (DBV) translates bills into electronic
pulses. Every $1 bill results in four pulses; each $5 bill
is 20 pulses; $10 bill is 40 pulses, etc. This setting
determines how much game credit is awarded per
pulse. With default setting of $0.25, every $1 bill will
award $1 in game credit. Set to $0.50, every $1 bill
will award $2 in game credit.
$0.25
$0.25 - $63.75 in $.25 increments
Maximum Credits
The highest number of unplayed credits allowed.
$500.00
$125 - $500 in $.25 increments
Bonus Award
The amount of credit awarded per bonus unit (see
below).
$0.00
$0.00 - $63.75 in $.25 increments
Units for Bonus
The value a player must enter to get bonus credit.
$0.00
$0.00 - $50.00 in $.25 increments
Bonus Award/Units for Bonus Example.
To give players $1.25 in credit for every dollar put in the DBV, set Bonus award to $.25 and Units for
Bonus to $1.

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 12
Main Menu
Operator Adjustments Menu
Player Cost Menu
PLAYER COST
TYPE- - - - - - - - - - - - - -OPER FEE- - COINUP FEE - - TOTAL
EXIT
TREK $1.00 $0.00 $1.00
ADVENTURE $2.50 $0.00 $2.50
BONUS ONLY $1.00 $0.00 $1.00
TROPHY CLUB TREK $1.00 $0.50 $1.50
TROPHY CLUB ADV. $2.50 $0.50 $3.00
TROPHY BONUS ONLY $1.00 $0.50 $1.50
PLAYER CARD $0.25 $2.75 $3.00
Settings, Defaults and Choices
Setting
Description
Operator
Fee
Default
Choices
Trek
A trek lets players hunt at five sites
and one bonus game.
$1.00
$0.00 - $63.75 in $0.25 increments
Adventure
An adventure is three treks
(15 sites and three bonus games).
$2.50
$0.00 - $63.75 in $0.25 increments
Bonus Only
A bonus only is four bonus games.
$1.00
$0.00 - $63.75 in $0.25 increments
Trophy Club Trek
This is the online version of a trek
(tracks player stats).
$1.00
$0.00 - $63.75 in $0.25 increments
Only Operator Fee can be modified.
Trophy Club Adv.
This is the online version of an
adventure (tracks player stats).
$2.50
$0.00 - $63.75 in $0.25 increments
Only Operator Fee can be modified.
Trophy Bonus
Only
This is the online version of bonus
only.
$1.00
$0.00 - $63.75 in $0.25 increments
Only Operator Fee can be modified.
Player Card
The card holds player login
information.
$0.25
Cannot be modified
FEE ADJUSTMENT
Note that CoinUp® fee cannot be adjusted by the operator.

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 13 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Main Menu
Operator Adjustments Menu
Volume Menu
Rather than requiring a manual dial or up/down buttons, all volume adjustments can be made digitally
with this menu. However, during Attract Mode, pressing the Service Panel Vol + and Vol –buttons only
adjust Attract Mode volume.
VOLUME
EXIT
GAME VOLUME 9
ATTRACT VOLUME 7
MINIMUM VOLUME 4
ATTRACT SOUNDS OCCASIONALLY
Settings, Defaults and Choices
Setting
Description
Default
Choices
Game Volume
This affects sound only while game is played.
9
0 –32
Attract Volume
This can be silenced or turned up as an
advertisement to draw in players.
7
0 –32
Minimum
Volume
Determines the lowest setting possible for both
Game and Attract Volumes
4
0 –32
Attract Sounds
This determines how often the game’s
“advertising” sounds will be heard.
Occasionally
Off/Occasionally/Always

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 14
Main Menu
General Audits Menu
Audit screens help assess game performance, find intermittent problems, decide whether to adjust
game difficulty and free game award and help maximize game earnings.
GENERAL AUDITS
EXIT
GAME AUDITS
SYSTEM AUDITS
GAME PURCHASE AUDITS
ADVENTURE PURCHASE AUDITS
BONUS ONLY AUDITS
COIN AUDITS
Main Menu
General Audits Menu
Game Audits
GAME AUDITS
EXIT
1 PLAYER GAMES 0
2 PLAYER GAMES 0
3 PLAYER GAMES 0
4 PLAYER GAMES 0
SHOOTOUT GAMES 0
PLAYER STARTS 0
GAMES ENDED 0
GAME WINS 0
CONTINUES 0
CONTINUES OFFERED 0
SHOOTOUT CHALLENGES 0

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 15 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Main Menu
General Audits Menu
System Audits
SYSTEM AUDITS
EXIT
PLAY TIME 0 yr 0 dy—0:00:00
UP TIME 0 yr 0 dy—0:00:00
WATCHDOGS 0
EXCEPTIONS 0
BAD TRAPS 0
Main Menu
General Audits Menu
Game Purchase Audits Menu
GAME PURCHASE AUDITS
EXIT
LOCAL PLAY PURCHASES
ONLINE PLAY PURCHASES
Main Menu
General Audits Menu
Game Purchase Audits Menu
Local Play Purchases
LOCAL GAME PURCHASE AUDITS
EXIT
TREKS PURCHASED 0
ADVENTURES PURCHASED 0
BONUS ONLY PURCHASED 0
SHOOTOUT TREKS PURCHASED 0
SHOOTOUT ADV. PURCHASED 0
SHOOTOUT BONUS ONLY PURCHASED 0

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 16
Main Menu
General Audits Menu
Game Purchase Audits Menu
Online Game Purchase Audits
ONLINE GAME PURCHASE AUDITS
EXIT
TROPHY CLUB TREKS PURCHASED 0
TROPHY CLUB ADV. PURCHASED 0
TR. CLUB BONUS ONLY PURCHASED 0
TR. CLUB S.O. TREKS PURCHASED 0
TR. CLUB S.O. ADV. PURCHASED 0
TR. CLUB S.O. BONUS ONLY PURCH. 0
TOURNAMENTS PURCHASED 0
NATIONAL TOURNAMENTS PURCHASED 0
PLAYER CARDS PURCHASED 0
Main Menu
General Audits Menu
Adventure Purchase Audits Menu
ADVENTURE PURCHASE AUDITS
ADV PURCHASE AUDITS: TURN-BASED
ADV PURCHASE AUDITS: SHOOTOUT
Main Menu
General Audits Menu
Adventure Purchase Audits Menu
Turn-Based Adventure Purchase Audits
ADVENTURE PURCHASE AUDITS: TURN-BASED
ADVENTURE WHOLE TREK 1 TREK 2 TREK 3
EXIT
WHITETAIL 0 0 0 0
ELK 0 0 0 0
ANTELOPE 0 0 0 0
BIGHORN 0 0 0 0
MOOSE 0 0 0 0
CARIBOU 0 0 0 0
MULE DEER 0 0 0 0
BISON 0 0 0 0
MTN GOAT 0 0 0 0

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 17 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Main Menu
General Audits Menu
Adventure Purchase Audits Menu
Shootout Adventure Purchase Audits
ADVENTURE PURCHASE AUDITS
ADVENTURE WHOLE TREK 1 TREK 2 TREK 3
EXIT
WHITETAIL SHOOTOUT 0 0 0 0
ELK SHOOTOUT 0 0 0 0
ANTELOPE SHOOTOUT 0 0 0 0
BIGHORN SHOOTOUT 0 0 0 0
MOOSE SHOOTOUT 0 0 0 0
CARIBOU SHOOTOUT 0 0 0 0
MULE DEER SHOOTOUT 0 0 0 0
BISON SHOOTOUT 0 0 0 0
MTN GOAT SHOOTOUT 0 0 0 0
Main Menu
General Audits Menu
Bonus Only Audits Menu
BONUS ONLY AUDITS
BONUS NAME PLAYED BONUS NAME PLAYED
EXIT page 1 of 2
DUCK HUNT 0 DOVE HUNT 0
MOONSHINE BONUS 0 BOARS GONE WILD 0
PIE IN THE SKY 0 MUG SHOT BONUS 0
PHEASANT HUNT 0 TURKEY HUNT 0
LOGYARD BONUS 0 CLOCKWORK BONUS 0
MARS NEEDS CATTLE 0 FROG FLIPPIN’ BONUS 0
QUAIL HUNT 0 GOOSE HUNT BONUS 0
WINDMILL MANIA 0 BARREL BONUS 0
GOPHER GARDEN 0 METEORITE BONUS 0
Squeezing the trigger reveals the second page.
BONUS ONLY AUDITS
BONUS NAME PLAYED BONUS NAME PLAYED
EXIT page 2 of 2
LUMBERJACK BONUS 0
LEMMING BONUS 0
CORN POPPER BONUS 0
PUMPKIN BONUS 0
OFF THE RAILS BONUS 0
BARNSTORM BONUS 0
FISH IN BARREL BONUS 0
MOUNT BUCKMORE 0
CHICKEN & EGG BONUS 0

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 18
Main Menu
General Audits Menu
Coin Audits Menu
COIN AUDITS
EXIT
TOTAL COIN 1 $0.00
TOTAL COIN 2 $0.00
TOTAL COIN 3 DBV $0.00
BONUS COINS $0.00
LIFETIME COIN COUNT $0.00
SERVICE CREDITS $0.00
Main Menu
High Scores Menu
High Scores: Turn-Based Menu
HIGH SCORES: TURN-BASED
EXIT
WHITETAIL ADVENTURE
ELK ADVENTURE
ANTELOPE ADVENTURE
BIG HORN SHEEP ADVENTURE
MOOSE ADVENTURE
CARIBOU ADVENTURE
MULE DEER ADVENTURE
BISON ADVENTURE
MTN GOAT ADVENTURE
PERFECT STREAK
PERFECT SITES
Main Menu
High Scores Menu
High Scores: Shootout Menu
HIGH SCORES: SHOOTOUT
EXIT
WHITETAIL SHOOTOUT
ELK SHOOTOUT
ANTELOPE SHOOTOUT
BIG HORN SHEEP SHOOTOUT
MOOSE SHOOTOUT
CARIBOU SHOOTOUT
MULE DEER SHOOTOUT
BISON SHOOTOUT
MTN GOAT SHOOTOUT

Big Buck Hunter®Pro Open Season™ 27” Dedicated Game
Page 19 Copyright © 2009 Play Mechanix™ Inc. All rights reserved.
Main Menu
High Scores Menu
Animal Scoreboard
The high scores for a particular game are displayed in this format.
ANIMAL ADV. (or shootout) SCOREBOARD
SCORE- - - - - - - NAME - - - - -ANIMAL
EXIT
- - - - - -
- - - - - -
- - - - - -
- - - - - -
- - - - - -
- - - - - -
Main Menu
Online Menu
See the CoinUp® manual for a full explanation of these menu functions.
Main Menu
Gun Calibration Menu
This is the same procedure described earlier in the First Calibration section.
Main Menu
Reset Menu
In addition to resetting individual counters and audits, this menu erases most of your changes. Factory
Reset clears all audit data and restores most defaults. The following data, however, is not cleared:
Calibration
Registration
Game activation
Lifetime coin count
RESET MENU
EXIT
RESET GAME AUDITS
RESET ADVENTURE AUDITS
RESET CREDITS
RESET COIN COUNTERS
RESET ADJUSTMENTS
RESET HIGH SCORES
FACTORY RESET

Service Manual Adjustments, Audits and Diagnostics
Big Buck Hunter® Pro Open Season is a trademark of Play Mechanix™ Inc. All rights reserved. Page 20
Main Menu
System Information Menu
These tests verify system version and check the functioning of peripherals.
SYSTEM INFORMATION
EXIT
VERSION LIST
DIP SWITCH SETTINGS
TELEMETRY STATS
Main Menu
System Information Menu
Version List Menu
This checks the game’s hardware and software versions.
VERSIONS
EXIT
SOUND 1.9.3
JAMMA 25q.H00.F00 D
PMNET 00.00.00
SOFTWARE 01.02.13.US D PRJ
LINUX KERNEL N/A
PROCESSOR N/A
BIOS N/A
Main Menu
System Information Menu
DIP Switch Test Menu
This checks the DIP Switch settings on the I/O Board
DIP SWITCH SETTINGS
DIPSWITCH 1 OFF RESOLUTION
DIPSWITCH 2 OFF RESOLUTION
DIPSWITCH 3 OFF GUN SCAN CGA
DIPSWITCH 4 OFF HSYNC/VSYNC POLARITY
DIPSWITCH 5 OFF UNUSED
DIPSWITCH 6 OFF UNUSED
DIPSWITCH 7 OFF UNUSED
DIPSWITCH 8 OFF UNUSED
PRESS START TO EXIT
