Plus M-10 Series User manual

Copyboard with Memory Function
M-10S/M-10W
User’s Manual
Thank you for your purchase of the PLUS Copyboard.
Please read this User’s Manual carefully before use to take full
advantage of the functions of this product. After you have finished
reading the manual, please keep it for future reference.

E-2
This User’s Manual covers both models M-10S and M-10W.
The copyboard is available in a standard size (model M-10S) and a wide size (model M-10W).
A printer and stand may be available as options depending on the product you purchase.
Descriptions and diagrams refer to model M-10S.
* Model names will be given where model-specific functions or operations are concerned.
Trademarks
•Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation.
•HP and HP Deskjet are trademarks or registered trademarks of the Hewlett-Packard Company.
•CompactFlash and CF are trademarks of SanDisk.
The trademarks of the various companies and the product trademarks, even when not written down, will be given due respect.
Product names and company names appearing in this manual are registered trademarks or trademarks of the respective
companies.
(1) The contents of this manual may not be reprinted in part or whole without permission.
(2) The contents of this manual are subject to change without notice.
(3) Great care has been taken in the creation of this manual; however, should any questionable points, errors, or omissions be
apparent, please contact us.
(4) Notwithstanding Section (3), this company will not be responsible for any claims of loss or profit or other matters deemed to
be the result of using this unit.
(5) The use of a printer as the peripheral device of the PLUS Copyboard is taken to be a prerequisite; therefore, operation will
not be guaranteed when the Copyboard is used with a direct connection to a personal computer.
(6) Manuals with incorrect collating or missing pages will be replaced.

E-3
Features ......................................................................................................................................... E-4
Safety Precautions
Warnings and Precautions ......................................................................................................................... E-5
Care and Cleaning ..................................................................................................................................... E-6
Package Contents ......................................................................................................................... E-7

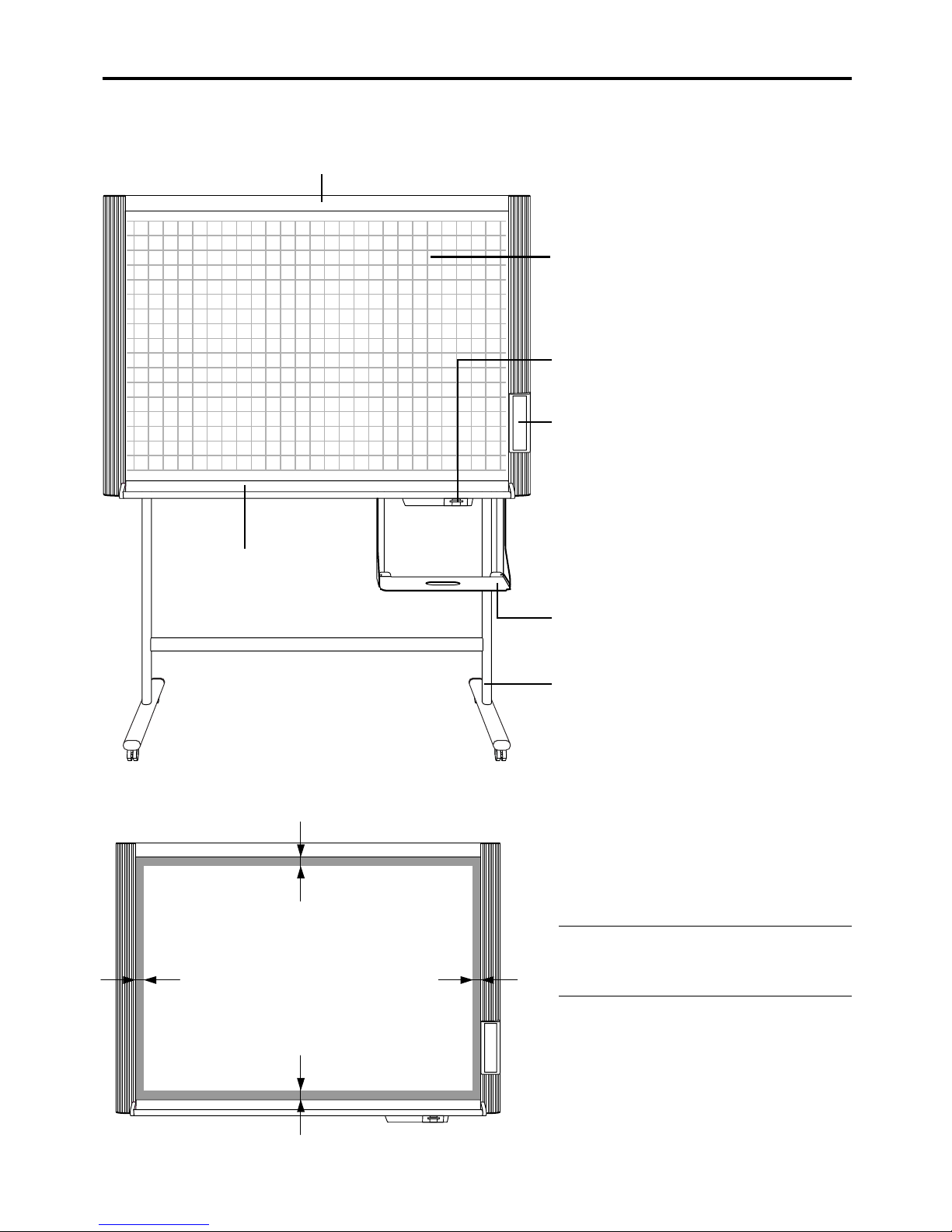

Names of the Parts ........................................................................................................................ E-8
Copyboard Front ......................................................................................................................................... E-8
Copyboard Rear ......................................................................................................................................... E-9
Copyboard Control Panel ......................................................................................................................... E-10

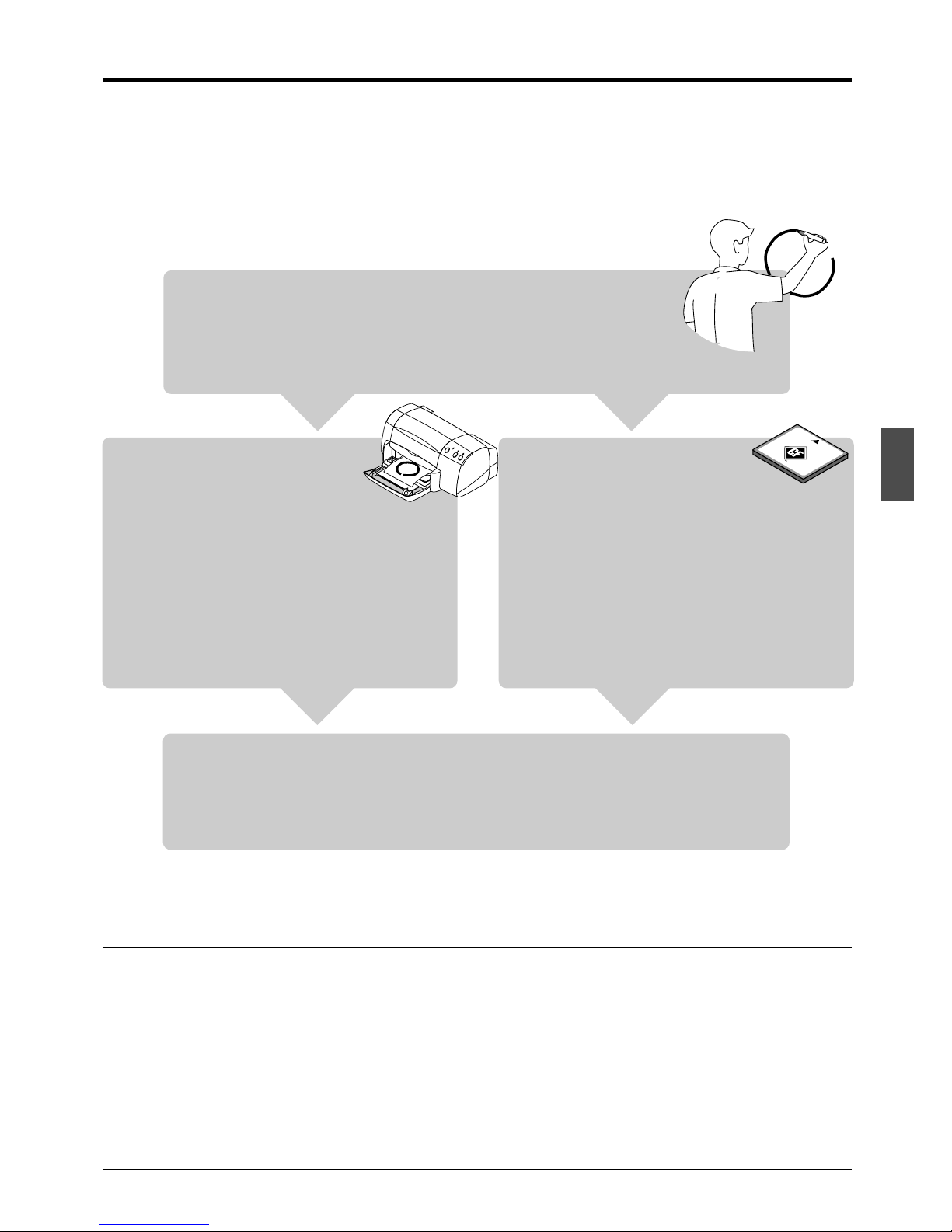

Operation Steps .......................................................................................................................... E-11
Printing......................................................................................................................................... E-12
Basic Printing Operation ........................................................................................................................... E-12
Selecting the Print Density ....................................................................................................................... E-12
Making Additional Prints ........................................................................................................................... E-13
Cancellation of the Print Operation in Progress ....................................................................................... E-14
Moving the Sheet Surface Manually ......................................................................................................... E-14
Using CompactFlash Cards
Memory Storage Procedure ..................................................................................................................... E-15
Examples of Playback of CompactFlash Cards with a Personal Computer ............................................. E-17
Deleting All of the Memory Card Data with the Copyboard ...................................................................... E-18
Printer Operation Guide
Printer Set Up ........................................................................................................................................... E-19

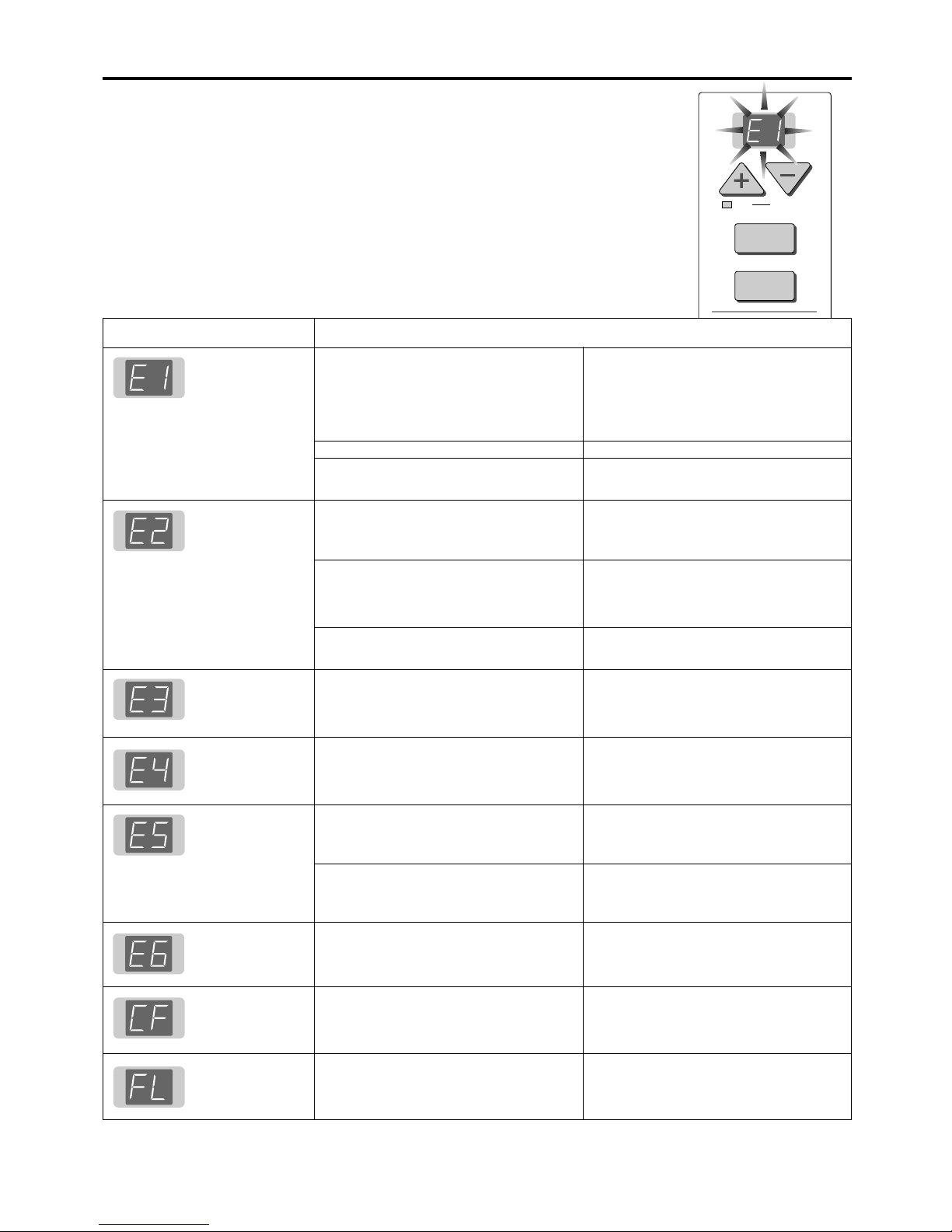

Meaning of Error Displays .......................................................................................................... E-20
Troubleshooting .......................................................................................................................... E-21
Specifications .............................................................................................................................. E-22
Appendix
Connections between the Copyboard and Printer .................................................................................... E-23
Changing the Height of the unit ................................................................................................................ E-24
Quick Calibration Procedure ..................................................................................................................... E-25
TABLE OF CONTENTS
Meaning of the Terms Used in this Manual
•The term “printing” refers to printing with a printer, “memory storage” refers to storage on a CompactFlash card, and “copy”
refers to both printing and memory storage.
•ACompactFlash Card may be abbreviated as a “memory card” (or CF card).
•Atemporary storage location for read data is termed “internal memory”.
• The portion on which drawings are made is termed the “sheet surface”.
•Feeding of the sheet is termed “scrolling” or “moving”.

E-4
FEATURES
Functional and Stylish
The M-10 appears in a new, stylish design.
The operation controls such as control panel, memory card slot, printer, and other parts have all been
positioned at the right side to make ease of use consistent with the clear-cut design.
The height of the copyboard can be adjusted 3 levels above and below the standard position.
In comparison with our series of products up until now (i.e., the BF-040 Series), the weight of the
copyboard is about 10 kg lighter which makes a wall mounted installation easy.
4-Color or Black & White Print with One Button
A press of the “COPY” button on the control panel of the copyboard permits a printout of whatever has
been drawn on the copyboard surface. A printer can be combined with the copyboard to suit the appli-
cation or needs of the meeting room and provide either 4 colors for easy viewing or economic and
speedy monochrome.
Plain paper for easy to be Written on and Stored
The printer for the M-10 supports the use of regular paper.The printed paper can be written on directly
and stamps can also be applied so that the paper may be kept as a record of the meeting and may also
be circulated conveniently. The printer can print up to 20 sheets of the same item in one session.
One Button Stores the Board Contents in Memory
A press of the “MEMORY” button on the control panel of the copyboard permits the written board
surface to be stored in memory as is. This feature is cableless and there is no need for troublesome
connection work.
Personal Computers Can also Be Incorporated Simply
The memory card data can be incorporated simply, either using the card by itself, or via an optional
adapter. Simple connection can be made through a reader that supports USB for desktop computers,
or with a PC card adapter in the case of notebook computers. Portability is afforded even at your
outside destination since the data can be carried with you.
Simple Playback with an Internet Browser, and Easy Pasting to E-mail
Memory card data is in the PNG format, the international image format. Browser support is for Internet
Explorer 4.0 or later or Netscape Communication 4.04 or later. A double click permits display without
being aware of the software and the allows for easy pasting to the e-mail to the meeting participants as
well as placement on the home page for the intranet. Sharing and storage are possible without fuss
even at remote locations.
Density Adjustment
A density selection function offers distinct copies even for pale writing.

E-5
IMPORTANT SAFETY INFORMATION
WARNING
The unit’s rear panel should never be opened by anyone other than a qualified serviceperson. There
are many high voltage parts inside the unit, and touching them is dangerous. For replacement of the
light source’s fluorescent bulb, internal inspections, adjustments, repairs or internal cleaning, please
contact your store of purchase.
CAUTION
Continued use of the unit under abnormal conditions (when the unit is emitting smoke, unusual
odors or sounds) could lead to fire or electric shocks.
If an abnormal condition should arise, turn off the unit’s power, then immediately unplug the power
cord from the AC outlet.
Check that no more smoke, etc., is being emitted, then contact a sales outlet for repairs.
Repairing the unit yourself is dangerous. Never attempt to do so.
WARNING
This is a FCC class A product. In a home environment this product may cause radio interference in which
case the user may be required to take adequate measures.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric
shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been
included. Therefore, it should be read carefully in order to avoid any problems.
SAFETY PRECAUTIONS
Heeding the safety precautions below will lengthen the product’s service life and prevent fires, electric shocks and injury. Read
these safety precautions carefully and be sure to heed them.
Power Supply
•Using at other than rated voltage could result in fire or electric shock.
Handling the Power Cord
• Damaging the power cord could lead to fire or electric shock.
* When installing, do not squeeze the power cord between the product and a wall, rack, etc.
*Do not modify or damage the power cord.
* Do not place heavy objects on the power cord or pull strongly on it.
*Do not place the power cord near heating appliances or otherwise heat it.
* When unplugging the power cord, always do so by pulling on the plug, not the cord.
If the power cord should be damaged, ask your store of purchase to replace it.
•If there is dust or metal objects on or near the power plug’s blades, unplug the power cord then wipe the blade area clean
using a dry cloth. Continued use without cleaning the plug could lead to fire or electric shock.
•Do not plug in or unplug the power cord with wet hands. Doing so could lead to electric shock.
•When moving the unit, turn off the power and be sure to unplug the power cord from the AC outlet first. Moving the unit with
the power cord plugged in could damage the cord, leading to fire or electric shock.
•Connect the power plug securely to the AC outlet, pressing the blades in to the hilt. Uncomplete plugging could cause heating
or attract dust, leading to fire. In addition, touching the plug’s blades could cause electric shock.

E-6
Installation
•For stand type units, be sure to lock the casters.
•When mounting on a wall, be sure to check first that the wall surface is strong enough to support the total weight of the main
unit, mount fittings and printer over a long period of time (including during earthquakes). If the wall is not strong enough,
reinforce it before mounting the unit.
•Getting water on or inside the unit etc., could lead to fire or electric shock. Be particularly careful when using the unit near a
window when it is raining or snowing and when using it near the shore of the ocean and lakes.
•Do not set the unit in hot places exposed to direct sunlight or in places exposed to wind coming directly from an air condi-
tioner.
Do not set the unit in places exposed to soot or humidity (on kitchen counters, near humidifiers, etc.).
Preventing Tipping (for stand type units)
To prevent tipping, heed the instructions below. Tipping could lead to personal injury or damage the unit.
•Place the unit on a flat floor.
•Lock the casters when using the unit. When moving it, be sure to unlock the casters to prevent tipping.
• Do not lean against the unit or apply excess force to the top of the unit.
Cautions on Usage
•Take care that the unit does not get wet and that water does not get inside. Do not place objects containing chemicals, water
or other liquids (vases, potted plants, glasses, cosmetics, etc.) on top of the unit. The liquid could spill and get inside the unit,
leading to fire or electric shock.
•When lifting the unit to adjust the height, etc., the unit should be lifted by at least two persons to prevent it from tipping and
causing personal injury.
• Do not move the sheet with paper or other objects attached to it. Doing so could cause damage.
•Do not wipe the unit or sheet with thinner, benzene, alcohol or other such products. Doing so could cause discoloration or
damage the sheet.
•Only use markers designed exclusively for this product.
Using other markers could damage the sheet. Also note that it may not be possible to erase the ink of other markers.
•When moving a stand type unit, be sure to unlock the casters, then support the unit from both sides and move it gently and
carefully to avoid shocks.
•When not using the unit for long periods of time, unplug the power cord from the AC outlet for safety.
Cleaning
•If the sheet is dirty, wipe it clean using a damp, thoroughly wrung out cloth. For tough dirt, apply some diluted neutral
detergent to a cloth, wipe off the dirt, then wipe again to remove any detergent.
Wait until the sheet is completely dry before using it.
•Wipe of any marks from markers on the dust tray or the plastic frame using a damp, thoroughly wrung out cloth.
For cleaning of the printer, please refer to the printer’s operating instructions.
CARE AND CLEANING

E-7

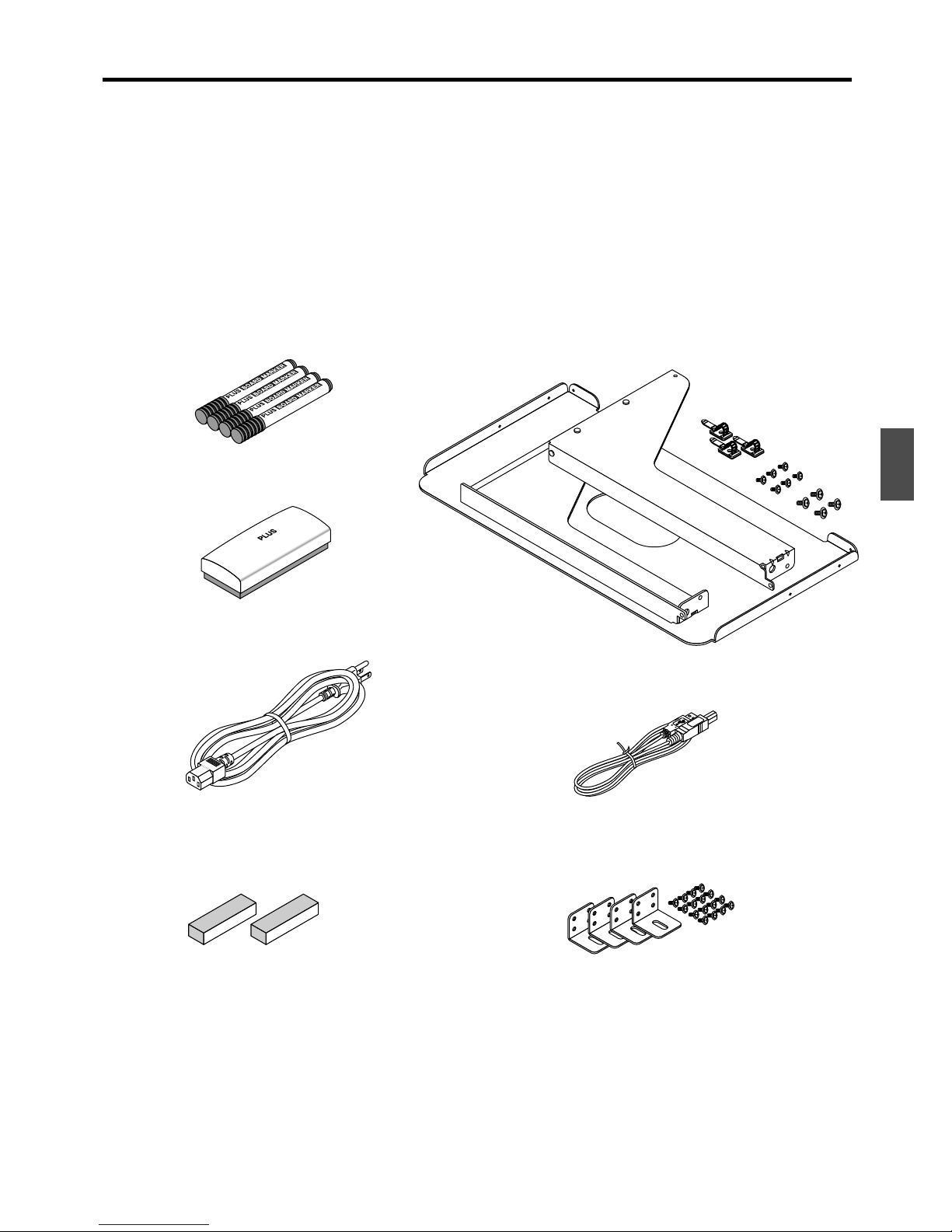

PACKAGE CONTENTS
The package contents are as described below. Please check before use.
Copyboard, main unit ......... 1
See “Assembly and Setup Manual” for information about the assembly parts of the copyboard.
Printer* ......... 1
Please see the instruction manual of the printer for information about the printer accessories.
Stand* ........... 1
*The printer and stand may be sold separately.
■Copyboard Accessories
•Special markers
(One each of black, red, blue, and green)
Use these markers to draw on the sheet surface.
•Special eraser (1)
Use this to erase the drawing.
•Power cable (4 m)
This cable supplies power to the copyboard.
•Printer tray (1 set)
The printer is placed on this tray.
(The set includes one printer tray, left and right brackets, six M3
assembly screws, four M4 screws, and three cable clips.)
•Wall mount brackets (1 set)
These fittings are used to mount the copyboard on a wall.
(The set includes four copyboard brackets and 16 M4 mounting
screws.)
•USB cable (1 m)
This cable is used to connect the dedicated printer with the printer
output connector of the copyboard.
Documents
•User’s manual
Includes information about safety precautions and the use of the
copyboard.
•Assembly and Setup Manual
Information covers the setup of the copyboard and the connec-
tions with the printer.
•Cushions (2 pcs.)
These cushions are used to absorb the shake of
printer tray in case wall mounting.

E-8
Sheet
Special markers are used on the sheet to draw
diagrams and to write.
Card slot
A CompactFlash card is inserted here.
Control panel
Printer tray
The printer* is placed here.
Stand*
This stand supports the copyboard.
Effective reading size
The copyboard cannot read the indicated border
portion of the sheet surface when copying. Please
write within the effective reading area.
Note
The vertical readable area of the Copyboard is the por-
tion between the most upper ruled line and the most
lower one on the sheet.
*The printer and stand may be sold separately.
NAMES OF THE PARTS
Copyboard Front
Copyboard
Dust tray
approx. 35mm
approx. 30mm
approx. 35mm
approx.30mm

E-9
Copyboard Rear
Printer connector
Connect this with the USB connector of the printer.
(The printer connector is dedicated for use with a printer;
use it only with a printer.)
The connector is located on
the bottom surface of the
copyboard.The diagram view
is seen from the bottom.
AC input connector
This connector supplies power to the
copyboard. Make a connection between this
and an AC wall power outlet.
Locking and unlocking the stand* casters
After setup, please lock the casters with the stoppers. Unlock the caster stoppers when moving the copyboard.
Lock the caster by pressing the bottom part of the lock button. Unlock by pressing the top part.
Note
Please take the printer power directly from a wall outlet.
Lock
* May be sold separately.
Unlock
Some models have the AC
OUTPUT connector depending
on the country of destination.

E-10
OK Cancel
REPEAT
Density
POWER COLOR
MemoryClear
FEED/STOP
COPY
MEMORY
4
7
9
12
3
2
5
13
6
8
11
10
1
When pressing a button, please press the center
area (i.e., the round and protruding portion). Press-
ing the corner will not work.
1POWER button
Switches the power of the copyboard on and off.
Note
The Power button does not synchronize with the main
power control of the Copyboard.
2COLOR button
Selects whether to print (or store in memory) in
“color” or “black & white”.
The COLOR lamp lights when “color” is selected.
3COLOR (mode) lamp
Lights in green when “color” is selected with the
COLOR button.
Copyboard Control Panel
4+ / – buttons (Number of copies)
Pressing the + button or the – button sets the number of
copies to be printed (to a maximum of 20 sheets). The num-
ber of copies appears in the display window.
5Display window
This 7-segment LED displays the number of copies to be
printed, the memory storage operating condition, and error
information. Please see Page E-21 for details about error
information.
6COPY button (Print)
Moves a one-screen portion of sheet and reads it, then prints
the number of copies displayed in the display window.
7MEMORY button (Memory storage)
Moves a one-screen portion of sheet and reads it, then stores
the data on a CompactFlash card.
8REPEAT button
Prints the previously printed sheet surface one more time.
(The sheet does not move.)
The number of copies can be changed, but the density and
the color/monochrome selection cannot be changed.
9FEED/STOP button
Scrolls the sheet one screen portion left, then stops auto-
matically. A press of this button while scrolling will stop the
scrolling.
10 Density button (Copy density)
Selects the printing density, either “standard” or “dark”. The
Density lamp lights when “dark” is selected.
11 Density (mode) lamp
Lights in green when “dark” is selected with the Density but-
ton.
12 MemoryClear button
(Total erasure of CompactFlash card)
A press of the MemoryClear button causes the Clear mode
lamp to flash. (The display window indicates “99 (max.)” num-
ber of files in a flashing display.)
A press of the OK (+) button erases all the data in the PVW
folder of the CompactFlash card.
To avoid erasure, press the “Cancel” (–) button. The display
window returns to display the number of print copies. Please
see Page E-19 for details.
13 Clear (mode) lamp
The lamp lights in orange to indicate that the MemoryClear
button has been pressed and the unit is in the erasure mode.
