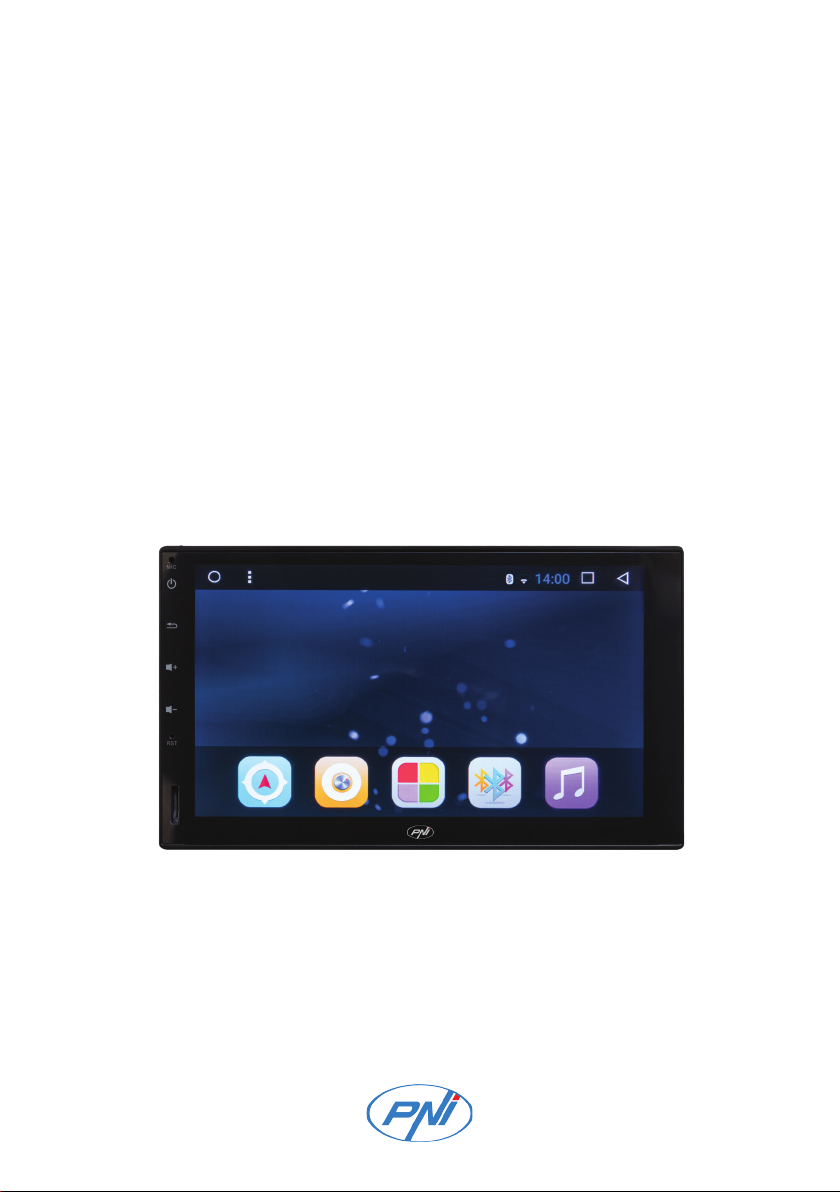

PNI A8020 User manual

PNI A8020
Multimedia player auto, Car multimedia player, Multimédia lejátszó auto
Manual de utilizare - User manual - Használati utasítás

RO
3
GHID RAPID DE UTILIZARE

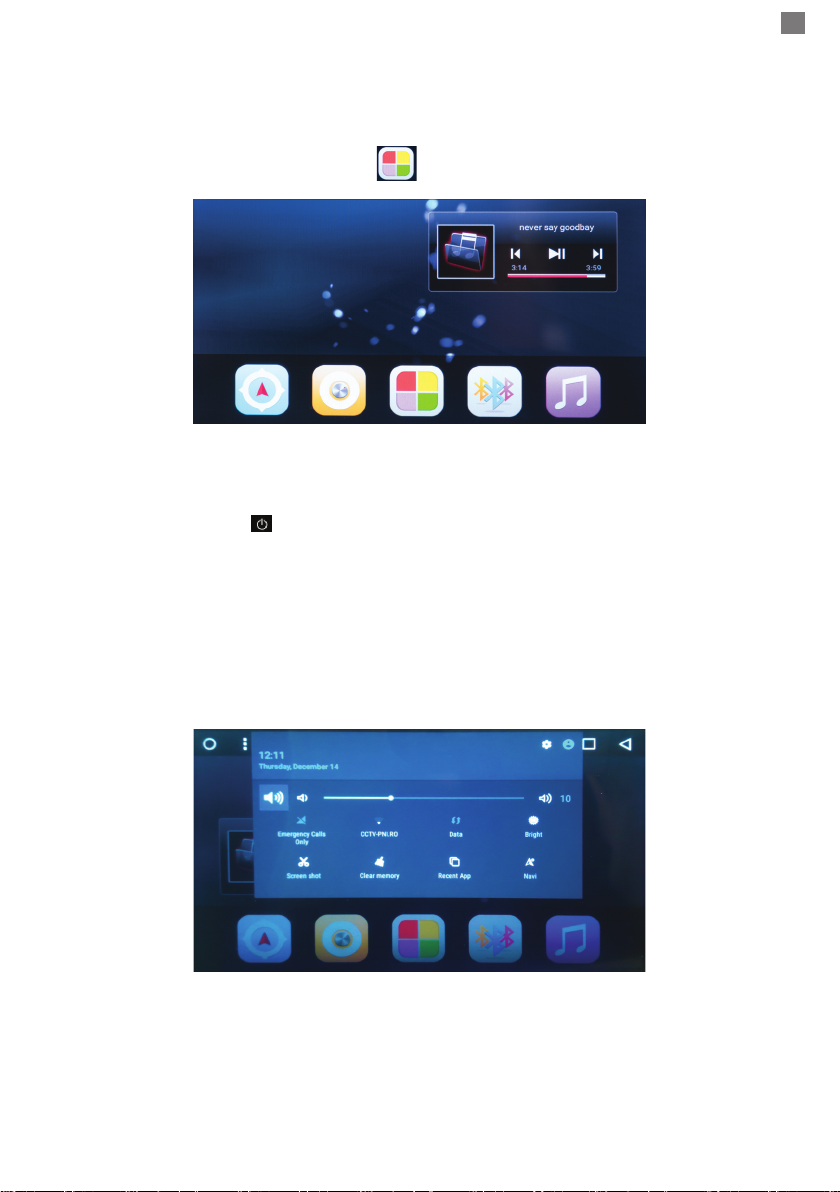

1. ECRANUL DE START
Interfata principala include: Navigatie GPS, Radio, Aplicatii, Bluetooth, Muzica. Atingeti ecare
pictograma pentru a accesa pagina corespunzatoare a aplicatiei.
Puteti adauga diferite widget-uri, cum ar  player-ul muzical sau Explorer siere. Pentru a adauga
un widget, apasati pictograma si accesati tab-ul WIDGETS.
2. PORNIREA SI OPRIREA DISPOZITIVULUI
Introduceti cheia in bord si puneti contactul pentru a porni player-ul.
Tineti apasata pictograma pentru a porni playerul. Tineti din nou apasat pentru a opri player-
ul.
3. PERSONALIZARE IMAGINE DE FUNDAL
Puteti schimba imaginea de fundal: tineti apasat lung pe ecran in zona deasupra pictogramelor.
Din fereastra care se deschide selectati Wallpapers. Alegeti imaginea de fundal dorita.
4. MENIU RAPID
In meniul rapid sunt disponibile: informatii despre reteaua WiFi la care sunteti conectat, setare
volum si luminozitate, captura de ecran, aplicatii recente etc.
Nota: datorita actualizarii sistemului, ar putea aparea diferente in asarea informatiilor disponibile
in meniul rapid.

4

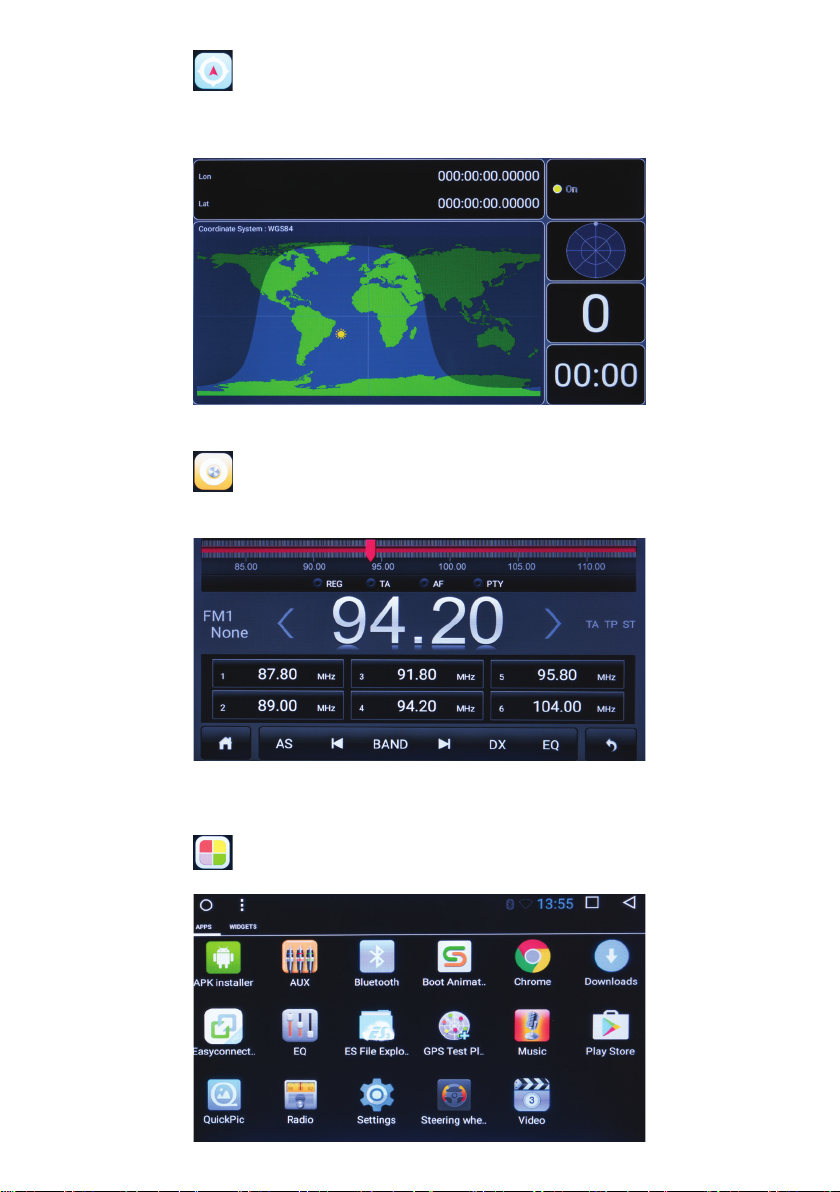

5. NAVIGATIE GPS
Apasati pictograma pentru a accesa interfata aplicatiei GPS.
Aplicatia GPS va ofera informatii despre pozitionarea Dvs. pe harta (latitudine, longitudine), viteza
cu care va deplasati, altitudine si directia.
6. RADIO
Apasati pictograma pentru a accesa interfata radio.
Puteti salva pana la 18 posturi radio FM.
7. APLICATII
Apasati pictograma pentru a deschide interfata cu toate aplicatiile instalate in sistem.

RO
5

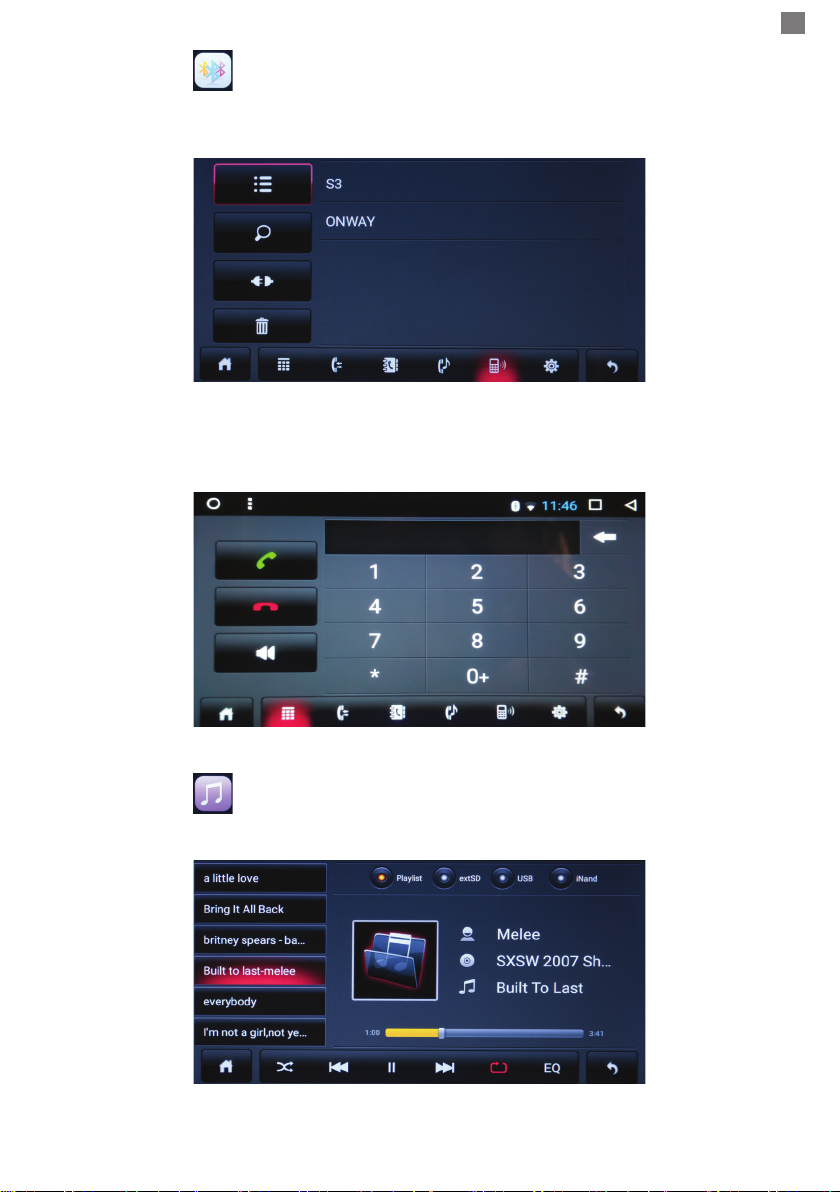

8. BLUETOOTH
Apasati pictograma pentru a accesa interfata Bluetooth.
Bluetooth este o tehnologie de comunicare wireless pe distante scurte (in jur de 5 m) prin care
se pot schimba informatii fara o conexiune zica.
Conectati prin Bluetooth telefonul mobil si player-ul PNI A8020.
Dupa conectarea celor doua dispozitive puteti prelua si efectua apeluri, puteti importa agenda sau
puteti reda muzica din telefon.
9. MUZICA
Apasati pictograma pentru a accesa interfata player-ului de muzica.
Puteti reda muzica de pe card micro SD, memorie USB sau memoria interna a player-ului.

6
SPECIFICATII TEHNICE:
Platforma Allwinner T3L
OS Android 6.0.1
CPU Quad Core 1.0G
RAM DDR3 1.0GB
ROM 8GB
SD micro SD maxim 32GB (nu este inclus)
Ecran HD 1024 x 600px
Wi Da
Bluetooth A2DP
Tensiune de alimentare 12V / 10A
Putere maxima 45W x 4
Iesire AV Audio: 4.1
Video: 2
Intrare AV Audio: 2 canale
Video: 2 (1 pentru camera, 1 pentru AUX in)
Suporta SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/
JPEG/WMA/MP3/MP4/DIVX/MP5/AVI/MPG/
TS 1080P H.264 format etc.
Frecventa FM 87.5~108 MHz
DIAGRAMA CONEXIUNI:

EN
7
QUICK REFERENCE GUIDE
1. HOME SCREEN
The home screen includes: GPS navigation, Radio, Applications, Bluetooth, Music. Tap each icon
of them to go to the corresponding application page. You can add di󰀨erent widgets, as the music
player or le explorer. To add a widget, tap and access WIDGETS tab.
2. START AND SHUTDOWN
Plugin the car key and turn on the ignition to turn multimedia unit on. Turn
o󰀨 the ignition to shutdown.
Press and hold power icon to power o󰀨. Tap it again to power on.
3. APPEARANCE CUSTOMIZATION
The system provides many wallpaper for selecting. Pressing the center empty space can enter
the wallpaper settings.
4. SCROLL DOWN QUICK MENU
In the scroll down menu following functions are available: info about the WiFi netwprk you are
connected to, volume and brightness setup, screen shot, recent app etc.
Note: as the system keeps updating,there might be some dierences on some details.

8
5. GPS NAVIGATION
Tap on to access GPS interface that o󰀨ers you info about your location on the map (latitude
and longitude), speed, altitude and direction.
6. RADIO
Tap on to access FM radio interface.
You can save up to 18 radio channels.
7. APPLICATION
Tap on to view all the applications installed in the system.

EN
9
8. BLUETOOTH
Tap on to access Bluetooth interface.
Bluetooth is a short-range wireless communication technology capable of exchanging information
over a distance of about 5m without requiring a physical connection. It provides a convenient
connection between your car navigation system and mobile phone.
Connect your smart phone with the player PNI A8020.
After connecting both devices, you can receive and make calls, import your phonebook, or play
music on your phone.
9. MUSIC
Tap on to access the music player interface.
You can play music from the micro SD card, USB memory, or the player’s internal memory.

10
TECHNICAL SPECIFICATIONS:
Platform Allwinner T3L
OS Android 6.0.1
CPU Quad Core 1.0G
RAM DDR3 1.0GB
ROM 8GB
SD micro SD max. 32GB (not included)
Screen HD 1024 x 600px
Wi Yes
Bluetooth A2DP
Power voltage 12V / 10A
Maximum output power 45W x 4
AV output Audio: 4.1
Video: 2
AV input Audio: 2 channels
Video: 2 (one for camera, one for AUX in)
Disc support SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/
JPEG/WMA/MP3/MP4/DIVX/MP5/AVI/MPG/
TS 1080P H.264 format etc.
FM Frequency range 87.5~108 MHz
CONNECTION DIAGRAM:
