Portwell WADE-8011 User manual

WADE-8011
WADE-8012
Mini-ITX Board
User's Manual
Version 1.4
Copyright © Portwell, Inc., 2013 All rights reserved.
All other brand names are registered trademarks of their respective owners.

Preface
Table of Contents
How to Use This Manual
Chapter 1 System Overview.......................................................................................................1-1
1.1 Introduction ....................................................................................................... 1-1
1.2 Check List........................................................................................................... 1-2
1.3 Product Specification........................................................................................ 1-2
1.3.1 Mechanical Drawing................................................................................ 1-4
1.4 System Architecture.......................................................................................... 1-6
Chapter 2 Hardware Configuration...........................................................................................2-1
2.1 Jumper Setting................................................................................................... 2-1
2.2 Connector Allocation........................................................................................ 2-5
Chapter 3 System Installation....................................................................................................3-1
3.1 Intel LGA-1155 Processor................................................................................. 3-1
3.2 Main Memory .................................................................................................... 3-4
3.3 Installing the Single Board Computer............................................................ 3-5
3.3.1 Chipset Component Driver .................................................................... 3-5
3.3.2 Intel® Integrated Graphics Controller.................................................. 3-5
3.3.3 On-board Gigabit Ethernet Controller.................................................. 3-5
3.3.4 Audio Controller...................................................................................... 3-5
3.4 Clear CMOS Operation .................................................................................... 3-6
3.5 WDT Function ................................................................................................... 3-6
3.6 GPIO.................................................................................................................... 3-8
Chapter 4 BIOS Setup Information............................................................................................4-1
4.1 Entering Setup -- Launch System Setup ........................................................ 4-1
4.2 Main .................................................................................................................... 4-2
4.3 Advanced ........................................................................................................... 4-3
4.4 Chipset.............................................................................................................. 4-19
4.5 Boots.................................................................................................................. 4-25
4.6 Security ............................................................................................................. 4-27
4.7 Save & Exit ....................................................................................................... 4-28
Chapter 5 Troubleshooting........................................................................................................5-1
5.1 Hardware Quick Installation........................................................................... 5-1
5.2 BIOS Setting ....................................................................................................... 5-2
5.3 Q&A .................................................................................................................... 5-4

Preface
How to Use This Manual
The manual describes how to configure your WADE-8011/WADE-8012 system board
to meet various operating requirements. It is divided into five chapters, with each
chapter addressing a basic concept and operation of Single Host Board.
Chapter 1: System Overview. Presents what you have in the box and give you an
overview of the product specifications and basic system architecture for this series
model of single host board.
Chapter 2: Hardware Configuration. Show the definitions and locations of Jumpers
and Connectors that you can easily configure your system.
Chapter 3: System Installation. Describes how to properly mount the CPU, main
memory and Compact Flash to get a safe installation and provides a programming
guide of Watch Dog Timer function.
Chapter 4: BIOS Setup Information. Specifies the meaning of each setup
parameters, how to get advanced BIOS performance and update new BIOS. In
addition, POST checkpoint list will give users some guidelines of trouble-shooting.
Chapter 5: Troubleshooting. Provide various of useful tips to quickly get
WADE-8011/WADE-8012 running with success. As basic hardware installation has
been addressed in Chapter 3, this chapter will basically focus on system integration
issues, in terms of backplane setup, BIOS setting, and OS diagnostics.
The content of this manual is subject to change without prior notice. These changes
will be incorporated in new editions of the document. The vendor may make
supplement or change in the products described in this document at any time.

System Overview
WADE-8011/WADE-8012 User’s Manual 1-1
Chapter 1
System Overview
1.1 Introduction
Portwell Inc., a world-leading innovator in the Industrial PC (IPC) market and a
member of the Intel®Embedded and Communications Alliance (Intel ECA),
announced today the Portwell WADE-8011/WADE-8012 adopting the Mini-ITX
form factor. The WADE-8011/WADE-8012 of the Intel platform will provide high
performance and flexibility for functional expansion, such as Gaming, Kiosk, DS,
Medical, Defense, Industrial automation and control applications.
Sandy Bridge is the next major architecture from Intel. The WADE-8011
/WADE-8012 supports the latest Intel®Sandy Bridge processors in LGA1155
package which has memory and PCI Express controller integrated to support
2-channel DDR3 memory and PCI Express 2.0 lanes providing great graphics
performance. Intel®Sandy Bridge processor is one of the most powerful and
energy efficient CPU in the world.
Portwell have taken advantage of such technology to furnish a series of products
that can meet multiple industrial requirements such as cost-effective of CPU
performance or industrial systems.
The Intel® C206/Q67 Express Chipset continue to push innovation with an
architecture designed to deliver quality, performance, and industry-leading I/O
technologies on platforms powered by the Intel® Dual Core/Quad Core
processor.WADE-8011/WADE-8012 is based on the Intel Sandy Bridge processor
and Intel® C206/Q67 chipset. The Intel C/206/Q67 Express Chipset, when
combined with a processor from the Intel® Dual Core/Quad Core processor
family, delivers smart security, cost saving manageability, and intelligent
performance for business platforms. WADE-8011/WADE-8012 is the first
Portwell off-the-shelf product for by Intel® C206/Q67 Express Chipset, it can be
an embedded solution and a good platform for customer to integrate it to the
embedded system.
WADE-8011/WADE-8012 showcased one of Portwell upcoming motherboard for
the Intel’s Sandy Bridge processors . The WADE-8011/WADE-8012 is based on
the forthcoming Intel C206/Q67 chipset and supports the new LGA 1155
socket(socket that will be used by Sandy Bridge processors). This board has lots of
features, including supports next-generation SATA hard drives based on the new
SATA 6Gb/s storage specification. configurations for six SATA (two SATA
6.0Gbps and four 3.0 Gbps ports) connectors, allows RAID 0/1/5 and 10,
supports the latest PCIe 2.0 (one PCI-Express x16 slot) devices for double speed
and bandwidth which enhances system performance, two long-DIMM memory

System Overview
WADE-8011/WADE-8012 User’s Manual 1-2
slot for DDR3 SDRAM up to 16GB, support total 8 USB2.0 ports (4x rear IO/4x on
board), VGA / HDMI / DVI-D ,and two Gigabit Ethernet.
1.2 Check List
The WADE-8011/WADE-8012 package should cover the following basic items
9One WADE-8011/WADE-8012 Mini-ITX Main Board
9One SATA Cable
9One I/O Shield bracket
9One Installation Resources CD-Title
If any of these items is damaged or missing, please contact your vendor and keep
all packing materials for future replacement and maintenance.
1.3 Product Specification
zMain Processor
-Intel®Dual Core/Quad Core LGA1155 processor
-CPU clock bus: 1333/1066/800 MHz
zChipset
-Intel® C206 Express chipset (WADE-8011)
-Intel® Q67 Express chipset (WADE-8012)
zSystem BIOS
AMI BIOS
zMain Memory
-Four 240-pin DDR3 DIMM socket support up to 16GB dual channel
1066/1033MHz memory
- WADE-8011 supports ECC and Non-ECC memory
- WADE-8012 supports Non-ECC memory
zExpansion Interface
-One PCIex16
-One PEHI slot(SDVO connector)
zSATA Interface
Six SATA ports(2x SATA 6Gb/4x SATA 3Gb)
zSerial Port
Support one RS232 and one RS232/422/485
zUSB Interface
Support Eight USB (Universal Serial Bus) ports, four on rear I/O and four on
board header for internal devices

System Overview
WADE-8011/WADE-8012 User’s Manual 1-3
zAudio Interface
Connector for Mic-In, Line-In and Line-Out
zReal Time Clock/Calendar (RTC)
Support Y2K Real Time Clock/Calendar
zWatch Dog Timer
-Support WDT function through software programming for enable/disable
and interval setting
-General system reset
zOn-board Ethernet LAN
Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports using Intel
82579LM & 82574L GbE Ethernet Controller
zHigh Drive GPIO
One pin-header for 16 bit GPIO(8bit in & 8bit out)
zSystem Monitoring Feature
Monitor system temperature and major power sources.
zOutline Dimension (L x W)
170mm(6.69’’) x 170mm(6.69’’)
zPower Requirements
Configuration
CPU Type Intel® Core™ i5-2400 CPU 3.10GHz(ES) L3:6M
SBC BIOS Portwell, Inc. WADE-8011/WADE-8012 BIOS Rev.: R1.00.E1
Memory Apacer PC3-8500 2GB*1 (ELPIDA J1108BFBG-DJ-E)
VGA Card Onboard Intel® HD Graphics Family (Sandy Bridge)
VGA Driver Onboard Intel® HD Graphics Family Version 6.14.10.5328
LAN Card Onboard Intel®
82574L/82579LM Gi
g
abit Network Connection
LAN Driver Intel® 82574L/82579LM Gi
g
abit Network Connection Version
Audio Card Onboard Realtek ALC662 High Definition Audio Controller
Audio Driver Realtek ALC662 High Definition Audio Version 5.10.0.6257
Chip Driver Intel® Chipset Device Software Version 9.2.0.1019
USB 2.0 Driver Intel® 6 Series/C200 Series Chipset Famil
y
USB Enhanced Host
Controller Version 9.2.0.1013
SATA HDD WD WD1002FEX 1TB
CDROM LITE-ON LH-20A1S
Power Supply FSP400-60PFN

System Overview
WADE-8011/WADE-8012 User’s Manual 1-4
Item Power ON Full Loading Full Loading
CPU +12V 2.51A 3.75A 3.81A
System +12V 1.79A 2.38A 2.21A
System +3.3V 0.95A 1.10A 1.15A
System +5V 1.73A 2.26A 2.30A
System+ Device +12V 4.75A 6.25A 6.31A
System+ Device +5V 2.69A 3.00A 2.95A
USB Loading Test 4.77 V/ 500 mA
zOperating Temperature
0 °C ~ 60 °C
zStorage temperature
-20 ~ 80 °C
zRelative Humidity
0% ~ 90%, non-condensing

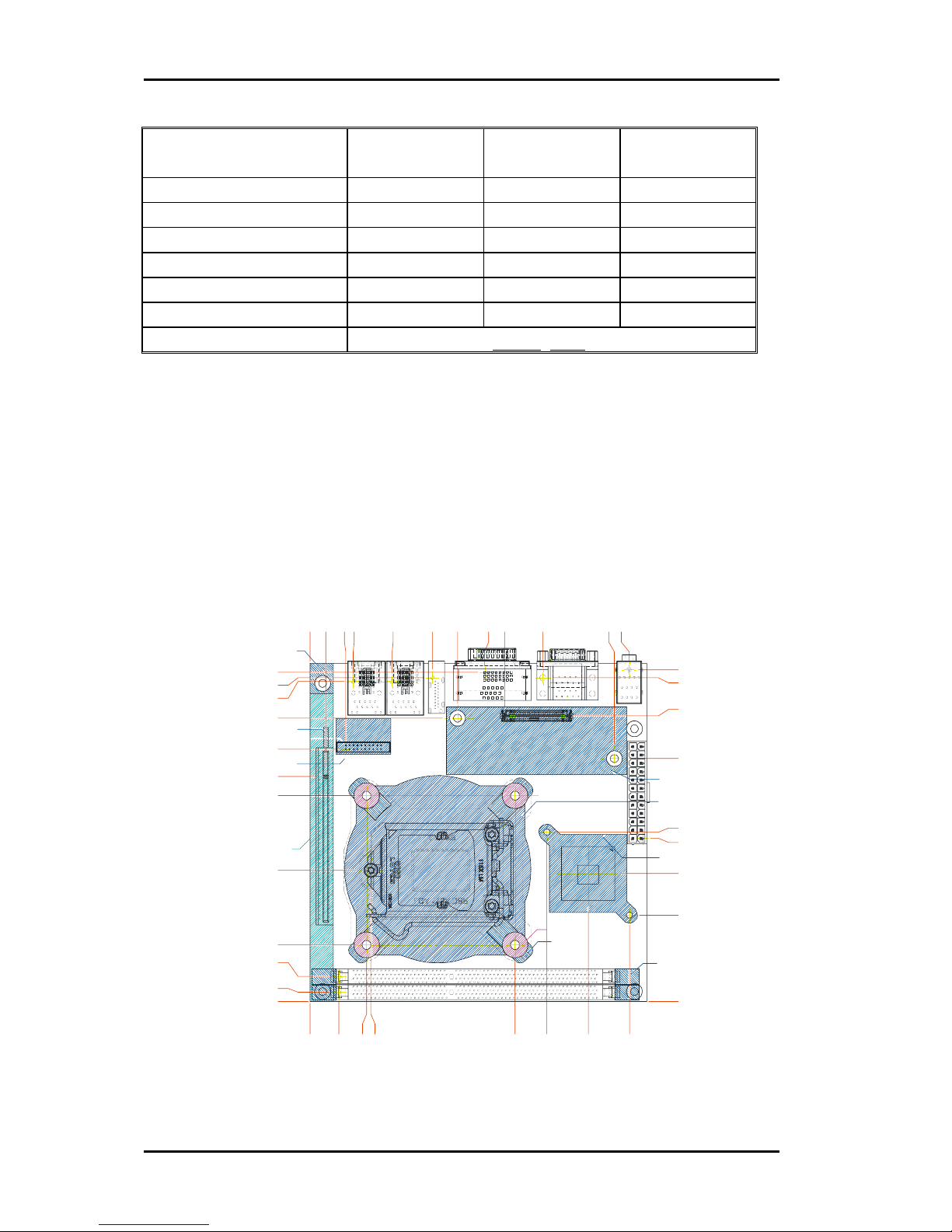

1.3.1 Mechanical Drawing
0
4.53
12.50
112.90
160.76
0
14.42 28.50
0
98.32 21.85 41.35 61.87 88.19 117.51 161.16
166.64
162.73
162.64
165.44
74.45 153.77
122.02
143.55
126.73
17.94 7.92 0
142.34
85.07
43.35
81.90
119.58 161.30
28.35
103.35
103.50 140.44
64.21
65.85
30.79
Restricted
Restricted
Restricted
Restricted
Restricted
Restricted
Restricted
Restricted
component
component
component
component
component
component
component
component
height
height
height
height
height
height
height
height
:
:
:
:
:
:
:
:
5.08
10.5
8
1.5
4
6.35
15.24
4
mm
mm
mm
mm
mm
mm
mm
mm
Keep-out zone
Restricted component height : 2 mm

System Overview
WADE-8011/WADE-8012 User’s Manual 1-5
0
170
00
170
6.35
163.83
4.90
159.84
136.98
Keep-out zone
6- 4 Hole/ 8 Pad_Each side

System Overview
WADE-8011/WADE-8012 User’s Manual 1-6
1.4 System Architecture
All of details operating relations are shown in WADE-8011/WADE-8012 System
Block Diagram.

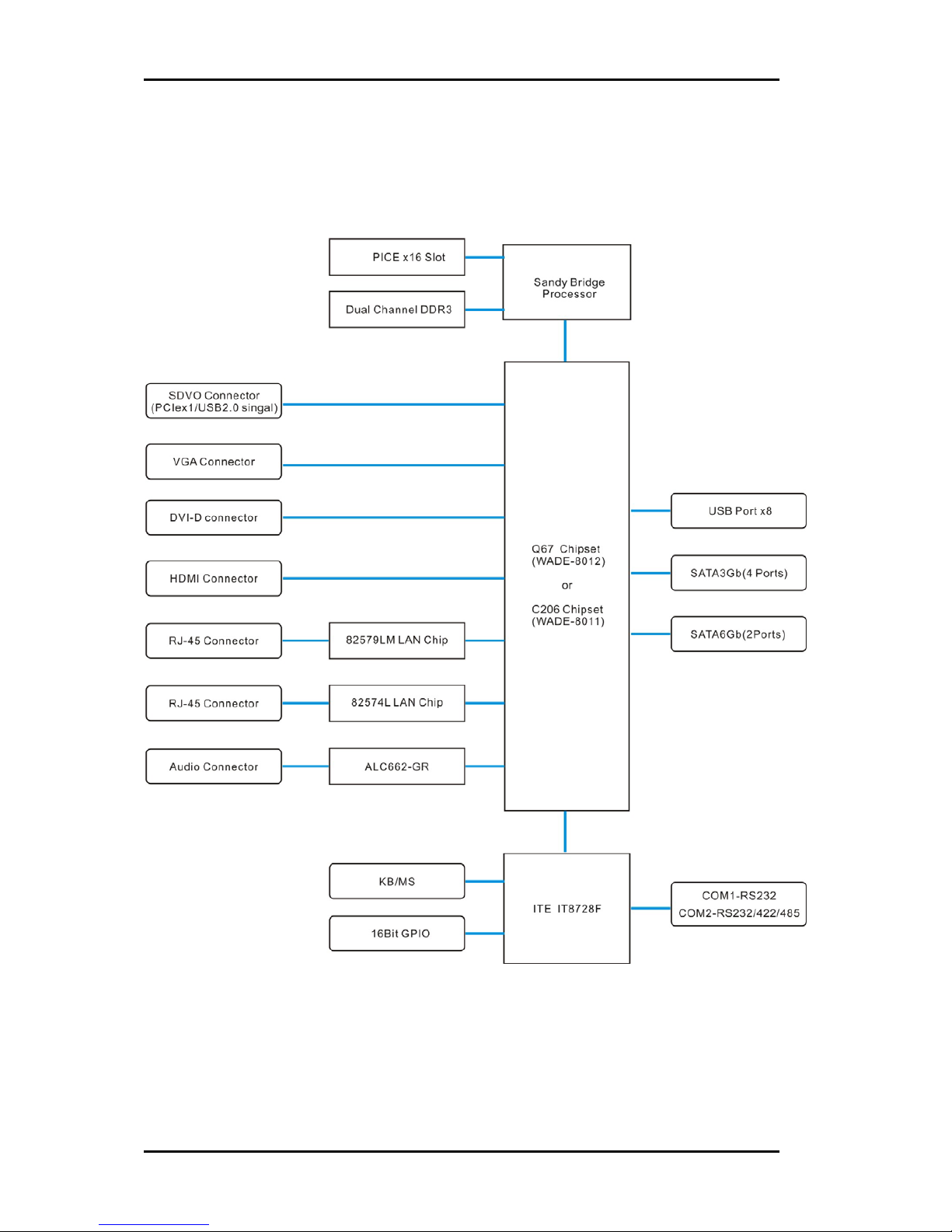

WADE-8011/WADE-8012 System Block Diagram

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-1
Chapter 2
Hardware Configuration
This chapter gives the definitions and shows the positions of jumpers, headers and
connectors. All of the configuration jumpers on WADE-8011/WADE-8012 are in the
proper position. The default settings shipped from factory are marked with an
asterisk (♣).
2.1 Jumper Setting
In general, jumpers on the single board computer are used to select options for certain
features. Some of the jumpers are designed to be user-configurable, allowing for
system enhancement. The others are for testing purpose only and should not be
altered. To select any option, cover the jumper cap over (SHORT) or remove (NC) it
from the jumper pins according to the following instructions. Here NC stands for
“Not Connect”.

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-2

Figure 2-1 WADE-8011 / WAD-8012 Jumper and Connector Locations

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-3
The jumper settings are schematically depicted in this manual as follows:
JP1: CMOS Clear
JP1 Function
1-2 Short Normal Operation
2-3 Short Clear CMOS Contents
JP5: WDT Selection
JP5 Function
Short Enable
Open DisableÌ
JP6: ATX Emulation AT Mode Selection
JP6 Function
Short ATX Emulation AT Mode
Open ATX ModeÌ

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-4
JP7: PCI Express Bifurcation
JP7 Function
(1-2)Short ,(3-4)short 1x8 , 2x4 PCI Express
(1-2)Short,(3-4)Open 2x8 PCI Express
(1-2)Open ,(3-4)Short Reserved
(1-2)Open ,(3-4)Open 1x16 PCI Express
PCIe bifurcation support varies with the Processor and PCH SKUs used
JP8: COM2 (J2B) Interface Selection
JP8 Function
5-6, 9-11, 10-12, 15-17, 16-18 Short RS-232 Ì
3-4, 7-9, 8-10, 13-15, 14-16, 21-22 Short RS-422
1-2, 7-9, 8-10, 19-20 Short RS-485
JP10: VCC_SA Voltage Selection
JP10 Function
Short 0.85V
Open 0.925V Ì

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-5
JP11: ME Function Selection
JP11 Function
Short Disable
Open Enable Ì
2.2 Connector Allocation
I/O peripheral devices and Flash disk will be connected to these interface connectors
Connector Function List
Connector Function Remark
J1 VGA + DVI Connector
J2 COM1 & 2 Connector
J3 SMBUS Connector 5x1 pin header
J4 Audio Jack ( Mic + Line_in + Line_out )
J5 RJ45 + USB Connector
J6 RJ45 + USB Connector
J7 PCIe x 1 + USB Connector
J9 TPM Connector Reserved
J10 +12V Power Connector Connect to CPU
J11 WDT LED Connector
J12/J15 External USB Connector
J13 ATX Power Connector
J14 General Purpose I/O Connector
J16 Front Panel Pin HDR
J17 CASEOPEN# Reserved
J18/J19/J20/J21 SATA GEN2 Connector
J22/J23 SATA GEN3 Connector
J24 PCIe x 16 SLOT
J25/J28 DDR3 Socket
J26 FAN (SYSTEN FAN) Power Connector
J27 FAN (CPU FAN) Power Connector
U1 HDMI Connector
JP3 VRM I2C Debug Connector 3x1 pin header
JP4 VRM Debug/Program Connector 3x1 pin header

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-6

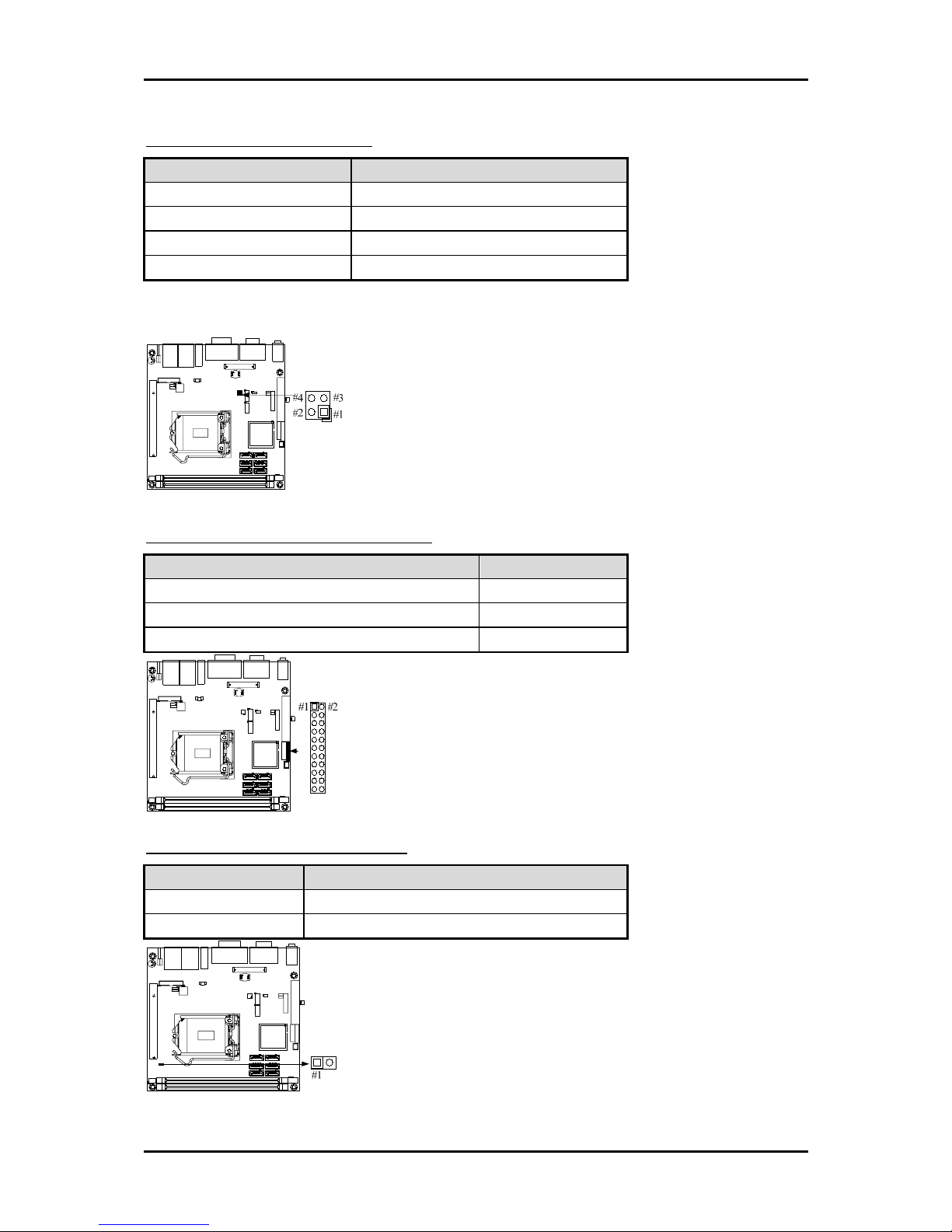

Pin Assignments of Connectors
SMBUS Connector (J3)
Pin No. Function
1 SMB_CLK
2 N/C
3 Ground
4 SMB_DAT
5 +5V
PCIe x1 & USB Connector (J7)
Pin No. Signal Description Pin No.
Signal Description
1 +3V 2 +3VSBY
3 +3V 4 +3VSBY
5 +3V 6 +5V
7 +3V 8 +5V
9 +3V 10 +5V
11 +3V 12 +5V
13 +3V 14 +1.5V
15 Ground 16 +1.5V
17 n/c 18 +1.5V
19 n/c 20 Ground
21 Ground 22 n/c
23 n/c 24 n/c
25 Ground 26 Ground
27 n/c 28 Ground
29 n/c 30 n/c
31 Ground 32 n/c
33 Ground 34 Ground
35 n/c 36 Ground
37 n/c 38 n/c
39 Ground 40 n/c
41 Ground 42 Ground
43 n/c 44 SUSCLK
45 n/c 46 Ground
47 Ground 48 PCIE_CLK-

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-7
49 n/c 50 PCIE_CLK+
51 Ground 52 Ground
53 PCIE_WAKE# 54 Ground
55 n/c 56 Ground
57 Ground 58 Ground
59 PCIE_RX- 60 PLT_RST#
61 PCIE_RX+ 62 Ground
63 Ground 64 USB_Data+
65 PCIE_TX- 66 USB_Data-
67 PCIE_TX+ 68 SMB_DATA
69 PLT_RST# 70 SMB_CLK
J9: TPM Pin Header
Pin No. Signal Description Pin No.
Signal Description
1 PCKL_TPM 2 GND
3 LFRAME# 4 X
5 SIO2_PLTRST# 6 VCC
7 LAD3 8 LAD2
9 VCC3 10 LAD1
11 LAD0 12 GND
13 SMB_CLK_MAIN 14 SMB_DATA_MAIN
15 3VSB 16 SERIRQ
17 GND X
19 LPCPD# X
J10: +12V POWER Connector
PIN No. Signal Description
1 Ground
2 Ground
3 +12V
4 +12V

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-8
WDT LED Connector (J11)
Pin No. Signal Description
1 LED(-)
2 LED(+)
J12/J15: External USB Connector
Pin No. Signal Description Pin No.
Signal Description
1 5V Dual 2 5V Dual
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
9 Key( no pin ) 10 N/C
Note:
5V Dual is always available. It's supplied by either 5V VCC power source in normal
operation mode or 5V standby power source in standby mode.

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-9

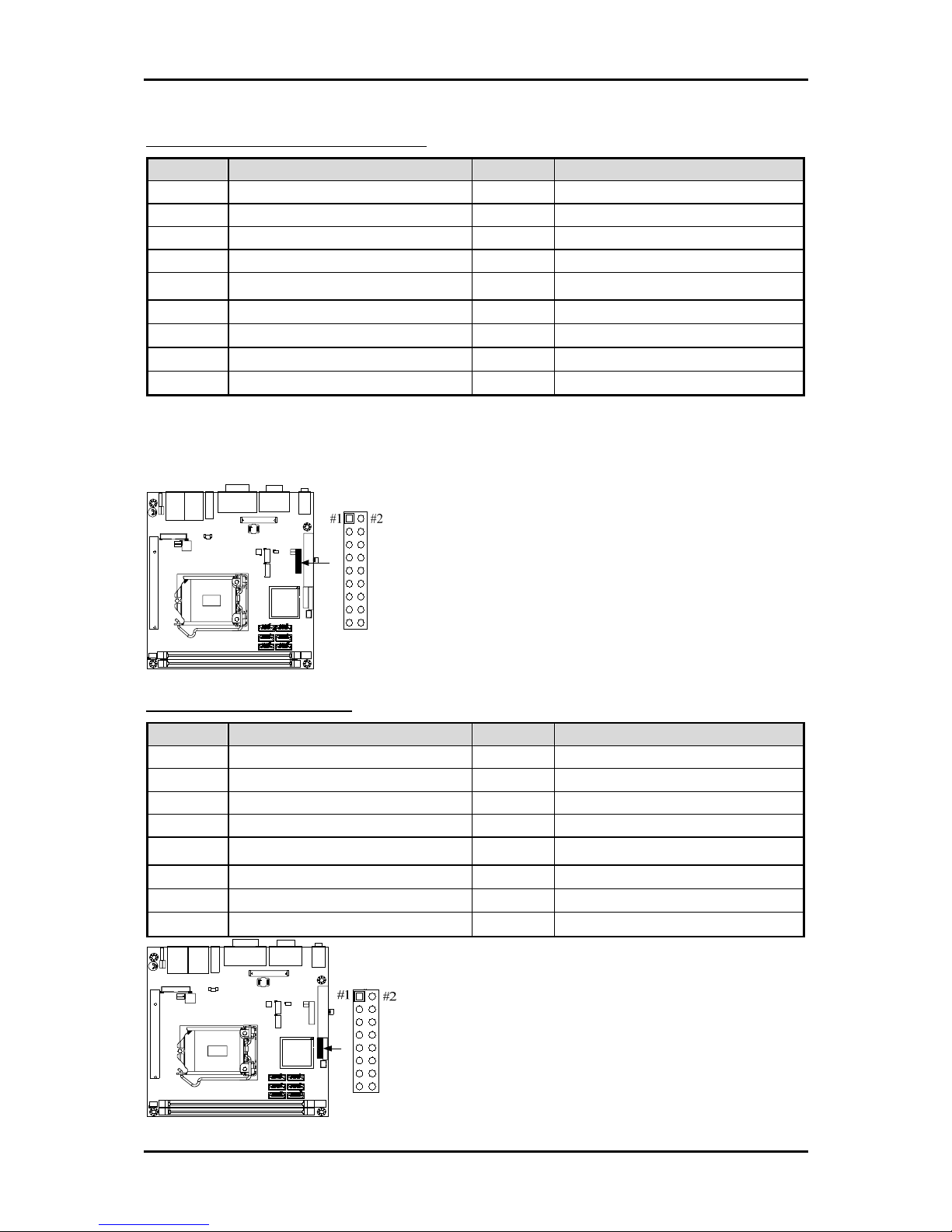

J14:General Purpose I/O Connector
Pin No. Signal Description Pin No.
Signal Description
1 GPIO0 2 GPIO8
3 GPIO1 4 GPIO9
5 GPIO2 6 GPIO10
7 GPIO3 8 GPIO11
9 GPIO4 10 GPIO12
11 GPIO5 12 GPIO13
13 GPIO6 14 GPIO14
15 GPIO7 16 GPIO15
17 Ground 18 +5V
Note:
All General Purpose I/O ports can only apply to standard TTL ± 5% signal level
(0V/5V), and each Fan.
Front Panel Pin HDR(J16)
Pin No. Signal Description Pin No.
Signal Description
1 PWR_LED(+) 2 Speaker(+)
3 PWR_LED(-) 4 N/C
5 LAN1_ACT 6 N/C
7 LAN1_LINK 8 Speaker(-)
9 LAN2_LINK 10 Power On(-)
11 LAN2_ACT 12 Power On(+)
13 HDD_LED(+) 14 Reset (+)
15 HDD_LED(-) 16 Reset (-)

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-10
J18/J19/J20/J21: SATA GEN2 Connector
Pin No. Signal Description
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
J22/J23: SATA GEN3 Connector
Pin No. Signal Description
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground

Hardware Configuration
WADE-8011/WADE-8012 User’s Manual 2-11
J26: System Fan Connector
Pin No. Signal Description
1 Ground
2 Fan speed control
3 Fan on/off output
J27: CPU Fan Connector
Pin No. Signal Description
1 Ground
2 +12V
3 Fan on/off output
4 Fan Speed control
