POSBank ANYSHOP PRIME User manual

Point-of-sale system
ANYSHOP PRIME
USER manual
ANYSHOP_PRIME-PBUM_E (Rev001;150421)

2
-Table of Contents-
POSBANKUSER’S MANUAL REVISION HISTORY....................................................................................................................................................... 4
SPECIFICATION ...................................................................................................................................................................................................... 5
(1) SPECIFICATION - OUTSIDE SIZE..................................................................................................................................................................... 6
(2) MODULE EXPLDE VIEW ................................................................................................................................................................................. 7
(3) BODY EXPLODE VIEW .................................................................................................................................................................................... 8
(4) MONITOR EXPLODE VIEW ............................................................................................................................................................................. 9
(5) HINGE EXPLODE VIEW................................................................................................................................................................................. 10
PREFACE ...............................................................................................................................................................................................................11
SYMBOL; MARK ................................................................................................................................................................................................... 12
COPYRIGHT ..........................................................................................................................................................................................................13
WARRANTY.......................................................................................................................................................................................................... 14
SAFETY INSTRUCTIONS........................................................................................................................................................................................15
NOTICE ................................................................................................................................................................................................................ 16
LIABILITY LIMITATION ..........................................................................................................................................................................................17
INSTALLATION RECOMMENDATIONS ................................................................................................................................................................. 18
1. PRODUCTOVERVIEW......................................................................................................................................................19
(1) INSIDEYOUR PACKAGE .............................................................................................................................................................................. 19
(2) PRE-INSTALLATION PREPARATION............................................................................................................................................................ 21
(3) PRODUCT OUTLINE .................................................................................................................................................................................... 21
(4) CONFIGURATION ....................................................................................................................................................................................... 22
(5) I/O PORT: DETAILS...................................................................................................................................................................................... 24
(6) SETTING UP: KEYBOARD & MOUSE CONNECTION .................................................................................................................................... 26
(7) SETTING UP: CONNECTION USB PORT ........................................................................................................................................................27
(8) SETTING UP: CONNECTION VIA ETHERNET PORT (LAN) ............................................................................................................................ 28
(9) SETTING UP: LINE-OUT, MIC-IN, LINE-IN CONNECTION............................................................................................................................. 29
(10) SETTING UP: PRINTER CONNECTION ....................................................................................................................................................... 30
(11) SETTING UP: POWER CABLE CONNECTION ...............................................................................................................................................31
(12) SWITCHING ON POS ................................................................................................................................................................................. 32
(13) SHUTTING DOWN POS ..............................................................................................................................................................................33
(14) SYSTEM DRIVERS ..................................................................................................................................................................................... 34
2. ANYSHOPPRIMEMODULEPOSSYSTEMREPLACEMENT .......................................................................................................... 35
(1) SEPARATING LCD MONITOR MODULE ........................................................................................................................................................35
(2) SEPARATING HINGE MODULE .................................................................................................................................................................... 38
(3) SEPARATING BACK COVER ......................................................................................................................................................................... 41
(4) SEPARATING MOTHERBOARD.................................................................................................................................................................... 43
(5) SEPARATING HDD........................................................................................................................................................................................47
3. INSTALLATIONOFOPTIONALDEVICES-OPTION...................................................................................................................... 50
(1) LCD MONITOR MODULE............................................................................................................................................................................. 50
(2) CDP MODULE - OPTION ..............................................................................................................................................................................53
(3) 2ND DISPLAY MODULE - OPTION................................................................................................................................................................. 59
(4) MSR MODULE - OPTION............................................................................................................................................................................. 68
(5) USB MODULE - OPTION...............................................................................................................................................................................73
(6) SPEAKER MODULE - OPTION ......................................................................................................................................................................77
(7) MEMORY - OPTION..................................................................................................................................................................................... 82
(8)CASH DRAWER - OPTION ............................................................................................................................................................................ 88
4. MOTHERBOARD ........................................................................................................................................................... 95
(1) MOTHERBOARD OVERVIEW ....................................................................................................................................................................... 95
(2) MOTHERBOARD LAYOUT........................................................................................................................................................................... 96
(3) JUMPERS ...................................................................................................................................................................................................100
5. BIOS SETUP UTILITY........................................................................................................................................................
(1) BIOS SETUP PROGRAM ..................................................................................................................................................................................
(2) BIOS SETUP ....................................................................................................................................................................................................
6. TROUBLESHOOTING.................................................................................................................................................... 101
(1) NETWORK ISSUES.....................................................................................................................................................................................104
(2) MSR ISSUES ..............................................................................................................................................................................................104
(3) USB ISSUES ...............................................................................................................................................................................................104
(4) LCD ISSUES ...............................................................................................................................................................................................104
(5) TOUCH-SCREEN ISSUES ............................................................................................................................................................................105
(6) POWER ISSUES .........................................................................................................................................................................................105
(7) PS/2 KEYBOARD ISSUES ............................................................................................................................................................................105
(8) BOOTING ISSUES ......................................................................................................................................................................................105
7. MAINTENANCE........................................................................................................................................................... 106

3

4
POSBANK USER manual Revision History
Changes to the ANYSHOP PRIME USER manual are listed below.
Rev No.
Revision History
Date /author
ANYSHOP_PRIME-PBUM_E
J1900
2015.04.21

5
Specification
ANYSHOP PRIME J1900
CPU
Intel® Celeron™ J1900 (2.0 GHz) quad-core processor
Chipset
Intel® Atom™ processor Bay Trail
Storage
SATA 2 (3Gb/s) 2.5 inch SSD 64GB
Support AHCI
Memory
2G , DDR3L with 1066 or 1333 MT/s
Graphic
Integrated Intel GMA HD
Display
Resolution
15" LED Backlight TFT-LCD 250 cd/㎡(1024 x 768 resolution)
Touch screen
Project capacitive touch
Internal I/O
USB
7 Ports (reserved for touch controller, miniPCIe)
Serial port
COM 5 (reserved for cash drawer port) & COM 6 (reserved for MSR)
Display port
VGA & COM 4 (reserved for CDP)
Extension slot
Mini PCIe
Primary display
24bit LVDS
Speaker
2 x 0.8W (Stereo)
External I/O
USB
Rear 6 (USB 3.0 x 1 ports, USB 2.0 x 5 ports), Side 2(USB 2.0 x2 ports)
PS/2
1 Port (reserved for Keyboard & Mouse)
Serial port
COM 1 ~ 3 with 5V/12V power output on 9pin
LAN
Dual LAN (Realtek RTL 8111G Ethernet Controller)
Audio
Realtek ALC 892 / Line-out, Mic-in
Display port
VGA x 1 port
Options
MSR
Comply with ISO 7811, Support 1 & 2 & 3 track
Printer
Support Interface ( Serial, USB )
SCR
EMV level 1
Dallas
Dallas I-button reader
Customer display
VFD type (20 x 2)
2nd LCD
9.7" LCD or 12.1" LCD (1024 x 768 resolution)
2nd storage
2nd 2.5 inch HDD / SSD storage
Cash drawer port
1 Port
Parallel
D-SUB 25Pin 1Port
WiFi
Mini PCIe for wireless LAN
Serial
RJ45 8pin 1Port
Battery
-
Operating Temperature
0 ℃~ 40 ℃at 10% ~ 80% humidity
Storage Temperature
-20 ℃~ 60 ℃at 10% ~ 80% humidity
Qualification
CE, FCC, KC
Power
Adaptor 12V, 5A
OS Support
Windows 7, Windows 8, POS Ready 7
Dimension (W x H x D)
342 x 372 x 306(mm), 13.5 x 14.6 x 12(inch)
*Specification ports may differ according to product model or options..

6
(1) Specification –Outside size

7
(2) Specification –Module Explode view

8
(3) Specification –Body Explode View

9
(4) Specification –Monitor ExplodeView

10

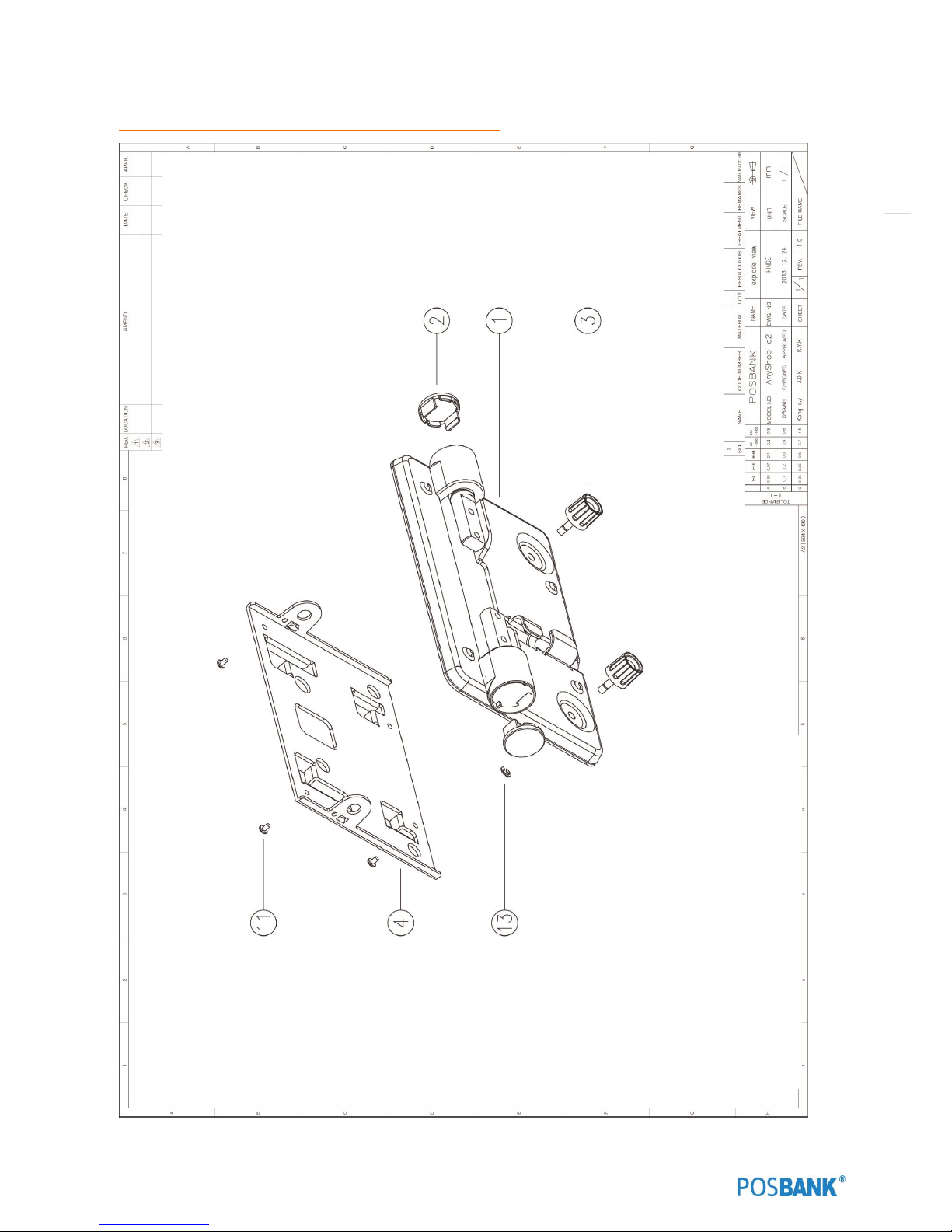

(5) Specification –Hinge Explode view
