Posch M7200 User manual

Operating Instructions
Bundling device
D1010349 - V001
*D1010349-V001*
English
Copyright by Posch Gesellschaft m.b.H., Made in Austria

Manufacturer
POSCH Gesellschaft m.b.H.
Paul-Anton-Keller-Strasse 40
A-8430 Leibnitz
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.posch.com
© Copyright by POSCH Gesellschaft m.b.H., Made in Austria
Please be sure to fill this in before starting. Then you can be sure that this document relates
to your machine, so if you have any queries you will be given the correct information.
Machine number:..............................................................................
Serial number:.....................................................................................
POSCH Austria:
8430 Leibnitz, Paul-Anton-Keller-Strasse 40, telephone: [phone], fax: [phone], e-mail: [email protected]
POSCH Germany:
84149 Velden/Vils, Preysingallee 19, telephone: [phone], fax: [phone], e-mail: [email protected]
Manufacturer
2

Contents
1Foreword 5
1.1 Copyright notice 5
1.2 Liability for defects 5
1.3 Reservations 5
1.4 Definitions 5
1.5 Operating instructions 6
2Safety information 7
2.1 Explanation of symbols 7
2.2 General safety information 7
2.3 Safety instructions for bundling device 8
2.4 Remaining risks 8
2.5 Proper use 8
2.6 Incorrect use 8
3General 9
3.1 Scope 9
3.2 Description 9
3.3 The most important components of the machine 10
3.4 Stickers and their meaning 11
4Operation 12
4.1 Work operation 12
5Transport 16
5.1 Transporting by three-point linkage on the tractor 16

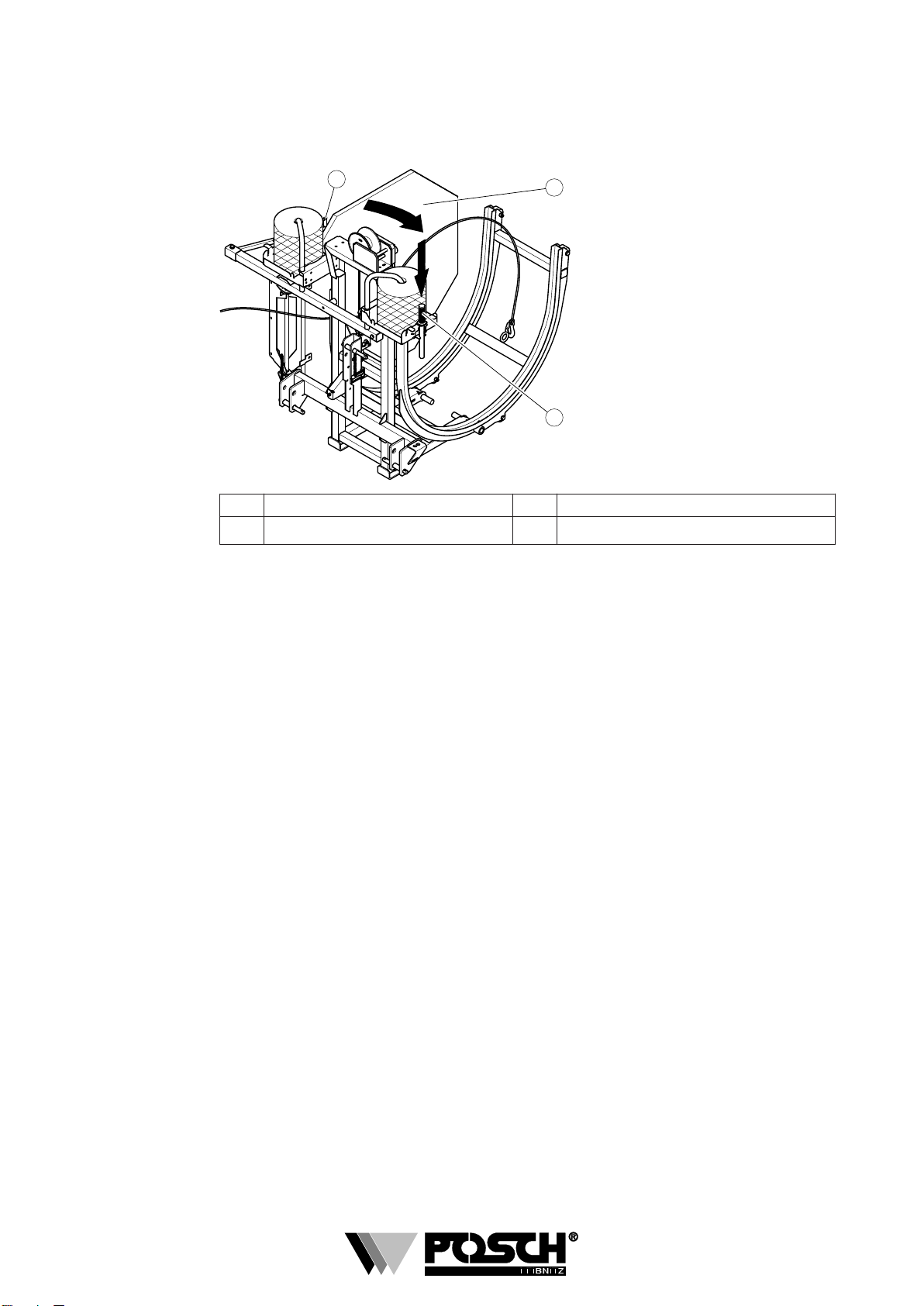

5.2 Comfort bundling device 17
6Checks 18
6.1 Screw fittings 18
6.2 Rope winch 18
7Maintenance 19
7.1 Lubrication 19
7.2 Cutter 19
7.3 Rope winch 19
7.4 Cleaning 19
8Troubleshooting 20
9Technical data 21
Contents
3

10 Service 22
EC Declaration of Conformity 23
Contents
4

Foreword
Thank you for buying our product.
This machine has been built in conformity with applicable European standards and
regulations.
These operating instructions explain how to operate the machine safely and efficiently and
how to maintain it.
Any person entrusted with the transport, installation, commissioning, operation or
maintenance of the machine must have read and understood:
▪ the operating instructions
▪ the safety instructions
▪ the safety information given in the individual chapters.
To avoid operator error and ensure problem-free operation, the operating instructions must
be available to the operating personnel at all times.
Copyright notice
All documents are protected by the law of copyright.
Documents including excerpts thereof may not be distributed or reproduced nor may their
content be communicated without express permission.
Liability for defects
Read these operating instructions through carefully before putting the machine into
operation.
We accept no liability for damage or disruptions caused by failure to observe the operating
instructions.
Claims for liability must be reported as soon as the defect is identified.
Claims are null and void for example in the following cases:
▪ improper use
▪ faulty attachments and drives not supplied with the machine
▪ failure to use original spare parts and accessories
▪ conversions or modifications, where not agreed with us in writing
We are not liable for defects of wearing parts.
Reservations
Technical data, dimensions, illustrations of the machine and safety standards are subject
to continual change and are therefore not in any circumstances binding in relation to the
supplied machine.
We accept no liability for printing and typesetting errors.
Definitions
Operator
The operator is the party which operates the machine and uses it for its intended purpose
or causes it to be operated by suitable, trained personnel.
Operating personnel
1
1.1
1.2
1.3
1.4
Foreword
5

The operating personnel (operators) are those entrusted by the operator to operate the
machine.
Technical personnel
Technical personnel are persons entrusted by the operator of the machine with special tasks
such as installation, set-up, maintenance and troubleshooting.
Electrician
An electrician is a person who, by virtue of his specialist training, has knowledge of electrical
systems, standards and regulations and is able to identify and prevent possible hazards.
Machine
The term machine replaces the commercial designation of the object to which these
operating instructions relate (see cover sheet).
Operating instructions
This manual is a "translation of the original operating manual"
1.5
Foreword
6

Safety information
Explanation of symbols
The following symbols and instructions in this manual provide warnings about possible
personal injury or property damage or give useful information about working with the
machine.
DANGER
Warning about danger zones
Instruction regarding safe working, where non-compliance entails the risk of serious or
fatal injury.
Always observe these instructions and ensure that you work with particular caution and
care.
DANGER
Crushing hazard
Risk of injury through upper limbs getting trapped.
DANGER
Crushing hazard
Risk of injury through lower limbs getting trapped.
NOTICE
Instruction
Symbol for proper use of the machine.
Non-observance can result in malfunctions by or damage to the machine.
Further information
Symbol for further information relating to a bought-in part.
Information
Action-related information.
General safety information
The machine may only be operated by persons who are familiar with the machine’s
operation and hazards and with the user manual.
▪ It is the operator’s responsibility to provide appropriate staff training.
2
2.1
2.2
Safety information
7

Persons under the influence of alcohol, drugs or pharmaceutical products that impair
responsiveness must not operate or maintain the machine.
The machine may only be operated if it is in perfect working condition.
Only operate the machine if it is in a stable position.
Minimum age of operative: 18 years.
Only one person may operate the machine at a time.
Take regular breaks to ensure concentration.
Ensure that your workplace is adequately illuminated since poor lighting can significantly
increase the risk of injury.
Never work without the protective guards in place.
Only carry out repair, setup, maintenance and cleaning work when the drive is switched off
and the tool is stationary.
Only use original - POSCH - spare parts.
Do not modify or tamper with the machine.
Safety instructions for bundling device
Never stand in front of the filled cradle, always stand to the side.
Ensure that no people or animals are in the cradle's output zone.
Wear safety shoes and close-fitting clothes when working with this device.
Keep the area around the device clear of any wood remnants - risk of tripping!
Wear protective gloves.
Remaining risks
Even if all safety precautions are observed and the machine is used in accordance with the
instructions, some risks still remain:
▪ Touching of revolving parts or tools.
▪ Injury caused by flying logs or log pieces.
▪ Human error (e.g. due to excessive physical exertion, mental strain, etc.)
With every machine, some risks still remain. Therefore you should always be very careful
when working. It is up to the operating personnel to ensure that work is carried out safely.
Proper use
The machine Bundling device is designed exclusively for bundling and packing firewood
with a maximum length of 100 cm.
Incorrect use
Any incorrect use or use other than that specified under "Proper use" is expressly forbidden.
2.3
2.4
2.5
2.6
Safety information
8

General
Scope
This user manual applies to the following machines:
Machine type
Article no. * Designation - Type Drive
M7200 Bundling device - Standard -
M7205 Bundling device - Comfort -
*The article number is stamped on the machine's rating plate.
Models
Additional equipment
F0001829 Wood stop (noise-reducing)
Z9700010 Steel band binder
Z9900700 Cord reel
Description
The bundling device is fitted as standard with a wood stop to allow one-metre lengths of
wood to be inserted evenly.
The wood is inserted as far as the upper edge of the wood stop and bound together.
The tractor's hydraulic system then ensures that the bundling device is lowered correctly.
All you then have to do is open the locking lever and the bundled wood simply rolls out!
A bundle 1 m in length will contain approx. 1 cubic metre of wood.
3
3.1
3.2
General
9

The most important components of the machine
1
1
2
4
5
6
10
9
7
2
7
6
4
5
11
8
3
3
1End panel 7 Cradle
2 Locking lever 8 Rope winch
3 Lock-release cord 9 Cord reel
4 Three-point linkage 10 Tensioning cord
5 Identification plate 11 Winding tube
6 Frame
Diagram, top: Bundling device
Diagram, bottom: Comfort bundling device
3.3
General
10

Stickers and their meaning
Z204 0010
Always read the user manual before operating the machine
Stickers on controls
3.4
General
11

Operation
Work operation
Only one person may operate the machine at a time.
Ensure that no other people are in the vicinity of the machine.
Bundling device
Put the wood in
1. Attach the bundling device to the three-point linkage of the tractor.
2. Use the tractor's hydraulic system to raise the bundling device slightly and swivel the
cradle upwards until it latches in place.
3. Lower the device to the ground again.
4. Fill with wood up to the upper edge of the wood stop.
Wrap and tighten the wood
1
2
2
1
2
2
1
1
21
3
1
2
3
1
1
1Steel or plastic band 3 inner U-profile
2 outer U-profile
1. Slide the steel or plastic band through the outer U-profile on both sides.
2. Use the binder to tighten and bind it.
– For short wood: use the rear U-profile and the inner U-profile.
If you are using our steel binder:
You will find further information in the operating instructions supplied with the steel binder.
Take the bundle of wood out of the device
1. Release the locking lever with the lock-release cord and raise the bundling device using
the tractor's hydraulic system. The completed bundle of wood will roll out.
4
4.1
4.1.1
4.1.1.1
4.1.1.2
4.1.1.3
Operation
12

– The lock-release cord can also be operated from the tractor.
2. To prepare the bundling device so it can be filled again, lower the device using the
tractor's hydraulic system and drive the tractor forwards a short distance.
The cradle latches in place again automatically and can be refilled.
Comfort bundling device
Put the wood in
1. Attach the bundling device to the three-point linkage of the tractor.
2. Use the tractor's hydraulic system to raise the bundling device slightly and swivel the
cradle upwards until it latches in place.
3. Lower the device to the ground again.
4. Fill with wood up to the upper edge of the wood stop.
Wrap and tighten the wood
10
9
1
7
3
8
4
2
6
11
12
13
1Rope winch 7 Binding cord
2 Tab 8 Winding tube
3 Cord reel 9 Ring
4 Loop 10 Tensioning cord
5 Magnet 11 Detent lever
6 Cutter 12 Wood stop
4.1.2
4.1.2.1
4.1.2.2
Operation
13

1. Lay the tensioning cord from the rope winch over the top of the firewood and clip it into
the ring.
2. Use the rope winch to squeeze the firewood together tightly.
3. Pull the binding cord out of the cord reel from below and push it through the winding
tube from the side you are holding.
4. Make a loop in the binding cord.
5. Attach the loop to the tab.
6. With the help of the winding tube, now wind the binding cord round the firewood three
times, starting in a downward direction.
– In order to make it easier to pass the cord round the right-hand side, the wood
stop can be folded out of the way by pulling the detent lever.
– The winding tube can be stowed at an angle on the magnets.
7. Cut the cord off in the cutter.
8. Take the loop off the tab, thread the end of the cord through the tab, tighten it and tie it
off.
Take the bundle of wood out of the device
1. Slacken the tensioning cord on the rope winch, unhook it and lay it down to the rear.
2. Release the locking lever with the lock-release cord and raise the bundling device using
the tractor's hydraulic system. The completed bundle of wood will roll out.
– The lock-release cord can also be operated from the tractor.
3. To prepare the bundling device so it can be filled again, lower the device using the
tractor's hydraulic system and drive the tractor forwards a short distance.
The cradle latches in place again automatically and can be refilled.
Changing the cord reel
4
1
3
2
1Cord reel 3 Star-grip screw
2 Reel holder 4 Tubular bracket
1. Loosen the star-grip screw and pull the tubular bracket upwards.
2. Pull out the binding cord from the inside of the new cord reel and thread it through the
hole on the reel holder.
3. Position the cord reel centrally with respect to the hole on the reel holder.
4. Slide the tubular bracket down into the cord reel and clamp it in position with the star-
grip screw.
4.1.2.3
4.1.2.4
Operation
14

Switching the wood stop to the other side
The wood stop can also be mounted on the opposite side.
The device is already prepared for this; the parts of the wood stop simply need to be undone
and then mounted on the other side.
4.1.3
Operation
15

Transport
Transporting by three-point linkage on the tractor
▪ Attach the machine to the three-point linkage and use the tractor hydraulics to raise it.
If the tractor's rear lights are obscured, a light must be fitted to the rear of the machine (e.g.
magnetic holder, clip-on light, etc.)
Due to the weight of the machine, the tractor-machine combination can become unstable.
In order to test the overall stability, the following formula can be used to calculate the
minimum weight on the front side IF,min with a minimum front axle load of 20% of the empty
weight of the tractor:
IF
IR
TE
TF
TR
IF,min = IR
(x(c + d)) -( )
TF + b (0,2 x )
+TE x b
a + b
TE(kg) Empty weight of the tractor *
TF(kg) Front axle load of the empty tractor *
TR(kg) Rear axle load of the empty tractor *
IR(kg) Total weight of the machine **
IF(kg) Total weight of the front load
a (m) Distance between front load's centre of gravity and centre of the front
axle ***
b (m) Wheelbase of the tractor ***
c (m) Distance between centre of the rear axle and centre of the lower link
balls ***
d (m) Distance between centre of the lower link balls and the machine's centre
of gravity ***
*….. see tractor operating instructions
**….. see "Technical Data" (It is vital to ensure that the weight of any additional equipment on the machine is taken into account)
***….. take measurement
Observe the road traffic regulations when driving on public highways.
Maximum transport speed: 25 km/h
When the machine is uncoupled from the tractor, it must be placed on a firm, level
surface.
5
5.1
Transport
16

Comfort bundling device
3
2
1
1Detent lever 3 Wood stop
2 Winding tube
1. Fold the wood stop up completely and make sure that the detent lever is engaged.
2. Insert the two winding tubes into the holder.
5.2
Transport
17

Checks
Screw fittings
Tighten all screws and nuts after the first hour of operation.
Tighten the screws and nuts after every 100 hours of operation.
▪ Replace missing screws and nuts.
Rope winch

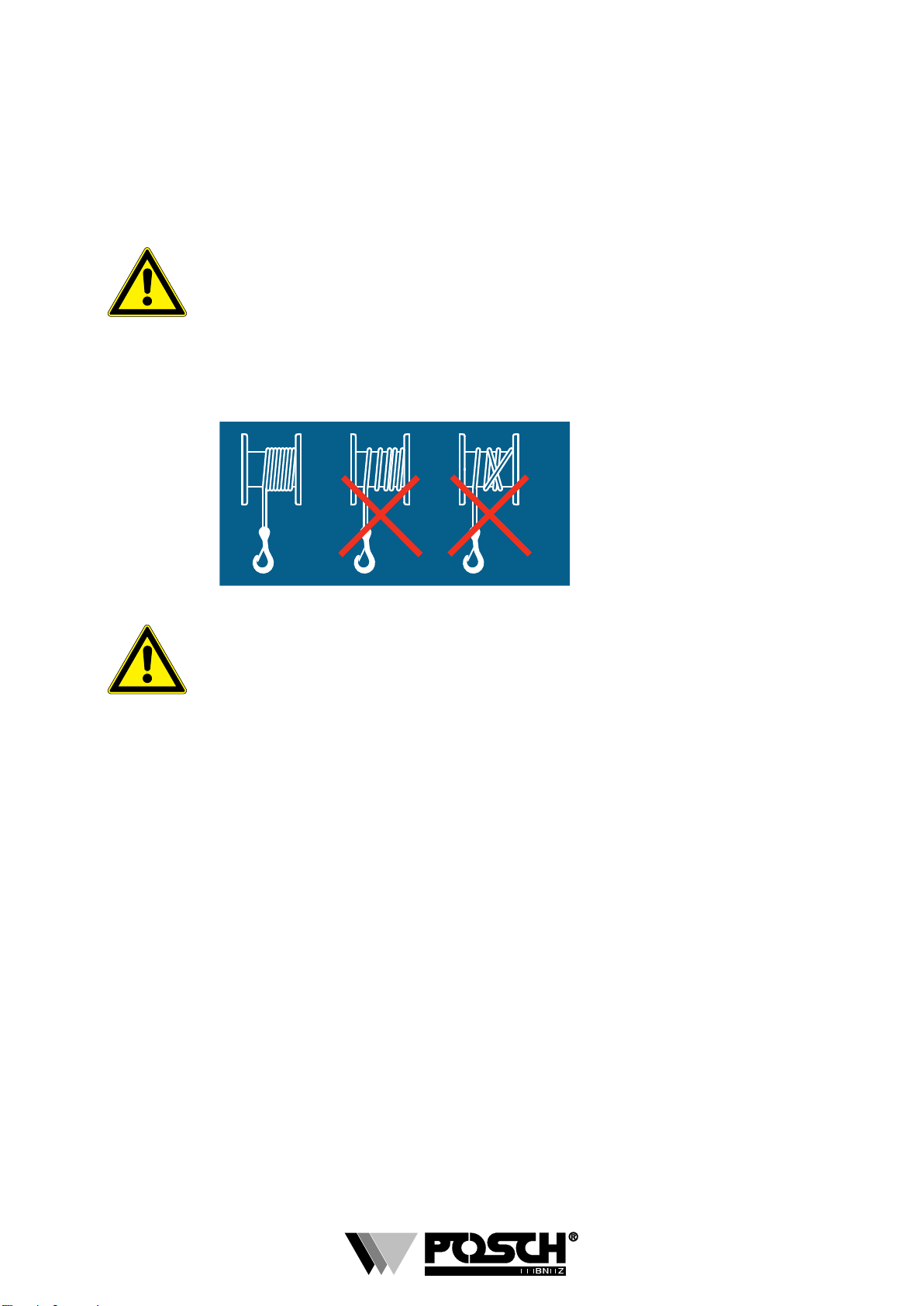

The rope must always be wound as shown on the left-hand side of the illustration.
Z200 1221
After the cord has been unwound from the drum, there must always be at least 3 revolutions
of cord remaining.
▪ Check the entire length of the rope regularly for any damage.
– If the rope is damaged (buckled or split), it must be replaced with an original rope.
The rope must be replaced by a specialised workshop.
▪ Check the screws fixings of the rope winch regularly.
▪ The rope winch must be inspected by a qualified person at least once a year.
6
6.1
6.2
Checks
18

Maintenance
Never work without the protective guards in place.
Only use original - POSCH - spare parts.
Lubrication
Dispose of oily and greasy parts and oil residues in accordance with legal regulations.
Lubricating diagram
A small amount of grease should be applied to the swivel point from time to time.
The latch must be greased regularly to ensure it functions properly.
Cutter
2
1
1Screw for blade 2 Blade
If the cutter blade stops cutting well, it can be adjusted:
1. Undo both screws and slide the blade along.
2. Tighten the screws again.
Rope winch
For maintenance operations, refer to the rope winch operating instructions.
Cleaning
Clean the machine regularly to ensure proper operation.
Only wash new machines (during the first 3 months) with a sponge.
▪ The paint is not yet completely set, so cleaning with a high pressure cleaner may
damage the finish.
7
7.1
7.1.1
7.2
7.3
7.4
Maintenance
19

Troubleshooting
Fault Possible cause Remedy See
Latch does not engage No grease on latch Grease latch around
area where it engages
8
Troubleshooting
20
