Introduction
Congratulations on choosing to buy a Power
Craft product.
By doing so you now have the assurance and peace of mind that comes with
purchasing a product made by one of Europe’s leading manufacturers.
All products brought to you by Power Craft are manufactured to the highest
standards of performances and safety, and, as part of our philosophy for
customer service and satisfaction, are backed by our comprehensive
3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
MULTIFUNCTION TOOL
The numbers in the text refer to the diagrams on pages 4.
Always read the instructions for electrical products carefully before
use. It will help you understand your product better and avoid
unnecessary risks. Keep this instructions manual in a safe place for
future use.
Intended use
This machine is intended for dry sanding of small areas, sawing and scraping
with various tool accessories, as well as for polishing, rasping, cutting and
separating various materials.
Contents
1. Machine data
2. Safety instructions
3. Assembly and operation
4. Maintenance
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
3
OTM6008 Ma-GB-IRE 1006-15.indd 3 6/15/10 4:04:38 PM

Machine information

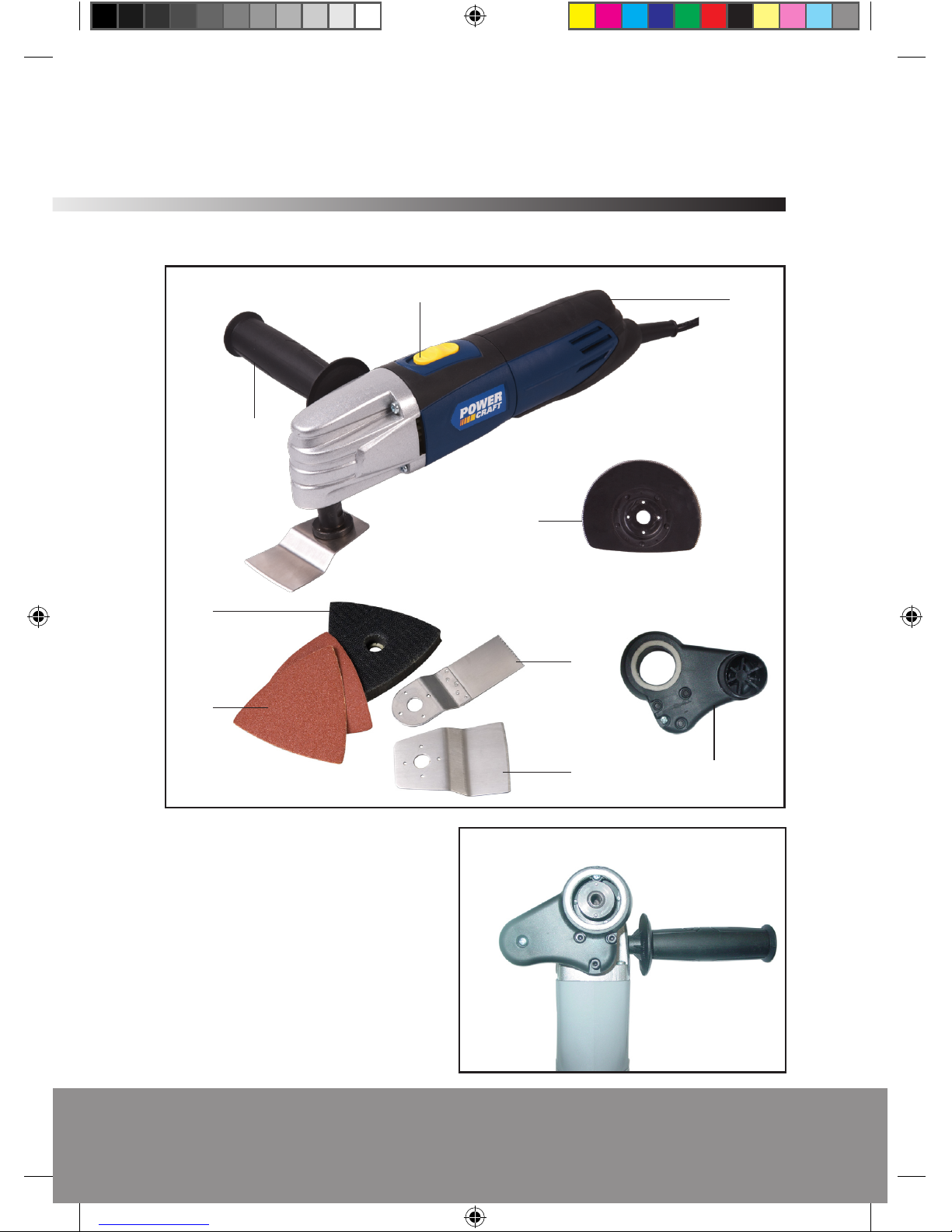

Fig. 1
Features
Fig. 1
1. On/Off switch
2. Speed control
3. Auxiliary handle
4. Sanding sole
5. Sandpaper
6. Scraper
7. E-cut saw blade
8. Segmented HSS saw blade
9. Dust adapter
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
4
1
5
6
7
4
2
3
9
8
Fig. 2
OTM6008 Ma-GB-IRE 1006-15.indd 4 6/15/10 4:04:41 PM

Machine information
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
5
Technical specifications
Mains voltage 230-240 V~
Frequency 50 Hz
Power input 250 W
No-load speed 15,000 - 22,000 /min
Weight 1.48 kg
LpA (sound pressure level) 85+3 dB(A)
LwA (sound power level) 96+3 dB(A)
Vibration 6.77 + 1.5 m/s2
Vibration level
The vibration emission level stated in this instruction manual has been
measured in accordance with a standardised test given in EN 60745; it may be
used to compare one tool with another and as a preliminary assessment of
exposure to vibration when using the tool for the applications mentioned
- using the tool for different applications, or with different or poorly
maintainted accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not
actually doing the job, may signifi cantly reduce the exposure level
Protect yourself against the effects of vibration by maintaining the tool and
its accessories, keeping your hands warm, and organizing your work
patterns.
Package contents
Check the machine, loose parts and accessories for transport damage.
1 Multifunction tool
1 Dust adapter
1 Scraper
1 Segmented HSS saw blade
1 E-shaped saw blade
1 Sanding sole
5 Pcs sanding paper G60
5 Pcs sanding paper G80
5 Pcs sanding paper G120
5 Pcs sanding paper G180
1 Auxiliary handle
2 Pcs allen key
1 Instruction manual
1 Quick start guide
1 After Sales card
OTM6008 Ma-GB-IRE 1006-15.indd 5 6/15/10 4:04:42 PM

Safety instructions
The following pictograms are used in these instructions for use:
Denotes risk of personal injury, loss of life or damage to the tool in
case of non-observance of the instructions in this manual.
Indicates electrical shock hazard.
Contact with or inhalation of dust coming free during use (e.g. lead-
painted surfaces, wood and metal) can endanger your health and the
health of bystanders.Always wear appropriate protective equipment,
such as a dust mask. Always use proper dust extraction during use.
Wear safety goggles. Wear hearing protection.
Warning!
Read all instructions. Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury. The term “power tool” in all of
the warnings listed below refers to your mains operated (corded) power tool
or battery operated (cordless) power tool. Save these instructions.
1) Work area
a. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
b. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gasses or dust. Power tools create sparks
which may ignite the dust of fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs which earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
6
OTM6008 Ma-GB-IRE 1006-15.indd 6 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
7
Machine information
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric
shock.
e. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock. Always use tool in conjunction with a residual circuit
breaker device.
3) Personal safety
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or
plugging in power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
OTM6008 Ma-GB-IRE 1006-15.indd 7 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
8
Safety instructions
h. Use clamps or a vice to hold work. It’s safer than using your hand and it
frees both hands to operate tool.
4) Power tool use and care
a. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained
users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation.
If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power
tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended
could result in hazardous situation.
h. Damaged switches must be replaced at a customer service repair centre.
Do not use power tools that cannot be switched on and off.
i. Do not leave power tools unattended while they are switched on. Always
switch off the tool and wait until it has come to a full standstill before
leaving.
j. If the mains cable has been damaged, it must be replaced with a special
mains cable. These can be obtained from the manufacturer or the
manufacturer’s customer service department. The mains cable may only be
replaced by the manufacturer, the manufacturer’s customer service
department or equally qualified persons.
OTM6008 Ma-GB-IRE 1006-15.indd 8 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
9
Safety instructions
5) Battery tool use and care
a. Ensure the switch is in the off position before inserting battery pack.
Inserting the battery pack into power tools that have the switch on invites
accidents.
b. Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
c. Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
d. When battery pack is not in use, keep it away from other metal objects
like paper clips, coins, keys, nails, screws, or other small metal objects that
can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns of a fire.
e. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritations or burns.
6) Service
a. Please use a qualified expert who uses original replacement parts to repair
your power tool. This will ensure proper functioning of the power tool.
b. Caution! The use of any accessories or additional tools other than those
recommended in this manual may lead to an increased risk of injury. Only
use original replacement parts.
Special safety instructions
• Comparethemaximumnumberofrevolutionsallowedoftheaccessories
with the number of revolutions of the machine.
• Whenyouputthemachineawaytheenginemustbeswitchedoffand
moving parts must have reached a standstill.
• Neverattachanassemblyspannertoyourmachinewithapieceofstring
or anything similar.
• Donotusesandpaperintendedforlargersandingpads.Largersandpaper
will extend beyond the sanding pad causing snagging, tearing of the
paper or kick-back. Extra paper extending beyond the sanding pad can
also cause serious lacerations.
• Useaclampingdeviceforsecuringtheworkpiece.
• Keepyourhandsawayfromtheworkpiece.
OTM6008 Ma-GB-IRE 1006-15.indd 9 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
10
Safety instructions
Electrical safety
When using electric machines always observe the safety regulations
applicable in your country to reduce the risk of fire, electric shock and
personal injury. Read the following safety instructions and also the enclosed
safety instructions. Keep these instructions in a safe place!
Always check that the power supply corresponds to the voltage on
the rating plate.
The machine is double insulated; therefore no earth wire is required.
Replacing cables or plugs
If the mains cable becomes damaged, it must be replaced with a special mains
cable available from the manufacturer or the manufacturer’s customer
service. Dispose of old cables or plugs immediately after replacing them with
new ones. It is dangerous to connect the plug of a loose cable to a socket.
OTM6008 Ma-GB-IRE 1006-15.indd 10 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
11
Assembly and operation
Mounting the side-handle
Fig. 1
The side handle can be used for both left-hand and right-hand control.
• Fastenthesidehandleforleft-handoperationontheright-handsideof
the machine.
• Fastenthesidehandleforright-handoperationontheleft-handsideof
the machine.
Make sure that the side handle is fastened properly and cannot
loosen unexpectedly.
Setting the speed
Fig.1
The speed can be set (from slow to fast) using the continuous speed
adjustment wheel (2).
Switching on:
• Pushtheswitch(1)forwardtoposition
Switching off:
• Pushtheswitch(1)backtoposition
Hints for optimum use
• Clamptheworkpiece.Useaclampingdeviceforsmallworkpieces.
• Drawalinetodefinethedirectioninwhichtoguidetheaccessory.
• Firmlyholdthemachinebythegrip.
• Switchonthemachine.
• Waituntilthemachinehasreachedfullspeed.
• Placetheaccessoryontheworkpiece.
• Slowlymovethemachinealongthepre-drawnline,firmlypressingthe
accessory against the workpiece.
• Donotapplytoomuchpressureonthemachine.Letthemachinedothe
work.
• Applylesspressurewhenthemachinestartstovibrateheavily.
• Switchoffthemachineandwaitforthemachinetocometoacomplete
standstill before putting the machine down.
OTM6008 Ma-GB-IRE 1006-15.indd 11 6/15/10 4:04:43 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
12
Assembly and operation
Accessories
Fig. 1
4 + 5. Sanding sole:
Sanding near edges, corners and hard to reach areas. (Depending on the
sanding paper for sanding of wood, paint, varnish and stone.)
6. Scraper:
Scraping on solid underground. For instance removal of glue, carpets and
tiles. (carpet, flooring)
7. E-cut sawblade:
Separating and deep plunge cuts, for sawing close to edges, in corners and
hard to reach areas. (wooden materials, soft materials)
8. Segmented HSS saw blade:
Separating and deep plunge cuts, for sawing close to edges, in corners and
hard to reach areas. (Hard and soft wood, plastic, non-ferrous metals.)
Mounting accessories
For saw blades, scrapers and disc cutters and cutting discs use the clamping
screw in combination with the retaining ring.
• RemovetheclampingscrewusinganAllenkey.
• Replacethetoolandtightenitusingtheclampingscrew.Checkthatthe
tool is secure in the chuck and that the machine is correctly secured and
supported.
Fitting/replacing sandpaper
Using hook and loop fastening system.
• Placethesandpaperinthemiddleofthesandingdiscandpressitfirmly
with your hand.
• Pressthesandpaperfirmlyontotheplatewithbrief,firmpressureand
then switch on the machine. This ensures that the disc is correctly secured
and prevents excessive wear.
• Ifthesandpaperisworninaparticularspot,youcanremoveit,turnit
120° and refit it or replace it.
Mounting the dust adapter.
Fig. 2
Mount the dustadapter using the 3 hexagonal screws as shown on figure 2.
Warning! Switch the machine off and unplug the machine before mounting
the accessories.
OTM6008 Ma-GB-IRE 1006-15.indd 12 6/15/10 4:04:44 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
13
Maintenance
The machines have been designed to operate over a long period of time with
a minimum of maintenance. Continuous satisfactory operation depends upon
proper machine care and regular cleaning.
Cleaning
Keep the ventilation slots of the machine clean to prevent overheating of the
engine.
Regularly clean the machine housing with a soft cloth, preferably after each
use. Keep the ventilation slots free from dust and dirt. If the dirt does not
come off use a soft cloth moistened with soapy water. Never use solvents
such as petrol, alcohol, ammonia water, etc. These solvents may damage the
plastic parts.
Lubrication
The machine requires no additional lubrication.
Faults
Should a fault occur, e.g. after wear of a part, please contact the service
address on the warranty card. In the back of this manual you find an
exploded view showing the parts that can be ordered.
Environment
To prevent damage during transport, the appliance is delivered in a solid
packaging which consists largely of reusable material. Therefore please make
use of options for recycling the packaging.
Please recycle this product at end of life. Contact your retailer or local
authority recycling centre for assistance.
Warranty
The warranty conditions can be found on the separately enclosed warranty
card.
OTM6008 Ma-GB-IRE 1006-15.indd 13 6/15/10 4:04:44 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
14
Exploded view
OTM6008 Ma-GB-IRE 1006-15.indd 14 6/15/10 4:04:44 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
15
Spare parts list
Positon Description No.
1 + 2 Ring + screw 702809
7 Bearing 806000
16 Bearing 800608
18 Rotor 702810
19 Bearing 800607
23 Stator 702811
24 + 25 Switch cover + switch bar 702812
28 Carbon brush holder 702814
29 Carbon brush set 702814
35 Switch 702815
OTM6008 Ma-GB-IRE 1006-15.indd 15 6/15/10 4:04:44 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
16
Warranty
WARRANTY CERTIFICATE
Year of manufacture: 06/2010 250W Oscilating tool POT-250
Congratulations! You have made an excellent choice with the purchase of this Quality
product. Our commitment to quality also includes our service. Should you, contrary to
expectations, experience defects due to material or manufacturing faults during private
use within 36 months of the date of purchase we shall be liable for warranty in
accordance with statutory warranty regulations, provided that: - The device was not put to any use other
than the intended.- Was not overloaded. - Was not used with the wrong accessories. - Repairs where not
carried out by any other than the authorised workshop. The warranty certificate is only valid in connection
with the receipt. Please keep both in a safe place. The warranty does not affect your statutory rights.
The product is guaranteed for a period of three years beginning on the day of purchase. Keep your purchase
receipt safe as proof of the date of purchase. The guarantee period can only be extended for the duration of
any repair required.
During the warranty period if the item becomes defective, in the first instance, please call the helpline. We
will, at our discretion either repair or exchange the device in accordance with warranty legislation.
Please include the following when sending in your product for repair:
1. The receipt (proof of purchase)
2. This warranty certificate with your name, address, contact details and a fault description
completed overleaf.
If the original receipt is not enclosed the repair will be charged for in all cases. After the warranty has
expired you can still send defective devices for repairs to the address at the end of this booklet. Quotes as
well as repairs after warranty period are to be paid for in all cases. Ensure the product is sent well packed as
no responsibility can be accepted for items lost or damaged in transit. This warranty does not affect your
statutory rights.
EC DECLARATION OF CONFORMITY
We Ferm B.V.
Lingenstraat 6, 8028 PM Zwolle, The Netherlands
declare that the design and construction of the following machine, in the form supplied by us, comply with
the requirements of the appropriate EC directives.
Product Description: Multifunction tool
Model: POT-250
Appropriate EC directives: 2006/42/EC, 2004/108/EC, 2002/95/EC, 2002/96/EC, 2006/95/EC
Applicable harmonised norms: EN 60745-1, EN 60745-2-4, EN 55014-1, EN 55014-2, EN 61000-3-2,
EN 61000-3-3
J.A. Bakker - van Ingen
CEO Ferm B.V. 06/2010
OTM6008 Ma-GB-IRE 1006-15.indd 16 6/15/10 4:04:45 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
17
OTM6008 Ma-GB-IRE 1006-15.indd 17 6/15/10 4:04:45 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
18
OTM6008 Ma-GB-IRE 1006-15.indd 18 6/15/10 4:04:45 PM

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: POT-250
19
OTM6008 Ma-GB-IRE 1006-15.indd 19 6/15/10 4:04:45 PM

In order to deal with your enquiry as quickly and efficiently as possible, we ask you to send your
enquiry by email ([email protected]). Do not forget to include your name, address and a
daytime telephone number.
Alternatively, you can contact our service hot-line on the number given below.
Office hours are as follows:
Mon - Fri: 8 am - 6 pm, Sat: 10 am - 2 pm, Sun: 10 am - 4 pm
UK Helpline
Circuit Tech Ltd.
Units 1/9 Stanley Mill • Kirkebrok Road • Deane, Bolton Lancs, England • BL3 4JE
Service Center
0905-1460005 - £ 0,06 /min.*
Ireland Helpline
Circuit Tech Ltd.
Units 1/9 Stanley Mill • Kirkebrok Road • Deane, Bolton Lancs, England • BL3 4JE
Service Center
1520-932626 - E 0,15 /min.*
WEB SUPPORT
www.servotool.eu
Replacements or repairs under guarantee regulations are free of charge.
* Applies to calls from BT/Eircom landlines. Charges by other network providers and calls from mobiles may vary.
Prices correct at time of print.
250W Multifunction tool
POT-250
Name:
Address:
Contact Telephone No.:
Fault Description:
Please complete this section before sending in your warranty certificate.
If you are requested by the manufacturer to return the item for
repair please complete the enclosed section and send it together
with your product and your receipt (proof of purchase) to the
service address shown below.
1006-15
OTM6008 Ma-GB-IRE 1006-15.indd 20 6/15/10 4:04:46 PM
