Power Fist 8668014 User manual

V4.0 8668014
Please read and understand all instructions before use. Retain this manual for
future reference.
User Manual
2 Ton Shop Crane

8668014 2 Ton Shop Crane V4.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Material Steel Construction
Max. Lift Capacity 2 Ton
Boom Length Range 36-3/4 to 57 in.
Lifting Range 0 to 78-3/4 in.
Dimensions 64-5/8 x 41-3/4 x 59-1/4 in.
INTRODUCTION

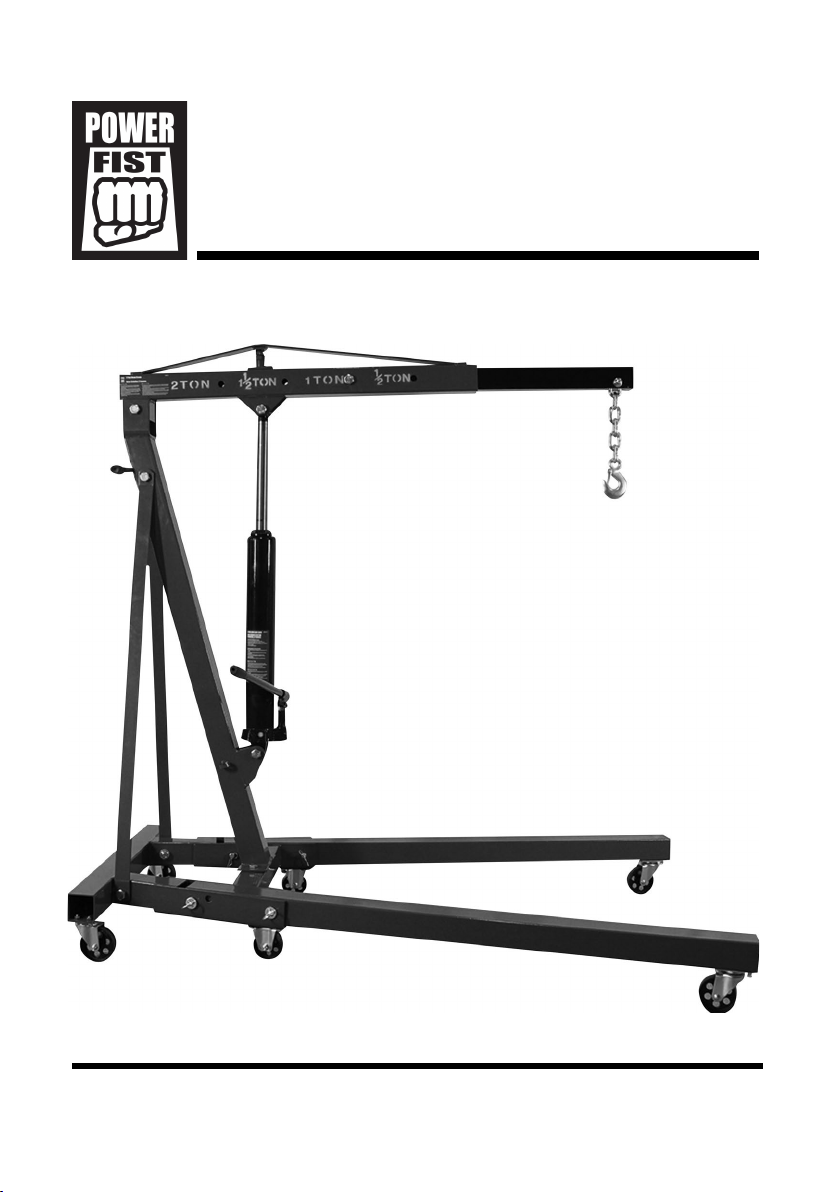

The 2 Ton Shop Crane holds and supports heavy loads with a clevis hook. The
crane is easily moved around the shop to move the load.
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A notice
is an alert that there is a possibility of property damage, injury or death if certain
instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that will
result in severe personal injury or death if the proper precautions
are not taken.
2 Ton Shop Crane

V4.0 2 Ton Shop Crane 8668014
Visit www.princessauto.com for more information 3
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result
in minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will
result in equipment or property damage, but not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-lit
and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
3. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection
for the eyes. Eye protection equipment should comply with CSA Z94.3-07
or ANSI Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to
reduce the effects of tool vibration.
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
5. Wear steel toe footwear or steel toe caps to prevent a foot injury from
falling objects.

8668014 2 Ton Shop Crane V4.0
4 For technical questions call 1-800-665-8685
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a specific
function. Do not modify or alter this tool or use it for an unintended purpose.
2. The maximum lifting capacity is 2 tons. Know the weight of the load being
lifted. DO NOT overload the crane beyond the rated capacity of each specified
boom position. Overloading can cause damage or failure of the crane.
3. Do not use this crane to support a load. It is only designed for lifting,
lowering and transporting a load within the shop.
4. Use only slings, levelers or chains with a rated capacity greater than the
weight of the load being lifted.
5. Do not stand under or work under a raised load, serious personal or
property damage could occur.
6. Stabilize the load. Ensure that the load remains stable at all times. Lift
deadweight only.
7. Do not move a load with the boom raised, serious personal or property
damage could occur. Lower the load and boom before moving the shop
crane. Move the load slowly and smoothly to avoid uncontrolled swinging
and possible loss of load.
8. Do not allow the load to swing or drop violently while lowering or moving
the shop crane, serious personal or property damage could occur.

V4.0 2 Ton Shop Crane 8668014
Visit www.princessauto.com for more information 5
9. Make sure there is enough clearance around the crane and the load
for movement.
10. Before lowering load, ensure that there are no obstructions underneath and
that all people are standing clear.
11. Inspect the shop crane before each use. DO NOT use if bent, broken,
cracked, leaking or otherwise damaged, any suspect parts are noticed or it
has been subjected to a shock load.
12. Check to ensure that all applicable bolts and nuts are firmly tightened.
13. Never stand directly in front of a loaded shop crane and never leave a
loaded shop crane unattended.
14. Do not use brake fluid or any other improper fluid and avoid mixing
different types of oil when adding hydraulic oil. Only good quality hydraulic
jack oil can be used.
15. Store the crane with the boom in the fully lowered position and hydraulic
ram valve closed when not in use.
HYDRAULIC PRECAUTIONS
DANGER! Seek immediate medical attention if hydraulic fluid under pressure
penetrates your skin. See Injection Injury precautions for instructions
before using a pressurized hydraulic system.
1. Do not touch or handle hydraulic hoses or components while under pressure.
Hydraulic fluid escaping under pressure has sufficient force to penetrate your
clothing and skin. A pinpoint hole may inject hydraulic fluid into your body.
Seek immediate medical attention if this occurs (see Injection Injury).
2. Never exceed the hydraulic system’s load capacity (see Specifications).
3. Do not adjust the hydraulic system’s relief setting. The settings are preset
by the factory.
4. Hydraulic oil under pressure is hot and can cause a burn injury if
touched, sprayed or spilled. Allow the hydraulic system to cool before
conducting maintenance.
5. Hydraulic components require regular inspection. Release all pressure
from the system before you inspect it. Replace damaged hydraulic parts
with identical manufacturer's components.
