Power Fist 8843799 User manual

V1.0 8843799
Please read and understand all instructions before use. Retain this manual for
future reference.

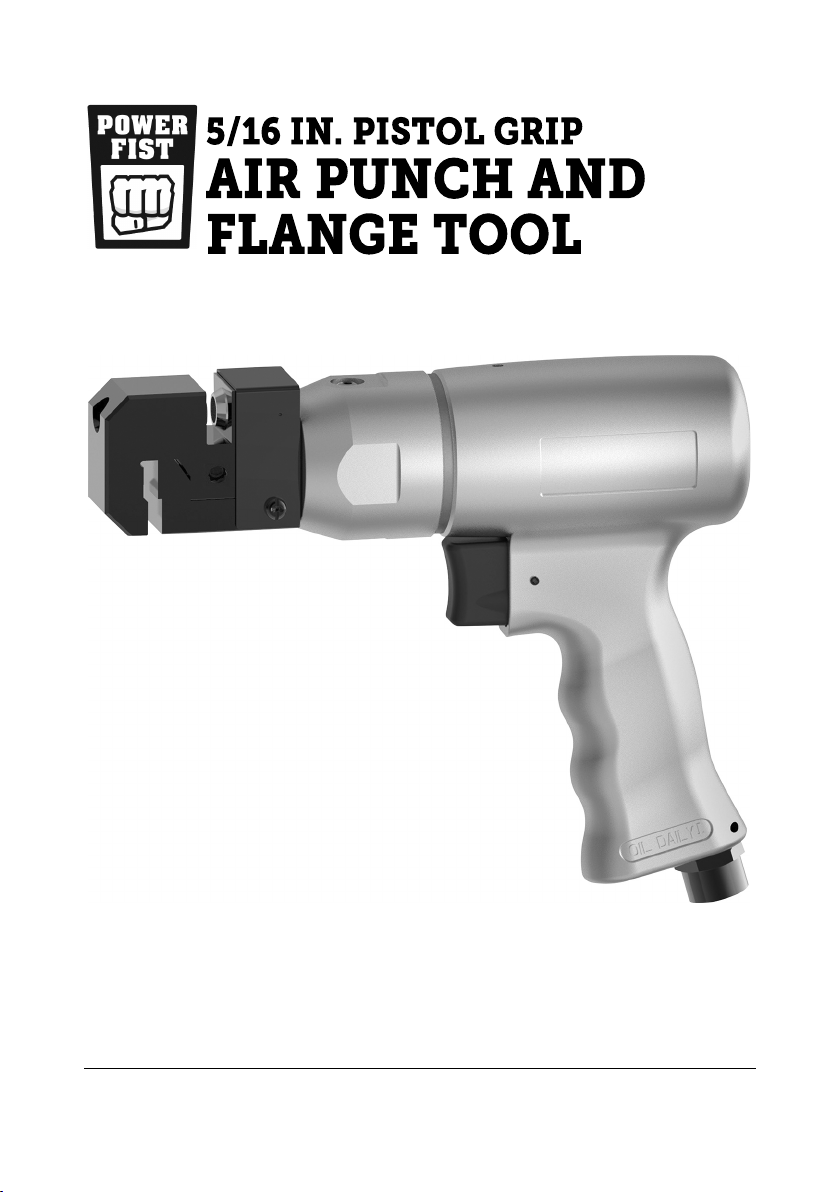

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
2 For technical questions call 1-800-665-8685
SPECIFICATIONS
Air Inlet 1/4 in.
Air Consumption @ 90 PSI 4 CFM
Pressure Rating 90 PSI
Crimping Capacity 14-gauge sheet metal
Punching Capacity 16-gauge sheet metal
Punch Diameter 5/16 in.
Min. Hose Size 3/8 in.
Material Aluminum and steel housing
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A
notice is an alert that there is a possibility of property damage, injury or
death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may
result in minor or moderate injury if proper practices are not
taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice
will result in equipment or property damage, but not personal
injury.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 3
INTRODUCTION
This Pistol Grip 5/16 in. Air Punch/Flange Tool is a versatile 2-in-1 air tool
designed to crimp and punch mild steel. Its 5/16 in. punch diameter makes
this an ideal tool for welding and riveting applications.
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection
and maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-
lit and free of distractions. Place lights so you are not working in a
shadow.
2. Keep anyone not wearing the appropriate safety equipment away from
the work area.
3. Store unused tools properly in a safe and dry location to prevent rust
or damage. Lock tools away and keep out of the reach of children.
4. Do not install or use in the presence of flammable gases, dust or
liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply with
CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work
performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate matter.
3. Wear gloves that provide protection based on the work materials or to
reduce the effects of tool vibration.
4. Wear protective clothing designed for the work environment and tool.

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
4 For technical questions call 1-800-665-8685
5. Non-skid footwear is recommended to maintain footing and balance in
the work environment.
6. This tool can cause hearing damage. Wear hearing protection gear with
an appropriate Noise Reduction Rating to withstand the decibel levels.
7. The tool may contain high pressure. Use safety glasses and gloves for
protection during operation. Keep hands clear of the exposed rubber
portions of the hose.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
4. Keep your fingers away from the trigger/switch while carrying the tool,
attaching an air hose or an accessory. Lock the trigger/switch safety if
available.
5. Avoid unintentional starts. Be sure that the regulator/throttle switch is
in the neutral or OFF position when not in use and before connecting it
to any air source.
6. Never point the air stream or tool at any point of your body, other people
or animals. Debris and dust ejected at high speed can cause an injury.
7. Serious injury or death may occur from inhaling compressed air. The air
stream may contain carbon monoxide, toxic vapors or solid particles.
Never inhale compressed air directly from the pump or air tool.
8. Securely hold this tool using both hands. Using a tool with only one
hand can result in loss of control.
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a specific
function. Do not modify or alter this tool or use it for an unintended
purpose.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 5
2. Do not use the tool if any parts are damage broken or misplaced.
Repair or replace the parts.
3. Do not use any power tool with a malfunctioning power switch or
control. A power tool that fails to respond to the controls is dangerous
and can cause an injury. A qualified technician must repair and verify
the power tool is operating correctly before it can be used.
4. Never use a tool with a cracked or worn tool accessory. Change the
tool accessory before using it.
5. Do not cover the air vents.
6. Only use accessories that are specifically designed for use with the
tool. Ensure the accessory is tightly installed.
7. Only use an accessory that exceeds the speed rating (see Specifications).
8. Disconnect the power source before installing or servicing the tool.
9. Remove adjusting keys and wrenches before using the tool. The tool may
eject an attached wrench or a key and cause an injury to you or a bystander.
10. Before using the tool on a workpiece, test the tool by running it at the
highest speed rating for at least 30 seconds in a safe position. Stop
immediately if there is any abnormal vibration or wobbling. Check the
tool to determine the cause.
11. Never force the tool. Excessive pressure could break the tool, resulting
in damage to your workpiece or serious personal injury. Excessive
pressure is the cause if your tool runs smoothly under no load, but
roughly under load.
12. Keep hands and fingers away from the work area. Any part of the body
contacting the tool’s working parts could result in an injury.
13. Never touch the tool accessory or workpiece during or immediately
after use. They may be hot and could inflict a burn injury.
14. Do not remove the guard plate (G).
AIR TOOL PRECAUTIONS
1. Use only clean and dry compressed air as a power source.
Contaminated or moist air will gradually damage the tool.
2. Install an in-line shutoff valve or regulator to allow immediate control
over the air supply in an emergency, even if a hose is ruptured.
3. Discontinue tool use if it does not work properly or air is leaking. Tag
or mark the tool as ‘defective’ or ‘out of service’ until repaired.

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
6 For technical questions call 1-800-665-8685
4. Check the manufacturer’s maximum pressure rating for air tools and
accessories. Compressor outlet pressure must be regulated to never
exceed the maximum pressure rating of the tool (see Specifications).
Exceeding the maximum PSI rating can create a bursting hazard,
causing injury and property damage.
a. Never connect to an air source that is capable of exceeding 200 PSI.
b. Do not exceed the maximum working pressure of 90 PSI / 6.3 bar.
5. Attach all accessories properly to the tool before connecting the air
supply. A loose accessory may detach or break during operation.
6. Never use oxygen, combustible gas or any other bottled gas as a
power source. Any power source other than an air compressor could
cause an explosion and serious personal injury.
7. Turn OFF the valve and discharge any remaining air pressure after each
use or before adjusting the tool.
8. Do not leave the air tool unattended with its compressed air supply on.
Turn off the compressed air supply and bleed the air tool of any
remaining compressed air before leaving the air tool unattended.
9. Serious injury may occur from loose debris being propelled at high speeds
from the compressed air stream. Always wear OSHA approved safety
glasses to protect the eyes during operation of the air compressor.
10. Always turn off the air compressor and drain tank pressure completely
before attempting maintenance or attaching air tools. Release pressure
slowly from the system.
11. Do not try to punch or flange material thicker than 16 gauge.
AIR HOSE PRECAUTIONS
1. Inspect the tool's air hose for cracks, fraying or other faults before
each use. Discontinue use if the air hose is damaged or hissing is heard
from the air hose or couplers. Replace the defective air hose.
2. Do not allow people, mobile equipment or vehicles to pass over the
unprotected air hose. Position the air hose away from high traffic
areas, in a reinforced conduit or place planks on both sides of the air
hose to create a protective trench.
3. Prevent damage to the air hose by observing the following:
a. Never carry the tool by the air hose.
b. Keep the air hose behind the tool and out of the tool's work path.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 7
c. Keep the air hose away from heat, oil, sharp edges or moving
parts.
d. Do not wrap the air hose around the tool as sharp edges may
pierce or crack the air hose. Gently coil the hose and either hang
on a hook or fasten with a device to keep hose together when
storing.
4. A damaged or disconnected air hose under pressure may whip around and
inflict personal injury or damage the work area. Secure the compressor's
air hose to a fixed or permanent structure with clamps or cable ties.
5. A long air hose (over 8 m) may cause up to 15 PSI drop in pressure. You
may need to set the output pressure of the air compressor higher to
maintain the required working pressure at the tool.
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury. Take
frequent breaks when using the tool.
2. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical attention
as soon as possible.
3. Wear suitable gloves to reduce the effects of vibration.
4. DO NOT use this tool before consulting a physician if one of the
following applies:
a. Pregnant
b. Impaired blood circulation to the
hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud's Disease
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a malfunction
and personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the parts list are included.

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
8 For technical questions call 1-800-665-8685
IDENTIFICATION KEY
A Punch die
B Punch
C Oil plug
D Air punch/flange tool
E Clamp
F Anvil
G Plate guard
H Trigger
I Air inlet
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key.
INSTALL AIR COUPLER PLUG
Prepare a standard 1/4 in. NPT coupler plug (sold separately) for use with
your tool.
1. Wrap the external threads of the coupler plug with sealant tape.
a. Wrap tape in a clockwise direction so it will not unravel.
b. Do not tape all the threads. Leave several leading threads
unwrapped for easier alignment.
2. Screw the coupler plug into the tool's air inlet and tighten with a
wrench until snug.
3. Run the compressor at a low volume and check the connection for air
leaks. Do not use the tool until all air leaks are repaired or the faulty
component is replaced.
4. Set the working pressure at 90 PSI / 6.3 BAR.
IMPORTANT! Vibration may cause failure if a quick coupler is connected directly
to the air tool. To overcome this, connect a leader hose to the tool. A quick
coupler may then be used to connect the leader hose to the air line hose.
TOOL HEAD ROTATION
The tool head can rotate 360 degrees. Twist the tool head up to 180 degrees
in either direction to match the workpiece’s angle.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 9
OPERATION
1. Set the working pressure at 90 PSI / 6.3 BAR (see Specifications).
2. When finished with the tool, turn off the air compressor, disconnect
the air hose and discharge any residual air remaining in the tool. Put
the impact wrench away in a safe storage area.
FLANGING
IMPORTANT! If you intend to flange and punch the workpeice, flange it first
and then measure for hole placement. Flanging will change the dimensions
of the workpiece.
1. Measure and cut the workpiece to the correct dimensions.
2. Secure the workpiece in a vise or another appropriate clamping
method if needed.
3. Insert the workpiece into the flanging jaw between the anvil (F) and
the clamp (E). Make sure that the workpiece is flush against the back
of both the anvil and the clamp. Depress the trigger (G) and the anvil
will be driven against the clamp forming a flange.
4. Release the trigger. Slide the punch/flange tool (D) along the edge of
the workpiece to where the anvil (F) and the clamp (E) overlap part of
the workpiece you just flanged. Repeat Step 3.
5. Repeat Steps 3 and 4 until the entire length you wanted to flange is
finished.
6. Disconnect the tool from the air supply.
PUNCHING
1. Mark the desired location on the workpiece of each hole you wish to
punch.
2. Insert the edge of the workpiece between the punch die (A) and punch
(B). Make sure that your marks are aligned with the punch die.
3. Depress the trigger (G) and the punch will pierce the workpiece.
4. Align the punch/flange tool with the next mark on the workpiece and
repeat Step 3 until the job is finished.
5. Disconnect the tool from the air supply.

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
10 For technical questions call 1-800-665-8685
PRESSURE DROP
Apply the air consumption and pressure rate numbers to the tool’s air inlet, not
the compressor’s outlet. Calculate the pressure drop for your air supply set-up
and increase the compressor outlet pressure to compensate. Make sure you do
not exceed the maximum pressure for any part of your air supply system.
Installing a pressure gauge at the tool inlet is the best way to measure the
air pressure and adjust the compressor’s output.
CARE & MAINTENANCE
1. Maintain the tool with care. A tool in good condition is efficient, easier
to control and will have fewer problems.
2. Inspect the tool fittings, alignment and hoses periodically. Have damaged
or worn components repaired or replaced by an authorized technician.
Only use identical replacement parts when servicing.
3. Follow instructions for lubricating and changing accessories.
4. Only use accessories intended for use with this tool.
5. Keep the tool clean, dry and free from oil/grease at all times.
6. Maintain the tool’s labels and name plates. These carry important
information. If unreadable or missing, contact Princess Auto Ltd. for
replacements.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
AIR TOOL LUBRICATION
NOTICE! Only use air tool oil to lubricate the tool. Other lubricants are not
suitable and will damage the tool or cause a malfunction during use.
NOTICE! Never use a penetrating oil to lubricate an air tool. Penetrating oil
acts as a solvent that will dissolve the tool’s grease packing and may
damage the o-rings, causing the tool to seize or malfunction.
1. All air tools have an internal coating of grease to prevent corrosion
during shipping and storage. Remove this grease by adding a generous
amount of air tool oil in the air inlet and then run the tool under no
load until the exhaust is clear.
2. Manually add a drop or two of air tool oil into the tool’s coupler plug
before each use and after every hour of continuous use. The tool will
not work properly without lubrication and parts will wear prematurely.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 11
3. Avoid adding too much air tool oil as this can cause premature power
loss and eventual tool failure. A qualified technician will need to take
the tool apart and clean out the excess oil.
4. Apply a generous amount of air tool oil to the tool before storing it for
an extended period of time (overnight, weekend, etc.). Run the tool for
approximately 30 seconds to ensure the oil is evenly distributed
throughout the tool. Store it in a clean and dry location.
5. Install an in-line oiler on the air supply line to increase tool life. Place a
sheet of paper next to the tool's exhaust ports and hold the throttle
open for approximately 30 seconds. The in-line oiler is properly set
when a light stain of oil collects on the paper. Avoid excessive amounts
of oil.
6. Use air-tool oil or any other high-grade turbine oil containing moisture
absorbent, rust inhibitors, metal wetting agents and an EP (extreme
pressure) additive.
HYDRAULIC SYSTEM LUBRICATION
1. Remove the oil plug (C) with a provided hex key and set aside.
2. Fill the reservoir with hydraulic oil. Be careful not to overfill.
3. Screw the oil plug back into place and clean any excess oil.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified technician
service the tool.
Problem(s) Possible Cause(s) Suggested Solution(s)
Tool runs at normal
speed, but loses
power under load.
Motor parts worn. 1. Have a qualified technician service
the tool.
2. Replace tool or parts.
Tool runs slowly.
Air flows slightly
from exhaust.
Motor parts
jammed with dirt
particles.
OR
Airflow blocked by
dirt.
1. Check air inlet filter for blockage.
2. Pour air tool lubricating oil into air
inlet as per lubrication instructions
for clearing shipping grease.
3. Operate tool in short bursts to clear
debris.
4. If tool still jammed, clean tool and
lubricate per lubrication instructions.

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
12 For technical questions call 1-800-665-8685
Problem(s) Possible Cause(s) Suggested Solution(s)
Tool runs slowly.
Air flows slightly
from exhaust.
1. Air regulator in closed
position.
2. Damage or excessive
wearing of internal
parts.
3. No oil in tool.
4. Low air pressure.
1. Open the air regulator to
desired airflow.
2a. Have a qualified technician
service the tool.
2b. Replace tool or parts.
3. Lubricate the tool.
4a. Adjust the regulator on the
tool to the maximum setting.
4b. Adjust the compressor
regulator to a maximum of 90
PSI / 6.3 BAR.
Tools will not run.
Air flows freely
from exhaust.
Damage or excessive
wearing of internal parts.
1. Have a qualified technician
service the tool.
2. Replace tool or parts.
Tool will not shut
off.
1. Throttle valve o-ring
dislodged from inlet
valve seat.
2. Trigger mechanism
jammed or dirty.
1. Replace throttle valve
o-rings.
2. Clean trigger mechanism and
lubricate.
Loss of power or
erratic
performance.
1. Excessive drain on the
air hose. Incorrect size
or type of hose
connectors.
2. Moisture or restriction
in the air hose/tank
3. Air compressor has
insufficient flow.
1a.Check the air hose and confirm
the hose fitting is correct
for the inlet bushing.
1b. Do not use multiple hoses
connected together with
quick-connect fittings.
Connect the hoses
together.
2. Depressurize system and drain
tank and air hose of water. Oil
and run until no water is
evident. Oil tool again and run
for 1-2 sec.
3. Ensure tool is connected to a
compressor with a rate flow
that matches the tool.

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 13
PARTS BREAKDOWN
PARTS LIST
#
DESCRIPTION
QTY
1 Housing 1
2 Spring 1
3 O-Ring 1
4 O-Ring 1
5 Throttle Bushing 1
6 O-Ring 1
7 O-Ring 1
8 Pin Valve 1
9 Trigger 1
10 Bolt 1
11 Bolt 1
12 O-Ring 2
13 Air inlet 1
14 Seal Ring 1
15 O-Ring 1
16 Piston 1
17 Spring 1
18 O-Ring 2
19 Bushing 2
20 Hydraulic piston 1
21 Bushing 1

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
14 For technical questions call 1-800-665-8685
22 O-Ring 1
23 Lock nut 1
24 Oil Plug 1
25 O-Ring 1
26 O-Ring 1
27 Bushing 1
28 Oil Seal 1
29 Anvil 1
30 Plate Guard 1
31 Screw 2
32 Clamp 1
33 Punch die 1
34 Guide bushing 1
35 Gasket 13
36 Punch 1
37 Screw 1
38 Set screw 1

V1.0 5/16 in. Pistol Grip Air Punch and Flange Tool 8843799
Visit www.princessauto.com for more information 15

8843799 5/16 in. Pistol Grip Air Punch and Flange Tool V1.0
16 For technical questions call 1-800-665-8685

V1,0 8843799
Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.
Conservez ce manuel afin de pouvoir le consulter plus tard.

8843799 Outil de bridage et de poinçonnage pneumatique à prise pistolet de 3/16 po V1,0
2 En cas de questions techniques, appelez le 1-800-665-8685
SPÉCIFICATIONS
Entrée d’air (po) 1/4 po
Consommation d’air à 90 lb/po carré 4 pi cubes/min
Pression nominale 90 lb/po carré
Capacité de sertissage Tôle de calibre 14
Capacité de perforation Tôle de calibre 16
Diamètre du poinçon 5/16 po
Diamètre min. de tuyau 3/8 po
Matériau Aluminium et acier
DÉFINITIONS DE DANGER
Veuillez-vous familiariser avec les avis de danger qui sont présentés dans ce
manuel. Un avis est une alerte indiquant qu'il existe un risque de dommage
à la propriété, de blessure ou de décès si on ne respecte pas certaines
instructions.
DANGER ! Cet avis indique un risque immédiat et particulier qui
entraînera des blessures corporelles graves ou même la
mort si on omet de prendre les précautions nécessaires.
AVERTISSEMENT ! Cet avis indique un risque particulier ou une pratique non
sécuritaire qui pourrait entraîner des blessures
corporelles graves ou même la mort si on omet de
prendre les précautions nécessaires.
ATTENTION ! Cet avis indique une situation possiblement dangereuse qui
peut entraîner des blessures mineures ou modérées si on
ne procède pas de la façon recommandée.
AVIS ! Cet avis indique un risque particulier ou une pratique non
sécuritaire qui entraînera des dommages au niveau de
l'équipement ou des biens, mais non des blessures
corporelles.

V1,0 Outil de bridage et de poinçonnage pneumatique à prise pistolet de 3/16 po 8843799
Visitez www.princessauto.com pour plus d'informations 3
INTRODUCTION
Cet outil de bridage et de poinçonnage pneumatique à prise pistolet de 5/16
po est un outil pneumatique 2-en-1 polyvalent conçu pour sertir et perforer
l’acier doux. Son diamètre de perforation de 5/16 po en fait l’outil idéal pour
les applications de soudage et de rivetage.
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les instructions avant
d'utiliser cet outil. L'utilisateur doit respecter les précautions de base
lorsqu'il utilise cet outil afin de réduire le risque de blessure ou de
dommage à l'équipement.
Conservez ce manuel qui contient les avertissements de sécurité, les
précautions, les instructions de fonctionnement ou d'inspection et d'entretien.
AIRE DE TRAVAIL
1. Travaillez dans un environnement de travail sécuritaire. Gardez votre
aire de travail propre, bien éclairée et exempte de toute distraction.
Placez les lampes de façon à ne pas travailler dans l’ombre.
2. Assurez-vous que les personnes qui ne portent pas l'équipement de
sécurité approprié ne se trouvent pas à proximité de l'aire de travail.
3. Rangez les outils correctement dans un lieu sécurisé et sec. Gardez les
outils hors de la portée des enfants.
4. N'installez pas et n'utilisez pas d'outils électriques en présence de gaz,
de poussière ou de liquides inflammables.
SÉCURITÉ PERSONNELLE
AVERTISSEMENT ! Portez de l'équipement de protection personnelle
homologué par l'Association canadienne de normalisation (CSA) ou
l'American National Standards Institute (ANSI).
ÉQUIPEMENT DE PROTECTION PERSONNELLE
1. Portez toujours des lunettes antiprojections qui offrent une protection
frontale et latérale pour les yeux. L'équipement de protection des yeux
devrait être conforme à la norme CSA Z94.3-07 ou ANSI Z87.1 fonction
du type de travail effectué.
2. Portez un écran facial panoramique de type approprié avec les lunettes
de sécurité puisque cette tâche peut créer des copeaux, des matières
abrasives ou des particules.

8843799 Outil de bridage et de poinçonnage pneumatique à prise pistolet de 3/16 po V1,0
4 En cas de questions techniques, appelez le 1-800-665-8685
3. Portez des gants qui protègent en fonction des matériaux de travail et
pour réduire les effets des vibrations de l'outil.
4. Portez des vêtements de protection conçus pour l'environnement de
travail et pour l'outil.
5. Les chaussures antidérapantes sont recommandées pour maintenir la
stabilité et l'équilibre au sein de l'environnement de travail.
6. Cet outil peut causer des dommages à l'ouïe. Portez un dispositif de
protection anti-bruit présentant une cote de réduction du bruit
adéquate en fonction du niveau de décibels.
7. L’outil peut être à haute pression. Portez des lunettes de sécurité et
des gants pour vous protéger au cours de l'opération. Gardez les mains
à l'écart des parties de caoutchouc exposées du tuyau.
PRÉCAUTIONS PERSONNELLES
Gardez le contrôle de l'outil, de vos mouvements et de l'environnement de
travail pour éviter les blessures ou le bris de l'outil.
1. N'utilisez pas l'outil si vous êtes fatigué ou sous l'effet de drogues,
d'alcool ou de médicaments.
2. Évitez de porter des vêtements ou des bijoux pouvant se prendre dans les
pièces mobiles d'un outil. Gardez les cheveux longs recouverts ou attachés.
3. N'utilisez pas l'outil si vous devez étirer les bras pour vous en servir.
Une stabilité et un équilibre appropriés sont nécessaires afin d'avoir un
meilleur contrôle en cas de situations inattendues.
4. Gardez vos doigts à bonne distance de la gâchette/commutateur lors
du transport de l’outil ou du branchement d’un tuyau à air ou d’un
accessoire. Engagez le verrou de gâchette/interrupteur, le cas échéant.
5. Évitez les mises en marche involontaires. Assurez-vous que le
régulateur/commutateur est en position neutre ou OFF (arrêt) lorsque
l’outil n’est pas utilisé et avant de le brancher à une source d’air.
6. Ne dirigez jamais le jet d’air ou les outils vers votre corps, d’autres
individus ou des animaux. Les débris et la poussière projetés à grande
vitesse peuvent causer des blessures.
7. Des blessures graves ou même la mort peuvent survenir en cas
d’inhalation de l’air comprimé. Le jet d’air peut contenir du monoxyde
de carbone, des vapeurs toxiques ou des particules solides. N’inhalez
jamais l’air comprimé provenant directement de la pompe ou d’un outil
pneumatique.
