Powermatic 719T Service manual

Operating Instructions and Parts Manual
Tilting Table Hollow Chisel Mortiser
Model: 719T
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-2474002
Ph.: 800-274-6848 Revision B3 11/2018
www.powermatic.com Copyright © 2014 Powermatic

2
Warranty and Service
Powermatic® warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
repair, please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
Powermatic branded website.
 Powermatic products carry a limited warranty which varies in duration based upon the product. (See chart
below)
 Accessories carry a limited warranty of one year from the date of receipt.
 Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. Powermatic woodworking machinery is designed to be used with
Wood. Use of these machines in the processing of metal, plastics, or other materials outside recommended
guidelines may void the warranty. The exceptions are acrylics and other natural items that are made specifically for
wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. Powermatic has Authorized Service Centers located throughout
the United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the Powermatic website.
More Information
Powermatic is constantly adding new products. For complete, up-to-date product information, check with your local
distributor or visit the Powermatic website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
POWERMATIC LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH
PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
POWERMATIC SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official
Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at
any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem
necessary for any reason whatsoever.
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors, Machine Accessories
2 Year – Woodworking Machinery used for industrial or commercial purposes
5 Year – Woodworking Machinery
NOTE: Powermatic is a division of JPW Industries, Inc. References in this document to Powermatic also apply to
JPW Industries, Inc., or any of its successors in interest to the Powermatic brand.

3
Table of Contents
Warranty and Service .................................................................................................................................... 2
Table of Contents .......................................................................................................................................... 3
Warnings ....................................................................................................................................................... 4
Introduction ................................................................................................................................................... 6
Specifications ................................................................................................................................................ 6
Unpacking ..................................................................................................................................................... 7

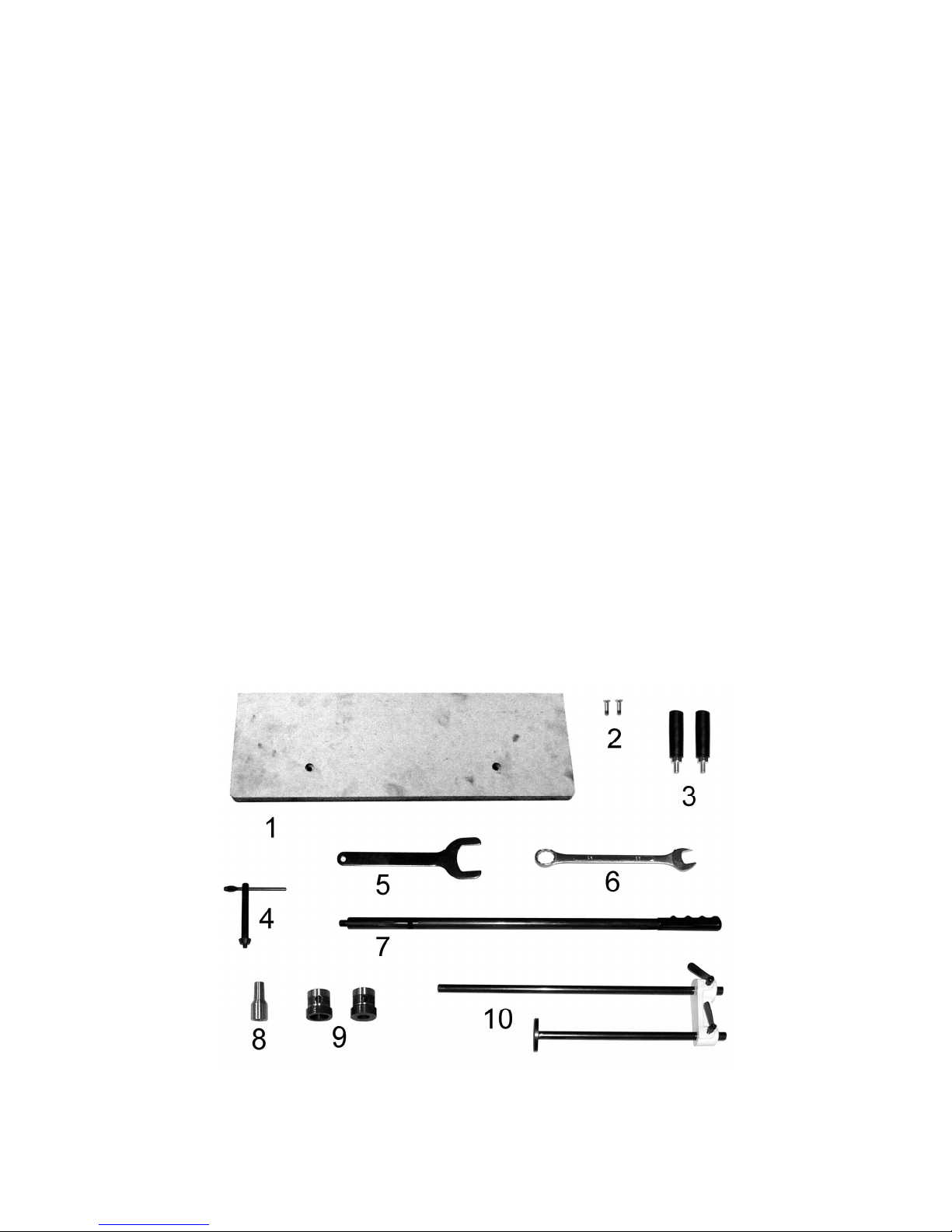

Contents of the Mortiser Carton ................................................................................................................ 7
Contents of the Stand Carton .................................................................................................................... 7
Electrical Connections ................................................................................................................................... 8

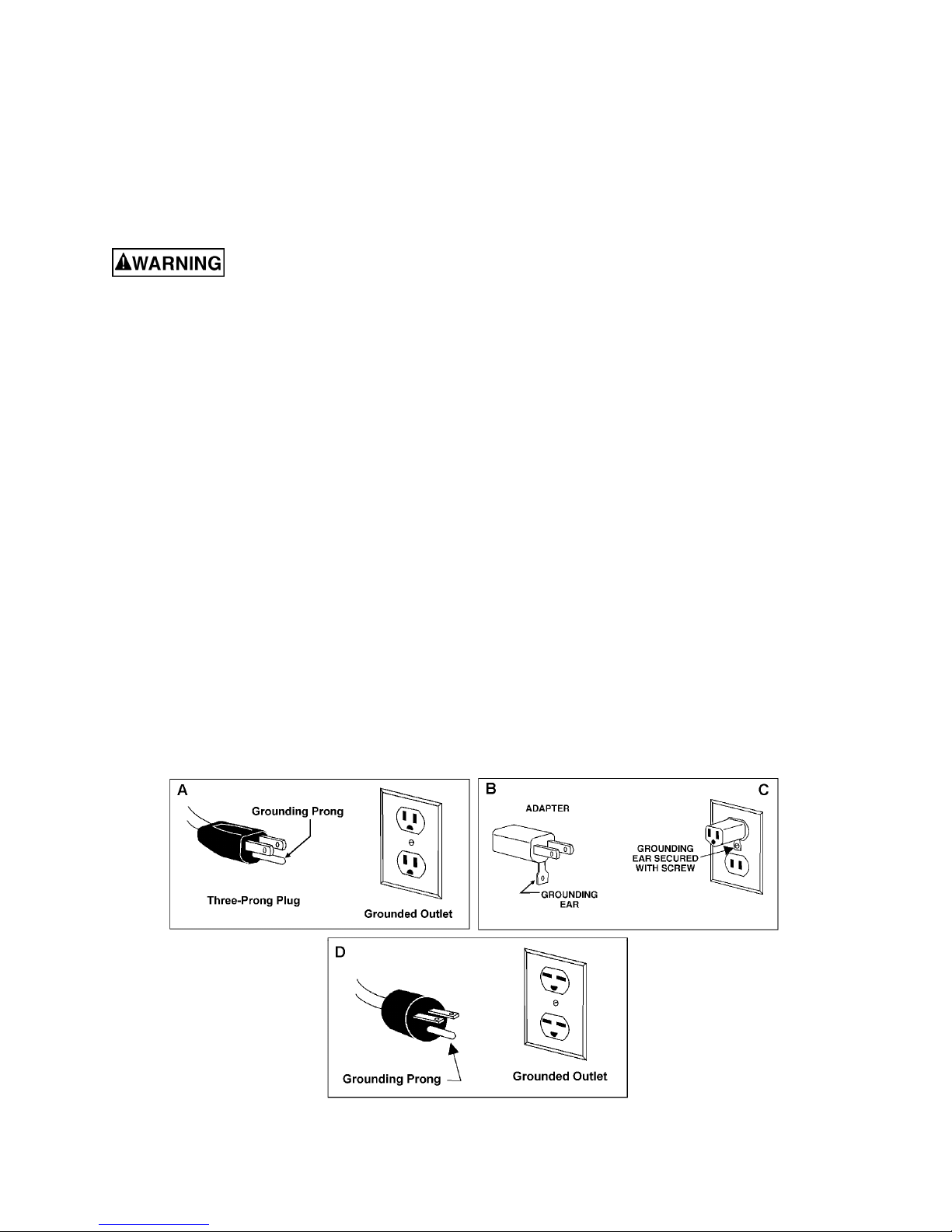

Grounding Instructions .............................................................................................................................. 8
Converting from 115 to 230 Volt ................................................................................................................ 9
Extension Cords ........................................................................................................................................ 9
Assembly ..................................................................................................................................................... 10
Securing Machine to Stand ..................................................................................................................... 10

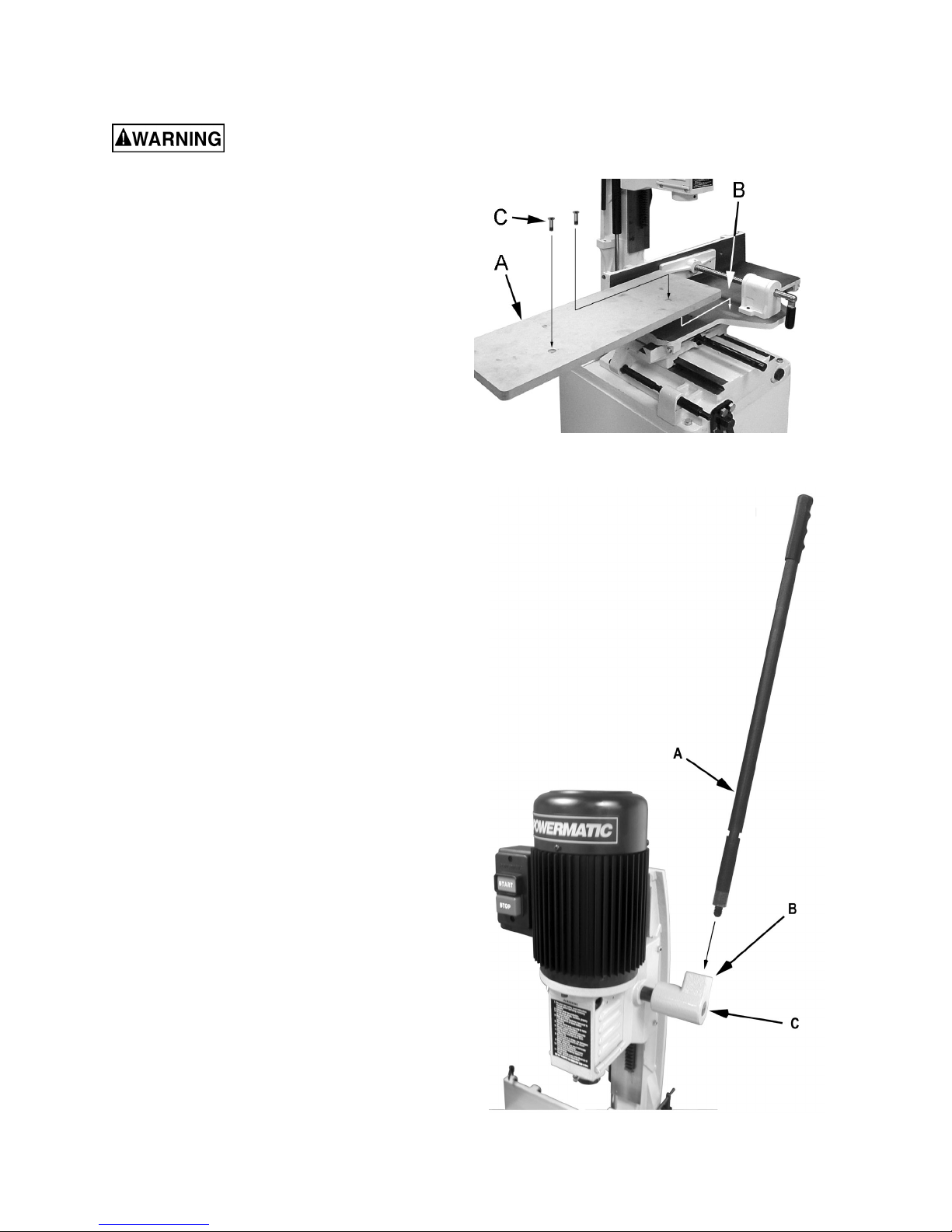

Wooden Table ......................................................................................................................................... 10
Operating Handle .................................................................................................................................... 10

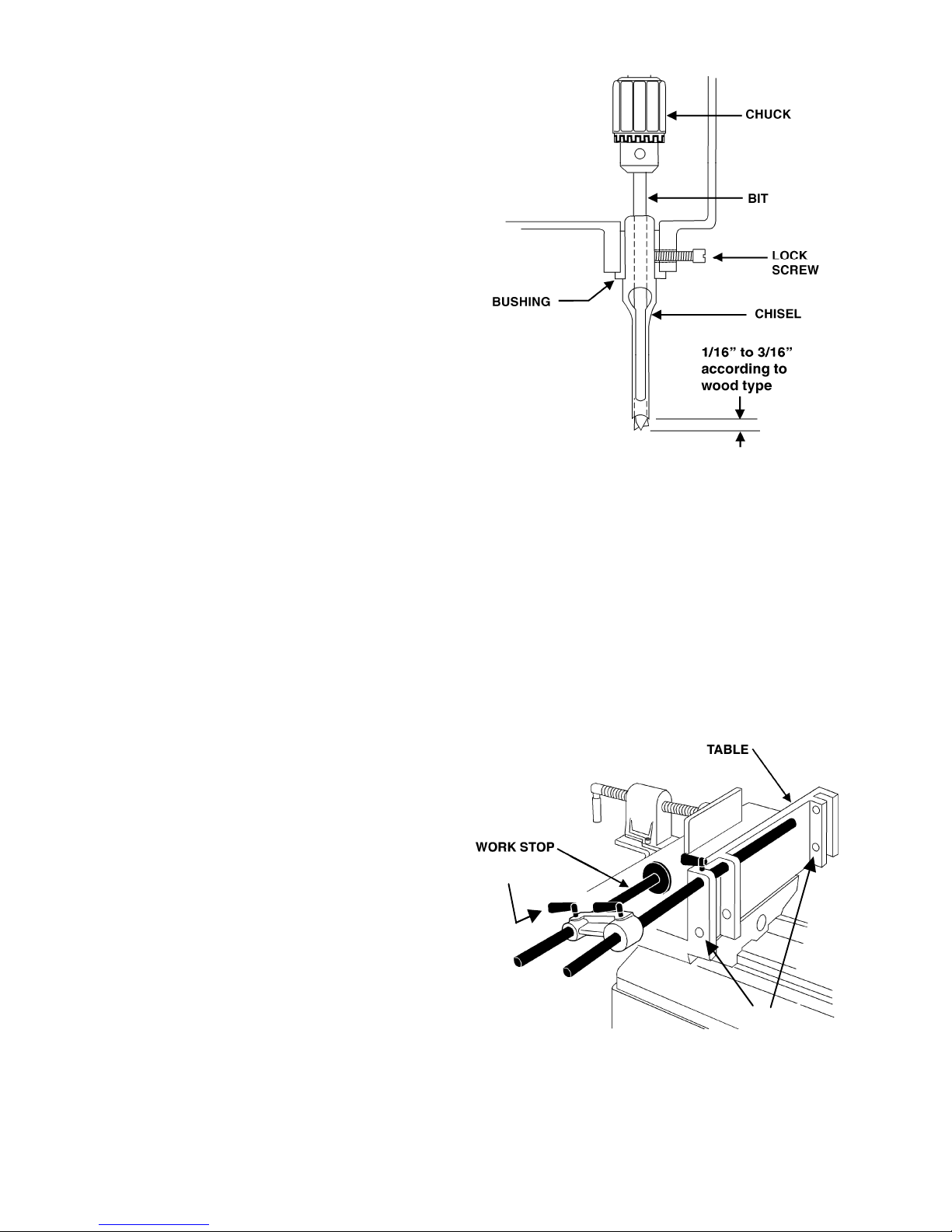

Installing Chisel and Bit ........................................................................................................................... 11
Work Stop ................................................................................................................................................ 11
Operating Controls ...................................................................................................................................... 12

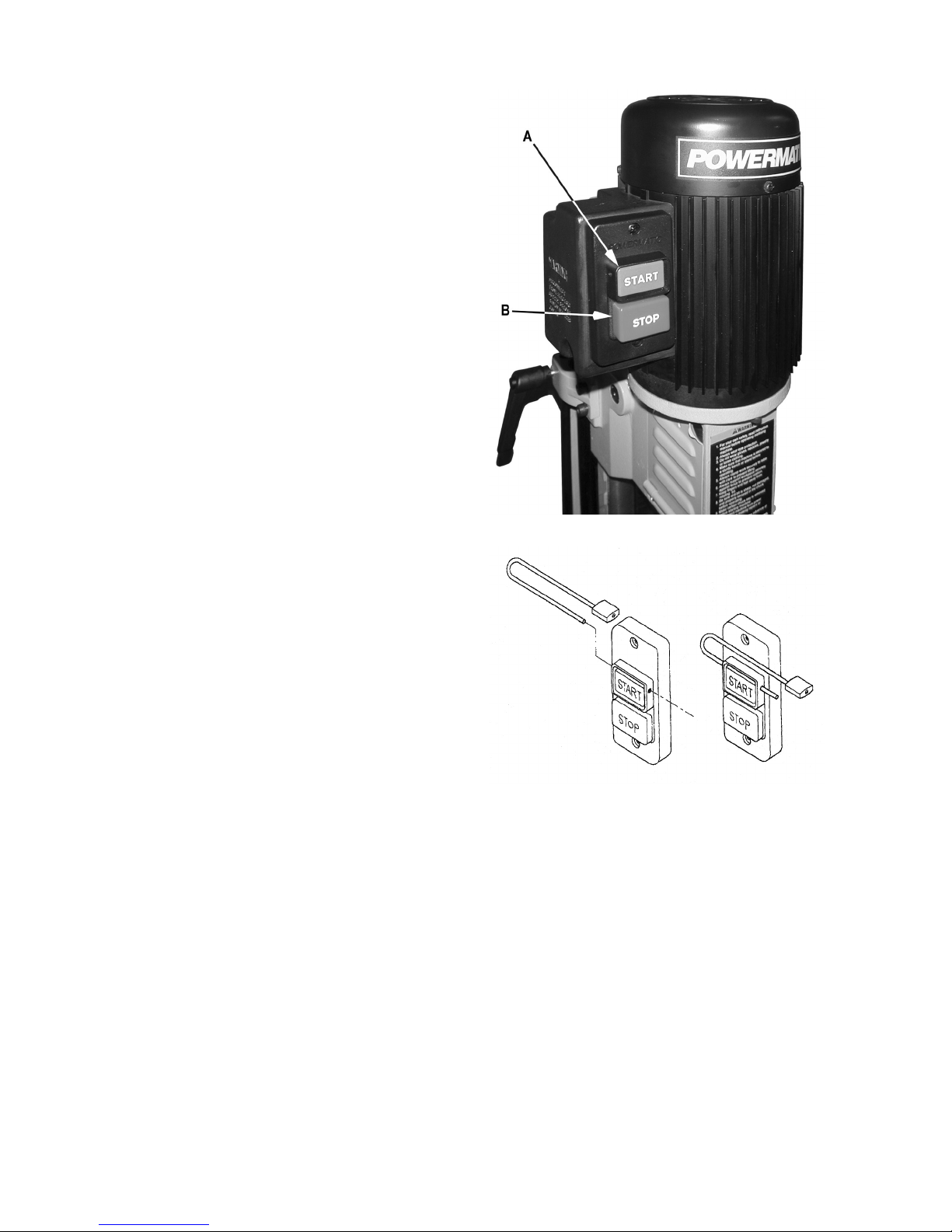

Start/Stop Switch ..................................................................................................................................... 12
On-Off Switch Padlock ................................................................................................................................ 12
Adjustments ................................................................................................................................................ 13
90 Chisel to Worktable Calibration ......................................................................................................... 13
Chuck Extension Adaptor ........................................................................................................................ 13
Depth Stop Rod Adjustment .................................................................................................................... 14

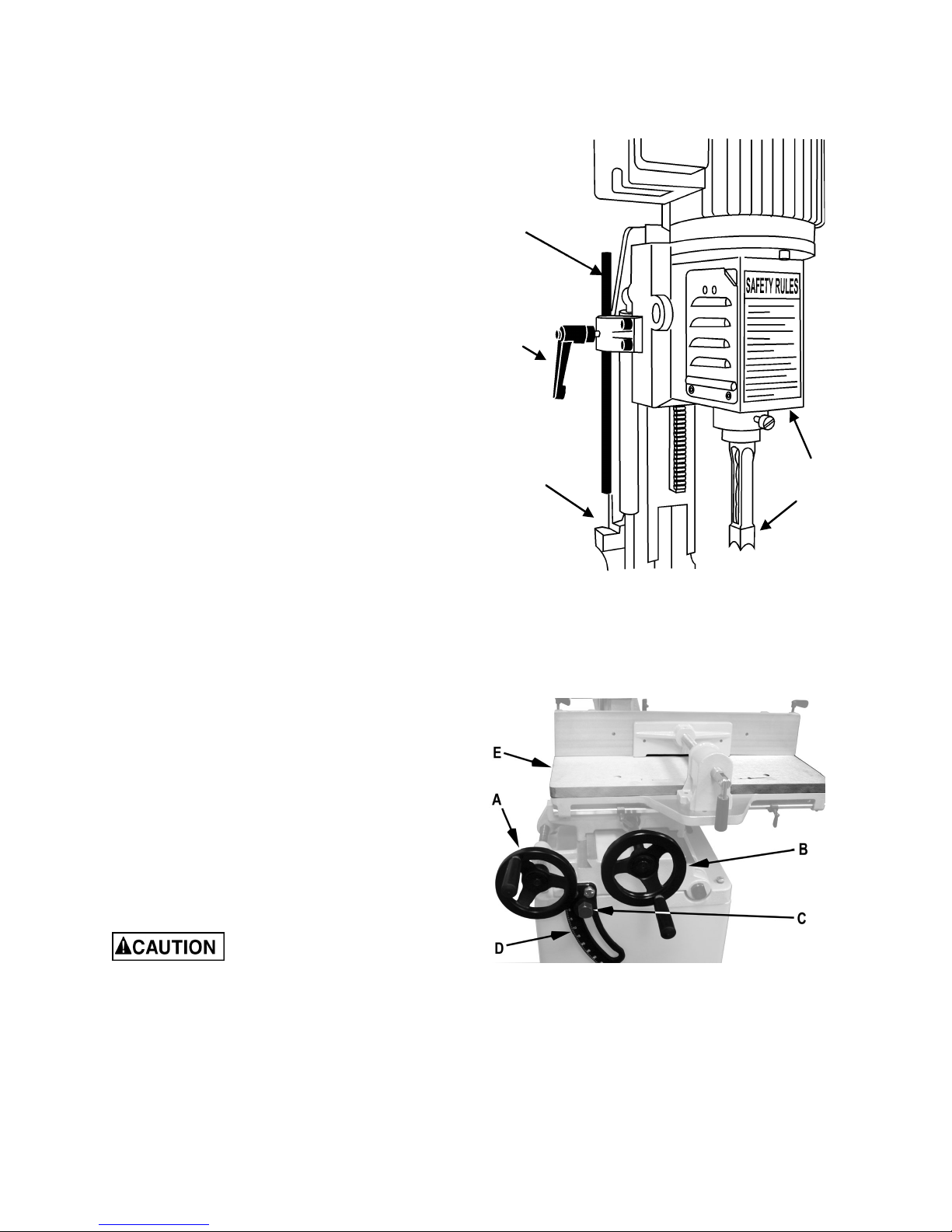

Table Position .......................................................................................................................................... 14
Forward/Backward Table Movement ................................................................................................... 14
Lateral Table Movement ...................................................................................................................... 14
Table Tilt Control .................................................................................................................................. 14
Chisel Parallel to Workpiece ................................................................................................................... 15
Operation..................................................................................................................................................... 15
Maintenance ................................................................................................................................................ 16
General .................................................................................................................................................... 16

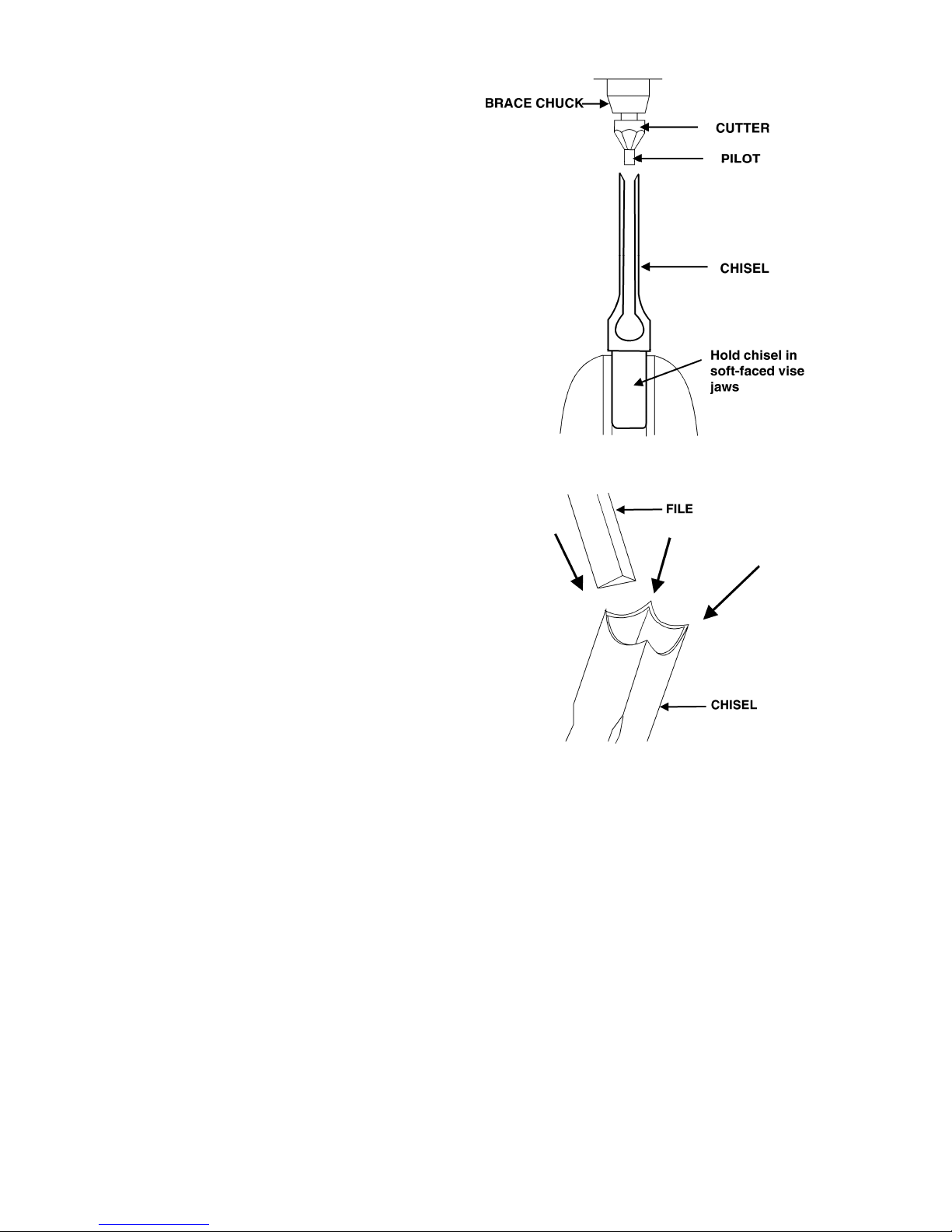

Sharpening Chisel and Bit ....................................................................................................................... 16
Bit ......................................................................................................................................................... 16
Chisel ................................................................................................................................................... 17
Lubrication ............................................................................................................................................... 17
Storage .................................................................................................................................................... 17
Optional Accessories .................................................................................................................................. 17
Replacement Parts ...................................................................................................................................... 17
719T Mortiser Assembly .......................................................................................................................... 18
719T Mortiser Parts List .......................................................................................................................... 19
719T Mortiser Stand Parts List ................................................................................................................ 22
719T Mortiser Stand Assembly ............................................................................................................... 22
Optional Accessories ............................................................................................................................... 23
Dimensions for 719T with premium chisels mounted ................................................................................. 24

4
Warnings
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. This mortiser is designed and intended for use by properly trained and experienced personnel only. If
you are not familiar with the proper and safe operation of a mortiser, do not use until proper training
and knowledge have been obtained.
5. Do not use this mortiser for other than its intended use. If used for other purposes, Powermatic
disclaims any real or implied warranty and holds itself harmless from any injury that may result from
that use.
6. Always wear approved safety glasses/face shields while using this mortiser. Everyday eyeglasses
only have impact resistant lenses; they are NOT safety glasses. Also use a dust mask if cutting
operation is dusty.
7. Before operating this mortiser, remove tie, rings, watches and other jewelry, and roll sleeves up past
the elbows. Secure all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips
are recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
10. Make certain the switch is in the OFF position before connecting the machine to the power supply.
11. Make certain the machine is properly grounded.
12. Make all machine adjustments or maintenance with the machine unplugged from the power source.
13. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
14. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes, use extreme caution and replace the guards immediately after maintenance is complete.
15. Make sure the mortiser is firmly secured to the stand before use.
16. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting
and any other conditions that may affect its operation. A guard or other part that is damaged should
be properly repaired or replaced.
17. Provide for adequate space surrounding work area and non-glare, overhead lighting.
18. Keep the floor around the machine clean and free of scrap material, oil and grease.
19. Keep visitors a safe distance from the work area. Keep children away.
20. Make your workshop child proof with padlocks, master switches or by removing starter keys.
21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
22. Maintain a balanced stance at all times so that you do not fall or lean against the chisel and drill bits
or other moving parts. Do not overreach or use excessive force to perform any machine operation.
23. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and safer.
24. Use recommended accessories; improper accessories may be hazardous.
25. Do not use this tool in damp or wet locations.

5
26. Maintain tools with care. Keep chisel and drill bits sharp and clean for the best and safest
performance. Follow instructions for lubricating and changing accessories.
27. Make sure the work piece is securely attached or clamped to the table. Do not cut mortises freehand.
28. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris — do
not use your hands.
29. Do not stand on the machine. Serious injury could occur if the machine tips over.
30. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comes to a complete stop.
31. Remove loose items and unnecessary work pieces from the area before starting the machine.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.
- - SAVE THESE INSTRUCTIONS - -
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other
substances known to the State of California to cause cancer. Avoid inhaling dust generated from wood
products or use a dust mask or other safeguards for personal protection.
Wood products emit chemicals known to the State of California to cause birth defects or other
reproductive harm. For more information go to http://www.p65warnings.ca.gov/wood.
WARNING: This product can expose you to chemicals including lead which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to
http://www.p65warnings.ca.gov.

6
Introduction
This manual is provided by Powermatic covering the safe operation and maintenance procedures for a
Powermatic Model 719T Tilting Table Hollow Chisel Mortiser. This manual contains instructions on
installation, safety precautions, general operating procedures, maintenance instructions and parts
breakdown. This machine has been designed and constructed to provide consistent, long-term operation
if used in accordance to instructions set forth in this manual. If there are any questions or comments,
please contact either your local supplier or Powermatic. Powermatic can also be reached at our web site:
www.powermatic.com.
Specifications
Model No. ................................................................................................................................................ 719T
Stock No. ......................................................................................................................................... 1791264K
Stock No – Mortiser only ................................................................................................................. 2474002T
Stock No – Stand only ..................................................................................................................... 6294235T
Motor ........................................................................ TEFC, 1 HP, 1 PH, 115V/230V (Prewired 115V), 60Hz
Spindle speed ................................................................................................................................ 1725 RPM
Table tilt ............................................................................................................................................ 0 to 35
Chisel capacity ..................................................................................................................................1/4" to 1"
Chisel shank diameters ........................................................................................................ 5/8", 3/4", 1-1/8"
Maximum chisel stroke ......................................................................................................................... 10-3/4"
Maximum head stroke .................................................................................................................................. 6"
Maximum chisel center to fence distance .................................................................................................... 4"
Chuck capacity .......................................................................................................................................... 1/2"
Bushing size .......................................................................................................................... 5/8", 3/4", 1-1/8"
Longitudinal table travel ....................................................................................................................... 15-1/2"
Cross table travel ......................................................................................................................................... 4"
Table size ..................................................................................................................................... 7" x 20-1/4"
Fence size .............................................................................................................................. 4-1/2" x 20-1/4"
Base size ........................................................................................................................................... 14" x 16"
Overall dimensions assembled ........................................................................ 21-1/4" L x 21-5/8" W x 74" H
Weight - Mortiser ......................................................................... Net weight 230 lbs., Gross weight 242 lbs.
Weight - Stand ................................................................................. Net weight 46 lbs., Gross weight 50 lbs.
The above specifications were current at the time this manual was published, but because of our policy of
continuous improvement, Powermatic reserves the right to change specifications at any time and without
prior notice, without incurring obligations.

7
Unpacking
Remove mortiser and stand from the shipping cartons. Report any damage immediately to your distributor
and shipping agent. Do not discard any shipping material until the mortiser is assembled and running
properly.
Compare the contents of your container with the following parts list and Figure 1 to make sure all parts
are intact. Missing parts, if any, should be reported to your distributor. Read this instruction manual
thoroughly to familiarize yourself with the correct assembly and maintenance procedures and proper
safety precautions.
Contents of the Mortiser Carton
1 ea – Mortiser (not shown)
1. 1 ea – Wooden Table
2. 2 ea – M6 x 20 Phillips Head Screws
3. 2 ea – Handwheel Handles
4. 1 ea – Chuck Key
5. 1 ea – Chuck Removal Wrench
6. 1 ea – 23mm Box Wrench
7. 1 ea – Operating Handle
8. 1ea – Chuck Extension Adaptor
9. 2 ea – Chisel Bushings (3/4", 1-1/8")
Note: The Mortiser also comes with a 5/8"
bushing already installed.
10. 1 Work Stop Assembly
Contents of the Stand Carton
1 Stand (not shown)
1 Hardware package – (4) M8 x 45 Hex Cap
Screws, (4) M8 Lock Washers (not shown)
Contents of the Mortiser Carton
Figure 1

8
Electrical Connections
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and
should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which
have 3-prong grounding type plugs and matching receptacle, which will accept the machine’s plug. Before connecting
the machine to the power line, make sure the switch is in the Off position and be sure that the electric current is of the
same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
Grounding Instructions
Electrical connections must be made by a qualified electrician in compliance with all
relevant codes. This machine must be properly grounded to help prevent electrical shock and possible fatal
injury.
1. All grounded, cord-connected tools:
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to
a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or
if in doubt as to whether the tool is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding plugs and 3 pole receptacles that accept the tool's plug.
Repair or replace damaged or worn cord immediately.
2. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than
150 volts:
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch A in Figure 1.
The tool has a grounding plug that looks like the plug illustrated in Sketch A in Figure 1. A temporary adapter, which
looks like the adapter illustrated in Sketch B and C, may be used to connect this plug to a 2 pole receptacle as shown
in Sketch C if a properly grounded outlet is not available. The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician. This adapter is not permitted in Canada. The green-
colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box.
Figure 2

9
3. Grounded, cord- connected tools intended for use on a supply circuit having a nominal rating between
150 - 250 volts, inclusive.
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch D in Figure 1.
The tool has a grounding plug that looks like the plug illustrated in Sketch D in Figure 1. Make sure the tool is
connected to an outlet having the same configuration as the plug. No adapter is available or should be used with this
tool. If the tool must be reconnected for use on a different type of electric circuit, the reconnection should be made by
qualified service personnel; and after reconnection, the tool should comply with all local codes and ordinances.
4. Permanently connected tools:
This tool should be connected to a grounded metal permanent wiring system; or to a system having an equipment-
grounding conductor.
Converting from 115 to 230 Volt
Remove the cover of the push button switch and consult the diagram inside the cover. This diagram is also shown in
Figures 3 and 4. (The diagram inside the cover takes precedence – always check it first ).
Disconnect the machine from the power source.
This mortiser is supplied with four leads that are connected for 115V operation, as shown in Figure 3. Reconnect
these four leads for 230V operation, as shown in Figure 4.
The 115V attachment plug (shown in A, Figure 2) must be replaced with a UL/CSA listed plug suitable for 230V
operation (shown in D, Figure 2). The mortiser must comply with all local and national codes after the 230 volt plug is
installed.
Important: In all cases (115 or 230 volts), make certain the receptacle in question is properly grounded. If
you are not sure, have a registered electrician check the receptacle.
Figure 3 Figure 4
Extension Cords
If an extension cord is necessary, make sure the cord rating is suitable for the amperage listed on the machine’s
motor plate. An undersize cord will cause a drop in line voltage resulting in loss of power and overheating. Use the
chart in Figure 5 as a general guide in choosing the correct size extension cord for the Bandsaw. If in doubt, use the
next heavier gauge. The smaller the gauge number, the heavier the cord.
Recommended Minimum Gauge (AWG) of Extension Cords
Ampere Rating
Volts Total Length of Cord in Feet
115 V 25 ft. 50 ft. 100 ft. 150 ft.
230 V 50 ft. 100 ft. 200 ft. 300 ft.
AWG
< 6 18 16 16 14
6 to 10 18 16 14 12
10 to 12 16 16 14 12
12 to 16 14 12 Not recommended Not recommended
Figure 5

10
Assembly
Do not connect the machine
to power source until completely
assembled. Read and understand the entire
manual.
Securing Machine to Stand
The mortiser should be secured to the stand
with four M8 x 45 hex cap screws and M8 lock
washers (provided) using the holes in the base.
Make sure there is enough room on each side
of the mortiser for the size stock you plan to
use.
Wooden Table
Referring to Figure 6:
1. Place the wooden table (A) in position on
the slide (B).
2. Secure with two Phillips head screws
provided (C).
Operating Handle
Referring to Figure 7:
1. Fasten operating handle (A) to the hub (B)
and tighten with a 14mm open-end wrench.
2. Raise mortising machine head to the up
position by moving the operating handle
(A) up.
Note: The handle assembly is spring-loaded
and can be repositioned by pulling out the
hub (B) and repositioning it on the pinion
shaft (C).
Figure 6
Figure 7

11
Installing Chisel and Bit
Referring to Figure8:
1. Loosen the lock screw.
2. Insert the chisel bushing into the head with
the hole facing forward to line up with the
lock screw. Screw in the lock screw just
enough so the screw extends into the hole
of the bushing, holding it in place.
3. Push the chisel up through the bushing,
bringing it to rest against the shoulder of
the bushing. Then lower the chisel
approximately 1/16" to 3/16", depending on
the type of wood being worked.
Note: Set the slot in the side of the chisel to the
left or right, if the workpiece is to be moved
laterally and front or back if it is to be moved
from front to back. Move the workpiece so that
the slot in the chisel is releasing chips into the
already cut part of the workpiece (see
Figure 19).
4. Tighten the lock screw to hold the chisel in
place.
5. Push the bit up through the chisel opening
as far as it will go. Lock the drill bit in place
with the chuck key.
6. Loosen the lock screw and push the chisel
up against the bushing, then tighten the
lock screw. This should provide the proper
distance between the points of the chisel
and the bit.
Note: This would be a good place to make sure
that the chisel is parallel to the workpiece. See
the Chisel Parallel to Workpiece section.
Work Stop
The work stop can be mounted to either end of
the table through the holes in the back of the
table, as shown in Figure 9. It is tightened into
place by means of thumbscrews.
Figure 8
T
HUMBSCREWS
HOLES
Figure 9

12
Operating Controls
Start/Stop Switch
Referring to Figure 10: The Start/Stop Switch is
located to the left of the motor on the side of
the mortiser. To turn the mortiser on press the
green START (A) button. To stop the mortiser,
push the red STOP (B) button.
On-Off Switch Padlock
The push button switch of the Mortiser will
accept a safety padlock (not included). To
safeguard your machine from unauthorized
operation and accidental starting by young
children, the use of a padlock is highly
recommended – see Figure 11.
Figure 10
Figure 11

13
Adjustments
90 Chisel to Worktable Calibration
Referring to Figure 12:
Place a square (E) so it rests against the
worktable (B) and chisel (A). If the chisel to
table angle is 90, no calibration is necessary.
If calibration is required:
1. Loosen the bolt (C) that allows the tilting
base to pivot.
The tilting base is heavy. If
raised, take extra precaution not to let it
drop on hands or fingers. Injury can result.
2. Adjust the adjustment screws (F) until the
chisel to table angle is 90. Calibration is
then complete.
3. Retighten the bolt (C).
Upon completion, make sure that the pointer
points to 0. Calibrate if necessary.
Chuck Extension Adaptor
The provided Chuck Extension Adaptor (C) is
intended to lower the chuck for use with
after-market chisels (chisels other than the
POWERMATIC brand) that may require a
spacer due to varying lengths in shanks.
To install the adaptor, first remove the chisel
and bit (see the Installing Chisel and Bit
section). Then, referring to Figure 13:
1. Loosen the lock screw (E) enough to
remove the chisel bushing (F).
2. Remove the chisel bushing (F). This is
necessary to provide enough clearance
when installing the chuck and extension
adaptor.
3. Unscrew the chuck release nut (A)
counterclockwise with the wrench provided
to force the chuck (D) off the shaft (B).
It may be necessary to hold the shaft
stationary while turning the nut. This can
be done by inserting the chuck key handle
into the hole in the chuck and allowing it to
wedge against the edge of the headstock.
4. When the chuck is off, return the chuck
release nut (A) to its original position on the
shaft (B).
5. Push the adaptor (C) into the chuck (D).
Then push this assembly onto the motor
shaft (B).
Figure 12
Figure 13

14
6. Reinstall the chisel bushing (F) and secure
it loosely with the lock screw (E).
7. Reinstall the chisel and bit (refer to the
Installing Chisel and Bit section).
Depth Stop Rod Adjustment
Referring to Figure 14:
A depth stop rod (A) is provided to limit the
depth of the chisel. To adjust:
1. Loosen lock lever (B) and lower the depth
stop rod (A) until it comes to rest on top of
the column stop (C).
2. With the operating handle (see Figure 2)
lower the head (E) until the chisel (D) is at
the desired depth.
3. The depth stop rod (A) should still be
resting on top of the column stop (C).
4. Tighten the lock lever (B).
Table Position
The 719T Mortiser is equipped with two
handwheels for table (E, Fig. 15) positioning. In
addition, the table can be tilted up to 35 for
angle mortising.
Forward/Backward Table Movement
1. Loosen the wing screw on the right side of
the middle base under the table.
2. Turn the handwheel (A, Fig. 15) to move
the table the forward or backward.
3. Tighten the wing screw.
Lateral Table Movement
1. Loosen the wing screw located on the back
of the middle base located near the
column.
2. Turn the handwheel (B, Fig. 15) to move
the table to the right or left.
3. Tighten the wing screw.
Table Tilt Control
The tilt table is heavy. When
raised, take extra precaution not to let it
drop on hands or fingers. Injury can result.
1. Loosen bolt (C, Fig. 15) with the 23mm
wrench provided.
2. Pivot the table to adjust the angle up to 35
using the scale (D) on the tilt bracket as a
guide.
3. Tighten the bolt (C).
A
B
C D
E
Figure 14
Figure 15

15
Chisel Parallel to Workpiece
Referring to Figure 16:
The chisel can be adjusted parallel to the
workpiece as follows:
1. With the left handwheel (A), move the table
back far enough to insert the workpiece (B)
between the chisel (D) and fence.
2. Loosen the lock screw (C). This will allow
the chisel to rotate.
3. Bring the table forward with the handwheel
(A) until the workpiece (B) rests against the
back surface of the chisel (D), but do not
force.
Further adjust the chisel by hand if needed.
4. Tighten the lock screw (C).
Operation
1. Set the depth stop (A, Fig. 17) to the
required depth of cut. Refer to the Depth
Stop Rod Adjustment section.
5. Place workpiece on table (C, Fig. 18) and
clamp it with the vise (A, Fig. 18). Use the
left handwheel (D, Fig. 18) to move table
forward or backward to suit the position of
the mortise on the workpiece.
6. Adjust the table stops according to the
length of cut required, then tighten the
thumbscrews (B, Fig. 18).
Before turning the machine
on, verify that the chuck key is not in the
chuck.
7. Turn on the machine and feed the chisel
and bit steadily into workpiece by pulling
down the operating handle.
Note: The rate of feed must be fast enough to
prevent burning at the tip of the bit, but not so
fast as to cause the machine to slow or stall.
The different rates of feed for different woods
must be learned through experience.
8. After the first cut, the workpiece is moved
along with the right handwheel (E. Fig. 18)
for each successive cut. The direction of
movement must allow the chips to clear
freely. Move the workpiece so that the slot
in the chisel is releasing chips into the
already cut part of the workpiece
(Figure 19).
Figure 16
C
D
A
B
Figure 17
A
B
C
D E
F
Figure 18

16
Do not have the chisel slot
against the blind end of the mortise, as the
chips will not be able to clear the chisel.
This can cause overheating and possible
breakage of chisel or bit.
When cutting deep mortises, make the cut in
several stages of approximately 1" each, to
allow chips to clear. To prevent breakout at the
back of the workpiece when cutting through
mortises, use a piece of scrap material under
the workpiece as support.
Maintenance
Before any intervention on
the machine, disconnect it from the
electrical supply by pulling out the plug or
switching off the main switch! Failure to
comply may cause serious injury.
General
A coat of paste wax applied to the table and
column will help to keep the surfaces clean.
If the power cord is worn, cut, or damaged in
any way, have it replaced immediately.
The Mortiser requires only minor maintenance,
such as cleaning and lubrication and routine
adjustment and sharpening of the chisel and
bit.
Dust the machine down after each use and, as
necessary, use light applications of oil or
grease to lubricate linkages, moving parts, etc.
Sharpening Chisel and Bit
The chisel and bit should be kept sharp for best
performance. Blunt edges will give inaccurate
mortises and can lead to overheating and
breakage to chisel or bit. If chisel and bit are
badly worn and become difficult to sharpen,
they should be replaced.
Bit
Sharpen the bit by using a small, smooth file,
following the original shape of the bit. File the
inside edge of the spur, the sides of the brad
point, and the cutting edge inwards toward the
flute of the bit (Figure 20).
Do not file the outside edge of the spur, as this
will affect the diameter of the bit.
Figure 19
Figure 20

17
Chisel
Sharpen the chisel with a mortise chisel cutter
with the correct size pilot. (Pilot size will differ
depending on the size of your chisel). Two or
three turns of the cutter in a carpenter's brace
chuck should be enough to sharpen the chisel,
as shown in Figure 21.
Use a small, triangular, smooth file to relieve
the inner corners of the chisel (Figure 22).
Remove any burrs from the outside of the
chisel with a fine oilstone.
Lubrication
All of the ball bearings are packed with grease
at the factory. They require no further
lubrication.
Periodically grease the gears, racks, and table
pivot points with a #2 tube grease.
Periodically clean and oil any exposed machine
surfaces, such as: dove-tail ways and slides,
and table surface.
Storage
If the mortiser will be stored for an extended
period, use the depth stop to help secure the
head in position; this will relieve stress upon
the hydraulic cylinder.
Figure 21
Figure 22
Optional Accessories
1791091 Premium Mortise Chisel & Bit 1/4"
1791092 Premium Mortise Chisel & Bit 5/16"
1791093 Premium Mortise Chisel & Bit 3/8"
1791094 Premium Mortise Chisel & Bit 1/2"
1791095 Premium Mortise Chisel & Bit 3/4"
1791096 Premium Mortise Chisel & Bit, set of 4 (1/4”, 5/16”, 3/8”, 1/2”)
Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call
1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and
Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from
Powermatic. Some parts are shown for reference only, and may not be available individually.

18
719T Mortiser Assembly

19
719T Mortiser Parts List
Index No. Part No. Description Size Qty
................. 2474002T ................. 719T Mortiser Assy (Index No. 1 thru 120) ........ .................................... 1
1 ............... 719T-101 .................. Fixed Base ........................................................... .................................... 1
2 ............... 6294125 ................... Base, Middle ........................................................ .................................... 1
3 ............... 6294126 ................... Gib ........................................................................ .................................... 1
4 ............... TS-1523061 ............. Socket Set Screw ................................................. M6×20 ......................... 3
5 ............... TS-1540041 ............. Hex Nut ................................................................ M6 ............................... 9
6 ............... 6294129 ................... Lead Screw .......................................................... .................................... 1
7 ............... TS-1523031 ............. Socket Set Screw ................................................. M6×10 ......................... 4
8 ............... 6294131 ................... Handwheel ........................................................... .................................... 1
9 ............... 6294132 ................... Shaft ..................................................................... .................................... 1
10 ............. 6294133 ................... Gear ..................................................................... .................................... 1
11 ............. 6294134 ................... C-Clip ................................................................... .................................... 1
12 ............. 6294135 ................... Handwheel ........................................................... .................................... 1
13 ............. BB-6002ZZ ............... Bearing ................................................................. 6002ZZ........................ 2
14 ............. 6294137 ................... C-Clip ................................................................... .................................... 2
15 ............. TS-1503041 ............. Socket Head Cap Screw ...................................... M6×16 ......................... 2
16 ............. 6294139 ................... Stop Block ............................................................ .................................... 1
17 ............. 6294140 ................... Gib ........................................................................ .................................... 1
18 ............. 6294141 ................... Main Table ........................................................... .................................... 1
19 ............. TS-1523011 ............. Socket Set Screw ................................................. M6×6 ........................... 4
20 ............. 6294143 ................... Setting Collar........................................................ .................................... 2
21 ............. 6294144 ................... Setting Rod .......................................................... .................................... 1
22 ............. 6294145 ................... Wing Screw .......................................................... M6×16 ......................... 3
23 ............. 6294146 ................... Rack ..................................................................... .................................... 1
24 ............. TS-1523071 ............. Socket Set Screw ................................................. M6×25 ......................... 6
25 ............. 6294148 ................... Rear Length Setting Rod ..................................... .................................... 1
26 ............. 6294149 ................... Length Setting Block ............................................ .................................... 1
27 ............. 6294150 ................... Front Length Setting Rod ..................................... .................................... 1
28 ............. 6294151 ................... Wooden Worktable .............................................. .................................... 1
29 ............. TS-2286201 ............. Phillips Flat Head Machine Screw ....................... M6×20 ......................... 2
30 ............. 719T-130 .................. Column ................................................................. .................................... 1
31 ............. 6294154 ................... Wave Washer....................................................... .................................... 2
32 ............. 6294155 ................... Gib ........................................................................ .................................... 1
33 ............. 6294156 ................... Headstock ............................................................ .................................... 1
34 ............. 719T-134 .................. Rack ..................................................................... .................................... 1
35 ............. TS-1503031 ............. Socket Head Cap Screw ...................................... M6×12 ......................... 4
36 ............. 6294159 ................... Left Side Cover .................................................... .................................... 1
37 ............. 6294160 ................... Right Side Cover .................................................. .................................... 1
38 ............. TS-1533042 ............. Phillips Pan Head Machine Screw ....................... M5×12 ......................... 4
39 ............. 6294162 ................... Gear ..................................................................... .................................... 1
40 ............. 6294163 ................... Collar .................................................................... .................................... 1
41 ............. 6294164 ................... Gear Shaft ............................................................ .................................... 1
42 ............. 6294165 ................... Handle Hub .......................................................... .................................... 1
43 ............. 6294166 ................... Spring ................................................................... .................................... 1
44 ............. 6294167 ................... Washer ................................................................. .................................... 1
45 ............. TS-1514021 ............. Socket Head Flat Screw ...................................... M6×16 ......................... 2
46 ............. 6294169 ................... Handle .................................................................. .................................... 1
47 ............. 6294170 ................... Handle Grip .......................................................... .................................... 1
48 ............. 6294171 ................... Chuck .................................................................. 1/2” & Key ................... 1
49 ............. 6294172 ................... Motor, 1HP, 1PH, 115/230V ................................ .................................... 1
50 ............. 6294173 ................... Switch Box ........................................................... .................................... 1
51 ............. TS-081C052 ............. Phillips Pan Head Machine Screw ....................... #10-24 × 3/4 ................ 2
52 ............. 6294175 ................... Switch ................................................................... .................................... 1
53 ............ TS-0749042 ............. Phillips Pan Head Tapping Screw ....................... #8 × 5/8 ...................... 2
54 ............. TS-1503051 ............. Socket Head Cap Screw ...................................... M6×20 ......................... 3
55 ............. 6294178 ................... Upper Cylinder Fitting .......................................... .................................... 1

20
Index No. Part No. Description Size Qty
56 ............. 719T-156 .................. Hydraulic Cylinder ................................................ .................................... 1
57 ............. 6294180 ................... C-Clip ................................................................... .................................... 2
58 ............. 6294181 ................... Depth Setting Block ............................................. .................................... 1
59 ............. 719T-159 .................. Depth Setting Rod ................................................ .................................... 1
60 ............. 6294183 ................... Universal Handle .................................................. .................................... 1
61 ............. TS-1505041 ............. Socket Head Cap Screw ...................................... M10×30 ....................... 4
62 ............. TS-2361101 ............. Lock Washer ........................................................ M10 ............................. 8
63 ............. 6294186 ................... Clamping Jaw....................................................... .................................... 1
64 ............. 6294187 ................... Clamping Block .................................................... .................................... 1
65 ............. 6294188 ................... Rapid Nut ............................................................. .................................... 1
66 ............ 6294189 ................... Friction Toe .......................................................... .................................... 1
67 ............. 6294190 ................... Spring ................................................................... .................................... 1
68 ............. 6294191 ................... Rivet ..................................................................... .................................... 1
69 ............. 6294192 ................... Locking Screw ...................................................... .................................... 1
70 ............. 6294193 ................... Stop Disc .............................................................. .................................... 1
71 ............. TS-1504051 ............. Socket Head Cap Screw ...................................... M8×25 ......................... 2
72 ............. TS-1550061 ............. Flat Washer .......................................................... M8 ............................... 2
73 ............. TS-1504061 ............. Socket Head Cap Screw ...................................... M8×30 ......................... 2
74 ............. 6294197 ................... Chisel Locking Screw ........................................... .................................... 1
75 ............. 6294198 ................... Bushing ................................................................ 1-1/8” ........................... 1
75A ........... 6294221 ................... Bushing ................................................................ 3/4” .............................. 1
75B ........... 6294222 ................... Bushing ................................................................ 5/8” .............................. 1
76 ............. 6294199 ................... Wheel Handle ...................................................... .................................... 2
77 ............. 6294200 ................... Collar .................................................................... .................................... 1
78 ............. 6294201 ................... E-Clip ................................................................... .................................... 2
79 ............ 6294202 ................... Back Cover ........................................................... .................................... 1
80 ............. TS-1532032 ............. Phillips Pan Head Machine Screw ....................... M4 × 10 ....................... 6
81 ............. 6294204 ................... Chuck Key ............................................................ .................................... 1
82 ............. 6294205 ................... Chuck Key Holder ................................................ .................................... 1
83 ............. TS-2361051 ............. Lock Washer ........................................................ M5 ............................... 1
84 ............. TS-1502011 ............. Socket Head Cap Screw ...................................... M5 × 8 ......................... 1
85 ............. 6294208 ................... Chuck Release Nut .............................................. .................................... 1
86 ............. 6294209 ................... Wave Washer....................................................... .................................... 1
87 ............. 6294240 ................... Cylinder Holder .................................................... .................................... 2
88 ............. 6294211 ................... Wrench (Chuck Removal) .................................... .................................... 1
89 ............. 6294212 ................... Lower Cylinder Fitting .......................................... .................................... 1
90 ............. 6294213 ................... Wing Screw .......................................................... M6 × 8 ......................... 2
91 ............. 6294214 ................... Roll Pin ................................................................. .................................... 1
92 ............. 6294215 ................... Key ....................................................................... 5 × 5 × 10 .................... 1
93 ............. 6294216 ................... Key ....................................................................... 5 × 5 × 12 .................... 1
94 ............. 6294217 ................... Power Cord .......................................................... .................................... 1
95 ............. 6294223 ................... Handle Protector .................................................. .................................... 1
96 ............. 3005069 ................... Chuck Extension Adaptor .................................... .................................... 1
97 ............. JWP15-065 .............. Wing Screw .......................................................... M6×25 ......................... 2
98 ............. TS-0267051 ............. Socket Set Screw ................................................. 1/4-20 ×1/2 .................. 2
99 ............. TS-2361081 ............. Lock Washer ........................................................ M8 ............................... 2
100 ........... TS-2360121 ............. Flat Washer .......................................................... M12 ............................. 1
101 ........... TS-2361061 ............. Lock Washer ........................................................ M6 ............................... 3
102 ........... 6294243 ................... Roll Pin ................................................................. M6 × 16 ....................... 1
103 ........... 6294244 ................... Cord Strain Relief ................................................. .................................... 1
104 ........... 719T-1104 ................ Pin ........................................................................ .................................... 1
105 ........... 719T-1105 ................ Pointer .................................................................. .................................... 1
106 ........... TS-1550041 ............. Flat Washer .......................................................... M6 ............................... 1
107 ........... TS-1534032 ............. Phillips Pan Head Machine Screw ....................... M6 x 10 ....................... 1
108 ........... 719T-1108 ................ Tilting Bracket ...................................................... .................................... 1
109 ........... TS-155010 ............... Flat Washer .......................................................... M16 ............................. 1
110 ........... 719T-1110 ................ Shaft ..................................................................... .................................... 1
111 ........... 719T-1111 ................ Square Nut ........................................................... .................................... 1
112 ........... TS-1490051 ............. Hex Cap Screw .................................................... M8 x 30 ....................... 2
