PR Lighting XRLED 1200 SPOT User manual

XRLED 1200 SPOT
PR-8180
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/22
INDEX
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
DMX TERMINATOR 6
SETUP OPTIONS-PROJECTOR CONFIGURATION 6
TO SET THE DMX START ADDRESS 7
STAND-ALONE MODE 7
MASTER/SLAVE MODE 7
OPERATION MENU 8
REPLACING GOBOS 11
DMX PROTOCOL 12
INDICATION OF LED DISPLAY 14
MAINTENANCE 14
LUBRICATION 15
KEEPING THE PROJECTOR CLEAN 15
TROUBLESHOOTING 15
TECHNICAL DATA 16
ELECTRICAL DIAGRAM 19
COMPONENT ORDER CODES 20
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without
notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of
product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence
arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the
unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
G clamps 2 Pcs
DMX connector 1 Set Without DMX cable
Safety cord 1 Pc
This manual 1 Pc
Ω clamps 2 Pcs Optional

3/22
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check there is no transportation damage before using the projector.
Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with water or any other liquids.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure
that no ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 3m. 1.3m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact
with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be
attached as shown in “installing the projector” section.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is
impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 45℃, when steady state is achieved 50℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the
covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work!

4/22
INSTALL THE PROJECTOR
CLAMP
SAFETY CORD
HANDLE
CONTROL PANNEL
106
106
106
256
256
To pass SAFETY CORD
through 2 HOLES for safety!
WARNING
Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers
attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the
WARNING on the underside of the base as shown above) To pass SAFETY CORD through 2 HOLE for safety!
Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that
the structure that you are going to mount the projector is secure and is strong enough to support a weight of each
projector.
WARNING:
1. A device MUST be lifted or carried by its HANDLES instead of clamps.
2. For safety the safety cord should afford 10 times the unit’s weight.

5/22
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked
on the panel of the projector. It is recommended that each projector be supplied separately so that they may be
individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and the electrical installation conforms to all relevant
standards.

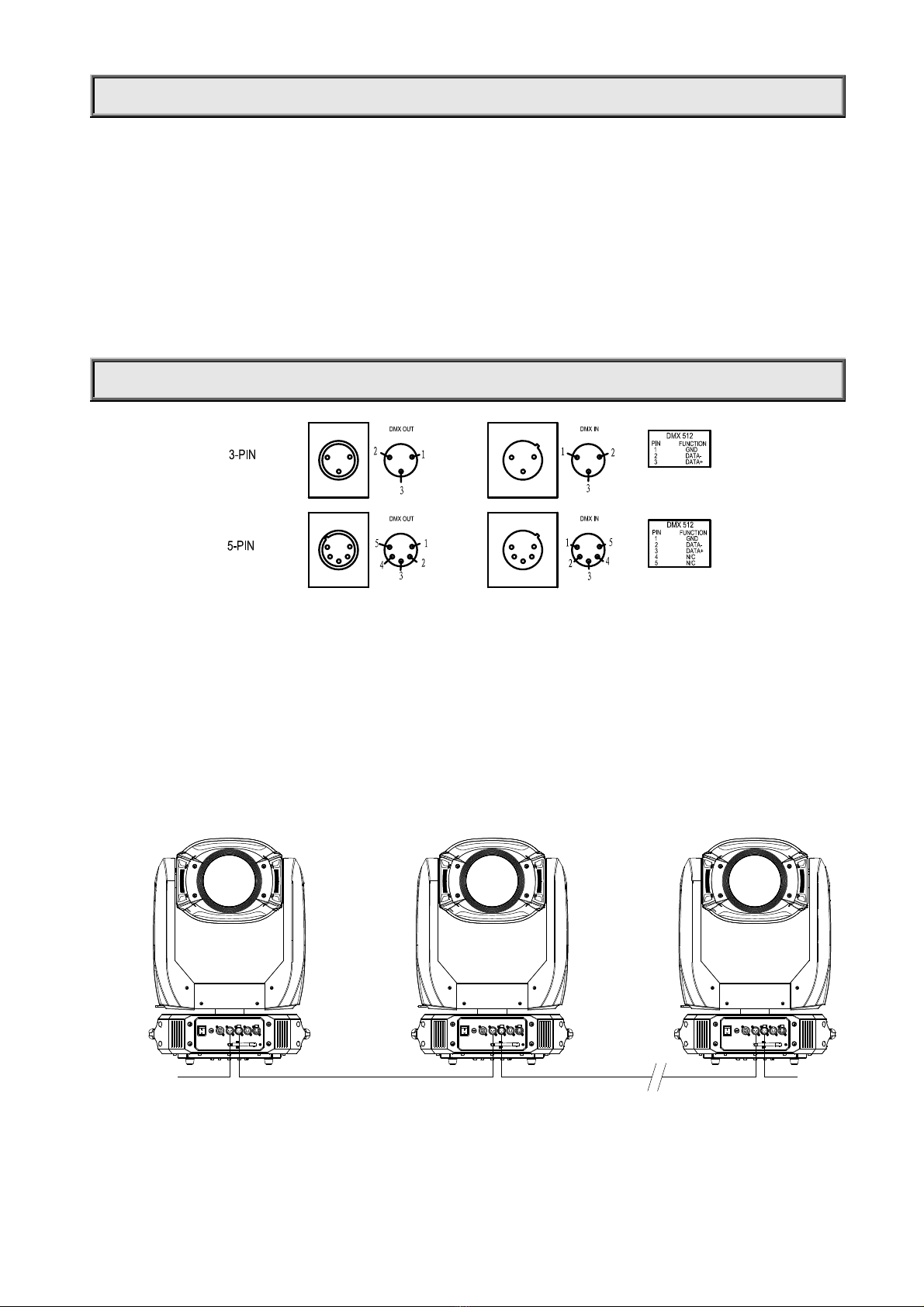

CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a 2
core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via
cannon 5 pin (which are included with the projector) or XLR plugs and sockets. The XLR's are connected as shown in
the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of
the plug is not connected in any way. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown
in the figure below.
DMX OUT DMX OUTDMX IN TERMINATORDMX IN
NO.1 NO.2 NO.n
DMX IN FROM
CONTROLLER

6/22
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This
prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is
then plugged into the output socket on the last projector in the chain. The connections are illustrated below.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PROJECTOR CONFIGURATION
W-DMXDMX
PR-8180
XRLED 1200 Spot
A device configuration can be set conveniently via pressbutton switch and LCD display.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel, LED display shows functional menus
which have their own sub-menus for designated functions, the below is the details
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the next menu.
Press button UP or DOWN to shift.
Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status
automatically.

7/22
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals.
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information
being sent out from the controller. The fixture has 3 DMX modes. There are standard mode, extended mode and short
mode. For example standard mode has 21 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address
026, No. 3 projector’s address 051, No. 4 projector’s address 076, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press either buttons of UP and DOWN under 1st level menu to locate the menu of DMX ADDRESS, press
ENTER to set DMX address.
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm, after powered next time, the last saved settings will be showed.
Press button FUNC, it will return to the upper menu one by one.
STAND-ALONE MODE
Operate the projector without connecting a controller, enable the master mode in the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set without limitations.
MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. Select
one projector as the master with setting options at any mode of master’s modes enabled and make the other
projectors as the slaves with setting options slave mode enabled and their DMX start address “001”.
Using XLR-XLR cables, Connect the first fixture’s output to the second fixture’s input, and connect the second fixture’s
output to the third fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output
to a DMX terminator as shown in the figure below.
After powered, the group will run in synchronous Master/Slave Mode.
DMX OUTDMX IN DMX OUTDMX IN TERMINATORDMX IN
MASTER SLAVE SLAVE

8/22
OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL
DMX Address
Standard mode: 1~488
Extended mode: 1~483
Short mode:1~495
Reset Are You Sure
Config Settings
DMX Channel Mode
(Default is：Standard mode)
Standard mode 25
Extended mode 30
Short mode 18
Pan Tilt Swap
(Default is: OFF)
OFF
Pan Tilt Swap off
ON
Pan Tilt Swap on
Pan Tilt Invert
(Default is: OFF)
OFF
Pan Tilt Invert off
ON
Pan Tilt Invert on
Pan amend 0-127
Tilt amend 0-127
DMX Mode
(Default is: XLR First)
XLR First
XLR Only
Wireless Only
Wireless First
WirelessTo XLR
Unlink Wireless YES
Master Slave Mode
(Default is: slave)
Slave
Master
Factory Settings YES
PRM Transmit YES
Display Options
Language English / Chinese
Display Mode Off After Delay / On
Always
Display Reverse OFF / ON
Display Contrast
(Default is: 9) 0~18
Information
Power On Hours XXXX
Software Version X.X.X

9/22
Test Mode
Self Test YES
Manual Test
Red Dimmer 0-255
Green Dimmer 0-255
Blue Dimmer 0-255
Iris
NO
Effect 1
Effect 2
Effect 3
F-Gobo wheel
NO Gobo
Gobo 1 - Gobo 8
Rotation
Reverse Rotation
Shake 1 ~ 8
Rotating Gobo
NO Gobo
Gobo 1 - Gobo 6
Rotation
Reverse Rotation
Shake 1 ~ 6
Gobo rotation
Stop
Rotation
Reverse Rotation
Frost
No
Have
Prism Set
NO
Have
Prism Rotate
Stop
Rotation
Reverse Rotation
Focus 0-255
ZOOM 0-255
Pan Location 0-255
Tilt Location 0-255
Pan&Tilt Speed 0-255

10/22
Operation Mode
DMX Operation
Preset Memory
User Memory
Static Scene 1～16
CH1 Strobe 0-255
CH2 Dimmer 0-255
CH3 Red 0-255
CH4 Green 0-255
CH5 Blue 0-255
CH6 Iris 0-255
CH7 F-Gobo 0-255
CH8 R-Gobo 0-255
CH9 Gobo-R 0-255
CH10 Frost 0-255
CH11 Prism Set 0-255
CH12 Prism-R 0-255
CH13 Focus 0-255
CH14Zoom 0-255
CH15Pan 0-255
CH16Tilt 0-255
CH17 P&T Speed 0-255
CH18 Keep Time 0-25 Second
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including:
DMX mode, display setting, operation mode(user memory data included);
Explanations for the signs on top-right of the display:
S: Slave M: Master
D: DMX512 Mode I: Preset Memory
U: User’s Memory T: Test Mode
Lock Sign:
It means the buttons are locked , the sign will disappear and buttons be unlocked after Press button are pressed
for more than 3 seconds.

11/22

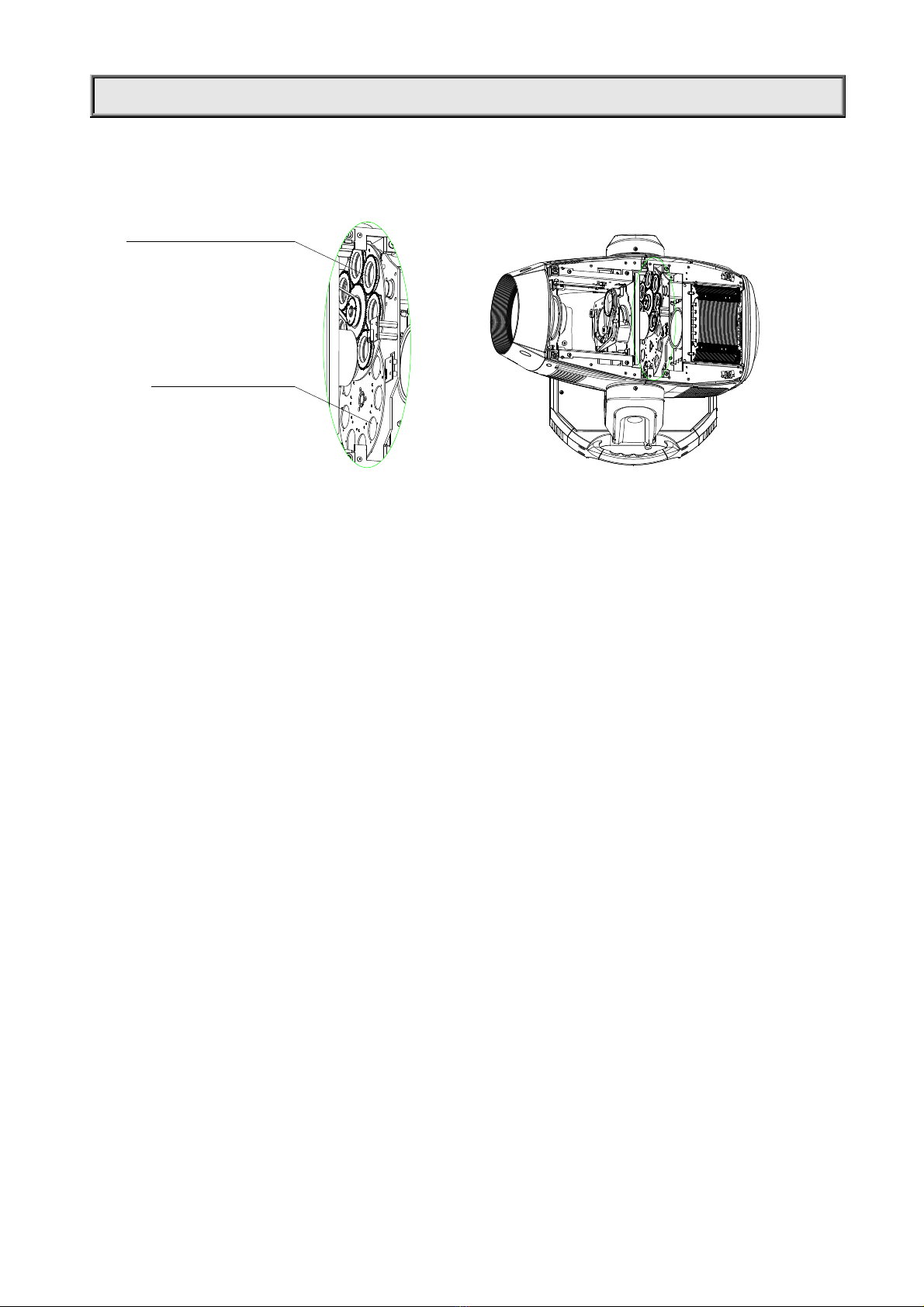

REPLACING GOBOS
ROTATING GOBO WHEEL
FIXED GOBO WHEEL
Disconnect the fixture from power. Carefully lift off the cover by undoing the 6 fast-fit screws.
Before the replacement of fixed gobos, take leaf spring out using finger, push the gobos out carefully and insert new
gobos.
For rotating gobos: take rotating gobo wheel out by hand, push gobos out after pulling out leaf springs. Insert new gobos
into gobo holders, then insert leaf spring back and make sure it is in narrow ring groove in the holder, i.e. internal ring
groove in the holder, then flatten it. At last, use appropriate tool to push tightening spring back, then put the holder back
into the wheel by another hand.
Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand
and glass instead of with bare hand.
Close the rear cover and fasten 6 fast-fit screws.

2700K-10000K
No strobe
12/22
DMX PROTOCOL
Short
mode
Standard
mode
Extended
mode Function DMX Description
1 1 1 Strobe
000-015
016-127
128-255 Strobe speed from slow to fast
2 2 2 Dimmer 000-255 Dimming from dark to light (0-100%)
3 Dimmer Fine 000-255 Dimmer in 16 Bit precision
3 4 Color Temp
000-000 No
001-255 Linear Color Temp adjustment from
3 4 5 Colour Macro
000-000 No
001-031 Red
032-063 Green
064-095 Blue
096-127 Yellow
128-159 Cyan
160-191 Magenta
192-223 White
224-255 All Lamps On
4 5 6 Red 0-255 Red from light to Dark (0-100%)
7 Red Fine 0-255 Red in 16 Bit precision
5 6 8 Green 0-255 Green from light to Dark (0-100%)
9 Green Fine 0-255 Green in 16 Bit precision
6 7 10 Blue 0-255 Blue from light to Dark (0-100%)
11 Blue Fine 0-255 Blue in 16 Bit precision
7 8 12 Iris
000-207 From big to Small
208-223 Iris effect 1
224-239 Iris effect 2
240-255 Iris effect 3
13 Iris Fine 0-255 Iris in 16 Bit precision
8 9 14 Fixed Gobo
Wheel
000-063 White
064-071 Gobo1
072-079 Gobo 2
080-087 Gobo 3
Pulse strobe from slow to fast

13/22
088-095 Gobo 4
096-103 Gobo 5
104-111 Gobo 6
112-119 Gobo 7
120-127 Gobo 8
128-159 Rotation from slow to fast
160-191 Reverse rotation from slow to fast
192-199 Gobo shake 1 from fast to slow
200-207 Gobo shake 2 from fast to slow
208-215 Gobo shake 3 from fast to slow
216-223 Gobo shake 4 from fast to slow
224-231 Gobo shake 5 from fast to slow
232-239 Gobo shake 6 from fast to slow
240-247 Gobo shake 7 from fast to slow
248-255 Gobo shake 8 from fast to slow
9 10 15 Rotating Gobo
Wheel
000-031 white
032-047 Gobo 1
048-063 Gobo 2
064-079 Gobo 3
080-095 Gobo 4
096-111 Gobo 5
112-127 Gobo 6
128-143 Rotation speed from slow to fast
144-159 Reverse rotation from slow to fast
160-175 Gobo shake 1 from fast to slow
176-191 Gobo shake 2 from fast to slow
192-207 Gobo shake 3 from fast to slow
208-223 Gobo shake 4 from fast to slow
224-239 Gobo shake 5 from fast to slow
240-255 Gobo shake 6 from fast to slow
10 11 16 Gobo rotation
000-207 0~540°indexable
208-223 Gobo rotation from slow to fast
224-239 Stop rotating
240-255 Reverse rotation from slow to fast
12 17 Gobo rotation
Fine 000-255 Gobo rotation in 16 Bit precision

14/22
11 13 18 Frost
000-019 No
020-255 Frost
12 14 19 Prism 000-019 White
020-255 Prism
13 15 20 Prism rotation
000-063 Stop rotating
064-127 Prism rotation from slow to fast
128-191 Stop rotating
192-255 Reverse rotation from slow to fast
14 16 21 Focus 000-255 Linearly focusing
17 22 Focus Fine 000-255 Focus in 16 precision
15 18 23 Zoom 000-255 Linearly focusing
19 24 Zoom Fine 000-255 Focus in 16 precision
16 20 25 Pan 000-255 Pan rotation 0°~ 540°
21 26 Pan Fine 000-255 Pan rotation in 16 precision
17 22 27 Tilt 000-255 Tilt rotation 0°~270°
23 28 Tilt Fine 000-255 Tilt rotation in 16 precision
24 29 Pan & Tilt
speed 000-255 Pan &Tilt speed from fast to slow
18 25 30 Control 000-048 Reserved
049-255 Reset
Remarks:
Channel Priority: RGB dimming,>Color Macros;Prism>Frost filter
While higher priority channels run, the lower ones will be invalid.
INDICATION OF LED DISPLAY
Green LED indication On DMX signal OK
Off No DMX signal
Blue LED indication
On Wireless Signal OK
Off Not linked with any transmitters
Flash Loss of connection or being linked with a transmitter
MAINTENANCE
If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by
fuses of the same specification. Should these be damaged call a qualified technician before replacement. The projector
has thermal protection device that will switch off the projector in case of overheating, should either of these operate,
check that the fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that
the fans are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.

15/22
LUBRICATION
To ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing, it is recommended that
the bearings for the rotating gobos and the 2 shafts for the focusing lens holder be lubricated periodically, preferably
every two months. Use only high quality, high-temperature resistant grease instead of any type of oil. When lubricating
the bearings, a syringe with a fine needle is the easiest way to introduce the grease to the bearings around each gobo.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every
15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do
NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products
should be used in cleaning. It is recommended to clean the external optics at least once every 20 days and clean the
internal optics at least once every 30 / 60 days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of
the apparatus.
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
 Check the fuse on the power socket.
 Replace the lamp.
The lamp comes on but the projector
doesn’t respond to the controller
 Make sure that the projector is correctly configurated.
 Replace or repair the DMX cable.
The projector only functions intermittently  Make sure the fan is working and not dirty.
Defective projection
 Check the lenses are not broken.
 Remove dust or grease from the lenses.
The project image appears to have a halo
 Make sure the lamp is installed correctly.
 Carefully clean the optical group lenses and the projector
components.
The beam appears dim
 Check the optics is clean.
 Replace with a new lamp of the specified type and rating.

Bi
Linearly focusing controlled by DMX
1x3-facet prism, bi
FROST:
20000 hours
Atria SL800
16/22
TECHNICAL DATA
VOLTAGES:
100V~240V AC，50/60Hz
POWER CONSUMPTION:
950W
LINGHT SOURCE:
Model
Power consumption 800W
Rated life
COLOURS:
RGB(Red Green Blue) Linear Color Mixing with Macros
variable speed rainbow effect
COLOR TEMP：
Linear CT changes: 10000K～2700K
GOBOS:
1 Rotating gobo wheel:
6 interchangeable gobos+ white, glass or metal gobos can be fixed
Indexable, bi-directionally rotatable and Wheel Scrolling at variable speeds, shakable at variable speeds
1 Fixed gobo wheel :
8 interchangeable gobos+ white
-directional wheel scrolling at variable speeds, shaking at variable speeds
Gobo diameter: Φ31.8mm
Gobo image diameter: Φ24mm
1 Frost filter
PRISM:
-directionally rotatable at variable speeds
FOCUS:
BEAM ANGLE:
11°～55°linear adjustment
DIMMER:
0-100% linearly adjustable

Optional DMX512 wireless Transmitter
17/22
IRIS:
Linearly adjusted with Macro
STROBE:
Electronic strobe, 0.3~20 F.P.S
HEAD MOVEMENT:
Pan 0 º ~540º, Tilt 0 º ~270º with auto position correction
Swap and Invert functions of Pan and Tilt
CONTROL:
DMX512, 3 pin, 5 pin interfaces
18 channels in short mode, 25 channels in standard mode, and 30 channels in extended mode.
Master/slave mode
Stand-alone mode
Self-test mode
OTHER FUNCTIONS:
Adjustable Pan & Tilt speed
Fixture usage time display
LCD display in Chinese and English, and its brightness and contrast adjustable
Software version display
Modular Structure easy for Maintenance
DMX512 wireless available
HOUSING:
Composite plastic, IP20
NET WEIGHT:
38.2Kg

18/22
SIZES:
W-DMXDMX
PR-8180
XRLED 1200 Spot
W-DMXDMX
PR-8180
XRLED 1200 Spot
903
490 406
636
694
541
463
LIGHT OUTPUT:
4m
12m 14m
10m
6m
2m
8m
0m
4m
8m
2m
6m
10m
12m
14m
16m
16m
DISTANCE(m)
11°DIAMETER(m)
55°DIAMETER(m)
0m
0
0
10m
2.02
4.85
15m
3.04
9.7
20m
4.05
14.55
25m
5.06
19.4 24.25
30m
6.07
29.1
11°lux
55°lux
5m
1.01
55°
9771
486
2443
122
1086
54
611
30
391
19
271
14
11°

19/22

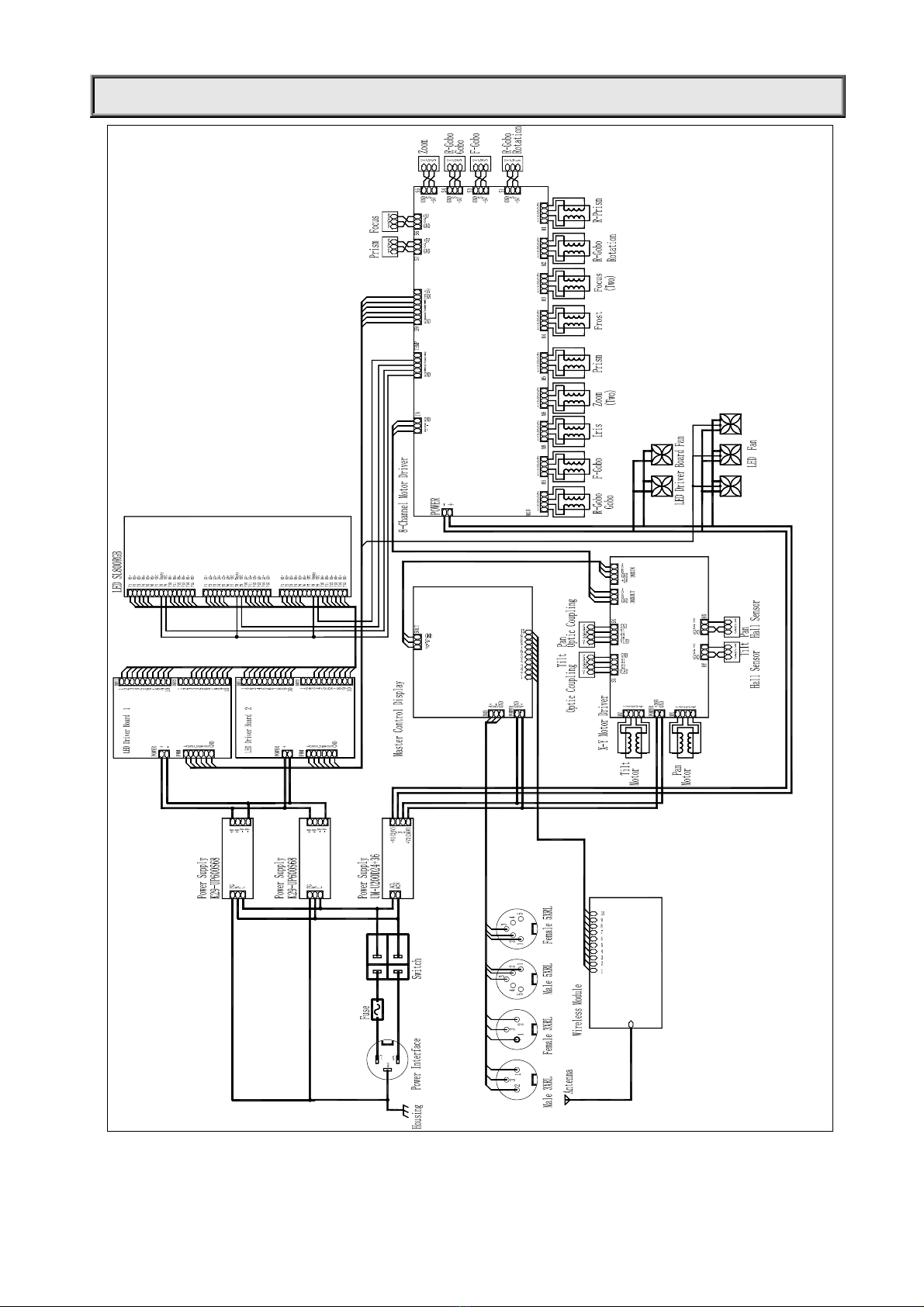

ELECTRICAL DIAGRAM

20/22
COMPONENT ORDER CODES
NAME PART NO. QUANTITY REMARK
LED 150020260 1 Atria SL800
600W POWER SUPPLY 192010160 2 K29-UP600
230W POWER SUPPLY 192010156 1 ACP-V230D22W3624U1
FAN 030060070 2 40X40X10mm
FAN 030060082 2 120X120X32mm
FAN 030060074 1 92X92X25mm
PAN BELT 290151240 1 HDT-537-3M W10mm
TILT BELT 290151328 1 HTD-885-3M W9mm
IRIS MOTOR 030040117 1
FIXED GOBO WHEEL MOTOR 030040204 1
ROTATING GOBOWHEEL MOTOR 1
GOBO ROTATION MOTOR 030040166 1
FROST MOTOR 030040073 1
PRISM MOTOR 030040237 1
PRISM ROTATION MOTOR 030040203 1
FOCUS MOTOR 030040154 2
ZOOM MOTOR 2
PAN MOTOR 030040190 1
TILT MOTOR 1
LED DRIVE PCB 230060219A 2
MOTOR DRIVE PCB 230060312 1
PAN/TILT DRIVE PCB 230060194 1
DISPLAY PCB 230020657 1
