PR PRetrans 6335 User manual

SIGNALS THE BEST
6335
2-Wire HART®
Transmitter
No. 6335V109-IN
From ser. no. 100924000
DK
UK
FR
DE
ES
RU

1101
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturud-
sving, og alle produkter opfylder de strengeste internationale stan-
darder. Vores motto »Signals the Best« er indbegrebet af denne
filosofi – og din garanti for kvalitet.
PR electronics A/S offers a wide range of analogue and digital
signal conditioning modules for industrial automation. The product
range includes Isolators, Displays, Ex Interfaces, Temperature
Transmitters, and Universal Modules. You can trust our products
in the most extreme environments with electrical noise, vibrations
and temperature fluctuations, and all products comply with the
most exacting international standards. »Signals the Best« is the
epitome of our philosophy – and your guarantee for quality.
PR electronics A/S offre une large gamme de produits pour le
traite ment des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux afficheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm
an analogen und digitalen Signalverarbeitungsmodule für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Überein stimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE

6335V109-IN 1
2-WIRE HART® TRANSMITTER
PRETRANS 6335
CONTENTS
EC declaration of conformity ............................................. 2
Application ......................................................................... 3
Technical characteristics .................................................... 3
Mounting / installation ........................................................ 3
Applications ........................................................................ 4
Order: 6335 ........................................................................ 5
Electrical specifications ...................................................... 5
Connections ....................................................................... 9
Block diagram .................................................................... 11

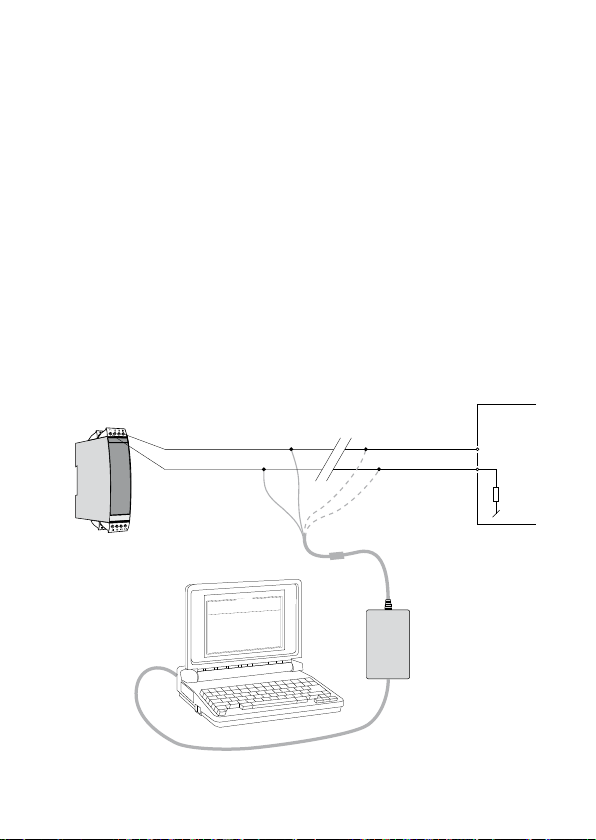

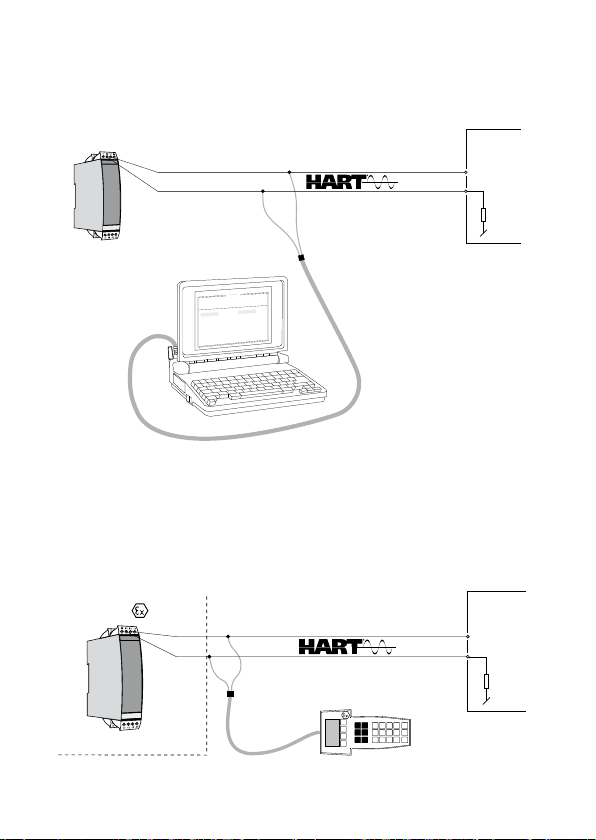

Programming ...................................................................... 12

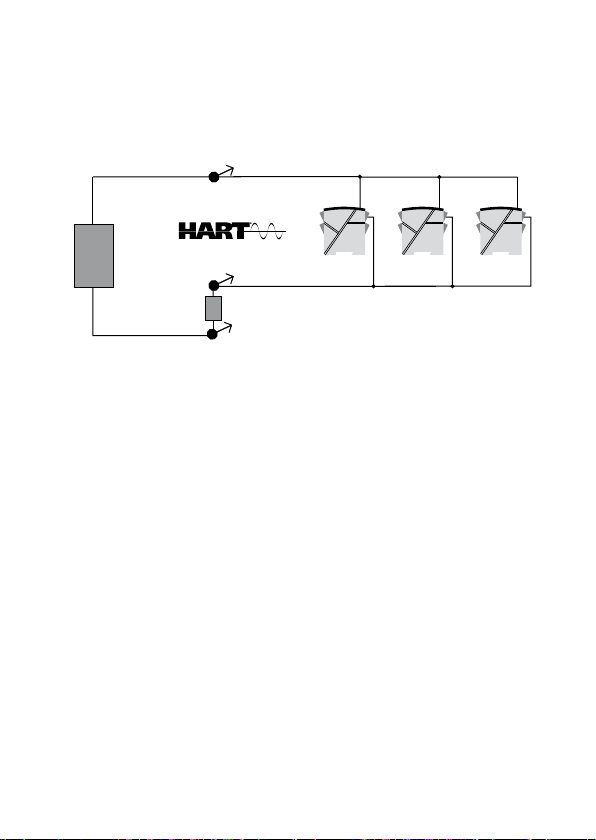

Connection of transmitters in multidrop mode .................. 14
Appendix ............................................................................ 15
ATEX Installation Drawing - 6335A .................................. 15
ATEX Installation Drawing - 6335D ................................. 15
IECEx installation drawing - 6335D ................................. 15
FM Installation Drawing No. 6335QF01 .......................... 15
CSA Installation Drawing No. 6335QC02 ....................... 15

2 6335V109-IN
EC DECLARATION OF CONFORMITY
As manufacturer
PR electronics A/S
Lerbakken 10
DK-8410 Rønde
hereby declares that the following product:
Type: 6335
Name: 2-wire HART® transmitter
is in conformity with the following directives and standards:
The EMC Directive 2004/108/EC and later amendments
EN 61326-1 : 2006
For specification of the acceptable EMC performance level, refer to the
electrical specifications for the module.
The ATEX Directive 94/9/EC and later amendments
EN 60079-0 : 2006, EN 60079-11 : 2007,
EN 60079-15 : 2005 and EN 60079-26 : 2007
ATEX certificate: KEMA 10ATEX0006 X (6335A)
ATEX certificate: KEMA 09ATEX0148 (6335D)
Notified body
KEMA Quality B.V. (0344)
Utrechtseweg 310, 6812 AR Arnhem
P.O. Box 5185, 6802 ED Arnhem
The Netherlands
Rønde, 22 March 2010 Kim Rasmussen
Manufacturer’s signature
CONTENTS

6335V109-IN 3
2-WIRE HART® TRANSMITTER
PRETRANS 6335
• RTD, TC, Ohm, or mV input
• Extremely high measurement accuracy
• HART® communication
• Galvanic isolation
• 1- or 2-channel version
Application
• Linearised temperature measurement with Pt100...Pt1000, Ni100...Ni1000,
TC or sensor.
• Difference or average temperature measurement of 2 resistance or TC sensors.
• Conversion of linear resistance variation to a standard analogue current
signal, for instance from valves or Ohmic level sensors.
• Amplification of a bipolar mV signal to a standard 4...20 mA current signal.
• Connection of up to 15 channels to a digital 2-wire signal with
HART® communication.
Technical characteristics
• Within a few seconds the user can program PR6335 to measure temperatures
within all ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire
connection.
• The 6335 has been designed according to strict safety requirements and is
thus suitable for application in SIL 2 installations.
• A limit can be programmed on the output signal.
• Continuous check of vital stored data for safety reasons.
• Sensor error detection according to the guidelines in NAMUR NE 89.
Mounting / installation
• Mounted vertically or horizontally on a DIN rail. As the modules can be
mounted without any distance between neighbouring units, up to 84 channels
can be mounted per metre.
• NB: As Ex barrier for 6335D we recommend 5106B.
CONTENTS

4 6335V109-IN
APPLICATIONS
V +
m A
V +
m A
V +
m A
V +
m A
V +
m A
1 2
2
1 2
1
RTD to 4...20 mA
TC to 4...20 mA
Resistance
to 4...20 mA
Difference or average
RTD, TC or mV
2-wire installation
in control room
2-wire installation
in control room
2-wire installation
in control room
2-wire installation
in control room
mV to 4...20 mA 2-wire installation
in control room
CONTENTS

6335V109-IN 5
*NB! Please remember to order CJC connectors type 5910/5910Ex (channel 1)
and 5913/5913Ex (channel 2) for TC inputs with an internal CJC.
Electrical specifications
Specifications range:
-40°C to +60°C
Common specifications:
Supply voltage, DC
Standard............................................... 8.0...35 VDC
CSA, FM, ATEX & IECEx ...................... 8.0...30 VDC
Isolation voltage, test / operation ............... 1.5 kVAC / 50 VAC
Isolation voltage, channel 1 / channel 2:
Standard............................................... 3.75 kVAC
CSA, FM, ATEX & IECEx ...................... 1500 VAC
Warm-up time .............................................. 30 s
Communications interface .......................... Loop Link and HART®
Signal / noise ratio ...................................... Min. 60 dB
Response time (programmable) .................. 1...60 s
EEprom error check .................................... < 10 s
Signal dynamics, input ................................ 22 bit
Signal dynamics, output.............................. 16 bit
Calibration temperature............................... 20...28°C
Accuracy, the greater of general and basic values:
Order: 6335
General values
Input type Absolute accuracy Temperature coefficient
All ≤ ±0.05% of span ≤ ±0.005% of span / °C
Type Version Galvanic
isolation Channels
6335 Standard : A
CSA, FM, : D
ATEX & IECEx
1500 VAC : 2 Single : A
Double : B
CONTENTS

6 6335V109-IN
Effect of supply voltage variation ................ < 0.005% of span / VDC
Max. wire size .............................................. 1 x 1.5 mm2 stranded wire
Humidity ...................................................... < 95% RH (non-cond.)
Dimensions .................................................. 109 x 23.5 x 104 mm
Protection degree ........................................ IP20
Weigh (1 / 2 channels) ................................. 145 / 185 g
Electrical specifications, inputs:
Max. offset................................................... 50% of selected numerical
max. value
RTD and linear resistance input:
Cable resistance per wire (max.) ................. 5 Ω
Sensor current ............................................. Nom. 0.2 mA
Effect of sensor cable resistance
(3- / 4-wire) .................................................. < 0.002 Ω / Ω
Sensor error detection ................................ Yes
Short circuit detection ................................. If 0% > 30 Ω
RTD
type Min. value Max. value Min. span Standard
Pt100
Ni100
Lin. R
-200°C
-60°C
0 Ω
+850°C
+250°C
7000 Ω
10°C
10°C
10 Ω
IEC 60751
DIN 43760
-----
Basic values
Input type Basic accuracy Temperature coefficient
Pt100 and Pt1000 ≤ ±0.1°C ≤ ±0.005°C/°C
Ni100 ≤ ±0.2°C ≤ ±0.005°C/°C
Lin. R ≤ ±0.1 Ω ≤ ±5 mΩ / °C
Volt ≤ ±10 µV ≤ ±0.5 µV / °C
TC type:
E, J, K, L, N, T, U ≤ ±0.5°C ≤ ±0.025°C / °C
TC type:
B, R, S, W3, W5 ≤ ±1°C ≤ ±0.1°C / °C
EMC immunity influence ..................................... < ±0.1% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ....................... < ±1% of span
CONTENTS

6335V109-IN 7
TC inputs:
Cold junction compensation ....................... < ±1.0°C
External CJC with Ni100 or Pt100 .............. -40 ≤ Tamb. ≤ 135°C
Sensor error detection ................................ Yes
Sensor error current:
When detecting .................................... Nom. 33 mA
Else....................................................... 0 mA
Short circuit detection ................................. If 0% > 5 mV
Voltage inputs:
Measurement range ................................... -800...+800 mV
Min. span ..................................................... 2.5 mV
Input resistance ........................................... 10 MΩ
Current output:
Signal range ................................................ 4...20 mA
Min. signal range ......................................... 16 mA
Updating time .............................................. 440 ms
(660 ms for diff.)
Fixed output signal ...................................... Between 4 and 20 mA
Output signal at EEprom error .................... ≤ 3.5 mA
Load resistance ........................................... ≤ (Vsupply - 8) / 0.023 [Ω ]
Load stability ............................................... < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable ............................................. 3.5...23 mA
NAMUR NE43 Upscale ............................... 23 mA
NAMUR NE43 Downscale ........................... 3.5 mA
Of span = Of the presently selected range
Type Min. temperature Max. temperature Min. span Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
+400°C
-100°C
-100°C
-180°C
-100°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
100°C
50°C
50°C
50°C
50°C
50°C
100°C
100°C
50°C
50°C
100°C
100°C
IEC584
IEC584
IEC584
IEC584
DIN 43710
IEC584
IEC584
IEC584
IEC584
DIN 43710
ASTM E988-90
ASTM E988-90
CONTENTS

8 6335V109-IN
Ex approval - 6335A:
KEMA 10ATEX0006 X .................................. II 3 G Ex nA [nL] IIC T4...T6 or
II 3 G Ex nL IIC T4...T6 or
II 3 G Ex nA [ic] IIC T4...T6 or
II 3 G Ex ic IIC T4...T6
ATEX Installation Drawing No. ............. 6335QA02
Ex / I.S. approvals - 6335D:
ATEX KEMA 09ATEX0148 ........................... II 1 G Ex ia IIC T6...T5
Max. ambient temperature for T6 ............... 40°C
Max. ambient temperature for T5 ............... 60°C
ATEX, applicable in zone ............................. 0, 1 or 2
ATEX Installation Drawing No. ............. 6335QA01
IECEx KEM 10.0084 .................................... Ex ia IIC T5 Ga
IECEx Installation Drawing No. ............ 6335QI01
FM, applicable in ......................................... IS, Class I, Div. 1, Group A, B, C, D
IS, Class I, Zone 0, AEx ia IIC
FM Installation Drawing No.................. 6335QF01
CSA, applicable in ....................................... IS, Class I, Div. 1, Group A, B, C, D,
Ex ia IIC
IS, Class I, Zone 0, AEx ia IIC
CSA Installation Drawing No. .............. 6335QC02
GOST R approval:
VNIIM & VNIIFTRI, Cert. no. ........................ See www.prelectronics.com
Observed authority requirements: Standard:
EMC 2004/108/EC ...................................... EN 61326-1
ATEX 94/9/EC .............................................. EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26
IECEx ........................................................... IEC 60079-0, -11, 26
FM ............................................................... 3600, 3611, 3610
CSA, CAN / CSA ......................................... C22.2 No. 157, E60079-11, UL 913
CONTENTS

6335V109-IN 9
CONNECTIONS
51 52 54
53
51 52 54
53 51 52 54
53
41 42 44
43
42 44
43
41 41 42 44
43
41 42 44
43
+
-
41 42 44
43 41 42 44 43 41 42 44 43
51 52 54
53
+
-
51 52 54
53 51 52 54 53 51 52 54 53
51 54
CJC
52
41 42 44
CJC
+
-
+
-
Channel 1 Channel 2 Channel 2
Inputs:
Channel 1
RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC
TC, internal CJC
RTD, 2-wire RTD, 3-wire RTD, 4-wire
Resistance, 2-wire Resistance, 3-wire Resistance, 4-wire
TC, external CJC
Resistance, 2-wire Resistance, 3-wire Resistance, 4-wire
TC, external CJC
CONTENTS

10 6335V109-IN
CONNECTIONS
41 42 44
43 11 12 14 13 11 12 14 13
51 52 54
53 21 22 24 23 21 22 24 23
+
-
1
+
-
2
+
-
1
+
-
2
+
m A
+
m A
51 52 54
53
+
-
1
+
-
2
51 52 54
53
+
-
1
+
-
2
41 42 44
43
+
-
51 52 54
53
+
-
41 42 44
43
1
2
51 52 54
53
1
2
41 42 44
43
+
-
1
+
-
2
41 42 44
43
+
-
1
+
-
2
Outputs:
Channel 2
Inputs:
Channel 1
mV
mV
Channel 1 Channel 2
2-wire installation
2-wire installation
TC, difference
or average,
with internal CJC
TC, difference
or average,
with internal CJC
TC, difference
or average,
with external CJC
TC, difference
or average,
with external CJC
mV, difference
or average
mV, difference
or average
RTD, difference
or average
RTD, difference
or average
HART® comm.
HART® comm.
CONTENTS

6335V109-IN 11
BLOCK DIAGRAM
0 . . . 1 6
m A
4 3 2
*
44
14
13
11
12
43 42 41 53 54 51 52
23 24 22
21
+
-
m V
m A
M U X
4 m A
6 3 3 5 6 3 3 5
PGA
D / A
A / D
CH 1 CH 2
+
-
C P U
E E P R O M
Supply -
4...20 mA
TC
mV RTD, lin. R
- wire
Ex circuit, only 6335D
*
Internal CJC connectors must be ordered separately.
Supply +
HART® comm.
HART® comm.
Comm.
CONTENTS

12 6335V109-IN
PROGRAMMING
PRetrans 6335 can be configured in the following 3 ways:
1. With PR electronics A/S’ communications interface Loop Link and PReset PC
configuration software.
2. With a HART® modem and PReset PC configuration software.
3. With a HART® communicator with PR electronics A/S’ DDL driver.
1: Loop Link
For programming please refer to the drawing below and the help functions in
PReset.
When communicating with non-installed modules, connectors 11, 12, 13, 14
(channel 1) and 21, 22, 23, 24 (channel 2) can be dismantled in the safe area
to connect the terminals of the communications interface to the pins.
Loop Link is not approved for communication with modules installed in
hazardous (Ex) area.
Order: Loop Link
P R e t r a n s 6 3 3 5
*
*
4
4
4
3
4
2
4 1
5 1
1 2
1
1 1
2
1
3
1 4
14 (24)
11 (21)
File Product Input Output Communication Language
Option 08:30:00
PRetop 5331
Date:2004-8-10
043201594
PRelectronics
Analog inputAnalog output
Serial no:
Input type:Output type:4 - 20mA
Upscale
Sensor error:
Pt100 DIN/IEC
0.00 - 50.00 C
3-wire
1.00 sec
------
Input range:
Connection:
Cold junction comp:
Response time:
Tag no:
Loop
Link
5909 - USB
5905 - RS232
Disconnect
+Vsupply
* Connected only for
on-line programming
Black
Red Yellow
Green
Input
Receiving
equipment
Connector
CONTENTS

6335V109-IN 13
2: HART® modem
For programming please refer to the drawing below and the help functions in
PReset.
Order: HART® modem 276D
3: HART® communicator
For programming please refer to the drawing below. To get access to product-
specific commands, the HART® communicator must be loaded with the
PR electronics A/S DDL driver. This can be ordered either at the HART®
Communica tion Foundation or PR electronics A/S.
Order: HART® communicator 275D
1 3 ( 2 3 )
1 2 ( 2 2 )
F
i
l
e
P
r
o
d
u
c
t
I
n
p
u
t
O
u
t
p
u
t
C
o
m
m
u
n
i
c
a
t
i
o
n
L
a
n
g
u
a
g
e
O
p
t
i
o
n
0
8
:
3
0
:
0
0
P
R
e
t
o
p
5
3
3
1
D
a
t
e
: 1
9
9
4
-
8
-
1
0
9
4
3
2
0
1
5
9
4
P
R
e
l
e
c
t
r
o
n
i
c
s
A
n
a
l
o
g
i
n
p
u
t A
n
a
l
o
g
o
u
t
p
u
t
S
e
r
i
a
l
n
o
:
I
n
p
u
t
t
y
p
e
: O
u
t
p
u
t
t
y
p
e
: 4
-
2
0
m
A
U
p
s
c
a
l
e
S
e
n
s
o
r
e
r
r
o
r
:
P
t
1
0
0
D
I
N
/
I
E
C
0
.
0
0
-
5
0
.
0
0
C
3
-
w
i
r
e
1
.
0
0
s
e
c
-
-
-
-
-
-
I
n
p
u
t
r
a
n
g
e
:
C
o
n
n
e
c
t
i
o
n
:
C
o
l
d
j
u
n
c
t
i
o
n
c
o
m
p
:
R
e
s
p
o
n
s
e
t
i
m
e
:
T
a
g
n
o
:
P R e t r a n s 6 3 3 5
4 4
4
3
4
2
4 1
5 1
1 2
1
1 1
2
1 3
1
4
+Vsupply
Input
Receiving
equipment
Rload > 250 Ω, < 1100 Ω
HART® modem
P R e t r a n s 6 3 3 5
4
4
4
3
4
2
4 1
5 1
1 2
1
1 1
2
1
3
1
4
1 3 ( 2 3 )
1 2 ( 2 2 )
Safe area
+Vsupply
Input
Receiving
equipment
area
Rload > 250 Ω, < 1100 Ω
12 (22)
CONTENTS

14 6335V109-IN
CONNECTION OF TRANSMITTERS
IN MULTIDROP MODE
• The HART® communicator or a PC modem can be connected accross AB or
BC.
• The outputs of max. 15 transmitters can be conected in parallel for a digital
HART® communication on 2-wires.
• Before it is connected, each transmitter must be configured with a unique
number from 1 to 15. If 2 transmitters are configured with the same number,
both will be excluded. The transmitters must be programmed for multidrop
mode (with a fixed output signal of 4 mA). Maximum current in the loop is
therefore 60 mA.
• The communication is either by means of a HART® communicator or a
HART® modem.
• The PReset PC configuration software can configure the individual transmitter
for multidrop mode and provide it with a unique polling address.
R
A
B
C
PRetrans
6335
PRetrans
6335
PRetrans
6335
+
-
+
-
Power
supply
Rload > 250 Ω, < 1100 Ω Max. 15 channels
CONTENTS

6335V109-IN 15
APPENDIX
ATEX INSTALLATION DRAWING - 6335A
ATEX INSTALLATION DRAWING - 6335D
IECEX INSTALLATION DRAWING - 6335D
FM INSTALLATION DRAWING NO. 6335QF01
CSA INSTALLATION DRAWING NO. 6335QC02
CONTENTS

16 6335V109-IN
6335QA02
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2009-11-17
Version Revision
V1R0
Page:
1/1
ATEX Installation drawing
For safe installation of 6335A the following must be observed. The module shall only be installed
by qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 10ATEX 0006X
Marking
Standards EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-15 : 2005
Special conditions for safe use:
For use in a potentially explosive atmosphere of flammable gasses, vapours or mists, the
transmitter shall be mounted in an enclosure providing a degree of protection of at least IP54 in
accordance to EN60529.
II 3 G Ex nA [nL] IIC T6..T5
II 3 G Ex nL IIC T6..T5
II 3 G Ex nA [ic] IIC T6..T5
II 3 G Ex ic IIC T6..T5
Hazardous Area Zone 2
T5: -40ºC to 60 ºC
T6: -40ºC to 40 ºC
Terminal:
41,42,43,44 /
51,52,53,54
Ex nA [nL]
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
Terminal:
11-13 / 21-23
Ex nA
U ≤ 35 VDC
I = 4 - 20 mA
Ex nL or Ex ic
Ui = 35 VDC
Li = 10 μH
Ci = 2.0 nF
13
12
44
43
42
41
+
-
23
22
54
53
52
51
+
-
6335
CH2
CH1
21
24
14
11
CONTENTS

6335V109-IN 17
6335QA01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2009-09-29
Version Revision
V1R0
0Page:
1/1
ATEX Installation drawing
6335
For safe installation of 6335D the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 09ATEX 0148
Marking
Standards EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007
Installation notes
The Instructions provided with the equipment shall be followed in detail to assure safe
operation.
Non Hazardous Area
Hazardous area
Zone 0, 1, 2
II 1 G Ex ia IIC T6...T5
Terminal:
41,42,43,44
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
Terminal:
11,12,13,14 and
21,22,23,24
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10 μH
Ci: 2.0nF
T5: -40 ≤ Ta ≤ 60ºC
T6: -40 ≤ Ta ≤ 40ºC
Terminal:
51,52,53,54
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
13
12
44
43
42
41
+
-
Barrier
23
22
54
53
52
51
+
-
Barrier
6335
CH2
CH1
21
24
14
11
Ex HART
Communicator
R
R
250 < R < 1100 ohm
CONTENTS

18 6335V109-IN
6335QI01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2010-05-28
Version Revision
V2R0
Page:
1/1
IECEx Installation drawing
For safe installation of 6335D or 6336D the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws, directives
and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
IECEx Certificate IECEx KEM.10.0084
Marking
Standards IEC60079-11:2006, IEC60079-0: 2007, IEC60079-26: 2006
Installation notes
The Instructions provided with the equipment shall be followed in detail to assure safe
operation.
Non Hazardous Area
Hazardous area
Zone 0, 1, 2
Ex ia IIC T5 Ga
Terminal:
41,42,43,44
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
Terminal:
11,12,13,14 and
21,22,23,24
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10 μH
Ci: 2.0 nF
T5: -40 ≤ Ta ≤ 60ºC
Terminal:
51,52,53,54
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5 μF
13
12
44
43
42
41
+
-
Barrier
23
22
54
53
52
51
+
-
Barrier
6335D
6336D
CH2
CH1
21
24
14
11
Ex HART
Communicator
R
R
250 < R < 1100 ohm
CONTENTS
