PR PRetrans 6333 User manual
SIGNALS THE BEST
6333
DK
UK
FR
DE
ES
RU
2-Wire Programmable
Transmitter
No. 6333V103-I N
From ser. no. 080629052
1112
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturud-
sving, og alle produkter opfylder de strengeste internationale stan-
darder. Vores motto »Signals the Best« er indbegrebet af denne
filosofi – og din garanti for kvalitet.
PR electronics A/S offers a wide range of analogue and digital
signal conditioning modules for industrial automation. The product
range includes Isolators, Displays, Ex Interfaces, Temperature
Transmitters, and Universal Modules. You can trust our products
in the most extreme environments with electrical noise, vibrations
and temperature fluctuations, and all products comply with the
most exacting international standards. »Signals the Best« is the
epitome of our philosophy – and your guarantee for quality.
PR electronics A/S offre une large gamme de produits pour le
traite ment des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux afficheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm
an analogen und digitalen Signalverarbeitungsmodule für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Überein stimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE
6333V103-IN 1
2-WIRE
PROGRAMMABLE TRANSMITTER
PRetrans 6333
Contents
EC declaration of conformity ............................................. 2
Application ......................................................................... 3
Technical characteristics .................................................... 3
Mounting / installation ........................................................ 3
Applications ........................................................................ 4
Order: 6333 ........................................................................ 5
Electrical specifications ...................................................... 5
Connections ....................................................................... 8
Block diagram .................................................................... 9
Programming ...................................................................... 10
Appendix ............................................................................ 11

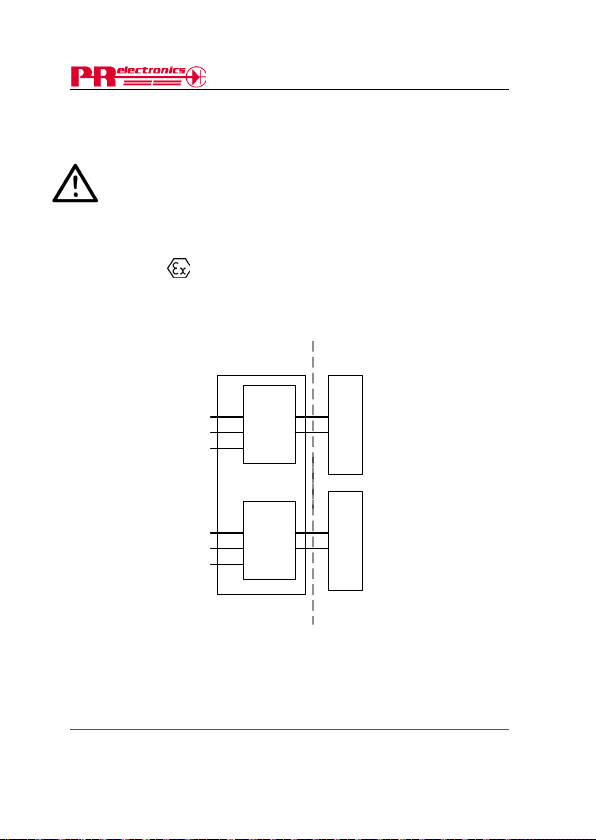

ATEX Installation Drawing - 6333A .................................. 12
ATEX Installation Drawing - 6333B ................................. 13
2 6333V103-IN
EC DECLARATION OF CONFORMITY
As manufacturer
PR electronics A/S
Lerbakken 10
DK-8410 Rønde
hererby declares that the following product:
Type: 6333
Name: 2-Wire programmable transmitter
is in conformity with the following directives and standards:
The EMC Directive 2004/108/EC and later amendments
EN 61326-1 : 2006
For specification of the acceptable EMC performance level, refer to the
electrical specifications for the module.
The ATEX Directive 94/9/EC and later amendments
EN 60079-0 : 2006, EN 60079-11 : 2007,
EN 60079-15 : 2005 and EN 60079-26 : 2007
ATEX certificate: KEMA 10ATEX0007 X (6333A)
ATEX certificate: KEMA 09ATEX0147 (6333B)
Notified body
KEMA Quality B.V. (0344)
Utrechtseweg 310, 6812 AR Arnhem
P.O. Box 5185, 6802 ED Arnhem
The Netherlands
Rønde, 10 February 2010 Kim Rasmussen
Manufacturer’s signature
CONTENTSCONTENTS
6333V103-IN 3
2-WIRE PROGRAMMABLE TRANSMITTER
PRetrans 6333
• RTD or Ohm input
• High measurement accuracy
• 3-wire connection
• Programmable sensor error value
• 1- or 2-channel version
Application
• Linearised temperature measurement with Pt100...Pt1000 or Ni100...Ni1000
sensor.
• Conversion of linear resistance variation to a standard analogue current
signal, for instance from valves or Ohmic level sensors.
Technical characteristics
• Within a few seconds the user can program PR6333 to measure temperatures
within all RTD ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 3-wire
connection.
• A limit can be programmed on the output signal.
Mounting / installation
•Mounted vertically or horizontally on a DIN rail. Using the 2-channel version up
to 84 channels per metre can be mounted.
• NB: As Ex barrier for 6333B we recommend 5104B, 5114B, or 5116B.
CONTENTSCONTENTS
4 6333V103-IN
APPLICATIONS
V +
m A
V +
m A
2-wire installation
in control room
2-wire installation
in control room
RTD to 4...20 mA
Resistance
to 4...20 mA
CONTENTSCONTENTS
6333V103-IN 5
Electrical specifications
Specifications range:
-40°C to +60°C
Common specifications:
Supply voltage, DC
Standard............................................... 8...35 VDC
ATEX Ex ................................................ 8...30 VDC
Internal consumption .................................. 0.19...0.8 W
Voltage drop ................................................ 8 VDC
Isolation voltage, channel 1 / channel 2:
Standard............................................... 3.75 kVAC
ATEX Ex ................................................ 1500 VAC
Warm-up time .............................................. 5 min.
Communications interface .......................... Loop Link
Signal / noise ratio ...................................... Min. 60 dB
Response time (programmable) .................. 0.33...60 s
Signal dynamics, input ................................ 19 bit
Signal dynamics, output.............................. 16 bit
Calibration temperature............................... 20...28°C
Accuracy, the greater of general and basic values:
Order: 6333
General values
Input type Absolute
accuracy Temperature
coefficient
All ≤ ±0.1% of span ≤ ±0.01% of span / °C
Type Version Galvanic
isolation Channels
6333 Standard : A
ATEX Ex : B
None : 1 Single : A
Double : B
CONTENTSCONTENTS
6 6333V103-IN
Effect of supply voltage variation ................ ≤ 0.005% of span / VDC
Max. wire size .............................................. 1 x 1.5 mm2 standed wire
Humidity ...................................................... < 95% RH (non-cond.)
Dimensions (H x W x D) .............................. 109 x 23.5 x 104 mm
Protection degree ........................................ IP20
Weight (1 / 2 channels) ................................ 145 / 185 g
Electrical specifications, inputs:
Max. offset................................................... 50% of selec. max. value
RTD and linear resistance inputs:
Cable resistance per wire (max.) ................. 10 Ω
Sensor current ............................................. > 0.2 mA, < 0.4 mA
Effect of sensor cable resistance
(3-wire) ......................................................... < 0.002 Ω / Ω
Sensor error detection ................................ Yes
Outputs:
Current outputs:
Signal range ................................................ 4...20 mA
Min. signal range ......................................... 16 mA
Updating time .............................................. 135 ms
Load resistance ........................................... ≤ (Vsupply- 8) / 0.023 [Ω]
Load stability ............................................... < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable ............................................. 3.5...23 mA
NAMUR NE43 Upscale ............................... 23 mA
NAMUR NE43 Downscale ........................... 3.5 mA
Of span = Of the presently selected range
RTD
type Min.
value Max.
value Min.
span
Standard
Pt100
Ni100
Lin. R
-200°C
-60°C
0 Ω
+850°C
+250°C
10000 Ω
25°C
25°C
30 Ω
IEC 60751
DIN 43760
-----
Basic values
Input type Basic
accuracy Temperature
coefficient
RTD ≤ ±0.3°C ≤ ±0.01°C/°C
Lin. R ≤ ±0.2 Ω ≤ ±20 mΩ / °C
EMC immunity influence ................................ < ±0.5% of span
CONTENTSCONTENTS
6333V103-IN 7
Ex approval - 6333A:
KEMA 10ATEX0007 X................................... II 3 G Ex nA [nL] IIC T4...T6 or
II 3 G Ex nL IIC T4...T6 or
II 3 G Ex nA [ic] IIC T4...T6 or
II 3 G Ex ic IIC T4...T6
ATEX Installation Drawing No............... 6333QA02
Ex / I.S. approval - 6333B:
KEMA 09ATEX0147 ..................................... II 1 G Ex ia IIC T6...T5
Max. amb. temperature for T6 .................... 40°C
Max. amb. temperature for T5 .................... 60°C
ATEX, applicable in zone ............................. 0, 1 or 2
ATEX Installation Drawing No. ............. 6333QA01
GOST R approval:
VNIIM & VNIIFTRI, Cert. no. ........................ See www.prelectronics.com
Observed authority requirements: Standard:
EMC 2004/108/EC ...................................... EN 61326-1
ATEX 94/9/EC .............................................. EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26
CONTENTSCONTENTS
8 6333V103-IN
CONNECTIONS
51 52 54
53
51 52 54
53
41 42 44
43
41 42 44
43
51 52 54
53
41 42 44
43
41 42 44
43
51 52 54
53
+
mA
+
mA
23
21 22
11 12 13
Channel 1 Channel 2 Channel 2
Inputs:
Channel 1
RTD, 2-wire
RTD, 2-wire
RTD, 3-wire
RTD, 3-wire Resistance, 3-wire Resistance, 2-wire
Resistance, 3-wire Resistance, 2-wire
Outputs:
2-wire installation
2-wire installation
CONTENTS
6333V103-IN 9
BLOCK DIAGRAM
CONTENTS
44
13
23
11
21
43
42
41
53
54
51
52
CH 1
CH 2
0 . . . 1 6
m A
m A
M U X
4 m A
PGA
D / A
A / D
C P U
E E P R O M
DC
DC
6333
6333
Supply -
4...20 mA
Ex circuit, only 6333B
Input +
RTD
Input -
Lin.R
Comp.
Supply +
Comm.
44
13
23
11
21
43
42
41
53
54
51
52
CH 1
CH 2
0 . . . 1 6
m A
m A
M U X
4 m A
PGA
D / A
A / D
C P U
E E P R O M
DC
DC
6333
6333
Supply -
4...20 mA
Ex circuit, only 6333B
Input +
RTD
Input -
Lin.R
Comp.
Supply +
Comm.
44
13
23
11
21
43
42
41
53
54
51
52
CH 1
CH 2
0 . . . 1 6
m A
m A
M U X
4 m A
PGA
D / A
A / D
C P U
E E P R O M
DC
DC
6333
6333
Supply -
4...20 mA
Ex circuit, only 6333B
Input +
RTD
Input -
Lin.R
Comp.
Supply +
Comm.
CONTENTS
10 6333V103-IN
PROGRAMMING
• Loop Link is a battery-powered communications interface that is needed for
programming PRetrans 6333.
• For programming please refer to the drawing below and the help functions in
PReset.
• When communicating with non-installed modules, connectors 11, 12, 13
(channel 1) and 21, 22, 23 (channel 2) can be dismantled to connect the
terminals of the communications interface to the pins.
• Loop Link is not approved for communication with modules installed in
hazard ous (Ex) area.
Order: Loop Link
P R e t r a n s 6 3 3 3
1 3 ( 2 3 )
1 1 ( 2 1 )
Loop
Link
5909 - USB
5905 - RS232
File Product Input Output Communication Language
Option 08:30:00
PRetop 5331
Date:2004-8-10
043201594
PRelectronics
Analog inputAnalog output
Serial no:
Input type:Output type:4 - 20mA
Upscale
Sensor error:
Pt100 DIN/IEC
0.00 - 50.00 C
3-wire
1.00 sec
------
Input range:
Connection:
Cold junction comp:
Response time:
Tag no:
*
*
Disconnect
+Vsupply
* Connected only for
on-line programming
Black
Red Yellow
Green
Input
Receiving
equipment
Connector
CONTENTS
12 6333V103-IN
6333QA02
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2009-11-17
Version Revision
V1R0
Page:
1/1
ATEX Installation drawing
For safe installation of 6333A the following must be observed. The module shall only be installed
by qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 10ATEX 0007X
Marking
Standards EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-15 : 2005
Special conditions for safe use
For use in a potentially explosive atmosphere of flammable gasses, vapours or mists, the
transmitter shall be mounted in an enclosure providing a degree of protection of at least IP54 in
accordance to EN60529.
II 3 G Ex nA [nL] IIC T6..T5
II 3 G Ex nL IIC T6..T5
II 3 G Ex nA [ic] IIC T6..T5
II 3 G Ex ic IIC T6..T5
Hazardous Area Zone 2
T5: -40ºC to 60 ºC
T6: -40ºC to 40 ºC
Terminal:
41,42,43 /
51,52,53
Ex nA [nL]
Uo: 27 VDC
Io: 7.0 mA
Po: 45 mW
Lo: 35 mH
Co: 90 nF
Terminal:
11-13 / 21-23
Ex nA
U ≤ 35 VDC
I = 4 - 20 mA
Ex nL or Ex ic
Ui = 35 VDC
Li = 10 μH
Ci = 1.0 nF
13
11
43
42
41
+
-
23
21
53
52
51
+
-
6333
CH2
CH1
CONTENTSCONTENTS
6333V103-IN 13
6333QA01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2009-09-29
Version Revision
V1R0
Page:
1/1
ATEX Installation drawing
6333
For safe installation of 6333B the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
.
ATEX Certificate KEMA 09ATEX 0147
Marking
Standards EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007
Installation notes.
The instructions provided with the equipment shall be followed in detail in order to
assure safe operation.
Non Hazardous Area
Hazardous area
Zone 0, 1, 2
II 1 G Ex ia IIC T6..T5
Terminal:
41,42,43
Uo: 27 VDC
Io: 7 mA
Po: 45 mW
Lo: 35 mH
Co: 90 nF Terminal:
11,13 and
21,23
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10μH
Ci: 1.0nF
T5: -40 ≤ Ta ≤ 60ºC
T6: -40 ≤ Ta ≤ 40ºC
Terminal:
51,52,53
Uo: 27 VDC
Io: 7 mA
Po: 45 mW
Lo: 35 mH
Co: 90 nF
13
11
43
42
43
+
-
Barrier
23
21
53
52
51
+
-
Barrier
6333
CH2
CH1
CONTENTSCONTENTS
Programmable displays with a wide
selection of inputs and outputs for display of temperature,
volume and weight, etc. Feature linearisation, scaling,
and difference measurement functions for programming
via PReset software.
Displays
A wide selection of transmitters for DIN
form B mounting and DIN rail modules with analogue
and digital bus communication ranging from application-
specific to universal transmitters.
Temperature
Galvanic isolators for analogue and
digital signals as well as HART® signals. A wide product
range with both loop-powered and universal isolators
featuring linearisation, inversion, and scaling of output
signals.
Isolation
Interfaces for analogue and digital
signals as well as HART® signals between sensors / I/P
converters / frequency signals and control systems in Ex
zone 0, 1 & 2 and for some modules in zone 20, 21 & 22.
Ex interfaces
PC or front programmable modules with
universal options for input, output and supply. This range
offers a number of advanced features such as process
calibration, linearisation and auto-diagnosis.
Universal
Head office
Denmark www.prelectronics.com
PR electronics A/S [email protected]
Lerbakken 10 tel. +45 86 37 26 77
DK-8410 Rønde fax +45 86 37 30 85
www.prelectronics.fr
www.prelectronics.de
www.prelectronics.es
www.prelectronics.it
www.prelectronics.se
www.prelectronics.co.uk
www.prelectronics.com
Table of contents
Other PR Transmitter manuals
