Precision Digital Corporation PD6363 Series User manual

PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
PD6363 Pulse Dual-Input
Rate/Totalizer Instruction Manual
•Pulse, Open Collector, NPN, PNP, TTL, Switch Contact,
Sine Wave (Coil), Square Wave Inputs
•Gate Function for Rate Display of Slow Pulse Rates
•Rate, Total, and Grand Total for Each Input Channel
•Addition, Difference, Average, Multiplication, Division, Min,
Max, Weighted Average, Ratio, Concentration, & More
•NEMA 4X, IP65 Front
•Universal 85-265 VAC, or 12/24 VDC Input Power Models
•Large Dual-Line 6-Digit Display, 0.60" & 0.46"
•Isolated 24 VDC Transmitter Power Supply
•Programmable Display & Function Keys
•2 or 4 Relays + Isolated 4-20 mA Output Options
•4-Relay, 2 Analog Output, and I/O External Modules
•USB, RS-232 & RS-485 Serial Communication Options
•Modbus®RTU Communication Protocol Standard
•Configure, Monitor, and Datalog from a PC with Free
MeterView® Pro Software

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
2
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or
warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a
particular purpose.
CAUTION: Read complete
instructions prior to
installation and operation
of the meter.
WARNING: Risk of
electric shock or
personal injury.
Warning!
This product is not recommended for life support applications
or applications where malfunctioning could result in personal
injury or property loss. Anyone using this product for such
applications does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages resulting from
such improper use.
Limited Warranty
Precision Digital Corporation warrants this product against defects in
material or workmanship for the specified period under
“Specifications” from the date of shipment from the factory. Precision
Digital’s liability under this limited warranty shall not exceed the
purchase value, repair, or replacement of the defective unit.
Registered Trademarks
PROVU®and MeterView®Pro are registered trademarks of Precision
Digital Corporation. All other trademarks mentioned in this document
are the property of their respective owners.
© 2013-2016 Precision Digital Corporation. All rights reserved.
www.predig.com
!

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
3
Table of Contents
INTRODUCTION ------------------------------------------------------------ 6
ORDERING INFORMATION --------------------------------------------- 7
SPECIFICATIONS---------------------------------------------------------- 8
General-------------------------------------------------------------------------------8
Dual Pulse Inputs--------------------------------------------------------------- 10
Dual Rate/Totalizer ------------------------------------------------------------- 12
Relays ------------------------------------------------------------------------------ 13
Isolated 4-20 mA Transmitter Output ------------------------------------ 14
Modbus® RTU Serial Communications --------------------------------- 14
COMPLIANCE INFORMATION ----------------------------------------15
Safety ------------------------------------------------------------------------------- 15
Electromagnetic Compatibility--------------------------------------------- 15
SAFETY INFORMATION ------------------------------------------------16
INSTALLATION ------------------------------------------------------------16
Unpacking------------------------------------------------------------------------- 16
Panel Mounting Instructions------------------------------------------------ 16
MOUNTING DIMENSIONS ----------------------------------------------18
Configuration for 12 or 24 VDC Power Option------------------------ 19
Transmitter Supply Voltage Selection (P+, P-) ----------------------- 20
Connections---------------------------------------------------------------------- 20
Connectors Labeling--------------------------------------------------------- 21
Power Connections ---------------------------------------------------------- 21
Signal Connections ---------------------------------------------------------- 21
Configure Input Type and Level Switches ----------------------------- 23
Modbus RTU Serial Communications ----------------------------------- 24
Relay Connections ----------------------------------------------------------- 24
Switching Inductive Loads-------------------------------------------------- 25
F4 Digital Input Connections----------------------------------------------- 26
4-20 mA Output Connections---------------------------------------------- 26
Analog Output Transmitter Power Supply------------------------------ 26
External Relay, Analog Output, & Digital I/O Connections--------- 27
Interlock Relay Feature ----------------------------------------------------- 27
SETUP AND PROGRAMMING ----------------------------------------28
Front Panel Buttons and Status LED Indicators --------------------- 29
Display Functions & Messages -------------------------------------------- 30
Main Menu ------------------------------------------------------------------------ 37
Setting Numeric Values ------------------------------------------------------ 38

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
4
Setting Up the Meter (setup)------------------------------------------------ 39
Setting the Input Signal (Input) ------------------------------------------ 40
Setting the Totalizer Features (total) ------------------------------ 40
Setting the Dual-Input Mode (nmode) -------------------------------- 40
Setting the Rate, Total, & Grand Total Units/Tags (units) -------- 44
Setting the Decimal Point (dEc pt) -------------------------------------- 45
Programming the Rate/Totalizer (prog) -------------------------------- 46
Input Calibration Method (InCAL) ------------------------------------- 47
K-Factor Calibration (Fact-A, Fact-b)------------------------------ 47
Scaling the Meter without a Signal Source (SCAL-A, SCAL-B)- 48
Scaling the Meter for Channel A (SCal-A) ------------------------- 48
Error Message (Error) -------------------------------------------------- 48
Calibrating the Meter with External Source (CAL-A,CAL-B) ---- 49
Totalizer Setup (tsetup)------------------------------------------------ 50
Total & Grand Total Reset (treset) --------------------------------- 50
Setting the Display Parameters & Intensity (dsplay) --------------- 51
Display Setup Menu --------------------------------------------------------- 52
Setting the Relay Operation (relay) ------------------------------------ 53
Setting the Relay Assignment (asSign)----------------------------- 54
Setting the Relay Action (Act) ----------------------------------------- 55
Programming Set and Reset Points---------------------------------- 56
Setting Fail-Safe Operation--------------------------------------------- 56
Programming Time Delay----------------------------------------------- 56
Relay and Alarm Operation Diagrams ----------------------------------- 57
High Alarm Operation (Set > Reset) ------------------------------------- 57
Low Alarm Operation (Set < Reset)-------------------------------------- 58
High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 59
Low Alarm with Fail-Safe Operation (Set < Reset)------------------- 60
Pump Alternation Control Operation------------------------------------- 61
Rate Relay Sampling Operation ------------------------------------------ 62
Total Relay Sampling Operation------------------------------------------ 62
Time Delay Operation ------------------------------------------------------- 63
Relay Operation Details ------------------------------------------------------ 64
Overview------------------------------------------------------------------------ 64
Relays Auto Initialization---------------------------------------------------- 64
Fail-Safe Operation ---------------------------------------------------------- 64
Front Panel LEDs------------------------------------------------------------- 65
Latching and Non-Latching Relay Operation -------------------------- 65
Non-Latching Relay (Auto)------------------------------------------------- 66
Non-Latching Relay (A-man) -------------------------------------------- 66
Latching Relay (LatcH) ----------------------------------------------------- 66
Latching Relay (Lt-Clr)---------------------------------------------------- 67

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
5
Acknowledging Relays ------------------------------------------------------ 67
Setting Up the Interlock Relay (Force On) Feature ------------------ 68
Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 68
Reset Menu (reset) ------------------------------------------------------------ 69
Control Menu (Contrl)-------------------------------------------------------- 69
Setting Up the Password (pass) ------------------------------------------- 69
Protecting or Locking the Meter Functions----------------------------- 70
Total Reset Password & Non-Resettable Total ----------------------- 70
Making Changes to a Password Protected Meter-------------------- 71
Disabling Password Protection-------------------------------------------- 71
Advanced Features Menu---------------------------------------------------- 72
Advanced Features Menu & Display Messages ---------------------- 73
Gate Function (Gate) -------------------------------------------------------- 76
Contact De-Bounce Filter (FiLter) -------------------------------------- 77
Rounding Feature (round) ------------------------------------------------- 77
Modbus RTU Serial Communications (serial) ---------------------- 78
Select Menu (SElect) ------------------------------------------------------- 79
Signal Input Conditioning (Functn) -------------------------------------- 80
Multi-Point Linearization (Linear) ------------------------------------ 80
Math Function (nmath) ------------------------------------------------------ 81
Math Constants (Const) ---------------------------------------------------- 82
Low-Flow Cutoff (CutofF) -------------------------------------------------- 82
Totalizer Count Up/Down (Count)---------------------------------------- 83
Analog Output Programming (AoutPr)---------------------------------- 83
Programmable Function Keys User Menu (user) -------------------- 85
Meter Copy Function (Copy) ----------------------------------------------- 86
METER OPERATION-----------------------------------------------------88
Function Keys Operation ---------------------------------------------------- 88
F4 Operation --------------------------------------------------------------------- 88
Front Panel Buttons Operation -------------------------------------------- 89
Maximum/Minimum Readings---------------------------------------------- 89
TROUBLESHOOTING----------------------------------------------------90
Diagnostics Menu (diag)----------------------------------------------------- 90
Determining Software Version -------------------------------------------- 90
Reset Meter to Factory Defaults ------------------------------------------- 91
Factory Defaults & User Settings ----------------------------------------- 92
Troubleshooting Tips --------------------------------------------------------- 96
EU DECLARATION OF CONFORMITY -----------------------------97

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
6
Table of Figures
Figure 1. 1/8 DIN Panel Cutout Dimensions .....................................17
Figure 2. Panel Mounting Details ......................................................17

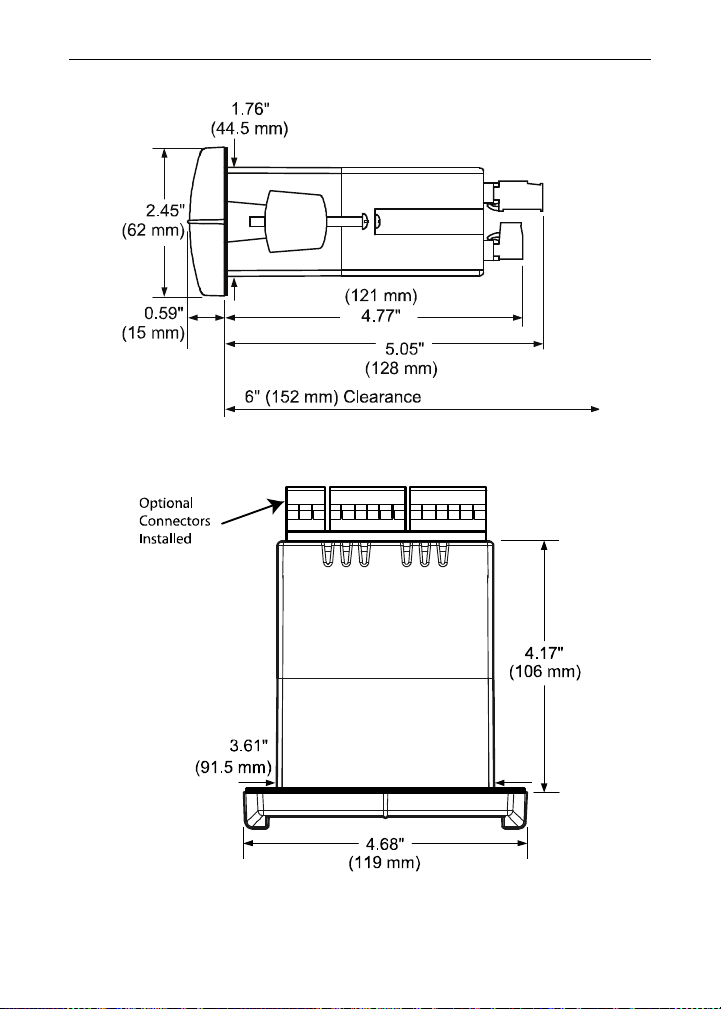

Figure 3. Meter Dimensions - Side View........................................... 18
Figure 4. Meter Dimensions - Top View............................................18
Figure 5. Jumper Configuration for 12/24 VDC Power .................... 19
Figure 6. Transmitter Supply Voltage Selection ..............................20
Figure 7. Connector Labeling for Fully Loaded PD6363 .................21
Figure 8. Power Connections ............................................................21
Figure 9: Flowmeters Powered by Internal Power Supply.............. 22
Figure 10: Flowmeters Powered by External Supply ......................22
Figure 11: Self-Powered Magnetic Pickup Coil Flowmeters...........22
Figure 12: NPN open Collector Input................................................ 23
Figure 13: PNP Sensor Powered by Internal Supply....................... 23
Figure 14: Switch Input Connections ...............................................23
Figure 15. Relay Connections ...........................................................24
Figure 16. AC and DC Loads Protection...........................................25
Figure 17. Low Voltage DC Loads Protection .................................. 25
Figure 18. F4 Digital Input Connections........................................... 26
Figure 19. 4-20 mA Output Connections .......................................... 26
Figure 20. Interlock Connections...................................................... 27
Figure 21. Dual Input Mode (ud AB) ..................................................41
Figure 22. Dual Input Mode (ud AI) ..................................................41
Figure 23. Dual Input Mode (ud BI) ..................................................42
Figure 24. Dual Input Mode (quad 1) ................................................42
Figure 25. Dual Input Mode (quad 2) ................................................43
Figure 26. Acknowledge Relays w/Function Key or Digital Input .. 67
Figure 27: Meter Copy Connection ................................................... 87
INTRODUCTION
The PROVU®PD6363 is a multipurpose, easy to use digital dual pulse input rate/totalizer
ideal for flow rate, total, and flow control applications. It accepts two pulse (e.g. 40 mVp-
p to 8 Vp-p), square wave (0-5 V, 0-12 V, or 0-24 V), open collector, NPN, PNP, TTL or
switch contact signals. Various math functions may be applied to the rate, total, or grand
totals of the two channels; including addition, difference, average, minimum, maximum,
draw, ratio and more.
The displays, relays, and the analog output may be assigned to the rate, total, or grand
total of input channels A or B; or math result channel C. Three of the front panel buttons
can be custom-programmed for a specific operation.
The basic model includes an isolated 24 VDC transmitter power supply that can be used
to power the input transmitters or other devices. An additional isolated 24 VDC power
supply is included with the 4-20 mA output option. A digital input is standard.
Meter capabilities may be enhanced with external expansion modules. External serial
communication adapters are also available for use with MeterView Pro or Modbus RTU

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
7
ORDERING INFORMATION
Standard Models
85-265 VAC
Model
12/24 VDC
Model Options Installed
PD6363-6R0 PD6363-7R0 No options
PD6363-6R2 PD6363-7R2 2 relays (PD1102*)
PD6363-6R3 PD6363-7R3 4-20 mA output (PD1103*)
PD6363-6R4 PD6363-7R4 4 relays (PD1104*)
PD6363-6R5 PD6363-7R5 2 relays & 4-20 mA output (PD1105*)
PD6363-6R7 PD6363-7R7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
SunBright Display Models
85-265 VAC
Model
12/24 VDC
Model Options Installed
PD6363-6H0 PD6363-7H0 No options
PD6363-6H2 PD6363-7H2 2 relays (PD1102*)
PD6363-6H3 PD6363-7H3 4-20 mA output (PD1103*)
PD6363-6H4 PD6363-7H4 4 relays (PD1104*)
PD6363-6H5 PD6363-7H5 2 relays & 4-20 mA output (PD1105*)
PD6363-6H7 PD6363-7H7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Accessories
Model Description
PDA1002 DIN rail mounting kit for two expansion modules
PDA1004 4 SPST (Form A) relays
PDA1011 Dual isolated 4-20 mA output expansion module
PDA1044 4 digital inputs & 4 digital outputs (2 may be connected)
PDA1200 Meter copy cable
PDA1232 RS-232 serial adapter
PDA1485 RS-485 serial adapter
PDA7485-I RS-232 to RS-422/485 isolated converter
PDA7485-N RS-232 to RS-422/485 non-isolated converter
PDA8008 USB serial adapter
PDA8232-N USB to RS-232 non-isolated converter
PDA8485-I USB to RS-422/485 isolated converter
PDA8485-N USB to RS-422/485 non-isolated converter
PDX6901 Suppressor (snubber): 0.01 µF/470 Ω, 250 VAC

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
8
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY Upper display: 0.60" (15 mm) high, red LEDs
Lower display: 0.46" (12 mm) high, red LEDs
6 digits each (-99999 to 999999), with lead zero blanking
DISPLAY
INTENSITY
Eight user selectable intensity levels
DISPLAY
UPDATE RATE
Rate: 10 per second; up to 1 per 100 seconds (and is a
function of Low Gate setting); Total: 10 per second (fixed)
OVERRANGE Display flashes 999999
DISPLAY
ASSIGNMENT
The Upper and Lower displays may be assigned to show:
One or more rate/math channels: Channel A (Ch-
A), B (Ch-B), or C (Ch-C)
Toggle rate/math channels: Ch-A & Ch-B, Ch-A &
Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C
Total or grand total: Ch-A or Ch-B
Rate and total or grand total: Ch-A or Ch-B
Relay set points
Max and/or min values: Ch-A, Ch-B, or Ch-C
Toggle between any rate/math channel & units
Total and units: Ch-A or Ch-B
Toggle between totals: Ch-A & Ch-B; Ch-A, Ch-B,
and sum of Ch-A and Ch-B
Modbus input
The lower display may also be set to show engineering
units or be off, with no display.
PROGRAMMING
METHODS
Four front panel buttons, digital inputs, PC and MeterView Pro
software, Modbus registers, or cloning using Copy function.
MAX/MIN
DISPLAY
Max/min readings reached by the process are stored until
reset by the user or until power to the meter is cycled.
PASSWORD Three programmable passwords restrict modification of
programmed settings and two prevent resetting the totals.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Total: Prevents resetting the total manually
Gtotal: Prevents resetting the grand total manually
RECALIBRATION All ranges are calibrated at the factory. Recalibration is
recommended at least every 12 months.
NON-VOLATILE
MEMORY
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
9
POWER
OPTIONS
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
or jumper selectable 12/24 VDC ±10%, 15 W max
FUSE Required external fuse: UL Recognized, 5 A max, slow
blow; up to 6 meters may share one 5 A fuse
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals P+ & P-: 24 VDC ±10%.
Selectable for 24, 10, or 5 VDC supply (internal jumper J4).
ProVu Series (PD6363):
85-265 VAC models rated @ 200 mA max, 12/24 VDC powered
models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC
supply.
ProtEX-MAX (PD8 Series):
All models transmitter supply rated @ 25 mA max.
ISOLATION 4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
OVERVOLTAGE
CATEGORY
Installation Overvoltage Category II:
Local level with smaller transient overvoltages than
Installation Overvoltage Category III.
ENVIRONMENTAL ProVu Series (PD6363):
Operating temperature range: -40 to 65°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
ProtEX-MAX (PD8 Series):
T6 Class operating temperature range Ta = -40 to 60°C
T5 Class operating temperature range Ta = -40 to 65°C
See LIM8 ProtEX-MAX instruction manual for details.
MAX POWER
DISSIPATION
ProtEX-MAX (PD8 Series): Maximum power dissipation
limited to 15.1 W. See LIM8 ProtEX-MAX instruction
manual for additional details.
CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG
wire, RJ45 for external modules and adapters.
ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: black
MOUNTING 1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are provided.
TIGHTENING
TORQUE
Screw terminal connectors: 5 lb-in (0.56 Nm)
OVERALL
DIMENSIONS
4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
(W x H x D)
WEIGHT 9.5 oz (269 g)
WARRANTY 3 years parts & labor

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
10
Dual Pulse Inputs
TWO INPUTS Field selectable: Pulse or square wave 0-5 V, 0-12 V, or
0-24 V @ 30 kHz; TTL; open collector 4.7 kΩpull-up to 5 V
@ 30 kHz; NPN or PNP transistor, switch contact 4.7 kΩ
pull-up to 5 V @ 40 Hz; Modbus PV (Slave)
CHANNELS Channel A, Channel B, Channel C (Math channel)
PROGRAMMA-
BLE CONSTANTS
Constant P (Adder): -99.999 to 999.999, default: 0.000
Constant F (Factor): 0.001 to 999.999, default: 1.000
MATH
FUNCTIONS
Name Function Setting
Addition (A+B+P)*F Sunm
Difference (A-B+P)*F diF
Absolute diff. ((Abs(A-B))+P)*F diFAbS
Average (((A+B)/2)+P)*F AvG
Multiplication ((A*B)+P)*F nmulti
Division ((A/B)+P)*F divide
Max of A or B ((AB-Hi)+P)*F Hi-Ab
Min of A or B ((AB-Lo)+P)*F Lo-Ab
Draw ((A/B)-1)*F drAuw
Weighted avg. ((B-A)*F)+A uw avg
Ratio (A/B)*F ratio
Concentration (A/(A+B))*F Concen
Total Addition (tA+tB+P)*F Sunm t
G. Tot. Addition (GtA+GtB+P)*F SunmGT
Total Difference (tA-tB+P)*F Dif t
G. Tot. Difference (GtA-GtB+P)*F Dif GT
Total Ratio (tA/tB)*F Tratio
Total Percent (tA/(tA+tB))*100 T PCT
Note: The F constant can be any value from 0.001 to
999.999. If the value is less than 1, it will have the same
effect as a divider. For example, the average could also be
derived by using (A+B)*F, where F = 0.500.
SEQUENCE OF
OPERATIONS
FOR INPUT
PROGRAMMING
1. Select Input for A and B
2. Set up the rate, total, and grand total engineering units
for channels A & B, and units for math channel C
3. Set up rate, total, and grand total decimal points for
channels A & B, and decimal point for math channel C
4. Program channel A & B rate parameters
5. Program channel A & B total and reset parameters
6. Set up the big and little displays and display intensity
7. Select the transfer function for A & B (e.g. Linear)
8. Select Math function for Channel C
9. Program constants for Factor (F) and Adder (P).
10. Program cutoff values for A and B

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
11
LOW VOLTAGE
MAG PICKUP
Sensitivity: 40 mVp-p to 8Vp-p
MINIMUM INPUT
FREQUENCY
0.001 Hz
Minimum frequency is dependent on high gate setting.
MAXIMUM INPUT
FREQUENCY
30,000 Hz (10,000 for low voltage mag pickup)
INPUT
IMPEDANCE
Pulse input: Greater than 300 kΩ@ 1 kHz.
Open collector/switch input: 4.7 kΩpull-up to 5 V.
ACCURACY ±0.03% of calibrated span ±1 count
TEMPERATURE
DRIFT
Rate display is not affected by changes in temperature.
MULTI-POINT
LINEARIZATION
2 to 32 points for channel A and B
LOW-FLOW
CUTOFF
0-999999 (0 disables cutoff function)
DECIMAL POINT Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d,or dddddd
CALIBRATION May be calibrated using K-factor, internal calibration, or by
applying an external calibration signal.
K-FACTOR Field programmable K-factor converts input pulses to rate in
engineering units. May be programmed from 0.00001 to
999,999 pulses/unit.
CALIBRATION
RANGE
Input 1 signal may be set anywhere in the range of the
meter; input 2 signal may be set anywhere above or below
input 1 setting.
Minimum input span between any two inputs is 10 Hz. An
error message will appear if the input span is too small.
FILTER Programmable contact de-bounce filter: 40 to 999 Hz
maximum input frequency allowed with low speed filter.
TIME BASE Second, minute, hour, or day
GATE Low gate: 0.1-99.9 seconds
High gate: 2.0-999.9 seconds
F4 DIGITAL INPUT
CONTACTS
3.3 VDC on contact. Connect normally open contacts
across F4 to COM.
F4 DIGITAL INPUT
LOGIC LEVELS
Logic High: 3 to 5 VDC
Logic Low: 0 to 1.25 VDC

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
12
Dual Rate/Totalizer
RATE DISPLAY
INDICATION
-99999 to 999999, lead zero blanking.
TOTAL DISPLAY
& TOTAL
OVERFLOW
0 to 999,999; automatic lead zero blanking.
Up to 999,999,999 with total-overflow feature. “oF” is
displayed to the left of total overflow and ▲LED is
illuminated.
TOTAL
DECIMAL POINTS
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d,or dddddd
Total decimal point is independent of rate decimal point.
Channel A and B decimal points programmed
independently.
DUAL TOTALIZER Calculates total for channels A and B based on rate and
field programmable multiplier to display total in
engineering units. Time base must be selected according
to the time units in which the rate is displayed. Channel A
and B totalizer parameters programmed independently.
TOTALIZER
ROLLOVER
Totalizer rolls over when display exceeds 999,999,999.
Relay status reflects display.
TOTAL
OVERFLOW
OVERRIDE
Program total A or B total reset for automatic with 0.1
second delay and set point 1 for 999,999
TOTALIZER
ALARM PRESETS
Up to eight, user selectable under setup menu. Any set
point can be assigned to channel A or B total or grand
total (or C) and may be programmed anywhere in the
range of the meter for total alarm indication.
TOTAL & GRAND
TOTAL RESET
Via front panel button, external contact closure on digital
inputs, automatically via user selectable preset value and
time delay, or through serial communications. Channel A
and B total and grand total reset parameters programmed
independently.
TOTAL RESET
PASSWORD
Total and grand total passwords may be entered to
prevent resetting the totals or grand totals from the front
panel.
NON-RESETTABLE
TOTAL
The grand totals can be programmed as non-resettable
totals by entering the password “050873”. Both channels
are set to non-resettable when this password is entered.
Caution!
Once the Grand Totals have been
programmed as “non-resettable” the feature
cannot be disabled.
!

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
13
PROGRAMMABLE
DELAY
ON RELEASE
0.1 and 999.9 seconds; applied to the first relay assigned
to total or grand total.
If the meter is programmed to reset total to zero
automatically when the preset is reached, then a delay will
occur before the total is reset.
Relays
RATING 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)
external; rated 3 A @ 30 VDC and 125/250 VAC resistive
load; 1/14 HP (≈50 W) @ 125/250 VAC for inductive loads
NOISE
SUPPRESSION
Noise suppression is recommended for each relay contact
switching inductive loads; see page 25 for details.
RELAY
ASSIGNMENT
Relays may be assigned to channel A or B rate, total, or
grand total; channel C; or Modbus control.
DEADBAND 0-100% of span, user programmable
HIGH OR LOW
ALARM
User may program any alarm for high or low trip point.
Unused alarm LEDs and relays may be disabled (turn off).
RELAY
OPERATION
Automatic (non-latching)
Latching (requires manual acknowledge)
Sampling (based on time)
Pump alternation control (2 to 8 relays)
Off (disable unused relays and enable Interlock feature)
Manual on/off control mode
RELAY RESET User selectable via front panel buttons, digital inputs, or PC
1. Automatic reset only (non-latching), when the input
passes the reset point.
2. Automatic + manual reset at any time (non-latching)
3. Manual reset only, at any time (latching)
4. Manual reset only after alarm condition has cleared (L)
Note: Front panel button or digital input may be assigned to
acknowledge relays programmed for manual reset.
TIME DELAY 0 to 999.9 seconds, on & off relay time delays
Programmable and independent for each relay
FAIL-SAFE
OPERATION
Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
AUTO
INITIALIZATION
When power is applied to the meter, relays will reflect the
state of the input to the meter.

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
14
Isolated 4-20 mA Transmitter Output
OUTPUT
SOURCE
Input channels A or B, rate, total, or grand total; channel C;
max or min for channel A or B; highest or lowest max or
min of A and B; set points 1-8; Modbus input; or manual
control mode
SCALING RANGE 1.000 to 23.000 mA for any display range
CALIBRATION Factory calibrated: 4.000 to 20.000 = 4-20 mA output
ANALOG OUT
PROGRAMMING
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and break
ACCURACY ± 0.1% of span ± 0.004 mA
TEMPERATURE
DRIFT
0.4 µA/°C max from 0 to 65°C ambient,
0.8 µA/°C max from -40 to 0°C ambient
Note: Analog output drift is separate from input drift.
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals I+ & R: 24 VDC ±10%. May be used to power the
4-20 mA output or other devices. Refer to Figure 7 on page
21 and Figure 19 on page 26.
ProVu Series (PD6363): All models rated @ 40 mA max.
ProtEX-MAX (PD8 Series): All models @ 25 mA max.
EXTERNAL LOOP
POWER SUPPLY
35 VDC maximum
OUTPUT LOOP
RESISTANCE
Power supply Minimum Maximum
24 VDC 10 Ω700 Ω
35 VDC (external) 100 Ω1200 Ω
Modbus® RTU Serial Communications
SLAVE ID 1 – 247 (Meter address)
BAUD RATE 300 – 19,200 bps
TRANSMIT
TIME DELAY
Programmable between 0 and 199 ms
DATA 8 bit (1 start bit, 1 or 2 stop bits)
PARITY Even, Odd, or None with 1 or 2 stop bits
BYTE-TO-BYTE
TIMEOUT
0.01 – 2.54 second
TURN AROUND
DELAY
Less than 2 ms (fixed)
Note: Refer to the PROVU®Modbus Register Tables located at www.predig.com
for details.

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
15
COMPLIANCE INFORMATION
Safety
UL & c-UL LISTED USA & Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER E160849
FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2010
Safety requirements for measurement, control, and
laboratory use
Electromagnetic Compatibility
EMISSIONS EN 55022:2010
Class A ITE emissions requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
IMMUNITY EN 61326-1:2013
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity standard
RFI - Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI - Conducted 10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge ±2kV Common, ±1kV Differential
Surge 1KV (CM)
Power-Frequency
Magnetic Field
30 A/m 70%V for 0.5 period
Voltage Dips 40%V for 5 & 50 periods
70%V for 25 periods
Voltage
Interruptions
<5%V for 250 periods

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
16
Note:
Testing was conducted on PD6300 Series meters installed through
the covers of grounded metal enclosures with cable shields
grounded at the point of entry representing installations designed to
optimize EMC performance.
Declaration of Conformity available at www.predig.com
SAFETY INFORMATION
CAUTION: Read complete
instructions prior to
installation and operation
of the meter.
WARNING: Risk of
electric shock or
personal injury.
WARNING!
Hazardous voltages exist within enclosure. Installation and
service should be performed only by trained service personnel.
INSTALLATION
There is no need to remove the meter from its case to complete the
installation, wiring, and setup of the meter for most applications.
Instructions are provided for setting up a 12/24 VDC powered meter to
operate from 12 VDC and for changing the transmitter power supply to
output 5 or 10 VDC instead of 24 VDC, see page 19.
Unpacking
Remove the meter from box. Inspect the packaging and contents for
damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your
supplier or the factory for assistance.
Panel Mounting Instructions
•Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x
45 mm). Refer to Figure 1 below, for more details.
•Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.
!

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
17
•Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
•Remove the two mounting brackets provided with the meter (back-off the two
screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
•Insert meter into the panel cutout.
•Install mounting brackets and tighten the screws against the panel. To
achieve a proper seal, tighten the mounting bracket screws evenly until
meter is snug to the panel along its short side. DO NOT OVER TIGHTEN,
as the rear of the panel may be damaged.
Figure 1. 1/8 DIN Panel Cutout Dimensions
Figure 2. Panel Mounting Details
Panel
Gasket
Mounting
Bracket
Mounting
Screw
Removable
Connectors
3.622" (92 mm)
1.772"
(45mm) Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
18
MOUNTING DIMENSIONS
Figure 3. Meter Dimensions - Side View
Figure 4. Meter Dimensions - Top View
NO
NCNCC
NOC
NO
NCNCC
NOC+
-R

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
19
Configuration for 12 or 24 VDC Power Option
Warning!
Do not exceed voltage rating of the selected
configuration.
Meters equipped with the 12/24 VDC power option are shipped
from the factory ready to operate from 24 VDC.
To configure the meter for 12 VDC power:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J9 jumper, located behind the power
connector, for 12 V as shown below.
Figure 5. Jumper Configuration for 12/24 VDC Power
MAIN BOARD
24 VDC
12 VDC
POWER
J9
12 V 24 V
J9 CONFIGURATION
Factory
Default
M-LINK
+
_

Model PD6363 Pulse Dual-Input Rate/Totalizer Instruction Manual
20
Transmitter Supply Voltage Selection (P+, P-)
All meters, including models equipped with the 12/24 VDC power
option, are shipped from the factory configured to provide 24 VDC
power for the transmitter or sensor.
If the transmitter requires 5 or 10 VDC excitation, the internal
jumper J4 must be configured accordingly.
To access the voltage selection jumper:
1. Remove all the wiring connectors.
2. Unscrew the back cover.
3. Slide out the back cover by about 1 inch.
4. Configure the J4 jumper, located behind the input signal
connector, for the desired excitation voltage as shown.
Figure 6. Transmitter Supply Voltage Selection
Connections
All connections are made to removable screw terminal connectors
located at the rear of the meter.
Caution!
Use copper wire with 60°C or 60/75°C insulation for all line
voltage connections. Observe all safety regulations.
Electrical wiring should be performed in accordance with
all applicable national, state, and local codes to prevent
damage to the meter and ensure personnel safety.
