Prem-I-Air Elite EH1460 User manual

EH1460
4.4 kW (15000 BTU/hour)
Mobile Air Conditioner
Air Conditioning
Cooling
Dehumidifying
Remote control
3 Fan speeds
LED display panel
24 Hour timer Page 1

IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of the
product for future reference.BEFORE USE
Inspect the product including its cable and plug for any signs of damage.
If the product is damaged, DO NOT use it, and contact your supplier
immediately. The appliance contains a refrigerant gas, so must be kept
upright at all times. After unpacking wait 3 hours for the refrigerant gas to
stabilise before use. INSTALLATION

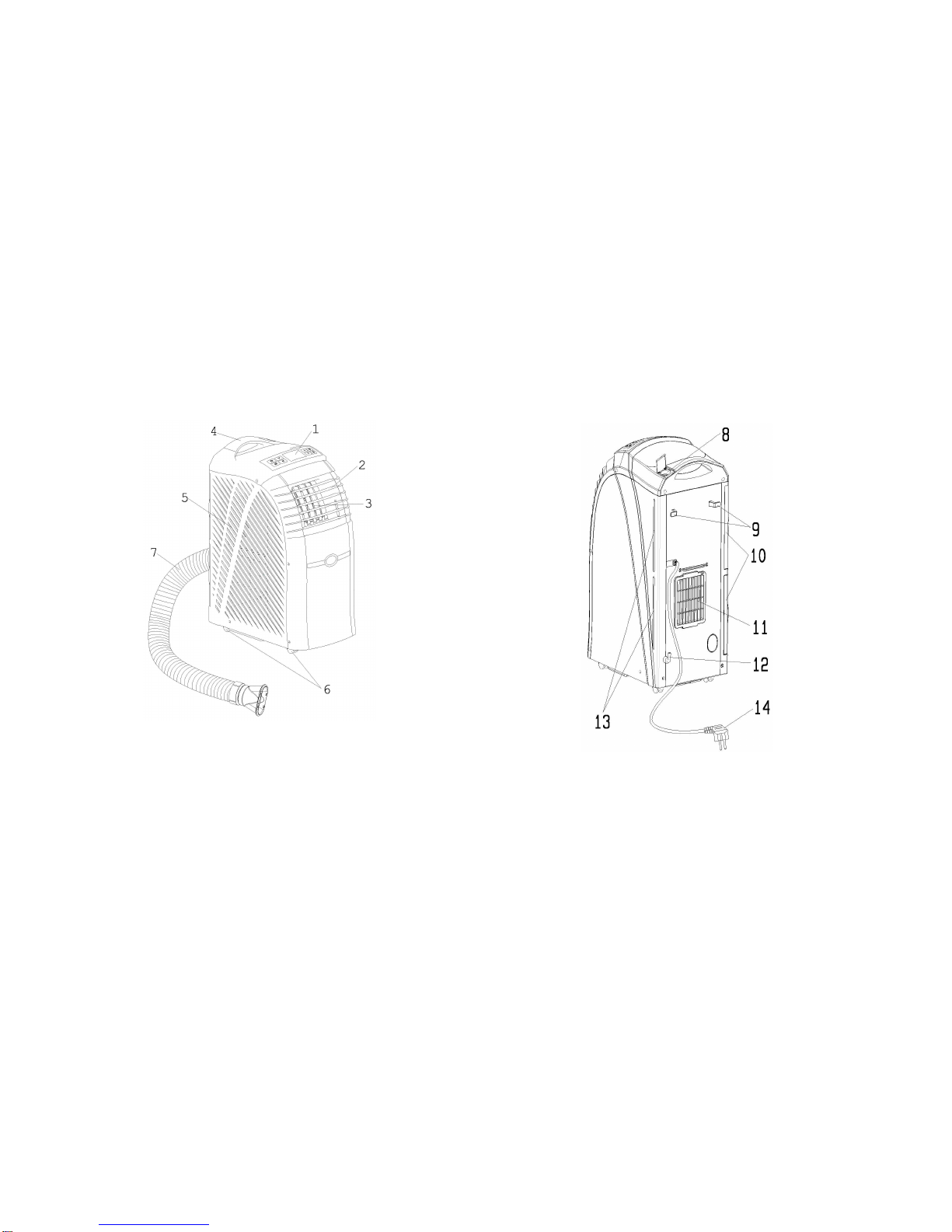

1.Control panel
2. Horizontal louvres
3. Vertical louvres
4. Handle
5. Air inlet grille
6. Castor
7. Exhaust pipe
8.Water injection port
9. Mains lead tidy
10. Air filter
11. Air outlet grille
12. Water tank connector
13. Water tank indicator
14. Mains lead and plug
Stand the appliance on a firm, flat, level surface, at least 500 mm from
the nearest wall.
Connect the exhaust hose as follows: expand a small section of the end,
and screw into the indoor adaptor; then slide the indoor adaptor into the
slot at the back of the unit. Expand a small section of the other end of the
hose, and screw into the fish-tail-shaped adaptor.
Slide the two-part window adaptor to the correct length to fit the window
(as shown opposite). Close the window as far as possible to keep the
window adaptor in place. Clip the fish-tail shaped adaptor into the
obround aperture in the window adaptor.
Page 2

Keep the hose as straight as possible, avoid dips where the moisture
from the exhaust air can condense and fill the tube with water. Do not
allow the hose to be crushed.
The hose can be expanded up to 1.7 m long, but the shorter it is the more
efficiently the appliance will operate. Do not extend the hose, or replace
with another type of hose.
Fit two AAA batteries to the remote control, observing the correct polarity.
PAT TESTING.
When used in an commercial environment, this product must be safety-
tested yearly by a qualified electrician (PAT Tested) in order to comply
with the Electricity at Work Regulations.
We recommend that it is PAT tested regularly when used in a domestic
environment.GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified electrician at
least once every 10 years or at every change of occupancy.
For office and retail premises, and buildings such as village halls, the
wiring must be inspected at least once every 5 years.
It is recommended that all building be fitted with smoke alarms (it is
mandatory for new buildings).
Page 3

PRODUCT SAFETY
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
•Children should be supervised to ensure that they do not play with the
appliance
•Place the appliance on a firm flat surface. Ensure that the it is kept
upright at all times
•Ensure that there is at least 300mm (1') between the sides of the
appliance and any flammable materials
•Ensure that there is at least 900mm (3') from the top of the appliance
and any flammable materials.
•Do not place on soft surfaces.
•Do not cover.
•Do not obstruct the air intakes and exhausts.
•For indoor use only
•Not suitable for use in boats, caravans or similar locations.
•Do not use in bathrooms, or in wet locations.
•Do not place the mains lead beneath a carpet or rug.
•Do not use the appliance in locations where paint, petrol or other
flammable liquids are used or stored.
•Always transport and store in an upright position.
•Do not allow the appliance to fall over when there is water in the tank.
OPERATION
Leave the appliance in an upright position for 3 hours before first use.
Plug the mains lead into a 13 Amp mains socket (unless permanently
installed)
If connecting via an extension lead, make sure that the lead is rated at 13
Amps or more, and that it is fully unwound.
Switch the unit on at the mains socket.
ON/OFF Button: Press the "ON/OFF" button to start the unit. The Power
indicator illuminates when the appliance is ON. There will be a short
delay (of about 3 minutes) before the appliance starts to operate.
"MODE" Button: Select the mode by pressing the "MODE" button. The
available modes are: Page 4

Cooling mode: cools if the room temperature is above the selected
temperature.Then use the s and t buttons to select the desired
room temperature. When the temperature reaches the desired
temperature, the compressor will stop, and the fan will continue to run.
Dehumidifying mode: removes humidity, but does not affect room
temperature. The fan operates at its lowest speed. For best results,
do not use the exhaust tube, but fit a permanent drainage pipe to the
drain outlet as shown on page 7.
Fan mode: circulates the air, but does not affect room
temperature or humidity. The exhaust tube is not requires in fan
mode.
"SPEED" Button: Set the fan speed using the fan speed control.
In all modes except dehumidifying mode. The fan speed can be low,
medium or high. The fan speed is indicated by the speed of the segments
on the windmill symbol on the LED display.
s and t buttons:
Use the s and t buttons to select the desired room temperature. The
temperature can be set to any temperature from 18 °C to 30 °C. Selecting
a higher temperature whilst cooling will reduce power consumption.
Pressing both s and t buttons together changes the display between
Celsius and Fahrenheit.
SWING button: Press the "SWING" button to turn the oscillation
of the louvres on or off.
ECONOMY MODE. Press the button to select economy mode. In
economy mode the fan speed is reduced, the cooling temperature is fixed
at 27°C.
WATER INJECTION.
If the water injection indicator illuminates then the cooling efficiency
can be enhanced by adding water to the water injection tank. The filler is
located at the right hand side, next to the handle. (see drawing on page
2). Do not add water in fan or dehumidifying modes.
Page 5

If the "WATER FULL" indicator lights, the condensate water tank is
full. This should only happen very rarely, as most
of the water collected is evaporated and sent
down the exhaust air tube.
To empty the water, switch the unit off by
pressing the ON/OFF button, wait for three
minutes, and then disconnect from the mains
supply. Place a drainage pan underneath the
drain outlet plug (an the bottom of the unit, at the
back in the centre). Withdraw the bung, and allow
the water to drain into the drainage pan. Replace
the bung, and reconnect the unit to the mains
supply.
The water should be disposed of down a drain.
To avoid the need to empty the water, a permanent drain tube may be
fitted as shown: use a
piece of 18mm diameter
tube (not supplied) and
run the pipe to a drain,
making sure that it runs
downhill all the way.
Always switch off using the on-off switch on the control panel, NOT by
switching off at the mains socket. This is so that the appliance can allow
the gas pressures to equalise.
Unplug the appliance from the mains when not in use.
USING THE TIMER
The timer can set the unit to run for a selected time (between ½ and 24
hours) and then turn OFF.
Or, it can set the unit to wait for a selected time (between ½ and 24
hours) before turning ON.
To select timed turn-off press the timer button whilst the unit is switched
ON. Then, whilst the display is flashing, adjust the time using the s and
t buttons for the number of hours' delay before switching off.
To select timed turn-off press the timer button whilst the unit is switched
OFF (connected to the mains supply but switched OFF using the ON/OFF
Page 6

button). Then, whilst the display is flashing, adjust the time using the s
and t buttons for the number of hours' delay before switching on.
To cancel the timer, press the TIMER button, and then press it again
whilst the screen is flashing.
USING THE REMOTE CONTROL
The cooling, dehumidifying and fan modes are selected in exactly the
same way as using the control panel on the main unit.
Additionally, the lower right button can be used to make the remote
control display the room temperature. The remote control handset can
they be used as a thermometer when not controlling the air-conditioner.
END OF SEASON STORAGE.
Before putting the appliance into storage, empty all water from the drain,
and run the appliance on "fan only" mode for a few hours to dry the inside
thoroughly. Clean the filter, unplug the mains cable, and store the
appliance in its original box in an upright position.
OPERATING COSTS
At time of going to press, the average cost of electricity is £0.12 per unit
(kilowatt-hour). The amount you are being charged will be shown on your
electricity bill.
At this cost, the EH0468 will cost £0.24 per hour to run in cooling or
dehumidifying modes, and £0.06 per hour to run in the fan-only mode.
To minimise the power used (and reduce operating costs):
•Make sure that the filter is kept clean.
•Make sure that the air intakes and exhausts are not obstructed.
•Keep doors and windows closed to prevent conditioned air from
escaping, and to prevent exhaust air from re-entering the room.
•Use blinds to prevent direct sunlight reaching the room.
MAINTENANCE
Before cleaning, turn the appliance off, and disconnect from the mains
supply. The appliance may then be cleaned using a damp cloth with a
drop of washing-up liquid to remove any dust or dirt from the case. Do no
use stronger detergents or solvents as these may damage the plastic.
Page 7

Cleaning the filter:
The filter is located on the side panel of the appliance.
Unclip to remove, then remove dust and dirt using a
vacuum cleaner. The filter should be cleaned every
two weeks to maintain optimum performance. Using a
dry 1" (25mm) paint-brush, remove any dust from the
grilles.

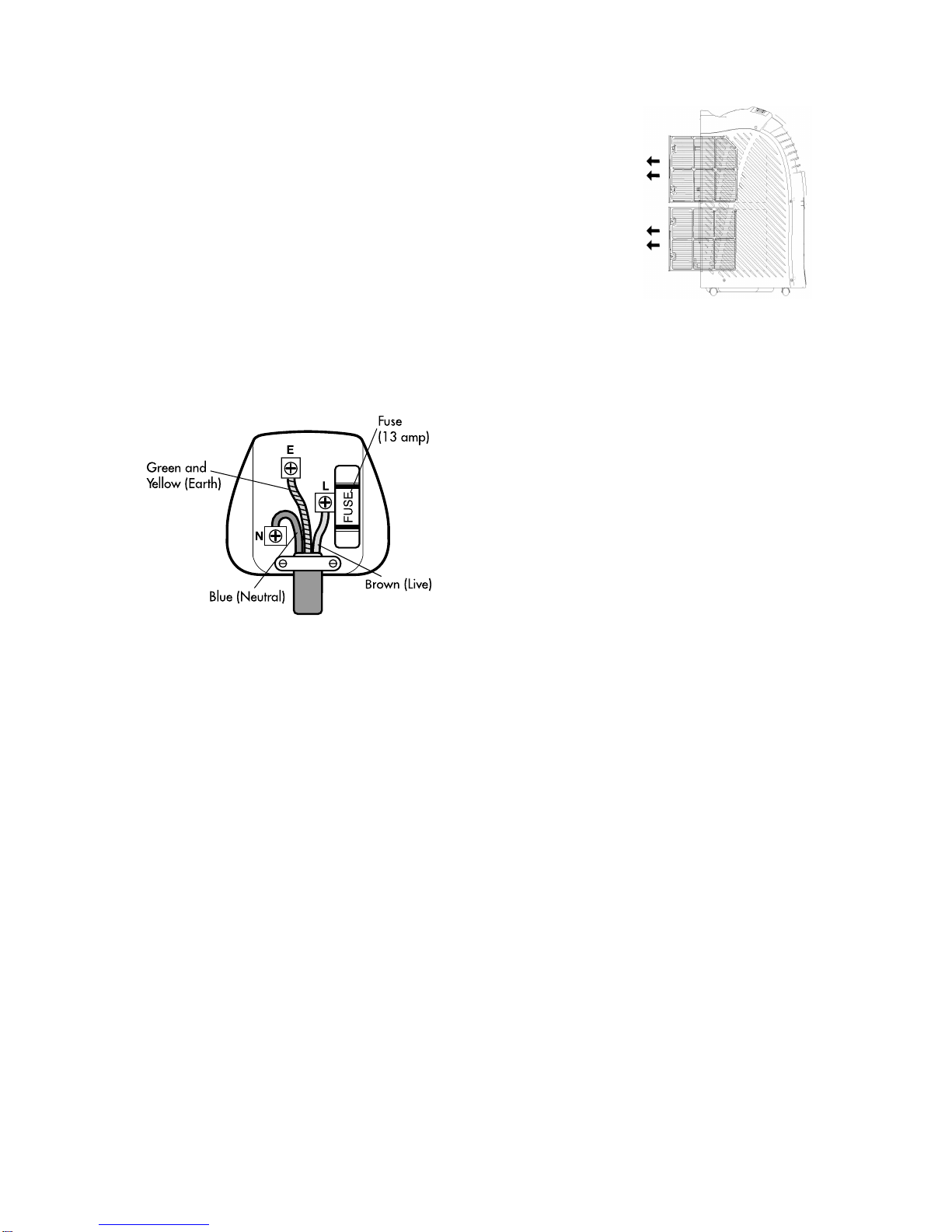

If the mains lead is damaged, it must be replaced by the manufacturer or
an authorised service centre. If the mains plug needs to be replaced,
proceed as follows: •Connect the brown wire to the
terminal labelled "L".
•Connect the blue wire to the terminal
labelled "N".
•Connect the green/yellow wire to the
terminal labelled with the earth symbol
or "E".
•Make sure that the cord-grip is
positioned correctly (over the outer
sheath of the cable) and it fully
tightened.
FAULT-FINDING
If the appliance is not operating, proceed as follows:
Check that the mains plug is firmly in the socket, and that the socket is
switched ON.
When the unit if switched on there will be a delay of about 1 minute
before it starts to operate.
•Unit stops running:
Mains supply is disconnected or has failed
Target temperature has been reached.
Timer has been set.
Water tank is full (WATERFULL indicator will illuminate)
•DF is shown on the display
The appliance is defrosting. This is normal.
•In cooling mode, no cool air is produced:
Room temperature is lower than set temperature
Page 8

The unit is defrosting (this will take a few minutes, and afterwards, it will
resume operation)
Filter is blocked
•Cooling is poor on hot days
Too much direct sunshine is heating the room
Windows or doors are open allowing hot air into the room
A lot of people in the room (each person contributes about 75W of
heating)
Electrical equipment in the room producing heat
•Remote control does not work:
Check batteries are correctly installed, and are not exhausted.
Make sure that the remote control is pointed towards the main unit when
being used.
FAULT CODES
If any error codes appear on the display, contact your local service agent.
E2: Room temperature sensor failure
E3: Evaporator temperature sensor failure
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household waste.
Most local authorities have specific collection system for appliances and
disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your
retailer may take the old appliance for disposal. This air conditioner
contains R410a refrigerant gas. At the end of its life the disposal of this
product must be in accordance with local regulations.
Page 9

TECHNICAL SPECIFICATION
Dimensions: 380×830×610 mm
Weight: 42 kg
Power supply: 230V ~
Power consumption (cooling): 1950 W
Operating current (cooling): 8.5 A
Cooling capacity: 4400 W
(15000 BTU/hour)
Dehumidifying capacity: 36 litres/day
Working temperature (cooling): 16 − 32 °C
Air flow: 580 m3/h
Refrigerant: R410a (820 g)
SERVICE WARRANTY
Prem-i-Air guarantees the product free from defects in materials and
workmanship for a period of two years.
Should this unit be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the unit, or
any attempts made to service or modify the unit, then the warranty will be
rendered void.
The product you buy may sometimes differ slightly from illustrations. This
warranty is in addition to, and does not affect, your statutory rights.
If you have any problems with this product, please call our Help Desk on
[phone].
Prem-i-Air Appliances Ltd.,
Lancots Lane, Sutton,
St. Helens, Merseyside.
WA9 3EX
website: www.prem-i-air.com
Page 10
