Premium PAD12060ENW/S User manual

Identification of parts
Safety Precautions
Preparation before use
Installation instructions
2
1
Indoor unit 3
Outdoor unit 3
Display introduction 4
Remote controller 8
Select the installation locations 19
Indoor unit installation 20
Outdoor unit installation 25
Installation diagram 18
Air purging 25
Notes 26
Operation instructions
Operation modes 10
Airflow direction control 11
Smart mode 12
Timer mode 13
Sleep mode 14
Maintenance 15
Protection 16
Troubleshooting 17
Super mode 14
Contents

1
Preparation before use
Before using the air conditioner, be sure to check and preset as the following.

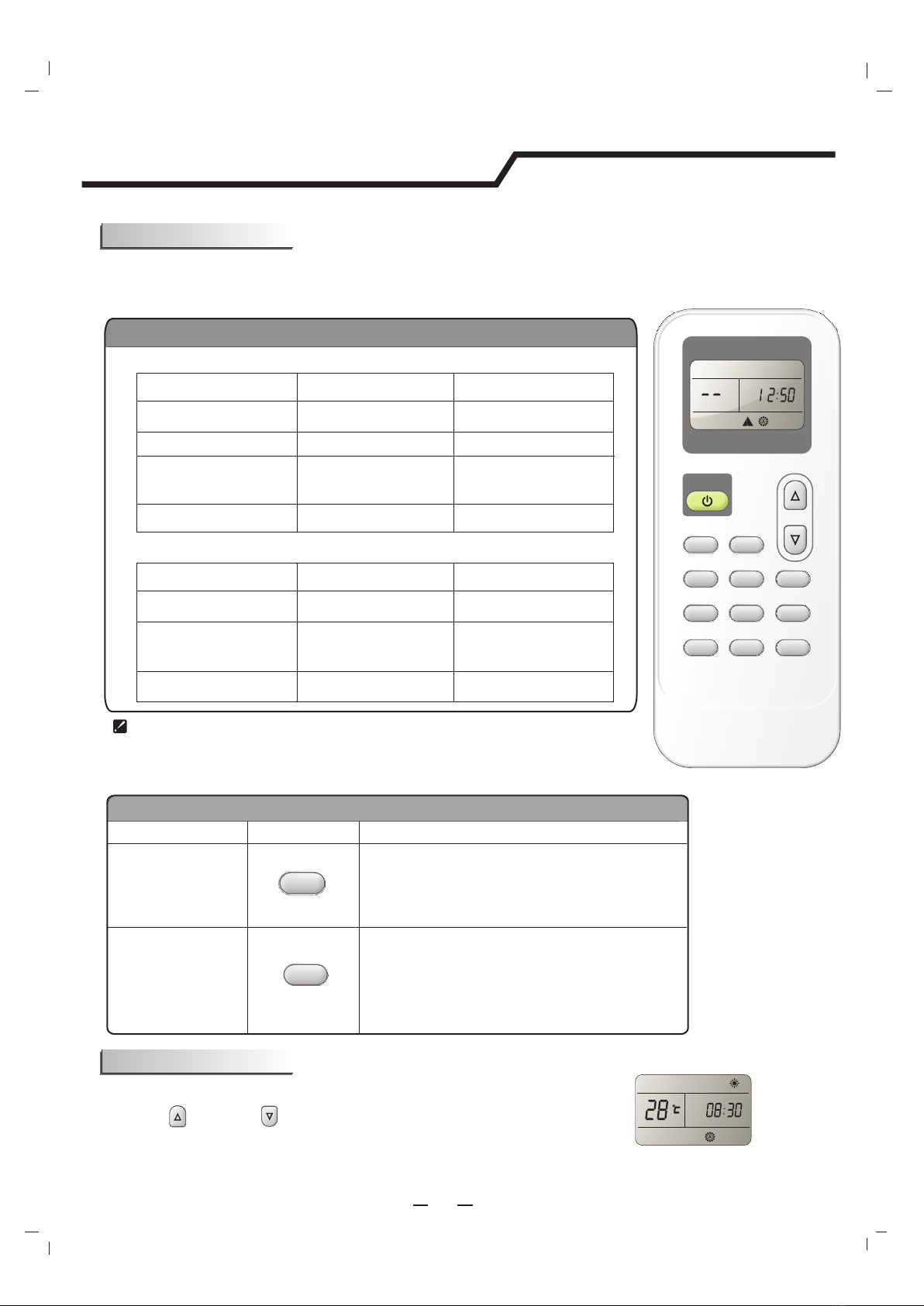

Remote Controller presetting
Auto Restart Presetting
It will be turned off automatically after about 10 seconds.
Hold down any button of the remote controller for about 2 seconds, the back-light will be turned on.
Note: Back-light is an optional function.
Back-light function (optional)
Each time after the remote control is replaced with new batteries or is energized, remote control auto
presetting heat pump.If the air conditioner you purchased is a Cooling Only one, heat pump remote
controller can also be used .

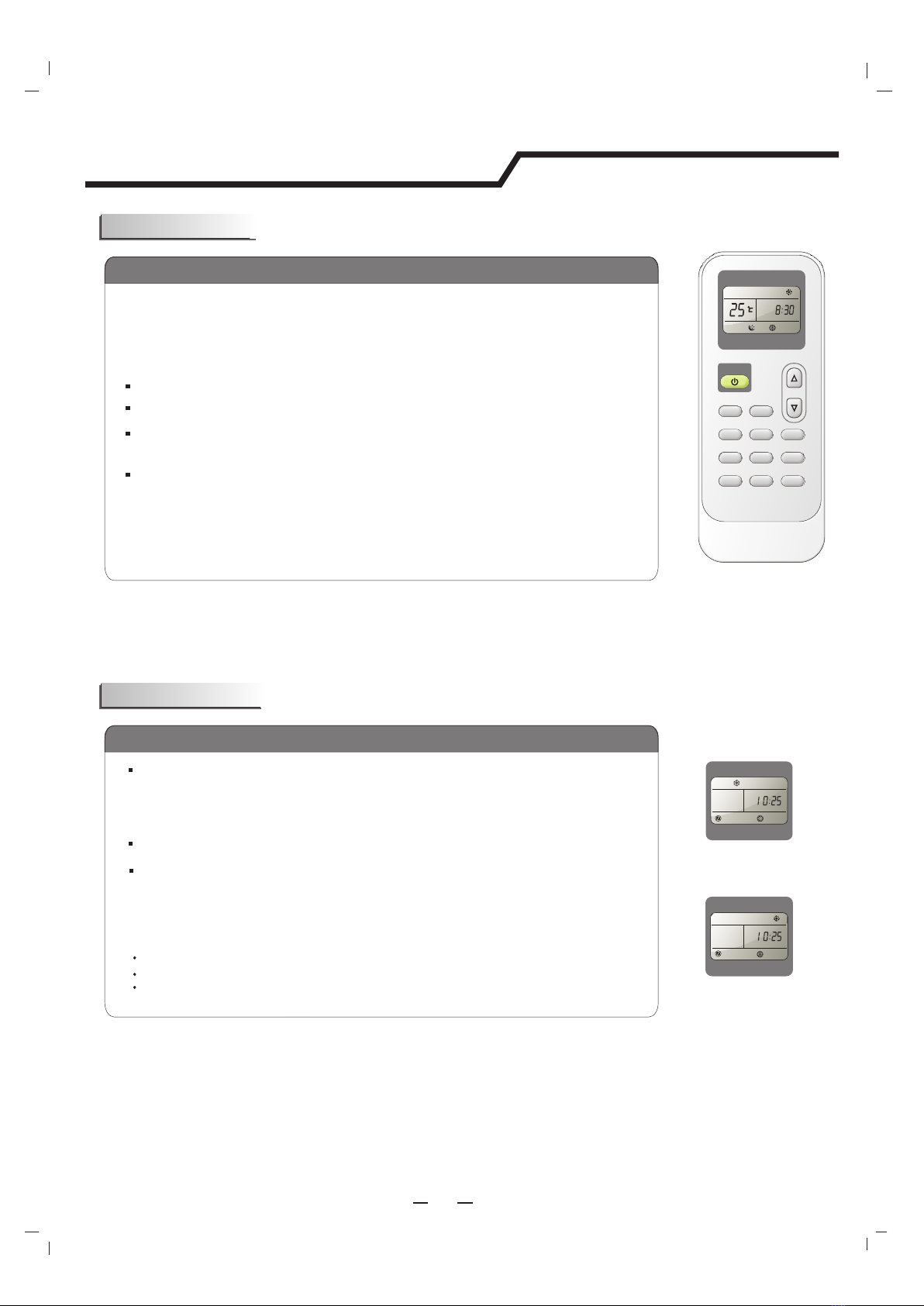

The air conditioner has Auto-Restart function.
You can set or cancel this function when the air conditioner is running.
Hold down the emergency button(ON/OFF) for a few seconds, this function will be set if you hear
beep twice. If you just hear beep once, this function will be canceled.

Safety precautions
Symbols in this Use and Care Manual are interpreted as shown below.
Be sure not to do.
Pay attention to such a situation.
Grounding is essential.
Do not use the power supply circuit
breaker or pull off the plug to turn it off
during operation. This may cause a fire
due to spark, etc.
Keep the power supply circuit breaker
or plug from dirt. Connect the power
supply cord to it firmly and correctly,
lest an electric shock or a fire break out
due to insufficient contact.
Use correct power supply in
accordance with the rating plate
requirement. Otherwise, serious
faults or hazard may occur or a
fire maybe break out.
Do not knit, pull or press the power supply
cord, lest the power supply cord be broken.
An electric shock or fire is probably caused
by a broken power supply cord.
Never insert a stick or similar obstacle
to the unit. Since the fan rotates at high
speed, this may cause an injury.
Do not repair the appliance by yourself.
If this is done incorrectly, it may cause an
electric shock, etc.
Turn off the appliance by remote control
firstly before cutting off power supply if
malfunction occurs.
It is harmful to your health if the cool air
reaches you for a long time. It is advisable
to let the air flow be deflected to all the room.
Prevent the air flow from reaching the gas
burners and stove.
Do not touch the operation buttons
when your hands are wet.
Do not put any objects on the outdoor
unit.
It is the user's responsibility to make the
appliance be grounded according to
local codes or ordinances by a licenced
technician.
OFF OFF
ON
ON
Warning: Incorrect handling could
cause a serious hazard, such as death,
serious injury, etc.
2
ON/OF F
MODE FAN
SWING S LEEP SUPER
SMART I FEEL DIM MER
TIMER O N TIMER O FF CLOCK
ON
OFF
ON
OFF

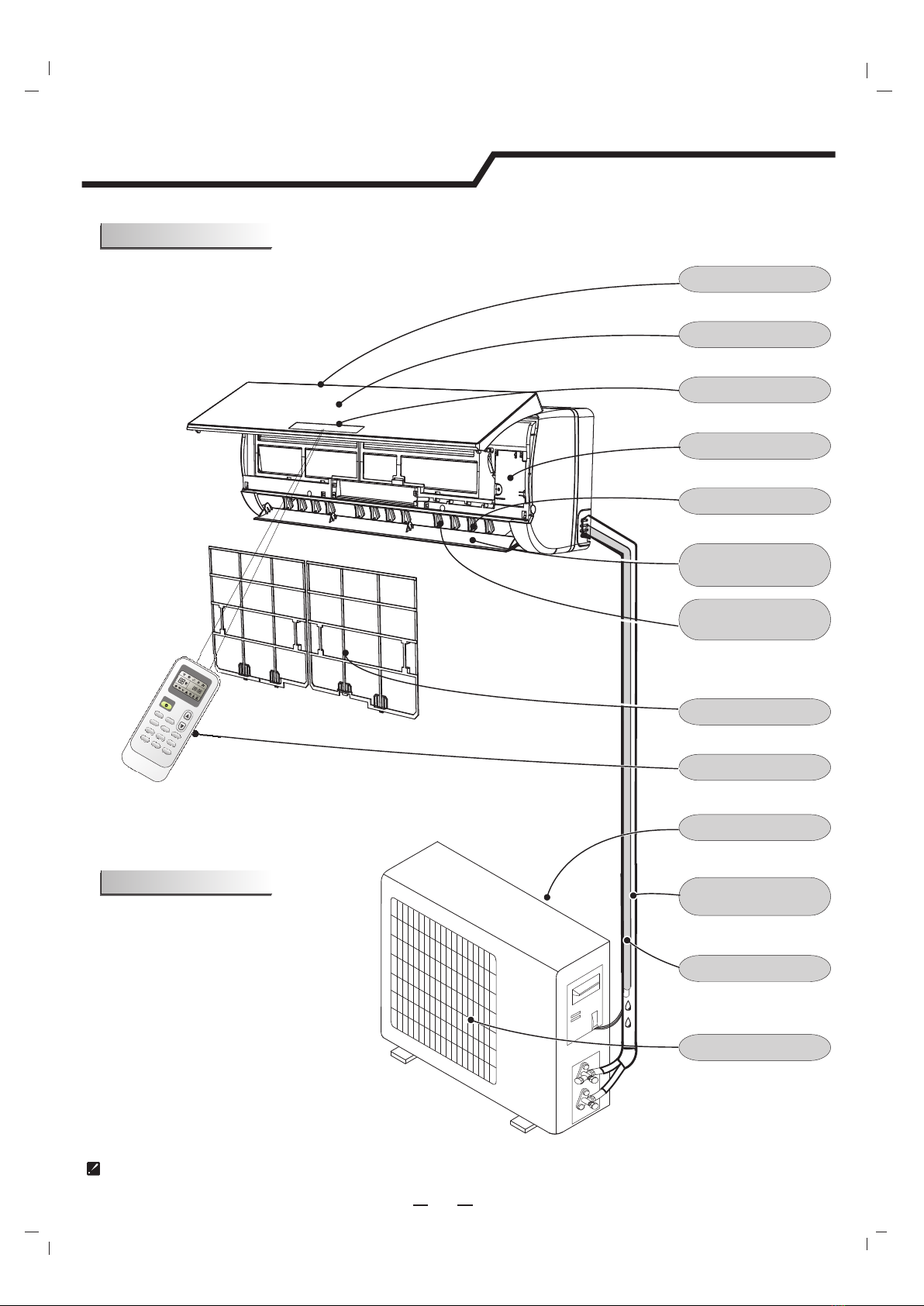

The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
Air Intake
Air Intake
Air Outlet
Air Outlet
Louver
Vertical Adjustment
Louver
Horizontal Adjustment
Air Filter
Remote Controller
Connection Cord
Pipes and Power
Drain Hose
Front Panel
Emergency Panel
Display Panel
Note: Condensate water drains
at COOLING or DRY operation.
Identification of parts
3
Indoor unit
Outdoor unit
ON/OF F
MODE FAN
SWING SLE EP SUPER
SMART IFEE LDIM ME R
TIMER ON TIMER OFF CLO CK
ON
OFF
ON
OFF

The symbols may be different from these models, but the functions are similar.
Display introduction
4

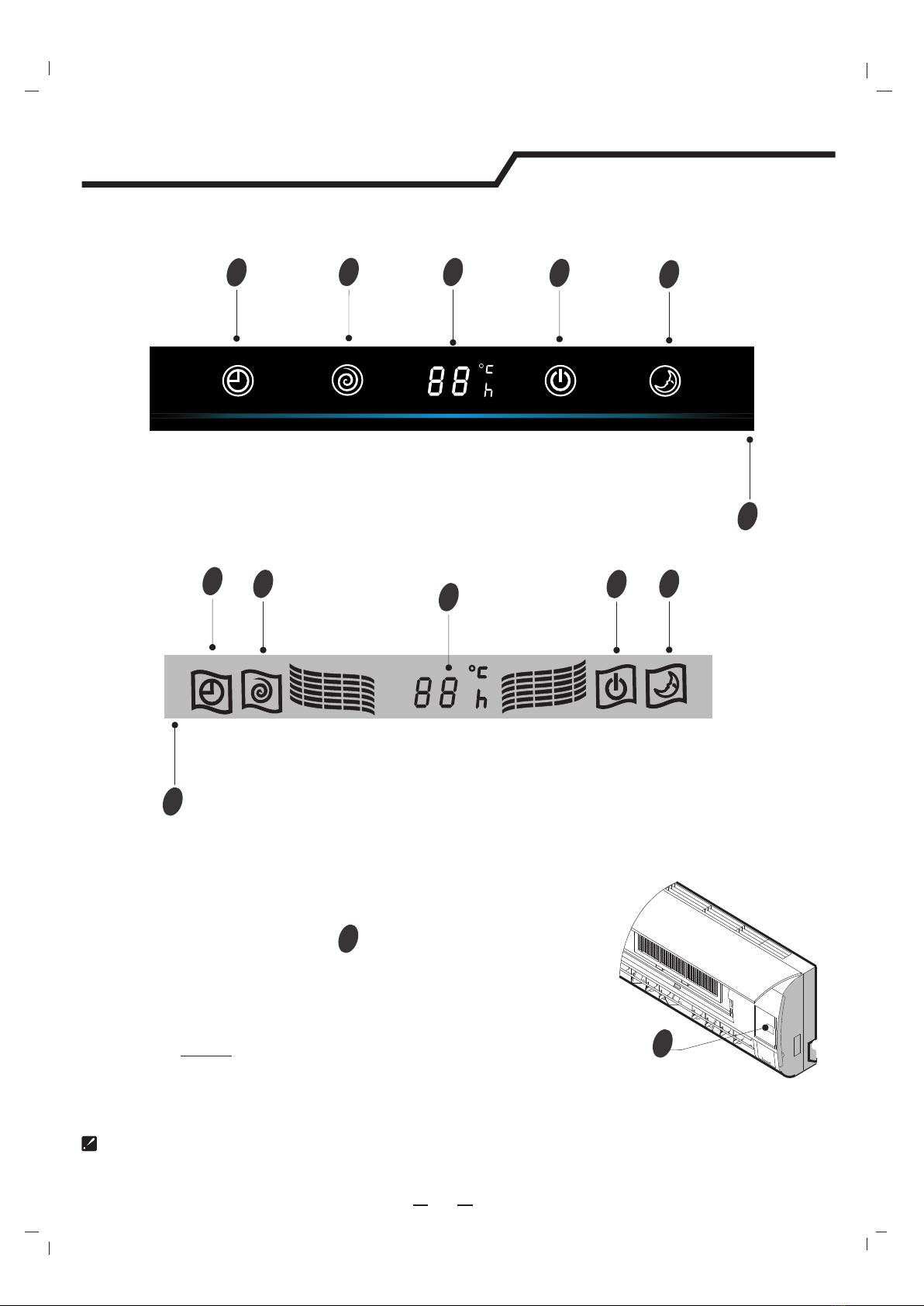

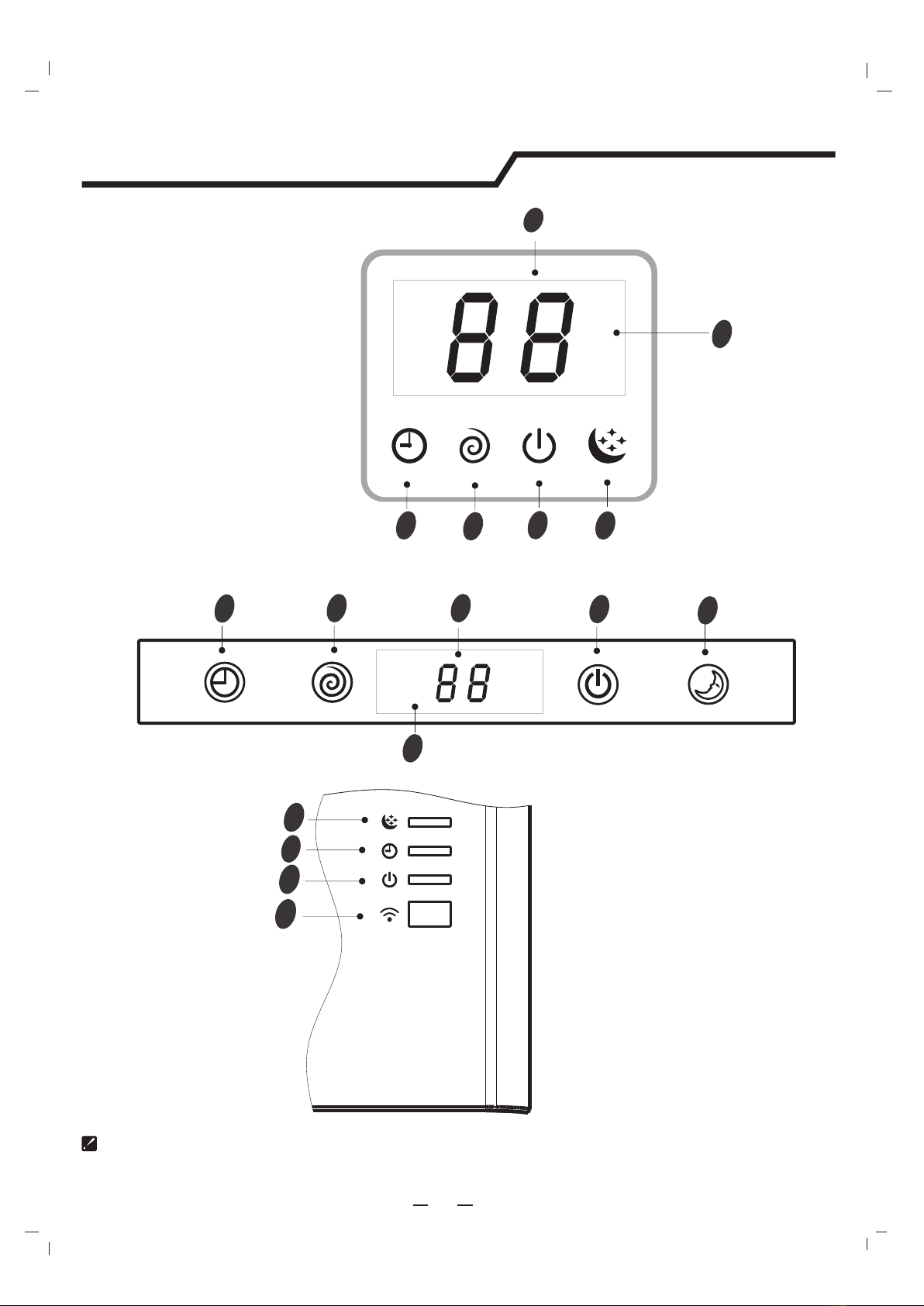

1 2 3 4 5 6
Running indicator
It lights up when the AC is running.
It flashes during defrosting.
2
Timer indicator
It lights up during set time.
3
Sleep indicator
It lights up in sleep mode.
4
Compressor indicator
It lights up when the compressor is on.
5
Display set temperature.
It shows FC after 200 hours of usage as reminder to clean the filter.
After filter cleaning press the filter reset button located on the indoor unit behind the front
panel in order to reset the display.(optional)
Temperature indicator
VG/VL series
1
Signal Receptor 6
Timer
Comp.
Run
Sleep
VQ series
12
34
6
12
34
5

The symbols may be different from these models, but the functions are similar.
Display introduction
5
1
2
34
5
6
12
34
5
6
NS series
VT series
NT series
6
4
4
3
2

The symbols may be different from these models, but the functions are similar.
Display introduction
6
12
34
5
6
Timer Comp. Run Sleep
UL series
UQ series
UP series
6
Timer Comp. Run Sleep
12
34
5
12
34
5
6

ON/OFF
Filter reset
7
To let the AC run or stop by pressing the button.
When the display shows "FC", it will function as
a reset button of the filter cleaning prompt.
Emergency button 7
The symbols may be different from these models, but the functions are similar.
7
Display introduction
ON/OFF
To let the AC run or stop by pressing the button.
VC series
12
34
5
6
Timer Comp. Run Sleep
12
34
5
6

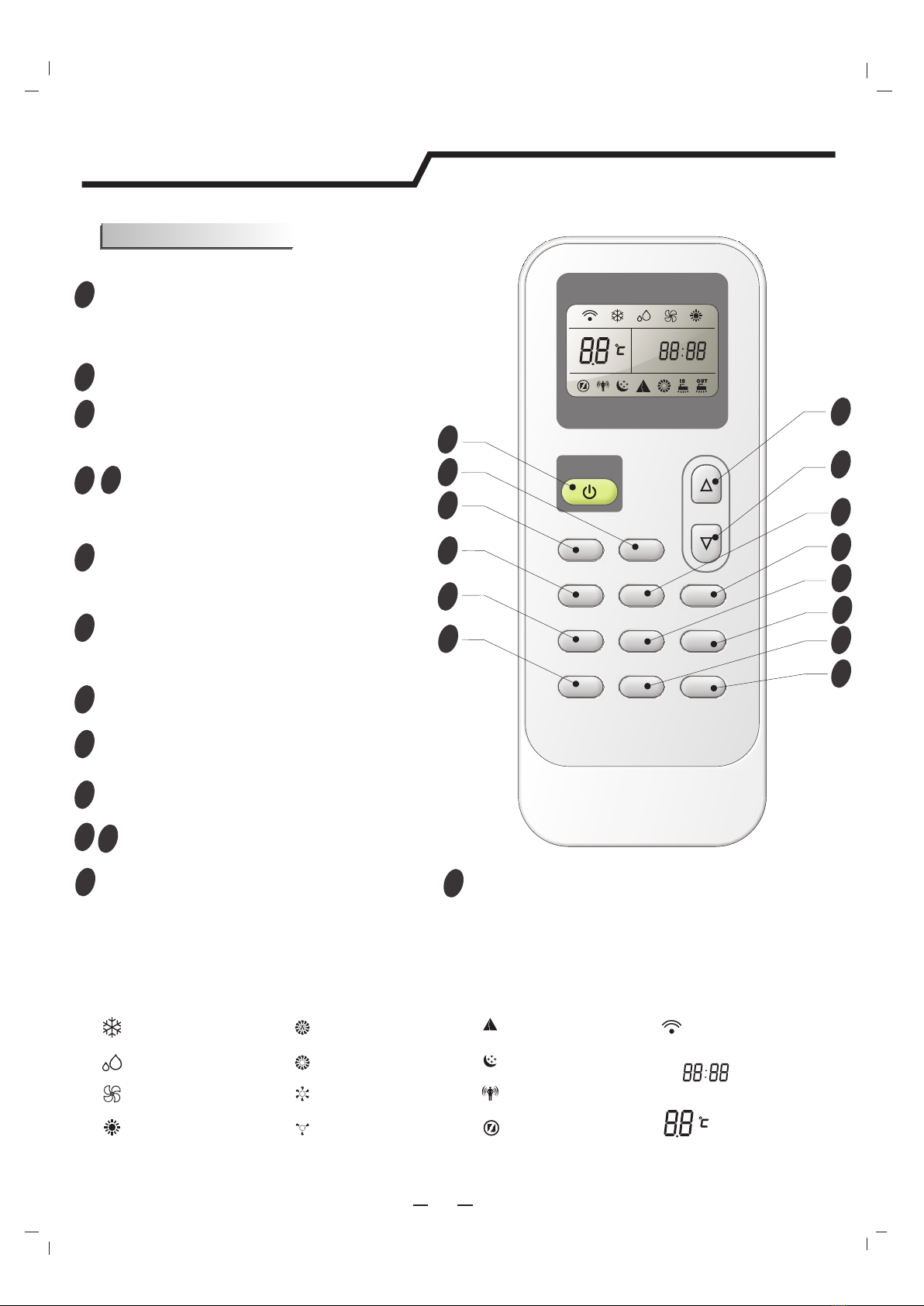

The remote controller transmits signals to the system.
Remote controller
8
1
2
4
3
13
12
5
6
11
7
8
9
10
SUPER BUTTON
SWING BUTTON
FAN BUTTON
ROOM TEMPERATURE
SETTING BUTTONS
SLEEP BUTTON
IFEEL BUTTON (optional)
CLOCK BUTTON
ON/OFF BUTTON
SMART BUTTON
MODE BUTTON
TIMER ON/OFF BUTTON
Used to start or stop the fast cooling/heating.
(Fast cooling operates at high fan speed with
18℃ set temp automatically ; Fast heating
operates at auto fan speed with 32℃ set temp
automatically)
Used to stop or start vertical adjustment
louver swinging and set the desired up/down
airflow direction.
Used to select fan speed in sequence
auto, high, medium or low.
Used to set or cancel Sleep Mode operation.
Used to set or cancel Mode operation.IFEEL
Used to set the current time.
Used to enter fuzzy logic operation directly,
regardless of the unit is on or off.
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
Press this button to select the operation mode.
Used to set or cancel the timer operation.
Remote controller
Indication symbols on LCD:
Note: Each mode and relevant function will be further specified in following pages.
Signal transmit
Dry indicator
Fan only indicator
Heating indicator
Cooling indicator
High fan speed
Medium fan speed
Low fan speed Display set temperature
Display set timer
Display current time
Auto fan speed Smart indicator
Sleep indicator
Ifeel
Super indicator
ON
OFF
10
11
12
13
14
14
3
4
ON/OFF
MODE FAN
SWING SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
ON
OFF
ON
OFF
1
2
6
7
5
8
9
Used to adjust the room temperature and
the timer, also real time.
DIMMER BUTTON (optional)
When you press this button, all the display of
indoor unit will be closed. Press any button to
resume display.

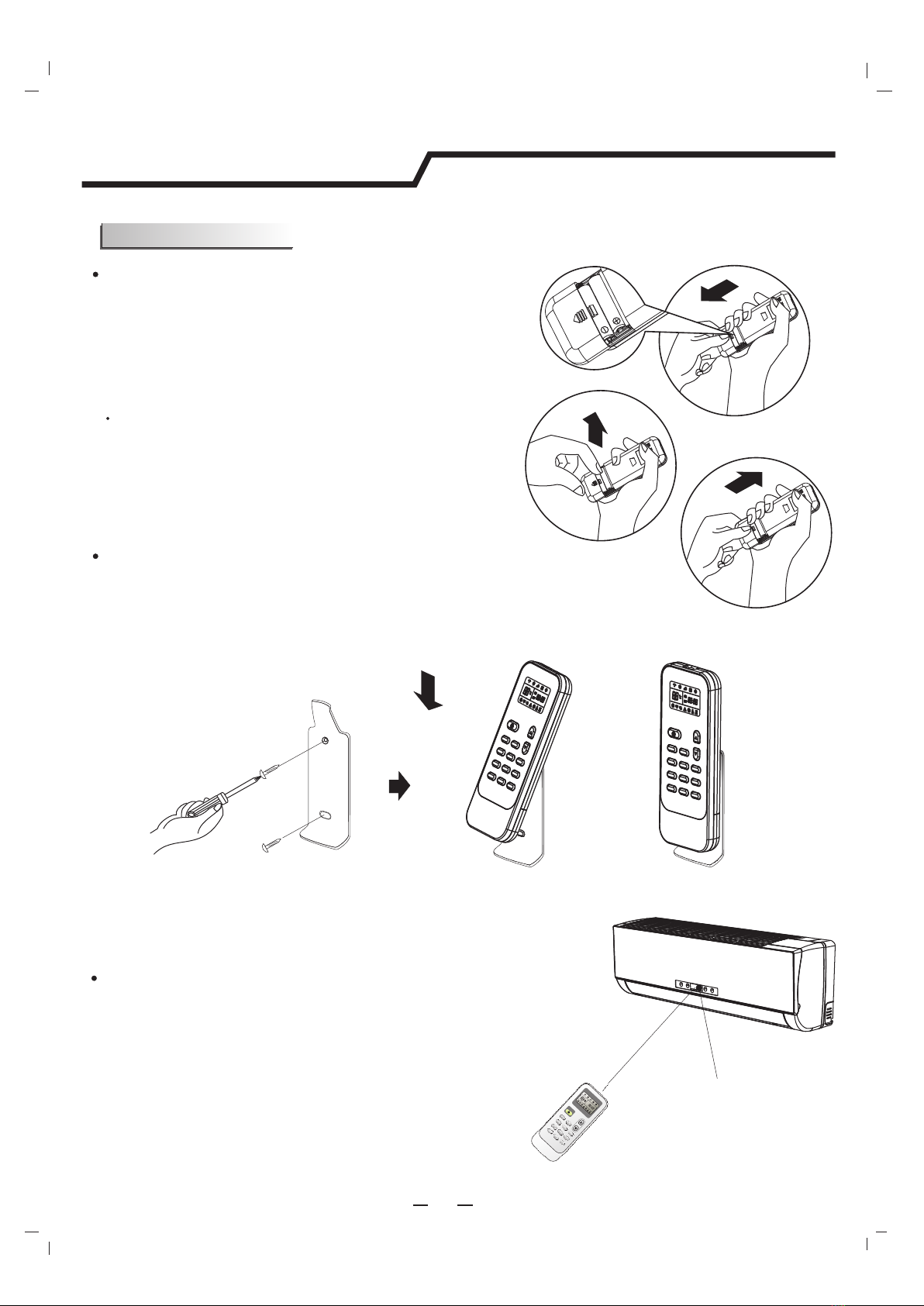

How to Insert the Batteries
How to Use
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2 LR03 AAA(1.5volt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
Storage and Tips for Using the Remote Controller
The remote controller may be stored mounted on a wall with a holder.
Note: The remote controller holder is an optional part.
9
To operate the room air conditioner, aim
the remote controller to the signal receptor.
The remote controller will operate the air
conditioner at a distance of up to 7m when
pointing at signal receptor of indoor unit.
Remote controller
Remote controller
Signal receptor
ON/OFF
MODEFAN
SWING SLEE P SUPER
SMARTIFEEL D IMMER
TIMER ON TIMER OFF CLO CK
ON
OFF
ON
OFF

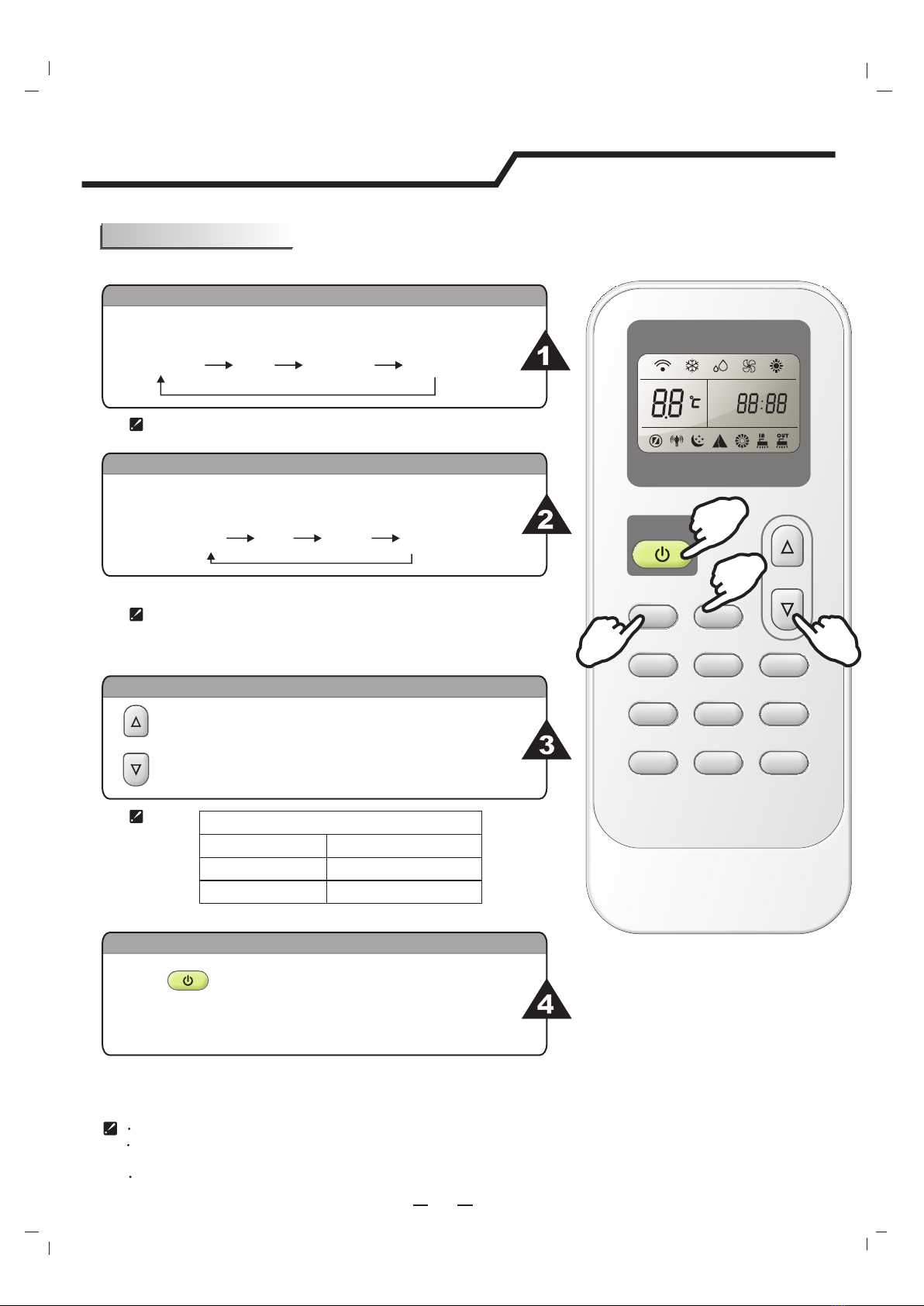

Each time MODE button is pressed, the operation mode
is changed in sequence:
Each time the "FAN" button is pressed, the fan speed is
changed in sequence:
18℃~32℃
Heating mode is NOT available for cooling only air conditioner.
HEATING
COOLING DRY FAN ONLY
Selecting mode
FAN mode
Auto High Medium Low
At "FAN ONLY" mode, only "High","Medium" and "Low" are available.
At "DRY" mode, Fan speed is set at "AUTO” automatically, "FAN" button
is ineffective in this case.
Setting temperature
Press once to lower temperature setting by 1℃
Press once to raise temperature setting by 1℃
Range of available set temperature
*HEATING, COOLING
DRY
FAN
-7 ~ 7
unable to set
Turning on
SWING, SMART, TIMER ON, TIMER OFF, CLOCK, SLEEP and SUPER operation modes will be
specified in the following pages.
Press button, when the appliance receives the
signal, the RUN indicator of the indoor unit lights up.
Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
Wait 3 minutes before restarting the appliance.
During heating operation, air flow is not discharged at the beginning. After 2－5 minutes, the air flow will be discharged
until temperature of indoor heat exchanger rises.
ONLY
Operation instructions
10
Operation modes
*Note: Heating mode is NOT available for cooling only models.
ON/OFF
MODE FAN
SWING SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
ON
OFF
ON
OFF
13
4
2

SWING
ON/OFF
MODE FAN
SWING SLEEP SUPER
SMART IFEE L DIMMER
TIMER ON TIMER OFF CLOCK
ON
OFF
ON
OFF
5
Airflow direction control
Vertical airflow is automatically adjusted to a certain angle
in accordance with the operation mode after turning on the unit.
The direction of airflow can be
also adjusted to your own
requirement by pressing the
"SWING" button of the
remote controller.
Operation mode Direction of airflow
COOLING, DRY
*HEATING,
FAN ONLY
horizontal
downward
Vertical airflow control (with the remote controller)
Using remote controller to set various angles of flow or specific angle
as you like.
Swinging airflow
Pressing "SWING" button once, the vertical adjustment
louver will swing up and down automatically.
Desired direction airflow
Pressing the "SWING" button again when the louvers swing
to a suitable angle as desired.
Horizontal airflow control (with hands)
Turning the control rods of the
horizontal adjustment louvers to
change horizontal air flow as shown.
control rods of horizontal
adjustment louvers
Note: The shape of the unit may look different
from that of the air conditioner you have selected.
Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. If that happens, turn off the unit
first and cut off the power supply, then restore power supply again.
It is better not to let the vertical adjustment louver tilt downward for a long time at COOLING or DRY mode to prevent
condensed water from dripping.
Operation instructions
11
*Heating mode is only available for heat pump models.
Airflow direction control

Indoor temperature
SMART button is ineffective in SUPER mode.
Target temperature
21℃ or below 22℃ 22℃
26℃
Over 26℃
21℃-23℃
23℃-26℃
Your feeling
What you can do in SMART mode
button adjustment procedure
Operation mode
HEATING
FAN ONLY
DRY
Room temperature
decrease 1.5℃ after
operate for 3 minutes
COOLING
Press the SMART button, the unit enters SMART mode(fuzzy logic operation) directly regardless of
the unit is on or off. In this mode, temperature and fan speed are automatically set based on the
actual room temperature.
Uncomfortable
because of
unsuitable air
flow volume.
Uncomfortable
because of
unsuitable flow
direction.
Indoor fan speed alternates among
High, Medium and Low each time this
button is pressed.
Press it once, the vertical adjustment
louver swings to change vertical airflow
direction. Press it again, swings stops.
For horizontal airflow direction, please
refer to the previous page for details.
Operation mode and temperature are determined by indoor temperature
Note: Temperature, airflow and direction are controlled automatically in SMART mode.
However, For the on/off, you can choose from -2 to 2, for the inverter you can choose
from -7 to 7. if you still feel uncomfortable.
Operation instructions
12
SMART mode
Heat pump models
Cooling only models
CLOCK button
You can adjust the real time by pressing CLOCK button, then
using and buttons to get the correct time, press
CLOCK button again the real time is set.
Indoor temperature Target temperature
23℃ or below
26℃
Over 26℃
23℃-26℃
Operation mode
FAN ONLY
DRY
Room temperature
decrease 1.5℃ after
operate for 3 minutes
COOLING
ON/OFF
MODE FAN
SWING SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
ON
OFF
FAN
SWING

Timer mode
How to set TIMER ON
How to cancel TIMER ON
TIMER ON button can be used to set the timer programming as wished in order to
switch on the appliance at your desired time.
Press TIMER ON button, "ON 12:00" flashes on the LCD, then you
can press the or buttons to select your desired time for
appliance on.
Press the TIMER ON button once to increase or decrease the time setting by 1 minute.
Press the TIMER ON button one and a half seconds to increase or decrease the time
setting by 10 minute.
Press the TIMER ON button for a longer time to increase or decrease the time by 1 hour.
Press the TIMER ON button again, a "beep" can be heard and the indicator disappears,
the TIMER ON mode has been canceled.
When your desired time displayed on LCD, press the TIMER ON button and confirm it.
A "beep" can be heard.
Note: If you don't set the time in 10 seconds after you press TIMER ON button, the remote controller
will exit the TIMER ON mode automatically.
Note: It is similar to set TIMER OFF, you can make the appliance switch off automatically at your
desired time.
The TIMER indicator on the indoor unit lights up.
"ON" stops flashing.
After the set timer displayed for 5 seconds the clock will be displayed on the LCD
of the remote controller instead of set timer.
It is convenient to set the timer on with TIMER ON/OFF buttons when you go out in the
morning to achieve a comfortable room temperature at the time you get home. You can
also set timer off at night to enjoy a good sleep.
Operation instructions
Increase
Decrease
i)
ii)
iii)
ON
13

14
Operation instructions
SLEEP mode
SUPER mode
SLEEP mode can be set in COOLING HEATING SMART DRYING or
operation mode.
for sleep.
This function gives you a more comfortable environment
The appliance will stop operation automatically after operating for 8 hours.
In SLEEP mode,
Fan speed is automatically set at low speed.
*Set temperature will rise by 1 if the appliance operates in cooling ℃ at most
mode for 2 hours constantly, then keeps steady.
Set temperature will decrease by 3℃ at most if the appliance operates in
heating mode for 3 hours constantly, then keeps steady.
*Note: In cooling mode, if room temperature is 26℃or above, set temperature
will not change.
Note: Heating is NOT available for cooling only air conditioner.
fast cooling
fast heating
SUPER mode can be set when the appliance is in operation or energized.
Fast cooling operates at high fan speed, changing the set temperature
automatically to 18
temperature automatically to 32 ℃.
℃;Fast heating operates at auto fan speed,changing the set
In SUPER mode, you can set airflow direction or timer. If you want to
escape from SUPER mode, press SUPER , MODE, FAN, ON/OFF,SLEEP
or TEMPERATURE SETTING button, the display will return to the original
mode.
Note:
The Appliance will continue working in SUPER mode , if you don't escape from it by
pressing any of the buttons mentioned above.
SMART button is not available in SUPER mode.
SLEEP mode
SUPER mode
ON/OFF
MODE FA N
SWIN G SL EE P SU PER
SMART IFEE L DI MM ER
TIME R ON TIM ER OFF CLOCK
ON
OFF
ON
ON
OFF
ON
OFF
SUPER mode is used to start or stop fast cooling or heating.

Turn off the appliance
first before disconnecting
from power supply.
It is necessary to clean the air filter
after using it for about 100 hours.
Clean it as follows:
Front panel maintenance Air filter maintenance
Cut off the power supply
Never use volatile substance
such as gasoline or polishing
powder to clean the appliance.
Clean and reinstall the air filter.
Close the front panel again.
shock!
Electric
Dangerous!
Wipe with a soft
and dry cloth.
Use lukewarm water
(below 40℃) to clean
if the appliance
is very dirty.
Never sprinkle water onto the
indoor unit
Reinstall and shut the front panel.
Reinstall and shut the front panel by
pressing position "b" downward.
If the dirt is conspicuous,
wash it with a solution of
detergent in lukewarm water.
After cleaning, dry well in
shade.
Clean the air filter every two weeks
if the air conditioner operates in an
extremely dusty environment.
Stop the appliance and remove
the air filter.
1
2
3
1.Open the front panel.
2.Press the handle of the filter gently
from the front.
3. Grasp the handle and slide out the filter.
soft cloth to
clean it.
Use a dry and
Grasp position "a" and
pull outward to remove the
front panel.
a
a
bb
15
Maintenance

Noise pollution
Operating condition
The protective device maybe trip and stop
the appliance in the cases listed below.
HEATING
o
Outdoor air temperature is over 24 C
COOLING
DRY
o
Outdoor air temperature is below -7 C
o
Room temperature is over 27 C
o
Outdoor air temperature is over *43 C
*For Tropical (T3) Climate condition models, the
temperature point is 52℃ instead of 43℃.
o
Room temperature is below 21 C
o
Room temperature is below 18 C
If all operation has stopped, press ON/OFFbutton again to restart, Timer should be set again
if it has been canceled.
Install the air conditioner at a place that
can bear its weight in order to operate
more quietly.
Install the outdoor unit at a place where
the air discharged and the operation noise
would not annoy your neighbors.
Do not place any obstacles in front of the
air outlet of the outdoor unit lest it increases
the noise level.
Features of HEATING mode
Preheat
Defrost
At the beginning of HEATING operation, the airflow from indoor unit is discharged 2-5
minutes later.
In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency.
This procedure usually lasts 2-10 minutes. During defrosting, fans stop operation.
After defrosting completes, it returns to HEATING mode automatically.
16
Protection
Features of protector
The protective device will work at following cases.
Restarting the unit at once after operation stops or changing mode during operation, you need to
wait 3 minutes.
Connect to power supply and turn on the unit at once, it may start 20 seconds later.
If the air conditioner runs in COOLING or DRY mode with
door or window opened for a long time when relative
humidity is above 80%,dew may drip down from the outlet.
Note: Heating is NOT available for cooling only air conditioner models.

Trouble Analysis
Does not run
No cooling or
heating air
Ineffective control
Does not operate
immediately
Peculiar odor
A sound of
flowing water
Cracking sound is
heard
Spray mist from
the outlet
The compressor indicator(red) lights on constantly,
and indoor fan stops.
The unit is shifting from heating mode to defrost.
The indicator will lights off within ten minutes and
returns to heating mode.
Is the air filter dirty?
Are the intakes and outlets of the air
conditioner blocked？
Is the temperature set properly？
don't run
If the protector trip or fuse is blown.
If the plug is not properly plugged.
If batteries in the remote controller exhausted.
Please wait for 3 minutes and start again,
protector device may be preventing unit to work.
.
The following cases may not always be a malfunction, please check it before asking for service.
If strong interference(from excessive static
electricity discharge, power supply voltage
abnormality)presents, operation will be
abnormal. At this time, disconnect from the
power supply and connect back 2-3 seconds later.
Changing mode during operation, 3 minutes
will delay.
This odor may come from another source
such as furniture, cigarette etc, which is
sucked in the unit and blows out with the air.
Caused by the flow of refrigerant in the
air conditioner, not a trouble.
Defrosting sound in heating mode.
The sound may be generated by the expansion
or contraction of the front panel due to change
of temperature.
Mist appears when the room air becomes
very cold because of cool air discharged
from indoor unit during COOLING or DRY
operation mode.
17
Troubleshooting

Distance from ceiling
Distance from wall
should be over 50mm
Distance from the wall
Distance from floor
Air intake distance from
the wall should be
over 250mm
Air intake distance from the wall
over 250mm
air outlet distance from the wall
should be over 500mm
should be over 200 mm
should be over 50mm
should be over 2300mm
should be over 250mm
Installation must be performed in accordance with
the national wiring standards by authorized personnel only.
Above figure is only a simple presentation
of the unit, it may not match the external
appearance of the unit you purchased.
18
Installation instructions
Installation diagram
