PRESTEL+GEMMER RALLYEMASTER SPORT User manual

RALLYEMASTER SPORT
Assembly and operating instructions

Congratulations on your purchase of a high-quality product from
PRESTEL+GEMMER. The RALLYEMASTER SPORT is an
electromechanical distance counter with extremely precise roller
counters. It measures the distance covered with an accuracy of
10m (1m). The device is internationally approved for historic events!
The technical data of your RALLYEMASTER SPORT:
Dimensions: W/H/D 195/57/90 mm (only housing,
without switches)
Operating voltage: 12-14 volts
Upstream installation: 1 ampere fuse
Minus: connected to earth

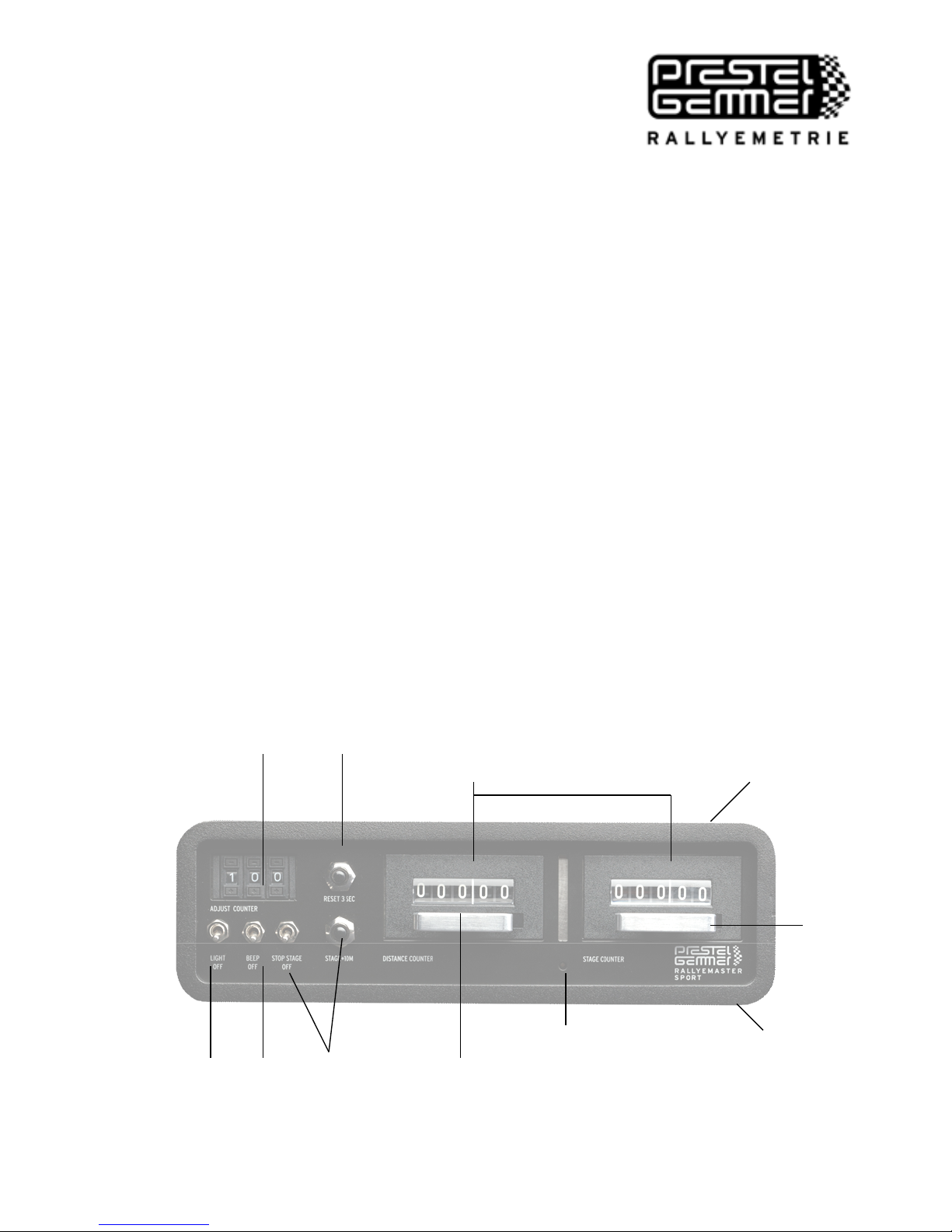

The operating elements of your RALLYEMASTER SPORT:
1. ON/OFF switch
2. Roller counters 1+2, for whole and partial distance
3. Mechanical pushbutton to set the counter to zero
4. Coding switch to calibrate counters
5. Loudspeakers for 100 m beep
6. Switch for 100 m beep
7. Switch for night lighting
8. Pushbutton and Stop-switch to manipulate the “Stage“ device in steps
of 10 m + or stop it
9. Pushbutton to reset the system
10. System connector input
10
9
8
7
6
2
4
3
3
1
5

Cable assignment of your RALLYEMASTER SPORT:
Red Positive pole 12-14 volts with 1A fuse
Black Earth vehicle
Brown Positive pole sensor 5 volts
Green/Yellow Earth sensor
Blue Signal sensor
Please note:
As standard, the RALLYEMASTER SPORT distance counter is delivered
without a sensor. In general, only sensors with an operating voltage of 5V
are to be connected. When using the VDO sensor, a 3 kOhm resistor
must be connected between the blue and the brown cable of the
RallyeMaster.
If you connect another sensor afterwards, it might be possible that this
resistor has to be removed! For this purpose, please observe the
connection details of the respective sensor manufacturer.
Sensors that can be used:
For your RALLYEMASTER SPORT, different sensors / pulse generators
with two or three connection cables can be used:
• speedometer cable sensors
• wheel sensors
• cardan shaft sensors.
Assembling your RALLYEMASTER SPORT:
Fasten your RALLYEMASTER SPORT in such a way that the passenger
and the driver can clearly see the device.
Please make sure that the assembly is carried out in such a manner that
the device does not cause any additional risk of injury in the event of an
accident! The M4 threaded bushings at the top of the device are used to
assemble the distance counter. Please do not use any screws with a
thread length of more than 15 mm!
Assembling the VDO sensor:
Connect Blue/Red to Blue RALLYEMASTER COMPETITION (signal sensor).
Connect Brown to Green/Yellow RALLYEMASTER COMPETITION (earth sensor)
Connect Black to Brown RALLYEMASTER COMPETITION (positive pole Sensor)

Testing / setting your RALLYEMASTER SPORT:
1. Set the ON/OFF switch to “ON“.
2. Set the two coding switches to “100“.
3. Slowly move the vehicle for several metres. (The counters must
start to run!)
4. Set the counters to “0“.
5. Press the pushbutton “9” (reset) once for at least 3 seconds (until
the signal sound can be heard) in order to delete any pulses
stored, if any, from the electronics.
6. Drive a specified measuring distance (at best 1,000 m,
comparison with navigation device or reference distance of the
rally organiser) with a constant speed of max. 50 km/h.
7. Note down the value shown on the counter after the measuring
distance has been completed and enter this value in the coding
switch “4“.
Thus, your RALLYEMASTER SPORT is calibrated on both counters.
If your RALLYEMASTER SPORT is used in several vehicles, repeat this
procedure for each vehicle and note down the respectively set value.
If a measuring distance is available at an event, you can exactly calibrate
your RALLYEMASTER SPORT to the reference measuring device of the
rally organiser by applying this procedure!
Average monitoring using the RALLYEMASTER SPORT and an
average computer:
The RALLYEMASTER SPORT can also be used to monitor the average.
Using an optionally available cable set, an average computer can be
connected. The automatic synchronisation of data can thus be carried
out precisely. The average computer must be equipped with 10 m signal
processing and an operating voltage of 12 V.
Please note:
The connected average computer interacts with counter 3 (counter in the
centre); here, calibration in steps of 10 m each must be performed (as
described above).
If you use the “Back“ function with the sound signal, the 100 m signal
sounds despite the standing devices!

Manual average monitoring:
In addition, the RALLYEMASTER SPORT is equipped with a connectible
100 m beep for manual average monitoring (switch 9).
Have your RALLYEMASTER SPORT always switched on during a
special stage (SS). Switching off the device empties the system memory
after a certain wait and thus the pulses previously brought in! Therefore,
resetting the counters when starting a new SS is optimal in order to
ensure the highest possible measuring precision.
If you have any questions about your new RALLYEMASTER
COMPETITION, please do not hesitate to contact your specialist dealer
or our technical service.
PRESTEL+GEMMER offer you many additional products for historic
rally and racing time measurement as well as passenger boards and
accessories. Learn more about our product range at
www.prestel-gemmer.de.
