Prestigio PMR-701 User manual

1PRESTIGIO PMR-701 (TV)
ENG
Prestigio PMR-701(TV)
User’s Manual

2 PRESTIGIO PMR-701 (TV)
ENG
Thanks for purchasing the device. Please read this manual carefully before using
your product.
This manual is subject to change for the purpose of performance improvement
without prior notice.

3PRESTIGIO PMR-701 (TV)
ENG
Table of Contents
Safety Precaution ................................ 4
Copyright warning ...................................... 4
Warnings and notices ................................. 4
Features ............................................... 5
Package components, Controls and
Connections ................................. 6
Package Contents ......................................... 6
Description of Controls ............................. 7
Battery charge................................................ 7
Battery charge indicator ............................ 7
Connections .................................................... 8
USB Driver Installation
(Windows 98 SE) .................................. 9
Connecting to PC ....................................... 10
Disconnecting from PC ............................ 10
Operating the device ......................... 11
Main Menu Screen ..................................... 11
Power on/off and Key Hold/Release .. 12
Menu Selection............................................ 12
Delete File ...................................................... 12
Add to Playlist .............................................. 13
Play Mode/Section Repeat ...................... 13
TV (Option) ....................................... 14
Indoor and Outdoor use ......................... 14
Channel Setup ............................................. 15
Recording from TV ..................................... 15
Input .................................................. 16
Recording from AV input ........................ 16
Radio ................................................. 16
Channel Setup ............................................. 17
Recording from Radio ............................... 17
USB Host ............................................ 18
Voice Recording ................................ 18
Movie ................................................. 19
Music ................................................. 20
Album ................................................ 21
E-Book ............................................... 21
Setup ................................................. 22
Display............................................................. 22
Sound .............................................................. 23
Function ......................................................... 23
Device .............................................................. 24
Time .................................................................. 25
Firmware Update .............................. 26
Firmware updating instructions .......... 26
One ClickTransC Software ................ 27
Setting Up One Click TransC .................. 27
Using One Click TransC ............................ 27
One Click TransC Options ........................ 28
Troubleshooting guide ..................... 29
Product Specifications ...................... 30

4 PRESTIGIO PMR-701 (TV)
ENG
Safety Precaution
Do not disassemble this product. Please contact our customer service
center if device malfunctions.
Copyright warning
Reproducing CDs, music, video, or picture files for sale or for commercial use is illegal
according to copyright laws.
Permission is needed to copy parts of, or whole pieces of data, works of art, and
presentations that are protected by copyright. The user must acknowledge all laws
related to reproduction and use that are applied in the user’s country or court, and
use this product accordingly.
Warnings and notices
1. Do not use this device in places where it can get hot (such as under direct sunlight
or near heating equipment).
2. Do not store or use PMR in humid places, such as places open to rainfall or in
bathroom.
3. Make sure the power plug is inserted firmly and correctly.
4. When using multi-outlet, do not plug-in several powerful devices at once.
5. When pulling out the power plug, use the plug handle.
6. Do not let power cord touch heating equipment.
7. Never touch the power plug with wet hands.
8. If dust gets on the pin part of the power plug, cleanse it thoroughly.
9. If water or a foreign object gets into product, first turn off the power switch, then
contact our customer service center.
10. If smoke or strange smells appear, turn off the power immediately and contact our
customer service center.
11. Do not drop the product. When powered-on the device is more sensitive to shock.
12. Do not use the antenna to watch television during thunder and lightning.
13. When cleaning this product, use a soft cloth. Do not use a rag, car or industrial
polishes, abrasives, benzene, wax, or alcohol.
14. Do not put the product in heating devices such as microwave ovens or ovens.
15. Do not use sharp devices and tools such as gimlet and knife against PMR.
16. Due to accidents risk, do not use the product while driving a car or walking).

5PRESTIGIO PMR-701 (TV)
ENG
Features
This PMR is a multi-function portable multimedia player which has various addi-
tional features: TV, FM radio, music, voice recording, picture album, e-Book, USB Host,
recording from AV-in, etc. (TV is optional)
Movies and music
Most of popular codecs (including DivX and XVid) are supported so that most files
can be played without conversion. Files of unsupported formats can be easily con-
verted by One Click TransC program which is bundled on CD.
TV (optional)
It is possible to watch TV indoors and outdoors (with air antenna or cable). Pro-
grammed recording from TV is possible (1 program).
FM radio
You can listen to FM radio in any region of the world. Device supports channel auto-
scan and recording from FM.
USB and USB Host
With Hi-Speed USB2.0 interface, you can transmit files and/or folders from PC to PMR
with up to 15 MB per second.
This PMR supports USB Host mode, which allows direct connection to digital cameras,
USB Flash drives, card readers and other USB storage devices. When connected, files
from these devices can be played back on PMR or transferred to its HDD.
External AV In/Out and Recording
This device can be used to record video (ASF format) or static frames (JPG) from
external AV source such as TV, VCR or camcorder. PMR can be connected to TV for
output as well.
Photo album and e-Book
You can watch photos and browse text files. For photos there is also slide-show
function which turns PMR into electronic photo album.
Voice Recording
Voice can be recorded using built-in microphone.
Clock and programmable recording
A clock function is built in and it’s possible to make a programmable TV recording
(with optional TV tuner).
Multi-language menu and Subtitles
This PMR supports various languages in On-Screen menu, as well as various encodings
in subtitles, text files and filenames.
Firmware Updates
The product performance can be enhanced through firmware updates. We are con-
stantly working on improvements and always welcome suggestions from custom-
ers.
B grade device
This product is registered and approved for home and office use. It can
be safely used in all areas including your living place.

6 PRESTIGIO PMR-701 (TV)
ENG
Package components, Controls and Connections
Package Contents
The accessories list can be changed (except PMR) without any prior notice in order to
enhance performance or quality.
1. PMR
2. AC ADAPTER
3. USB CABLE
4. USB HOST CABLE
5.AV CABLE
6. OUTDOOR ANTENNA(TV)
7. INDOOR TV CABLE CONNECTOR
8. PMR BODY HOLDER
9. EARPHONE
Others : User’s Manual,CD,etc

7PRESTIGIO PMR-701 (TV)
ENG
Description of Controls
Battery charge
* To charge the battery, connect AC adapter to the power adapter jack of PMR.
* If the battery charge is insufficient, the battery indicator will flicker, and the power
will be automatically turned off after a while.
Battery charge indicator
Fully charged (connected to outlet)
Fully charged
Half-charged
Battery low
Battery discharged

8 PRESTIGIO PMR-701 (TV)
ENG
Connections
TV antenna connection (indoor and outdoor)
- Connect indoor antenna cable with the signal line
(co-axis) coming from wall antenna outlet.
OR
- Connect outdoor removable antenna.
Stereo earphone connection
- Connect the stereo earphone into the earphone
jack
Viewing video/audio files stored in the PMR on any
external AV equipment
- Connect the AV output on PMR with input on exter-
nal device (TV) using AV cable supplied.
Viewing video/audio from external device on PMR
via AV-input
- Connect AV cable between AV IN jack of PMR and AV
out of external device
Connection with PC
- Use USB cable supplied to Connect with PC.
Connection with USB device
- Connect the USB Host cable supplied between the
USB Host port and other USB storage device.

9PRESTIGIO PMR-701 (TV)
ENG
USB Driver Installation (Windows 98 SE)
Windows 2000/XP recognizes the device without installing the driver.
When you connect PMR to Windows 98(SE) computer,
it recognizes the PMR as hardware, and prompts for
driver
Press the Next button
Input the path or search for a desired folder directly
Insert CD supplied with device in the CD-ROM and
select “PMR Win98 Driver”.
Install the driver by clicking NEXT button
Press Finish button.
If the USB driver is not installed properly or device inaccessible, delete
the installed USB driver and reinstall it.

10 PRESTIGIO PMR-701 (TV)
ENG
Connecting to PC
After the USB drive is correctly installed, PC
recognizes PMR as new removable storage
device and assigns logical drive letter to it.
* “System Folder” on HDD is needed for de-
vice operation. If user deletes this folder or
changes its name, the PMR may not work
correctly
* Do not format hard disk when not really
needed.If you need formatting,back-up“Sys-
tem Folder” first and then format using the
“FAT32”file system.You will also have to copy
the backup folder back to device.
* You can create multiple subfolders; file
names can be up to 255 letters.
* Do not disconnect the USB cable while files are being transferred.
Disconnecting from PC
After finishing all file transfers, follow “Hard-
ware Safe Removal” procedure. It will safely
disconnect PMR from your PC:
* Double-click on green arrow icon in sys-
tem tray
* Choose the hardware you want to remove
and click on the [Stop] button
* When prompted by Windows, detach the
USB cable
If the USB cable is disconnected accidentally,
some data may be lost and device may need
maintenance

11PRESTIGIO PMR-701 (TV)
ENG

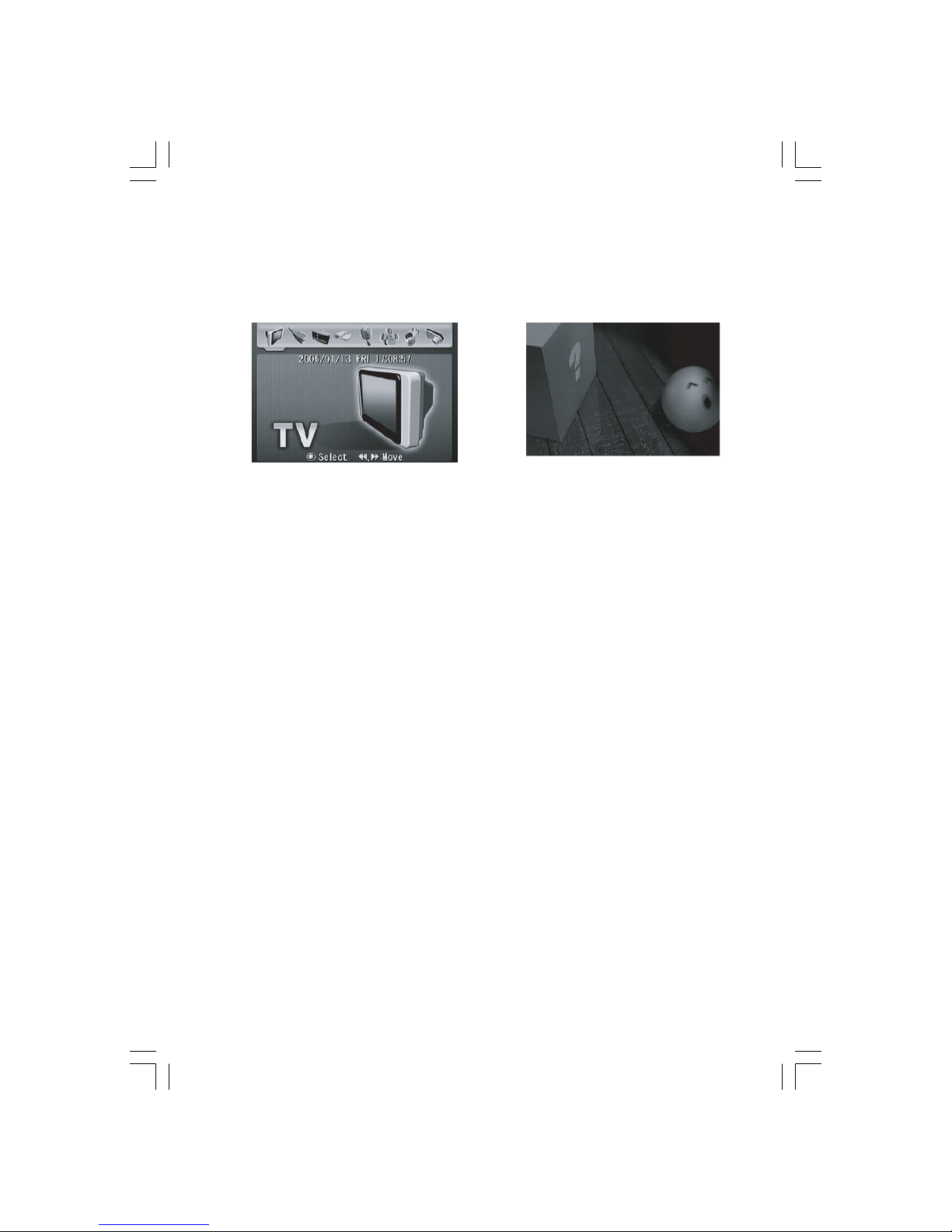

Operating the device
Main Menu Screen
Icon Menu Function
TV (option) Watch and record TV programs
INPUT Input Video/Audio from external AV equipment
RADIO Listen to or record from FM radio
USB HOST Connect external USB storage devices (digital camera, card
reader, USB Flash drive)
RECORD Record voice or other sounds through built-in microphone
MOVIE Playback video files
MUSIC Playback audio files
ALBUM Watch photos or other images
e-BOOK View text file
SETUP Setup various PMR options

12 PRESTIGIO PMR-701 (TV)
ENG
Power on/off and Key Hold/Release
Power On
Pull and hold sliding switch to ON/OFF
position for 2~3 seconds, then release.
Green lamp will start to flicker.
Power Off
Pull and hold sliding switch to ON/OFF
position for 2~3 seconds.
Logo screen will appear then power turns
off.
Hold On/Off
Place the power sliding switch to the right
to hold the keys.
To un-hold place it back to the middle.
Menu Selection
* Move jog buttons in the << or >> direction to reach the menu you want, then press
jog button to select
* After pressing “MODE” button on the top of the PMR, menu icons will always appear
on the screen, so that you can move to the other mode immediately.
Delete File
You can delete any file from hard disk in PMR directly:
* Select the file to delete and press ^ button, the file deleting popup menu will
appear.
* Select ‘Yes’ to delete the file and return to the search window.
` <Select the file> <Confirm the deletion>
The file will not be deleted during playback.

13PRESTIGIO PMR-701 (TV)
ENG
Add to Playlist
You can add your favorite video/audio/image files in the playlist:
* Select the file and press v button to add it to the playlist.
* Select “Yes” to add files in the playlist. Playlist window will appear.
File will not be added to the playlist during playback.
Play Mode/Section Repeat
Go to “FUNCTION” in “SETUP” menu to select video/audio section repeat mode, then
select desired option as follows:
All files playback in the folder
The current file Repeated playback of the current file repeat
Random file playback
Return to the search window after playback the current file

14 PRESTIGIO PMR-701 (TV)
ENG
After pressing v button during playback, you can set section repeat with following
three steps:
<No use>
<set initial point>
<repeat in the section>
This section repeat function may not work properly with some file
encodings
TV (Option)
Indoor and Outdoor use
When watching TV outdoor, attach the outdoor antenna and use in a place where
the reception is good. In order to have a clean TV reception indoor, attach the TV
cable connector to TV antenna jack instead of outdoor antenna.
When using TV outdoor, the image and sound may depend on antenna
position, so fix the antenna trod in direction where TV reception is the
best.
When using NTSC TV system 2 areas can be selected, with PAL TV system there are 4
areas.
NTSC supports outdoor and indoor mode. Indoor enables the reception of cable
broadcasting programs, while outdoor mode allows receiving air TV programs, but
not cable TV channels. PAL TV system enables 4 areas to use both indoor and out-
door as the above.

15PRESTIGIO PMR-701 (TV)
ENG
Channel Setup
Select the (TV) icon from main menu and press the jog OK button. TV watching
screen will appear.
< TV Icon menu > < TV screen >
Pressing jog OK button at TV watching screen enters TV channel setup menu.
There are two functions in the TV channel menu: auto TV channel set-up and manual
TV channel set-up.
Auto TV channel set-up: the system automatically searches for signals it receives and
stores them into memory.
* Select “Start” and then press >> to save the channels automatically.
TV manual channel set-up: this function allows deleting the channel saved by the
Auto-scan and selecting the channels manually and saving them. When the auto
channel system is set up, the device may sometimes find and store stations with poor
reception, which is not desired behavior. To remove such stations please use manual
channel setup after auto-scan.
«Start channel set-up» item and «System» item are defined only for PAL
system, and do not appear in the menu of the NTSC system.
Recording from TV
Press “REC” to save the current channel into video (ASF) file or image (JPEG) file.
Recorded files are saved in the following file name pattern in “Record Folder/Video”
(or “RecordFolder/Image”) folder:
* Air TV Channels > A_011_050101105142.ASF/JPG (A_Channel_Y/M/D/H/M/S)
* Cable Channels > C_030_050101106345.ASF/JPG (C_Channel_Y/M/D/H/M/S)
* TV programmed recording > R_005_050101114215.ASF (R_Channel_Y/M/D/H/M/S)

16 PRESTIGIO PMR-701 (TV)
ENG
Input
Select (Input) icon and press jog button to select external AV input function
<INPUT Icon> <INPUT Display>
Recording from AV input
Press REC button to save the input file in a video (ASF) or image (JPEG) file.
Recorded files are saved in the following file name pattern in “Record Folder/Video”
(or “RecordFolder/Image”) folder:
* External Input (Video) > VIDEO_050101104327.ASF (VIDEO_Y/M/D/H/M/S)
* External Input (Image) > VIDEO_050101104120.JPG (VIDEO_Y/M/D/H/M/S)
Please use Setup menu (see below) for advanced recording settings.
Radio
Select (Radio) icon and press jog button to select FM radio function.
FM Radio will not work with earphones not connected to the jack of PMR
<RADIO Icon> <RADIO>

17PRESTIGIO PMR-701 (TV)
ENG
Channel Setup
Press jog button to enter the Radio channel setup menu.
There are two setting options in the Radio channel setup menu: Automatic setting
and Manual setting.
Radio Auto Channel Setting: the function automatically searches for stations avail-
able and saves them into memory.
* Select “Start auto channel setting” and press ( button to save channels.
Radio Manual Channel Setting: user can select the desired channel to save it into
memory.
* Select “Save channel” and press ( button to save the channel.
<Auto program> <Manual program>
Recording from Radio
Press REC button to save current program into MP3 file.
Recorded files are saved in the following file name pattern in “RecordFolder/Audio”
folder:
Radio > RADIO_050101062122.MP3 (RADIO_Y/M/D/H/M/S)

18 PRESTIGIO PMR-701 (TV)
ENG
USB Host
Select (USB Host) icon and press jog button to search and open files of the other USB
device connected in USB Host Mode.
<USB HOST Icon> <USB HOST>
File playing (except some video files), data copy and other operations can be per-
formed while PMR is connected to USB device (Digital Camera, MP3 player, Memory
stick).
Voice Recording
Select (Record) icon and press jog button to enter Record Window.
<RECORD Icon> <RECORD>
You can choose the recording time between 5 minutes and 24 hours using jog
button.
Recorded files are saved in the following file name pattern in “RecordFolder/Audio”
folder:
Voice Recording > VOICE_050101055903.MP3 (VOICE_Y/M/D/H/M/S)

19PRESTIGIO PMR-701 (TV)
ENG
Movie
Select (Movie) icon and press jog button to open video file list.
<MOVIE Icon> <MOVIE>
Select the file you want to play and use ( or press jog button to play.
During playback the following information can be displayed on the screen:
* To zoom video (2x/4x) press REC buttonduring playback.
* Subtitle appears when enabled and language selected in SETUP menu (see below)

20 PRESTIGIO PMR-701 (TV)
ENG
Music
Select (Music) icon and press jog button to open audio file list.
<MUSIC Icon> <MUSIC>
Select the file you want to play and use >> or press jog button to play.
Pressing jog button during music playback will open current music information/
navigation window:
ID3 tag information will appear if contained in MP3 file. Recorded radio/voice files
doesn’t contain such data.
