Primula Eco DOB User manual

IRONING PRESSING MACHINERIES - FUSING PRESSES
Instruction Manual
Eco DOB (S+B)
Eco DOB E (S+B)

Instruction Manual
2
TABLE OF CONTENTS
1. ATTENTION!!!..........................................................................................................................................3
2. Technical Details ………………………………………………………………………………………………………….......................4
2.1 Identification Data……………………………………………………………………………………………………………………………4
2.2 Use of the instruction Manual………………………………………………………………………………………………………….4
2.3 Technical Characteristics………………………………………………………………………………………………………………….4
2.4 Technical Description……………………………………………………………………………………………………………………….4
3. General rules and Warnings……………………………………………………………………………………………………………….5
3.1 General rules of using the Ironing Table…………………………………………………………………………………………..5
3.2 Warning marks placed on the Ironing Table….……………………………………….…………………….....................5
4. Assembly Instructions………………………………………………………….…………………………………………………………….6
5. Electrical Connection………………………………………………………………………………………………………………………….7
6. Activation Instructions……………………………………………………………………………………………………………………….7
6.1 Activation Instructions for Eco DOB .……..…………………………………………………………………………………………7
6.2 Activation Instructions for Eco DOB E.……….……………………………………………………………………………………..7
6.3 Additional Instructions……………………………………………………………………………………………………………………..8
7. Maintenance………………………………………………………………………………………………………………………………………8
8. Troubleshooting…………………………………………………………………………………………………………………………………8
8.1The vacuum does not function properly…………………………………………………………………………....................8
8.2 The heating of the working surface is not activated…………………………………………………………………………8
8.3 The heating of the ironing buck is not activated……………………………………………………………………………….9
8.4 The machine operates loudly …………………………………………………………………………………………………………..9
8.5 The blowing of air does not function………………………………………………………………………………………………..9

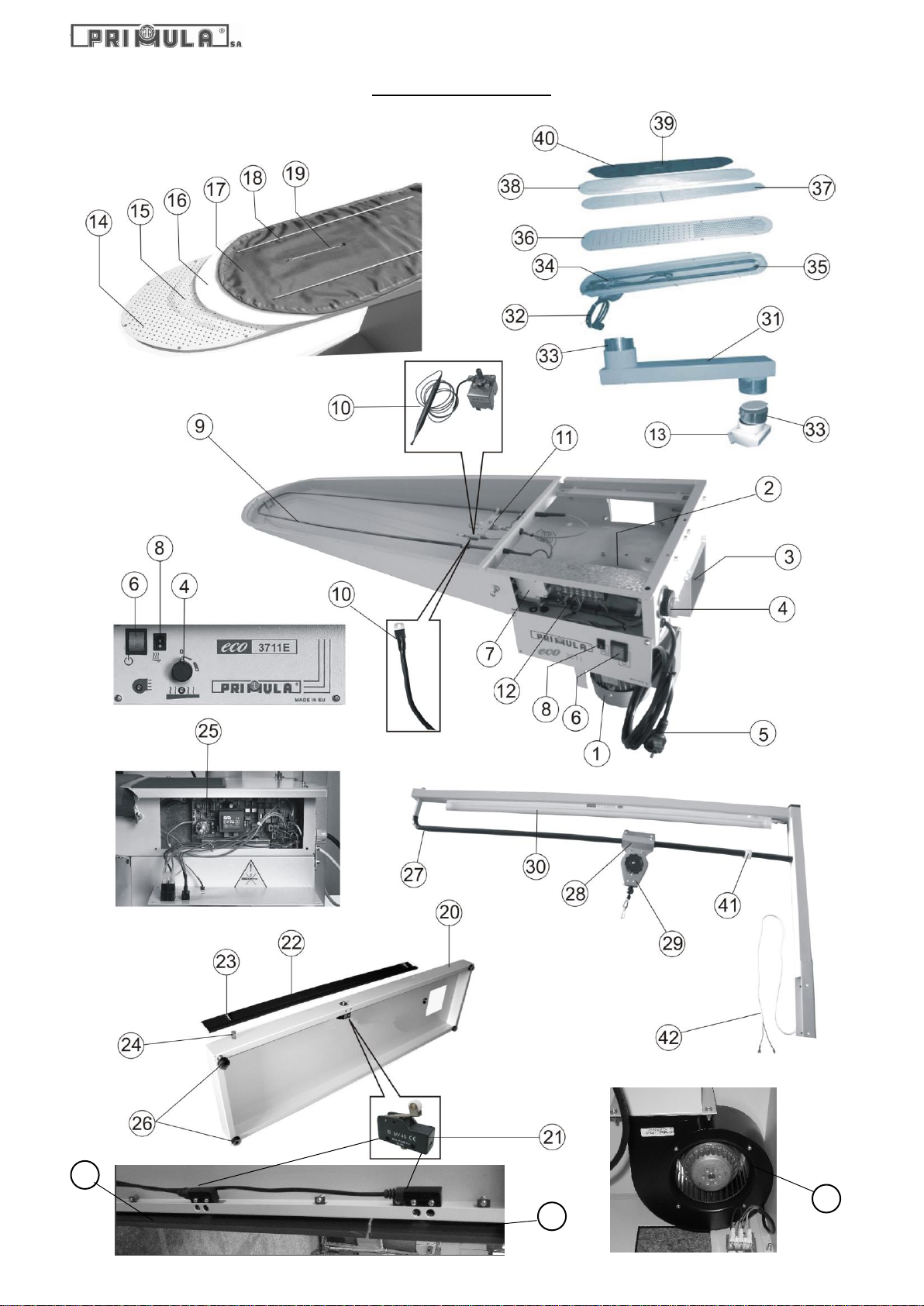

Images of the spare parts ……………………………………………………………………………………………………………………10
List of spare parts …………………………………….………………………………………………………………………………………… 11

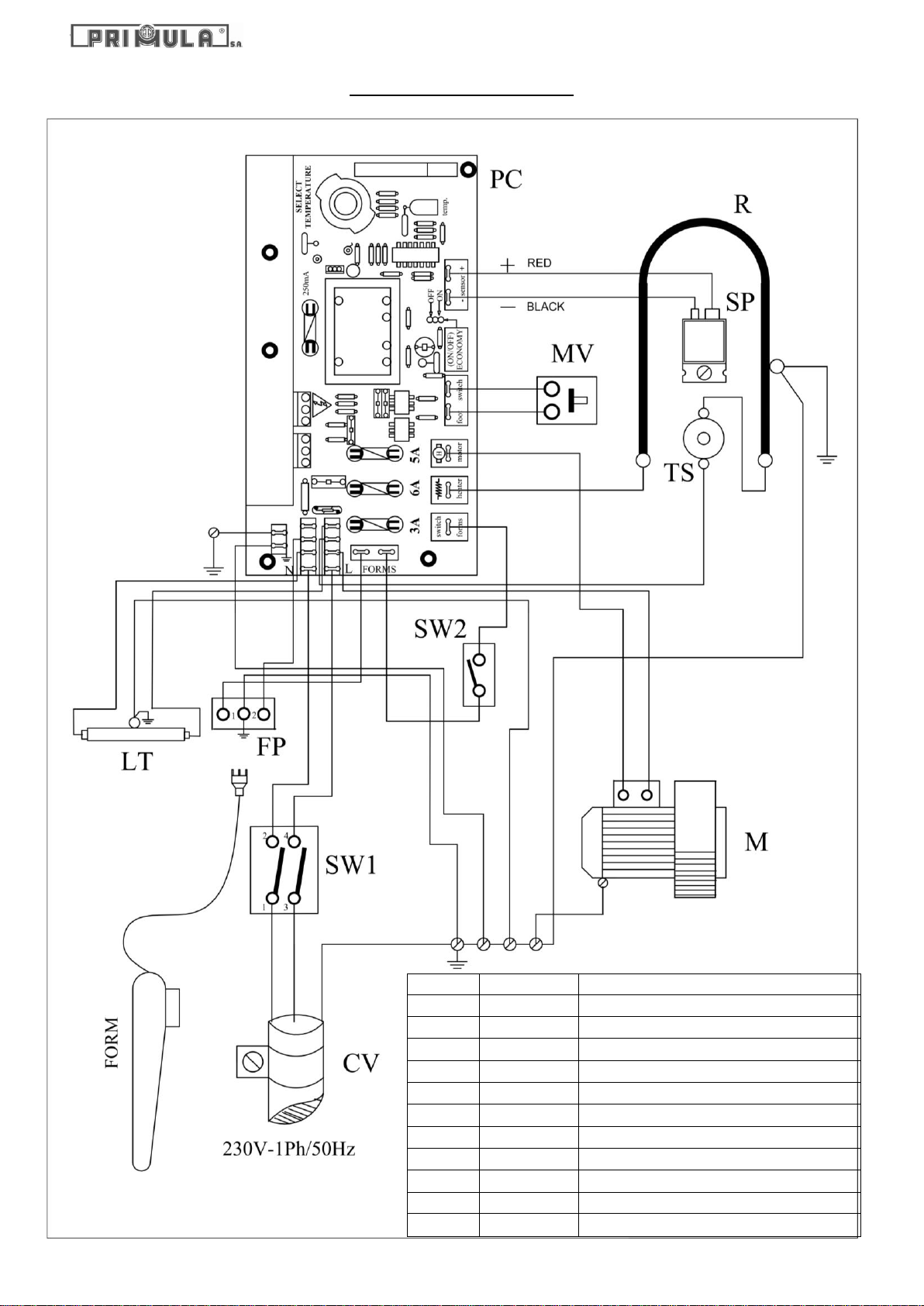

Wiring Diagram of Eco DOB E…….……………….………………………………………………………………………….…...........13

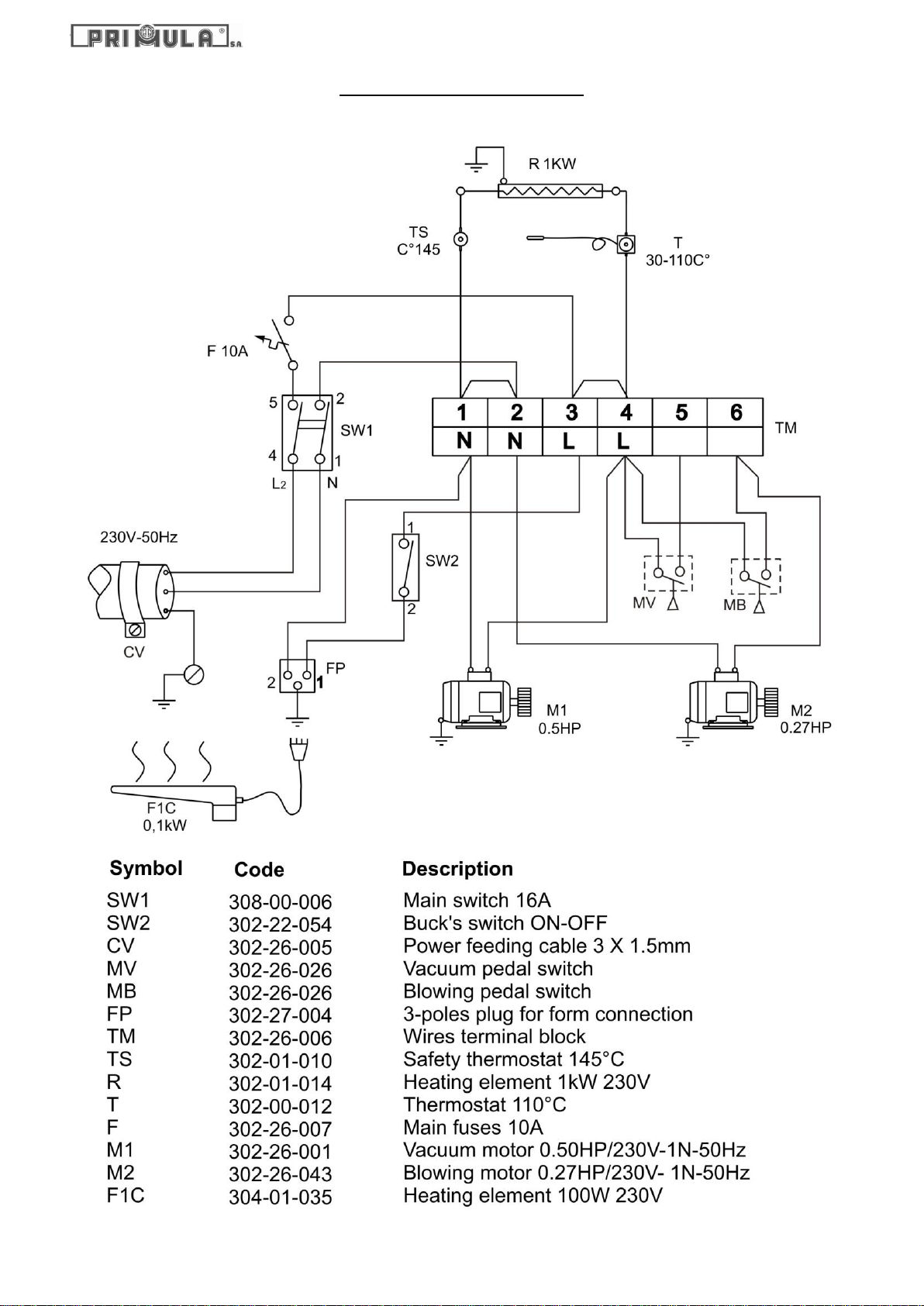

Wiring Diagram of Eco DOB S+B.……..……………………………………………………….…………………………………………14
TECHNICAL ASSISTANT…………………………………………………………………………………………………………………………15

Instruction Manual
3
1. ATTENTION!!!
Please read this instruction manual very carefully before you start using your ironing table.
The customer by purchasing this product declares that he is fully aware, and accepts everything
mentioned in this operating manual.
Primula SA assumes neither responsibility for any errors herein, nor for incidental nor for resulting
damage in connection with the performance or use of this operating manual.
You may not copy, reproduce, or translate this operating manual, or parts of it, to another language
without prior written consent of Primula SA.
Any information in this manual may be subject to change without any prior notice.
CAUTION! PLEASE READ CAREFULLY THE INSTRUCTION MANUAL BEFORE INSTALLING THE IRONING
TABLE!!!
2nd edition –April 2017
© Primula S.A. 2016
Company name: Primula S.A
Address: 14th km Thessaloniki –Kilkis,
57200 Liti, Thessaloniki, Greece
Industry: Manufacturing of Ironing, Pressing and Finishing Equipment
Telephone: [phone]
Fax: [phone]
Web: www.primula.gr
E-mail: [email protected]

Instruction Manual
4
2. Technical Details
2.1 Identification Data
The Ironing Table, that you have purchased, is a machine of high advanced technology with many
advantages, unique in its kind. It is manufactured according to International and European safety
standards by a company with experience, since 1969, in this sector. Congratulations for your choice!
Regarding its characteristics, the Ironing Table includes a serial number plate (see below) where all its
specifications are displayed. Every warning and symbol that is placed on the Ironing Table is in
accordance with the specifications of the European standards.
The serial number plate has been placed in a visible place on the Ironing Table and is made from
fadeless material.
Amongst others, the Serial Number plate displays the following:
Company Logo
Manufacturer Information
Model
Serial Number
Rated Voltage of Use
Rated Frequency of Use
Year of manufacturing
Accumulated Installed Wattage
Picture 1: Serial Number Sign
2.2 Use of the Instruction Manual
The correct assembly and adjustment of the machine is vital to the safety of the user and the machine’s
life span. For this reason, the installation, alteration, replacement or extension of the ironing table
should only be performed by qualified personnel.
Under no circumstances is interventions allowed in the machine, unless it’s for the planned
maintenance by an unauthorized engineer.
If you remain uncertain regarding the correct assembly of the machine even after reading the
instructions, contact the manufacturer or an authorized representative before starting the operation of
the machine.
2.3 Technical Description
Ironing table with heating and suction and blowing.
For ironing readymade garments. Suitable for garment industries, workshops and ateliers.

Instruction Manual
5
Available in 3 models. Heating and suction (Eco DOB), heating, suction and blowing (Eco DOB S+B) and
E Model (Heating-suction Eco DOB E, Heating-suction-blowing Eco DOB E S+B)
E Version: The E Version has a specialized PC Board that controls and regulates the power consumption
of the Ironing Table. In using the E Version you receive optimal performance and stability in suction with
the lowest possible energy use. The test results have showed gain in energy savings up to 40%.
2.4 Technical Characteristics
Model
Eco DOB
Eco DOB S+B
Eco DOB E
Eco DOB E S+B
Height adjustment
85cm
85cm
85cm
85cm
Heating power
1KW
1KW
1KW
1KW
Suction power
0.50HP
0.50HP
0.50HP
0.50HP
Blowing power
NO
0.27HP
NO
0.27HP
Power Supply
230V
230V
230V
230V
3. General rules and Warnings
3.1 General rules of using the Ironing Table
For the safe usage of your Ironing Table, please read the following operating instructions carefully, as
listed below:
Install, use and maintain the Ironing Table according to the instructions in this manual.
Otherwise, the manufacturer has no responsibility for the possible failed operation or safety.
Before connecting the power supply, check that the voltage corresponds to the voltage indicated
on the technical specifications.
Connect the machine only to a power supply that meets the minimum required frequency and is
properly grounded. Do not leave the Ironing Table while it is operating and is on power without
supervision.
Use the Ironing Table ONLY for the intended purpose in accordance with the current instruction
manual and only with the accessories that are provided or that are intended for this specific
Ironing Table. The manufacturer is not liable for any damages resulting from misuse or wrong
use of the Ironing Table.
DO NOT touch the power supply with wet hands.
Do not clean the Ironing Table with corrosive or other damaging materials/chemicals.
Never use the Ironing Table to support any other machine or structure.
It is strictly prohibited to do any kind of welding or alterations on the Ironing Table or its
parts.
It is strictly prohibited to remove any protective device/guards.
It is strictly prohibited to intervene in the control units/circuit boards of the Ironing Table.
It is strictly forbidden to do any modification to the technical specifications of the machine
(electrical or mechanical) by third persons.
Please contact your dealer or the manufacturer for any malfunction or further information
requests
3.2 Warning marks placed on the Ironing Table
The following attention marks are placed on each ironing table:

Instruction Manual
6
The operator of the system has the obligation to inform himself regarding the dangers which may occur
during usage, so that he/she can avoid them or minimize their occurrence as best as he/she is able to.
4. Assembly Instructions
For the instructions mentioned in the current section please see the below image (picture 2).
Picture 2: Assembly
Turn the ironing board (A) upside down, as showed on picture 2.
Put the stand (B) on top of board (A) by tightening all the screws.
Put the foot pedal base (C) tighten all the screws.
Turn the ironing table to the right position.

Instruction Manual
7
5. Electrical Connection
For the electrical connection and above all for the power supply, please follow carefully the instructions
of the wiring diagram (enclosed) as well the warning signs symbols attached on the machine. In case
you have purchased a single phase machine 230V, connect the machine to the power into the socket
230V/16A. The connection should be done with 3-phase 3Χ1,5 mm (1 phase, 1 neutral, 1 grounded). The
power should be provided with a fuse 10Α.
CAUTION! For your own safety, pay attention to all the warning labels (yellow colored) that are placed
on the machine. The manufacturer bears no liability for any damages or accidents due to faulty
supplying network or to not specified personnel.
6. Activation Instructions
6.1 Activation instructions for Eco DOB
For the instructions mentioned in the current section please see the below image (picture 3).

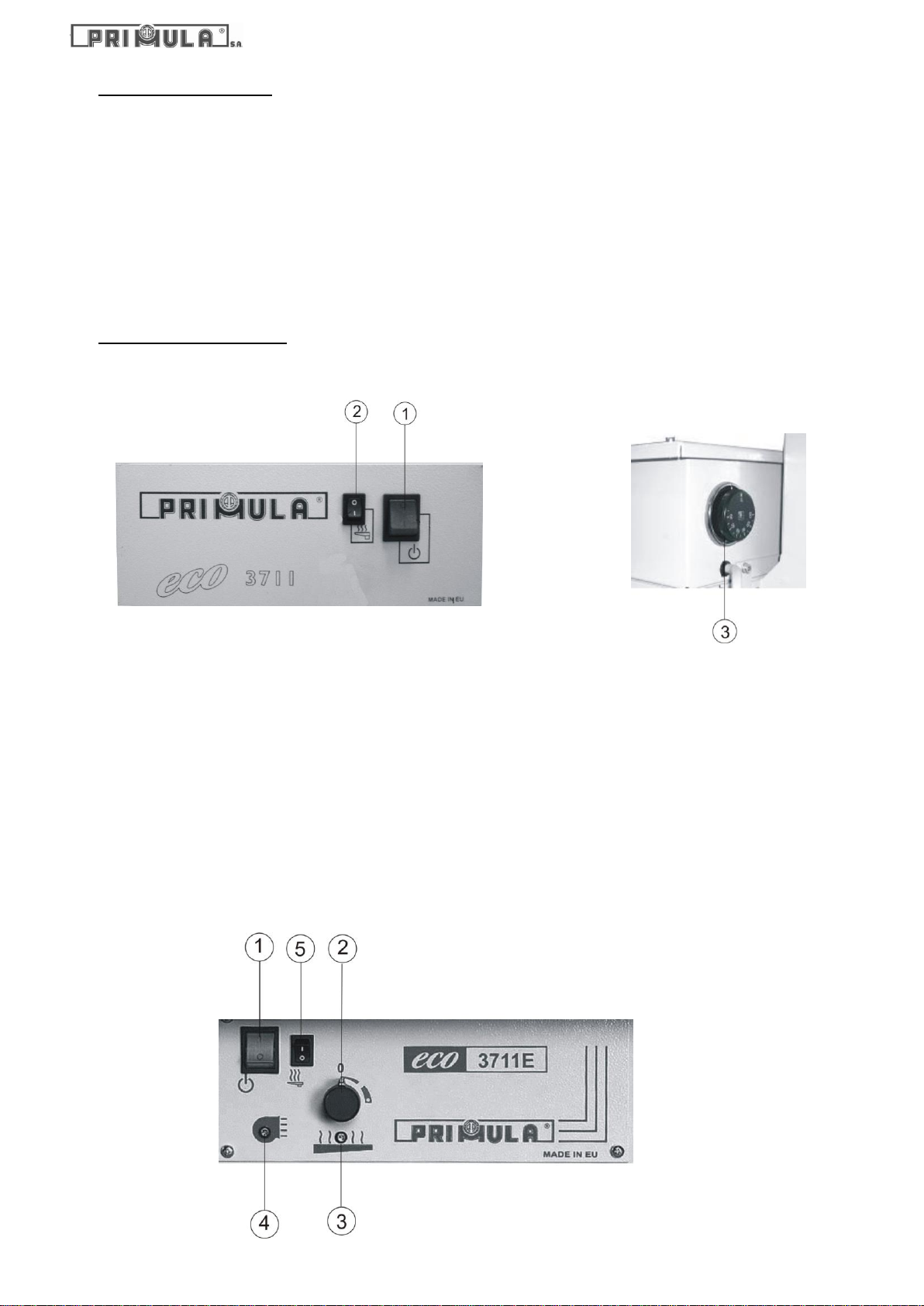

Picture 3: Switches placed on Eco DOB
Turn on the main switch No 01.
Switch the thermostat No 03 at the temperature of 110°C during the winter and 90°C during the
summer.
Whenever you want to use the suction just press the suction pedal.
Adjust the steam quantity of the steam generator in proportion to the suction performance of
the table, in order to avoid steam liquidation on the working surface. The refined fabrics require
small quantity of steam, while the gross fabrics require big quantity of steam.
The ironing buck’s heating is activated when you press switch No 2 to position I.
6.2 Activation instructions for Eco DOB E
For the instructions mentioned in the current section please see the below image (picture 4).
Picture 3: Switches placed on Eco DOB E

Instruction Manual
8
Turn on the main switch No 01.
Switch the thermostat No 02 on MAX position during the winter and on MIN position during the
summer. The red led lamp (No 03), will indicate when the heating is on. When you want to
inactivate the heating switch the thermostat knob (No 02) to the zero (0) position.
Whenever you want to use the suction just press the suction pedal.
Adjust the steam quantity of the steam generator in proportion to the suction performance of
the table, in order to avoid steam liquidation on the working surface. The refined fabrics require
small quantity of steam, while the gross fabrics require big quantity of steam.
The ironing buck’s heating is activated when you press switch No 05 to position I.
6.3 Additional Instructions
In case the table disposes a Vario iron system (optional):
Hook the steam iron from the balancer and adjust the distance of the steam iron from the
working surface (approximately 5cm). After you have finished ironing, unhook the steam iron
from the balancer and put it on the iron rest mat.
In case your table disposes a blowing system of air:
Push with your foot pedal for using the blowing.
7. Maintenance
Make sure that the covers of the table and the ironing buck remain clean, in order to have high
performance of suction and blowing air. Wash periodically the blue polyester fabric and the
foam blue in the washing machine (30-40 οC).In case you use felt molletone instead of blue
foam, do not wash it in the washing machine, but wash it by hand. Replace them regularly, in
order to keep high suction and blowing performance.
Clean the dust of the fan wheel /impeller at least 2-3 times per year.
Clean periodically and grease the arm’s as well as the buck’s bearings.
Clean periodically the internal parts of the table as well as the electronic circuit by using
compressed air.
Keep the machine clean.
CAUTION!
Before doing maintenance work, please disconnect the machine from the electrical power supply.
8. Troubleshooting
For the instructions mentioned in the current section please see the drawing of the spare parts of the
machine on page 10.
8.1 The vacuum does not function properly
Check if there is power supply.
Check if the power feeding cable No 05 is for some reason cut off.
Check the fuse 12Αinside the fuse case No 07.
Check if the suction’s button pedal No 21 is faulty.
Check if the motor No 01 is for some reason damaged.
8.2 The heating of the ironing buck is not activated.
Check the buck’s cable and plug.

Instruction Manual
9
Check the switch (No 08) which indicates the buck’s heating on the panel.
Check the heating element of the ironing buck.
8.3 The heating of the working surface is not activated
Check if the fuse 12Αinside the fuse case No 07 is burnt out. Replace it.
Check if the thermostat No 10 is faulty. Replace it.
Check if the safety thermostat No 11 is faulty. Replace it.
Check if the heating element No 09 is burnt out. Replace it.
8.4 The machine operates loudly
Check if the ball bearings of the motor are faulty. Replace them.
Check the impeller to be sure, that there is no dust which could cause the vibration.
8.5 The blowing of air does not function
(If you have purchased the Eco DOB S+B)
Check if the blowing’s bouton pedal No 44 is damaged.
Check the motor No 45.

Instruction Manual
10
Images of spare parts
43
44
45

Instruction Manual
11
List of spare parts
Article nr.
Description
1
302-26-001
Motor 0,50HP 230V
2
302-26-002
Ιmpeller  160
3
192-26-003
Metallic shell
4
302-26-004
Thermostat’s knob
306-11-045
Thermostat’s knob only for Eco DOB E
5
302-26-005
Power feeding cable with plug 3X1,5
6
308-00-006
Switch ON-OFF 16A
7
302-26-007
FUSE 10A
8
302-22-054
Buck’s switch ON-OFF
9
302-01-014
Heating element 1KW 230V
10
302-00-012
Thermostat 110°C
302-01-011
Heating Probe only for Eco DOB E
11
302-01-010
Safety thermostat 145°C
12
302-26-012
Terminal block
13
192-27-013
Supporting corner  85
14
192-26-014
Perforated plate
15
302-26-015
Wire mesh
16
302-01-029
302-01-031
302-01-031-4
Foam blue IFP-7mm
Felt molletone (optional)
Vacufix silicone SPF-6mm (optional)
17
302-01-030
Fabric cover
18
302-01-032
Cover’s rail
19
302-01-035
Spring with clips
20
192-26-020
Ironing table base
21
302-26-026
Vacuum button pedal MV45
22
192-26-022
Vacuum’s foot pedal
23
302-26-023
Foot pedal’s screw
24
302-26-024
Foot pedal’s spring
25
302-26-025
PC Board only for Eco DOB E
26
302-02-014
Regulator Alignment adjusting leg
27
192-26-027
Balancer’s – trolley movement bar
28
302-00-049
Trolley of balancer
29
302-00-051
Balancer
30
102-26-033
Lightning system ED/LT
31
102-26-031
Swivel arm ED/AM  85
32
304-01-032
Form’s feeding cable
33
192-26-033
Brass gasket of ECO swivelarm
34
304-01-034
Safety thermostat 65ºC
35
304-01-035
Heating element 100W 230V
36
304-01-036
Perforated plate
37
304-01-037
Wire mesh plastic
38
304-01-038
304-01-038-1
304-01-038-2
Felt molletone
Foam blue IFP-7mm (optional)
Vacufix silicone SPF-6mm (optional)
39
304-01-039
Spring
40
304-01-040
Fabric cover

Instruction Manual
12
41
302-26-041
Stop for Balancer
42
302-26-042
Cable for lighting Eco DOB E
43
302-26-043
Blowing motor 0.27HP (only for Eco DOB S+B)
44
192-26-051
Blowing foot pedal (only for Eco DOB S+B)
45
192-26-052
Suction foot pedal (only for Eco DOB S+B)

Instruction Manual
13
Wiring Diagram Eco DOB E
Symbol
code
Description
SW1
302-00-006
Main switch 16A
SW2
302-22-054
Buck’s switch ON-OFF
CV
302-26-005
Power feeding cable with plug 3X1,5
MV
302-26-026
Vacuum button pedal MV45
FP
302-04-045
3-poles plug for form connection
TS
302-01-010
Safety thermostat 145°C
M
302-26-001
Motor 0,50HP 230V
R
302-01-014
Heating element 1KW 230V
SP
302-01-011
Heating Probe only for Eco Dob/E
LT
102-26-033
Lightning system ED/LT
PC
302-26-025
PC Board

Instruction Manual
14
Wiring Diagram Eco DOB S+B

Instruction Manual
15
For any advice about the operation of the machine or the spare parts, please contact the dealer you
have purchased the machine from or us directly at:
14th km Thessaloniki –Kilkis, 57200 Liti, Thessaloniki, Greece
Tel.: [phone] Fax: [phone]
E-mail: [email protected]
All specifications have been made to the best of our knowledge.
Primula S.A preserves the right to make changes to the system and its parts without prior notice.
TECHNICAL ASSISTANCE
