QUICK REFERENCE GUIDE:
398-CN DISPENSERS
NO!
Piston ring is now PERMANENTLY ATTACHED!
Do not remove. Make sure spring is attached
but use no tools to install or remove spring. Do
NOT use this rod for KETCHUP Dispenser.
Fill with mustard
without lever
installed.
With a clean and empty dispenser add mustard
BEFORE installing lever. If dispenser has run out
of sauce during use it can be refilled without
removing lever.
Make sure spring is snapped onto piston rod
Please follow these tips to get the best performance from your Mustard Dispenser
Assembly:
Washing:
HAND WASH PARTS ONLY! DO NOT PUT PARTS IN
DISHWASHER OR POWER SOAK.
Read Operaon Manual for full details on use and care of dispensers.
Priming:
398-513revFPrinted in USA 04/19 ©2019
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Toll Free: 1-800-PCASTLE

Mustard Dispenser
Model No. 398-CN
398-513revF-EN Printed in USA 04/19 © 2019
Operation
Manual

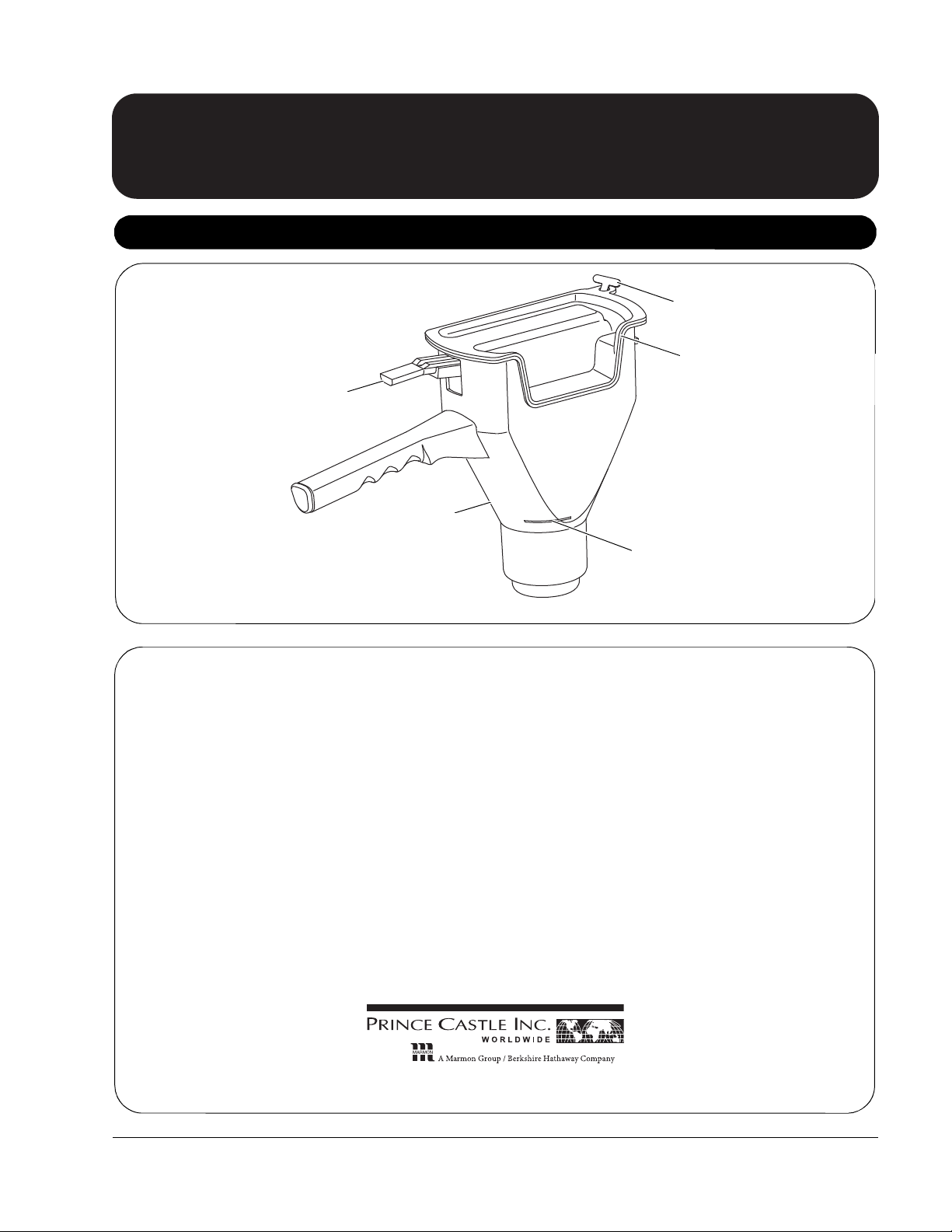

Product Identification
Tether
Narrow Lid
Narrow Container
with Handle
Lever
Refill Line
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Toll Free: 1-800-PCASTLE
Fax: [phone] • www.princecastle.com
Note: This dispenser now uses a simplified pump with fewer
parts that is easier to assemble and maintain.
LIMITED WARRANTY
This product is warranted to be free from defects in material
and/or workmanship for a period of two (2) years from date of
original installation, not toexceed 30 months from date of
original shipment from our factory. If this product proves to be
faulty in material and/or workmanship, it will be replaced or
repaired (at the option of Prince Castle, Inc.) without costtothe
customer for parts.
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ordering/Service Information. . . . . . . . . . . . . . . . . . . . . . . . . 4
Exploded View and Parts List. . . . . . . . . . . . . . . . . . . . . . . . . 5
6
Parts Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Printed in USA 04/19 © 20192398-513revF-EN
Mustard Dispenser
Model No. 398-CN
Safety Information
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
Hazard Communication Standard (HCS) – Procedure(s) in
this equipment manual include the use of chemical
products. These chemical products will be highlighted with
bold face letters followed by the abbreviation (HCS) in the
text of the manual. See the Hazard Communication
Standard (HCS) Manual for the appropriate Material Safety
Data Sheet(s) (MSDS).
CAUTION
Important
Prince Castle reserves the right to change specifications
and product design without notice. Such revisions do not
entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased
equipment.

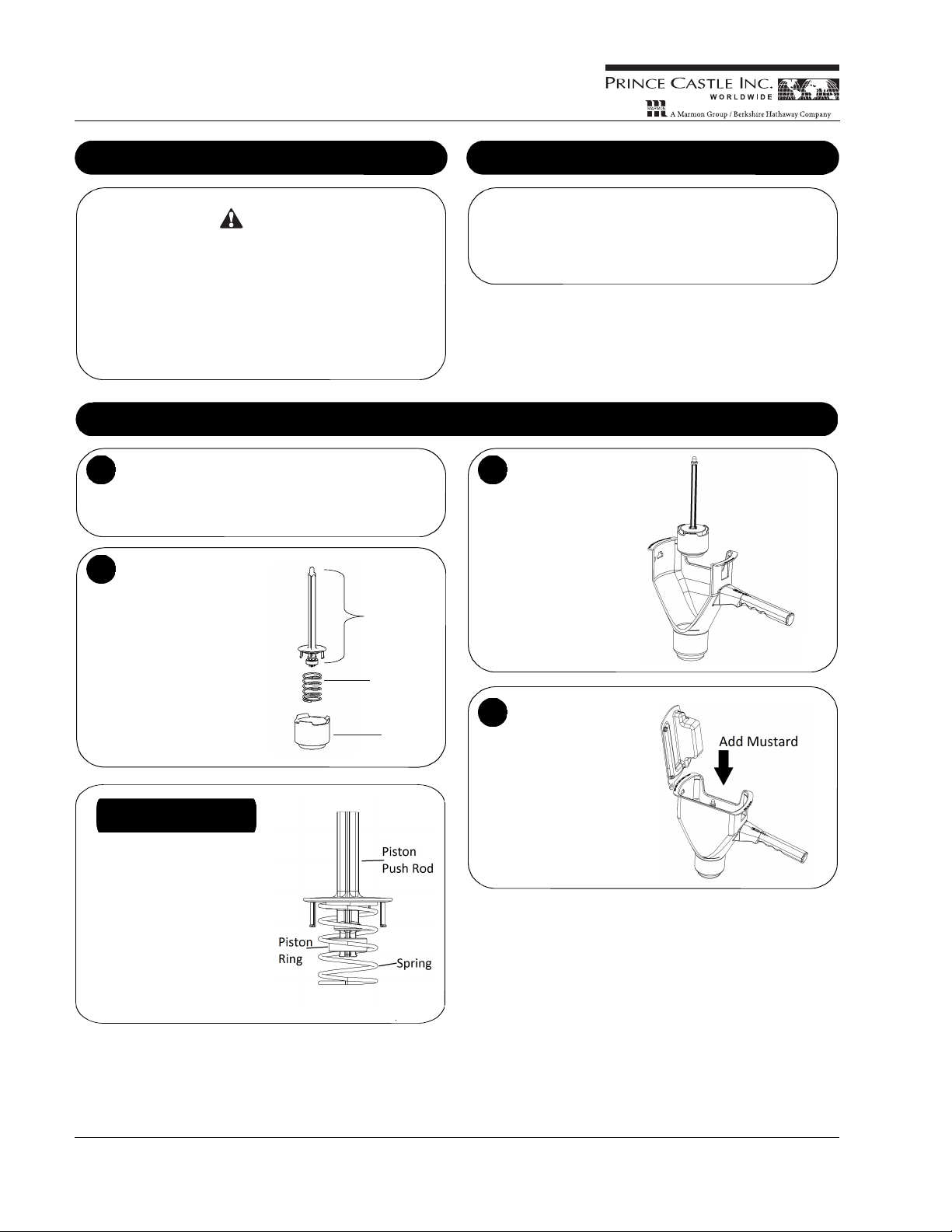

Setup
1
Place dispenser container in prep table pan (without
internal parts).
Note: Before filling dispenser, shake mustard
container vigorously. Be sure lid on mustard gallon is
tightly sealed.
Piston
ring is
permanently
attached and
CAN'T BE
REMOVED. Spring snaps
onto piston rod.
3
Before installing lever,
pour mustard into
dispenser. Do not
overfill as mustard
hardens over time
and causes waste
4
Place
assembled
pump into
dispenser
housing
NOTE
2Assemble all
internal parts of the
pump assembly.
Assembly
of 5 & 6
7
8

398-513revF-EN 3Printed in USA 04/19 © 2019
Mustard Dispenser
Model No. 398-CN
Setup (continued)
Attach lever so
rounded corners
face down
towards
adjusting cam.
A. Slide lever
through
hole in
container
located
above
handle of the
dispenser.
B. Continue to
slide lever forward while pressing down on the
piston push rod.
C. Continue to slide lever forward until push rod
falls into hole located in lever.
D. Continue pressing adjusting cam and push rod
while sliding lever forward until front end enters the
“T”-shaped hole on the other side of container.
5
Dispenser is
now fully
assembled.
Place lid
on top of
container
before using
dispenser.
6
7The mustard dispenser must be primed before using.
Press down on lever several times to completely
prime. If dispenser dispenses five equal drops, it
is primed.
If Necessary, wipe the bottom of dispenser with a 8
clean, moist hand towel after priming.
Operation
This dispenser is used
for portion control of
mustard being
dispensed on toasted
buns.
• After buns are
separated and
placed on the prep
table, hold dispenser
approximately 1"
(25 mm) above
toasted bun.
• Press lever all the
way down to
dispense mustard on
the caramelized
surface of the toasted bun. This is repeated on all buns
which require mustard.
Note: The mustard dispenser has a YELLOW cap on the end
of the handle for easy identification.
To check operation,
set brix cup under
dispenser and
dispense 47 shots of
mustard into cup. The
amount should be
equal to 1fl oz (30ml)
in the cup
Note: Allow the lever
to return fully after
each shot

Printed in USA 04/19 © 20194398-513revF-EN
Mustard Dispenser
Model No. 398-CN
Cleaning
Empty mustard from dispenser and discard.
1
Fill dispenser with warm water. Repeatedly press
actuating lever to pump water and flush out dispenser.
2
Remove internal parts
from container by
pushing down on the
lever and the piston push
rod. Slide the lever out of
the “T” shaped hole in
the container. Remove
the adjusting cam.
3
Lift the push rod and the spring assembly straight up
and out of the container.
4
Remove spring from piston rod and cylinder from
container. DO NOT REMOVE PISTON RING. If
necessary, use small brush to clean area around
piston ring. Wash the container and all loose internal
parts in a solution of warm water and All Purpose
(APC) (HCS).
5
Rinse all loose parts and the container with running
water.
6
Sanitize dispenser. Use 1 packet of Sanitizer (HCS) to
2-1/2 gallons (8.5 l) of warm water.
7
Let air dry.
Note: Do not reassemble dispenser until it is ready to
be used the next day.
8
PROBLEM PROBABLE CAUSE SOLUTION
Will not dispense or does
not dispense full portion. Plastic parts broken. Replace broken parts.
Not assembled properly. Assemble properly.
Not primed. See Setup procedure.
Parts missing. Check for proper assembly and placement.
Mustard pattern is irregular. Diffuser holes plugged in bottom of container. Disassemble and clean diffuser holes by flushing
water through holes.
Mustard collects on bottom of
dispenser. Bottom of dispenser has made contact with bun. Wipe off bottom of dispenser with damp cloth.
Troubleshooting
Ordering/Service Information
WHERE AND HOW TO ORDER REPLACEMENT
PARTS
To order replacement parts, look on back of your Prince
Castle Price List for the name and phone number of your
local Prince Castle Service Center. You may also call
Prince Castle at 1-800-323-2930 (or fax us at
630-462-1460) for the name of your local service center.
1
PARTS RETURNS
To return parts to your service center for credit, you
must obtain authorization from your center.
Note: All warranty situations should be handled by
your center.
2
PRICES
A. All prices are F.O.B. Prince Castle Service Center
or F.O.B. factory, Carol Stream, Illinois.
B. All prices are subject to change without notice.
These prices are exclusive of all sales taxes or any
special taxes which may be levied by federal, state,
or city governments.
OUTSIDE THE U.S.
Contact your kitchen equipment supplier or designated
repair facility for parts and service.
NON-SCHEDULED MAINTENANCE
Not applicable.
3
“T” Shaped
Hole
Mustard Dispenses Accidently Lever accidentally pressed when placing
dispenser in holder.
Never touch lever except to dispense mustard.

Item Part No. Descripon Qty Funcon
1398-112 Narrow Container 1Holds internal parts in proper position and provides a reservoir for
mustard
2404-070 Lever 1Pushes plunger rod down and forces piston to push mustard through
diffuser holes located on bottom of container
3406-152 Narrow Lid 1Keeps foreign particles out of container and keeps mustard from drying out
4404-13 Tether 1Attaches lid to the container
5404-072 Piston Push Rod 1Pushes piston down when lever is pressed
6404-071 Piston Ring 1Works in Conjuncon with Piston, comes aached to push rod
7407-007 Piston Spring 1Returns piston rod and lever to UP position
8404-066 Cylinder 1Holds mustard

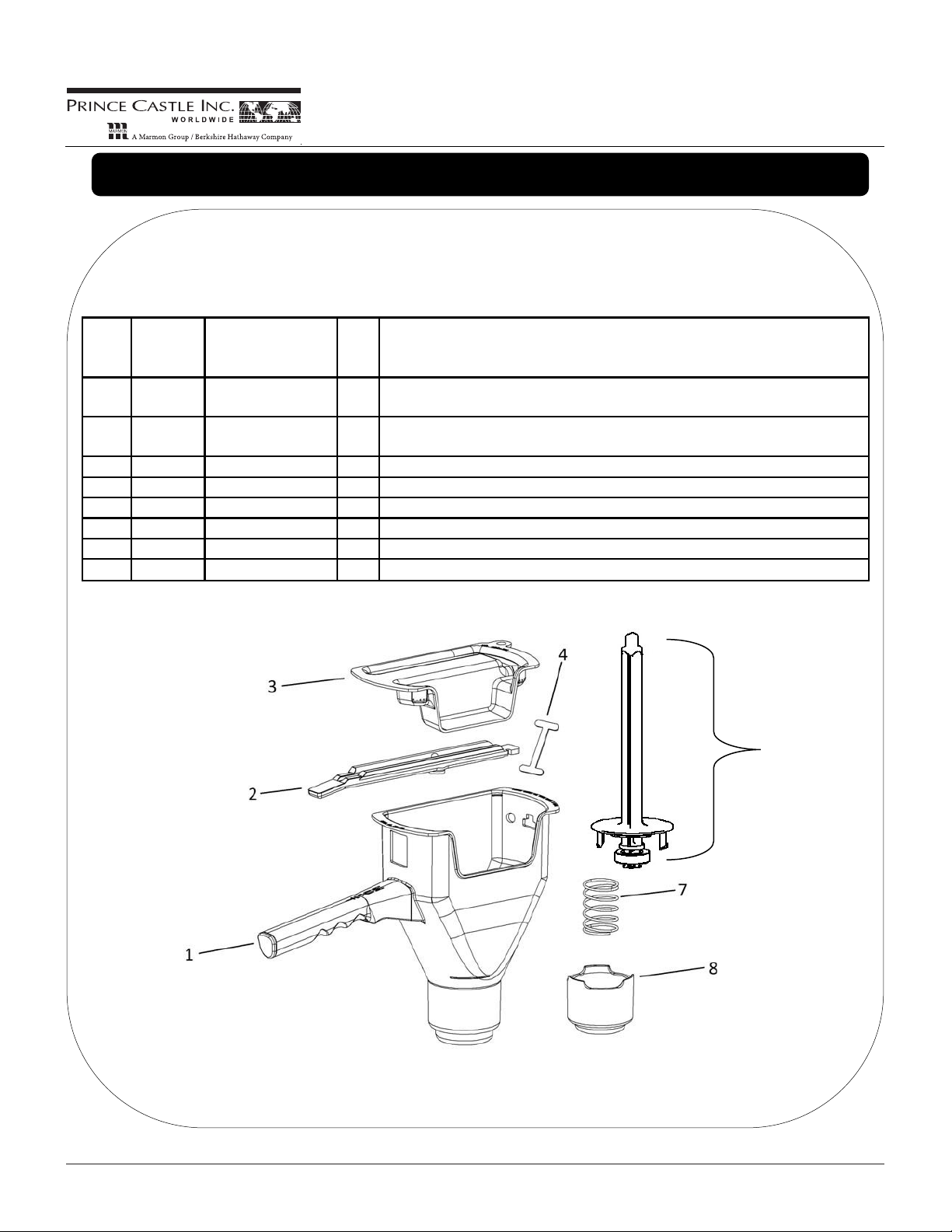

Exploded View and Parts List
Assembly
of 5 & 6
Printed in USA 04/19 ©2019398-513revF-EN
Mustard Dispenser
Model No.398-CN
5
Note: Parts are not sold individually. See parts kits on page 6.

Mustard Dispenser
Model No.398-CN
Printed in USA 04/2019© 2019
6
398-513revF-EN
Parts Kits
404B-070S
