Prince Castle McDONALD'S 398-B User manual

MUSTARD DISPENSER
PRINCE CASTLE MODEL NO. 398-B
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
PARTS IDENTIFICATION/FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
EQUIPMENT SET-UP AND CLOSE PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
ORDERING/SERVICE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
NON-SCHEDULED MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Place this chapter in the Small Equipment/
Miscellaneous Section of your Equipment
Manual.
MANUFACTURED
EXCLUSIVELY FOR
McDONALD’S


BY
PRINCE CASTLE INC.
CAROL STREAM, IL 60188 USA
PHONE [phone]
TOLL FREE NUMBER
1-800-323-2930
FAX: [phone]
WARRANTY
This product is warranted to be free from defects in material and/or workmanship for a period of one year
from the date of original installation. Any component which proves to be faulty during the warranty period
will be replaced without cost to the customer.
This manual is for the exclusive use of licensees and employees of McDonald’s Systems, Inc.
Printed in
The United States of America
Part No. 398-507
Printed in March
EM MISC 34
Printed on recycled paper
using a soya based ink product.
1999 McDonald’s Corporation
All Rights Reserved

INTRODUCTION
This dispenser is used for portion control of mustard
being dispensed on toasted buns.
After buns are separated and placed on the dress table,
hold dispenser approximately 1” (25 mm) above toasted
bun.
Press lever all the way down to dispense mustard on the
caramelized surface of the toasted bun. This is repeated
on all buns which require mustard.
The mustard dispenser has a YELLOW cap on the end of
the handle for easy identification.
Hazard Communication Standard (HCS) –
Procedure(s) in this equipment manual include the
use of chemical products. These chemical products
will be highlighted with bold face letters followed by
the abbreviation (HCS) in the text of the manual.
See the Hazard Communication Standard (HCS)
Manual for the appropriate Material Safety Data
Sheet(s) (MSDS).
* Not Shown
PARTS IDENTIFICATION/FUNCTION
1 398-30 Container w/Handle 1 Holds all internal parts in proper position and provides
a reservoir for mustard.
2 404-7 Check Valve Spring 1 Returns check valve to the closed position.
3 398-8 Check Valve 1 Works in conjunction with piston push rod.
4 398-9 Cylinder 1 Holds mustard.
4a 398-13 Cylinder, Valve, and 1 Consists of items 2, 3, 4 and 5.
Spring Assembly
5 398-20 Piston Spring 1 Returns the piston to the UP position.
6 398-6 Piston Push Rod 1 Pumps mustard through the check valve and out of
the 5 holes located on the bottom of the container.
7 398-4 Adjusting Cam 1 Calibrates the dispenser for proper volume of
mustard to be dispensed.
8 398-3 Lever 1 Pushes plunger rod down and forces piston to push
mustard through diffuser holes located on bottom of
container.
8a 398-14 Lever and Cam 1 Consists of items 7 and 8.
Assembly
9 404-13S Tether (pkg. of 6) 1 Attaches the lid to the container.
10 404-2S Lid w/Tether 1 Keeps foreign particles out of container and
(pkg. of 3) keeps mustard from drying out.
*11 398-12 Parts Kit 1 Consists of items 2, 3, 4, 5, 6, 7, 8, 9 and 10.
ITEM PART DESCRIPTION QTY. FUNCTION
NO.
398-30
404-7
398-8
398-9
398-3
404-13S
404-2S
398-12

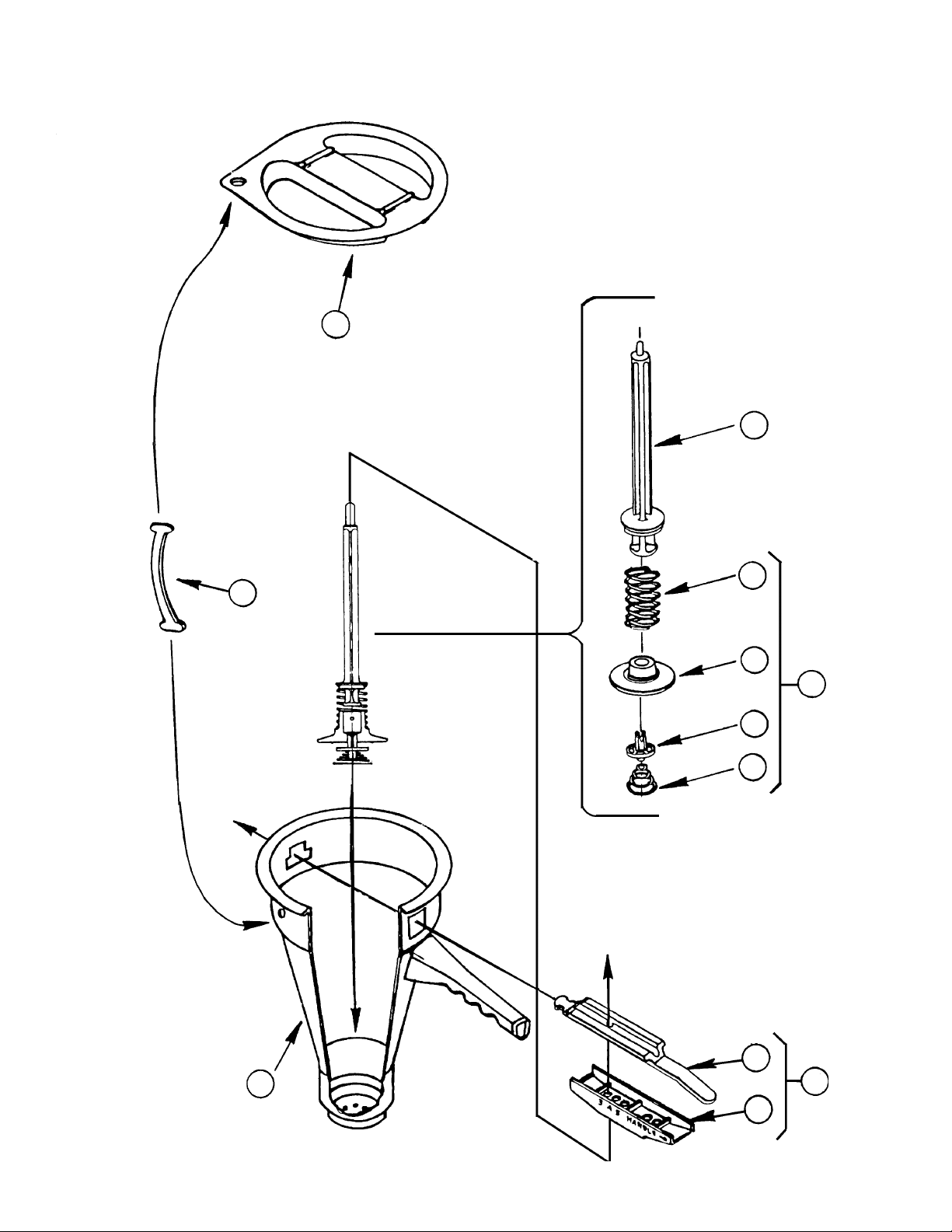

EXPLODED VIEW
4
6
5
8A
3
2
3
8
7
1
10
9
4A

4
CHECK VALVE SPRING
PISTON PUSH ROD
CYLINDER
PISTON SPRING
CHECK VALVE
figure 2
EQUIPMENT SET-UP, CALIBRATION,
CLEANING AND CLOSE PROCEDURES
Set-up
1. Place dispenser container in prep table pan (without
internal parts).
IMPORTANT: Before filling dispenser, shake mustard
container vigorously. Be sure lid on mustard gallon is tightly
sealed.
2. Fill the lower cavity of the empty container with mustard
(approximately 2 inches). See figure 1.
4. Place assembled parts into dispenser at an angle.
Rotate assembly one full turn while inserting into
mustard-filled bottom. See figure 3.
IMPORTANT: Make sure cylinder is filled with mustard
in lower cavity.
figure 1
PLASTIC
HANDLE
FILL WITH MUSTARD
APPROXIMATELY
2 INCHES
figure 3
CYLINDER
figure 4
3. Assemble all internal parts of the spring assembly.
See figure 2.
5. Place adjusting cam on top of piston push rod and
insert push rod into hole #3 of adjusting cam. See
figure 4.
IMPORTANT: Make sure that arrow on side of adjusting
cam points to handle of dispenser and numbers are
facing up.

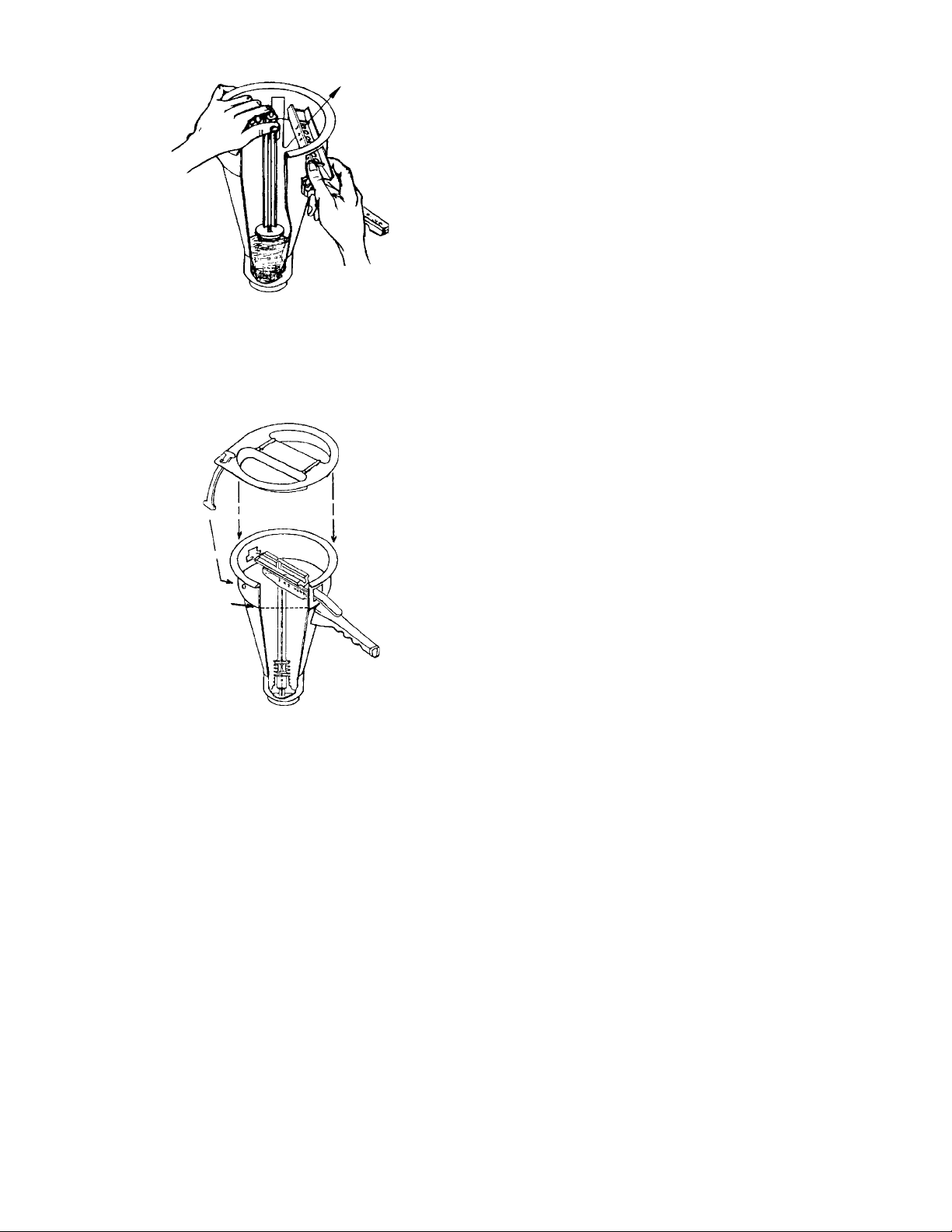

6. Attach lever so rounded corners face down towards
the adjusting cam. See figure 5.
a. Slide lever through the hole in the container
located above the handle of the dispenser.
b. Continue to slide the lever forward over adjusting
cam while pressing down on the adjusting cam
and the piston push rod.
c. Continue to slide the lever forward until the push
rod falls into the hole located in the lever.
d. Continue pressing adjusting cam and push rod
while sliding the lever forward until the front end
enters the “T”– shaped hole on the other side of
the container.

5
figure 5
FILL LINE
figure 6
7. Dispenser is now fully assembled. Pour mustard
into the container up to the Fill Line. Place the lid
on top of the container before using the dispenser.
See figure 6.
Calibration
Set Brix cup under dispenser and dispense 47 shots
of mustard into cup. Allow the lever to return fully
after each shot. 47 shots will dispense 1 fl.oz. (30
ml) of mustard into the Brix cup. If the amount of
mustard dispensed into the cup is above or below 1
fl.oz. (30 ml), move adjusting cam from hole #3 to
hole #2 to DECREASE volume, or move to hole #4
to INCREASE the amount of mustard dispensed.
Repeat this adjustment until dispenser is calibrated.
IMPORTANT: The lower numbered holes dispense less
mustard. The higher numbered holes dispense more
mustard. For all hole number settings, the arrow mark on
the side of the adjusting cam must always point towards
the handle of the dispenser.
Close
1. Empty mustard from dispenser and discard.
2. Fill dispenser with warm water. Repeatedly press
actuating lever to pump water and flush out dis-
penser.
3. Remove internal parts from container by pushing
down on the lever and the piston push rod. Slide the
lever out of the “T” shaped hole in the container.
Remove the adjusting cam.
4. Lift the push rod and the spring assembly straight up
and out of the container.
5. Separate all internal parts to clean thoroughly.
Wash the container and all loose internal parts in a
solution of warm water and McDonald’s All Purpose
Concentrate (APC) (HCS).
6. Rinse all loose parts and the container with running
water.
7. Sanitize dispenser. Use 1 packet of McDonald’s
Sanitizer (HCS) to a 2-1/2 gallons (8.5 l) of warm
water).
8. Let air dry.
IMPORTANT: Do not reassemble dispenser until it is
ready to be used the next day.
8. The mustard dispenser, must be primed before
using. Press down on lever several times (approxi-
mately 20) to completely prime.
9. Wipe the bottom of the dispenser with a clean, moist
hand towel after priming.
IMPORTANT: If air remains in the piston spring and
cylinder area, the dispenser will not dispense the correct
amount of mustard, and mustard will drip after each shot.
To release trapped air, remove lever and cam, and gently
pull out piston push rod and all assembled parts. Repeat
steps 4 thru 8 to reassemble. If necessary, empty some
of the mustard already in container before reassembling.

ORDERING/SERVICE INFORMATION
6
1. WHERE AND HOW TO ORDER
REPLACEMENT PARTS
To order replacement parts, look on the back of your
Prince Castle Price List for the name and phone
number of your local Prince Castle Service Center.
You may also call Prince Castle at 1-800-323-2930
(or fax us at 630-462-1460) for the name of your local
service center.
2. PARTS RETURNS
To return parts to your service center for credit, you
must obtain authorization from your center.
IMPORTANT: All warranty situations should be handled
by your center.
3. PRICES:
A. All prices are F.O.B. Prince Castle Service
Center or F.O.B. factory, Carol Stream, Illinois.
B. All prices are subject to change without notice.
These prices are exclusive of all sales taxes or any
special taxes which may be levied by federal, state,
or city governments.
OUTSIDE THE U.S.
Contact your kitchen equipment supplier or designated
repair facility for parts and service.
NON-SCHEDULED MAINTENANCE
Not applicable.
TROUBLESHOOTING CHART
Will not dispense. Plastic parts broken. Replace broken parts.
Not assembled properly. Assemble properly.
Not primed. See set-up procedure.
Parts missing. Check for proper assembly and
placement.
Does not dispense Out of calibration. Re-calibrate (See calibration
full portion. instructions).
Mustard pattern is Diffuser holes plugged in Disassemble and clean diffuser holes by
irregular. bottom of container. flushing water through holes.
Does not dispense Air pocket in piston spring Remove lever and cam, gently pull
correct amount and and cylinder area. piston push rod and assemble
mustard drips from parts from mustard to release
dispenser after each trapped air. Reassemble.
shot. (See page 4).
Mustard collects on Bottom of dispenser has Wipe off bottom of dispenser with
bottom of dispenser. made contact with bun. damp cloth.
PROBABLE CAUSEPROBLEM CORRECTIVE ACTION
