Prince Castle DCFT-MINI-MCD Series User manual

Operations
Manual
Product Identification
DCFT-MINI-MCD Series 1Printed in USA 06/04/2019
353-985 Rev. E

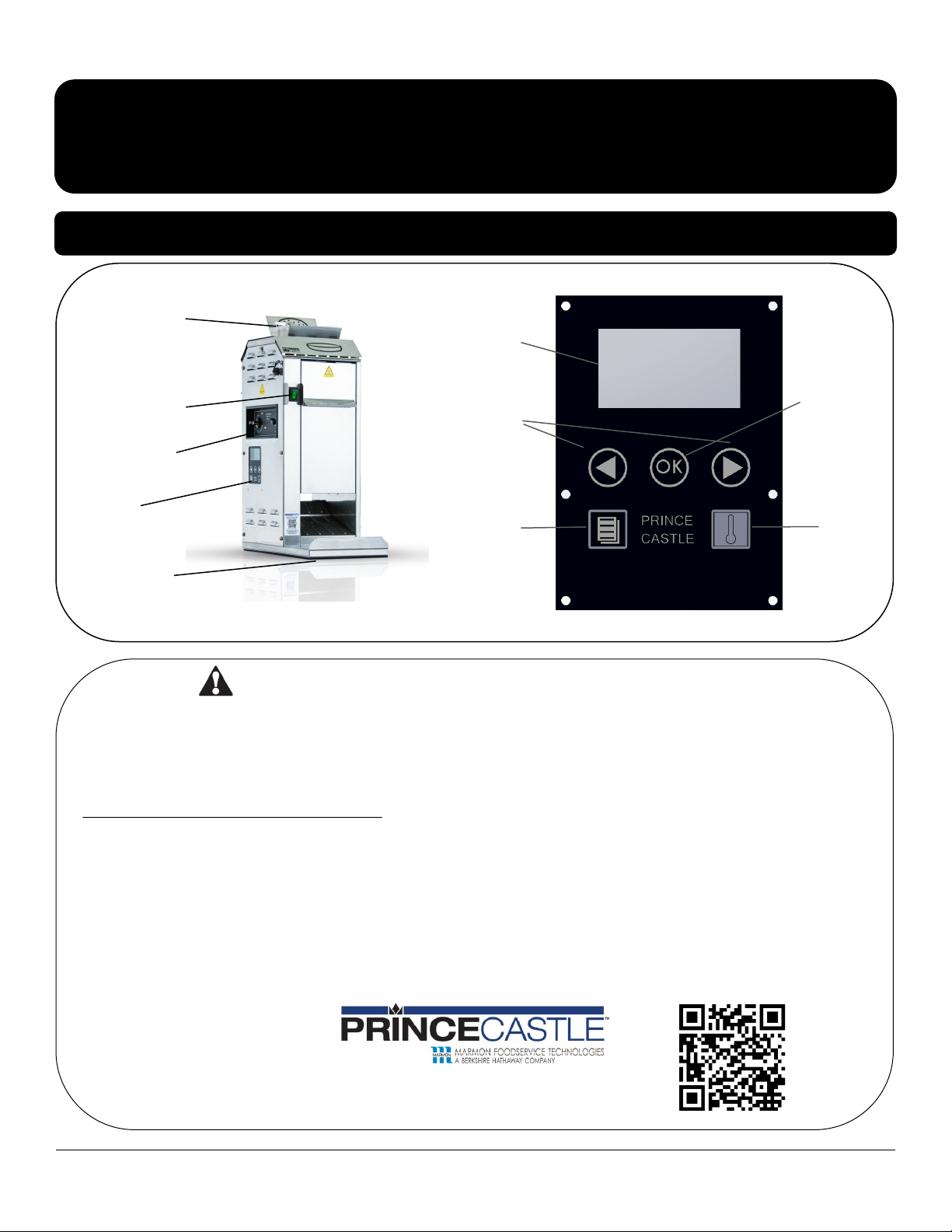

Vertical Artisan Toaster
DCFT-ART-MCD Series
Heel and Crown
Bun In-Feed
Power Switch
Display
LCD Display
LEFT and RIGHT
Scroll Buttons
TEMPERATURE
Button
MENU
Button
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or work-
manship for a period of two (2) years from date of original installation, not
to exceed 30 months from date of shipment from our factory. Any part or
component which proves to be faulty in material and/or workmanship within
the warranty period will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty and all
work must be performed by an authorized Prince Castle Service Agent.
• All labor shall be performed during regular work hours. Overtime premium
will not be covered.
• Travel charges are limited to 200 kilometers (100 miles) round trip, 2
hours travel time, one trip per repair.
• Damage caused by carelessness, neglect, and/or abuse (e.g., using
wrong current, dropping, tampering with or altering electrical components,
or improper cleaning) is not covered.
• Equipment damaged in shipment, by fire, flood or an act of God is not
covered.
• Damage to non-stick coated surfaces is not covered by this warranty.
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Toll Free: 1-800-PCASTLE
Fax: [phone] • www.princecastle.com
TABLE OF CONTENTS
Product Identification………………………….……….Page 1
Warranty Statement……………….……….………..…Page 1
Table of Contents…..…………….…………………….Page 1
Electrical Specifications.………….………..………….Page 2
Safe Service Practices.………….…………………….Page 2
Serial Number Matrix…………………….…………….Page 2
Installation……………….…………….……………..…Page 3
Powering Up Unit..……………………….………….…Page 4
Toasting Buns………….....………...……...………..…Page 4
Cleaning………….....………...……...……………...…Page 5
Management Programming.…………….………….…Page 7
Troubleshooting.……….....………...……...………..…Page 9
Parts List…….………….....………...……...……....…Page 10
Additional Information........………...……...……....…Page 12
WARNING! Before first use of this equipment, read these instructions!
Out Feed
Compression
Adjustment
OK Button
Operaons
Manual
Vercal Arsan Toaster
DCFT-MINI-MCD SERIES

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 2Printed in USA 06/04/2019
353-985 Rev. E
Safety Informaon Electrical Specicaons
WARNING
Indicates information important to the proper operation of the
unit. Failure to observe may result in damage to the equipment
and/or severe bodily injury or death.
CAUTION
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
General
This appliance is designed for toasting bread products in a
commercial kitchen. The dimensions of the bread products
are defined by the customer.
200-240V, 50/60Hz, 1250-1800W
Single Phase Power
Important
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Appliance shall not be cleaned with a water jet or a steam
cleaner.
If the supply cord is damaged, it must be replaced by the man-
ufacturer, its service agent, or similarly qualified persons in
order to avoid hazards.
Serial Number Matrix
The manufacture date is encoded in the unit’s serial number. The
service bench installaon date (used to determine warranty
coverage) is considered to be the end of the following month. For
example:
Serial Number: MP
Manufacture Date: June 2014
Service Bench Installaon Date: July 31, 2014
Month Year B.U Location Refrigerant
A=January L=2016 D=Domestic K=Kehoe A=134A
B=February M=2017 G=Global L=Lies B=404A
C=March N=2018 M=McD P=Plymouth M=401A
D=April P=2019 Q=Q I.O. C=China R=R22
E=May Q=2020 C=China X=N/A
F=June R=2021
G=July S=2022
H=August T=2023
J=September U=2024
K=October V=2025
L=November W=2026

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 3Printed in USA 06/04/2019
353-985 Rev. E

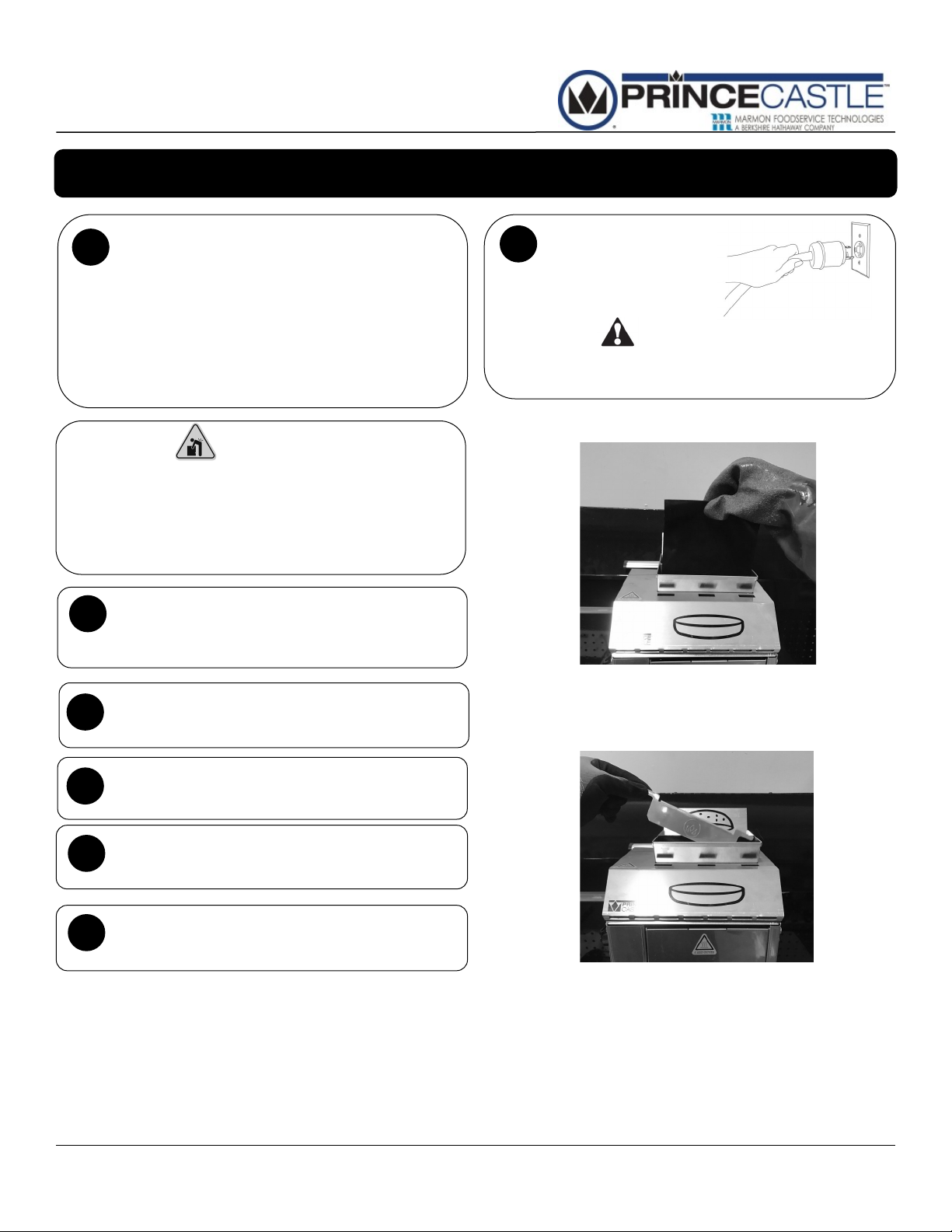

Insert the release sheet as shown in Figure 1.
5
Install the release sheet retaining bracket as shown in Figure
2.
6
Figure 1
Figure 2
Plug in Unit into a grounded
receptacle
7
Installaon
WARNING
All electrical connections must be in accordance with local
electrical codes and any other applicable codes.
Place toaster on flat surface. Remove blue and/or white
protective covering.
Remove packing. Remove the cardboard spacer holding
the conveyors up for shipping.
CAUTION
DO NOT LIFT UNIT BY THE BUTTER WHEEL.
EITHER LIFT FROM DOORS, OR THE
BOTTOM OF THE UNIT
1
2
3
4
Verify parts. Verify that all parts have been received:
• Dual Continuous Feed Toaster with two conveyors.
• Release Sheet Kit.
Unpack and inspect. Remove the unit from the carton
and inspect for signs of damage. If there is damage to the
unit:
• Notify the carrier within 24 hours of delivery.
• Save carton and packaging materials for inspection
purposes.
• Contact your local dealer, or if purchased directly,
the Prince Castle Sales Department at 1-800-722-7853 or
630-462-8800 to arrange for a replacement unit.

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 4Printed in USA 06/04/2019
353-985 Rev. E
Power Up Unit
Plug in unit as shown in Figure 3.
1
Power unit on as shown in Figure 4.
2
Figure 3
Figure 4
Toasng Buns
1
Refer to Figure 6 to show Crown and Heel side of toaster.
2
Figure 5
Figure 6
Crown Side
Heel Side
Insert Buns
Retrieve Buns
Feed product into top of Artisan Toaster. Heels are toasted
in the front slot and crowns are toasted in the rear slot. The
sides to be toasted should face the platen (Black Teflon
sheet). Refer to Figure 5 for Insertion and Retrieval of buns.

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 5Printed in USA 06/04/2019
353-985 Rev. E

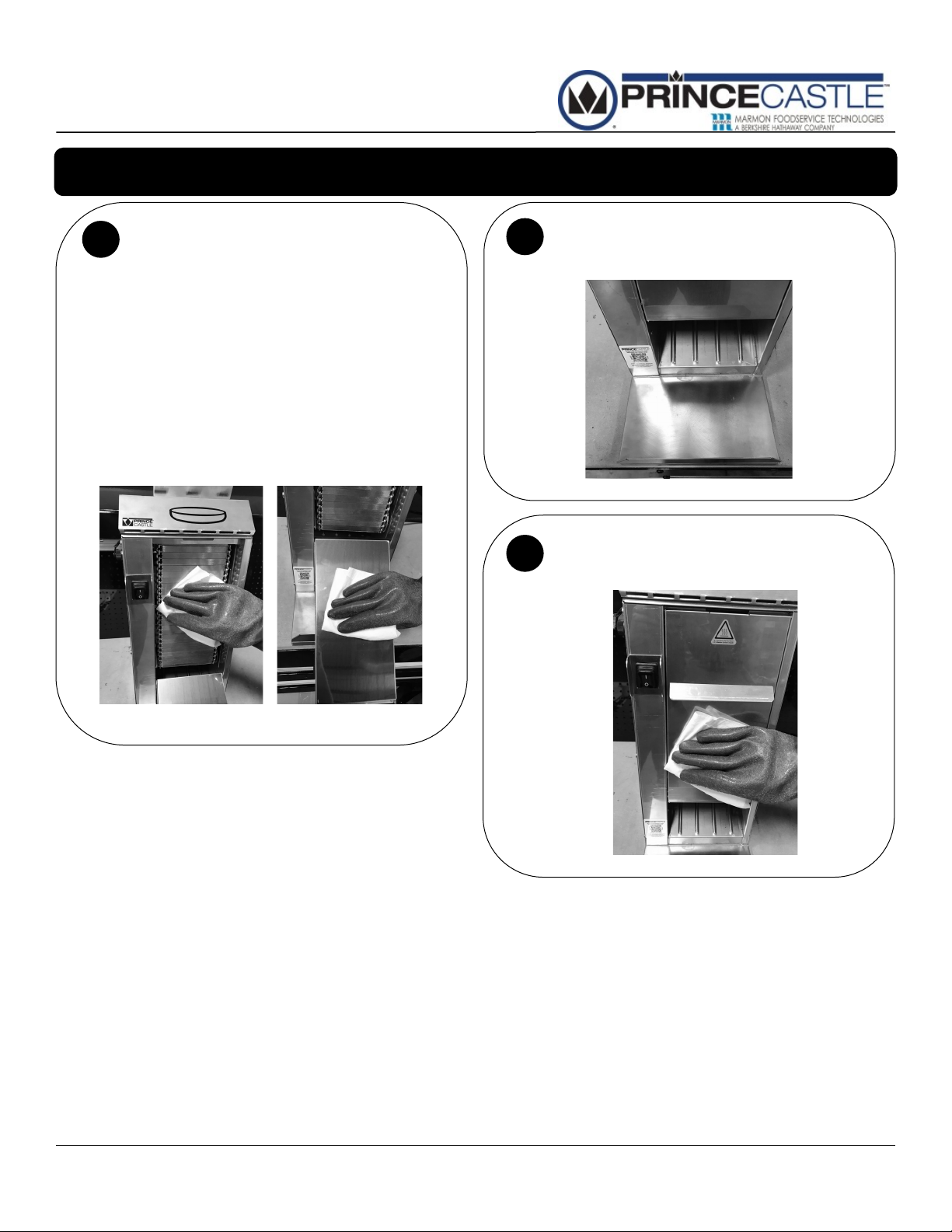

Cleaning (Daily)
Ensure the unit is powered off before initiating any cleaning
procedures. Allow unit to cool for at least 20 minutes before
attempting to clean.
1
While wearing a pair of heat-resistant gloves, wipe down in
feed tray with a clean, sanitizer-soaked towel.
2
Remove Teflon release sheets by first lifting up on the
retaining bracket, then removing the Teflon sheets. Take
the retaining bracket to the 3-compartment sink to wash,
rinse, and sanitize.
3
4
Re-feed release sheet back through the toaster, and reinstall
the retaining bracket
5
Spray a clean, sanitizer-soaked towel with approved sink
detergent solution then wipe down release sheets on both
sides in one direction, away from where it is being held,
being careful not to crease the sheet.
Follow the Steps in PR76—Butter Wheel Daily Cleaning to
clean the butter wheel.
6

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 6Printed in USA 06/04/2019
353-985 Rev. E
Wipe out crumbs from landing zone with a clean, sanitizer-
soaked towel.
8
9
Cleaning (Cont..)
Spray approved degreaser solution onto a clean,
sanitizer-soaked towel and wipe down the entire unit.
7Clean front and rear conveyor and club belts.
• With power off, remove gloves from hands to lift lid
and open front conveyor door.
• Put heat-resistant gloves on to clean.
• Spray approved degreaser solution onto a clean, sani-
tizer-soaked towel. Clean the front main conveyor belt.
Rinse with a separate clean, sanitizer-soaked towel.
• Close front door, power unit ON, count 13 seconds to
reveal unclean side of belt, power unit OFF, open door
and repeat cleaning using the sanitizer-soaked towel
sprayed with approved degreaser solution.
• Wipe down the inner panel of the conveyor access
door with a clean, sanitizer-soaked towel sprayed with
approved degreaser solution.
• Repeat the belt cleaning process for rear main con-
veyor belt, and rear inner panel.

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 7Printed in USA 06/04/2019
353-985 Rev. E

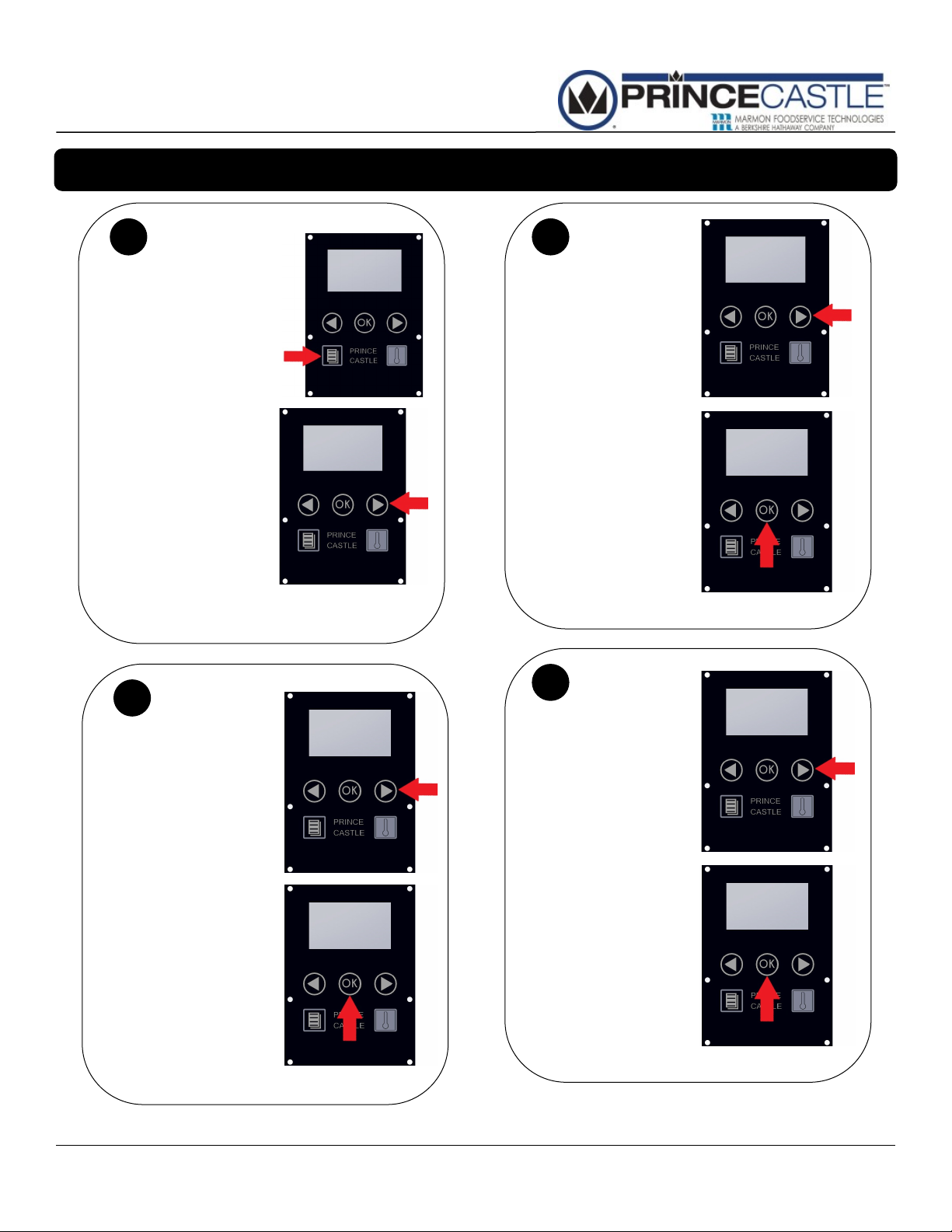

Management Programming
1
To Enter Programming screens
Press and hold the MENU
button for 6 seconds. The
PROGRAMMING VERSION
screen will appear in the LCD
display.
From the PROGRAMMING
VERSION screen, you may:
Press RIGHT scroll
button to advance to the
next menu item
2
To Change the LANGUAGE
from the PROGRAMMING
VERSION
Screen, PRESS the left scroll
button.
From the SELECT
LANGUAGE Screen,
Press OK button
A. From the
LANGUAGE screen
that appears, use
the RIGHT and
LEFT scroll buttons.
TO select different
Language
B. Accept the new
language by pressing
OK button to return to
the SELECT
LANGUAGE screen
3
To Adjust PLATEN
TEMPERATURE from the
SELECT LANUGAGE Screen,
press the RIGHT scroll button.
Press the OK button to enter the
programming screen.
A. From the PLATEN
TEMPERATURE screen that
that appears adjust the tem-
perature using the RIGHT
and LEFT scroll buttons.
Accept the new Temperature by
pressing OK.
NOTE : To cancel without
accepting the new setting,
press the MENU logo button to
return to the previous screen
4
To adjust SELECT F/C
From The PLATEN
TEMPERATURE screen,
press the RIGHT scroll
button.
From the SELECT F/C screen
that appears, press the OK
button.
A. From the SET F/C
Screen that appears,
Use the LEFT and
RIGHT scroll buttons to
Select TEMP = F
( Fahrenheit ) or
C (Celsius )
B. Accept the new scale
By pressing the OK
Button to return to
The SELECT F/C
screen

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 8Printed in USA 06/04/2019
353-985 Rev. E
Management Programming (Connued)
5
To adjust set TOAST TIME
from the SELECT F/C
screen, press the RIGHT
scroll button
From the SELECT
TOAST TIME Screen,
Press OK button
A. From the SELECT TOAST
TIME that appears, Adjust
the set point Time Using the
RIGHT and LEFT
Scroll buttons. Accept
NOTE : To cancel with\out
accepting the new setting,
press the MENU logo button to
return to the previous screen
6
To enter LON SERVICE CALL
from CLUB TOAST TIME screen,
press the RIGHT scroll button.
From the LON SERVICE CALL
Screen, Press OK button
From the LON SERVICE CALL
screen that appears, the following
options are available
YES = LEFT scroll button
NO = RIGHT scroll button
OK = Cancel / Go Back
7
To enter SERVICE CODES from
LON SERVICE CALL screen,
press the RIGHT scroll button.
From the SERVICE CODES
Screen, Press OK button
Using the Left and Right Scroll
Buttons, scroll through the menu to
see any service codes.

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 9Printed in USA 06/04/2019
353-985 Rev. E
Troubleshoong Steps
Master Display Messages
PROBLEM PROBABLE CAUSE SOLUTION
Unit will not heat up No power to unit. Ensure power cord is connected to
proper receptacle.
Inoperable power cord Call for service
Loose connecon on power switch Call for service
Inoperable power switch Call for service
High limit switch tripped Reset high level switch
Inoperable Temperature Probe Call for service
Inoperable Platen Replace Platen.
Unit heats up, but the conveyor does
not run
Loose motor switch connecon. Call for service
Inoperable motor. Call for service
Inoperable motor switch. Call for service
Stripped drive gear Call for service
Loose chain sprockets Call for service
Unit under-and over-heats, but does
not respond to programming.
Check temperature sengs Adjust temperature set point seng.
See management programming.
Inoperable temperature probe Call for service
Buns under-or over-done. Check platen adjustment. See opera-
on manual
Move platen adjustment knobs to the
correct product part seng.
Check conveyor temperature. From
READY screen, press the INFOR-
MATION buon to display the actual
platen temperature.
Adjust temperature set point seng.
See management programming.
Improper toast me. Adjust toast me as needed.
BURN/ELECTRICAL SHOCK HAZARD!
Platen is HOT and can cause severe burns or severe shock.
Keep hands and objects out of the toaster unit! Failure to exercise cauon may result in serious injury!
Turn the unit o, unplug it and let it cool down completely before touching or working on internal apparatus. The
plug removed from the outlet shall remain clearly visible to the operator during the maintenance procedure
WARNING

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 10 Printed in USA 06/04/2019
353-985 Rev. E
Parts List Exploded View Diagram
See Page 11 for Parts List

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 11 Printed in USA 06/04/2019
353-985 Rev. E
Parts List
ITEM NO. PART NUMBER DESCRIPTION
353-856S PCB A, USER INTERFACE
526-281S TSTAT,HI-LIMIT BULB & CAP,700F
353-262MS PCB ASSEMBLY, MAIN CONTROLLER
526-013S ASSY,RTD TEMPERATURE INTERFACE
353-807S 3 HEATER DRIVE PCB ASSEMBLY
37146S POWER SUPPLY
353-640S HEATER PLATEN, MVT
353-817S LOWER ROLLER ASSEMBLY,MVT
353-976S FLANGE BEARING,SELF ALIGNING.8mm SHAFT
10 353-816S SPROCKET,#25 CHAIN,45T,.25P,.312B
11 353-750S CHAIN, ROLLER, #25,1/4 P,89L,MVT
12 353-978S IDLER WHEEL
13 353-844S KNOB, COMPRESSION ADJUSTMENT
14 353-843S BRACKET, TENSIONER,CHAIN, MVT
15 527-468S PROBE,TEMPERATURE, .250 DIA. RTD
16 353-765S SPACER, PLATEN,MVT
17 353-703S MOTOR, STEP,NEMA 34-1.8°
18 353-967S SPROCKET, MOTOR DRIVE #25 ,10T .250 BORE
19 78-233S SWITCH,ROCKER,DPST,IP65,16A
20 353-792S CLIP, RELEASE SHEET, MVT
21 353-663S RELEASE SHEET,MVT
22 353-785S SPARK PLUG BOOT,MVT
23 353-788S BAFFLE,CROWN-LOWER
24 353-789S BAFFLE,HEEL-UPPER
25 353-790S BAFFLE, CROWN-UPPER
26 353-787S BAFFLE, HEEL-LOWER
27 353-662S HEATER, ROPE,LANDING ZONE,MVT
28 353-1009S RIGHT ANGLE CORD GRIP
29 72-670S POWER CORD, 16AMP,DCFT-ART
30 353-576S SPRING, EXT,SS,1.7IN LG, 2.6LB-IN,.312OD
31 353-1013S CONVEYOR DOOR SWITCH ASSEMBLY
32 353-772S ASSEMBLY, CONVEYOR BELT, 6" SNAP SLAT
33 353-801S UPPER CONVEYOR ROLLER ASSEMBLY
34 72-517S POWER CORD, 16AMP,RING LOCK DCFT-CYT
35 353-987S CALROD,CONVEYOR CROWN
36 353-988S CALROD,CONVEYOR HEEL
37 353-1092S DC BLOWER

Vertical Artisan Toaster
DCFT-MINI-MCD Series
MINI-DCFT-MCD Series 12 Printed in USA 06/04/2019
353-985 Rev. E
Addional Informaon
Correct Disposal of this Product
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collecon systems or contact the retailer
where the product was purchased. They can take this
product for environmental safe recycling.
European Distributors and Service
Catequip
19, Rue de la Paix
10320 Bouilly
France
Telephone [phone]
Fax [phone]
Web [e-mail]
FRANKE Foodservice Systems GmbH
Jurastrasse 3
79713 Bad Saeckingen
Germany
Telephone [phone]
Fax [phone]
Web www.franke.comkitchensystems/de/de/
home.html
H & K Equipment
1 Cosford Lane
Swi Valley Industrial Estate
Rugby, Warwickshire CV21 1QN
England
Telephone [phone]
Web www.hkionline.com
