Operation
Manual

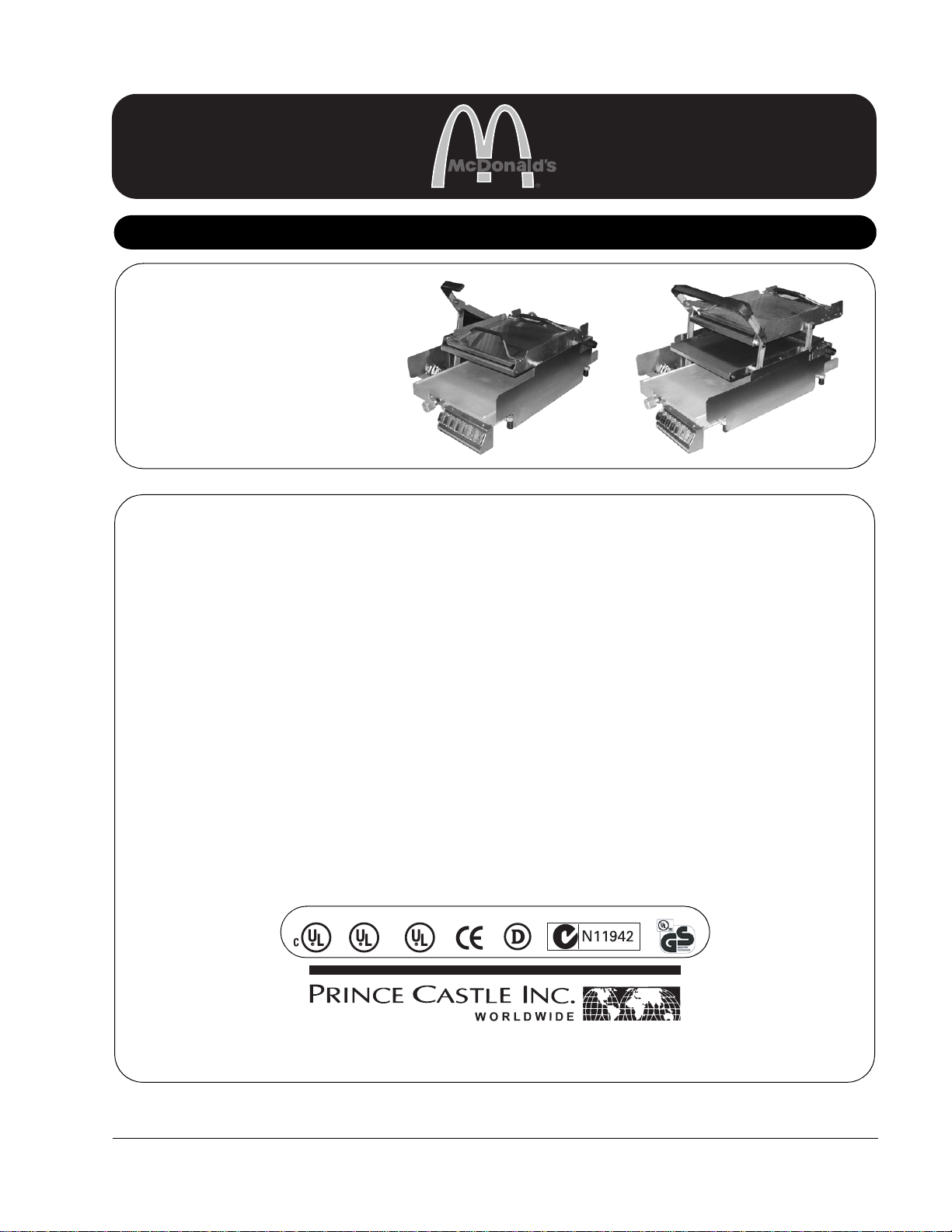

Product Identification
247 Series
The Prince Castle 247 & 248 Toaster Grill
Series offers two practical options for quick-
and-easy bread product toasting. Both
models have pivoting sides allowing for easy
access to the platens for cleaning. The 248
Model has the added feature of a Club
sandwich level.
248 Series
SANITATION
LIMITED WARRANTY
This product is warranted to be free from defects in material and/
or workmanship for a period of two (2) years from date of original
installation, not to exceed 30 months from date of shipment from
our factory. This warranty covers on location service for 2 years
(i.e. trip charges and/or mileage). Travel mileage is limited to 100
miles (200 kilometers) round trip (one trip per warranty) from an
authorized service agency or its sub-service agency. Any
component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this
warranty.
• All labor shall be performed during regular work hours.
Overtime premium will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in
shipment, by fire, flood or an act of God) is not covered under
this warranty.
•The power cord on this product is rated for a maximum
surface temperature of 194°F (90°C). If the cord comes into
contact with any heated surface, it may be damaged and/or
cause damage to the product and/or injury to the user.
Damage resulting from any such misuse may result in a
voided Warranty at the sole discretion of the manufacturer.
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Toll Free: 1-800-PCASTLE
Fax: [phone] • www.princecastle.com

Printed in USA 01/05 © 2005 2 247-500E
Toaster Grills
Models 247 & 248
Table of Contents
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting the Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
View/Change Set Temperature . . . . . . . . . . . . . . . . . . . . 5
View/Change Set Toasting Time . . . . . . . . . . . . . . . . . . . 6
View/Change Duty Time Alarm. . . . . . . . . . . . . . . . . . . . . 8
Standby (Energy Saving) Mode . . . . . . . . . . . . . . . . . . . . 8
View/Calibrate Platen Temperature . . . . . . . . . . . . . . . . . 9
Change Product Name (Product Mode Only) . . . . . . . . . 11
Set Volume Levels (All Models) . . . . . . . . . . . . . . . . . . . . 11
Adjusting Bun Crush Settings . . . . . . . . . . . . . . . . . . . . . 12
Adjusting for Bun Thickness . . . . . . . . . . . . . . . . . . . . . . . 12
Conditioning the Platens . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ordering Parts and Service . . . . . . . . . . . . . . . . . . . . . . . 16
Model 247 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . 17
Model 248 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . 18
Model 247 Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 19
Model 248 Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety Information
Indicates information important to the proper operation of
the unit. Failure to observe may result in damage to the
equipment and/or severe bodily injury or death.
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
WARNING
CAUTION
Accessories
Use standard full-size spatulas with the 247 or 248 Toaster
Grills. Also, use the full-size plastic or metal trays under the
bottom Platen. You may also use the new nine-bun trays as
they become available.
Important!
Prince Castle reserves the right to change specifications and
product design without notice. Such revisions do not entitle the
buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.

247-500E 3 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
Installation
Remove the unit from the carton and inspect for signs of
damage. If there is damage to the unit:
• Notify the carrier within 24 hours of delivery.
• Save carton and packaging materials for inspection purposes.
• Contact your local dealer, or if purchased directly, the Prince
Castle Sales Department at 1-800-722-7853 or 630-462-8800
to arrange for a replacement unit.
Before first use, clean and condition the platens (see
Conditioning Platens).
NOTE: When using this unit, the ambient temperature at the
mounting site should not exceed 43°C (110°F).
All electrical connections must be in accordance with local
electrical codes and any other applicable codes.
Plug the unit into an applicable electrical receptacle.
CAUTION
Setting the Controls

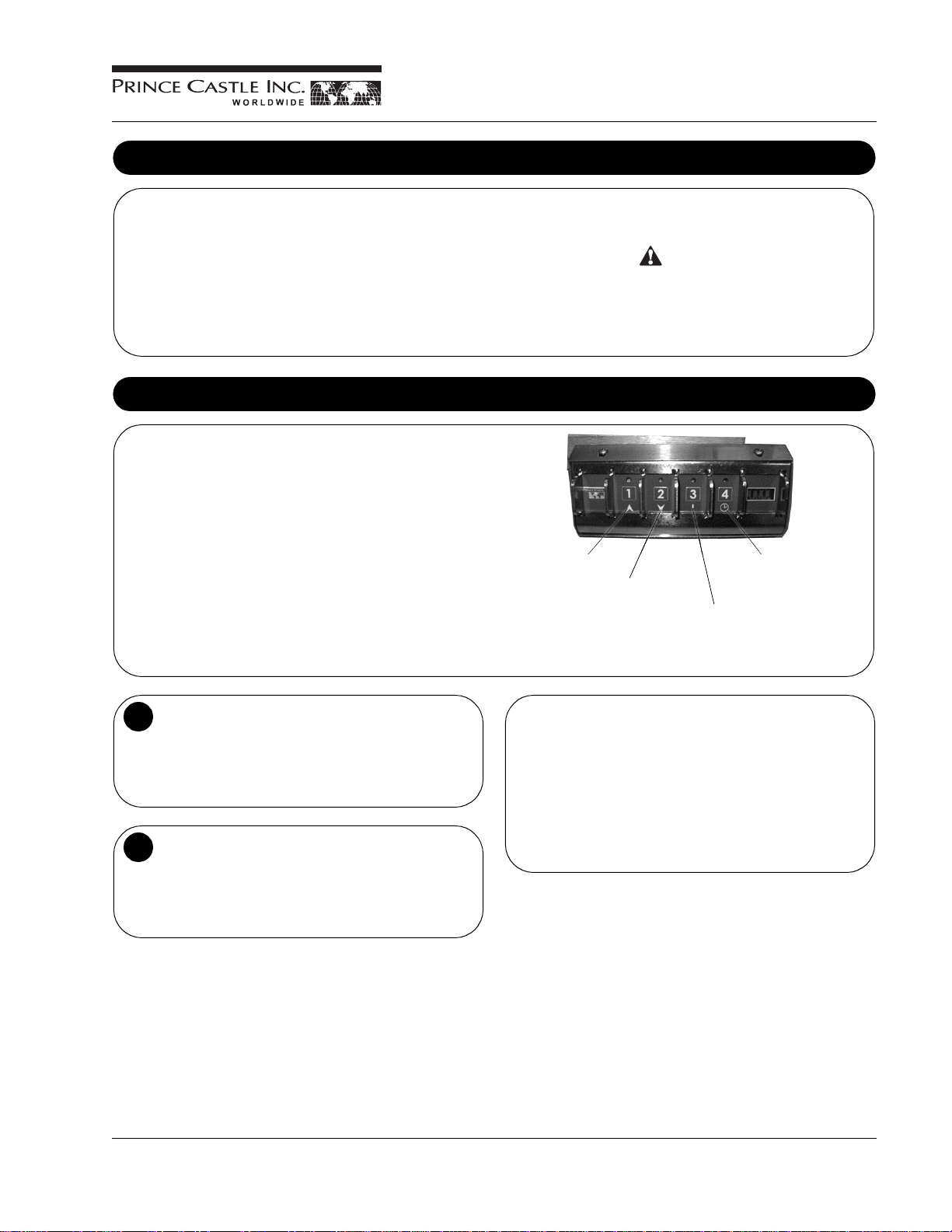

The model 247 & 248 Toaster Grills provide two modes of
operation: DEDICATED MODE and PRODUCT MODE.
•DEDICATED MODE is a simple mode of operation for toasting
buns that is similar to the 213, 411 & 416 Series Toaster Grills,
with a set toast time and temperature for one product “BUN1”.
•PRODUCT MODE allows you to set both the toasting time and
temperature individually for four additional products. Note that
it may take several minutes for the platen to heat up or cool
down to a new temperature setting. You can also change the
display to any four character name of your choice for each of
the products to indicate which product is being toasted.
• Furthermore, 247 and 248 Toaster Grills allow you to manually
initiate the power-saving mode. (See Figure 1.) Figure 1
UP Arrow
DOWN Arrow
TEMPERATURE Button
TIME
Button
When the Toaster Grill is in Dedicated Mode:
Press and release both the UP and DOWN arrows
at the same time. This will change the Toaster Grill
to Product Mode. Products 1 through 4 will be
available.
1
When the Toaster Grill is in Product Mode:
Press and release both the UP and DOWN arrows
at the same time. This will change the Toaster Grill
to Dedicated Mode. BUN1 will be the only product
available.
2
NOTE: While the unit is adjusting to the new set temperature,
the product name flashes in the display. In the Dedicated
Mode this is “BUN1”. In the Product Mode, the name will be
the currently selected product.
When the unit reaches set temperature, the product’s name
is displayed steadily in Product Mode, or the display shows
“RDY” in Dedicated Mode.
The adjustment time necessary will depend on the set
temperature.

Printed in USA 01/05 © 2005 4 247-500E
Toaster Grills
Models 247 & 248

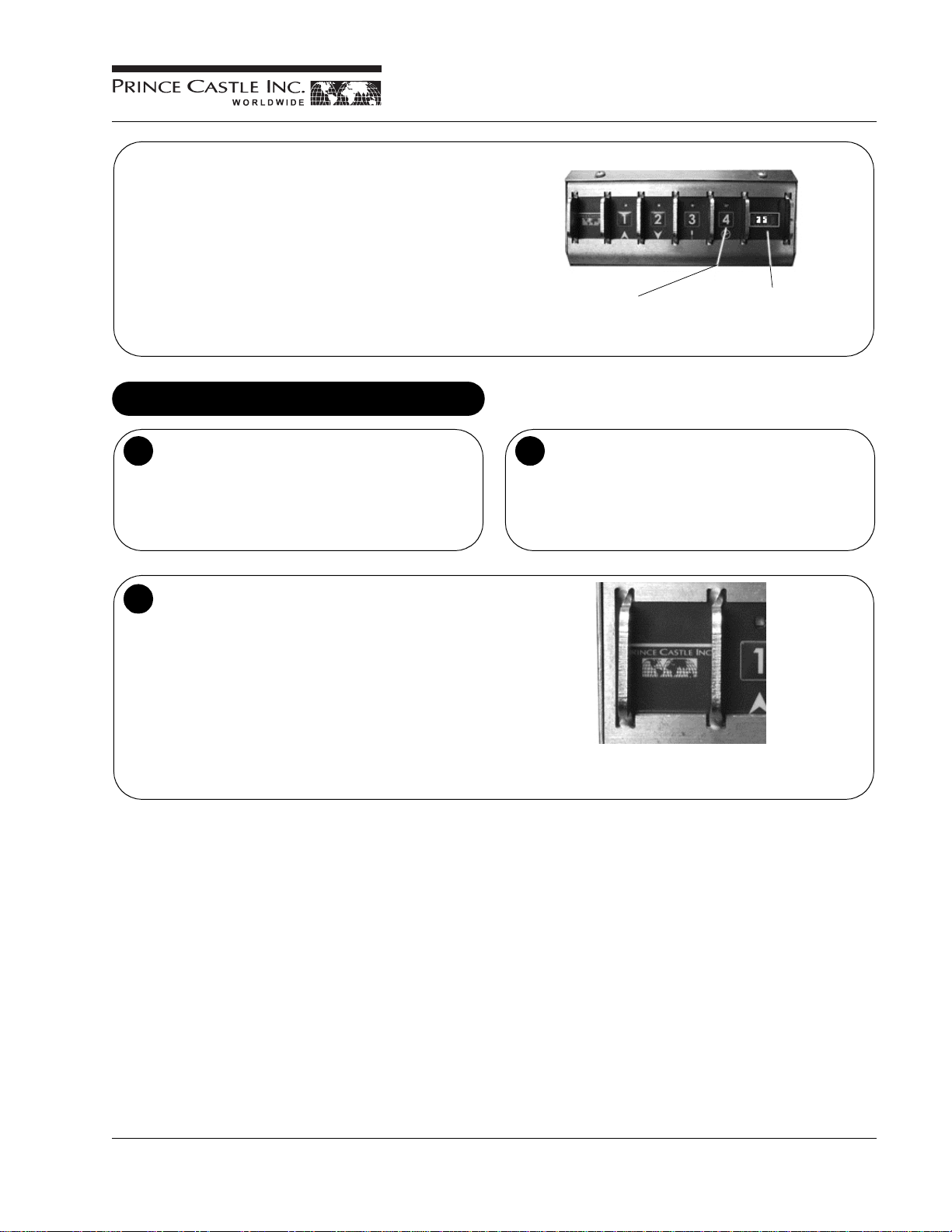

Product Selection (Product Mode Only)

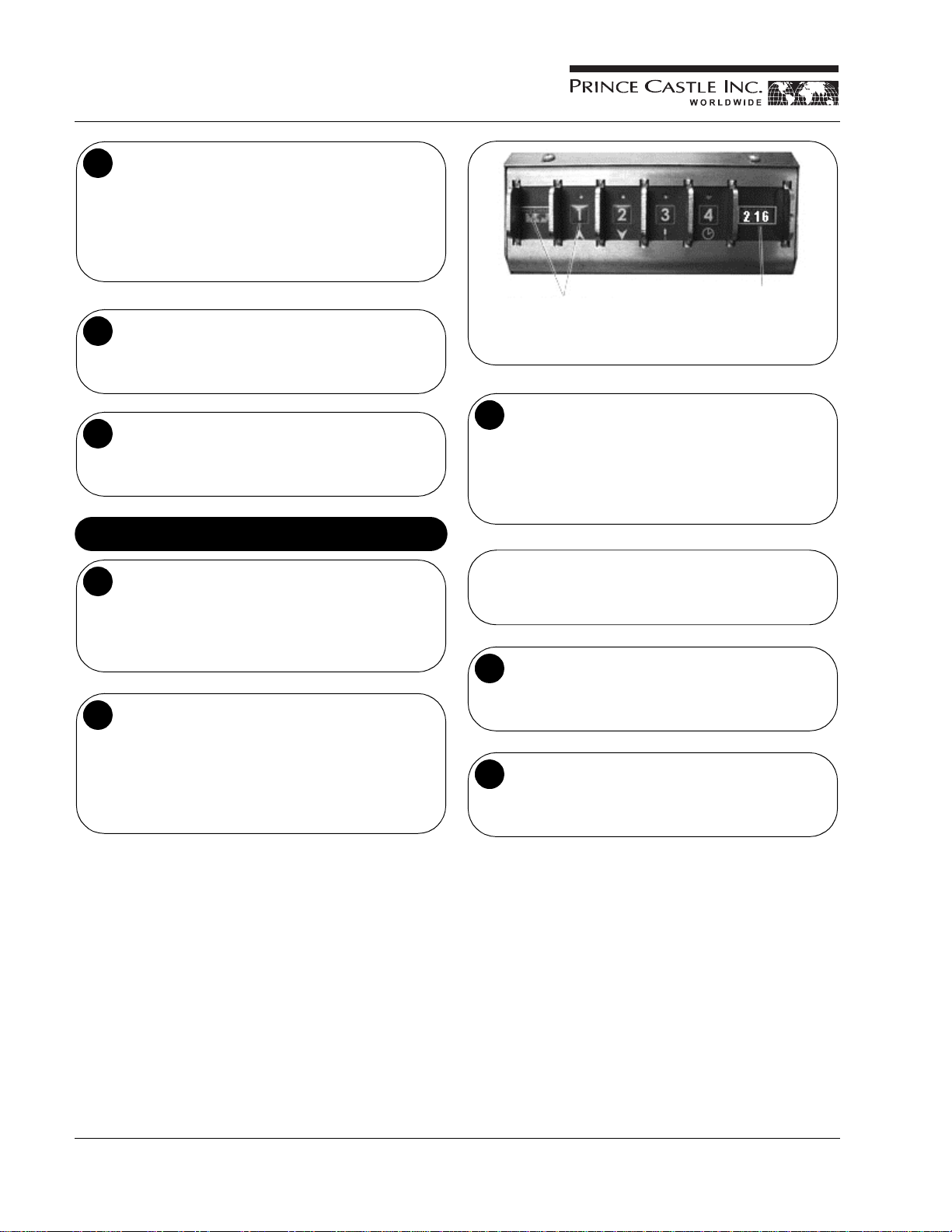

Press and release any of the four numbered buttons (i.e., 1, 2,
3or 4) to select the product associated with that button. (See
Figure 2.)
The LED above the selected Product button glows steady green
to indicate the current selection and the display will show the
selected product’s name.
Figure 2
LEDs
Ready-to-Toast Indication
While the unit is warming up, a product name flashes in the
display. In the Dedicated Mode this is “BUN1”. In the Product
Mode, the name will be the currently selected product. (See
Figure 3.)
When the unit reaches set temperature, the product’s name is
displayed steadily in Product Mode, or the display shows ‘RDY’ in
Dedicated Mode.
Figure 3
Temperature Mode (F/C) Display Selection
TEMPERATURE MODE: To toggle between Fahrenheit (F) and
Celsius (C), at power-on immediately press and release button 3
within 3 seconds. (See Figure 4.)
If the unit was set to display temperatures in ‘C’, it changes to
display in ‘F’, and vice versa. The display shows ‘F’ or ‘C’ to
indicate which mode has been selected. Repeat within 3
seconds to change the display again.
The default Temperature Mode is Celsius.
Figure 4
Press Button 3

247-500E 5 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
Resetting to Factory Presets
To reset all settings to factory presets, at power-on immediately
(within 3 seconds) press and hold the LOGO, UP and DOWN
buttons simultaneously until the display shows ‘PSET’. Release
all buttons. After about 10 seconds, the unit will operate with
factory preset temperature, time and display name values. (See
Figure 5.)
All previously saved settings are lost upon resetting the defaults.
Figure 5
Press These Buttons
at the Same Time
View/Change Set Temperature
To View the Current Set Temperature
In Product Mode:
Press and hold the currently selected product’s button and
immediately press the TEMPERATURE button. Release both
buttons.
The display will show the pre-set toasting temperature for the
selected product. (See Figure 6.)
Figure 6
Product Mode
Press PRODUCT Button and
TEMPERATURE Button
Product’s Set
Temperature Is
Displayed
In Dedicated Mode:
Press and release the TEMPERATURE button. The display
will show the pre-set toasting temperature for “BUN1”.
(See Figure 7.)
Figure 7
Dedicated Mode
Press TEMPERATURE
Button
Display Shows BUN1
Set Temperature

Printed in USA 01/05 © 2005 6 247-500E
Toaster Grills
Models 247 & 248
To Change the Set Temperature
Press the button(s) used to view the set temperature.
Hold the button(s) for 6 seconds.
The LED above the TEMPERATURE button will
flash yellow, indicating that the unit is now in set-
temperature programming mode. Release all
buttons.
1
Press and release the UP or DOWN buttons to change
the currently selected product’s toasting temperature.
Holding either button for 3 seconds will allow
automatic “fast scrolling” for easier programming.
The temperature can be set from 37°C to 287°C
(100°F to 550°F).
2
NOTE: While the unit is adjusting to the new set temperature,
the product name flashes in the display. In the Dedicated
Mode this is “BUN1”. In the Product Mode, the name will be
the currently selected product.
When the unit reaches set temperature, the product’s name
is displayed steadily in Product Mode, or the display shows
“RDY” in Dedicated Mode.
The adjustment time necessary will depend on the set
temperature.
Figure 8
LOGO Button
When finished, press and release the TIME button to
save the new value and return to toasting.
Press and release the LOGO button at any time to
exit the programming mode without saving any
changes made.
3
View/Change Set Toasting Time
To View the Set Toasting Time
In Product Mode:
Press and Hold the currently selected product’s button and
immediately press the TIME button. Release both buttons. The
display will show the present toasting time for the selected
product. (See Figure 9.)
Figure 9
Product Mode
Press PRODUCT Button
and TIME Button
Product’s Set Time
Is Displayed

247-500E 7 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
In Dedicated Mode:
Press and release the TIME button. The display will show the
present toasting time for “BUN1”.
In either mode, after 3 seconds the display will return to showing
the currently selected product time. (See Figure 10.)
Figure 10
Dedicated Mode
Press the TIME Button Display Shows
BUN1 Set Time
To Change the Set Toasting Time
To change the toasting time of the currently selected
product, press the same button(s) used to view the
toasting time. Hold the button(s) for 6 seconds.
The LED above the TIME button will flash yellow,
indicating that the unit is now in set-time
programming mode. Release all buttons.
1Press and release the UP or DOWN buttons to change
the currently selected product’s toasting time. Holding
either button for 3 seconds will allow automatic “fast
scrolling” for easier programming.
The time can be set from 1 sec. to 9 minutes,
59 seconds.
2
Figure 11
LOGO Button
When finished, press and release the TIME button to
save the new value and return to toasting.
Press and release the LOGO button at any time to
exit the programming mode without saving any
changes. (See Figure 11.)
3

Printed in USA 01/05 © 2005 8 247-500E
Toaster Grills
Models 247 & 248
View/Change Duty Time Alarm
A. Press and hold the LOGO button. Immediately press
the TIME button.
B. Release all buttons. The display will show the present
duty time for “BUN1” in Dedicated Mode and for
whichever product is selected in Product Mode.
1
To change the duty time of the currently selected product,
press and hold the buttons in Step 1 for 6 seconds.
The LEDs above the TIME and UP Arrow button will
flash yellow, indicating that the unit is now in the duty
time programming mode.
2
Press and release the UP or DOWN buttons to change
the currently selected product’s duty time.
When finished, press and release the TIME button to save
the new value and return to toasting.
3
To exit the programming mode without saving any
changes, press and release the LOGO button.
Note: The duty time may be set to OFF or 15 – 20
seconds. If not off, the duty alarm will sound the
programmed number of seconds after toasting is started.
Standby (Energy Saving) Mode
Figure 12
UP and DOWN Arrows
Direct Method: To place the unit in Standby Mode,
close the platen and press and hold the UP and
DOWN buttons together for 3 seconds. The unit will
stop timing and the display will indicate “STBY”. Open
the platen to cancel Standby mode. (See Figure 12.)
1
Figure 13
After Toasting: After toasting is complete, the Done
Alarm will sound for 7 seconds. If the platen is left
closed, the Toaster Grill will automatically enter the
Standby Mode and the display will read “STBY”. Open
the Toaster Grill to reactivate it from Standby Mode.
(See Figure 13.)
2

247-500E 9 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
View/Calibrate Platen Temperature
Important!
Do NOT perform this procedure until the Toaster Grill has been
on for at least 45 mins. and the temperature has stabilized. Do
NOT use the Toaster Grill during the first 45 minutes.
Temperature can only be adjusted ±10°C (±18°F) during
calibration.
Important!
If the temperature reading from the external temperature port is
greater than ±3°C (±5°F) compared to the Toaster Grill
temperature display, proceed with the following. If temperature
reading is within ±3°C (±5°F), the Toaster Grill is functioning
properly and does not need calibration.
Upper Platen (248 Models Only)
A. Plug an external temperature meter into the external
port (Type K mini-jack) of the heater platen.
B. Using the external temperature meter as a standard,
adjust the Toaster Grill’s temperature display to match
the meter’s temperature display by the following
procedure.
1
Note: Yellow Type K Thermocouple mini-jack temperature ports
are located on the back of the 248 Model, behind each of the
two platens. (See Figure 14.)
Figure 14
Upper External Lower External
A. To view and/or calibrate the platen temperature, press
and hold the LOGO button.
B. Immediately press the UP button to view the Upper
Platen temperature on 248 Models.
C. Release both buttons. (See Figure 15.)
The display shows the Upper Platen’s temperature.
After 3 seconds, the display returns to showing the
currently selected product.
2
Figure 15
Press LOGO Button
and UP Arrow
Display Shows the
Upper Platen
Temperature (248 Only)

Printed in USA 01/05 © 2005 10 247-500E
Toaster Grills
Models 247 & 248
To calibrate the Upper Platen, press and hold the LOGO
and UP buttons, as in Step 2, but continue holding them
for 6 secs.
The LEDs above to buttons 1& 3flash, indicating that
the unit is now in Upper Platen temperature calibration
mode.
Release all buttons.
3
To change the Upper Platen’s displayed temperature,
press and release button UP or DOWN Arrow.
After changing the value, be sure to wait for the display
to show the temperature change.
4
To save the new value and return to toasting, press and
release button 4.
To exit programming without saving any changes
made, press and release the LOGO button.
5
Lower Platen (All Models)
A. Plug an external temperature meter into the external
port of the heater platen.
B. Using the external temperature meter as a standard,
adjust the Toaster Grill’s temperature display to match
the meter’s temperature display, by the following
procedure.
1
A. To view the Lower Platen’s temperature, press and
hold the LOGO button.
B. Immediately press the DOWN button. Release all
buttons.
The display shows the Lower Platen’s temperature.
After 3 seconds, the display returns to showing the
currently selected product. (See Figure 16.)
2
Figure 16
Press LOGO Button
and DOWN Arrow
Display Shows the
Lower Platen
Temperature
To calibrate the Lower Platen, press and hold the LOGO
button and DOWN arrow, as in Step 2, but continue
holding them for 6 seconds.
The LEDs above buttons 2& 3flash, indicating that the
unit is now in Lower Platen temperature calibration
mode.
Release all buttons.
3
Note: A yellow temperature port is located on the back of the
247 Model, behind the platen (same as the Lower External Port
in on 248 Model figure above). (See Figure 16.)
To change the Lower Platen’s displayed temperature,
press and release UP or DOWN arrows.
After changing the value, besure to waitfor the display
to show the temperature change.
4
When finished, press and release button 4to save the
new value and return to toasting.
To exit programming without saving any changes
made, press and release the LOGO button.
5

247-500E 11 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
Change Product Name (Product Mode Only)
Place the Toaster Grill in PRODUCT MODE (refer to
“Mode Selection”).
Press one of the four numbered buttons (i.e., 1, 2, 3or 4)
to select the product name you wish to change.
1
Press and hold the LOGO button and button 3for
6 seconds.
The LED next to the currently selected Product flashes
and the first character of its displayed name blinks.
2
A. Use UP or DOWN arrows to scroll through the available
characters for the display.
B. Hold either button for 3 secs. to allow automatic “fast
scrolling” for easier programming.
3
When the desired character is displayed in the first
position, release the UP or DOWN arrow, and press and
release button 3to move on to the second display
character.
4
A. Repeat steps 3 & 4 to program each character as
desired.
B. When in the fourth position, press and release button 3
to return to the first display character.
5
When the display name is changed as desired, press and
release button 4to save it.
To exit programming without saving any changes
made, press and release the LOGO button.
6
Set Volume Levels (All Models)
To view the current volume level, press and hold the
LOGO button. Immediately press and hold the TIME
button and TEMPERATURE button to view the present
Volume Level.
Release all buttons.
The display will return to showing the currently
selected product.
1
To change the volume level, press and hold the buttons in
Step 1 for 6 seconds. The display will continue to show
Volume Level and a tone will sound indicating that the unit
is now in Volume Setting Mode.
2
Press and release the UP or DOWN arrows to adjust the
volume level.
When finished, press and release the TIME button to
save the new value and return to toasting.
3

Printed in USA 01/05 © 2005 12 247-500E
Toaster Grills
Models 247 & 248
Adjusting Bun Crush Settings
To adjust the bun crush settings, use the knob located on the
front of the unit’s base. There are 10 incremental settings, each
increasing the center gap by approximately 2 mm.
(See Figure 17.)
• To set the thickness from 1 to 5, lift and slide the knob to the
left-most position. Then, rotate the knob until the desired
setting is in the “window”.
• To set the thickness from 6 to 10, lift and slide the knob to the
right-most position. Then, rotate the knob, until the desired
setting is in the “window”.
Figure 17
Adjusting for Bun Thickness
The 248 model has two sets of notches in the side bun fences.
(See Figure 18.)
• Put the bun board in the front, lower notches for REG or QTR
buns.
• Use the rear, upper notches for MAC or RIB buns.
Figure 18

247-500E 13 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
Conditioning the Platens
To minimize bun-sticking, the platens should be wiped
weekly with McD Bun Toaster Grill Release Agent.
Use only McD Bun Toaster Grill Release Agent on bun
Toaster Grills. Other products may cause damage and
void the Warranty.
A. Dust all loose crumbs from Toaster Grill surfaces.
B. Apply McD Bun Toaster Grill Release Agent to cool or
warm Toaster Grill platens.
CAUTION
1
To coat the platen surface, thoroughly wet a clean, folded
customer napkin or paper towel with Toaster Grill Release
Agent, and place it on No. 257 cleaning tool.
2
A. Rub a generous amount of the Release Agent over the
entire surface of the platen until well coated.
B. Repeat Steps 2 & 3 for other platens, including
undersides.
3
BURN HAZARD! Use protective gloves and No. 257
cleaning tool when conditioning hot platens.
IMPORTANT! Do NOT wipe Toaster Grill with a damp cloth
after Release Agent is applied. Doing so removes Agent and
causes sticking.
Toaster Grill platens must be clean and dry.
WARNING
Reapply Release Agent weekly to all platen surfaces
while Toaster Grill is cold.
If sticking occurs between weekly applications, reapply
Release Agent more frequently as described in Steps
1–3.
4

Printed in USA 01/05 © 2005 14 247-500E
Toaster Grills
Models 247 & 248
Cleaning
A. Periodically and upon shutdown, use a clean, dry soft
cloth to wipe down the Toaster Grill unit.
B. When the platens are cool, you may also use a mild
soap solution on a damp soft cloth to remove stubborn
food remains, if necessary.
Do NOT use any unapproved agents or cleaning solutions
inside or on surfaces of Toaster Grill unit. Such misuse
could void the warranty.
1

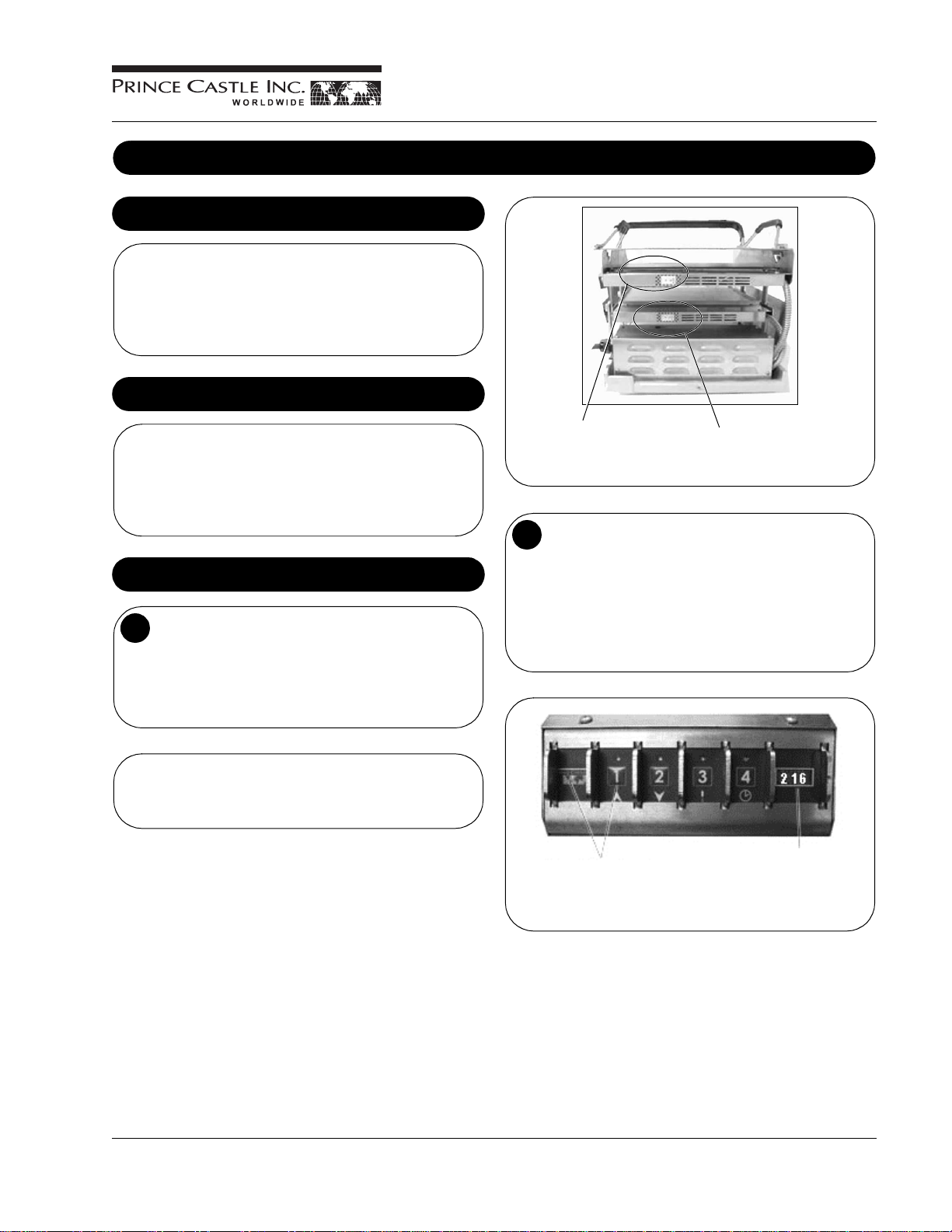

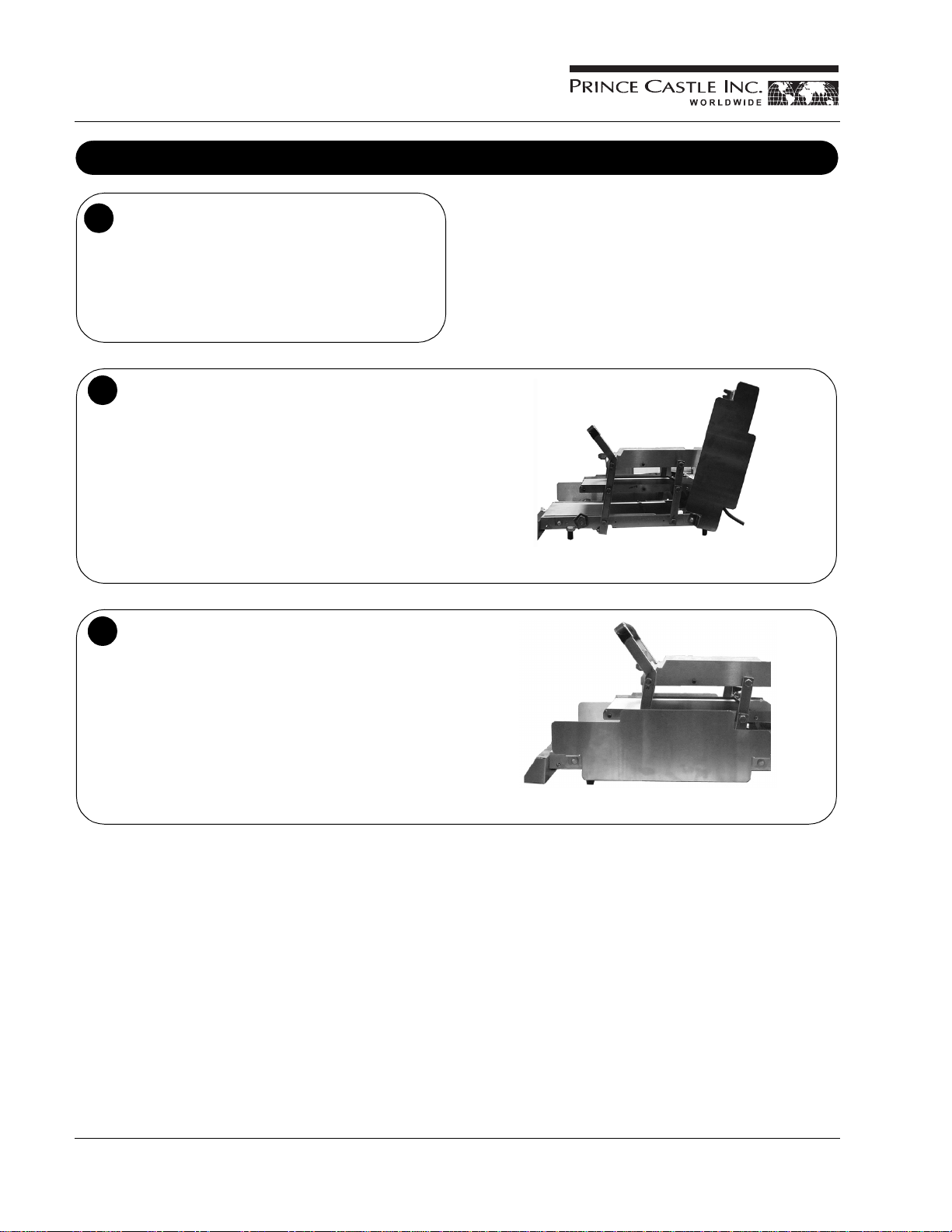

Remove the side covers, as shown, for further cleaning.
(See Figure 19.)
Figure 19
2

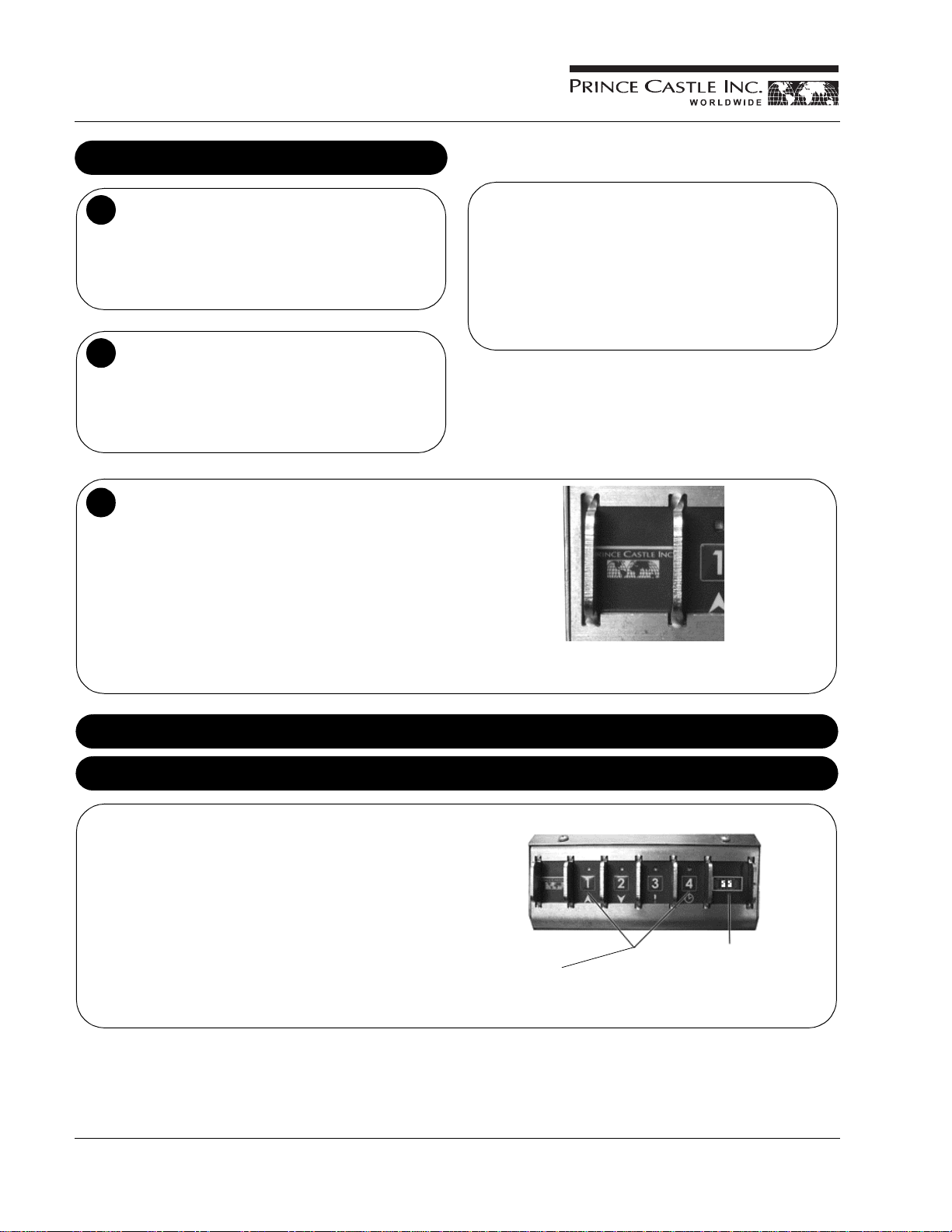

Replace side covers when finished. (See Figure 20.)
Figure 20
3

247-500E 15 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248
Troubleshooting Guide
SHOCK HAZARD! Live circuits are exposed! Use extreme
care during electrical circuit tests. Do NOT attempt any
troubleshooting without proper authorization to do so.
WARNING
Inspection, testing and repair of electrical equipment are to
be performed by qualified service personnel ONLY. Unplug
unit during testing, except as electrical tests are required.
WARNING
PROBLEM PROBABLE CAUSE SOLUTION
Platen loose. Platen bolts loose. Tighten platen bolts.
No alarm. Defective timer switch. Replace timer switch.
Activation magnet is missing. Two magnets are required.
Buns being crushed. Stop blocks not adjusted properly. Adjust stop blocks.
Warped bun trays. Straighten or replace bun trays.
Buns cut improperly. Contact bakery.
Warped bun board. Straighten or replace bun board.
Platen does not heat. No power. Check power source.
Power switch defective. Replace power switch.
Loose writing. Correct as necessary.
Defective temperature probe. Replace temperature probe.
Platen burned out or shorted. Replace platen; call Service Agency.
Buns sticking to
platen. Excessive heat due to reversed upper and lower temperature probe connections. Reverse connections of upper and lower temperature probe connections in electrical box.
Build up of sugar on platen. Clean platen.
Cold platen. Loose electrical connection. Reconnect wires from solid-state relay to printed circuit boards.

Printed in USA 01/05 © 2005 16 247-500E
Toaster Grills
Models 247 & 248
Ordering Parts and Service
To Order Replacement Parts or Service —
A. DOMESTIC: Refer to the back of the Price List for your local
Prince Castle Service Center, or call Prince Castle at 1-800-
323-2930 for assistance.
B. Call your local Prince Castle Service Center. Fill in name and
number here:
C: INTERNATIONAL: Contact your kitchen Equipment Supplier
or designated repair facility for parts and service.
To Return Parts for Credit —
Should the need ever arise to return parts to your Service
Center for credit, it is necessary that you:
A. Obtain authorization from your Service Center;
B. Request Warranty fulfillment from your Service Center
All Prices are F.O.B. Prince Castle Service Center or F.O.B.
factory, Carol Stream, Illinois, USA. Prices are subject to
change without notice. These prices are exclusive of all sales
taxes or any special taxes, which may be levied by federal,state
or city governments.
Parts Price Lists are sent to the USA restaurants once a year,
and indicate the prices available from your local Service Center.
Terms: Net 30 days.

247-500E 17 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248

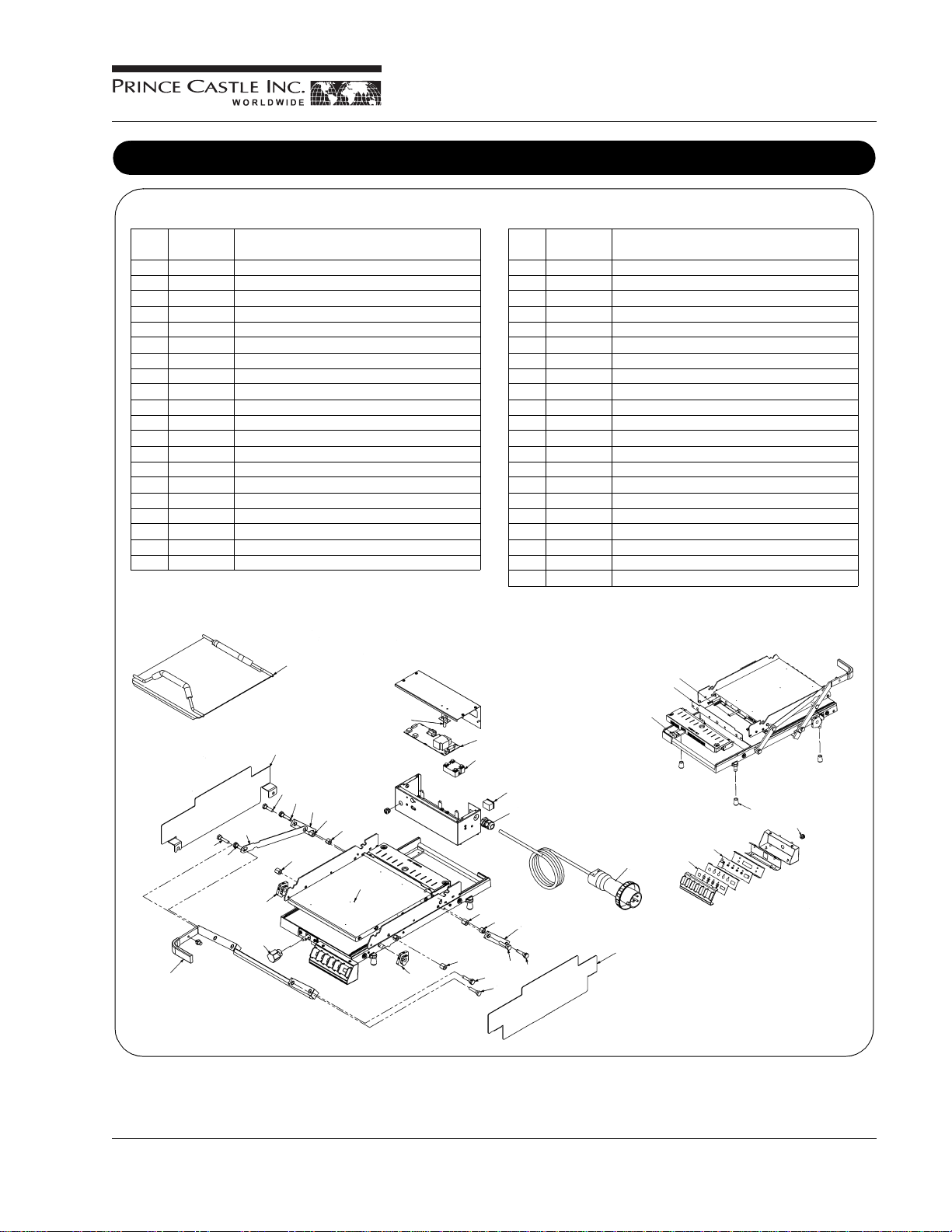

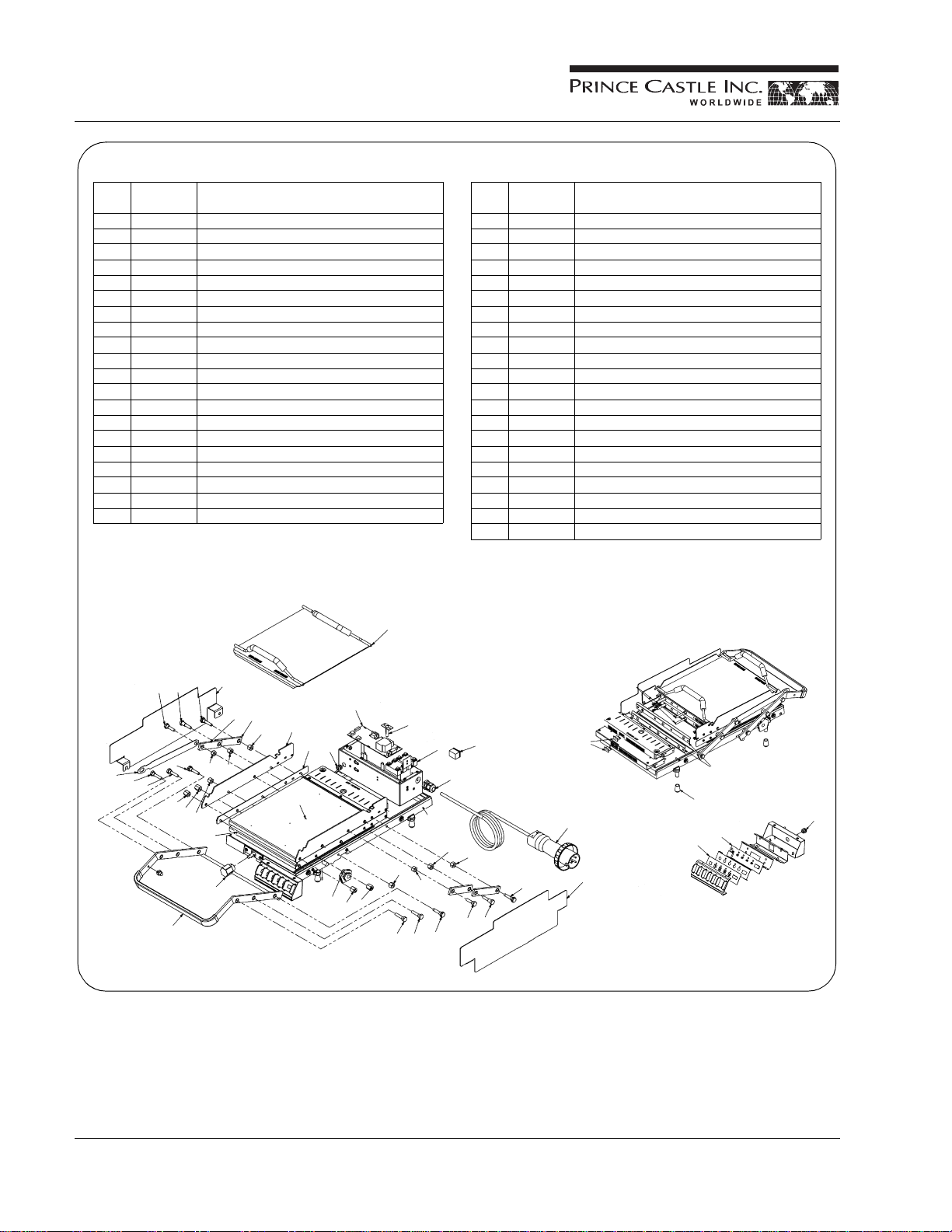

Exploded Views
Parts Breakdown
* Not shown. * Not shown.
Model 247
No. Part No. Description
1 248-141S Overlay Kit
2 248-140S Display Printed Circuit Board Kit
3 66-017S Strain Relief Kit
4 248-055S Stop Block Kit
5 411-149S Front Lever Kit *
6 411-60S Lower Platen Stud (Pkg. of 2)
7 411-113S Base Spacer (Pkg. of 7)
8 248-019S Lower Platen Fence Kit, LH *
9 48-018S Lower Platen Fence Kit, RH *
10 411-461S Rear Upper Lever Assembly *
11 411-459S Rear Lower Lever Assembly
12 248-044S Side Panel Kit, LH *
13 248-109S Side Panel Kit, RH *
14 65-058S Relay
15 66-045S Strain Relief
16 78-196S Switch Kit
17 411-61S Lower Platen Stud (Pkg. of 2) *
18 411-57S Platen Spacer (Pkg. of 2) *
19 411-221S Spacer Kit (Pkg. of 4)
20 248-099S Base Spacer Kit (Pkg. of 2) *
No. Part No. Description
21 411-147S Upper Platen Stud (Pkg. of 2)
22 248-048S Safety Latch Kit *
23 248-114S Knob Kit
24 248-045S Rear Bun Fence Kit
25 72-416A Power Cord Kit
26 88-497S Mini Jack, Type K
27 89-959S Rubber Foot (Pkg. of 4)
28 248-095S Temperature Probe
29 248-038S Bun Board *
30 248-079S Reed Switch Kit
31 248-067S Main Printed Circuit Board Assembly
32 248-111S Upper Bun Fences Kit *
33 248-090S Lower Platen Kit
34 248-091S Upper Platen Kit *
35 247-006S LH Bun Fence Assembly
36 247-004S RH Bun Fence Assembly
37 411-347S Replacement Stud Kit
38 411-114S Safety Latch Kit
39 247-032S Front Lever Assembly
40 411-241S Safety Latch Spacer (Pkg. of 2)
41 247-014S Bun Board
46
711
14
15
16
19
21
23
24
25
26
27
28
30
31
33
35
36
37
38
39
40
41
6
37
19
19
4
7
11
637
37
12
3

Printed in USA 01/05 © 2005 18 247-500E
Toaster Grills
Models 247 & 248
Parts Breakdown
* Not shown. * Not shown.
Model 248
No. Part No. Description
1 248-141S Overlay Kit
2 248-140S Display Printed Circuit Board Kit
3 66-017S Strain Relief Kit
4 248-055S Stop Block Kit
5 411-149S Front Lever Kit *
6 411-60S Lower Platen Stud (Pkg. of 2)
7 411-113S Base Spacer (Pkg. of 7)
8 248-019S Lower Platen Fence Kit, LH
9 48-018S Lower Platen Fence Kit, RH
10 411-461S Rear Upper Lever Assembly
11 411-459S Rear Lower Lever Assembly
12 248-044S Side Panel Kit, LH
13 248-109S Side Panel Kit, RH
14 65-058S Relay
15 66-045S Strain Relief
16 78-196S Switch Kit
17 411-61S Lower Platen Stud (Pkg. of 2)
18 411-57S Platen Spacer (Pkg. of 2)
19 411-221S Spacer Kit (Pkg. of 4)
20 248-099S Base Spacer Kit (Pkg. of 2) *
No. Part No. Description
21 411-147S Upper Platen Stud (Pkg. of 2)
22 248-048S Safety Latch Kit
23 248-114S Knob Kit
24 248-045S Rear Bun Fence Kit
25 72-416A Power Cord Kit
26 88-497S Mini Jack, Type K
27 89-959S Rubber Foot (Pkg. of 4)
28 248-095S Temperature Probe
29 248-038S Bun Board
30 248-079S Reed Switch Kit
31 248-067S Main Printed Circuit Board Assembly
32 248-111S Upper Bun Fences Kit
33 248-090S Lower Platen Kit
34 248-091S Upper Platen Kit
35 247-006S LH Bun Fence Assembly *
36 247-004S RH Bun Fence Assembly *
37 411-347S Replacement Stud Kit *
38 411-114S Safety Latch Kit *
39 247-032S Front Lever Assembly *
40 411-241S Safety Latch Spacer (Pkg. of 2) *
41 247-014S Bun Board *
12
3
4
6
7
8
9
10 11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
28
29
30
31
32
33
34
3
3
7
17
17 7
22
6
722 7
77
6
6
17
17
18
19
17
21

247-500E 19 Printed in USA 01/05 © 2005
Toaster Grills
Models 247 & 248

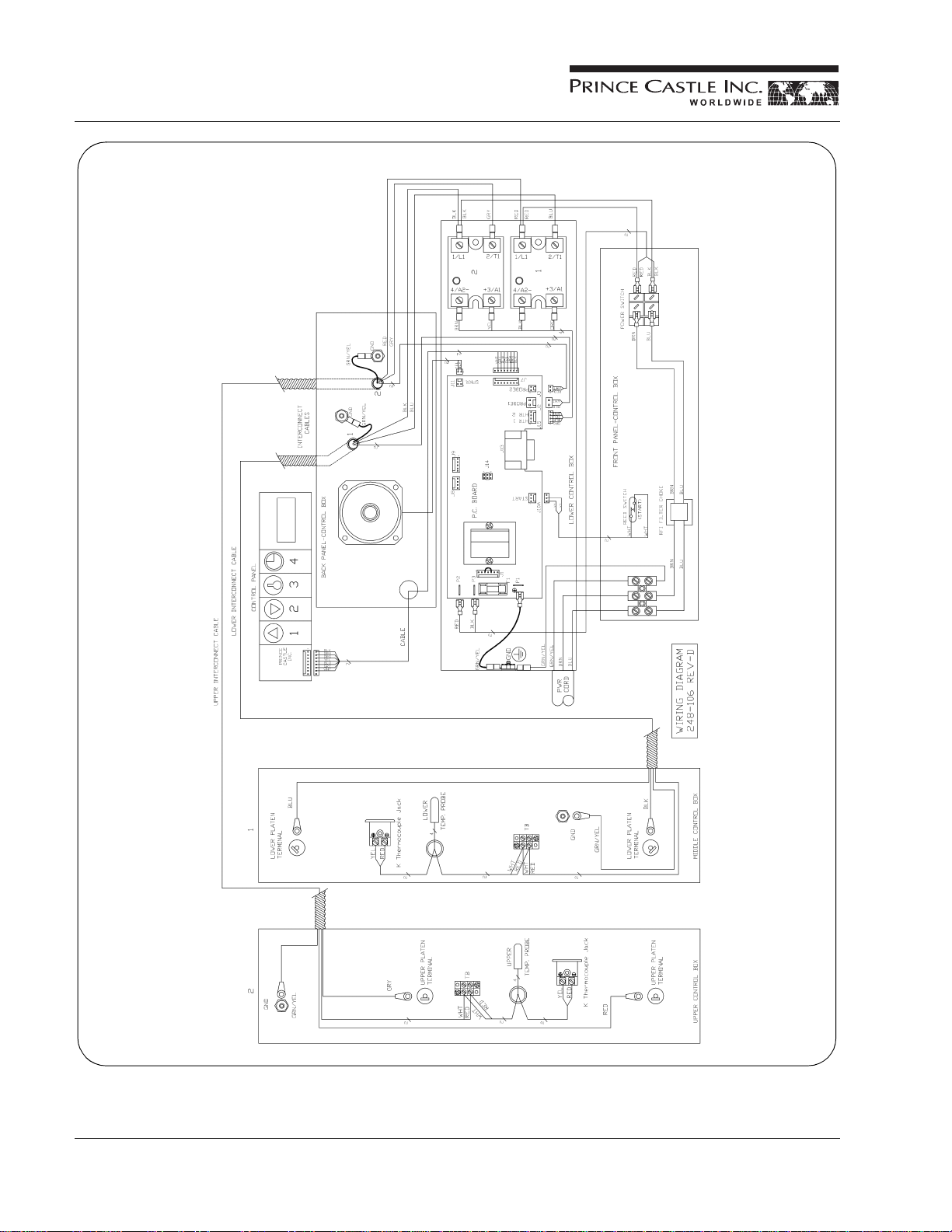

Wiring Diagrams
Model 247

Printed in USA 01/05 © 2005 20 247-500E
Toaster Grills
Models 247 & 248
Model 248
