Pro-Form HYBRID TRAINER User manual

www.proform.com
Model No. PFEL03812.3
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal (under frame)
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.-Fri. 6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
Please do not contact the store.
q-F_/A/_J _F7
;ER'S A UAL

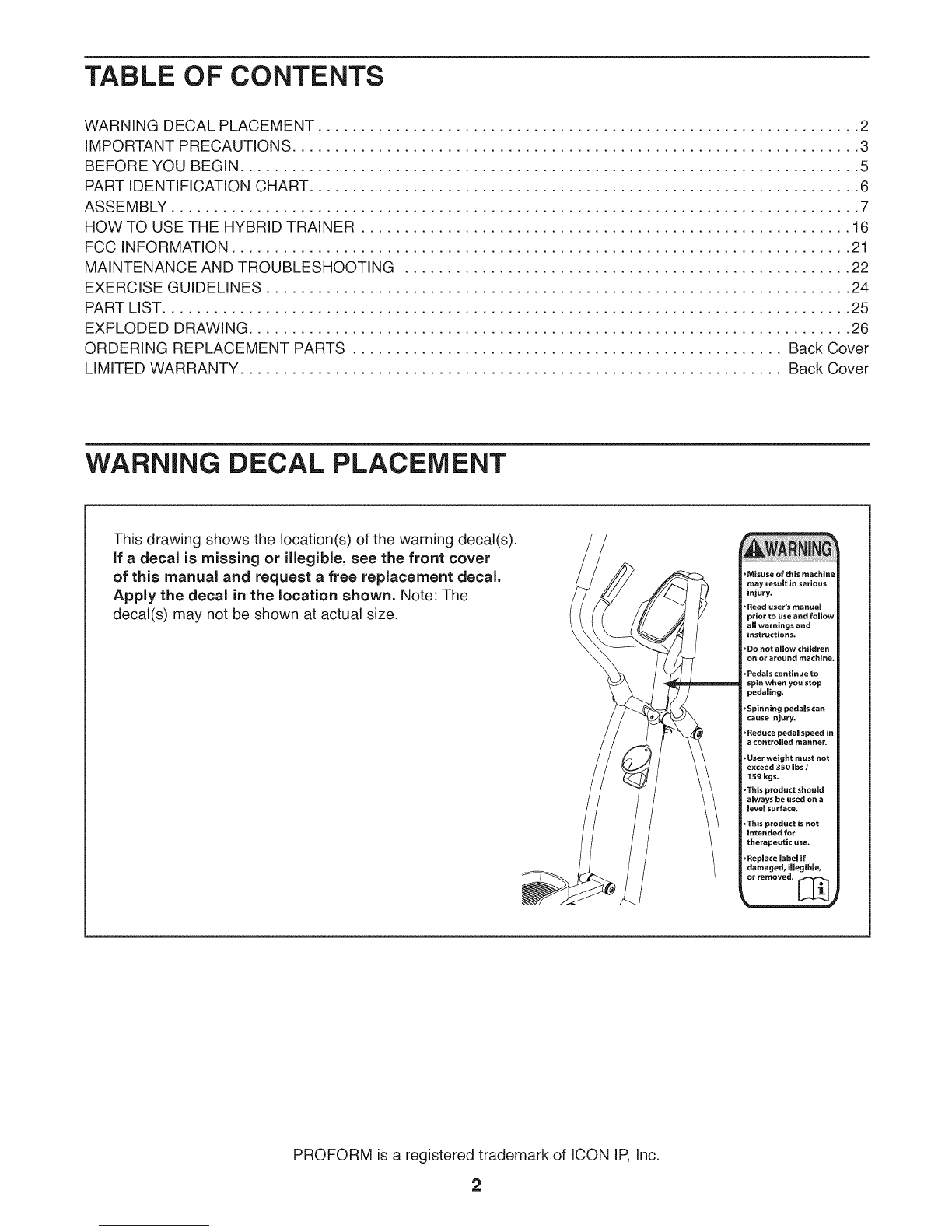

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 5
PART IDENTIFICATION CHART ................................................................ 6
ASSEMBLY ................................................................................ 7
HOW TO USE THE HYBRID TRAINER ......................................................... 16
FCC INFORMATION ........................................................................ 21
MAINTENANCE AND TROUBLESHOOTING .................................................... 22
EXERCISE GUIDELINES .................................................................... 24
PART LIST ................................................................................ 25
EXPLODED DRAWING ...................................................................... 26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
if a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
.Misuse of this machine
may result in serious
injury,
'Read user's manual
prior to use and follow
all warnings and
instructions.
,Do not allow children
on or around machine.
. Pedals continue to
spin when you stop
pedaling.
,Spinning pedals can
cause injury.
•Reduce pedal speed in
acontrolled manner.
,User weight must not
exceed 350 Ibs /
159 kgs,
,This product should
always be used on a
level surface,
This product is not
intended for
therapeutic use.
,Replace label if
damaged, illegible,
or removed.
PROFORM is a registered trademark of ICON IP, Inc.
2

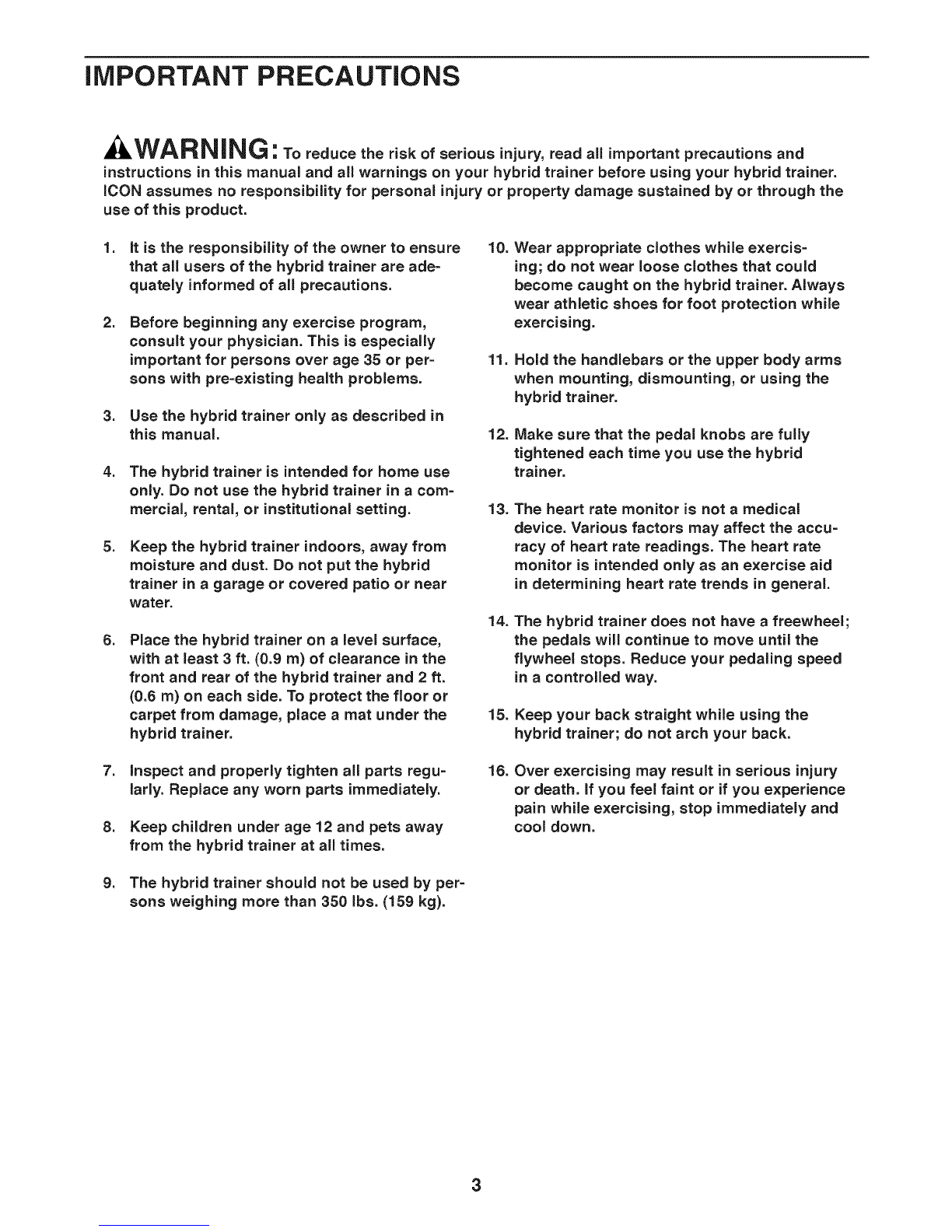

iMPORTANT PRECAUTIONS
WARNING: Toreducethe.skofso.oosnjury,reada, mportantprecautionsand
instructions in this manual and all warnings on your hybrid trainer before using your hybrid trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. it is the responsibility of the owner to ensure 10.
that all users of the hybrid trainer are ade-
quately informed of all precautions.
.
.
.
.
,
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per=
sons with pre-existing health problems.
Use the hybrid trainer only as described in
this manual.
The hybrid trainer is intended for home use
only. Do not use the hybrid trainer in a com-
mercial, rental, or institutiona! setting.
Keep the hybrid trainer indoors, away from
moisture and dust. Do not put the hybrid
trainer in agarage or covered patio or near
water.
Place the hybrid trainer on alevel surface,
with at least 3 ft. (0.9 m) of clearance in the
front and rear of the hybrid trainer and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place amat under the
hybrid trainer.
11.
12.
13.
14.
15.
Wear appropriate clothes while exercis-
ing; do not wear loose clothes that could
become caught on the hybrid trainer. Always
wear athletic shoes for foot protection while
exercising.
Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
hybrid trainer.
Make sure that the pedal knobs are fully
tightened each time you use the hybrid
trainer.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
The hybrid trainer does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
Keep your back straight while using the
hybrid trainer; do not arch your back.
=
.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from the hybrid trainer at all times.
16. Over exercising may result in serious injury
or death, if you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
9. The hybrid trainer should not be used by per-
sons weighing more than 350 Ibs. (159 kg).
3

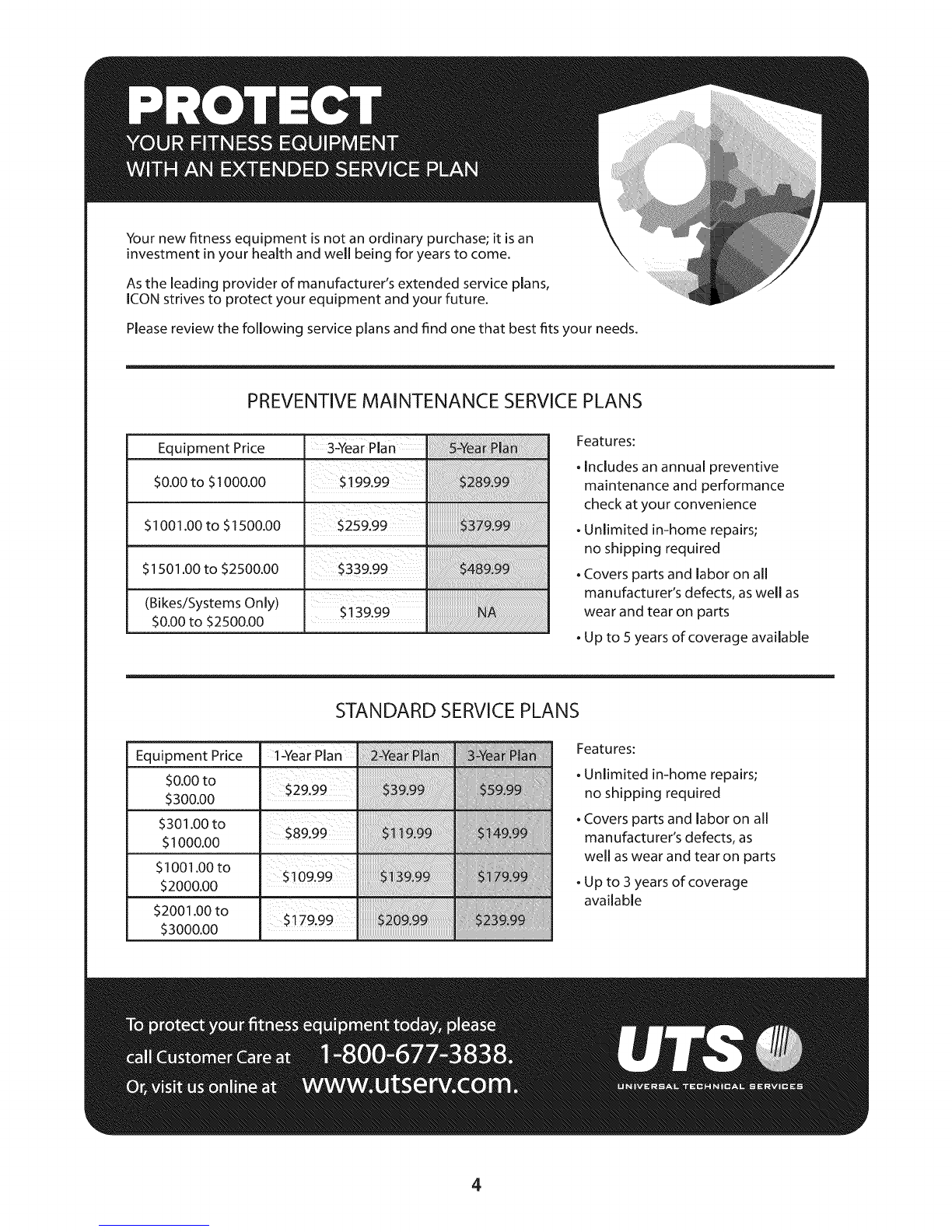

Your new fitness equipment is not an ordinary purchase; it is an
investment in your health and well being for years to come.
As the leading provider of manufacturer's extended service plans,
ICON strives to protect your equipment and your future.
Please review the following service plans and find one that best fits your needs.
PREVENTIVE MAINTENANCE SERVICEPLANS
Equipment Price
50.00 to $1000.00
3-Year Plan
i I
$ 99199
$1001.00 to $1500.00
51501.00 to $2500.00
(Bikes/Systems Only)
50.00 to $2500.00
Features:
• Includes an annual preventive
maintenance and performance
check at your convenience
• Unlimited in-home repairs;
no shipping required
• Covers parts and labor on all
manufacturer's defects, as well as
wear and tear on parts
• Up to Syears of coverage available
STANDARD SERVICE PLANS
Equipment Price
50.00 to
5300.00
$301.00 to
$1000.00
$! O01.00 to
$2000.00
$2001.00 to
$3000.00
i-Year Plan
$109:99
5179:99
Features:
• Unlimited in-home repairs;
no shipping required
• Covers parts and labor on all
manufacturer's defects, as
well as wear and tear on parts
• Up to 3 years of coverage
available
4

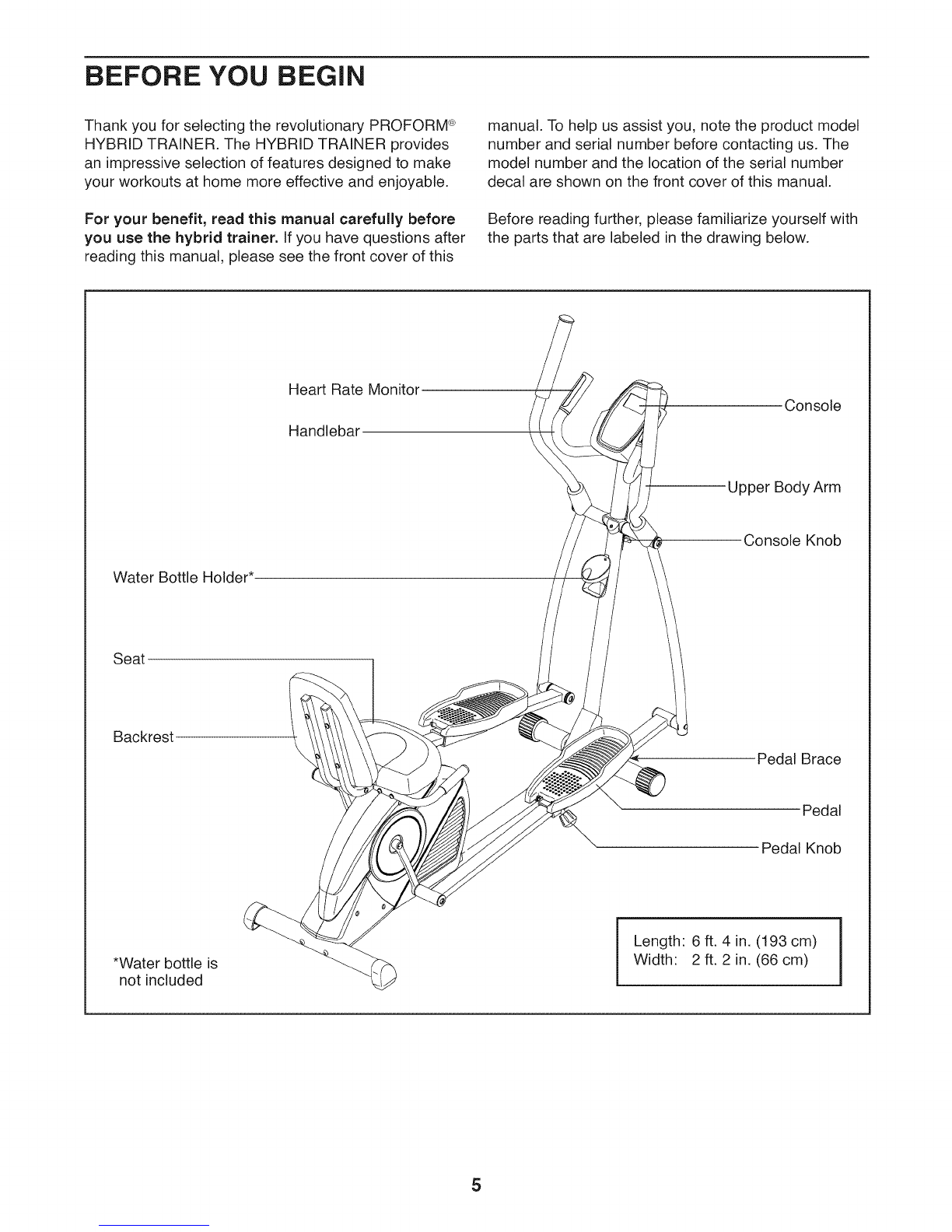

BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM ®
HYBRID TRAINER. The HYBRID TRAINER provides
an impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the hybrid trainer, if you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Handlebar
Console
Upper Body Arm
Water Bottle Holder*
Console Knob
Seat
Backrest Pedal Brace
Pedal
Pedal Knob
*Water bottle is
not included
Length: 6 ft. 4 in. (193 cm)
Width: 2 ft. 2 in. (66 cm)
5

PART iDENTiFiCATiON CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LiST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 Locknut
(51)-4 M8 Locknut
(10)-10 MIO Locknut
(48)-1
M8 Split
Washer
(42)-8
M8 Small
Washer
(93)-4 M8 Large
Washer (54)-4
M4 x 16mm
Screw (47)-8 M6 x 30mm
Bolt (49)-4
M8 x 40mm Bolt (83)-6
Wave Washer M6 Curved
(81)-4 Washer
(25)-4
M10 Split
Washer (98)-2
M8 x 13mm
Screw (95)-6
M8 x 125mm Bolt (58)-2
M8 x 65mm Bolt (94)-2
M10 Curved
Washer (39)-3
M8 x 20mm
Screw (34)-4
M10 x 25mm
Screw (96)-1
MIO x 60mm Bolt (61)-1
M10 x 54mm Screw (97)-1
M10 x 65mm Screw (40)-4
6

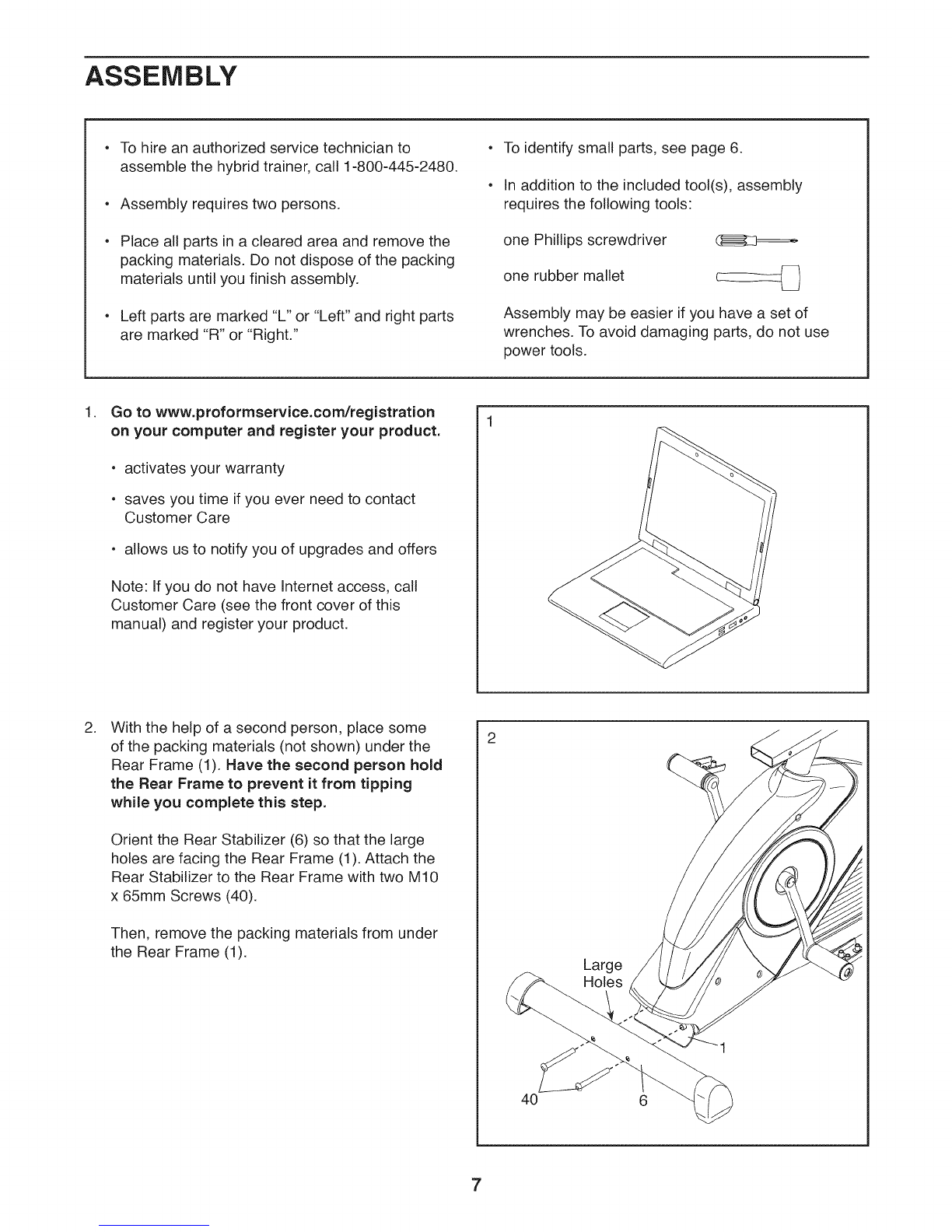

ASSEMBLY
•To hire an authorized service technician to
assemble the hybrid trainer, call 1-800-445-2480.
•Assembly requires two persons.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish assembly.
•Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
To identify small parts, see page 6.
in addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet _ (_
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
.Go to www.proformservice.com/registration
on your computer and register your product.
•activates your warranty
•saves you time if you ever need to contact
Customer Care
*allows us to notify you of upgrades and offers
Note: if you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
.With the help of a second person, place some
of the packing materials (not shown) under the
Rear Frame (1). Have the second person hold
the Rear Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (6) so that the large
holes are facing the Rear Frame (1). Attach the
Rear Stabilizer to the Rear Frame with two M10
x 65mm Screws (40).
Then, remove the packing materials from under
the Rear Frame (1). Large
Holes
40
7

.3

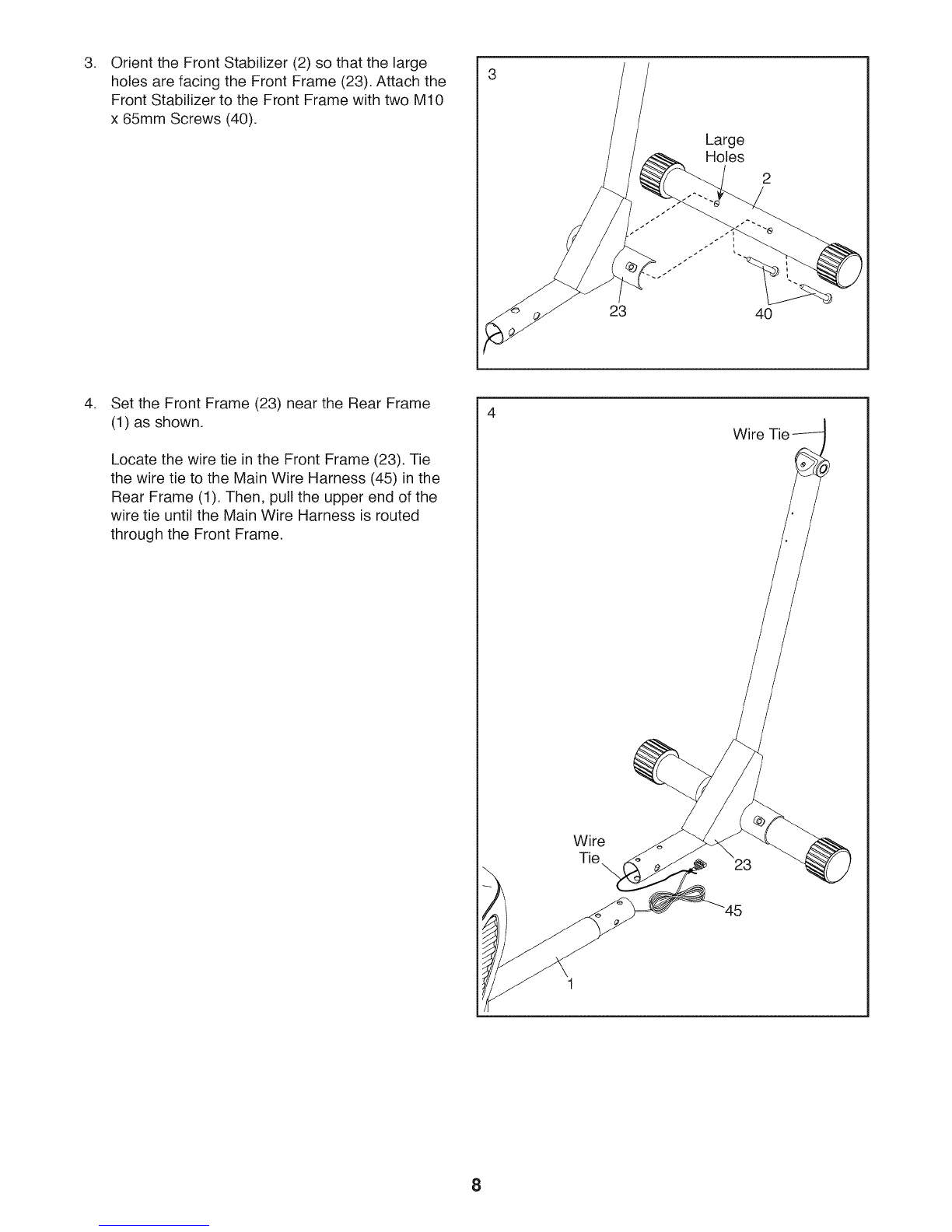

Orient the Front Stabilizer (2) so that the large
holes are facing the Front Frame (23). Attach the
Front Stabilizer to the Front Frame with two M10
x 65mm Screws (40). Large
Holes
23 40
.Set the Front Frame (23) near the Rear Frame
(1) as shown.
Locate the wire tie in the Front Frame (23). Tie
the wire tie to the Main Wire Harness (45) in the
Rear Frame (1). Then, pull the upper end of the
wire tie until the Main Wire Harness is routed
through the Front Frame.
Wire
Tie\
Wire Tie
23
8

Tip: Avoid pinching the Main Wire Harness
(45). Slide the Front Frame (23) onto the Rear
Frame (1).
Attach the Front Frame (23) with an M10 x
25mm Screw (96), an M10 Split Washer (98),
and an M10 Curved Washer (39). Do not
tighten the Screw yet.
Next, attach the Front Frame (23) with an M10
x 54mm Screw (97), an M10 Split Washer
(98), and an M10 Curved Washer (39). Do not
tighten the Screw yet.
Then, attach the Front Frame (23) with an M10 x
60mm Bolt (61) and an M10 Locknut (48); make
sure that the Locknut is in the hexagonal
hole. Do not tighten the Bolt yet.
See steps 2 and 3. Make sure that the ends of
the Rear Stabilizer (6) and the Front Stabilizer
(2) are touching the floor.
Tighten the Bolt and the Screws (61, 96, 97).
Avoid pinching the Main
Wire Harness (45)
Hexagonal Hole --
45
23

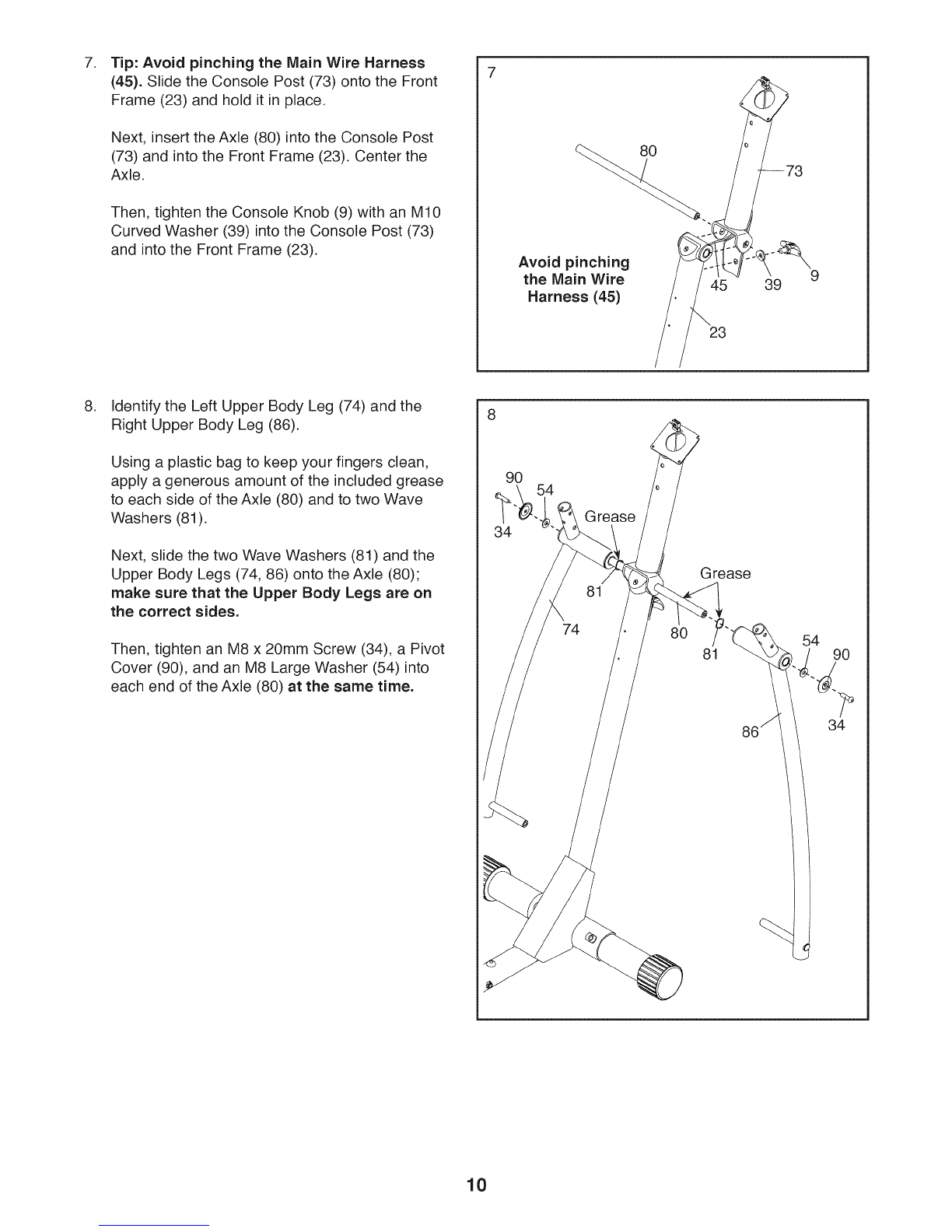

.Hold the Console Post (73) near the Front Frame
(23) as shown, insert the Main Wire Harness
(45) upward through the Console Post.
45
9

7. 7
Tip: Avoid pinching the Main Wire Harness
(45). Slide the Console Post (73) onto the Front
Frame (23) and hold it in place.
Next, insert the Axle (80) into the Console Post
(73) and into the Front Frame (23). Center the
Axle.
Then, tighten the Console Knob (9) with an M10
Curved Washer (39) into the Console Post (73)
and into the Front Frame (23). Avoid pinching
the Main Wire
Harness (45) 45
23
39
.identifythe Left Upper Body Leg (74) and the
Right Upper Body Leg (86).
Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to each side of the Axle (80) and to two Wave
Washers (81).
Next, slide the two Wave Washers (81) and the
Upper Body Legs (74, 86) onto the Axle (80);
make sure that the Upper Body Legs are on
the correct sides.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
each end of the Axle (80) at the same time.
90 54
34 Grease
81
74 80
Grease
81 54
34
10

9. 9

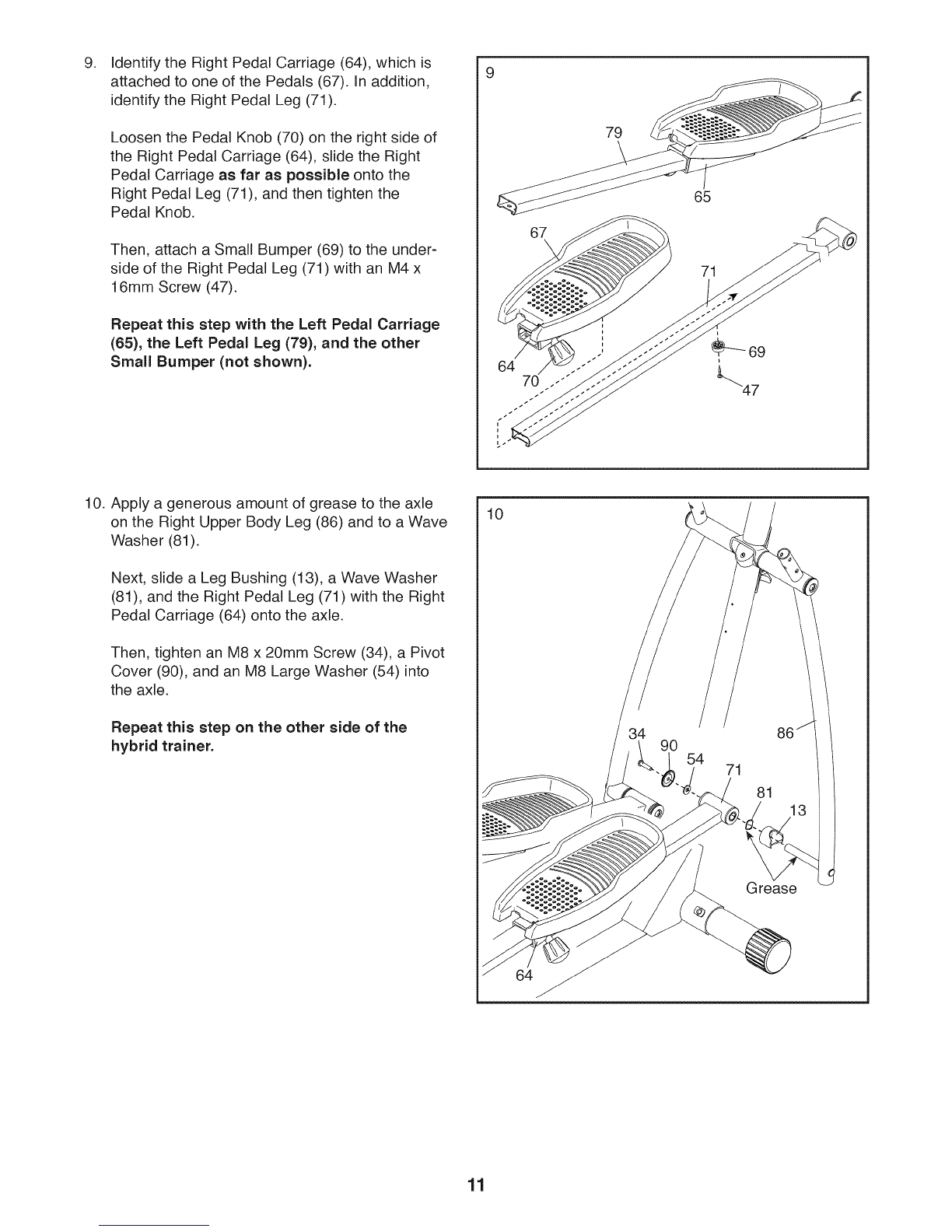

identify the Right Pedal Carriage (64), which is
attached to one of the Pedals (67). in addition,
identify the Right Pedal Leg (71).
Loosen the Pedal Knob (70) on the right side of
the Right Pedal Carriage (64), slide the Right
Pedal Carriage as far as possible onto the
Right Pedal Leg (71), and then tighten the
Pedal Knob.
Then, attach a Small Bumper (69) to the under-
side of the Right Pedal Leg (71) with an M4 x
16mm Screw (47).
Repeat this step with the Left Pedal Carriage
(65), the Left Pedal Leg (79), and the other
Small Bumper (not shown).
67\
79
65
71
10. Apply a generous amount of grease to the axle
on the Right Upper Body Leg (86) and to a Wave
Washer (81).
Next, slide a Leg Bushing (13), a Wave Washer
(81), and the Right Pedal Leg (71)with the Right
Pedal Carriage (64) onto the axle.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
the axle.
Repeat this step on the other side of the
hybrid trainer.
10
11

11. Slide the Right Pedal Leg (71) onto the Right
Pedal Leg Bracket (75).
Attach the Right Pedal Leg (71) with three M8 x
13mm Screws (95) and three M8 Split Washers
(42). Start all three Screws, and then tighten
them.
Repeat this step on the other side of the
hybrid trainer.
11
75
95
71
12. Have a second person hold the Handlebar
(53) near the Console Post (73).
insertthe indicated wire tie into the hole in the
side of the Console Post (73), and then pull the
wire tie until the Pulse Wires (68) are routed
through the Console Post.
Tip: Avoid pinching the wires. Attach the
Handlebar (53) to the Console Post (73) with two
M8 x 65mm Bolts (94), two M8 Split Washers
(42), and two M8 Locknuts (10).
12
10
45 53
42
Wire
Tie
Avoid pinching
the wires
94
12

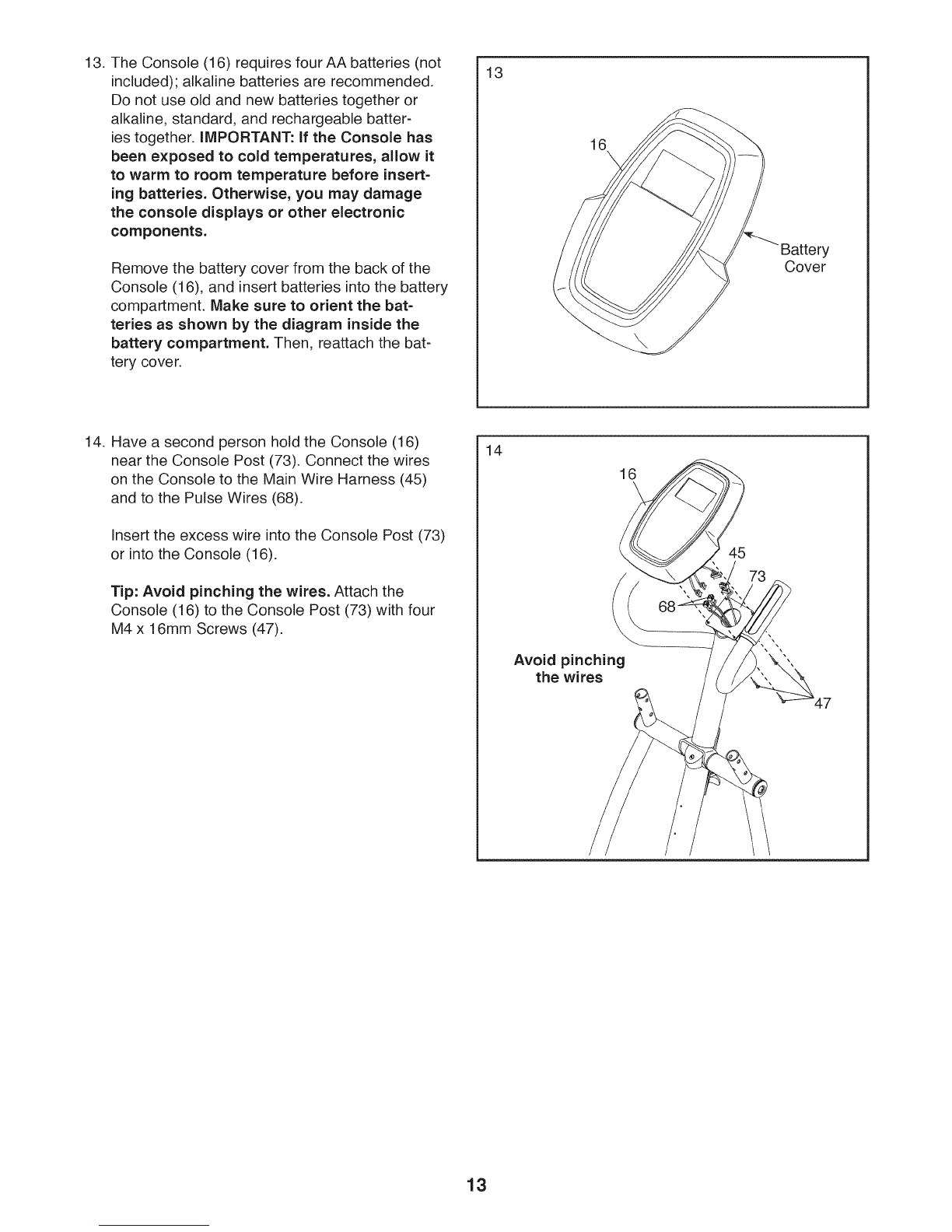

13. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together, iMPORTANT: if the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the battery cover from the back of the
Console (16), and insert batteries into the battery
compartment. Make sure to orient the bat-
teries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
13
16X
Y
Cover
14. Have a second person hold the Console (16)
near the Console Post (73). Connect the wires
on the Console to the Main Wire Harness (45)
and to the Pulse Wires (68).
insertthe excess wire into the Console Post (73)
or into the Console (16).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Console Post (73) with four
M4 x 16mm Screws (47).
14
Avoid pinching
the wires
16
\
45
13

15. Attach the Water Bottle Holder (27) to the Front
Frame (23) with two M4 x 16mm Screws (47). 15 \
16. identify the Right Upper Body Arm (88).
Orient an Upper Body Arm Cover (82) as shown,
and slide it upward onto the Right Upper Body
Arm (88).
Attach the Right Upper Body Arm (88) to the
Right Upper Body Leg (86) with three M8 x
40mm Bolts (83) and three M8 Locknuts (10);
make sure that the Locknuts are inside the
hexagonal holes.
Then, slide the Upper Body Arm Cover (82)
downward onto the Right Upper Body Leg (86).
Assemble the Left Upper Body Arm (89) in
the same way.
16
Hexagonal
14

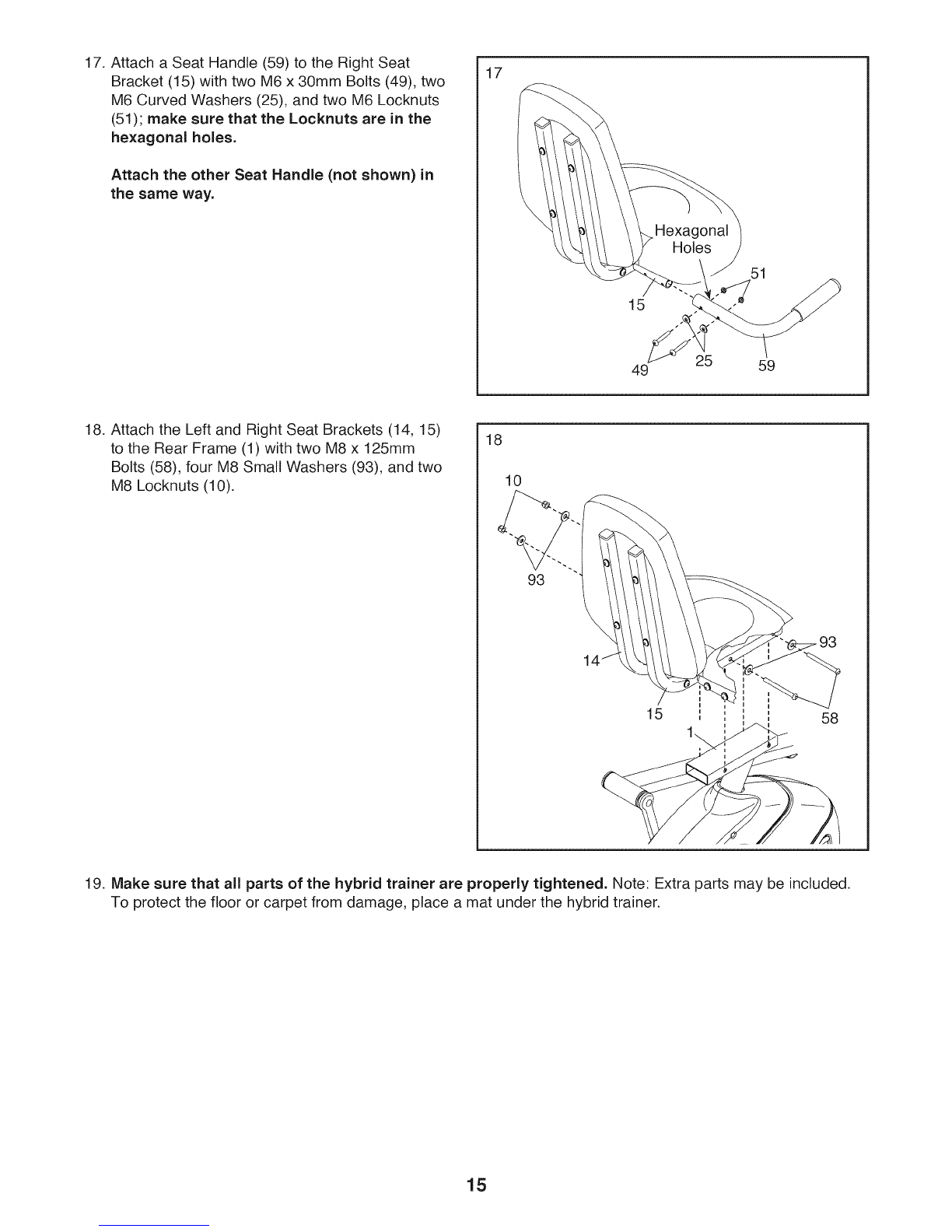

17. Attach a Seat Handle (59) to the Right Seat
Bracket (15) with two M6 x 30mm Bolts (49), two
M6 Curved Washers (25), and two M6 Locknuts
(51); make sure that the Locknuts are in the
hexagonal holes.
Attach the other Seat Handle (not shown) in
the same way.
17
15
49 25
51
59
18. Attach the Left and Right Seat Brackets (14, 15)
to the Rear Frame (1) with two M8 x 125mm
Bolts (58), four M8 Small Washers (93), and two
M8 Locknuts (10).
18
10
93
58
19. Make sure that all parts of the hybrid trainer are properly tightened. Note: Extra parts may be included.
To protect the floor or carpet from damage, place a mat under the hybrid trainer.
15

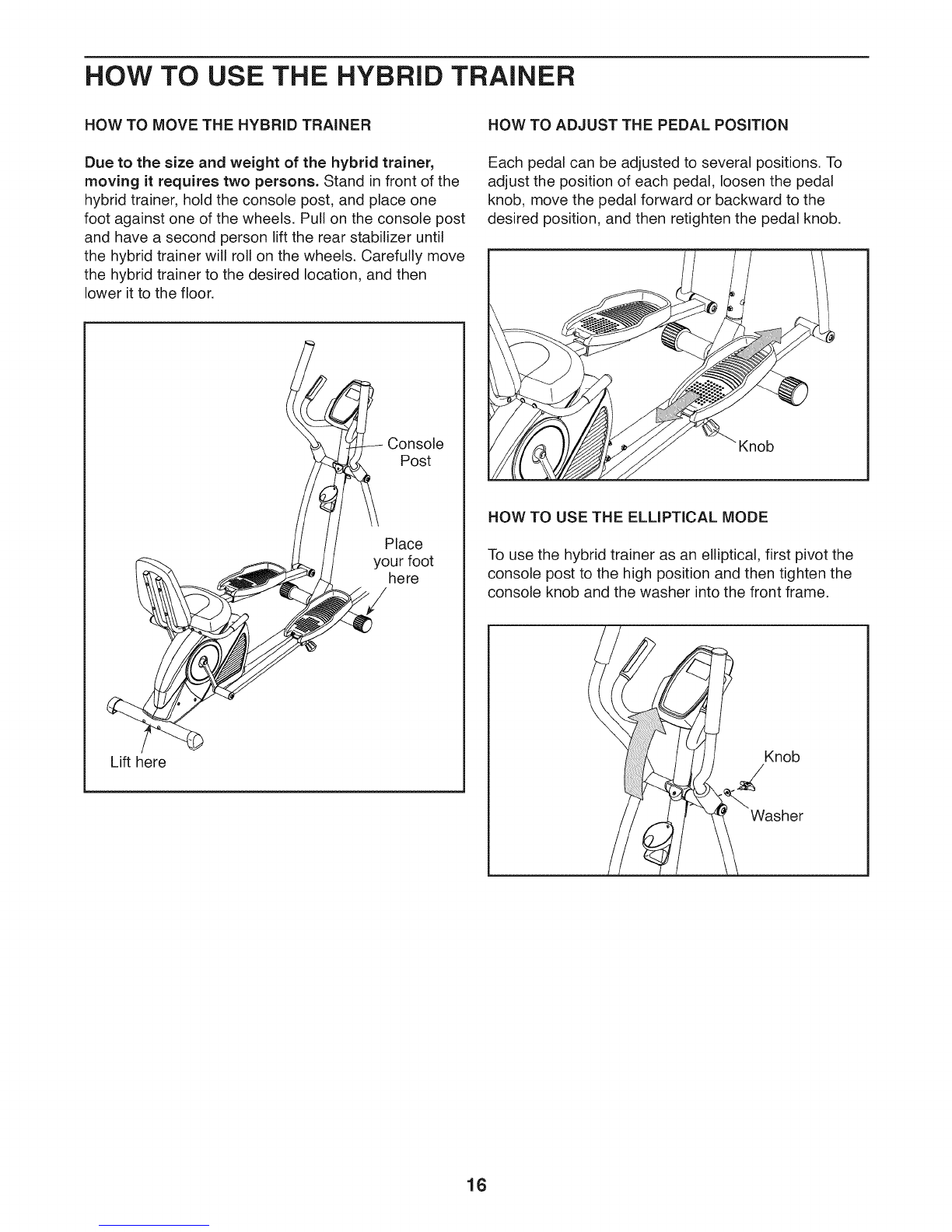

HOW TO USE THE HYBRID TRAINER
HOW TO MOVE THE HYBRID TRAINER HOW TO ADJUST THE PEDAL POSiTiON
Due to the size and weight of the hybrid trainer,
moving it requires two persons. Stand in front of the
hybrid trainer, hold the console post, and place one
foot against one of the wheels. Pull on the console post
and have a second person lift the rear stabilizer until
the hybrid trainer will roll on the wheels. Carefully move
the hybrid trainer to the desired location, and then
lower it to the floor.
__ Console
_A_--%_.,. / / your foot
______/_ here
Lift here
Each pedal can be adjusted to several positions. To
adjust the position of each pedal, loosen the pedal
knob, move the pedal forward or backward to the
desired position, and then retighten the pedal knob.
Knob
HOW TO USE THE ELLiPTiCAL MODE
To use the hybrid trainer as an elliptical, first pivot the
console post to the high position and then tighten the
console knob and the washer into the front frame.
Knob
16

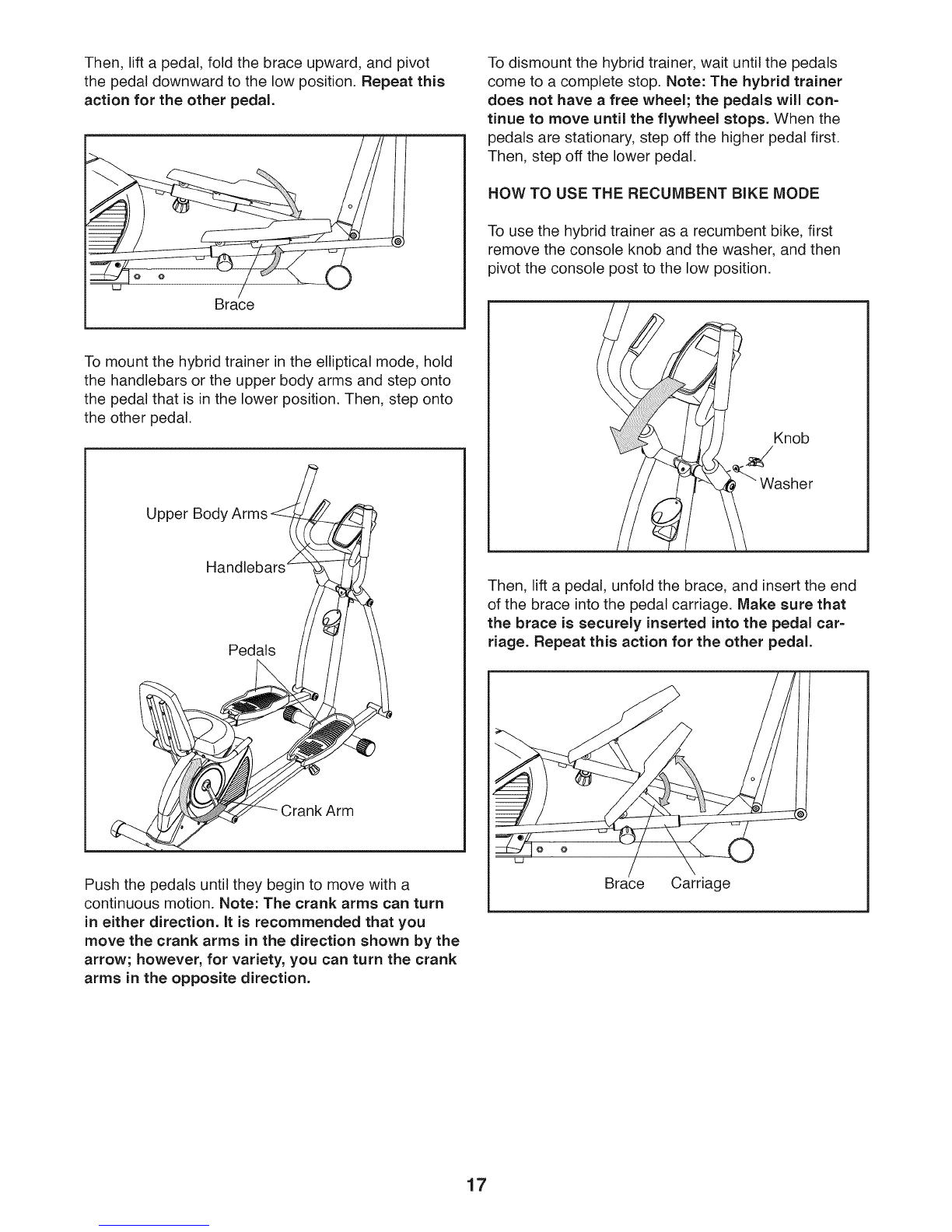

Then, lift a pedal, fold the brace upward, and pivot
the pedal downward to the low position. Repeat this
action for the other pedal.
@ @
Brace
To mount the hybrid trainer in the elliptical mode, hold
the handlebars or the upper body arms and step onto
the pedal that is in the lower position. Then, step onto
the other pedal.
Upper Bod}
Pedals
Crank Arm
Push the pedals until they begin to move with a
continuous motion. Note: The crank arms can turn
in either direction. It is recommended that you
move the crank arms in the direction shown by the
arrow; however, for variety, you can turn the crank
arms in the opposite direction.
To dismount the hybrid trainer, wait until the pedals
come to a complete stop. Note: The hybrid trainer
does not have afree wheel; the pedals will con=
tinue to move until the flywheel stops. When the
pedals are stationary, step off the higher pedal first.
Then, step off the lower pedal.
HOW TO USE THE RECUMBENT BIKE MODE
To use the hybrid trainer as a recumbent bike, first
remove the console knob and the washer, and then
pivot the console post to the low position.
Knob
Washer
Then, lift a pedal, unfold the brace, and insert the end
of the brace into the pedal carriage. Make sure that
the brace is securely inserted into the pedal car=
riage. Repeat this action for the other pedal.
Bn Carriage
17

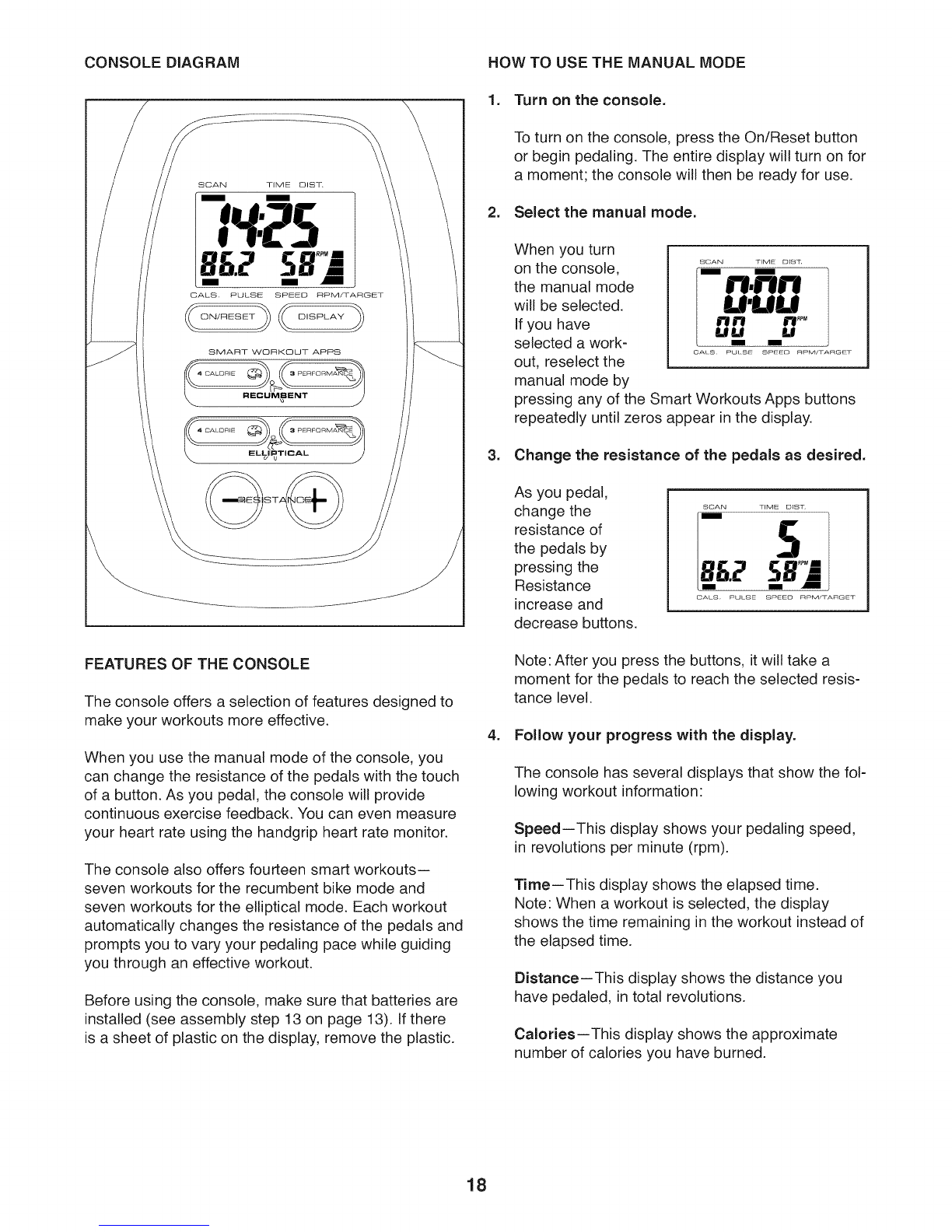

CONSOLE DIAGRAM HOW TO USE THE MANUAL MODE
SCAN TIME DIST,
CALS. PULSE SPEED RPM/TARGET
ON/RESET _----_ _ DISPLAY _----_
SMART WORKOUT APPS
FEATURES OF THE CONSOLE
The console offers a selection of features designed to
make your workouts more effective.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you pedal, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers fourteen smart workouts--
seven workouts for the recumbent bike mode and
seven workouts for the elliptical mode. Each workout
automatically changes the resistance of the pedals and
prompts you to vary your pedaling pace while guiding
you through an effective workout.
Before using the console, make sure that batteries are
installed (see assembly step 13 on page 13). If there
is a sheet of plastic on the display, remove the plastic.
1. Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. The entire display will turn on for
a moment; the console will then be ready for use.
2. Select the manual mode.
When you turn
on the console,
the manual mode
will be selected.
If you have
selected a work-
out, reselect the
manual mode by
_CAN TIME DIST,
/U'UU
|rl r! rl _'=
L u
CAIS PUIS SP EO RPM/TARG T
pressing any of the Smart Workouts Apps buttons
repeatedly until zeros appear in the display.
3. Change the resistance of the pedals as desired.
As you pedal,
change the
resistance of
the pedals by
pressing the
Resistance
increase and
decrease buttons.
SCAN
CALS PULSE
S
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The console has several displays that show the fol-
lowing workout information:
Speed--This display shows your pedaling speed,
in revolutions per minute (rpm).
Time--This display shows the elapsed time.
Note: When a workout is selected, the display
shows the time remaining in the workout instead of
the elapsed time.
Distance--This display shows the distance you
have pedaled, in total revolutions.
Calories--This display shows the approximate
number of calories you have burned.
18

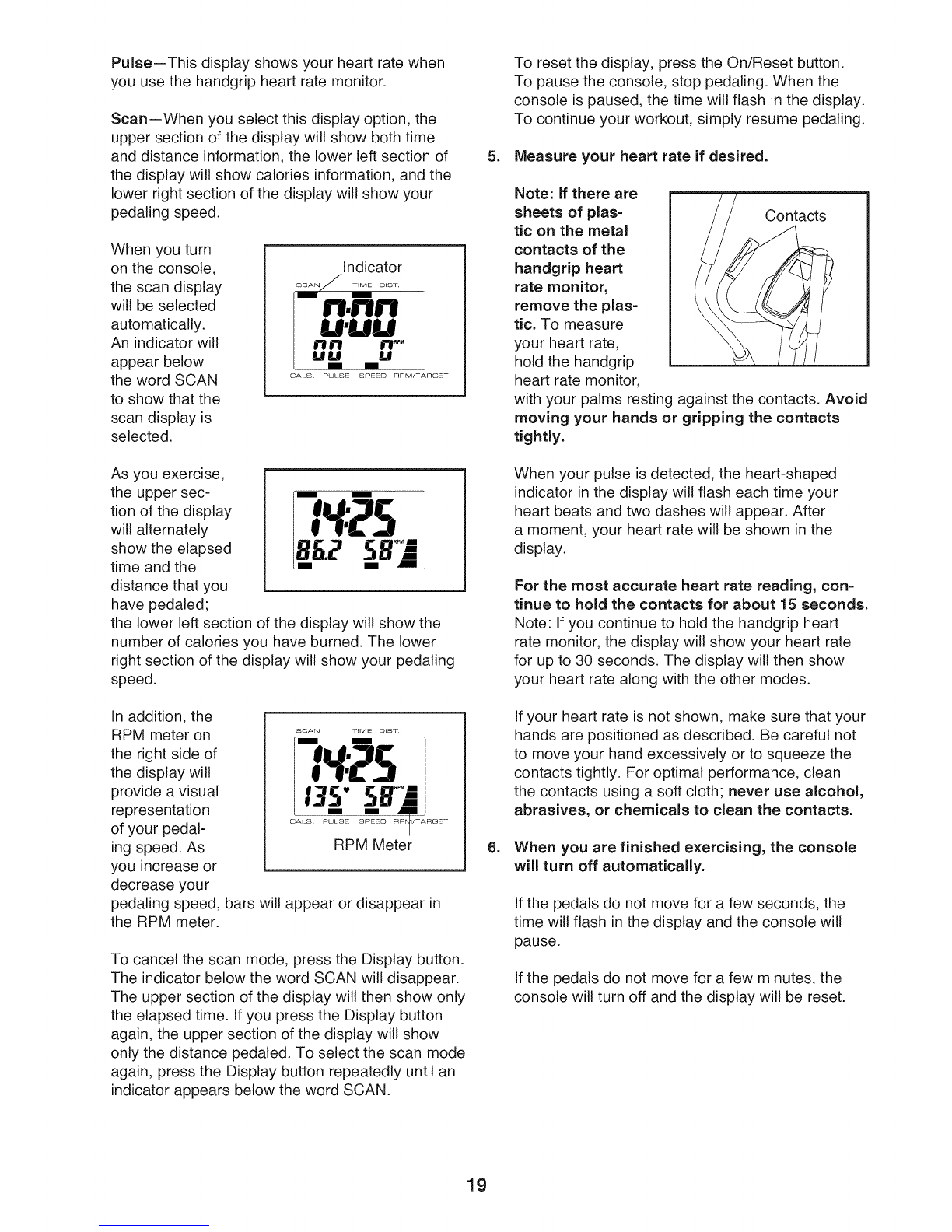

Pulse--This display shows your heart rate when
you use the handgrip heart rate monitor.
Scan--When you select this display option, the
upper section of the display will show both time
and distance information, the lower left section of
the display will show calories information, and the
lower right section of the display will show your
pedaling speed.
When you turn
on the console,
the scan display
will be selected
automatically.
An indicator will
appear below
the word SCAN
to show that the
scan display is
selected.
Indicator
SCAN! rIME DIS[,
-n.nn
IMI'IJM
/ N N I"lrP"
buu _u
As you exercise,
the upper sec-
tion of the display
will alternately
show the elapsed
time and the
distance that you
have pedaled;
the lower left section of the display will show the
number of calories you have burned. The lower
right section of the display will show your pedaling
speed.
In addition, the
RPM meter on
the right side of
the display will
provide a visual
representation
of your pedal-
ing speed. As
you increase or
decrease your
RPM Meter
pedaling speed, bars will appear or disappear in
the RPM meter.
To cancel the scan mode, press the Display button.
The indicator below the word SCAN will disappear.
The upper section of the display will then show only
the elapsed time. If you press the Display button
again, the upper section of the display will show
only the distance pedaled. To select the scan mode
again, press the Display button repeatedly until an
indicator appears below the word SCAN.
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. When the
console is paused, the time will flash in the display.
To continue your workout, simply resume pedaling.
5. Measure your heart rate if desired.
.
Note: If there are
sheets of plas-
tic on the metal
contacts of the
handgrip heart
rate monitor,
remove the plas=
tic. To measure
your heart rate,
hold the handgrip
heart rate monitor,
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, the heart-shaped
indicator in the display will flash each time your
heart beats and two dashes will appear. After
a moment, your heart rate will be shown in the
display.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 seconds.
Note: If you continue to hold the handgrip heart
rate monitor, the display will show your heart rate
for up to 30 seconds. The display will then show
your heart rate along with the other modes.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hand excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
time will flash in the display and the console will
pause.
If the pedals do not move for a few minutes, the
console will turn off and the display will be reset.
19

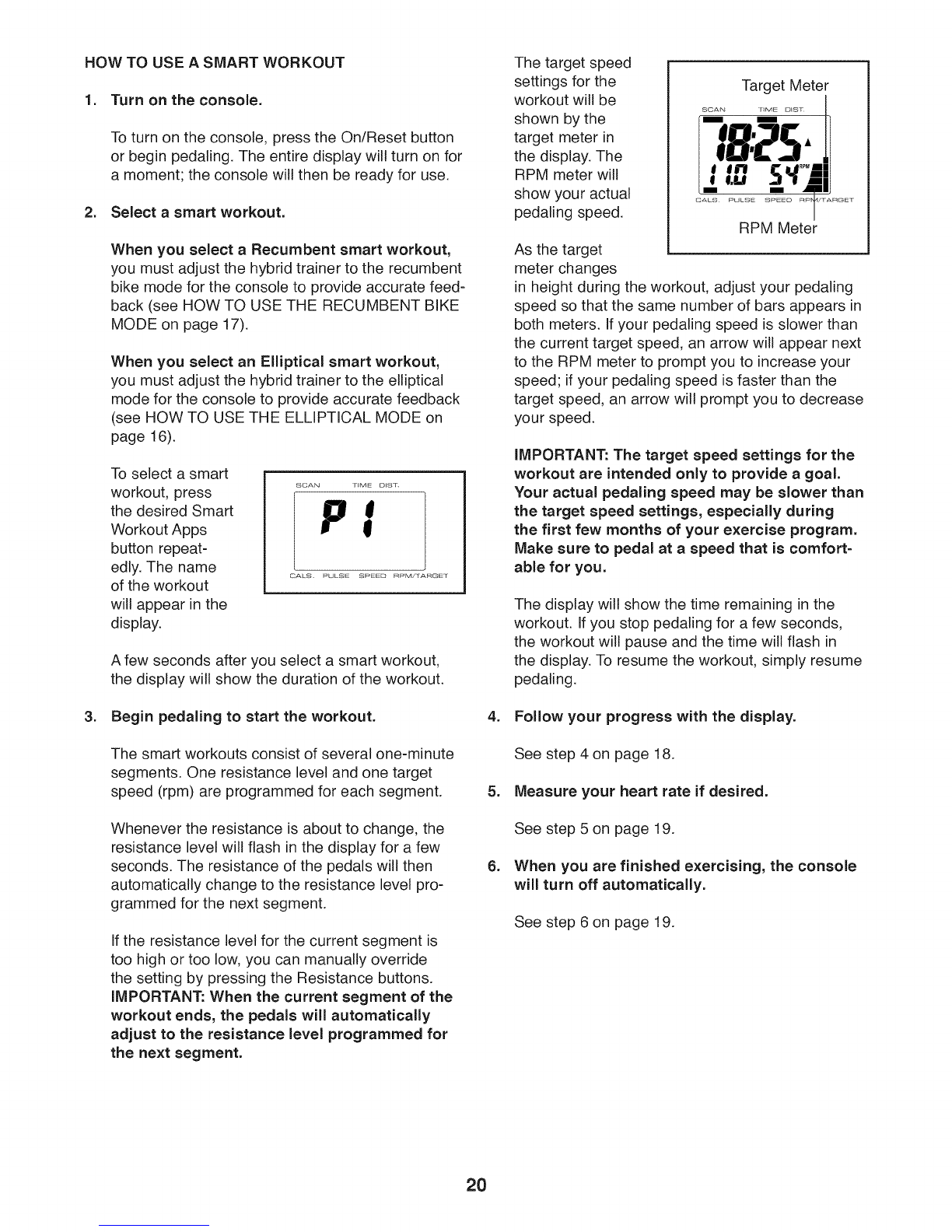

HOW TO USE A SMART WORKOUT
1. Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. The entire display will turn on for
a moment; the console will then be ready for use.
2. Select a smart workout.
When you select a Recumbent smart workout,
you must adjust the hybrid trainer to the recumbent
bike mode for the console to provide accurate feed-
back (see HOW TO USE THE RECUMBENT BiKE
MODE on page 17).
When you select an Elliptical smart workout,
you must adjust the hybrid trainer to the elliptical
mode for the console to provide accurate feedback
(see HOW TO USE THE ELLiPTiCAL MODE on
page 16).
To select a smart
workout, press
the desired Smart
Workout Apps
button repeat-
edly. The name
of the workout
will appear in the
display.
A few seconds after you select a smart workout,
the display will show the duration of the workout.
3. Begin pedaling to start the workout.
The smart workouts consist of several one-minute
segments. One resistance level and one target
speed (rpm) are programmed for each segment.
Whenever the resistance is about to change, the
resistance level will flash in the display for a few
seconds. The resistance of the pedals will then
automatically change to the resistance level pro-
grammed for the next segment.
ifthe resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT." When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The target speed
settings for the
workout will be
shown by the
target meter in
the display. The
RPM meter will
show your actual
pedaling speed.
Target Meter
SCAN &?S.
RPM Meter
As the target
meter changes
in height during the workout, adjust your pedaling
speed so that the same number of bars appears in
both meters. If your pedaling speed is slower than
the current target speed, an arrow will appear next
to the RPM meter to prompt you to increase your
speed; if your pedaling speed is faster than the
target speed, an arrow will prompt you to decrease
your speed.
IMPORTANT." The target speed settings for the
workout are intended only to provide agoal.
Your actual pedaling speed may be slower than
the target speed settings, especially during
the first few months of your exercise program.
Make sure to pedal at a speed that is comfort=
able for you.
The display will show the time remaining in the
workout. If you stop pedaling for a few seconds,
the workout will pause and the time will flash in
the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 4 on page 18.
5. Measure your heart rate if desired.
.
See step 5 on page 19.
When you are finished exercising, the console
will turn off automatically.
See step 6 on page 19.
2O
