Proline Euro EP54UEWH Firmware update

54cm Electric Freestanding Cooker
Electric Seperate Oven and Grill with Solid Hotplates
User Guide & Installation Handbook
EP54UEWH
50cm DOUBLE CAVITY
ELECTRIC COOKER
Models: SC50TCWE & SC50TCSSE
50cm DOUBLE CAVITY
ELECTRIC COOKER
Models: SC50TCWE & SC50TCSSE
50cm DOUBLE CAVITY
ELECTRIC COOKER
Models: SC50TCWE & SC50TCSSE
EP54UEWH

User Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 17
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Be Safe - Not Sorry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the main oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Traditional fruit cakes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Roast turkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Roasting guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1
Please keep this handbook for future reference, or for anyone else
who may use the appliance.
CONTENTS

Thank you for buying this PROLINE
appliance.
We hope that the following information
will help you to quickly familiarise your-
self with the features of the appliance,
and to use it successfully and safely.
Our policy is one of constant develop-
ment and improvement. Strict accuracy
of illustrations and specifications is not
guaranteed. Modification to design and
materials may be necessary subsequent
to publication.
This cooker may be sited with cabinets
on both sides, or it may be free stand-
ing. Sufficient space should be allowed
at either side of the cooker to enable it
to be pulled out for cleaning and servic-
ing.
Please read the instructions in this hand-
book before using or installing this appli-
ance. All installation and servicing work
must be carried out by a competent per-
son.
2
INTRODUCTION
Moving the cooker
Please note that this appliance may be
heavier than it appears. Take care if the
appliance needs to be lifted during instal-
lation - always use an appropriate
method of lifting.
Do not attempt to move the cooker by
pulling on the doors or handles. Open
the door and grasp the frame of the
cooker, taking care that the door does
not shut on your fingers.
Take care to avoid damage to soft or
uneven floor coverings when moving the
appliance. Some cushioned vinyl floor
coverings may not be designed to with-
stand sliding appliances without marking
or damage.
Before using the appliance for the
first time, remove any protective polythene
film and wash the oven shelves and shelf
runners in hot soapy water to remove
their protective coating of oil. Even so,
when you first turn on the oven or grill
you may notice a smell and some smoke.
Glass door panels
To meet the relevant Standards of
Domestic cooking appliances, all the
glass panels on this appliance are tough-
ened to meet the fragmentation require-
ments of BS3193. This ensures that, in
the likely event that a panel breaks, it
does so into small fragments to minimise
the risk of injury.
Please take care when handling, using or
cleaning all glass panels, as any damage
to the surfaces or edges may result in
the glass breaking without warning or
apparent cause at a later date. Should
any glass panel be damages, we strongly
recommend that is replaced immediately.

Environmental Protection
We are committed to protecting the environment and operate an
Environmental Management System which complies with BS EN ISO 14001.
Disposal of packaging
• All our packaging materials are recy-
clable and environmentally friendly.
• Please help us to protect our envi-
ronment by disposing of all packag-ing in an environmentally friendly
manner.
• Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can pose a risk of suffocation - keep away from
chil-dren.
3
INTRODUCTION

- When you are cooking, keep children away from the vicinity of the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical,
BE SAFE - NOT SORRY
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person, responsible
for their safety. Children should be supervised to ensure that they do not play with the
appliance.
4
- This product is designed as a domestic cooking appliance for the preparation and cooking
of domestic food products, and should not be used for any other purpose.
- Make sure you read and understand the instructions before using the appliance.
- Remove all packaging, protective films and oils from the appliance before using for the first
time.
- Keep electrical leads short so they do not drape over the appliance or the edge of the
worktop.
- Keep all flammable materials (such as curtains, furnishings & clothing) away from the
appliance.
- The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
- Parts of the appliance may be hot during or immediately after use. Care should be taken to
avoid touch-ing heating elements inside the oven. Allow sufficient time for the appliance to
cool after switching off.
- Do not use the oven with the door inner glass panel removed.
- Do not drape tea towels over the flue vents or doors, as this creates a fire hazard.
- Do not use aluminium foil to cover the grill pan, or put items wrapped in foil under the grill,
as this creates a fire hazard. The high reflectivity can also damage the element.
- Do not use foil on oven shelves, or allow it to block the oven flue, as this creates a fire
hazard, and pre-vents heat circulation.
- When cooking heavy items - eg; turkeys - do not pull the oven shelf out with the item still
on the shelf.
- When opening the appliance door, take care to avoid skin contact with any steam which
may escape from the cooking.
- Use oven gloves when removing hot food / dishes from the oven or grill. The oven / grill
and utensils will be very hot when in use.
- During use the appliances becomes hot. Care should be taken to avoid touching heating
elements inside the oven, for cooking ranges and ovens.
WARNING:
- This appliance must be earthed.
- Any installation, servicing and main-tenance work should be carried out by a competent
person who will comply with current Regulations, Standards and Requirements.
- When you have finished cooking check that all controls are in the off position.
- Unattended cooking on a hob with fat or oil can be dangerous and may result
in fire.
- Danger of fire: do not store items on the cooking surfaces.
- Ensure that the appliance is switched off before replacing the lamp to avoid
the possibility of electric shock.
- Unattended cooking on a hob with fat or oil can be dangerous and may result
in fire.
- Never try to extinguish a fire with water, but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
- This range should not be placed on a base.

Purpose
The cooker should be used for preparing household meals only. It must not be used
for any other purpose.
5
ABOUT YOUR APPLIANCE
1- control panel
2- oven and grill.
3- oven door
4- hot plate rear left
5- hot plate rear right
6- hot plate front left
7- hot plate front right
8- tempe rature control lamps
9- grill pan with rem ovable handle
and wire food suppo rt
10 - sto rage d rawer
11 - 2 x wire shel ves
12. Rem ovable grill deector plate
(not sh own).
5
4
3
1
9
8
6
7
2
10
11
PAR TS IDENTIFIC ATION
Fig. 1

6
ABOUT YOUR APPLIANCE
FEATURES COOKTOP
•4 solid cooktop electric elements
•Easy clean one piece cooktop
FEATURES OVEN
•White enamel finish
•150-250° Temperature Range
•4 multifunction electric o en
DEFROST
In defrost mode, no heating elements are used. Only the fan
is acti ated to circulate air inside the o en for defrosting and
not cooking the food.
FAN FORCED COOKING
For the ultimate roast or perfect batch of pastries. The
element surrounding the fan deli ers e en heat for e en
cooking results, approx. 160ºC - 180ºC is recommended
FULL GRILL
Full grill is the perfect option for quick grilling. Toast your
fa ourite meals or finish off the tops of your recipes at full
heat.
FAN GRILL
This function is perfect for fish, chicken Fillets or meat
Cutlets. The door can be left closed whilst grilling and the fan
will circulate the heat for more e en cooking.
ELECTRICAL REQUIREMENTS
40 amp hard wire and needs a dedicated circuit from the
main switchboard
TOTAL RATED LOAD:
9050W
COOKTOP BURNER
Front right element - 1000W Load)
Back right element - 1500W Load )
Front left element - 2000W Load)
Back left element - 1000W Load )
OVEN VOLUME CAPACITY:
55lt (Net)
WEIGHT:
41.0kg (Gross)
PRODUCT DIMENSIONS:
540mm wide x 600mm depth x 900mm high
(25mm adjustable feet)
INSTALLATION:
For all installation, please refer your qualified technician
to our product manual.
CLEANING AND MAINTENANCE
Easy clean AAA grade enamel interior. Clean using only
recommended o en cleaning products. Abrasi es, corrosi e
detergents, bleaches or acids are not recommended for cleaning
the o en.

7
Using the hotplate
• Commercial simmering aids should
not be used as they create excessive
temperatures that can damage the
surface and may cause a hazard.
• Do not place aluminium foil or plas-
tic utensils on the hotplates, as they
may melt and damage the surface.
• Do not use the hotplate surface for
storage.
• When cooking with fat or oil, never
leave unattended.
• Turn pan handles to a safe position,
so they are out of reach of children,
not overhanging the appliance, and
cannot be caught accidentally.
• Position pans over the centre of the
hotplate elements.
• Aluminium foil must not be placed
on the hob as it will reflect any heat
back into the element, which can
damage it.
• Leaving a hotplate on for a length of
time, without it being covered by a
pan, causes overheating of sur-
rounding areas which could damage
the element.
• Be careful when cooking foods in
salted water, or foods containing
large amounts of sugar, syrup or
jam - if they are spilt onto hot areas
of the hob they may damage it.
To save energy
• Always position pans centrally over
the heating area.
• Put lids on saucepans and only heat
the amount of liquid you need.
• When liquids boil, reduce the control
setting to maintain a simmer.
• Consider the use of a pressure cook-
er for the cooking of a complete
meal.
• Vegetables will cook quicker if
chopped in smaller pieces.
• Larger heating elements are ideal for
faster cooking methods, such as boil-
ing or frying, and for larger pans.
Smaller heating elements are ideal
for simmering and stewing, and for
smaller pans.
• Do not use a pan which is too small
or too large for the heating area -
refer to notes on next page.
• We recommend you turn off the hot
plate 5 to 10 minutes before the
dish is ready. This allows the heat
accumulated in the hot plate to be
used economically. The hot plate
remains hot for a while after use.
USING THE HOB

Choice of pans
The choice of cookware is important if
you are to achieve maximum benefit
from cooking.
When buying new pans, always refer to
the manufacturer’s guidelines.
For best results and energy efficiency, it
is important to use flat bottomed pans of
the correct type.
Always use pans which are large enough
to prevent spillage, especially for deep
frying, or when cooking with a sugar
based substance.
Trivets, round based woks, heat diffuser
pads and over-sized pans are not recom-
mended.
Type and size of pan
• Cast iron, stainless steel, or enam-
elled steel pans are all suitable for
use on ceramic glass hobs.
• Aluminium pans will give good cook-
ing results but care must be taken in
their use.
• Avoid using double pans or old mis-
shapen pans which are unstable and
dangerous.
• Certain types of copper based pans
may become slightly concave when
heated, which can result in slower
cooking times.
• Always use pans which are large
enough to avoid overflows.
• Pan bases should be thick, flat, and
smooth, to ensure maximum contact
with the hob, maximum heat con-
duction and rapid cooking times.
• Pans with dull or dark coloured
bases will give the quickest
cooking results.
• Pans with highly polished bases can
reflect heat back into the hob caus-
ing the hotplate to cycle on and off
more rapidly than normal, which can
slow down cooking.
• Pans with thin, dented or ridged
bases should not be used. They will
not make maximum contact with the
hob, which can result in very slow
cooking times.
• The right size of pan base will
ensure maximum contact with the
hob and rapid cooking times.
• Use pans with a flat base of mini-
mum 100mm / 4” diameter and maxi-
mum 280mm / 11” diameter which
are stable in use.
• Pan bases that are much smaller or
much larger than the hotplate - eg;
by 50mm / 2” - will result in slower
cooking times.
8
USING THE HOB

In the event of a cooking pan fire:
1. Turn off the cooker at the wall switch.
2. Cover the pan with a fire blanket or
damp cloth. This will smother the flames and
extinguish the fire.
3. Leave the pan to cool for at least an
hour before attempting to move it. Injuries are often
caused by picking up a hot pan and rushing outside
with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN
FIRE as the force of the extinguisher could tip the pan over.
Never use water to extinguish oil or fat pan fires.
If any of the hot plates become cracked, disconnect the
appliance from the mains supply and do not use until repaired
by a competent person
Using the hotplate elements
Each hot plate is regulated using a selec-tor knob.
The control allows for the efficient trans-fer of heat to the
cooking pan.
On the knob, which can be turned in both directions, there
are numbers 0 to 6.
These numbers correspond to the power setting of the hot
plate where 6 is the highest setting and  is off.
9
USING THE HOB
W$51,1*

Caution: Accessible parts may be hot when the grill is used,
young chil-dren should be kept away.
Detachable grill pan handle
The handle should be removed from the pan during grilling, to
prevent overheat-ing.
The handle is designed for removing /inserting the grill pan
under the grill when grilling.
If cleaning the grill pan when it is hot, use oven gloves to move it.
Do not use the handle to pour hot fats from the grill pan.
Food for grilling should be positioned centrally on the trivet.
Aluminium foil
Using aluminium foil to cover the grill pan, or putting items wrapped
in foil under the grill can create a fire hazard, and the high reflectivity
can damage the grill element.
10
USING THE GRILL
Handle
Trivet

Preheating
For best results, preheat the grill for 3 -
5 minutes.
To switch on the grill

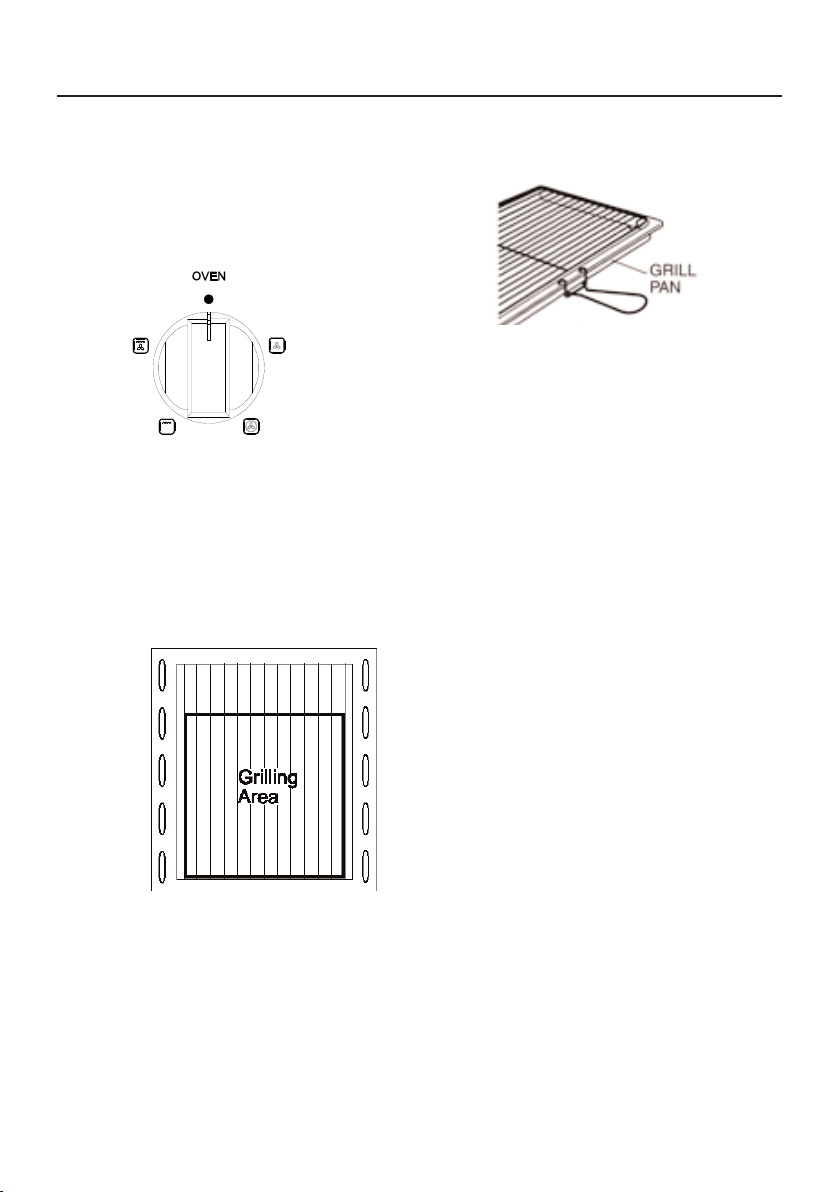

Turn the selector control knob (Figure 8)
Place the food in the middle of the grill
pan - as highlighted figure 10a - and
position the pan so the food is near but
not touching the top element.
Do not line the grill pan with aluminium
foil.
Use the handle when handling the grill
pan (Figure 10b).
When the food is cooked, turn the selec-
tor control and temperature control (°C)
to off (•).
Important: The door must be kept closed
when the grill is used.
To switch off, return the control knobs to
the “off” position.
When using the grill the speed of grilling
can be controlled by use of either the
thermostat or by selecting higher or
lower shelf position.
For toasting, and for grilling foods such
as bacon, sausages or steaks, use a
higher shelf position and always place
food in the highlighted area - see figure
10a.
For thicker foods such as chops or chick-
en joint pieces, use a middle to low shelf
position.
11
USING THE GRILL
Figure 8
Figure 10b
Figure 10a
Front of grill pan

Accessible parts may be hot when
the oven is used. Young children
should be kept away.
Switching the Oven on
Turn the selector control knob (Figure 9)
12
USING THE OVEN
to the required temperature position.
-Figure 9-
The indicator light on the control panel
will go out when the selected tempera-
ture has been reached inside the oven.
Always turn the control knob to off ()
when cooking has finished.
Please note: The appliance incorporates
a safety thermostat which cuts the elec-
tric supply to the oven if the temperature
becomes excessive.
7KHVKHOYHVFDQEHSODFHGLQWKHRYHQDV
GLDJUDPILJXUH
Preheating
Always allow the oven to pre-heat until
the neon switches off for the first time
especially when cooking sensitive items
such as souffle and Yorkshire puddings
or, when cooking bread.
Baking tray and roasting tins
For best cooked results and even brown-
ing, the maximum size baking trays and
roasting tins that should be used are as
follows;
Baking tray 350mm x 280mm
This size of baking tray will hold up to 16
small cakes.
Roasting tin 370mm x 320mm
We recommend that you use good quali-
ty cookware. Poor quality trays and tins
may warp when heated, leading to
uneven baking results.
When using the oven
As part of the cooking process, hot air is
expelled through a vent at the rear of
the oven. When opening the oven door,
care should be taken to avoid any possi-
ble contact with potentially hot air, since
this may cause discomfort to people with
sensitive skin. We recommend that you
hold the underneath of the oven door
handle.
-Figure 9-
Top heating element (grill)
Temperature range: 50°C to
MAX.
Top heating element (grill) with
fan
Temperature range: 50°C to
MAX.
OFF position.
Defrosting with fan
Operates the fan with no heat for
defrosting food.
Circular heating element with
fan
Thermostat setting from 50°C to
MAX.
�

13
USING THE OVEN
Baking guide
NOTE:
The temperature settings and times given
in the baking guide are based on dishes
made with block margarine. If soft tub
margarine is used it may be necessary to
reduce the temperature setting.
Dish Recommended Approximate
temperature °C cooking time
(preheated oven)
Scones 180 8 - 15
Meringues 110 2 - 3hrs
Cakes
Small cakes 160 15 - 25mins
Whisked sponge 160 15 - 20 mins
Swiss roll 170 10 - 12 mins
Victoria sandwich 160 20 - 30 mins
(2 x 180mm / 7”)
Genoese sponge 160 20 - 25 mins
Madeira (180mm / 7”) 160 1hr - 11⁄4 hrs
Semi rich fruit cake 130 21⁄2 - 3hrs
(205mm /8”)
Christmas cake depending on depending on
(205mm / 8”) recipe recipe
Dundee cake 130 21⁄2 - 3hrs
(205mm / 8”)
Pastry
Flaky / Puff 180 depending on
Shortcrust 170 recipe and type
Choux 170 of filling
Plate tarts 170
(2 x 180mm / 7”)
Biscuits
Shortbread rounds 160 20 - 25 mins
Nut brownies 170 20 - 25 mins
Brandy snaps 160 10 - 12 mins
Flapjacks 160 20 - 25 min
Ginger nuts 160 10 - 20 mins

Traditional fruit cakes
It should be remembered that all ovens
can vary, therefore cooking times can
vary, making it difficult to be precise
when baking fruit cakes.
It is necessary therefore, to test the cake
before removal from the oven. Use a
fine warmed skewer inserted into the
centre of the cake. If the skewer
comes out clean, then the cake is
cooked.
Follow the temperatures suggested in
the recipe and then adjust
according to the temperature con-
version chart/
Do not attempt to make Christmas
cakes larger than the oven can cope
with, you should allow at least
25mm (1 inch) space between the
oven walls and the tin.
Always follow the temperatures rec-
ommended in the recipe.
To protect a very rich fruit cake dur-
ing cooking, tie 2 layers of brown
paper around the tin.
We recommend that the cake tin is
not stood on layers of brown paper,
as this can hinder effective circula-
tion of air.
Do not use soft tub margarine for
rich fruit cakes, unless specified in
the recipe.
Always use the correct size and
shape of tin for the recipe quantities.
Roast turkey
Roasting turkey involves cooking two dif-
ferent types of meat - the delicate light
breast meat, which must not be allowed
to dry out, and the darker leg meat,
which takes longer to cook.
The turkey must be roasted long enough
for the legs to cook, so frequent basting
is necessary. The breast meat can be
covered once browned.
Always make sure that the turkey is
completely thawed and that the
giblets are removed before cooking.
Turkey should be roasted at 150°C -
160°C for 20 minutes per lb, plus 20
minutes, unless packaging advises
otherwise.
The turkey can be open roasted,
breast side down, for half of the
cook time, and then turned over for
the remainder of the cooking time.
If the turkey is stuffed, add 5 min-
utes per 1lb to the cooking time.
If roasting turkey covered with foil,
add 5 minutes per 1lb to the cooking
time.
To test if the turkey is cooked, push a
fine skewer into the thickest part of the
thigh. If the juices run clear, the turkey
is cooked. If the juices are still pink, the
turkey will need longer cooking.
14
USING THE OVEN

USING THE OVEN
Roasting guide
The times given in the roasting guide are
only approximate, because the size and
age of the bird will influence cooking
times as will the shape of a joint and the
proportion of the bone.
Frozen meat should be thoroughly
thawed before cooking. For large joints
it is advisable to thaw overnight.
Frozen poultry should be thoroughly
thawed before cooking. The time
required depends on the size of the bird
- eg; a large turkey may take up to 48
hours to thaw.
Use of a trivet with a roasting tin will
reduce fat splashing and will help to keep
the oven interior clean. Alternatively, to
help reduce fat splashing, potatoes or
other vegetables can be roasted around
the meat / poultry.
Notes:
 When cooking stuffed meat or poul-
try calculate the cooking time from
the total weight of the meat plus the
stuffing.
 For joints cooked in foil or covered
roasters, and for lidded casseroles,
add 5 minutes per 450g (1lb) to the
calculated cooking time.
 Smaller joints weighing less than
1.25kg (21⁄2 lb) may require 5 minutes
per 450g (1lb) extra cooking time.
 Position the oven shelf so that the
meat or poultry will be in the centre
of the oven.
15

Caution: Any cleaning agent used
incorrectly may damage the appli-
ance.
Always let the appliance cool before
cleaning.
Do not use a steam cleaner on this
appliance.
Some cooking operations generate con-
siderable amount of grease, this com-
bined with spillage can become a hazard
if allowed to accumulate on the appli-
ance through lack of cleaning. In
extreme cases this may amount to mis-
use of the appliance and could invalidate
your guarantee. Do not use caustic,
corrosive or abrasive cleaning products,
products containing bleach, coarse wire
wool or any hard implements, as they
will damage the surfaces.
Do not use harsh abrasives or sharp
metal scrapers to clean the oven
door glass since they can scratch
the surafce which may result in
shattering of the glass.
All parts of the appliance can be safely
cleaned with a cloth wrung out in hot
soapy water.
Vitreous enamel parts
grill pan, oven compartment
Use a mild cream cleaner - eg; “Cif”.
Look for one which has the Vitreous
Enamel Development Council’s rec-
ommendation seal. Stubborn marks may
be removed with a moistened “Brillo”
pad. The grill pan may be cleaned in a
dishwasher, or with a nylon brush in hot
soapy water.
Glass parts
door panels
Use a mild cream cleaner - eg; “Cif”.
Rinse thoroughly and dry with a soft
cloth.
16
CARE & CLEANING

Painted, plastic and metal finish
parts
control knobs, door handles & doors, fas-
cia panel
Only use a clean cloth wrung out in hot
soapy water.
Chrome plated parts
oven shelves & oven shelf runners, grill
pan trivet
Do not use abrasives or polishes, use a
moist soap pad - eg; “Brillo”.
Disconnect the cooker from the power
supply before proceeding with washing
and cleaning and wait until it cools
down.
• The cooker must be cleaned regularly.
When cleaning, avoid using any
coarsegrained abrasive powders, wire
sponges, aggressive chemicals and sharp
objects. The knobs and the fascia panel
should be cleaned with a soft cleaning
liquid on a soft cloth.
• Clean the enamelled parts with a
soft cloth or sponge moistened in
lukewarm water with the addition of
a soft detergent avoiding too much
water. Remove heavy stains with
special kitchen cleaning agents.
• Baking tins and meat roasting pans
should be soaked in lukewarm water
with the addition of washing-up liq-
uid and carefully dried.
• Check to make sure that the oven
door seal is always kept clean.
Cleaning the hotplate
• Clean the hot plates with a damp
sponge and then dry them by turn-
ing them on for a few seconds.
• The hot plate trim rings can be
cleaned with agents intended for the
maintenance of stainless steel parts.
The rings may become yellowed as a
result of overheating. This is normal.
• If a hotplate is to be out of use for a
long time, apply the special grease
periodically.
Oven Cleaning
Caution:Before cleaning you should wait
until the oven cools down.
It is the best to clean the bottom of the
oven after every use and not allow the
remains of food and spots of oil to
remain burned on.
17
CARE & CLEANING
W$51,1*

Positioning
• Remove all packing materials includ-
ing the protective film covering the
chrome-plated and stainless steel
parts (if applicable).
• The kitchen should be dry and well
ventilated. Position the cooker
ensuring free access to all the con-
trols.
• The distance between the hob and
extractor hood should be at least
650mm.
• If necessary level the cooker by the
adjustable feet.
18
INSTALLATION
590

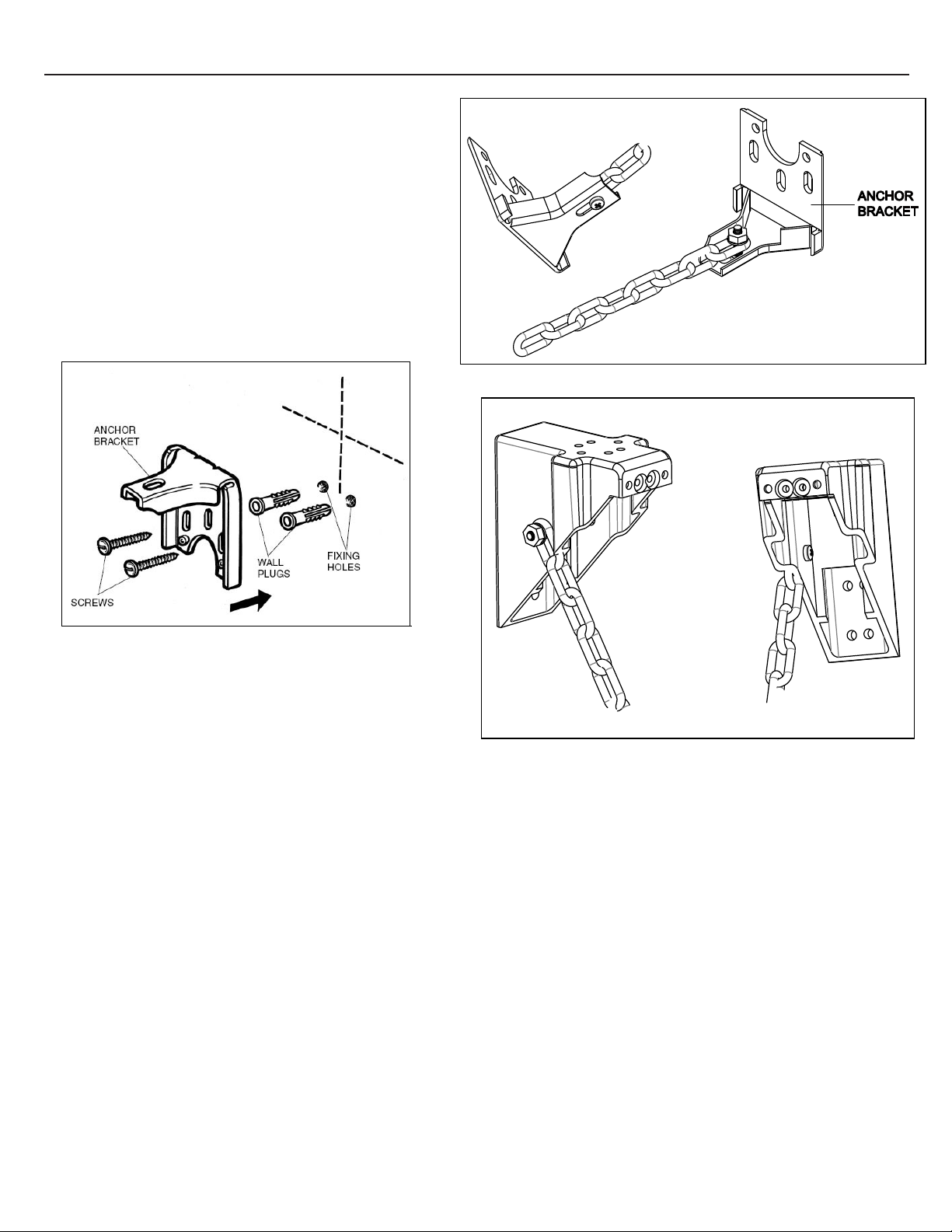

Safety chain anchors
IMPORTANT SAFETY NOTICE
This cooker MUST be secured to the wall,
please follow the instructions below.
oDecide on a suitable wall location for
fitting the anchor brackets directly behind
each cooker safety chain.
oHold the chain anchor up to the wall where
it will be required and mark the fixing holes.
oDrill the fixing holes and fix the chain anchors
to the wall using the screws provided and
suitable wall plugs for the type of wall being
fixed to.
oeave the chains unattached until the installation
process has been completed.
Securing the safety chains
oBefore securing the safety chains, check that
you have completed the installation process
and that all connections have been made
successfully and that the cooker is in its final
operating position.
19
oConnect safety chain as per above diagrams.
oIn order to eliminate the risk of the
oven falling forward, two chains have
been supplied with the appliance.
Before use, these will need to be fastened
securely to the wall behind the appliance
with the anchor brackets supplied.
