PROLiNK PRO700SFT User manual

BEFORE GETTING STARTED
This document is designed to aid you to get started with the device. If you experience problems following these
guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.
All specifications are subject to the manufacturer’s configuration at the time of shipping and may change
without prior notice, written or otherwise.
Quick Start Guide
Line Interactive UPS
MODEL NO:
PRO700SFT/SFTU
PRO850SFTU
PRO1200SFT/SFTU
Version 1.00
(English / Indonesian)

EN 1
CAUTION:
To prevent the risk of fire or electric shock, install in a temperature and humidity controlled
indoor area free of conductive contaminants. (See the specifications for the acceptable
temperature and humidity range.)
To reduce the risk of overheating the UPS, DO NOT cover the UPS' cooling vents and avoid
exposing the unit to direct sunlight or installing the unit near heat emitting appliances such
as space heaters or furnaces.
DO NOT attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS.
DO NOT plug the UPS input into its own output.
DO NOT allow liquids or any foreign object to enter the UPS. DO NOT place beverages or any
other liquid-containing vessels on or near the unit.
In the event of an emergency, press the OFF button and disconnect the power cord from the
AC power supply to properly disable the UPS.
DO NOT attach a power strip or surge suppressor to the UPS.
If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS
installation in order to reduce leakage current below 3.5mA.
Attention hazardous through electric shock. Also with disconnection of this unit from the
mains, hazardous voltage still may be accessible through supply from battery. The battery
supply should be therefore disconnected in the plus and minus pole at the quick connectors of
the battery when maintenance or service work inside the UPS is necessary.
Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the required precautions. Keep unauthorized personnel away from batteries.
When replacing the batteries, use the same number and type of batteries.
Internal battery voltage is 12VDC. Sealed, lead-acid, 6-cell battery.
DO NOT dispose of batteries in a fire. The battery may explode. DO NOT open or mutilate the
battery or batteries. Released electrolyte is harmful to the skin and eyes.
Unplug the UPS prior to cleaning and DO NOT use liquid or spray detergent.
A battery can present a risk of electric shock and high short circuit current. The following
precaution should be observed before replacing batteries:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
i.
ii.
iii.
iv.
v.
Remove watches, rings, or other metal objects.
Use tools with insulated handles.
Wear rubber gloves and boots.
Do not lay tools or metal parts on top of batteries.
Disconnect charging source prior to connecting or disconnecting batteries terminal.
1. Important Safety Warning

EN 2
2. Package Contents
Note:
If any of above item is not packed in your package when open, please consult your reseller immediately.

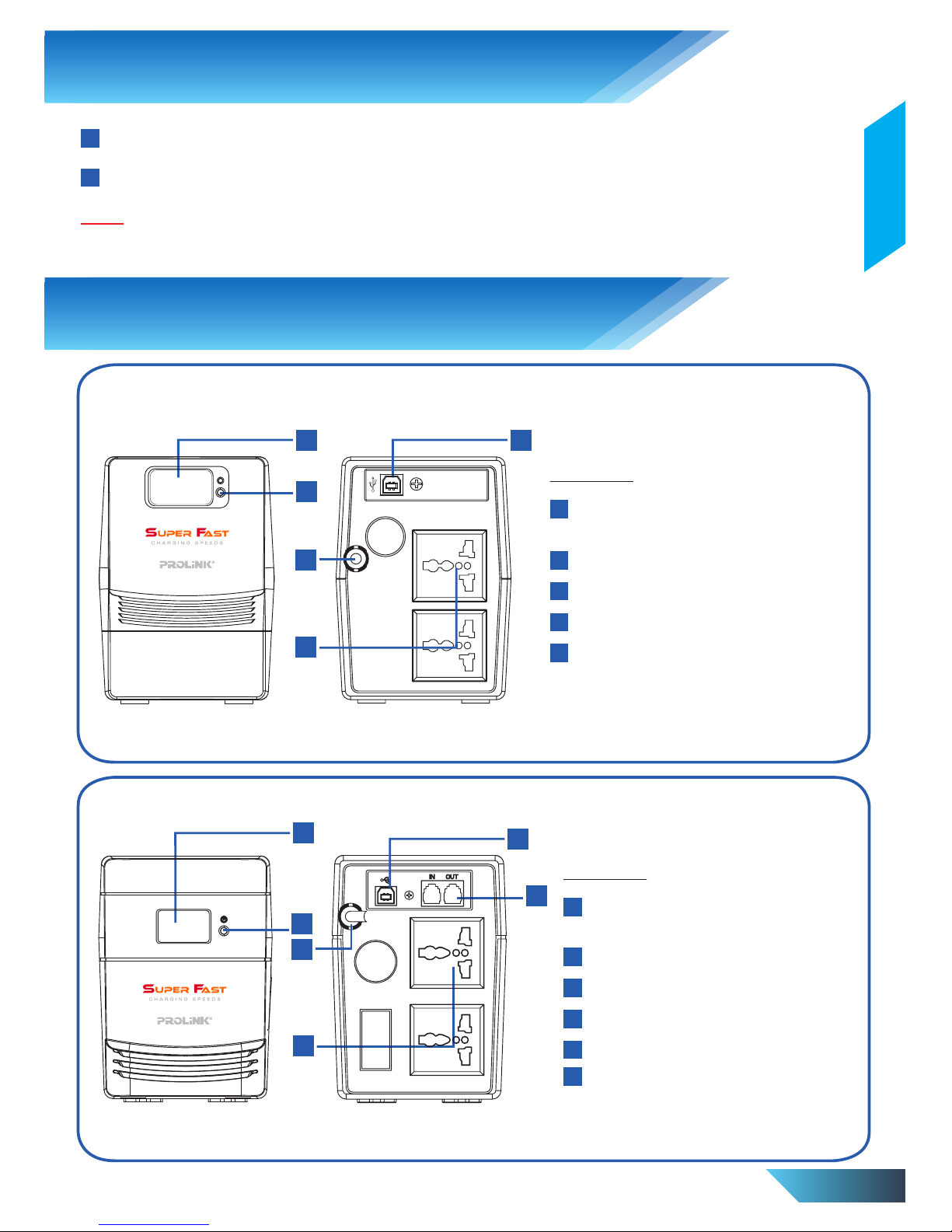

3. Product Overview
1
2
3
4
Front View Rear View
PRO700SFT/PRO700SFTU
PRO850SFTU
1
2
Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
3
4Output receptacles
5USB port
(only applicable for SFTU model)
English
One (1) unit of Line Interactive UPS
One (1) piece of Quick Start Guide
FOR PC ONLY
5
1
2
3
4
Front View Rear View
Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
3
4Output receptacles
5USB port
6RJ11 Ports:
Modem/Fax Protection
5
6

EN 3

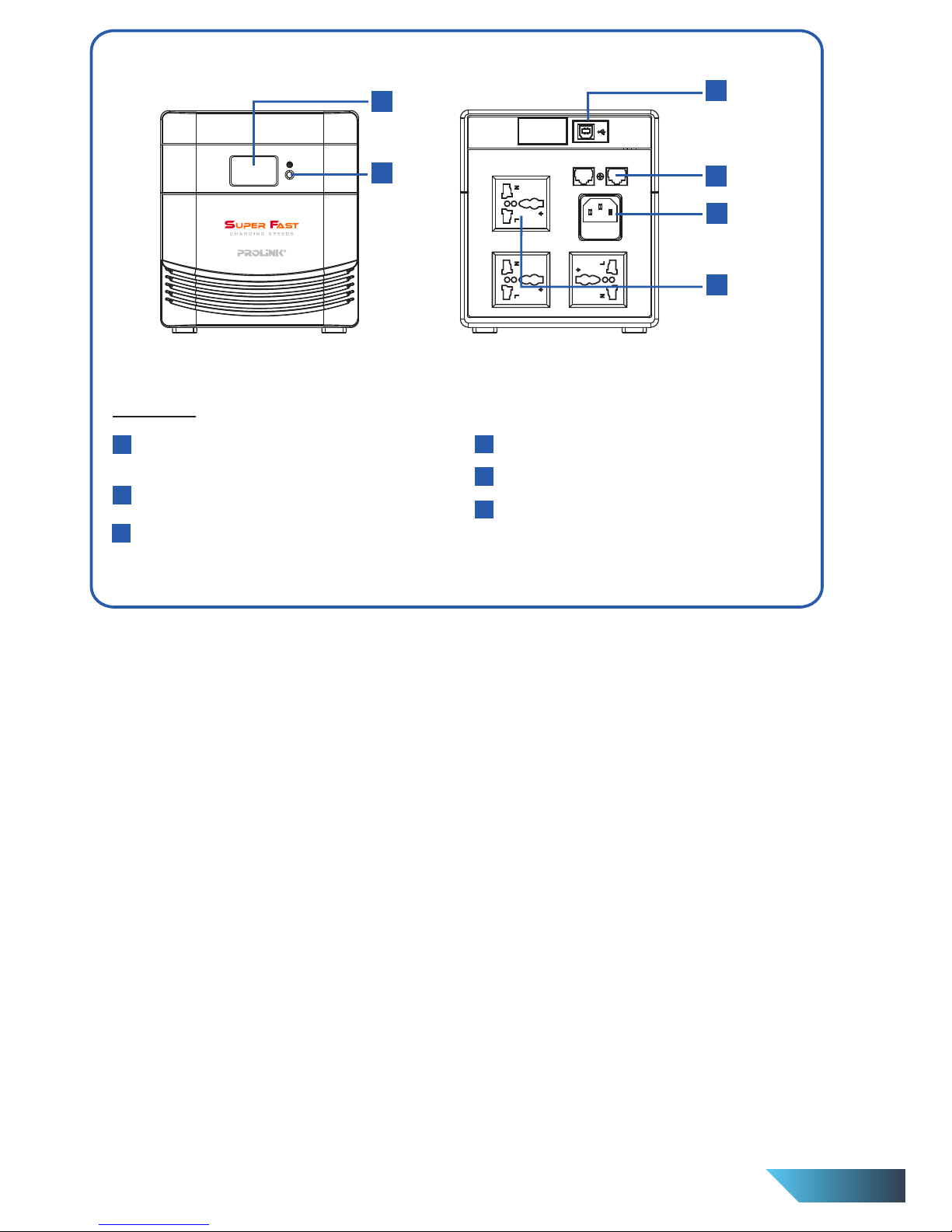

PRO1200SFT/PRO1200SFTU
Front View Rear View
Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
RJ45/RJ11 Ports
3
4
Output receptacles
5
6
USB port
(only applicable for SFTU model)
1
24
5
6
3

EN 4
Connect Communication Cable
Connect Communication Cable (only applicable for the models with USB port)
Turn On/Off the Unit
Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again the
power switch.
20cm 20cm
Placement & Storage Conditions
Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please
place the UPS away from other units at least 20 cm to avoid interference. DO NOT operate the
UPS where the temperature and humidity is outside the specific limits. (Please check the specs
for the limitations.)
6 Hours
Connect to Utility and Charging
Plug in the AC input cord to the wall outlet. For the best results,
suggest to charge the battery at least 6 hours before initial use. The
unit charges its battery while connecting to the utility.
Connect the Loads
Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power
switch of UPS unit, and then devices connected to the UPS will be protected by UPS unit.
CAUTION:
NEVER connect a laser printer or scanner to the UPS unit. This may
cause the damage of the unit.
Note:
Before installation, please inspect the unit. Be sure that nothing inside the package
is damaged.
4. Installation & Initial Startup
English

EN 5
Note:
If backlight shuts off, you may activate it by touching the screen.

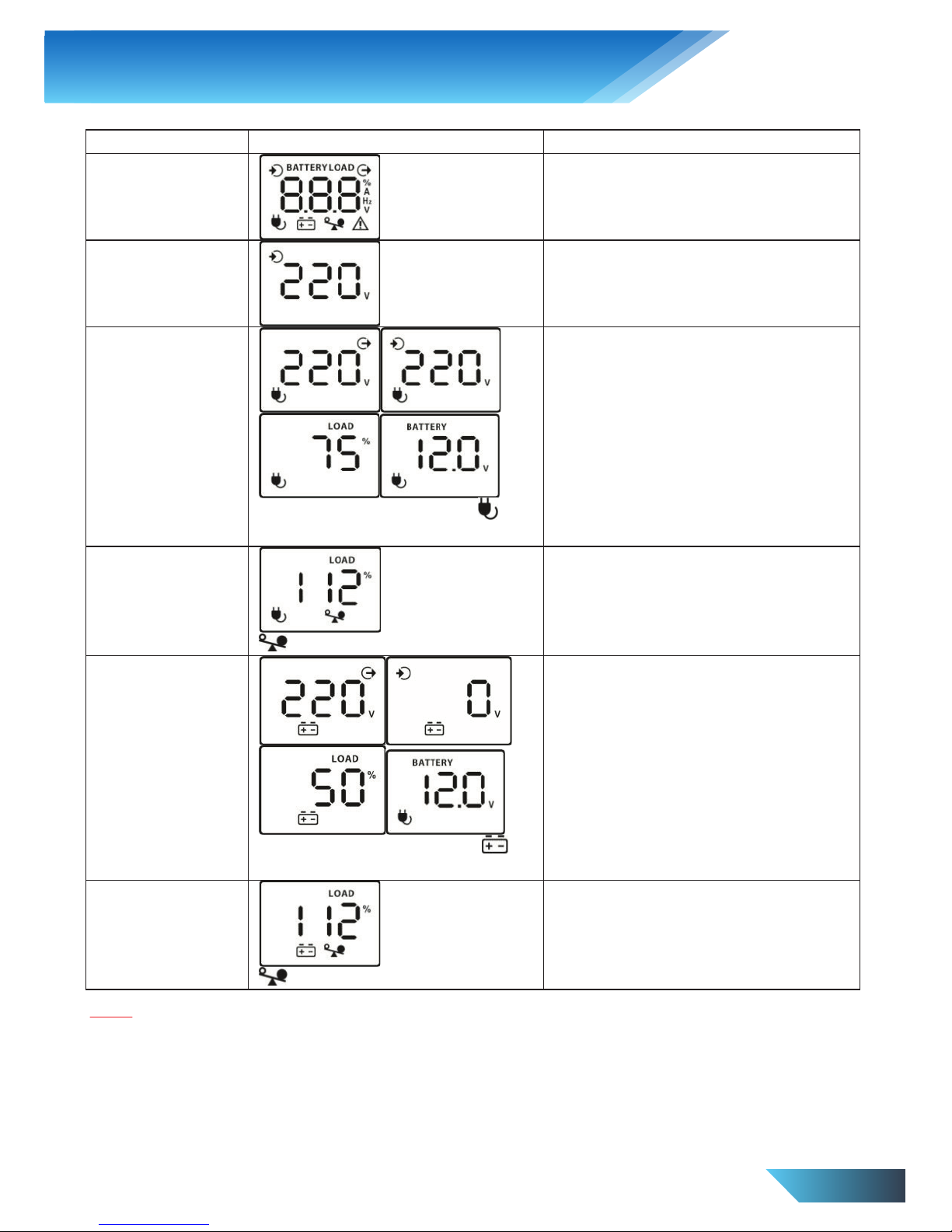

5. LCD Operation
UPS Mode
LCD
Description
UPS Power on
When UPS is powered on, it will
enter this mode for few seconds.
Standby Mode
Only input voltage is displayed even
LCD is touched again.
AC Mode
When AVR is functioning,
icon will flash every second.
LCD information will be displayed in
the following order when LCD is
touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery voltage
Overload in AC
mode
icon will flash.
When overload occurs, alarm will
beep every 0.5 second.
Battery Mode
When battery level is low,
icon will flash.
Alarm will beep every 10 seconds
and LCD information will be
displayed in the following order
when LCD is touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery voltage
Overload in
battery mode
icon will flash.
When overload occurs, alarm will
beep every 0.5 second.

EN 6
Use the table below to solve minor problems.
Please follow steps below to download and install monitoring software:
Go to the website http://www.power-software-download.com
Click ViewPower software icon and then choose your required OS to download the software.
Follow the on-screen instructions to install the software.
When your computer restarts, the monitoring software will appear as an orange plug icon
located in the system tray, near the clock.
1.
2.
3.
4.
7. Troubleshooting
6. Software Download & Installation
English
Problem
Possible Cause
Solutions
No words displayed on
the front panel.
Low battery.
Charge the UPS for at least 6 hours.
Battery fault.
Replace the battery with the same
type of battery.
The UPS is not turned on.
Press the power switch again to turn
on the UPS.
Alarm sounds
continuously.
UPS fault.
Please check fault code table for the
details.
When power fails,
back
-up time is
reduced
.
The UPS is overloaded.
Remove some critical load.
Battery voltage is too low.
Charge the UPS at least 6 hours.
Battery defect. May be due to
high temperature operation
environment,
or improper
operation
of battery.
Replace the battery with the same
type of battery.
The mains supply is
normal
, but the UPS i
s
operating in
battery
mode.
Power cord is loose.
Reconnect the power cord properly.
If any abnormal situations occur that are not listed above, please call for service immediately.

EN 7

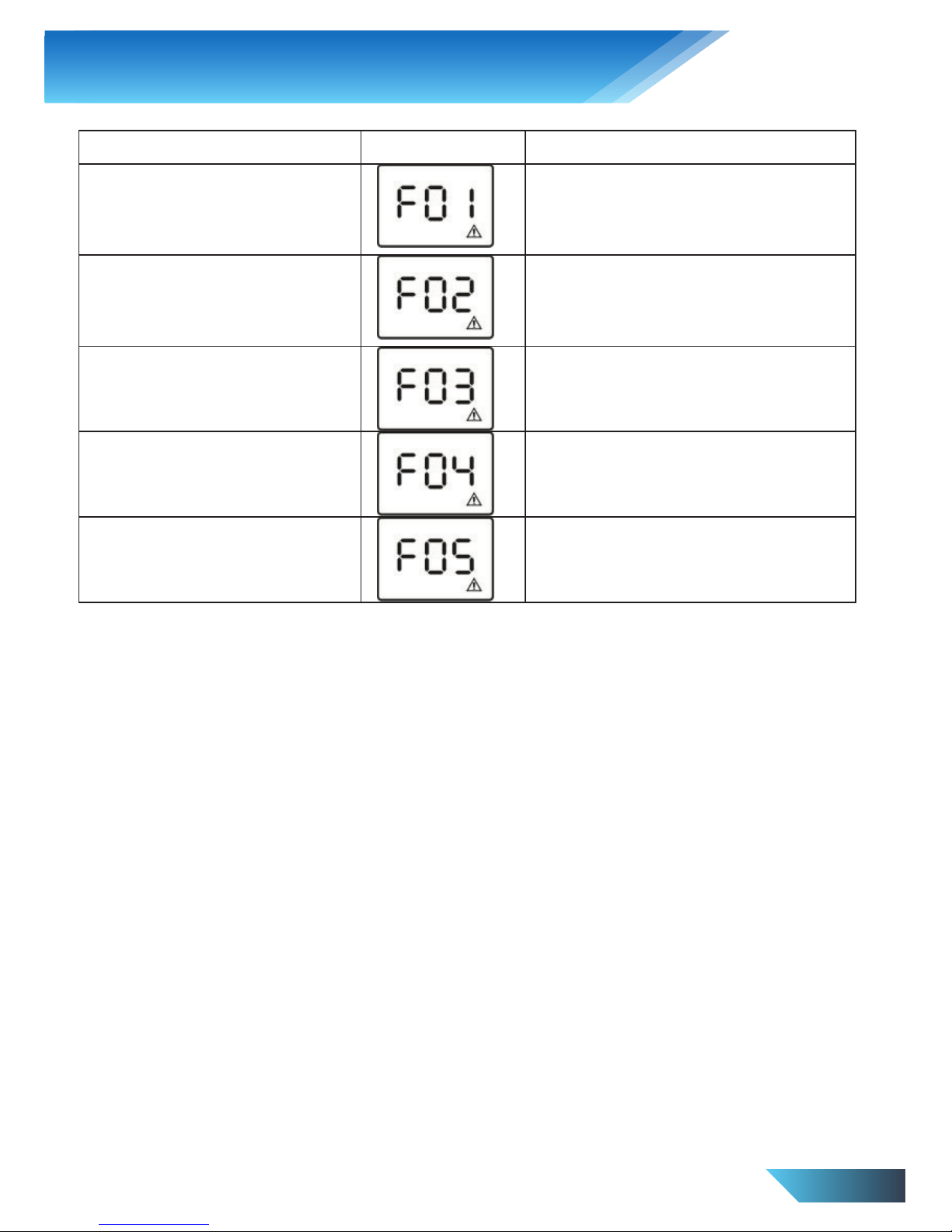

8. Fault Code
Fault condition
LCD
Solutions
Output short circuited
Disconnect short-circuited loads
and restart the UPS again.
Overload fault
Disconnect all output loads and
restart the UPS again.
Overcharge
Call for service immediately.
Bad or severely
discharged battery
Please replace the battery.
High output voltage fault
Call for service immediately.
If fault alarm occurs, please call for service immediately.

EN 8
9. Specifications
English
Model
PRO700SFT/SFTU
PRO850 SFTU
PRO1200SFT/SFTU
CAPACITY
650 VA
850 VA
1200 VA
INPUT
Voltage
230 VAC
Voltage Range
140~300 VAC
Frequency Range
50/60Hz (Auto sensing)
OUTPUT
Voltage Regulation
+/ -10% (batt mode)
Frequency Range
50 or 60 Hz +/ -1 Hz
Transfer Time
2-8 ms
2-6 ms, 10ms (max)
Waveform
Simulated Sine Wave
BATTERY
Type & Number
12 V/ 8.2 AH x 1
12 V/ 10 AH x 1
12 V/ 8.2 AH x 2
Charging Time
2 - 4 hours recover to 90% capacity
INTERFACE
USB Port
1
(only applicable for SFTU models)
DISPLAY
LCD Display
Input voltage, output voltage, battery voltage, load level and UPS status
PHYSICAL
Dimension
(DxWxH) mm
287 x 10 0 x 142 350 x 146 x 160
Net Weight (kgs)
4.25
4.9
8
ENVIRONMENT
Humidity
0-90 % RH @ 0 -40° C (non -condensing)
Noise Level
Less than 40 dB
MANAGEMENT
Via USB connection
(only applicable for
SFTU models)
Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
#1
#1
Note:
#1: Only applicable for model PRO700SFTU, PRO850SFTU and PRO1200SFTU.

ID 1
1. Peringatan Penting Keselamatan
PERHATIAN:
Untuk mencegah resiko kebakaran atau sengatan listrik, pasang pada daerah yang suhu dan
kelembabannya terkontrol (Lihat spesifikasi untuk rentang suhu dan kelembaban yang
ditentukan.)
Untuk mengurangi resiko overheating dari UPS, JANGAN menutup ventilasi UPS dan
menempatkan pada daerah yang terkena sinar matahari langsung atau menempatkan dekat
dengan peralatan yang memancarkan panas.
JANGAN menghubungkan perangkat yang tidak berhubungan dengan computer, seperti
peralatan medis, oven microwave, atau vacuum pembersih pada UPS.
JANGAN menyambung input UPS ke output UPS itu sendiri.
JANGAN biarkan cairan atau benda asing masuk kedalam UPS. JANGAN menempatkan
minuman atau cairan dekat dengan unit.
Dalam keadaan darurat, tekan tombol OFF dan cabut kabel power dari sumber listrik untuk
memastikan UPS benar benar dalam kondisi tidak aktif.
JANGAN menambatkan power strip/surge pada UPS.
Jika UPS menggunakan casing dari bahan logam, untuk tujuan keselamatan, grounding
menjadi keharusan disaat menginstal UPS untuk mengurangi kebocoran arus dibawah
3.5mA.
Perhatian tersengat listrik sangat berbahaya. Juga dengan melepaskan unit ini dari sumber
listrik, tegangan berbahaya masih tersimpan pada baterai. Kabel baterai juga harus dilepas
disaat melakukan perawatan atau perbaikan UPS jika diperlukan.
Perbaikan pada baterai harus dilakukan oleh personil yang memiliki pengetahuan tentang
baterai dan tindakan pencegahan jika diperlukan. Jauhkan dari personil yang tidak mengerti.
Ketika mengganti baterai, gunakan nomor dan jenis baterai yang sama.
Tegangan baterai internal adalah 12VDC. Sealed, lead-acid, baterai 6-cell.
JANGAN membuang baterai kedalam api. Baterai dapat meledak. JANGAN membuka atau
merusa baterai. Elektrolit yang terlepas berbahaya bagi kulit dan mata.
Cabut UPS sebelum melakukan pembersihan dan JANGAN gunakan deterjen cair atau spray.
Baterai dapat menimbulkan resiko sengatan listrik dan hubungan singkat. Perhatikan
beberapa pencegahan berikut sebelum mengganti baterai:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
i.
ii.
iii.
iv.
v.
Lepaskan jam tangan, cincin, atau benda logam lainnya.
Gunakan alat yang terisolasi.
Pakailah sarung tangan dan sepatu bot dari bahan karet.
Jangan meletakan peralatan atau logam diatas baterai.
Cabut kabel yang terhubung langsung ke sumber listrik sebelum menyambung/mencabut
kabel terminal pada baterai.

Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
3
4Output receptacles
5USB port
6RJ11 Ports:
Modem/Fax Protection
Catatan:
Jika salah satu item di atas tidak dikemas dalam paket anda ketika terbuka, silakan, berkonsultasi dengan reseller
anda segera.
3. Ikhtisar
1
2
3
4
Front View Rear View
PRO700SFT/PRO700SFTU
PRO850SFTU
1
2
Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
3
4Output receptacles
5USB port
(hanya untuk SFTU model)
Satu (1) unit of Line Interactive UPS
Satu (1) piece Lembar Panduan Singkat
FOR PC ONLY
5
1
2
3
4
Front View Rear View
5
6
ID 2
2. Isi Perangkat
Indonesian

Legend:
LCD display
(Refer to LCD Operation for details)
1
Power Switch
2
AC Input
RJ45/RJ11 Ports
3
4
Output receptacles
5
6
USB port
(hanya untuk SFTU model)
PRO1200SFT/PRO1200SFTU
Front View Rear View
1
2
5
6
3
4
ID 3

ID 4
4. Instalasi Dan Sebelum Memulai
Hubungkan Kabel Komunikasi
Untuk memungkinkan untuk auto shutdown/startup pada UPS dan monitoring status,
sambungkan kabel komunikasi pada port USB lalu ke port komunikasi pada PC anda. Dengan
software monitoring yang terinstal, anda dapat membuat jadwal untuk menshutdown/start-up
dan memonitor UPS anda melalui PC.
Menghidupkan/Mematikan Unit
Menghidupkan UPS dengan menekan tombol power. Mematikan UPS dengan menekan kembali
tombol power.
Penempatan & Penyimpanan
Penempatan UPS sebaiknya berada pada daerah yang bebas debu dan memiliki sirkulasi udara
yang baik. Harap menempatkan UPS minimal 20 cm dari unit yang lain untuk menghindari
interferensi. JANGAN menjalankan UPS disaat suhu dan kelembaban berada diluar batas yang
telah ditentukan. (Silahkan periksa spesifikasi untuk mengetahui batasan.)
20cm 20cm
Sambungkan ke Listrik dan Charging
Sambungkan kabel power ke sumber listrik. Untuk hasil yang
terbaik, disarankan untuk mencharge baterai minimal 6 jam
sebelum digunakan. Unit akan tercharge ketika terhubung ke
sumber listrik.
6 Hours
Menghubungkan ke Beban
Sambungkan beban pada konektor output yang berada pada panel belakang UPS. Hidupkan
tombol power UPS, dan kemudian perangkat yang terhubung ke UPS akan terlindung oleh UPS.
PERHATIAN:
JANGAN menghubungkan printer laser atau scanner ke UPS. Hal ini akan
menyebabkan kerusakan unit.
Catatan:
Sebelum melakukan instalasi, mohon unit diperiksa. Pastikan tidak ada yang rusak
didalam kemasan.
Indonesian

Note:
If backlight shuts off, you may activate it by touching the screen.
UPS Mode
LCD
Description
UPS Power on
When UPS is powered on, it will
enter this mode for few seconds.
Standby Mode
Only input voltage is disp layed even
LCD is touched again.
AC Mode
When AVR is functioning,
icon will flash every second.
LCD information will be displayed in
the following order when LCD is
touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery voltage
Overload in AC
mode
icon will flash.
When overload occurs, alarm will
beep every 0.5 second.
Battery Mode
When battery level is low,
icon will flash.
Alarm will beep every 10 seconds
and LCD information will be
displayed in the following order
when LCD is touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery voltage
Overload in
battery mode
icon will flash.
When overload occurs, alarm will
beep every 0.5 second.
5. LCD Operation
ID 5

ID 6
Use the table below to solve minor problems.
Please follow steps below to download and install monitoring software:
Go to the website http://www.power-software-download.com
Click ViewPower software icon and then choose your required OS to download the software.
Follow the on-screen instructions to install the software.
When your computer restarts, the monitoring software will appear as an orange plug icon
located in the system tray, near the clock.
1.
2.
3.
4.
7. Permasalahan
6. Software Download & Instalasi
If any abnormal situations occur that are not listed above, please call for service immediately.
Ganti baterai dengan jenis yang
sama.
Tekan saklar daya lagi untuk
menghidupkan UPS.
Masalah Kemungkinan Solusi
Tidak ada LED yang
menyala pada panel
depan.
Baterai lemah. Charge UPS minimal 6 jam.
Baterai rusak.
UPS belum dihidupkan.
Alarm secara terus
menerus berbunyi
ketika sumber listrik
normal.
UPS overload.
Lepaskan beberapa beban yang
terhubung ke UPS. Sebelum
dipasang kembali, harap pastikan
beban masih dapat diterima oleh
UPS yang sesuai pada spesifikas.
Ketika sumber listrik
terputus, waktu
back-up sangat
pendek.
UPS overload. Lepaskan beberapa beban critical.
Tegangan baterai sangat rendah. Charge UPS minimal 6 jam.
Baterai rusak. Mungkin
disebabkan karena suhu
ruangan yang tinggi, atau
operasi yang tidak layak pada
baterai.
Ganti baterai dengan jenis yang
sama.
Listrik normal tetapi
LED berkedip. Kabel power longgar. Hubungkan kembali kabel power dengan benar.
Indonesian

ID 7
8. Fault Code
Fault condition
LCD
Solutions
Output short circuited
Disconnect short-circuited loads
and restart the UPS again.
Overload fault
Disconnect all output loads and
restart the UPS again.
Overcharge
Call for service immediately.
Bad or severely
discharged battery
Please replace the battery.
High output voltage fault
Call for service immediately.
If fault alarm occurs, please call for service immediately.

Model
PRO700SFT/SFTU
PRO850 SFTU
PRO1200SFT/SFTU
CAPACITY
650 VA
850 VA
1200 VA
INPUT
Voltage
230 VAC
Voltage Range
140~300 VAC
Frequency Range
50/60Hz (Auto sensing)
OUTPUT
Voltage Regulation
+/ -10% (batt mode)
Frequency Range
50 or 60 Hz +/ -1 Hz
Transfer Time
2-8 ms
2-6 ms, 10ms (max)
Waveform
Simulated Sine Wave
BATTERY
Type & Number
12 V/ 8.2 AH x 1
12 V/ 10 AH x 1
12 V/ 8.2 AH x 2
Charging Time
2 - 4 hours recover to 90% capacity
INTERFACE
USB Port
1
(hanya untuk SFTU model)
DISPLAY
LCD Display
Input voltage, output voltage, battery voltage, load level and UPS status
PHYSICAL
Dimension
(DxWxH) mm
287 x 10 0 x 142 350 x 146 x 160
Net Weight (kgs)
4.25
4.9
8
ENVIRONMENT
Humidity
0-90 % RH @ 0 -40° C (non -condensing)
Noise Level
Less than 40 dB
MANAGEMENT
Via USB connection
(hanya untuk SFTU
model)
Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
#1
#1
Note:
#1: Only applicable for model PRO700SFTU, PRO850SFTU and PRO1200SFTU.
9. Spesikasi
ID 8
Indonesian

PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and
company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes without prior
notice. © Copyright 2014. PROLiNK® all rights reserved.
Worldwide Customer Care Centers
INDONESIA Office
PT PROLiNK INTIDATA NUSANTARA
Walk-In : Jl. Cideng Barat No. 79, Jakarta Pusat 10150, Indonesia.
Telephone : [phone]
Email Support : [e-mail]
MALAYSIA Office
FIDA SYSTEMS (M) SDN BHD
Walk-In : 29 Jalan USJ 1/31, 47600 Subang Jaya, Selangor Darul Ehsan, Malaysia.
Telephone : [phone]
Email Support : [e-mail]
SINGAPORE Office
FIDA INTERNATIONAL (S) PTE LTD
Walk-In : Block 16 Kallang Place #06-02, Kallang Basin Industrial Estate, Singapore 339156.
Telephone : [phone]
Email Support : support@fida.com
Technical Support Hotline
INDONESIA : [phone]
MALAYSIA : [phone]
SINGAPORE : [phone]
Note: Closed on Saturdays, Sundays and local/regional Public Holidays.
Register Online For Your Product Warranty @ www.prolink2u.com/register
