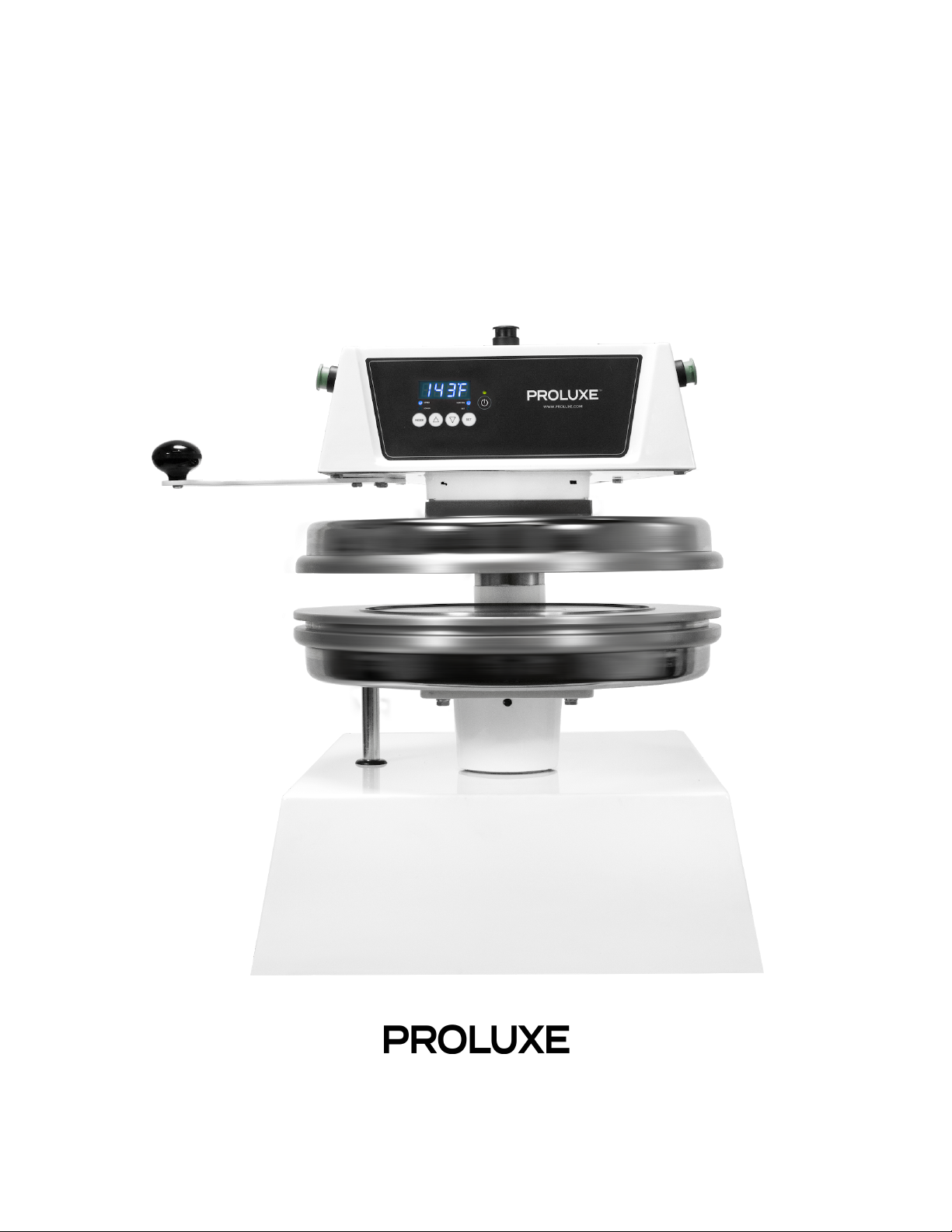

Proluxe Apex Pro X2M User manual
/
Operations Manual
Apex Pro X2M - Hydraulic Dough Press with Interchangeable Molds
Model #: DP2350M
WWW.PROLUXE.COM
Version: 103020
/
Congratulations on your selection of
the Apex Pro X2M Automatic Dough
Press. Proluxe is a leading
manufacturer of food preparation
and cooking equipment designed for
the most demanding commercial
kitchens. Proluxe equipment is a
result of the highest quality
engineering and time-tested design.
This manual includes installation,
operation, and maintenance
procedures for your new Apex Pro
X2M Dough Press. Please read this
manual carefully and keep it with
your machine for proper operation
and lasting service.
I N S T A L L A T I O N
Domestic
Use a separate 30 amp AC circuit. Only
industrial extension cords with proper wire
size should be used; size 16/3 wire for
distance up to 25 feet, and size 14/3 for
distance up to 50 feet.
International
Use a designated 16 amp AC circuit. Only
industrial extension cords with proper wire
size (2.5 sq. mm) shall be used. Make sure
there is a proper electrical wall outlet located
within reach of the cord and plug attached to
the press.
Make sure there is a proper electrical wall
outlet located within reach of the cord and
plug attached to the press. Then place the
press in an area which allows for “swing
clearance” of the lower platen plus vertical
and horizontal clearance of the press itself.
Limited Machine Warranty
Proluxe warrants this dough press machine,
when operated under normal conditions, to
be free from manufacturing defects in
material and workmanship for a period of
one year on parts and labor from the invoice
date.
This warranty will be effective only when
Proluxe authorizes the original purchaser to
return the product to the factory in Perris,
California freight prepaid and only when the
product, upon examination, has proven to be
defective. This warranty does not apply to
any machine that has been subjected to
misuse, negligence or accident. Proluxe shall
not be liable for the injury, loss or damage,
direct or consequential, arising out of the use
or the inability to use the product. No claim
of any kind shall be greater in amount than
the sale price of the product or part to which
claim is made. This is the sole warranty given
by the company, it is in lieu of any other
warranties, expressed or implied, in law or in
fact, including the warranties of
merchantability and fitness for a particular
use, and is accepted such by the purchaser in
taking delivery of this product.
S P E C I F I C A T I O N S
Electrical:
208V/50-60Hz/4600W/22.11 Amps
Requires 30 AMP outlet
Also available; specify when ordering:
●Voltage: 208/220
●Amps: 22.11/20.9
●Watts: 4600/5146
Includes: 72” cord and 6-30P NEMA
approved plug.
Shipping Weight:
200lbs. (82kg.)
Poids d'expédition:
200lbs. (82kg.)
I N T E R N A T I O N A L S Y M B O L S
Symboles internationaux
Power Off
éteindre
Power On
allumer
Hot Surface
surface chaude
Risk of Electrical Shock
Risque de choc électrique
Protective Earth Terminal
Borne de terre de protection
Caution - Warning
chaud - avertissement
S A F E T Y S U M M A R Y
Warning
To reduce the risk of electrical shock, do not
remove or open cover. No user-serviceable
parts inside. Refer servicing to qualified
personnel.
Avertissement
Pour réduire le risque de choc électrique, ne pas
retirer ou couvercle ouvert Aucune pièce
réparable par l’utillsateur, reportez-vous à du
personnel qualifié.
Warning
In case of power cord damage, do not
attempt to repair or replace the power cord.
Please contact the manufacturer or the local
distributor.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Warning
For continued protection against fire and
electric shock, replace with the same type
and rating fuse. Listed Supplemental Fuse
rated max 3A, 120Vac.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Caution Hot
Avoid touching hot surfaces while operating
the machine.
Attention à chaud
Évitez de toucher les surfaces chaudes lorsque
vous utilisez la machine.
Caution
When servicing or cleaning the machine,
make sure that the power cord is removed
from the wall socket.
During normal operation, the base of the
machine must be installed or placed above
the wall socket.
Avertissement
Lors de l'entretien ou du nettoyage de la
machine, assurez-vous que le cordon
d'alimentation est débranché de la prise murale.
O P E R A T I O N T E M P E R A T U R E
& T I M E R C O N T R O L
FIG. A
Solid State Controller
This controller has three control features:
1. Temperature – May be set from
100°F-425°F (38°-163°C) Factory default is
200ºF.
2. Time – Time may be set from 1 second to
10 minutes.
3. Counter – Cycle counter counts the
number of applications from 1 to 9999 (see
additional Notes – Counter).
4. 2 Lower (Fig. A) Refers to models using
upper and lower heated surfaces.
Controller Operation
1. Viewing the Modes of Operation:
To view the set points of temperature, timer
and counter, press MODE button to view the
desired mode of operation.
2. Changing Temperature:
Press MODE button until temperature is
displayed.
Press and hold SET button while pressing the
UP (↑) and DOWN (↓) arrow buttons to
desired temperature setting.
Fahrenheit/Celsius Conversion:
The temperature controller can be
programmed to display either ºF or ºC. Press
the MODE button until the temperature is
displayed . Then push a hold the SET button
for 10 seconds.
3. Changing Time:
Press MODE button until time is displayed.
Press and hold SET button while pressing the
UP (↑) and DOWN (↓) arrow buttons to
desired timer setting.
2. Set the timer in accordance with the
following information:
●2-4 seconds –For warm dough with
moderate yeast content.
●2-6 seconds – For room temperature
dough with moderate yeast content.
●6-8 seconds – For cold dough right
out of the refrigerator with low yeast
content.
4. Resetting the Counter:
Press MODE button until the counter is
displayed.
To reset the counter (# of cycles),
simultaneously push UP (↑) or DOWN (↓)
arrow buttons (approx. 5 seconds).
D O U G H P R E S S I N G
O P E R A T I O N S
Pressing Dough:
For best results, your dough should be
proofed before pressing, but it will also press
directly out of your refrigerator. Flour should
NOT be dusted on any part of the machine.
1. Check to see if you have the correct type
of electrical current or serious damage could
occur.
2. Press the power button, the green light
above will illuminate when powered on.
3. Set your desired temperature on the
control panel by using FIG. A and the
instructions above. We recommend a
temperature of 150ºF. Testing with your own
dough may desire a different setting.
Note
: Heat is provided in the upper and lower
platens enable the dough to flow more rapidly in
the pressing cycle. The heat IS NOT intended for
baking
.
4. Swing open the upper platen and apply a
quick spray of a good water based food
release on the platen.
5. Place your pre-portioned ball of dough in
the approximate center of the lower platen.
Add another spray to the top of the dough
ball.
6. Close the platen and, with both hands,
press the two green buttons on each side of
the machine simultaneously.
7. Hold the buttons in until it beeps then
release both buttons. The timer will actuate
and, when the time cycle is completed, the
platens will release automatically. (Timer is
factory preset for six (6) seconds.
Instructions to change the timer is found
above under Controller Operations.)
9. Remove the finished product by rotating
the upper platen until you have proper space
to remove your dough.
10. Remove the crust, place on a pan or peel,
add toppings and bake.
R E C O M M E N D E D S E A S O N I N G
& C L E A N I N G P R O C E D U R E S
Before use you must properly season your
platens to prevent your dough from sticking.
Tools Required:
●Food release
●Soapy water solution
●Washcloth
●Paper towels
DO NOT use steel wool or harsh abrasives, it
will you will cause costly damage.
1. Before cleaning make sure the unit is
turned off.
2. Spray lower platen with approved
food release/oil spray.
3. Wipe oil across lower platen with
paper towel.
4. Wipe oil across upper platen.
5. Mix a warm dish soap and water
solution.
6. Soak washcloth and wring to remove
excess water.
7. Wipe lower and upper platen with
damp cloth.
P R E V E N T A T I V E
M A I N T E N A N C E
Proluxe machines are relatively maintenance
free. For a long lifespan, the following
preventative maintenance should be
followed:
Daily Care:
1. Platens: Turn your machine off and allow
to cool down before attempting to clean.
These platens should wiped clean of any
debris or dough buildup to ensure proper
pressing.
2. Exterior surfaces: Wipe daily with mild
soap and warm water.
DO NOT use ice or cold water to cool the
unit down. This can cause platen to warp and
void warranty.
Service Problems:
Contact our factory at (800) 624-6717 (U.S.
only) or approved service agency. When
contacting the factory for information, parts
or service instructions, please provide the
serial number of the machine be provided.
This number can be found on the serial plate
located on the rear of the machine.
Refilling Hydraulic Oil:
Recommended ISO/AW46 Hydraulic oil
Capacity of Reservoir is 650 ml
Remove threaded breather, fill 200 ml at a
time and add as desired. Replace threaded
breather.
128
4X
4X
81
27
28 29
30
4X
20
51
50
55
4X
24
23
41
21
38
40
22
39
37
25
64
68
2X
1
2
66
2X
62 7
93
55 72
77
65
90
96
88
71
91
95
74
88
94
93
79
55
90
91
89
84
86 85
3X
59
61
58
42
31
60
4X
33
4X 32
4X
47
4X
43
48
4X
80
32
4X
8
33
2X 9
35
14
8
67
4X
34
73
69
4X
80
29 28
29
70
28
EXPLOSION VIEW
DP2350M (ML/MR)
101
102
EXPDP2350M (ML/MR) RH 103020
CUSTOMER MANUAL
87
89
87
94
79
87
89
89
84
97
87 86
98
92
104
79
4X
103
107
79
4X
14
2X
16
17
18
36
2X
112
82
113
4X 105
2X
33
2X
119
120
93
2X 121
2X
122
2X
123
118
87 117
78
124
109
18
A5
A1
A4
A3
A2
A5
A6
10/30/20
139
75
76
52
12
11
2X 56
56
14
3
54
6
4X 8
4X
4
9
10
129
67
63
8
50
74
74
53
44
8
4X
45
4X
EXPDP2350M (ML/MR) RH 103020
CUSTOMER MANUAL
5
46
110 2X
116
100
26
83
4X
57
57
111
126
4X
15
2X 114
2X 114
115
2X
51
2X
100
131 132 133
135
134
136
138
137
125
138
PROLUXE PARTS LIST FOR
DP2350M (ML/MR)
DP2350ME DP2350MCEC
208 ~ AC 220 ~ AC
1 BASE AND POST WELDING ASSEMBLY WITHOUT KEYWAY, DP2350M DP2080501 DP2080501 1
2 PISTON GUIDE WELDING ASSEMBLY WITHOUT KEYWAY, DP2350/DP2350M DP20807 DP20807 1
3 CYLINDER, HYDRAULIC - 40 MM BORE x 1.687 STROKE DP13140 DP13140 1
4 MOUNTING PLATE DP13105 DP13105 1
5 POWER SUPPLY, 24VDC / 85-265VAC DP13110 DP13110 1
6 ELECTRICAL BOX MOUNTING BRACKET DP13107 DP13107 2
7 PISTON RAM MACHINED DP2300 11023003001 11023003001 1
8 WASHER, SAE #8 WSAE8 WSAE8 11
9 SCREW, PHILLIPS PAN HEAD 8-32 X 1/4 SP83214 SP83214 6
10 PUMP MOUNTING BRACKET DP13108 DP13108 1
11 CONTACTOR, 12V GE DP13117 DP13117 2
12 TERMINAL BLOCK #11 60111 60111 1
13 MANUAL DP2350M MDP2350M MDP2350M 1
14 SCREW, PHILLIPS PAN HEAD 8-32 X 3/8 SP83238 SP83238 7
15 BOLT, HEX 7/16-20 X 1-1/2" BH71620112 BH71620112 2
16 WASHER, SAE 3/8 WSAE38 WSAE38 1
17 WASHER, LOCK 3/8 WL38 WL38 1
18 NUT, HEX 3/8-16 NH3816 NH3816 2
20 ARM MACHINED, DP2350 DP2082101 DP2082101 1
21 THRUST PLATE DP15404 DP15404 1
22 ADJUSTABLE SCREW 110230042 110230042 1
23 NUT, LOCKING JAM (MACHINED) 11070 11070 1
24 SCREW, SET 1/4-20 X 3/8 CONE POINT SST142038CP SST142038CP 1
25 BOLT, SHOULDER 3/8X2 11023003 11023003 1
26 FITTING, ZERK 1/8" PIPE B610 B610 1
27 HOUSING, MACHINING 11010252201 11010252201 1
28 CONTACT N/O SCREW TYPE, GE #P9B10VN 110101751 110101751 3
29 SWITCH, MOM P/S OP SCREW ON GE P9XPLOSO P9XPLOSO 3
30 BOLT, HEX 5/16‐18 X 2 1/2 G5 BH51618212G5 BH51618212G5 4
31 FACIA CONTROL PLATE 11086027 11086027 1
32 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 WLIT6 8
33 NUT, HEX 6-32 NH632 NH632 10
34 MARKER STRIP #6 MS6016 MS6016 1
35 TERMINAL BLOCK #6 6016 6016 1
36 SCREW, PAN HD 8-32 X 5/8" SP83258 SP83258 2
37 FUSE HOLDER 1 AMP MPPF708 MPPF708 1
38 FUSE BUSS 1 AMP MPPF701R MPPF701R 1
39 SCREW, PHILLIPS PAN 2-56x1/4 SP25614 SP25614 1
40 TRANSFORMER 11096975 MPPT700R 1
41 CLAMP, CABLE 3/4" #3332 CC34 CC34 1
42 OVERLAY-BLUE, DP1300/DP1350, DP2350/DP2300 ODP2350B ODP2350B 1
43 DIGITAL CONTROL REV. 5.06 DP139052 DP139052 1
44 BOTTOM COVER DP13154 DP13154 1
45 PAN HEAD SLOTTED 8-32 X 3/8" PLATED SPS83238 SPS83238 4
46 FEET, RUBBER RF209 RF209 4
47 NYLON SPACER, 1/4 X .141 X 9/32 LONG 110969111 110969111 4
48 WASHER, .311 OD X .150 ID X .20 THK 311150019 311150019 4
50 SCREW, SET 8-32 X 1 SST8321 SST8321 2
51 WASHER, INTERNAL TOOTH LOCK #8 WLIT8 WLIT8 4
52 MARKER STRIP #11 MS60111 MS60111 1
53 HYDRAULIC PUMP/MOTOR WITH OIL CANISTER (DP1350,DP2350) DP13149 DP13149 1
54 90 DEGREE ELBOW X-LONG FORGE DP13158 DP13158 2
ITEM #
DESCRIPTION
QTY.
DP2350M (ML/MR) RH 103020 CUSTOMER MANUAL
PROLUXE PARTS LIST FOR
DP2350M (ML/MR)
DP2350ME DP2350MCEC
208 ~ AC 220 ~ AC
ITEM #
DESCRIPTION
QTY.
55 BOLT, HEX 1/4-20 X 5/8" ZINC PLATED BH142058 BH142058 4
56 HYDRAULIC MOTOR HOSES DP13141 DP13141 2
57 SCREW BUTTON HEAD 3/8-16 X 1/2 SB381612 SB381612 2
58 HIGH TEMP. EDGE TRIM DP20804 DP20804 1
59 HANDLE, SWING AWAY 11023004501 11023004501 1
60 HEX BOLTS STAINLESS STEEL, 1/4-20 X 1/2 BH142012S BH142012S 3
61 KNOB, SWING AWAY (MUSHROOM) 110017 110017 1
62 SCREW, BUTTON HD 1/4-20 X 5/8" SB142058 SB142058 1
63 BOLT, HEX 5/16-18 X 1 BH516181 BH516181 2
64 COLLAR POST DP2300 1101751162301 1101751162301 1
65 NUT, HEX JAM 5/16-18 NHJ51618 NHJ51618 2
66 COLLAR, STOP PIN DP12504 DP12504 2
67 WASHER, SAE 5/16 WSAE516 WSAE516 6
68 WASHER, 5/16" SPLIT LOCK WL516 WL516 4
69 BOLT, HEX 5/16-18 X 1-1/2", GRADE 5 BH51618112G5 BH51618112G5 4
70 SCREW, SET CONE POINT 3/8-16 X 1/2 SST381612CP SST381612CP 2
71 SCREW, SET 1/4-20 X 1/2 SST142012 SST142012 1
72 ORING, #2-243 N-70 MPSS062 MPSS062 1
73 RELAY, SOLID STATE MPR90217 MPR90217 2
74 NUT, HEX 8-32 NH832 NH832 4
75 HEYCO STRAIN RELIEF 1/2" 3231 3231 1
76 POWER CORD 110573175 TP121176 1
77 COVER, LEVELING SPRING 11023002 11023002 1
78 BUSHING, ALIGNMENT 110415602 110415602 1
79 SCREW, SET 3/8-16 X 1/2 SST381612 SST381612 8
80 GREEN MUSHROOM BUTTON SCREW ON P9ARB3V P9ARB3V 2
81 BUTTON BLACK MUSHROOM SCREW ON GE P9ARB3N P9ARB3N 1
82 UPPER HEAT SHROUD 110230036 110230036 1
83 BRIDGE, PLUG IN, 2, RED, CROSS CONNECTIONS 110116920 110116920 2
84 SLEEVING, PVC WIRE OPVC1050 OPVC1050 1.91 FT
85 TERMINAL, QD 3/16 x 18-22 GA (PINK) 2280 2280 2
86 14- 16 GA #10 FORK TERMINAL ISUL. 1626 1626 2
87 TERMINAL, RING #8 14-16 GA (BLUE) 1604 1604 5
88 RTD SENSOR ASSEMBLY 110949110 110949110 2
89 WIRE, TGGT, 14 GA 110069 110069 13.25 FT
90 WIRE, TFE 14 GA GREEN WTFE14G WTFE14G 5.45 FT
91 TFE, SHRINK TUBING 7 AWG 110131 110131 .66 FT
92 PLUG, BUTTON 7/8, PLASTIC (BLACK) PB78P PB78P 1
93 WASHER, SAE #6 WSAE6 WSAE6 4
94 TERMINAL, RING #6 14-16 GA (HI-TEMP) 1601HT 1601HT 2
95 POST GUIDE DP2300 11023004 11023004 1
96 TERMINAL, RING #6 x 18-22 GA, RED MOLEX 2202 2202 2
97 TFE NON SHRINK TUBING 110133 110133 .50 FT
98 SHROUD, LOWER PLATEN DP2300 110230037 110230037 1
100 HYDRAULIC PORT FITTINGS (CYLINDER/PUMP) DP13121 DP13121 2
101 WIRE HARNESS (DP2350) DP13950 DP13950 1
102 POWER DISTRIBUTION CABLE (DP2350) DP13968 DP13968 1
103 SCREW, SET 1/4-20 X 1/4 SST142014 SST142014 1
104 SCREW, SOCKET HEAD 5/16-18 X 1 DOMESTIC SSH516181D SSH516181D 1
105 BOLT, LEVEL 11067 11067 4
107 GROMMET, RUBBER CS157, 3/4" ID 1.3/8" OD,1/8" 110103919 110103919 1
109 WASHER, SAE 1/4 WSAE14 WSAE14 4
DP2350M (ML/MR) RH 103020 CUSTOMER MANUAL
PROLUXE PARTS LIST FOR
DP2350M (ML/MR)
DP2350ME DP2350MCEC
208 ~ AC 220 ~ AC
ITEM #
DESCRIPTION
QTY.
110 RAIL LOCK DP13122 DP13122 2
111 8-32 X 1/4" PHIL. HD 100 DEG., SCREW STAINLESS STEEL SF83214S SF83214S 4
112 PROXIMITY SWITCH HOLE PLUG, (.875" , KOS LT 1/2 LD) DP13144 DP13144 1
113 SCREW, SOCKET HEAD 1/4-20X3/4" SSH142034 SSH142034 2
114
WASHER, SAE 7/16 WSAE716 WSAE716 4
115
WASHER, LOCK 7/16 WL716 WL716 2
116
NUT, CONDUIT 1/2 NC12 NC12 1
117
WIRE, TFE 14 GA. GREEN WTFE14G WTFE14G .91 FT
118
14-16 GA #6 FORK TERMINAL INSUL 1622 1622 1
119
SWITCH, MICRO ROLLER PLUNGER BZ2RQ18A2 BZ2RQ18A2 1
120
ROLLER MICROSWITCH MOUNTING BRACKET DP13905 DP13905 1
121
SCREW, PAN HD 10-32 X 3/8 SP103238 SP103238 2
122
SCREW PAN HEAD PHILLIP 6-32 X 1 SP6321 SP6321 2
123
WIRE, 20 GA. 10 STRAND, RED WR2010 WR2010 .58 FT
124
TERMINAL, FORK #6 18-22GA TF81822 TF81822 2
125
NUT, SELF LOCKING 7/16-20 NHSL71620 NHSL71620 2
126
TERMINAL RING 12-10 GA #6 1402 1402 4
127
SCREW, PAN HEAD PHILLIPS, 6-32 X 1/4", NICKEL PLATED SP63214 SP63214 2
128
WASHER, THRUST 11059 11059 1
129
SCREW BUTTON HEAD 3/8-16 X 3/4 SB381634 SB381634 2
131
ROUND PLUG DP17502 DP17502 1
132 ELBOW, MALE 3/8 BRASS 23038 23038 1
133 FITTING, EXTENSION DP131620 DP131620 1
134 GROMMET DP131010 DP131010 1
135 BREATHER VENT DP131011 DP131011 1
136
BOLT, HEX 3/8-16 X 1 BH38161 BH38161 1
137 WASHER, LOCK 3/8 WL38 WL38 1
138 WASHER, SAE 3/8 WSAE38 WSAE38 2
139 PUMP SPACER DP2700C1 DP2700C1 1
A1 KITTED, UPPER PLATEN COMPLETE ASSEMBLY DP20831208AK DP20831220AK 1
A2 KITTED, UPPER PLATEN WITH WIRING ONLY DP20831208K DP20831220K 1
A3 KITTED, LOWER PLATEN COMPLETE ASSEMBLY DP20832208AK DP20832220AK 1
A4 KITTED, LOWER PLATEN WITH WIRING ONLY DP20832208K DP20832220K 1
A5 START SWITCH ASSY MUSHROOM 11051845 11051845 2
A6 STOP SWITCH ASSY MUSHROOM 11051850 11051850 1
DP2350M (ML/MR) RH 103020 CUSTOMER MANUAL
/
Warranty & Return Policy
Proluxe warrants all products manufactured
by it against defects in workmanship or
materials from the date of purchase for a
period of 1 year on parts and labor. This
warranty applies to only equipment
purchased and used in the United States.
Warranty period shall begin when equipment
ships. Warranty travel will only be covered
for 60 miles.
ALL WARRANTY SERVICE CALLS MUST BE
APPROVED BY PROLUXE. IF THIS
PROCEDURE IS NOT FOLLOWED,
WARRANTY SERVICE WILL NOT BE
COVERED. WARRANTY SERVICE WILL BE
PAID ON STRAIGHT TIME, OVERTIME
WILL NOT BE COVERED.
E X C L U S I O N S
The warranties provided by Proluxe DO NOT
apply to the following:
●Damage due to misuse, abuse,
alteration, or accident.
●Improper or unauthorized repairs.
●Submerged in water.
●Damage in shipment.
●Equipment exported to foreign
countries.
Special Order Equipment and
Accessories
Cannot be canceled and are not returnable
unless defective within the terms of this
warranty.
In no event shall Proluxe be liable for
consequential damages arising out of the
failure of any of its products if operated
improperly or caused by normal wear or
damaged by operator abuse.
Limited Lifetime Warranty on
Heating Elements
If replacement is needed, Proluxe will send
the new part at no charge but labor will not
be covered unless the unit is still under the 1
year manufacturer warranty.
R E T U R N E D M E R C H A N D I S E
P O L I C Y
Should it become necessary to return any of
the company’s products, the following
instructions must be adhered to: First,
contact our customer service department for
approval and a return authorization number.
Please have the serial number of your item
available at that time. All merchandise must
be shipped freight prepaid by customer or
service agency. Subject to the inspection of
the product by the company, a restocking
charge of 20% of the Net purchased price
paid to Proluxe will be assessed.
Merchandise may not be returned for credit
without prior written approval of Proluxe.
Collect shipments will not be accepted. No
returns after 60 days of original shipment
date on machines. Purchased parts may not
be returned after 30 days. If upon inspection
by Proluxe or its authorized agent it is
determined the equipment has not been
used in an appropriate manner, has been
/
modified, or has not been properly
maintained, or has been subject to misuse,
misapplication, neglect, abuse, accident,
unauthorized modification, damage during
transit, delivery, fire, flood, act or war, riot or
act of God, then this warranty shall be
deemed null and void.
T E R M S & C O N D I T I O N S
1. Price List prices are suggested retail prices
and are shown in U.S. Dollars.
2. Terms of Payment: 1% 10 days, NET 30
days.
3. New Accounts : Satisfactory credit
information must be provided before open
account status can be extended.
Unless agreed otherwise, all shipments will
be made C.O.D., Cash in advance.
4. Pricing : Prices, specifications, model
numbers, capacities and accessories are
subject to change without notice.
5. F reight/Routing : Method of shipment will
be determined by Proluxe unless otherwise
advised by purchaser.
6. Damaged Claims : All merchandise shipped
at purchaser’s risk. Inspection must be made
by purchaser at time goods are received. If
goods are damaged, the PURCHASER shall
request that the agent of the transportation
company make a written notation on the
proper shipping documents immediately and
then file a claim for damages.
Note : Goods damaged in shipping are
non-returnable.
7. Returns : Machines may not be returned
after 60 days. Purchased parts may not be
returned after 30 days. A restocking fee of
20% will be assessed on non-warranty
returns.
8. Taxes : Prices indicated herein DO NOT
include State, Federal, Local or foreign taxes
or duties, nor do they include fees, permits,
insurance or other levies, all of which are the
responsibility of the purchaser.
9. All orders are subject to acceptance by
Proluxe.
10. Possession of this price list shall not be
considered an offer to sell.
This manual suits for next models
1
Table of contents
Other Proluxe Commercial Food Equipment manuals
Proluxe
Proluxe Apex X1 User manual
Proluxe
Proluxe DP2000CKE User manual
Proluxe
Proluxe Impact X1 User manual
Proluxe
Proluxe Endurance Pro X2M User manual
Proluxe
Proluxe DOUGHPRO DP2300CBE User manual
Proluxe
Proluxe TORTILLAPRO DP2000PAUB User manual
Proluxe
Proluxe DP2010SE User manual
Proluxe
Proluxe DP2000PRE User manual
Proluxe
Proluxe Endurance X1 User manual
Proluxe
Proluxe DOUGHPRO DP1300BP Series User manual
Proluxe
Proluxe DOUGHPRO DP2300E User manual
Proluxe
Proluxe FAST-FIRE'D BLAZE PIZZA DOUGHPRO DP1300BZ User manual
Proluxe
Proluxe DPR2000 User manual
Proluxe

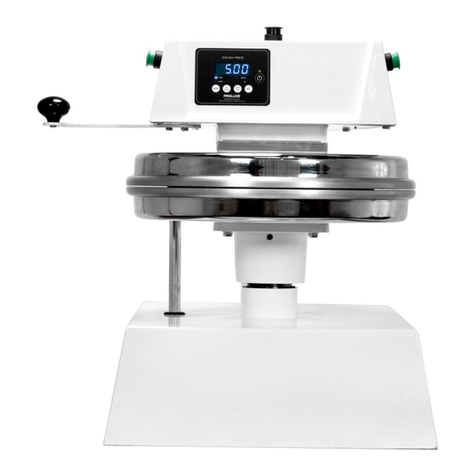

Proluxe Doughpro Apex Pro X2 User manual
Proluxe
Proluxe Endurance X2 User manual
Proluxe

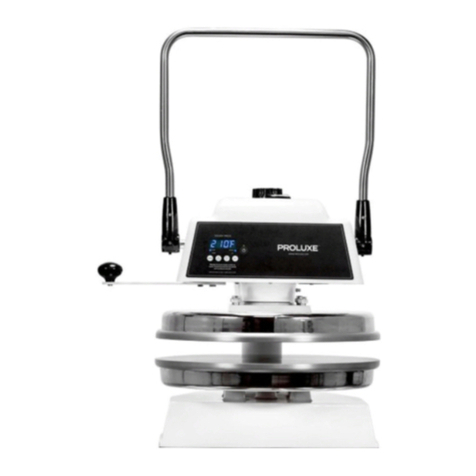

Proluxe PIEOLOGY DOUGHPRO DP2000PIP User manual
Proluxe
Proluxe DP2010ZPE User manual
Proluxe
Proluxe Impact X1 DP3300 User manual
Proluxe
Proluxe CS157 User manual
Proluxe
Proluxe Endurance X1 User manual
Popular Commercial Food Equipment manuals by other brands
Diamond
Diamond CT331/D-N Instructions for installation and use
LIVERYMAN
LIVERYMAN BLACK BEAUTY Instructions for use
Nordcap
Nordcap 437010313 INSTALLATION AND USE BOOKLET
Lotus
Lotus PC-74ETX Installation and operating instructions
JAC
JAC HF Translation of original user instructions
FPG
FPG visair+ product manual
Electrolux
Electrolux Frytop 1200 Installation and operating manual
Arneg
Arneg Lisbona Direction for Installation and Use
Angelo Po
Angelo Po 0N1CP1EL user manual
Royal Catering
Royal Catering RCSW 3.2B user manual
Henny Penny
Henny Penny Evolution Elite Gas 14X quick guide
saro
saro 453-1000 operating instructions
