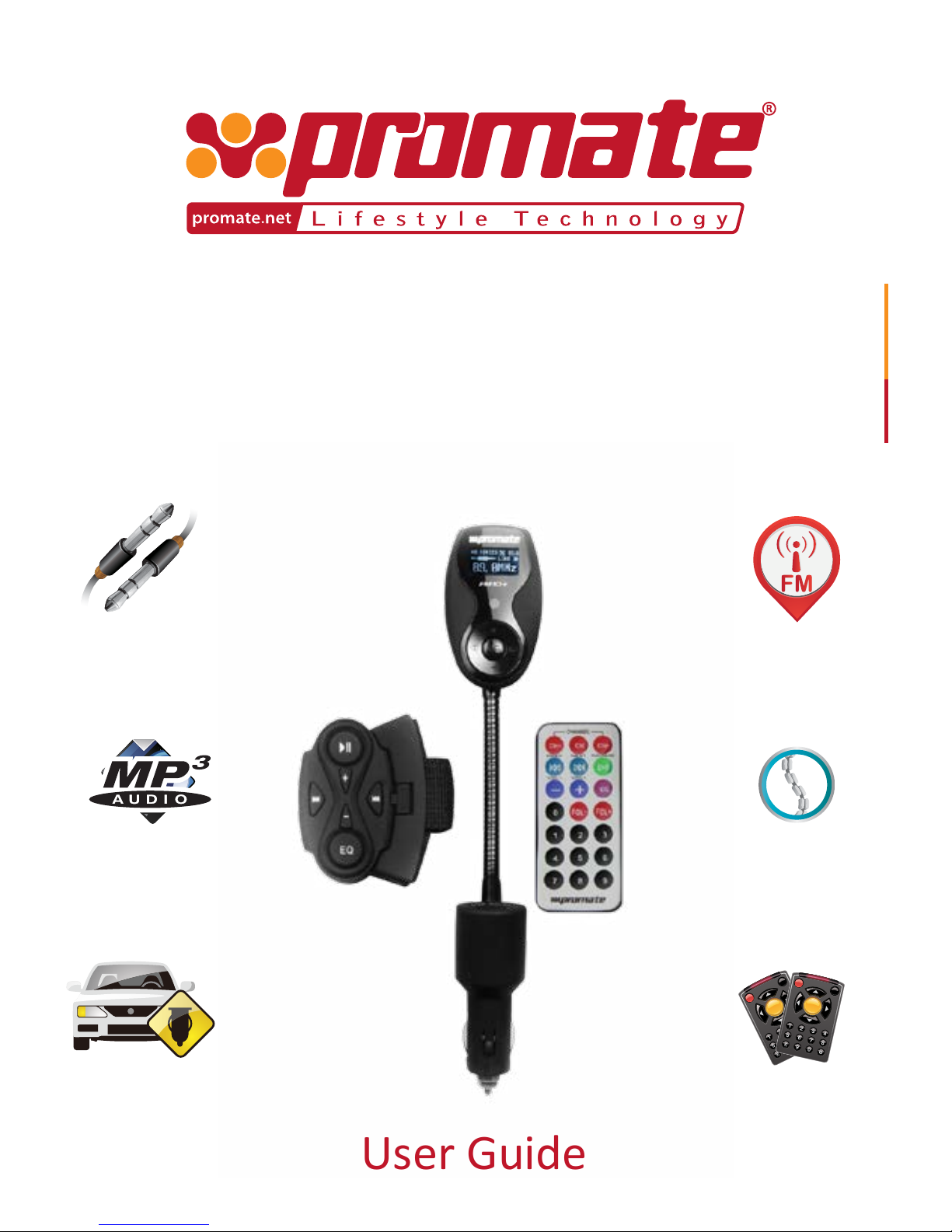

Promate FM10+ User manual

User Guide
FM10+
Multifunctional Car FM Transmitter and
USB Charger with Two Remote Controls
21 Key Remote
Flexible
Gooseneck
FM Transmitter
Reads
MP3/WMA
WMA
2.5mm
Stereo jack
Car Socket

1
Introduction
FM10+ is a clever little device allowing you to play your music through your car
stereo directly from your memory device, without having to connect any wires.
While playing your favorite music in the car, the FM10+ will also simultaneously
charge your smartphone via its USB port so there is no longer the need to worry
about battery life. The backlight 16-bit display allows you to see the file information
and frequency clearly, whether in day or nighttime light conditions, while the
flexible gooseneck design allows you to angle and adjust the FM10+ as you desire.
The FM10+ now has added features, such as a built-in equalizer that allows you to
select from such options as Rock, Classical, Normal, Pop, Jazz or Country in order to
make your music listening experience that extra bit more enhanced.
Features
• Read and play MP3/WMA music files from the SD/MMC card and USB flash disk
• USB Charging port for any USB chargeable device
• 16-bit LCD displays audio file information and current radio frequency
• Line-in function that enables you to enjoy music from the external audio device
such as CD or media player
• Flexible gooseneck design for easy device adjustment
• Previous frequency, track number and volume automatically saved and displayed
when the device is restarted.
• Various EQ options: Rock, Classical, Normal, POP, Jazz, Country
• Various circulation modes: All , Single, Folder, Random, Normal
Technical Specifications:
• Transmission range: 10 Meters
• FM channel range: 88.1 ~ 107.9MHz (Total 206 channels)
• Separation level: ≥40dB
• Distortion level: 0.3%
• Frequency response: 35Hz~20 KHz
• Support: USB, Audio cable (line-in/out)
• Output: AUX output connection
• Audio Interface: 2.5mm stereo jack
• Power requirement: DC 12V~24V (Car Lighter socket)

2
Packaging Content:
• FM10+
• Remote Control
• User Guide
• Audio Cable
• Extra Fuse
Precautions:
Please read this User Guide carefully before using the product. The contents herein
may be changed to deliver the better services to the end-user. To keep the perfect
performances of the product, never use it in cold, hot, dusty or moistened
environment, especially in the following conditions:
1. Moist or underwater conditions.
2. Conditions near a heater or high-temperature environment.
3. Conditions with direct sunshine.
4. Never dismantle this product without due permission, as this may nullify the
warranty clauses.
5. Operation voltage for the device is 12V~24V. Too high or too low voltage could
damage the product.
6. For safety purposes, please insert the USB flash disk or memory card before you
plug the product into the car socket.
7. Do not pull out or insert a USB flash disk or memory card while the device is
being powered by the car cigarette lighter. If you want to, remove the product from
the socket first and insert or remove the disk or card before you re-power the
product.

3
Installation:
• Insert FM10+ into the car lighter socket.
• Adjust the frequency of FM10+ to any open FM channel on your car stereo,
between 88.1-107.9MHZ.
• It is recommended to use an open channel that does not interfere with another
similar frequency in use in that area.
• Once synchronized with the car stereo, FM10+ can play music from many sources
including USB flash drive, SD/MMC cards, or line-in sources such as an MP3/MP4
player, CD player, or iPod.
• An AUX cable can also be used to connect the FM10+ directly to the stereo’s input
jack.
LCD Display
• In normal playing mode the screen displays the source media, current playing
time, playing mode and current frequency
• Press and hold the PRV/NXT button on the FM10+ or press the volume (+/-)
button on the remote to show the current VOLUME setting
• Briefly press the PRV/NXT button on the main unit or remote to display song
number.
• Press the PLAY button on the main unit or remote to display current playing status
• Press the EQ button to show EQ mode (Country, Normal, Rock, Pop, Classic and
Jazz)
• Press and hold the EQ button on main unit or remote to display repeat format (All,
Single, Folder and Random)

4
Channel set key: set the frequency after selecting the frequency directly by
number key. (For example, if you want to tune the frequency to 94.5MHz same
as your car radio, select the number key 0945 and press the CH button to
confirm.)
CH+/CH- key: adjusting the frequency with 0.1 MHz by short press; adjusting
the frequency quickly by long press.
PREV/NEXT key: select the previous song or the next one.
+/- Key: volume turn up or turn down
PLAY key: Play or Pause by short press, Long press to select circulation
mode.(ALL, ONE,RANDOM,FOLDER) 6. Number key: Select the song number
directly by pressing the number directly; Select the frequency by pressing the
number key first, then press the CH key to confirm.
EQ key: EQ optional, E1-E8 (E1:Nomal, E2:Rock, E3:Pop, E4:Ciassic, E5:Soft,
E6:Jazz, E7:DBB, E8:SRS)
Operations on the Remote Control
Channel Set
Previous/Next Song
Change Channel
Play/Pause
Vol+/Vol-
Number keys
choose channel & song
EQ mode change
Folder Change

5
EQ
Operations through the steering wheel remote control
USB Charger
5V,1A USB charger for your mobile phone, Bluetooth® headset,MP3/MP4
players and other digital products in the car.
• PRV/NXT button: Select previous or next song
• +/- button: Increase or decrease volume
• PLAY button: Toggles between play and pause mode
• EQ button: Press briefly to select one EQ preset mode (Country, Normal,
Rock, Pop, Classic, or Jazz)
• Press and hold to select repeat mode (All, Single, Folder, Random)
Play/Pause
Next Song
CH+
Previous Song
EQ Mode
CH-

Troubleshooting
Problem
The frequency display does not
light up when I install the device in
the car.
I cannot play the music on the
removable disk or memory card.
Reinsert the device to the cigarette
lighter. If the problem persists,
replace the safety fuse.
● Reload the music files
● Reinsert the removable disk or
memory card
● Reinsert the device into the cigarette
lighter socket
The display lights up, but the keys
don’t function
Reinsert the device to the cigarette
lighter.
Solution
The display lights up, but there is
no sound.
● Check whether the removable disk or
memory card is inserted well.
● Check whether the LINE-IN cable is
connected well.
● Check whether the music file is in a
supported format
● Adjust the volume.
There is noise when I tune to a
station
Make sure the frequency on the device
and the FM radio are the same.
6

7

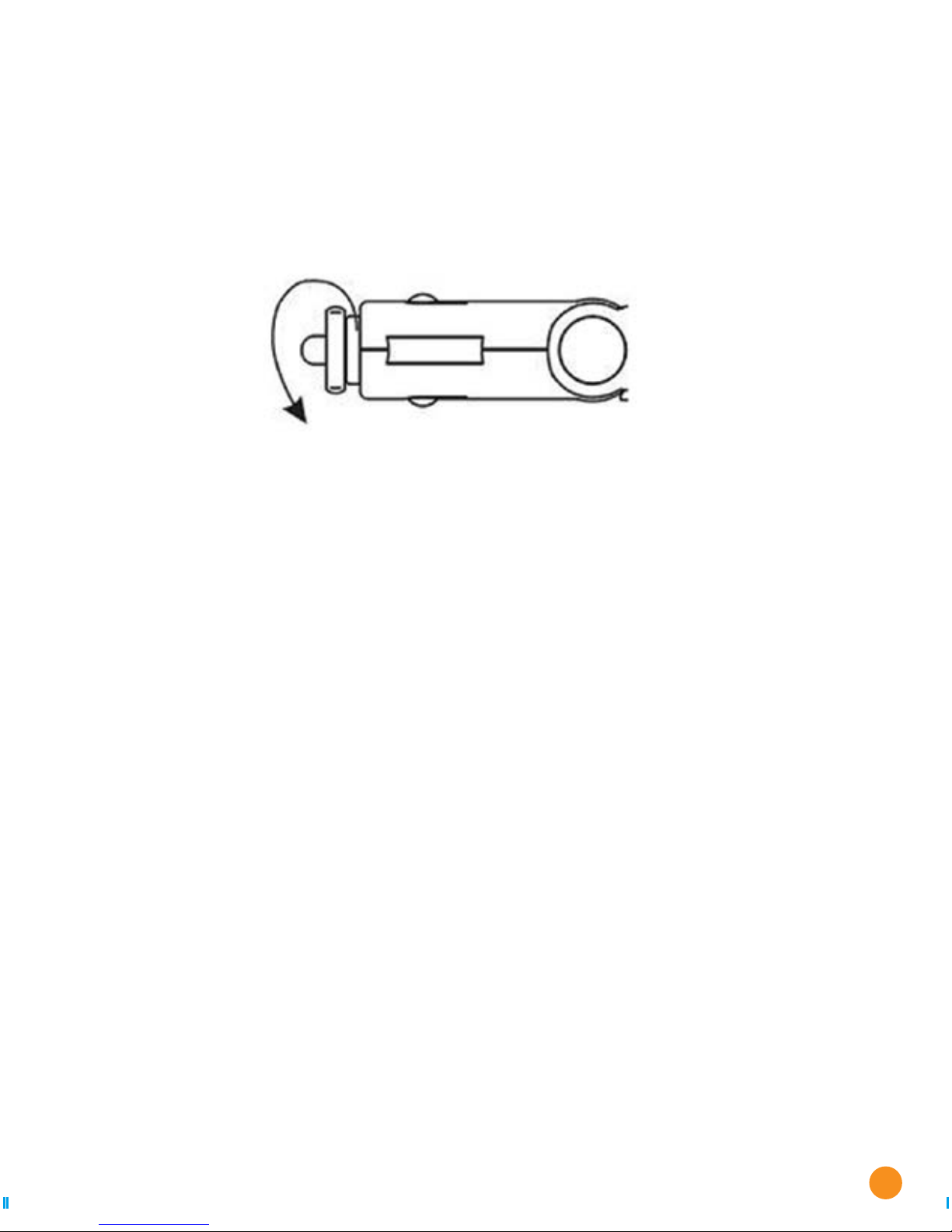

Safety Fuse Replacement
Faults or failures in the device may due to the safety fuse failure. If necessary,
please replace the safety fuse following these steps:
• Remove the device from the cigarette lighter socket.
• Twist the tip of the cigar plug.
Remove the bad safety fuse and insert a new one (there is an extra supplied in
the package)
