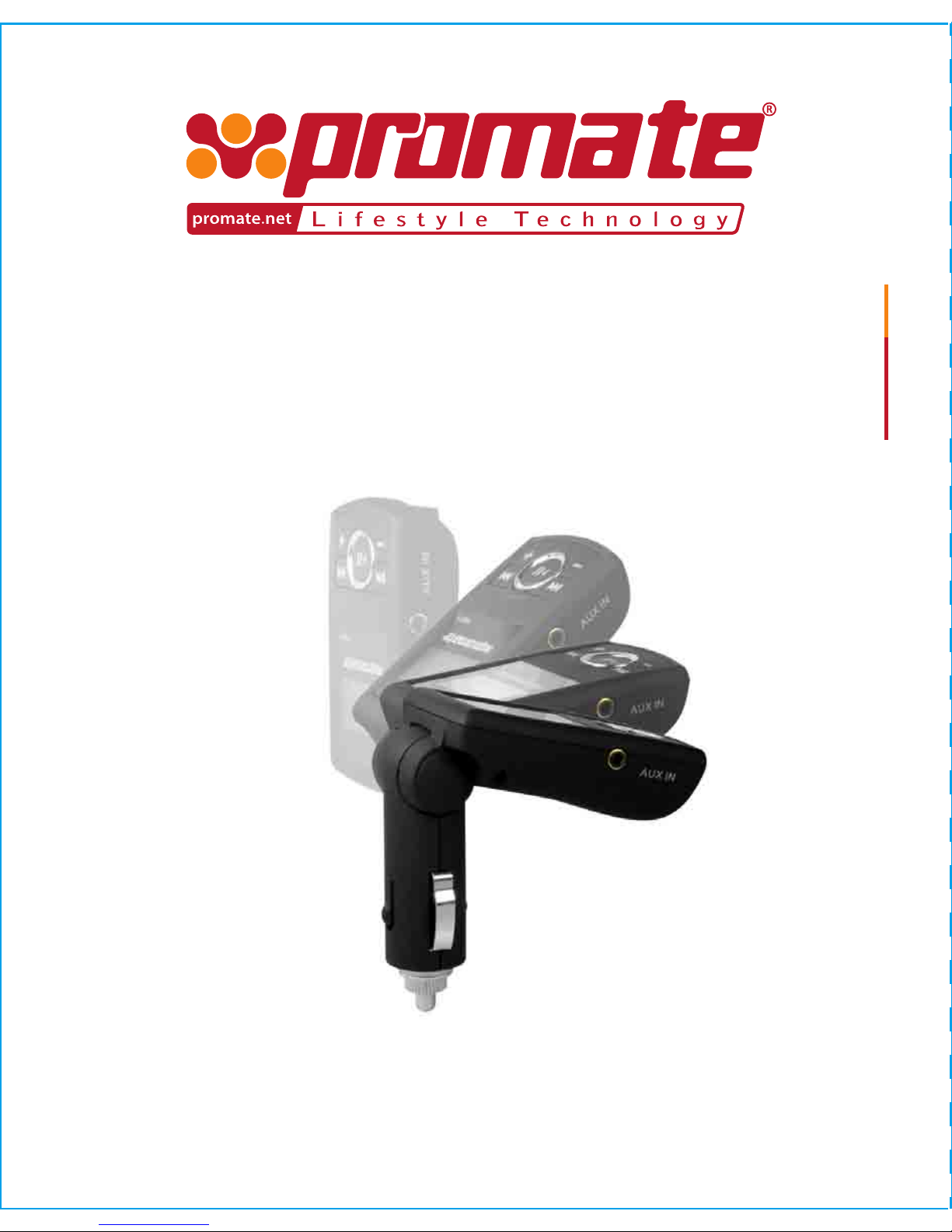

Promate FM11 User manual
User Guide
FM11
Mul-purpose Car FM Transmier
Promate FM11 is a top-of-the-line FM transmitter audio device which is designed
for safe driving while listening with high quality audio performance. This patented
design fits any car interior for safety and convenience. The unit is tuned to an open
channel on your car's stereo so you can play music from your MP3/MP4 player,
iPod, USB drives, SD/MMC (MP3 or WMA files). Its FM technology routes the
sound to the car stereo speaker for clean and clear sound. The large LCD screen
keeps you informed of music data and all functions can be accessed from the
remote controller..
• Patented fashionable design with unique multi-position controller
• User-friendly interface and clear LCD screen for complete information display
• Supports USB, SD/MMC cards, line-in and AUX-out function
• Reads all compressions of MP3/WMA files
• High strength full channel selection with 88.1 ~ 107.9MHz Mhz
• Select songs, channels, browse tracks, multiple EQ mode and jump songs from 21
key advance remote control
• Multi-channel EQ: Normal, Rock, Pop, Classic, Soft, Jazz, DBB, SRS)
• 21 key advance remote control, easy to operate with convenience to jump on
tracks even in large numbers
• Made from ABS plastic with rubber coating
• FM11
• Remote Control
• User Guide
• Warranty card
• Audio Cable
• Extra Fuse
Introduction
Features
Packaging Contents
Appearance & Interface Description
Installation
Insert the FM11 into the car lighter socket.
• Adjust the frequency of the FM11 to any open FM channel on your car
stereo, between 88.1 ~ 107.9MHz.
• It is recommended to use an open channel that is not in interference
with another similar frequency.
• Once synchronized with the car stereo, the FM11 can play music from
many sources, including USB flash drive, SD/MMC cards, or line-in
sources such as an MP3/MP4 player, CD player, or iPod.
An AUX cable can also be used to connect the FM11 directly to the
stereo’s input jack.
LCD Display
Line-in Jack
Prev/ Vol-
CH- CH+
Next/Vol+
Line-Out Jack
SD Card Slot
USB Slot
Play/Pause
LCD Display
time, playing mode and current frequency.
• Press and hold the PRV/NXT button on the FM11 or press the volume
(+/-) button on the remote to show the current VOLUME setting.
• Briefly press the PRV/NXT button on the main unit or remote to display
song number.
• Press the PLAY button on the remote to display current playing status.
Long press to select circulation mode (All, ONE,RND FOL)
• Press the EQ button on the remote to show EQ mode (E1: Normal, E2: Rock,
E3:Pop, E4:Classic, E5:Soft, E6:Jazz, E7:DBB, E8:SRS).
Operations on the Panel
• +/- button: Press briefly to adjust frequency in increments of 0.1MHz.
Press and hold to adjust frequency quickly.
• PREV/Vol-/NXT/Vol+ button: Press briefly to move between songs;
press and hold to adjust volume.
• PLAY button: Press briefly for playing/pausing current song
Operations on the Remote Control
Channel Set
Previous/Next Song
Change Channel
Play/Pause
Vol+/Vol-
Number keys
choose channel & song
EQ mode change
Folder Change
Technical Specification
1. Channel key: Set the frequency after selecting the frequency directly by
number key.
2. FL+/ FL- key: change the playing folder one by one.
3. CH+/CH- key: Adjusting the frequency with 0.1MHZ by short press, press and
hold to adjust frequency quickly.
4. PREV/NEXT key: Select previous or next song.
5. +/- Key: Volume Turn up or Turn down.
6. PLAY key: Play or Pause by short press. Long press to select circulation mode.
7. Number key: Select song by figure under normal playing state, Select the
Frequency directly by press the number key first, then press the CH key to
confirm.
8. EQ key: EQ optional, E1~E8
(E1: Normal, E2: Rock, E3:Pop, E4:Classic, E5:Soft, E6:Jazz, E7:DBB, E8:SRS)
Transmission range: 10 Meters
FM channel range: 88.1 ~ 107.9MHz (Total 206 channels)
Separation level: ≥40dB
Distortion level: 0.3%
Frequency response: 35Hz~20 KHz
Support: USB, Audio cable (line-in/out)
Output: AUX output connection
Audio Onterface: 2.5mm stereo jack
Power requirement: DC 12V~24V (Car Lighter socket)
Precautions
Please read this User Guide carefully before using the product.
The contents herein may be changed to deliver the better services to the
end-user. To keep the perfect performances of the product, never use it in cold,
hot, dusty or moistened areas or places, especially in the following conditions:
1. Moist or underwater conditions.
2. Conditions near the heater or high-temperature service.
3. Conditions with direct sunshine.
4. Conditions with apt falling.
5. Never dismantle this product without due permission, otherwise it may
nullify the warranty clauses.
6. Operation voltage for the device is 12V~24V. Too high or too low voltage
could
damage the FM11.
7. For safety purposes, please insert the USB flash disk or memory card before
you
plug the FM11 into the car socket.
8. Frequency of the car FM tuner should be the same as that of the FM11.
9. Do not pull out or insert a USB flash disk or memory card while the device is
being powered by the car cigarette lighter. If you want to, remove the FM11
from the socket first and insert or remove the disk or card before you re-power
the FM11.
Troubleshooting
If you cannot connect the headset with your phone:
• Ensure that the headset is charged, switched on, and paired with a Bluetooth™
mobile phone.
• Ensure that the Bluetooth™ function is activated on your phone.
• Check that the headset is within 10 meters (30 feet) from your phone and that
there are no obstacles between the headset and the phone such as walls or
other electronic devices.
Safety Fuse Replacement
When FM11 cannot work properly, it may be due to the safety fuse failure.
Please
replace the safety fuse following these steps if necessary:
• Remove the device from the cigarette lighter socket.
• Twist the tip of the cigar plug.
Remove the bad safety fuse and insert a new one.
The frequency display does not light upwhen
Iinstall the device inthe car.
Reinsertthe device to the cigaree
lighter.If
the problemsll exists,tryto
replace the
safety fuse.
Icannot play the musicon
the removable
diskor
memorycard.
Reload the musicfiles
:
•
Reinsertthe removable disko
r
memorycard
•
Reinsertthe device into the cigaree
lighter socket
The display lights up, but
the keys don’t
funcon
Reinsertthe device to the cigaree
lighter.
The display lights up, but
there is no sound.
•
Check whether the removable diskor
memorycard is inserted well.
•
Check whether the LINE
-
IN cable is
connected well.
•
Check whether the musicfile is ina
supported format
•
Adjustthe volume.
There is noise whenItune
to astaon
Make sure the frequency on the device
and
the FM radiois the same.
