Promax PROLITE-57 User manual

User's Guide to the PROLITE-57
PON Power Meter
v1.0 0 MI2029 (01/12/2014)
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

1
PROLITE-57
1. Introduction
1.1 Summary
PROLITE- is a portable, high quality PON optical
power meter. It is specifically designed to meet the
rapid growth of FTTx market with PON (Passive
Optical Network) technologies. It is capable to
measure all three signals (1310nm, 1490nm and
1550nm) that carry voice, data and video, so-called
triple-play applications along a single fiber.
can measure not only 1490nm and
1550nm optical signal, but also accurately detect and
measure the upstream burst at 1310nm sent from an
ONU while the ONU is in the idle mode. The simple
operation and accurate measurement make
becomes an ideal tool for PON
(suitable for APON, BPON, EPON and GPON
application) installation/acceptance test to ensure that
they meet required standards, and service activation
and troubleshooting.
PROLITE-
PROLITE-
57
57
57
2008-08-22 17:00:01
1310nm
1490nm
1550nm
ONU
OLT
VIDEO
1.2
4.5
-15.0
-
dBm
Pass
dBm
warning
dBm
Fail
mode
Threshold
dBm/dB
Time REF/SEL

2
1.2 Main Function and Specifications
Cost efficient palm size designed for field and lab testing.
Support P/F measurement and normal measurement.
Easy-to-use interface with large color TFT display for easy visibility and LED indicators.
Simply connect-and-display the results of all three wavelengths (1310/1490/1550 nm) of PON
signals with two optical ports
Detect and measure the upstream burst at 1310 nm.
Support APON, BPON, EPON and GPON networks.
Pass, Fail and Warning indicators for easy view of signal condition.
User definable threshold value (up to 10 sets) Auto power shut off.
Low battery warningUSB interface.
Real-time clockUnit runs either by Ni-MH battery for more than 20 hours continuously work or
AC/DC adapter.
PROLITE-57

Connector Type
Detector type
Measurement Range
(Continuous Datastream)
Burst measurement range
(1310 nm bursted signal)
Spectral Passband
Insertion Loss
Accuracy
Linearity
Display
Refresh Rate of Display
Threshold
Auto Power-off
Number of Ports
Operating Temperature
Relative Humidity
Power Supply
Battery life
Dimension
Net Weight
SC/APC, ST/APC
1310 nm 1490 nm
1.5 dB
±0.5 dB
±0.2 dB
2.8 inch TFT LCD
2.5 Hz
10 sets(configured via PC-based software)
Yes
-10 to +50°C
0%~95%,non-condensing
1.2V*4pcs Ni-MH AA;12V AC/DC Adapter
>20 hours
190 mm*105 mm*55 mm(L*W*H)
700 g
2 ports. One for 1310 nm (ONU)
and one for 1490 nm / 1550 nm (OLT)
with rubber protector
-40 dBm~+10 dBm -40 dBm~+10 dBm -40 dBm~+20 dBm
1310 nm 1490 nm 1550 nm
1260 nm~1360 nm 1480 nm~1550 nm 1539 nm~1565 nm
1550 nm
3
PROLITE-57
1.3 Specification:
-30 dBm~+10 dBm
InGaAs

4
PROLITE-57
3 Safety Information
SAFETY RULES
The safety could not be assured if the instructions for use are not closely followed.
Class II supply line with the
corresponding ground terminal
Overvoltage Category I Pollution Degree 1
INDOOR
specified
specified ratings
specified environmental conditions
The user is not allowed to carry
cleaning instructions
The external DC charger is a equipment, for safety reasons plug it to a
.
Use the mains adapter in and installations. To use
.
When using some of the following accessories use only the ones to ensure safety:
Power adapter
Observe all both of supply and measurement.
Use this instrument under the .
out the following maintenance operations:
Any change on the equipment must be carried out exclusively by technical staff.
Follow the described in the Maintenance paragraph.

Discharged batteries
AC operation
Note:
1.- When the battery power is almost out, there will be a
warning of indicator keeps blinking, then please replace
the batteries or plug in AC adapter to charge batteries.
2.- Please make sure that you have turned the instrument
on before charge the batteries, unplug the AC adapter
when the batteries are fully charged.
3.- Please make sure the batteries are well placed
before charge them.
4.- To eliminate the possibility of acid leakage, please
take out the batteries if the unit will not be used for a long
time
If the instrument is mainly used at one location, e.g. in a
laboratory or test department, the AC adapter can be
used to power it instead of batteries. There is a DC input
jack on the left side of the PL-57 instrument casing into
which the output cable of the AC adapter is plugged. And
when the AC adapter is plugged in, the AC Indicator on
the LCD will be displayed.
1.- Power is supplied by the AC adapter even if battery is
fitted. And the battery indicator is not displayed on the
screen when AC adapter is plugged.
2.- Make sure that the operating voltage of the AC
Adapter / Charger is the same as the local AC line
voltage.
PROLITE-57
5
Symbols related with safety:
Never look directly into optical outputs or a fiber while the
equipment is on.
Invisible laser beam may damage your eyes.
Specific Precautions
Descriptive Examples of Over-Voltage Categories
Cat I
Cat II
Cat III
Cat IV
Low voltage installations isolated from themains.
Portable domestic installations.
Fixed domestic installations.
Industrial installations.
DIRECT CURRENT
ALTERNATING CURRENT
DIRECT AND ALTERNATING
GROUND TERMINAL
PROTECTIVE CONDUCTOR
FRAME TERMINAL
EQUIPOTENTIALITY
ON (Supply)
OFF (Supply)
DOUBLE INSULATION
(Class II protection)
CAUTION
(Risk of electric shock)
CAUTION REFER TO MANUAL
FUSE
EQUIPMENT OR COMPONENT
TO BE RECYCLED

6
PROLITE-57
4. Preparing for Operation
Unpacking the instrument
Packing material
Checking the package contents
Checking for damage in transit
We suggest that you keep the original packing material. Using the original packing material is your
guarantee of protecting the instrument during transit.
The standard accessories of are as follows:
Main unit
Case strap
After unpacking the instrument, check to see whether it was damaged in transit. This is particularly likely
if the outer casing is clearly damaged. If there is damage, do not attempt to operate the instrument or to
repair it without authorization. Doing so can cause further damage and you may lose your warranty
qualification.
4*Ni-MH Batteries
Carrying Case CD(software)
User's Guide 2 SC & ST adaptors
3 Ferrules USB-USB mini cable
AC Adapter
PROLITE-57

2008-08-22 17:00:01
1310nm
1490nm
1550nm
ONU
OLT
VIDEO
1.2
4.5
-15.0
-
dBm
Pass
dBm
warning
dBm
Fail
mode
Threshold
dBm/dB
Time REF/SEL
7
PROLITE-57
5. Operation
Part 1
Video/OLTONU
Part 2
The front panel is divided in two parts:
– LCD Display
-
The tester shows test result on LCD screen, and in the meanwhile
indicates different status in part 2 by LED.
Tester connector types: SC/APC, ST/APC
Part I
Part II Keypad
5.1 Layout

8
P-ROLITE 57
5.2 Key’s Functions
Power Switch
Mode Key
Threshold
dBm/dB/Time
REF/SEL
– Press the key to Power On the unit. While the unit is in the state of power on, if pressing
down the key and release quickly (less than 2 seconds), the unit will switch to auto power off; if pressing
down the key for longer than 2 seconds, the unit will shut down. If the unit is in threshold setup, time setup
and backlit setup menu, the key becomes ESC key to exit the menu.
– test mode. It is used to switch the test mode - P/F test mode and normal test mode. When the
unit is in time setup, threshold setup and backlit menu, the key is used to increase value.
– It is used to set threshold. Pressing it down for more than 2 seconds enters threshold setup
menu. In threshold setup menu, press and release the key quickly (less than 2 seconds) to switch
wavelength. In time setup menu, this key functions as <left> arrow key.
– unit switching key. Press and release the key quickly (less than 2 seconds) to switch unit
between dB and dBm; pressing the key down for more than 2 seconds enters to time setup menu. In time
setup menu, threshold setup and backlit setup menu, the key is used to decrease value.
– It is used for reference value setup and selection. If pressing it down for more than 2 seconds,
the instrument will take current light intensity as reference to do measurement. If pressing and release the
key quickly (less than 2 seconds), then the key will function as <right> arrow key.

9
P-ROLITE 57
LEDs
Thresholds
Limit1 Limit2
Threshold1 Threshold2 Threshold3
also Limit2 < Threshold3 < Threshold2 < Threshold1 < Limit1 P
P < Limit2 Low LED RED
Limit2 < P < Threshold3, Fail LED RED
Threshold3 < P < Threshold2 Warning LED ORANGE
Threshold2 < P < Threshold1 Pass LED GREEN
Threshold1 < P < Limit1 Fail LED RED
P > Limit1 LED RED
Not only the instrument will display measured optical power value on LCD screen, but also under P/F test
mode its three LED indicators will function with following meanings:
The three LED indicators represent upstream 1310 nm (ONU), downstream 1490 nm (OLT) and 1550 nm
(Video) respectively. The RED color indicates Fail, ORANGE color is Warning and GREEN color means
Pass.
The definitions for the three states (Fail, Warning and Pass) are described as below:
If assuming the instrument’s measuring upper limit as and lower limit as , the “Pass” threshold
value in instrument’s internal setup are , as Warning threshold and as
Fail threshold, . value represents
measured optical power, then:
1.If , means the power is , the will indicate in ;
2.If means , the will indicate in ;
3.If , means , the will indicate in ;
4.If , means , the will indicate in ;
5.If , means , the will indicate in ;
6.If , means the power is High, the will indicate in .
5.3 Definitions

10
P-ROLITE 57
5.4 Quick Operation
1.
2.
3. Threshold REF/SEL
Connect the instrument to the optical link under test.
Press Power On key to turn on the instrument.
Pressing down key and key at same time enters to Backlit setup menu. Using ▲ and
▼ keys to adjust backlit to a suitable brightness then press Power key again to save the backlit setup and exit
Backlit setup menu.
4. Time REF/SEL
5. Threshold
6. Mode
7. test
Pressing key for more than 2 seconds enters to time setup menu. Using ▲ ▼ ◄, ► and
keys to setup time. After the setup, press Power key (less than 2 sec) to save the setting and exit.
Pressing key for more than 2 seconds enters to threshold setup menu. Select one group of
threshold from the preset list and press Power key (less than 2 sec) to exit.
Press key to select a test mode, and then the instrument will execute the test automatically and
display the test results on the LCD screen.
Power Off. After completing the , pressing Power key for more than 2 seconds to shut down the
instrument.
,,

11
P-ROLITE 57
5.5.1 Powering On the Instrument
Press the Power key to turn on the instrument. It will automatically go to test menu. In test menu,
press Power key and release quickly (less than 2 seconds) to activate or deactivate Auto shut
down function. The auto shut down function means the instrument will shut down automatically if
the instrument has not been operated for a certain period of time. The time period can be set. The
default is 10 min.
5.5 Detail Operation

12
P-ROLITE 57
5.5.2 Test mode switch:
In the test menu, press to switch between normal test mode and P/F test
mode.
Normal test mode means do not setup threshold value but display optical
power directly. In this mode, the LED indicators will not light. The results are

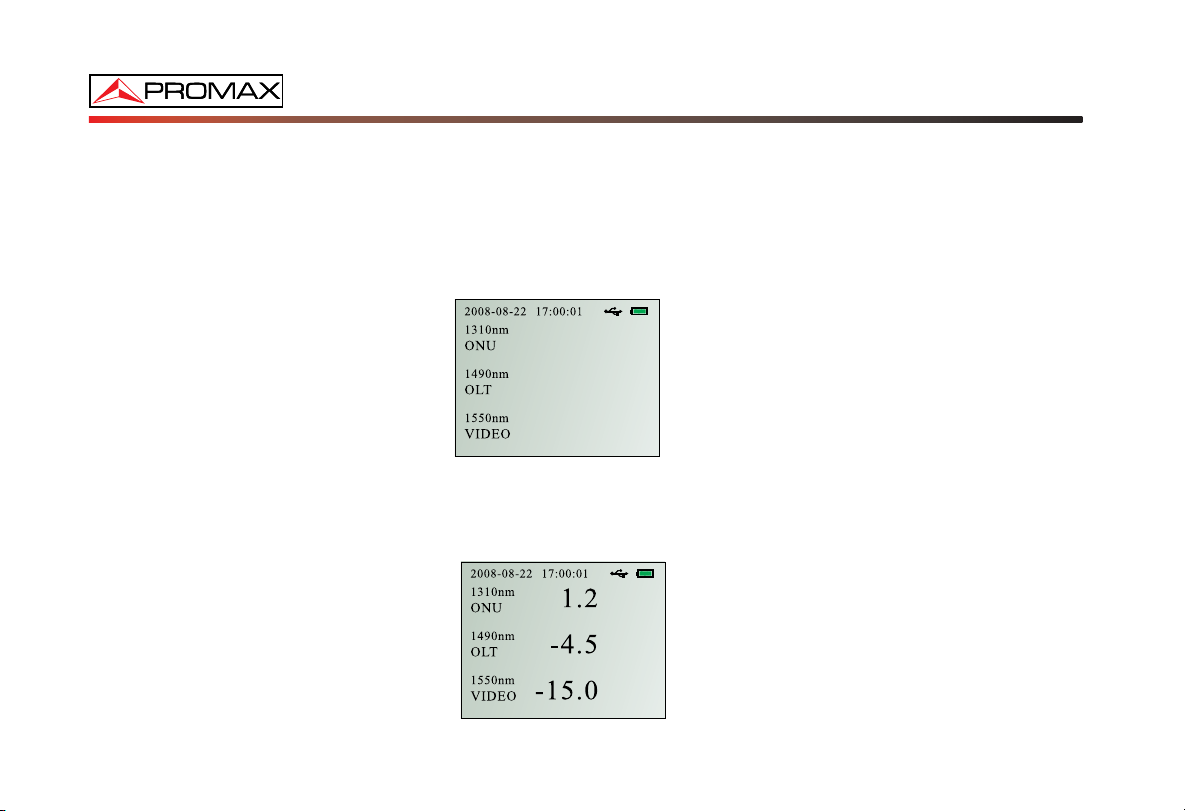

displayed in two units: dB and dBm using dB/dBm key to switch. See Fig. 1.
Unit dBm is to display the actual power
Unit dB is to display a power value relative to reference value. In this mode,
reference value needs to be preset correctly.
P/F test mode means the measured light power comparing to preset threshold
value to determine if the measured light power meets user’s requirement or
not. LCD will display the optical power and current state. The LED indicators
below the LCD display will also change color to match the current state of
measured light. This test mode is very useful in some special cases required.
See Fig. 2.
Mode
1. Normal test mode
2. P/F test mode
Auto off
Auto off
Fig.1 Normal Test Mode Menu (dB)
Fig.2 P/F Test Mode Menu

13
P-ROLITE 57
5.5.3 Threshold Setup
The user can setup the value. The steps are as following:
In the test menu, pressing key for more than 2 seconds enters to
threshold setup menu – see Fig. 3
In this menu, left side displays wavelength and right side displays threshold
value. Top line indicates system information (date & time) and bottom line
indicates the information of threshold including threshold symbol, threshold
number and name. In this menu, press and release key quickly
(less than 2 seconds) to switch the wavelength among 1310 nm, 1490 nm and
1550 nm. Press ▲ ( ) key to view previous record, ▼ ( ) key to
view next record, key to validate the current threshold value. After
above operation, all P/F mode test results will base on this threshold value.
After finishing the setup, press Power key (less than 2 sec) to exit the setup
menu.
Threshold
Threshold
Mode dBm/dB
REF/SEL
Note: The threshold value can only be preset by PC software. See PC
software section for detail.
Threshold Setup MenuFig.3
Threshold 01 Telecom
USING

14
P-ROLITE 57
5.5.4 Time Setup
Pressing key for more than 2 seconds enters to time setup menu, see Fig. 4.
In the time setup menu, the key becomes <left> arrow key and key becomes
<right> arrow key - using them to move cursor. When cursor moves to a number, the user can use ▲
( ) key to increase value and ▼ ( ) to decrease value. When cursor moves to “Yes” and
press key for more than 2 seconds, the “Yes” will flash, means the instrument accepts the
time change. During the time setup, the user can press Power key (less than 2 sec) to exit time
menu and back to test menu, then the system time setup remains unchanged.
Time
Threshold REF/SEL
Mode dBm/dB
REF/SEL
Fig.4 Time Setup Menu
Time Setup
08-10-25
15:02:03
Yes

15
P-ROLITE 57
5.5.5 Unit Switch
When the instrument is in normal test mode, pressing dBm/dB can switch unit between dBm and
dB. Here, the unit dBm is the actual power and unit dB is a power value relative to reference value.
Refer to next section about “Reference value setup”.
When the instrument is in the P/F test mode, pressing dBm/dB key will automatically exit P/F test
mode and switch to normal test mode. Its unit will be in dB.

16
P-ROLITE 57
5.5.6 Reference Value Setup
In the test menu, press key for more than 2 seconds, then the LCD will display in red (see
Fig. 5). This means the instrument choose the current light power as reference value. The test results
afterward are the values after comparing to this reference value. Now, the unit will be in dB and LED
below LCD display will not light.
In the test menu, press and release key quickly (less than 2 seconds), then current reference
value will appear on LCD display. See Fig. 6.
REF/SEL REF
REF/SEL
Auto off
REF
Fig.5 REF Value Setup Menu
Auto off
dBm
Ref
dBm
Ref
dBm
Ref
View REF Value MenuFig.6

17
P-ROLITE 57
5.5.7 Backlit Setup
Pressing and keys at same time enters to backlit setup menu. See Fig. 7.
In this menu, press ▲ ( ) key to brighten the backlit and ▼ ( ) key to weaken the backlit.
After completing the setup, press Power key (less than 2 sec) to save the setting, exit and back to the
test menu.
Threshold REF/SEL
Mode dBm/dB

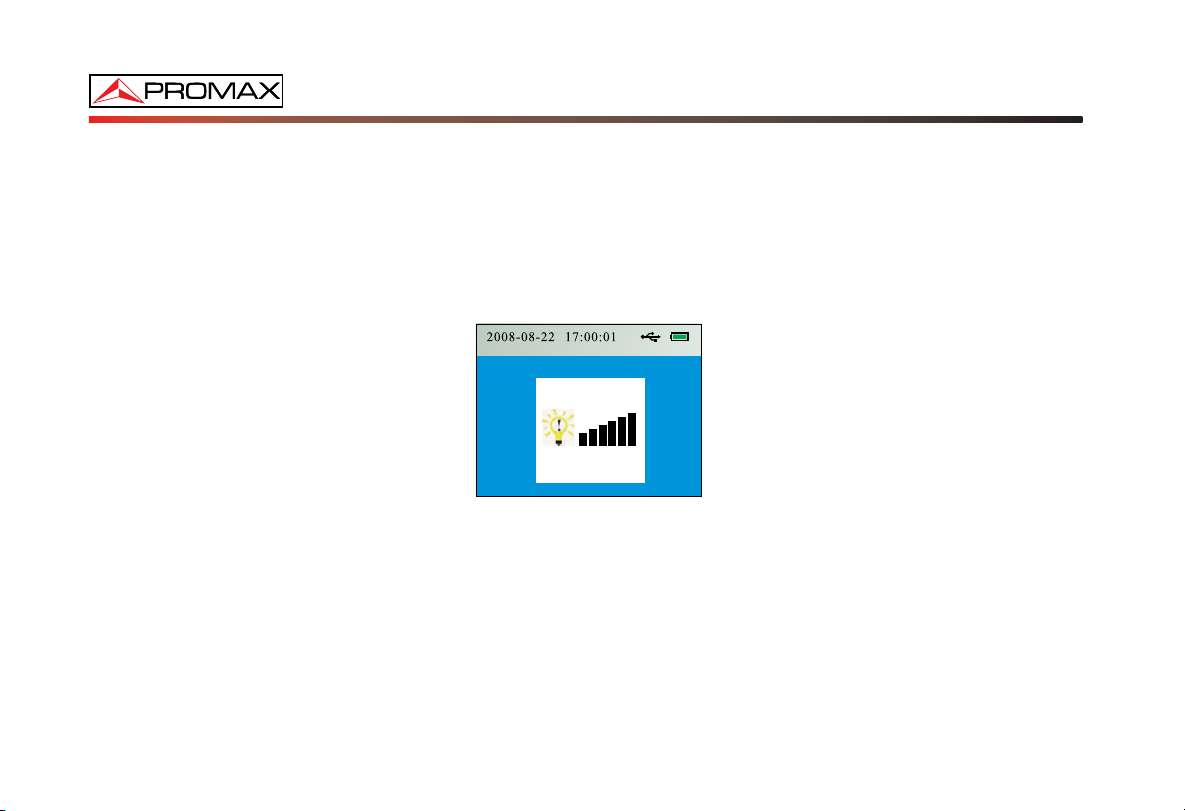

Backlit Setup MenuFig.7

18
P-ROLITE 57
5.5.8 Description of Memory Record Function
Description of Interface:
Displaying
At the main interface, it shows the current recording number on the left bottom
of the page:
: num : xxxx(xxxx means the current recording number, the
maximum number up to 1000 pieces ).
As you may refer to the picture 8,it means there are 24 pieces of test recording
inside.
Press the button for longer than 3 seconds to save the current testing
value, as you may refer to the picture 9, the recording number automatically
adds 1 when the interfaces shows "Save".
"mode"
Auto off
Low
Low
Low
num:0024
m
m
m
SAVE
Fig.8
Fig.9

19
P-ROLITE 57
At the " " interface(refer to picture 10), the characters on top of
horizon line are "total number of recording" and "wavelength"(from left to right).
The characters under horizon line are "the number of recording" and the optical
power value in accordance to the corresponding wavelengths
On the bottom of the page you may see the main menu
Simultaneously press to enter the "record view" interface,press the " "
shortly to exit it, refer to picture 10 for this interface.
At the "record view" interface,you may see the main menu on the bottom of the page,they are (from left
to right):
ESC X RST
There is an underline when you selected the menu ( the "ESC" has been chosen in picture 10),press
" " shortly to move the underline from left to right , after the underline moved to your ideal
menu,press " " shortly to execute it.
record view
Description of button
Threshold
REF/SEL
"Mode" "Threshold"and
RST
3
1:
2:
3:
1310
low
low
low
1490
low
low
low
1550
low
low
low
Esc X
Fig.10
