Prorelax TENS Back Pain User manual

TENS Back Pain Relief System
Terapie TENS contra dolores de espalda
Terapia TENS para alívio das dores lombardes
OPERATING INSTRUCTION
INSTRUCCION PARA EL USO
MANUAL DE INSTRUÇÕES

TENS back pain relief system
Table of Content
Introduction 3
Safety Information 4-5
Package Contents 6
Parts Diagram 7
Inserting/Changing the batteries 8
Putting on the belt 9-10
Turning On the device 11
Turning O the Device 11
Selecting the Treatment Time 12
Selecting the Program 13
Selecting the Therapy Intensity Level 14
Special Features 14-15
Trouble Shooting 16
Care and Maintenance 17
Disposal 17
Technical Specications 18
Warranty 19
Contact
2
IMPORTANT INFORMATION
PRORELAX TENS UNITS ARE PARTICULARLY SAFE AND USER
FRIENDLY. THE INTENSITY CAN THEREFORE ONLY BE ADJUSTED
WHEN THE TREATMENT BELT IS FASTENED AND THE ELECTRODES
ARE IN CONTACT WITH THE SKIN.

Thank you for purchasing our TENS BACK PAIN RELIEF SYSTEM. This pro-
duct has been designed for people who suer from muscular tension in their lower
back. The TENS BACK PAIN RELIEF SYSTEM ghts back pain the natural way with no
side eects. We want you to be totally satised with this product, which should help
you reduce your pain.
Your TENS BACK PAIN RELIEF SYSTEM is a Transcutaneous Electric Nerve
Stimulation (TENS) device. It provides treatment in the low frequency range. When
using this method, weak electrical pulses are produced onto the skin using two or
more electrodes.
This stimulates muscles, nerve bres and acupuncture meridians in order to activate
your body’s own pain relief mechanisms.
Chronic pain can be treated with dierent methods such as medication or opera-
tions or with alternative treatment methods such as acupuncture or TENS.
The TENS treatment can block pain signals by interrupting the transmission of
impulses through the skin by means of electric impulses. As a result, the signal “pain”
is not transmitted to the brain and thus not felt as pain.
Furthermore, it will work with the body’s own pain inhibitors; gentle electric currents
from the TENS device stimulate the release of endorphins that function as a pain
reducer. The pain is therefore stopped, eased or removed by the body itself.
This electrical stimulation cannot remove the causes of, or cure of a disease, but it
could help ease or block pain in the body.
In order to achieve all the benets from the
TENS BACK PAIN RELIEF SYSTEM , we ask you to carefully read the following
safety information and warnings.
Introduction
Dear Customer,
3

Safety Information
4
Safety Information
Use this device only according to its intended purpose as specied in this in-
struction manual. The warranty will be invalidated if the device is used for other
than the intended purpose.
Do not use the device if it is not operating correctly, if it has been dropped, if it has
fallen into water or if it has been damaged.
Do not attempt to repair the device yourself in the event of a malfunction; this will
invalidate the warranty. Repairs should only be executed by an authorized service
centre.
Do not operate this device near high-frequency transmitters, such as e.g., micro-
waves, short wave transmitters or radio transmitters.
These may impair the device’s ability to function.
Do not switch the device on until the belt has been xed on the body.
Do not use the device while taking a bath or a shower.
Do not use this device while sleeping.
Do not use this device while driving a car or another kind of vehicle or while
operating machinery or heavy equipment.
Protect the device from moisture. If liquid should get into the device, remove the
battery immediately and discontinue use. Should this happen, contact your dealer
or contact our customer service
Never use the device in rooms where aerosols (sprays) are used or pure oxygen is
being administered.
Battery Safety Information
Keep away from children.
Do not recharge.
Do not short-circuit.
Do not throw into a re.
Please recycle. Do not dispose of old batteries with your household waste;
dispose of them safely at your recycling centre or business where the batteries
were purchased.

Safety Information
5
THE DEVICE SHOULD NOT BE USED BY PATIENTS WITH:
• PACEMAKERS, DEFIBRILLATORS OR EXTREME CARDIAC
IRREGULARITIES
• METAL IMPLANTS OR ELECTRONIC AUXILIARY DEVICES
• DIABETES OR ABNORMALLY HIGH BLOOD PRESSURE
• A TENDENCY TOWARD INTERNAL BLEEDING
• PREGNANT WOMEN
Therapy with the TENS BACK PAIN RELIEF SYSTEM is a proven and
natural way of ghting pain, however, it does not replace medical diagnosis or
treatment. If you are not sure, you may consult with your doctor before using this
device.
Consult your doctor always before use, if you suer from epilepsy or certain
disabilities.
Persons whose sensitivity is disturbed or impaired should only apply this device
under supervision of your physician.
Do not use this device if suering from menstrual pains.
Do not use this device if your skin burns or is numb.
Pain relief treatment following injury or an operation should only be carried out
under the careful supervision and instruction of a doctor or physiotherapist.
Do not treat parts of the body that swell, burn or iname or have peeling skin,
wounds or other sensitive points.
In case of doubt, always seek the advice of a doctor and follow his instructions for
treatment.
Keep the unit out of the reach of children. Medical products are not toys!
Treatment should be monitored if used on or near children or persons who are
handicapped and only have a limited capability to use this device.
The treatment should be pleasant. If you feel pain or have an unpleasant feeling,
stop treatment and consult your doctor.

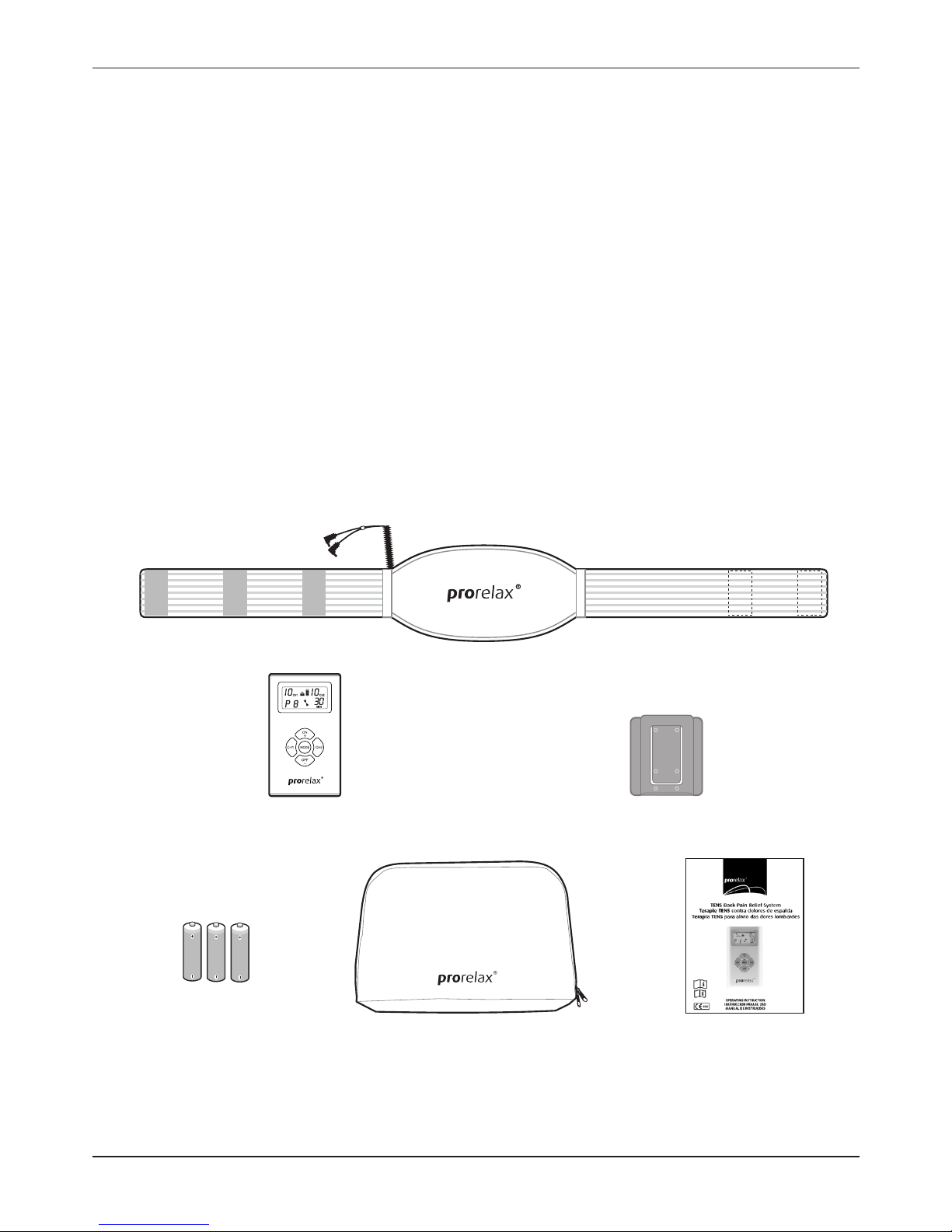

Package Contents
Package Contents
Before using this device, make sure that you have all components.
The TENS BACK PAIN RELIEF SYSTEM includes:
1. 1 belt
2. 1 TENS CONTROL UNIT
3. Clipholder
4. 3 AAA batteries
5. 1 storage bag
6. 1 instruction manual
23
4 5
1
5
8
7
9
17 18
11
14
6
10
12151613
3
2 1
4 4 3
6
6
The packaging can be reused
or recycled. Please dispose
of properly if no longer
required. If you notice any
damage from shipping,
please contact customer
service immediately.

Parts Diagram
Parts Diagram
1 Integrated Connection Cables
2 Conductive Silicone Pads
3 Belt
4 Velcro
5 Power on/adjust, increase key
6 Power o/adjust/decrease key
7 Program Mode/ Therapy time selection
8 CH 1 (Channel 1) Key
9 CH 2 (Channel 2) Key
10 Program number
11 Therapy time remaining
12 CH 1 intensity level
13 CH 2 intensity level
14 Therapy duration status
15 Lock status indicator
16 Battery status indicator
17 Battery compartment
18 Battery cover
2
3 4
5 6 7
1
5
8
7
9
17 18
11
14
6
10
12151613
3
2 1
4 4 3
7

Inserting/Changing the Batteries
1. Open the battery compartment [17] at the back of the device by pushing the
battery cover [18] labelled “Open” downward (this area features raised marks for
easy identication).
2. Insert 3 AAA (1.5 V) batteries in the battery compartment; make sure to match
up the symbols (+/–).
3. Close the battery cover by carefully placing the stud into the slot in the rear
area and sliding it upward, applying slight pressure.
4. Follow the same procedure when replacing the battery at a later date.
Note:
Always use only 3 x 1.5V (AAA) batteries. Please refer to “Battery Safety Information”,
for important precautions regarding the batteries.
Inserting/Changing the Batteries
2
3 4
5 6 7
1
5
8
7
9
17 18
11
14
6
10
12151613
3
2 1
4 4 3
8

Putting on the Belt
Putting on the Belt
1. Before putting on the belt, remove any residue of skin cream or ointment and
make sure that your skin is clean and free of oil.
Do not place the belt on injured or in amed areas of the skin, such as wounds,
spots, rashes or reddening.
2. Before use, dampen the integrated silicon electrodes with water or a con-
ductive gel.
3. Position the electrodes on the area of the body to be treated. If your back aches
at waist level; you are su ering from pain in the upper treatment area. Position
the belt so that the middle of the belt is at waist level.
9

Caution: Subjective perception of the electric current may alter with changing fre-
quencies or pulse widths. Lower the intensity as soon as the application becomes
unpleasant or the pleasant prickling sensation is not felt for a long period of time.
4. If your back pain is in the lower treatment area, position the belt so that the
middle of the belt sits approximately 1 to 2 inches below the waist.
5. When the belt has been maneuvred into the correct position, bring the two
ends of the neoprene straps together and fasten with the built-in Velcro pads.

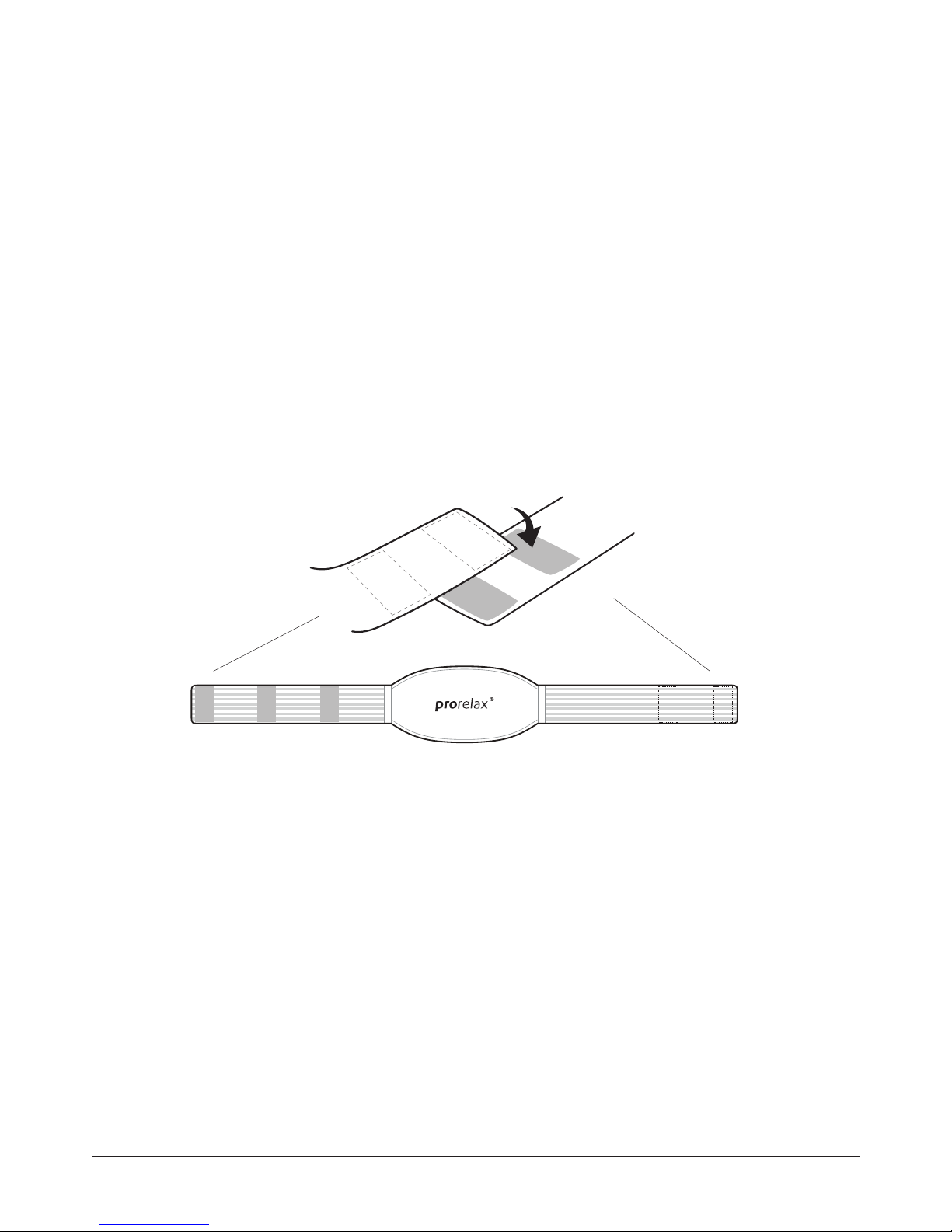

6. The belt may be tightened or loosened as shown by adjusting the Velcro
fastener ( See diagram below)
Putting on the Belt
10

Turning On/O the Device
Turning On the Device
Press and hold the ON+ button [5]* for two (2) seconds to turn on the device.
The most recently selected treatment time and program will ash when the unit is
turned on.
Turning O the Device
The device turns o automatically after the therapy session time has elapsed.
To turn the unit o manually, press the OFF- button [6]* for three (3) seconds.
The display will be blank and the device will turn o.
In an emergency you may also pull the connector(s) from the device and then
remove the belt.
Note:
To prevent unpleasant electric shocks, never remove the device while it is still
turned on.
* Page 7
11

Selecting the Treatment Time
Selecting the Treatment Time
Press MODE [7]*. The preset (default) treatment time will ash on the display.
To increase or decrease the treatment time, press the button ON + (to increase) or
the button OFF – (to decrease) repeatedly until the desired duration appears on the
display.
Press MODE [7]* again to save your selection. The treatment time you selected will
appear on the display the next time you turn the device on.
Note:
If you change programs during the course of a therapy session, the treatment time
will not reset unless you manually reset it by performing the steps described above.
12
* Page 7

Selecting the Program
Selecting the Program
The TENS BACK PAIN RELIEF SYSTEM oers eight dierent preset
treatment programs. The programs dier with respect to varying pulse widths
and frequencies.
Prog. / mode Type of pain Benefits You should feel
P1 / C mode Chronic pain Pain gate control
Pain relief associated
with muscle groups
Continuous comfortable
tingling. The underlying pain
should decrease gradually after
treatment.
P2 / B mode Acute pain Pain gate control
Help relieve muscle
twitching / spasms
Comfortable pulsing sensation.
The underlying pain should
decrease almost immediately.
P3 / C mode Chronic pain Pain gate control
Pain relief associated
with muscle groups
Comfortable pulsing sensation.
The underlying pain should
decrease almost immediately.
P4 / D-D mode Chronic pain Achieve endorphin and
gate response
Massage-like feeling
Variable comfortable tingling
and pulsing sensation (sensation
should appear to come in waves).
Pain should ease and there should
be relief after treatment.
P5 / MW mode Chronic pain Decrease of muscle
fatigue at high intensity
Massage-like feeling
Variable comfortable mild tingling
sensation (sensation will appear
to come in waves).
P6 / SDR Chronic pain Decrease of muscle
fatigue
Massage-like feeling
Variable comfortable pulsing
and pumping action (action will
appear to come in waves).
P7 / SDW Chronic pain Prevents accommodation
or habituation
Massage-like feeling
Variable comfortable tingling and
pumping action (action should
appear to come in waves).
P8 (recycle from
P1~P7)
Acute &
Chronic pain
Combination of pain
gate control & endorphin
release
Massage-like feeling
For pain relieve associated with
muscle groups, helps prevent
accommodation of habituation.
13

Selecting the Therapy Intensity Level / Special Features
Selecting the Therapy Intensity Level
Intensity is adjustable according to the channel selected. Select the channel you
wish to adjust by pressing CH1 or CH2. “CH1” or “CH2” will ash on the display.
To increase or decrease the intensity, press ON + (to increase) or OFF – (to decrease)
repeatedly until the desired intensity level ashes on the display.
Note: You will feel the intensity increase or decrease as you select the intensity
level. You can use this as a guide to select a level that is comfortable for you.
Press MODE to save your selection.
Special Features
Therapy Time
The device oers 12 preset therapy times: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and
60 minutes. The therapy time will countdown on the display in 1-minute increments
for the duration of your session.
• The device turns o automatically when the therapy time has elapsed.
• The most recently set therapy time is stored.
• If you alter the program mode during your therapy, the therapy time won’t
restart, unless you reset the therapy time.
• The last treatment program you used will appear on the display, when you turn
on the device.
• To change the program, press ON + or OFF – repeatedly until the desired
program appears on the display.
• Press MODE to save your selection. The program you selected will appear on
the display the next time you turn on the program.
14

Special Features
Lock Function
If you have turned on the device but have not pressed any button for 20 seconds,
the device will automatically lock.
Press and hold the ON + and OFF – keys simultaneously for 1 second to unlock the
device.
Back Lighting
The back lighting will light up whenever a button is pushed. It will automatically
turn o after 10 seconds.
Automatic Shut o
The device automatically turns o when no button is pressed for 60 seconds.
The device automatically turns o when the time for your therapy session has
elapsed.
Intensity Level Reset
For your safety and comfort, the intensity level will reset to 0 each time the device
turns o , including after therapy sessions.
Low Battery Status Indicator
The battery status indicator will light whenever the battery is low. This means that
soon you have to replace the batteries.
15

Trouble Shooting
Trouble Shooting
Always check the unit and accessories before use to prevent damage and defects;
these are some of the simple checks:
1. Make sure the battery has sucient charge and is not corroded.
2. Make sure the cables t tightly into the connection sockets of the device.
The table below shows some common defects. If you cannot remedy the defects
as described, contact your nearest customer service centre.
Defect Cause Remedy
The device does not
turn on
No battery or bad battery Replace battery
The device turns on and
then off again
Battery not inserted properly
Battery life expired
Insert battery again
Replace battery
Contact customer Service
The device turns on,
but does not generate
electric pulses
Cable broken
Cable not connected properly,
Treatment time has expired
Contact customer Service
Connect cable properly. Switch unit to
the OFF position and turn it back on
The unit does not turn
on even though new
batteries have been
inserted
Contact customer service
16

Care and Maintenance / Disposal
17
Care and Maintenance
Unit:
The device does not need any special maintenance.
Remove the battery before cleaning the device.
Never use aggressive cleaning products or sti brushes to clean the device.
Clean the device with a soft, slightly moistened cloth. Do not allow water to
penetrate the device. Do not use the device again until it is completely dry.
Remove the battery if the device is not used for a week or more.
Do not expose the device to direct sunlight and protect it from dirt and moisture.
Store the unit with the belt in a clean, dry place.
Belt:
If the belt has become damp during use, let it dry naturally before using again.
Do not wash the belt in water. Do not wash the belt in the washing
machine. Lay the belt out at or hang it up to dry naturally. Do not tumble dry.
The belt maybe cleaned using a lightly dampened sponge.
Always detach the TENS unit from the belt. Do not pull on the cables but on the
connectors attached to the ends of the cables.
Do not use bleach when washing the belt.
Do not dry clean your belt. Do not dry it over anything hot (e. g. a radiator) as it
contains plastic parts. Ensure the belt is completely dry before using it again.
The belt should never be ironed.
The cables are integrated into the belt. Do not pull on the cables!
Disposal
FOLLOW ALL LAWS AND REGULATIONS REGARDING THE PROPER DISPOSAL
OF BATTERIES AND ELECTRONIC DEVICES THAT ARE RELEVANT IN YOUR
AREA. CONSULT YOUR MUNICIPAL AUTHORITIES OR YOUR DEALER FOR
INFORMATION ABOUT PROPER DISPOSAL.

Technical Specications
Technical Specications
Program Pulse Intensity
Max.
Pulse Width Frequency Mode
P1 60 mA 260µs 15 Hz Constant
P2 60 mA 260µs 60 Hz Varying
P3 60 mA 260µs 60 Hz Constant
P4 60 mA 260-150µs 2-60 Hz Varying
P5 60 mA 260µs 60 Hz Varying
P6 60 mA 260µs 60 <->7 Hz Varying
P7 60 mA 260µs 60 Hz Varying
P8 60 mA P1 – P7 Varying
Channels:
Voltage (Vp):
Initial Pulse Intensity (Vp):
Frequency:
Pulse Width:
Curve Shape:
Programs:
Power Supply:
Operating Conditions:
Storage Conditions:
2
Max. 60 mA (at 0.5 k )
50 mA (at 1 k )
30 mA (at 2 k )
Max. 160V (open circuit)
30 V (at 0.5 k )
50 V (at 1 k )
60 V (at 2 k )
2 – 60 Hz
150 – 260 s
Two-phase asymmetrical
8
3 x 1.5V AAA batteries
32˚-104˚F, 20 to 90% relative humidity
14˚-140˚F, 20 to 93% relative humidity
18

WARRANTY PROVISIONS
WARRANTY PROVISIONS
We guarantee completeness and freedom from defects at the time the sale is made.
Repairs may be undertaken exclusively by importers, service centers or dealers who
have been authorized to do so by EUROMEDICS GmbH.
The warranty period shall be two years from the date of purchase subject to the
requirement that use is made as described in the usage directives. Parts which are
subject to normal wear-and-tear (e.g., batteries) are not covered by the warranty.
Defects discovered within the warranty period must be reported directly to the
authorized dealer or the service center so that the cause can be determined. If it is
not possible to repair the defects, then the product shall be exchanged.
The timeframe required for making repairs shall be dependent upon the type of
defect.
The Buyer shall assume the costs for the delivery and pick-up of the device.
The warranty to be provided by EUROMEDICS GmbH shall be limited to the amount
of the purchase price. The Buyer shall be entitled to no more extensive claims.
In the following cases, the warranty claim shall not apply:
a) No receipt can be presented.
b) The Buyer or a non-authorized person has attempted to repair the device.
c) The defect was caused through improper usage upon the part of the Buyer,
particularly through non-adherence to the usage directives.
d) In the event of obvious damage caused by uids, by the device being dropped
or
e) through blunt force exerted during the usage of the product.
19

Terapie TENS contra dolores de espalda
ÍNDICE DE CONTENIDO
Medidas de seguridad importantes 22-23
Volumen de entrega 24
Representación gráca de funciones 25
Colocación y recambio de las pilas 26
Colocación del cinturón electroestimulador 27-28
Encendido del aparato 29
Apagado del aparato 29
Ajuste de la duración de la aplicación 30
Selección del programa de terapia 31
Ajuste de la intensidad 32
Características funcionales especiales 32-33
Guía de solución de averías 34
Cuidado y mantenimiento 35
Eliminación 35
Datos técnicos 36
Condiciones de garantía 37
Contact
20
INDICACIÓN IMPORTANTE
LOS APARATOS TENS PRORELAX SON ESPECIALMENTE SEGUROS
Y FÁCILES DE MANEJAR. POR ESTA RAZÓN, LA INTENSIDAD SÓLO
PUEDE SER REGULADA CUANDO EL CINTURÓN DE TERAPIA HA SIDO
COLOCADO Y LOS ELECTRODOS ESTÁN EN CONTACTO CON LA PIEL.
