protech BS-0981 User manual

USER
MANUAL
BS-0981M0
BS-0981
Fanless19" 1U Rockmount
PC with Intel® Celeron
N3350 SoC

BS-0981
Fanless Fanless 19" 1U Rockmount
PC with Celeron N3350 SoC
COPYRIGHT NOTICE & TRADEMARK
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.
This manual is copyrighted in March 2018. You may not reproduce or
transmit in any form or by any means, electronic, or mechanical,
including photocopying and recording.
DISCLAIMER
This user’s manual is meant to assist users in installing and setting up
the system. The information contained in this document is subject to
change without any notice.
CE NOTICE
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
page 2

FCC NOTICE
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment
not expressly approve by the party responsible for compliance could
void your authority to operate such equipment.
CAUTION: Danger of explosion may occur when the battery
is incorrectly replaced. Replace the battery
only with the
same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s
instructions.
WARNING: Some internal parts of the system may have high
electrical voltage. We strongly recommend that only qualified
engineers are allowed to service
and disassemble the
system. If any damages should occur on the system and are
caused by unauthorized servicing, it will not be covered by
the product warranty.
page 3

1Introduction
This chapter provides the introduction for BS-0986 system
as well as the framework ofthe user manual.
The following topic is included:
•About This Manual
page 4

1.1 About This Manual
Thank you for purchasing our BS-0981 system. The BS-0981 provides faster
processing speed, greater expandability and can handle more tasks than before. This
manual is designed to assist you how to install and set up the whole system. It
contains 5 chapters and 2 appendixes. Users can configure the system according to
their own needs. This user manual is intended for service personnel with strong
hardware background. It is not intended for general users.
The following section outlines the structure of this user manual.
Chapter 1 Introduction
This chapter provides the introduction for the BS-0981 system as well as the
framework of the user manual.
Chapter 2 Getting Started
This chapter describes the package contents and outlines the system specifications.
Read the safety reminders carefully on how to take care of your system properly.
Chapter 3 System Configuration
This chapter describes the external I/O ports, outlines the locations of the
motherboard components and their respective functions. You will learn how to set the
jumpers and configure the system to meet your own needs.
Chapter 5 AMI BIOS Setup
This chapter indicates you how to change the BIOS configurations.
Appendix A Technical Summary
This appendix provides the exploded diagrams and part numbers of the BS-0981.
Appendix B Technical Summary
This appendix provides the information about the allocation maps for system
resources, Watchdog Timer Configuration and Flash BIOS Update.
Chapter 4 Software Utilities
This chapter contains helpful information for proper installations of the Intel®Chipset
Software Installation Utility, Graphics Driver Utility, LAN Driver Utility, Sound
Driver Utility, Intel®Serial I/O Driver Utility and Microsoft Hotfix Driver Utility.
page 5

2Getting Started
This chapter provides the information for the BS-0981
system.It describes the package contents and outlines the
system specifications.
The following topics are included:
•Package List
•System Overview
•System Diagrams
•System Specification
•Safety Precautions
page 6

Unit: mm
System Overview
Front View
Rear View
USB
Storage indicated light
Power S/W
DC-IN COM VGA DP
LINE OUT LAN USB
Unit: mm
Top View
page 7

Quarter View
Front I/O Panel
Rear I/O Panel
page 8

BS-0981 System Specifications
System
CPU Type
Memory Support 1 x SO-DIMM socket, supporting 1600
DDR3L DRAM up to 8G (non-ECC)
API Hardware monitor / WatchDog
Storage Support 1 x 2.5” 7mm SATAIII HDD / SSD drive space
Power Supply Supports DC 12V power input (3-pin lockable
terminal block )
O.S. Support Windows® 10 64bit
BIOS AMI UEFI BIOS
Expansion Slots 1 x full-sized mPCIe slot (with PCIe and USB signals)
1 x full-sized mSATA slot (with SATA and USB signals)
Dimensions (W x H x D)  432mm x 45mm x 250mm
Weight 2kg
I/O Ports (Rear side)
USB 4 x USB 3.0
Serial Ports
COM1: RS232
COM2: RS232/422/485 selectable under BIOS
COM3: RS232 w/ RI/5V/12V selectable under BIOS

I/O Ports (Front side)
Sound 1 x Line Out
USB 4 x USB 3.0
Intel ApolloLake Celeron N3350
COM4: RS232
1 x Power LED
1 x HDD LED
LED
LAN
2 x LANs (supports Wake-on-LAN)
LAN1: Intel® I210IT (I210AT)
LAN2: Intel® I210IT (I210AT)
Power Input 3-pin DC In terminal block (lockable)
Display 1 x DP, resolution: up to 4096x2160 @60Hz
1 x VGA, resolution: up to 1920x1200 @60Hz
page 9

Power Mode
Power Mode
Other
Optional Accessory 60W Power adapter with lockable 3-pin terminal block
Environment
Operating Temp.
Storage Temp. -40°C ~85°C (-40°F~185°F)
Humidity 20%~ 90%
(1) BIOS Power Fail “On”: Boot-up when AC power
returns from “Off” to “On” (default)
(2) BIOS Power Fail “Off”: Non-boot-up when AC
power returns from “Off” to “On”
Way to boot up from S5: (1) Power Button
(2) Wake-On-LAN
(3) RTC-wake
(set under BIOS)
Way to Shutdown to S5/S4/S3: (1) Power Button
(2) OS Command
Supports S0/S3/S4/S5
Celeron N3350 /0°C ~ 40°C
page 10

Safety Precautions
Before operating this system, read the following information carefully to protect your
systems from damages, and extend the life cycle of the system.
1. Check the Line Voltage
•The operating voltageforthis system (BS-0981)should be 12V;otherwise
the system may be damaged.
2. Environmental Conditions
•Place your BS-0981system on a sturdy, level surface. Be sure to allow
enough space around the system tohave easy access needs.
•Avoid installing your system inextremely hot orcold places.
•Avoid direct sunlight exposure for a long period of time (for example, in a
closed car in summer time. Also avoid the system from any heating device.).
Or do not use system when it has been left outdoors in a cold winter day.
•Avoid moving the system rapidly from a hot place to a cold place, and vice
versa, because condensation may occur inside the system.
•Protect your system from strong vibrations which may cause hard disk
failure.
•Do not place the system too close to any radio-active device. Radio-active
device may cause signal interference.
•Always shut down the operating system before turning off the power.
3. Handling
•Avoid placing heavy objects on the top of the system.
•Do not turn the system upside down. This may cause the hard drive to
malfunction.
•Do not allow any objects to fall into this device.
•If water or other liquid spills into the device, unplug the power cord
immediately.
4. Good Care
•When the outside case gets stained, remove the stains using neutral washing
agent with a dry cloth.
•Never use strong agents such as benzene and thinner to clean the surface of
the case.
•If heavy stains are present, moisten a cloth with diluted neutral washing
agent or alcohol and then wipe thoroughly with a dry cloth.
•If dust is accumulated on the case surface, remove it by using a special
vacuum cleaner for computers.
page 11

3System Configuration
This chapter contains helpful information about the
external I/O Ports diagrams, and jumper & connector
settings, and component locations for the main board.
The following topics are included:
•External I/O Ports Diagrams
•Jumper & Connector Quick Reference Table
•Main Board Jumper Settings and Component
Locations
•How to Set Jumpers
•Setting Main Board Connectors and Jumpers
page 12

3.1 External System I/O Ports
Diagrams Front I/O Ports Diagram
Rear I/O Ports Diagram
USB
Storage indicated light
Power S/W
DC-IN COM VGA HDMI
LINE OUT LAN USB
page 13

Port Name: USB
Description: Dual USB 3.0 ports
PIN ASSIGNMENT PIN ASSIGNMENT
B5 USB3_RXN2 - -
B6 USB3_RXP2 B4 GND
B7 GND B3 USB2_P2_DP
B8 USB3_TXN2 B2 USB2_P2_DN
B9 USB3_TXP2 B1 VCC5_USB1
A5 USB3_RXN1 - -
A6 USB3_RXP1 A4 GND
A7 GND A3 USB2_P1_DP
A8 USB3_TXN1 A2 USB2_P1_DN
A9 USB3_TXP1 A1 VCC5_USB1
USB3.0
Power Button
To turn on the system, press the power button on the side
of the system briefly.
ACTION ASSIGNMENT
Click 0V
Release +3.3V
Power
Button
page 14

PIN ASSIGNMENT
3 NC
2 GND
1 DC Power Input (+12V or 16~24V)
VGA Port
Port Name: VGA (external connector)
Description: VGA Port, D-Sub 15-pin (I/O port)
PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT
1 CRT_RED 6 GND 11 NC
2 CRT_GREEN 7 GND 12 CRT_DATA
3 CRT_BLUE 8 GND 13 CRT_HSYNC
4 NC 9 CRT_VCC 14 CRT_VSYNC
5 GND 10 GND 15 CRT_CLK
VGA
15 610 1115
DC IN
DC IN 3-Pin Terminal Block
Port Name: DC IN (external connector)
Description: Supports DC 12V and 16~24V power input (3-pin lockable
terminal block)
page 15

COM2(RS-232/422/485) Connector PinAssignment:
PIN ASSIGNMENT
RS-232 RS-422 RS-485
1 COM2_DCD TX- D-
2 COM2_RX TX+ D+
3 COM2_TX RX- NC
4 COM2_DTR RX+ NC
5 GND GND GND
6 COM2_DSR NC NC
7 COM2_RTS NC NC
8 COM2_CTS NC NC
9 COM2_RI NC NC
--- -
Notes:
1. COM2 isselectable as RS-232, RS422, RS485 under BIOS setting.
2. Default setting is RS-232. Please see Chapter 5 “Advanced – Onboard Device
Configuration” for selection details.
COM1 / COM2
COM1(RS-232) Connector Pin Assignment:
PIN ASSIGNMENT PIN ASSIGNMENT
6 COM1_DSR1 COM1_DCD
2 COM1_RX
3 COM1_TX
4 COM1_DTR
5 GND
7 COM1_RTS
8 COM1_CTS
9 COM1_RI
- -
COM Port
Port Name: COM1, COM2, COM3, COM4 (external connector)
Description: COM Port Connector
page 16

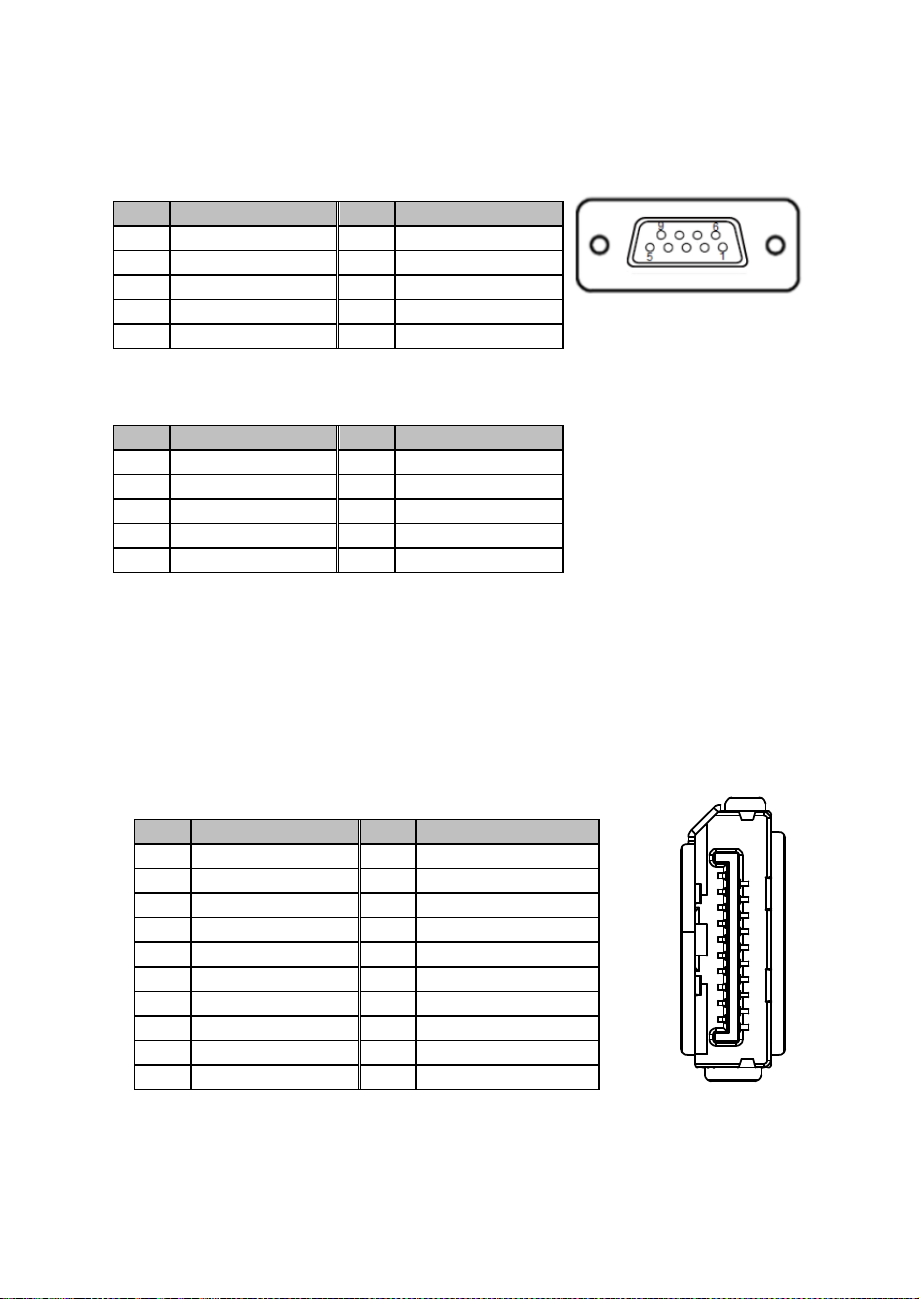

COM3(RS-232) Connector Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
COM3_DCD
6
COM3_DSR
2
COM3_RX
7
COM3_RTS
3
COM3_TX
8
COM3_CTS
4
COM3_DTR
9
COM3_RI_SEL
5
GND
- -
COM4(RS-232) Connector Pin Assignment:
PIN ASSIGNMENT PIN ASSIGNMENT
1 COM4_DCD 6 COM4_DSR
2 COM4_RX 7 COM4_RTS
3 COM4_TX 8 COM4_CTS
4 COM4_DTR 9 COM4_RI_SEL
5 GND - -
Note:
COM3, COM4: Pin9isselectable as RI, +5Vor+12V according to jumper setting. Default
setting is RI, please see “COM3and COM4 PIN9 Definition Selection Guide” for selection
details.
COM3 / COM4
DISPLAY PORT
DP1: Display Port Connector
PIN ASSIGNMENT PIN ASSIGNMENT
20 VCC3_PWR 19 GND
18 HPD_CON 17 DP0_AUX_N_CON
16 GND 15 DP0_AUX_P_CON
14 GND 13 DP0_AUX_ENJ
12 DP0_TX3_DN 11 GND
10 DP0_TX3_DP_C 9 DP0_TX2_DN_C
8 GND 7 DP0_TX2_DP
6 DP0_TX1_DN 5 GND
4 DP0_TX1_DP 3 DP0_TX0_DN
2 GND 1 DP0_TX0_DP
1
2
2019
DP1
page 17

LAN1 Pin Assignment LAN2 Pin Assignment
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
LAN1_MDIP0
1
LAN2_MDIP0
2
LAN1_MDIN0
2
LAN2_MDIN0
3
LAN1_MDIP1
3
LAN2_MDIP1
4
LAN1_MDIP2
4
LAN2_MDIP2
5
LAN1_MDIN2
5
LAN2_MDIN2
6
LAN1_MDIN1
6
LAN2_MDIN1
7
LAN1_MDIP3
7
LAN2_MDIP3
8
LAN1_MDIN3
8
LAN2_MDIN3
LAN LED Status
There are LAN LED indicators on the rear side of the main board. By observing their
status, you can know the status of the Ethernet connection.
LAN LED Indicator
Color
Status
Description
Right Side LED
Yellow
Blink
LAN Message Active
-
Off
No LAN Message Active
Left Side LED
Green
On
10/100Mbps LAN connection is enabled.
Orange
On
Giga LAN connection is enabled.
-
Off
No LAN switch/hub is connected
LAN1 / LAN2
3.5.6 LAN Port
Port Name: LAN1, LAN2 (external connector)
Description: LAN RJ-45 Ports
page 18

3.2 Component Locations of System Main Board
Top View of System Main Board
Figure 3-1. Main Board Component Location (Top View)
WARNING: Always disconnect the power cord when you are
working with connectors and
jumpers on the main board.
Make sure both the system and peripheral devices are turned
OFF as sudden surge of power could damage sensitive
components. Make sure BS-E097 is properly grounded.
CAUTION:
Observe precautions while handling electrostatic
sensitive components. Make
sure to ground yourself to
prevent static charge while you are working on the
connectors and jumpers
. Use a grounding wrist strap and
place all electronic components in any static-shielded
devices.
CAUTION:
Always touch the motherboard components by
the edges. Never touch components such as a processor by
its pins. Take special cares while you are holding electronic
circuit boards by the edges only. Do not touch the mainboard
components.
Mini PCIe
page 19

Jumper Setting and Connector Location of System Main Board
1
COM3 Pin9 RI/5V/12V
12V
1
2
5
65
1
6
2
5VRI
(default)
21
5
6
COM4 Pin9 RI/5V/12V
12V
1
2
5
6
RI
(default)
21
5
6
(default)
Normal
Clear CMOS Data
Clear CMOS
5
1
6
2
5V
COM3
COM2
M_PCIE1
Mini PCI-E
COM4
COM1
JFP1
PWR2
mSATA
M_SATA1
AUDIO1
SATA_PWR1
JP_COM4 JP_COM3
VGA1
LAN2 LAN1 HDMI1 USB2 USB1
JI2C1
SO_DIMM1
SW1 JP3
USB3 JP9
JP4 LVDS1
JP7
JBAT1
FAN1 JINV1 JP_VDD1 SATA1
JLPC1 JMCU1
JDIO1
1
1 6
1
1
1
6
6
6
5
5
5
10
10
10
5
10
10
9
2
1
2
1
109 10
91
2
212 1
6565
1
1
1
1
1
1
1
1
1
1
1
11
1
910
2
2
29
30
2
78
2
9
10 2
34
Bottom View of System Main Board
page 20
