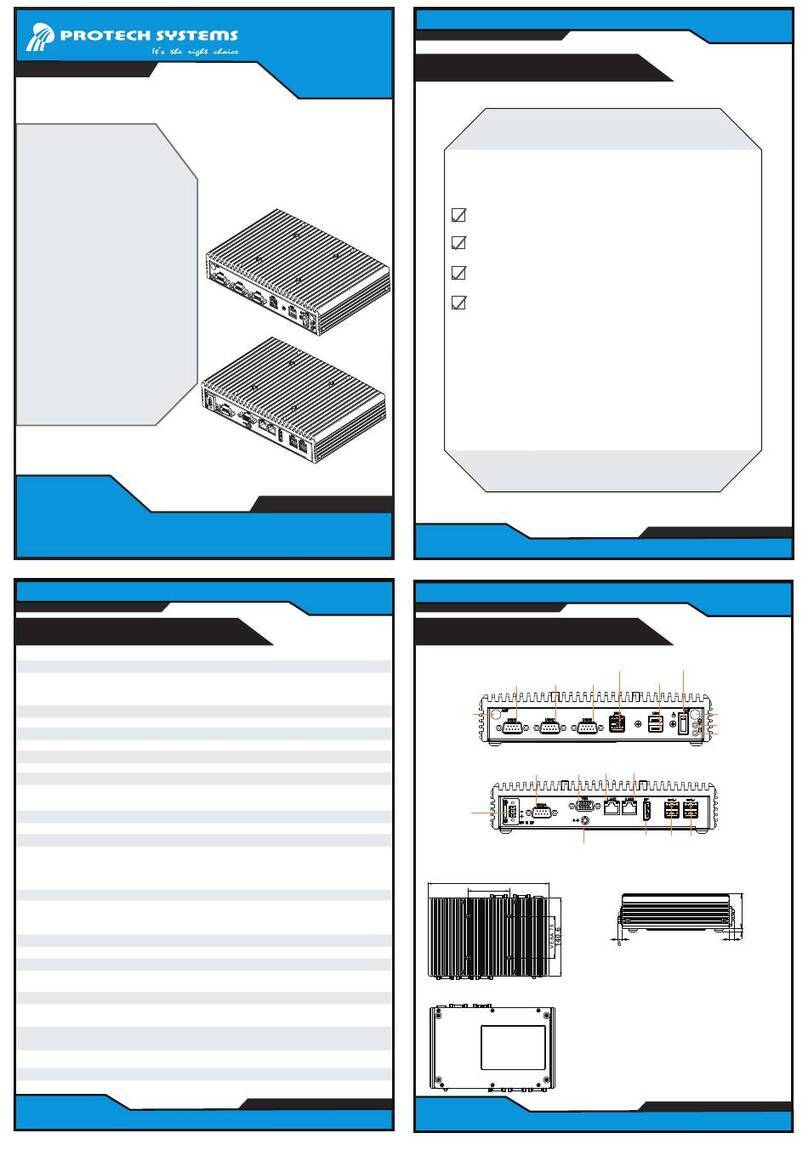

protech prox BS-E097 User manual

Ver. Q2
All Rights Reserved. Copyright 2021
Packing Checklist
BS-E097
BS-E097 BS-E097
Specifications System View
Front View (Normal SKU)
Bottom View
BS-E097
Quick
Reference
Guide
If you discover any item below damaged or lost,
please contact your vendor.
BS-E097 x1
This Quick Reference Guide x1
Driver/ Manual DVD x1
3-Pin Terminal Block x1
Top View
System
CPU Type Intel®Celeron®J3455: 10w, 4C, 2.3GHz
Intel®Celeron®N3350: 6w, 2C, 2.4GHz
Intel® Atom®x5-E3940: 10w, 4C, 1.8GHz
Memory Support 1 x SO-DIMM socket, supporting 1600/1866 DDR3L DRAM
up to 8G (non-ECC)
Hardware monitor / WatchDog
Storage Support 1 x 2.5” 7mm SATAIII HDD / SSD drive space
Power Supply Supports DC 12V and 16~24V power input
(3-pin lockable terminal block )
Power Adaptor 60W adapter w/ lockable 3-pin terminal block (optional)
Operating System Windows 10 64bit / Ubuntu 17.04 64bit (kernel: 4.4)
Expansion Slots 1 x full-sized mPCIe slot (with PCIe and USB signals)
1x full-sized mSATAslot (with SATA and USB signals)
Dimensions / Weight 217.5mm x 46.6mm x 140.6mm (WxHxD) / 2kg
Certificate FCC/CE
I/O Ports (Front side)
USB Normal SKU: 2 x USB 2.0 / PoE SKU: N/A
Serial Ports COM1: RS-232
COM2: RS-232/422/485 selectable by BIOS(Default: RS-232)
COM3&4: RS-232 w/ RI/5V/12V selectable by jumper (Default: RI)
Normal SKU: COM1~3 & COM4 or DIO (Default: COM4)
PoE SKU: COM2~3 & COM1 or DIO (Default: COM1)
Antenna Holes Normal SKU: 4 x antenna holes for reservation
PoE SKU: 2 x antenna holes for reservation
I/O Ports (Rear side)
USB / Sound
LAN
4x USB 3.0 / Line Out
2 x GbE LAN (support Wake-on-LAN) / LAN1 & 2: Intel®I210AT
Power On / Off
LED
1 x Power Button & 1 x Extended Power Switch
1 x Power LED
Environment
Operating Temp. SSD: 0°C~60°C (32°F~140°F)
Storage Temp.
Humidity 20% ~ 90%
Side View
LAN Normal SKU: N/A / PoE SKU: 2 x PoE LAN or 2 x GbE LAN
Display 1 x HDMI1.4a, resolution: up to 4096x2160 @60Hz
1 x VGA, resolution: up to 1920x1200@60Hz
-40°C ~85°C (-40°F~185°F)
API
HDD: 0°C~40°C (32°F~104°F)
Rear View
Front View (PoE SKU)
5.1
9.6
Antenna
COM2 COM1
Antenna
USB 2.0 COM3DIO/COM4
Antenna
COM1
COM2
COM3
ANT4
ANT3
ANT2
ANT1
USB2.0 DIO or COM4
Antenna Antenna
DIO/COM1
DIO or COM1
COM2
COM3
PoE
LAN3
COM2LAN4LAN3
LAN4
COM3
Power LED
LAN1
DC Power
Input
Power
Button
Extended
Power Switch
VGA LAN2
HDMI
Line Out
4 x USB 3.0
HDMI
LAN1
LAN2
VGA
DC IN (12/24V)
Ext. PWR SW
217.5
C.L.75 (VESA)
140.6
C.L.75 (VESA)

Jumper Setting
BS-E097
All Rights Reserved. Copyright 2021
Safety Precaution
Fanless Embedded PC with Intel®AtomTM E3900 / J3455 / N3350 SoC /12V /16~24V
The following messages are safety reminders on how to protect your system
from damages, and thus help you extend the life cycle of the system.
1. Check the Line Voltage
The operating voltage for the power supply should be 12V or 16V~24V
DC; otherwise, the system may be damaged.
2. Environmental Conditions
Place your BS-E097 on a sturdy, level surface. Be sure to allow
enough room on each side to have easy access.
Avoid moving the system rapidly from a hot place to a cold place or
vice versa because condensation may come from inside of the system.
Place BS-E097 against strong vibrations, which may cause hard disk
failure.
3. Handling
Do not turn the system upside down. This may cause the hard drive
to mal-function.
Do not allow foreign objects to fall into this product.
If water or other liquid spills into this product, unplug the power cord
immediately.
4. Good Care
When the outside of the case is stained, remove the stain with neutral
washing agent with a dry cloth.
If dust has been accumulated on the outside, remove it by using a
special made vacuum cleaner for computer.
CAUTION!
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries
accordingto the manufacturer’s instructions.
WARNING!
Some internal parts of the system may have high electrical voltage. Therefore we
strongly recommend qualified engineers open and disassemble the system.
CAUTION! Danger of explosion may occur if the battery is replaced incorrectly. Replace batteries only with the same or equivalent
type recommended by the manufacturer. Dispose the used batteries according to the manufacturer’s instructions.
1
COM4 Pin9 RI/5V/12V
12V
1
2
5
65
1
6
2
5VRI
(default)
21
5
6
COM3 Pin9 RI/5V/12V
12V
1
2
5
6
RI
(default)
21
5
6
(default)
Normal
Clear CMOS Data
Clear CMOS
5
1
6
2
5V
COM3
COM2
M_PCIE1
Mini PCI-E
COM4
COM1
JFP1
PWR2
mSATA
M_SATA1
AUDIO1
SATA_PWR1
JP_COM4 JP_COM3
VGA1
LAN2 LAN1 HDMI1 USB2 USB1
JI2C1
SO_DIMM1
SW1 JP3
USB3 JP9
JP4 LVDS1
JP7
JBAT1
FAN1 JINV1 JP_VDD1 SATA1
JLPC1 JMCU1
JDIO1
1
1 6
1
1
1
6
6
6
5
5
5
10
10
10
5
10
10
9
2
1
2
1
109 10
91
2
1
122
55 66
1
1
1
1
1
1
1
1
1
1
1
11
1
910
2
2
29
30
2
78
2
9
10 2
34
