PRYME Radio Product PRYMEBLU BTH-LMIC User manual

3 4
Connecting an Audio Accessory to the Lapel MicrophoneCharging the Bluetooth Lapel Microphone
2
Controls and Connection
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. RF Exposure Warning! Please keep product 20cm away from your body or bystander during the radio operation. The typical handheld two-way radios were certied under mobile usage condition (i.e. keep 20cm away from the user body) and use of such radio closer than 20cm may exceed the US RF exposure limit and shall be avoided.
version 2.0 April 2014
911 Mariner St., Brea, CA 92821
PH: 714.257.0300 FAX: [phone]
TOLL FREE: 800.666.2654
WWW.PRYME.COM
PRYMEBLU BTH-LMIC Bluetooth Lapel Microphone
The BTH-LMIC is a wireless lapel microphone kit designed for use with a PRYMEBLU Adapter and a two-way radio (sold separately). PRYME® and PRYMEBLU™ are trademarks owned by PRYME Radio Products, Brea CA. All other product or service names are the property of their respective owners. © 2014 PRYME Radio Products, Brea CA. All Rights Reserved
PRYMEBLU BTH-LMIC
In order to be able to hear incoming signals received by the two-way radio, the PRYMEBLU Lapel
Microphone must be used with an earphone. A PRYME EH-1189SC ear bud-style earphone is included
with the PRYME Lapel Microphone kit.
STEP TWO: Connecting the Earphone to the Lapel Microphone
1. Plug the earphone into the 3.5 mm audio jack located on the top of the PRYMEBLU Lapel
Microphone. Make sure that the connector on the earphone is pushed all the way into the jack on the
lapel microphone.
2. You can adjust the volume of received signals by using the Volume Up and Volume Down buttons
on the front of the lapel microphone.
Other Audio Accessories:
Although the BTH-LMIC lapel microphone kit includes a PRYME ear bud-style earphone, it is possible
to use a dierent audio accessory, if you wish. The 3.5 mm audio jack on the lapel mic will accept any
mono or stereo earphone with a 3.5 mm audio plug. You can also use any Apple iPhone compatible
audio accessory with a 3.5 mm 4-conductor plug. If the audio accessory has a built-in microphone,
transmit audio will be taken from the accessory microphone.
PRYME makes a variety of listen-only earphones in dierent styles that will work with the BTH-LMIC kit.
These optional earphones are all sold separately. Contact your PRYME Dealer to order.
The PRYMEBLU Lapel Microphone has an internal Lithium Ion rechargeable battery pack which must be
charged prior to operation, and must be recharged regularly. A fully charged battery will provide
approximately 12 hours (or more) of operation before needing to be recharged. However, operating time
can vary depending on usage and the condition of the battery pack. Recharge the battery regularly.
STEP ONE: Charging the Bluetooth Lapel Microphone
To charge the PRYMEBLU Lapel Microphone
1. Ensure the PRYMEBLU Lapel Microphone is turned o using the multifunction button.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the side of the
PRYMEBLU Lapel Microphone. You will need to remove the protective rubber cover that is inserted
into the charge jack. (To prevent dust and moisture from damaging your lapel microphone, always
ensure this cover is in place when you are not charging the lapel mic.)
4. Once the charging process has begun, the LED indicator on the back of the PRYMEBLU Lapel
Microphone will show a ashing red light. When the battery is done charging, the LED light will
change to solid red light.
5. Typical charge time is approximately 4 hours. Actual charge time will vary depending on several
factors including the battery’s charge state, condition, and age.
6. Disconnect the charger from the lapel mic when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the manufacturer. Do not use any other charger.
- Do not use a wall charger that appears to be damaged. (Example: frayed wires, melted plastic, etc.)
Contact PRYME to get a new manufacturer-approved replacement charger.
- Do not tamper with or modify the PRYMEBLU Lapel Microphone or charger.
-Always turn the power switch to the o position when charging the PRYMEBLU Lapel Microphone.
BUILT-IN MICROPHONE
This microphone picks up the user’s
voice audio to send over- the-air
PTT BUTTON
When the PRYMEBLU lapel
microphone is paired with a
PRYMEBLU Adapter, holding
this button down activates the
Push-to-Talk feature of the
two-way radio.
CHARGE JACK
This mini-USB jack is used to
connect the supplied charger in
order to recharge the PRYMEBLU
lapel microphone’s internal
battery pack
VOLUME UP/DOWN BUTTONS
These buttons can be used to
set the volume level of the
BTH-LMIC’s earphone
CLOTHING CLIP
The alligator-type clip secures the
PRYMEBLU lapel microphone to the user’s
clothing during use. The clip can be rotated
to allow the mic to be better positioned.
“COVERT” STATUS LED
Located on the rear of the
PRYMEBLU lapel microphone,
the status LED ashes messages
that let the user know the
current status of the device.
EARPHONE
EH-1189SC included. Other earphones/audio
accessories are sold separately.
Model
EH-389XC
EH-1289SC
EH-1289XC
EH-1389SC
EH-1389X
EH-1399X
Style
Rubber Ear Hook
Plastic D-Ring
Plastic D-Ring
Acoustic Tube
Acoustic Tube
Acoustic Tube
Cable Length/Type
25” Coiled
15” Coiled
25” Coiled
15” Coiled
30” Straight
30” Straight
Connector
3.5 mm right-angle
3.5 mm right-angle
3.5 mm right-angle
3.5 mm right-angle
3.5 mm right-angle
3.5 mm straight
MULTIFUNCTION BUTTON
Turns the PRYMEBLU lapel microphone on
and o. Also, used to place the PRYMEBLU
lapel microphone in pairing mode so that
it can be connected wirelessly to a new
PRYMEBLU Adapter or cellular telephone.
EARPHONE JACK
Any standard 3.5 mm mono or stereo listen-only earphone
can be plugged into this jack. Received calls can be heard
over the earphone.
Can also be used with 3.5 mm 4-conductor
(Apple iPhone compatible) audio accessories
that contain both earphones and a microphone.
Received calls can be heard over the accessory
earphones and transmit audio will be taken
from the accessory microphone.
Install the supplied dust cover when
the jack is not in use.

8
65
Using the BTH-LMIC with a Cellular Phone or MP3 Player
Pairing With a PRYMEBLU Adapter and 2-Way Radio Testing and Using the PRYMEBLU Adapter
7
STATUS LED MESSAGES
The meanings of the various status LED messages shown by the PRYMEBLU PTT are shown
on the following table:
SUPPORT AND WARRANTY
PRYME Radio Products warrants this product against defects in materials or workmanship for a period
of one year from the date of retail purchase. PRYME will repair or replace a defective unit, at our
option, without charge for parts or labor. The limited warranty is extended only to the original
purchaser and is valid only to consumers in the United States and Canada. It does not cover damage
or failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty
installation, improper maintenance, lightning, or other incidences of excessive voltage, or any
tampering or repairs by other than a PRYME authorized repair facility. It does not cover replacement
of consumable parts, transportation costs, or damage in transit.
Repair or replacement under the terms of this warranty does not extend the terms of this warranty.
This warranty can only be modied by an ocer of PRYME Radio Products, and then only in writing.
Should this product prove defective in workmanship or material, the consumer’s sole remedies shall
be such repair or replacement as provided by the terms of this warranty. Under no circumstances shall
PRYME Radio Products be liable for any loss or damage, direct, consequential, or incidental, arising out
of the use of or inability to use this product. Some states do not allow limitations on how long an
implied warranty lasts or the exclusions or limitations of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives you specic legal rights. You
may also have other rights, which may vary, from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us on
the web at www.PRYME.com.
COPYRIGHT AND TRADEMARK INFO
© 2014 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU™ are trademarks owned by PRYME Radio Products. All other product or
service names are the property of their respective owners.
DISCLAIMER: The Bluetooth wireless link used by PRYMEBLU products is an open standard, unsecured
technology. As such, it is not recommended for rst-responder or other mission critical users.
SPECIFICATIONS

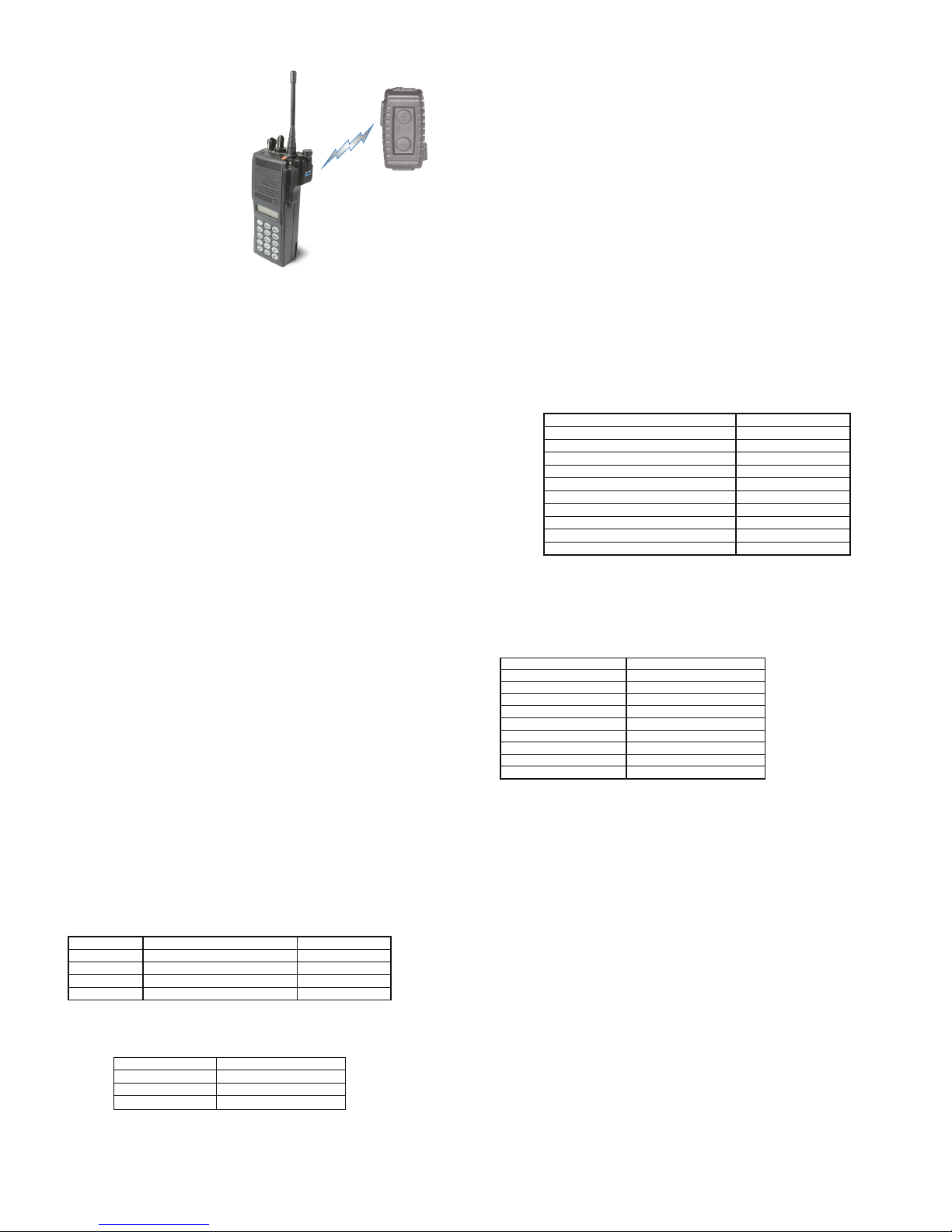

STEP THREE: Pairing with a PRYMEBLU Adapter
When pairing the PRYMEBLU Lapel Microphone with a
PRYMEBLU Adapter, make sure that the lapel microphone,
adapter, and the two-way radio the adapter is connected
to are all powered o.
If your PRYMEBLU Adapter gets power directly
from the two-way radio it is attached to:
• Hold down the Talk button on the PRYMEBLU
Adapter while turning the two-way radio ON.
If your PRYMEBLU Adapter has its own
charger/internal battery pack:
• Turn the power switch on the back of the PRYMEBLU
Adapter to the ON position while holding down the
Talk button on the front of the PRYMEBLU Adapter.
• Continue to hold the Talk button on the adapter down for approximately three seconds. Release
the Talk button when the status LED on the PRYMEBLU adapter begins to ash two times per second.
The PRYMEBLU Adapter is now in audio accessory pairing mode.
• Hold down the Multifunction Button on the PRYMEBLU Lapel Microphone. Continue to hold the
button down for approximately 3 seconds, until you see the LED on the lapel mic begin to quickly
ash RED-BLUE-RED-BLUE. The PRYMEBLU Adapter is now in pairing mode.
• After a few seconds, the two devices should synch to one another. Once the PRYMEBLU Lapel
Microphone and Adapter are paired with each other, the status LED on the adapter will show a solid
blue light for three seconds. The LED on the adapter will then show a periodic blue ash. The LED on
the lapel microphone will initially show a solid blue light.
• If the PRYMEBLU Adapter does not detect the lapel microphone within 60 seconds of being put into
pairing mode, the adapter will exit the pairing mode and resume normal operation.
• Once successfully paired, you will be able to operate your 2-way radio using the PRYMEBLU Lapel
microphone.
Reconnecting to a Previously Paired Bluetooth Device
Once the PRYMEBLU Lapel Microphone and Adapter have been successfully paired together, both
devices will remember that connection. The adapter and lapel mic will attempt to reestablish their link
whenever when the radio/adapter and headset are both turned on and in within range of each other.
Re-establishing this connection can take 10-60 seconds.
Although the PRYMEBLU BTH-LMIC Lapel Microphone kit is primarily designed for two-way radio use,
it can be paired to a Bluetooth enabled cellular phone or MP3 player in place of a standard Bluetooth
headset. In order to pair your lapel mic and cellular phone, do the following:
• First, activate the Bluetooth feature of your cellular phone using the instructions provided by the
manufacturer. For most phones, select Settings/Tools > Connections > Bluetooth > On
See your phone’s user guide for more information.
• Hold down the Multifunction Button on the PRYMEBLU Lapel Microphone. Continue to hold the
button down for approximately 3 seconds, until you see the LED on the lapel mic begin to quickly
ash RED-BLUE-RED-BLUE. The PRYMEBLU Adapter is now in pairing mode.
• On your phone, chose the newly discovered Bluetooth device (device name is either “LMIC” or
“Nighthawk”) as the active connection. See your phone’s user guide for more information.
• If prompted for the Passkey (PIN code), enter 0000. Pairing is successful! You should now be able to
use the PRYMEBLU Lapel Mic with your cellular phone.
Note that the PRYMEBLU Lapel Microphone does not support pairing to multiple devices.
You can pair the lapel microphone with a PRYMEBLU Adapter / two-way radio OR with a
cellular phone, but not both at the same time.
When connected with a cellular phone, the Multifunction Button of the PRYMEBLU Lapel
Microphone has the following functions:
When used with an MP3 music player, the following buttons on the PRYMEBLU Lapel Microphone
have dierent functions as well:
Note that you should set the volume level on the PRYMEBLU Lapel Microphone using the
Volume Up / Volume Down buttons before connecting the lapel mic to a MP3 music player
since the volume control functions are remapped when a music player is connected.
Once your PRYMEBLU Lapel Microphone and PRYMEBLU Adapter have been paired together:
Received signals will be heard over the PRYMEBLU Lapel Microphone’s earphone. The volume of
received calls can be adjusted using the Volume UP and Volume DOWN buttons on the PRYMEBLU
Lapel Microphone. The volume can also be adjusted using the volume control on the two-way radio
(for most models).
Push-to-Talk can be activated one of several dierent ways:
• By pressing and holding the PTT button on the PRYMEBLU Lapel Microphone.
• By pressing and holding the Talk button on the PRYMEBLU Adapter.
• Using an optional wired PTT that is compatible with the PRYMEBLU Adapter.
• Using an optional PRYMEBLU Wireless Bluetooth PTT (model BT-PTT or BT-PTT2, sold separately).
Note that if you are using a wireless Bluetooth PTT, you will rst need to pair the adapter
with the PTT using the instructions located in the PRYMEBLU PTT User’s Guide.
When transmitting, the type of audio accessory that is connected to the PRYMEBLU lapel
microphone determines which microphone will be selected as the audio source.
• If a listen-only earphone is used, transmit audio is taken from the internal microphone in the
PRYMBLU lapel microphone.
• If an audio accessory that has both an earphone and microphone is used, transmit audio is taken
from the accessory microphone.
BUTTON
Multifunction Button
Volume Up
Volume Down
FUNCTION
Play / Pause music
Skip forward to next track
Skip back to previous track
CALL STATE
Incoming call
Incoming call
On a call
No active call
BUTTON PRESS
Press Multifunction Button once
Press Multifunction Button twice
Press Multifunction Button once
Press Multifunction Button twice
FUNCTION
Answer call
Reject call
Hang up
Last number redial
3.0
HSP, HFP, A2DP, AVRCP
Class 2
6dB
-90d
10 meters
6mA
50 hours
10 hours
-15° C to +50° C
Version
Proles
R.F. Spec
Power
Sensitivity
Range (typical)
Standby Current
Standby Time
Average Talk Time
Operating Temp. Range
LED MESSAGE
No indication
Continuous blue-red-blue-red sequence
Solid blue for 5 seconds
Continuous solid blue
Continuous ashing blue
Continuous solid red
Two rapid red ashes
Red ash every three seconds
Slow ashing red (with charger connected)
Solid red (with charger connected)
MEANING
Device is powered o
Pairing mode
Bluetooth connected
Bluetooth link is active
Standby mode
PTT button pressed
Bluetooth link lost
Battery low
Device charging
Device nished charging
