PRYME PRYMEBLU BTH-600-HA User manual

3 4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure compliance
requirements, please avoid direct contact to the transmitting antenna during
transmitting.
RF Exposure Warning!
This device contains transmitters and receivers which emit Radio Frequency (RF)
energy. The device is designed to comply with the limits for exposure to RF energy set
by the Federal Communications Commission (FCC) of the United States, Industry
Canada (IC) of Canada, and the regulating entities of other countries.
If you are still concerned about exposure to RF energy,
you can further limit your exposure by limiting the
amount of time you use the equipment or by placing
more distance between your body and the device,
since exposure level drops off dramatically
with distance.
2.00-HA February 2021
911 Mariner St., Brea, CA 92821
PH: 714.257.0300 FAX: [phone]
TOLL FREE: 800.666.2654
WWW.PRYME.COM
PRYMEBLU BTH-600-HA
Wireless Speaker Microphone
For use with Harris two-way radios with built-in BT.
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products,
Brea CA. All other product or service names are the property of their respective owners.
© 2021 PRYME Radio Products, Brea CA. All Rights Reserved
Model No.: BTH-600-HA
Made in Taiwan
Charging the Speaker Microphone
To charge the Speaker Microphone
1. Ensure the device is turned off using the multifunction button.
2. Plug the charge cable into any powered USB outlet,
such as an AC wall charger, and then into the charge jack
on the Speaker Microphone.
3. Once the charging process has begun, the LED indicator
on the Speaker Microphone will show a constant red light.
4. Typical charge time is approximately five hours. Actual charge
time will vary depending on several factors including the battery’s charge state, condition, and age.
5. When the battery is fully charged the LED indicator on the side of the Speaker Microphone
will turn off.
6. Disconnect the charger from the microphone when charging is completed.
Charging Cautions:
- Do not use a wall charger or charge cable that appears to be damaged. (Example: frayed wires,
melted plastic, etc.) Contact PRYME to get a new manufacturer-approved replacement charger.
- Do not tamper with or modify the Speaker Microphone or charger.
- Always turn the Speaker Microphone off when charging.
The BTH-600-HA Speaker Microphone has a
replaceable Lithium Ion rechargeable battery pack
which must be charged prior to operation, and
must be recharged regularly. A fully charged
battery will provide up to 40 hours of continuous
operation before needing to be recharged.
However, operating time can vary depending on
usage and the condition of the battery pack.
Recharge the battery regularly.
Install optional Button Hook for vehicular mounting (P-CLIP-MP16-BUTTON)
1. Press tab and slide off belt clip
2. Slide on P-CLIP-MP16-BUTTON
Controls and Connection
Emergency Button
Depending on how the radio is
programmed, this can be used to
place the connected two-way
radio into emergency mode.
Front Firing Speaker
Received calls are heard over this speaker.
The volume level can be controlled using
either the Volume Up / Down buttons on
the Speaker Microphone, or by using the
volume controls on the
two-way radio or phone.
Status LEDs
The red and blue LEDs flash
messages that let the user
know the current status of
the Speaker Microphone.
Multifunction Button
Holding down this button for one second
will turn the Speaker Microphone on and off.
This button can also be used to place the Speaker
Microphone into pairing mode so that it can be
connected wirelessly to a compatible two-way radio.
Microphone:
This Microphone picks up the user’s
voice audio when sending a call.
PTT Button
This button is used to
activate the push-to-talk
feature of the 2-way radio Volume Up and Down Buttons
These buttons can be used to turn
the receive audio volume of the
Speaker Microphone up or down
in five preset steps.
Charge Jack
This mini-USB jack is used to recharge the
removable battery of the Speaker Microphone
by connecting the BTH-600-HA to a USB charger
or any powered USB source
Earphone Jack
This jack is used to connect an (optional)
wired listen-only earphone to the Speaker
Microphone for enhanced privacy.
Battery Cover
The rear cover of the Speaker
Microphone can be removed
by loosening the thumbscrew
on the rear of the Microphone.
This allows the user to gain access
to the removable battery pack.
Removable Battery
The Speaker Microphone is
powered by a removable Lithium
battery pack
Clothing Clip
The alligator-type clip secures the
Speaker Microphone to the user’s
clothing during use. The clip can be
rotated to allow the Microphone to
be better positioned.

8
65
7
SUPPORT AND WARRANTY
PRYME Radio Products warrants this product against defects in materials or workmanship for a
period of one year from the date of retail purchase. PRYME will repair or replace a defective unit,
at our option, without charge for parts or labor. The limited warranty is extended only to the
original purchaser and is valid only to consumers in the United States and Canada. It does not
cover damage or failure caused by or attributable to Acts of God, abuse, misuse, improper or
abnormal usage, faulty installation, improper maintenance, lightning, or other incidences of
excessive voltage, or any tampering or repairs by other than a PRYME authorized repair facility.
It does not cover replacement of consumable parts, transportation costs, or damage in transit.
Repair or replacement under the terms of this warranty does not extend the terms of this
warranty. This warranty can only be modified by an officer of PRYME Radio Products, and then
only in writing. Should this product prove defective in workmanship or material, the consumer’s
sole remedies shall be such repair or replacement as provided by the terms of this warranty.
Under no circumstances shall PRYME Radio Products be liable for any loss or damage, direct,
consequential, or incidental, arising out of the use of or inability to use this product. Some states
do not allow limitations on how long an implied warranty lasts or the exclusions or limitations of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights, which may vary,
from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us
on the web at www.PRYME.com.
COPYRIGHT AND TRADEMARK INFO
© 2021 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products, Brea CA.
Harris is a trademark of L3Harris Corporation.
All other product or service names are the property of their respective owners.
DISCLAIMER: The BT wireless link used by PRYMEBLU products is an open standard,
unsecured technology. As such, it is not recommended for first-responder or other mission
critical users.
OPTIONAL EAPRHONES
Although the BTH-600-HA has a built-in speaker for listening to received calls, some users may prefer
to use a listen only earphone for enhanced privacy. The accessory jack on the Speaker Microphone
will accept any mono earphone with a 3.5 mm audio plug.
When an earphone is used, the
front-firing speaker is disabled.
PRYME EH-1389SC model shown.
Earphone sold separately.
PRYME sells a variety of listen-only earphones in
different styles that will work with the BTH-600.
SPECIFICATIONS
BT Version:
Speaker Output:
Receiver Sensitivity:
Power Class:
Range:
Display:
BT Profile:
Operating Voltage:
Battery Capacity:
Operating Time (Standby)
Operating Time (Typical)
Operating Time (Continuous Talk)
Push-to-Talk Function:
Operating Temperature:
3
2.5 watts
-90 dBm (typ.)
BT class 2
10 meters
Blue, Red, and Green
HSP, HFP, A2DP, AVRCP
3 VDC
1,020 mAH
> 30 days
> 80 hours
> 40 hours
Built-in
-4°F to +120°F (approx.)
Model
EH-389SC
EH-389XC
EH-1289SC
EH-1289XC
EH-1389SC
EH-1389XC
EH-1399X
EH-GH89-SC
Model
Rubber Ear Hook
Rubber Ear Hook
Plastic D-Ring
Plastic D-Ring
Acoustic Tube
Acoustic Tube
Acoustic Tube
G-Hook (swivel)
Cable Length/Type
15” Coiled
25” Coiled
15” Coiled
25” Coiled
15” Coiled
30” Straight
30” Straight
10” Coiled
Connector
3.5mm right angle
3.5mm right angle
3.5mm right angle
3.5mm right angle
3.5mm right angle
3.5mm right angle
3.5mm right straight
3.5mm right angle
Using the PRYMEBLU Speaker Microphone
Once your PRYMEBLU Speaker Microphone and radio have been paired together:
Received signals will be heard over your PRYMEBLU Speaker Microphone’s front- firing speaker or
through the optional earphone. The volume of received calls can be adjusted using the volume
up/down button on the Speaker Microphone or the volume control on the two-way radio.
When transmitting, the operator’s voice is picked-up by the Microphone in the PRYMEBLU Speaker
Microphone.
Push-to-Talk can be activated one of several different ways:
• By pressing and holding the PTT button on the PRYMEBLU Speaker Microphone.
• By pressing and holding the PTT button on the side of the two-way radio, depending on how the
radio is programmed.
STATUS LED MESSAGES
The meanings of the various status LED messages shown by the PRYMEBLU BTH-600-HA
speaker microphone are shown on the following table:
MESSAGE MEANING
Device is off
Pairing mode
Device turned on
Device turned off
Not paired or link lost
Normal (paired) operation
PTT operation
Low battery
Charging
Charging is finished
LED INDICATION
No indication
Blue-Red-Blue-Red continuous
Two short blue flashes
Three red flashes, then off
One blue flash every 2 seconds
One blue flash every 6 seconds
Continuous red when PTT pressed
One red flash every 6 seconds
Continuous red (when connected to charger)
No indication (when connected to charger)

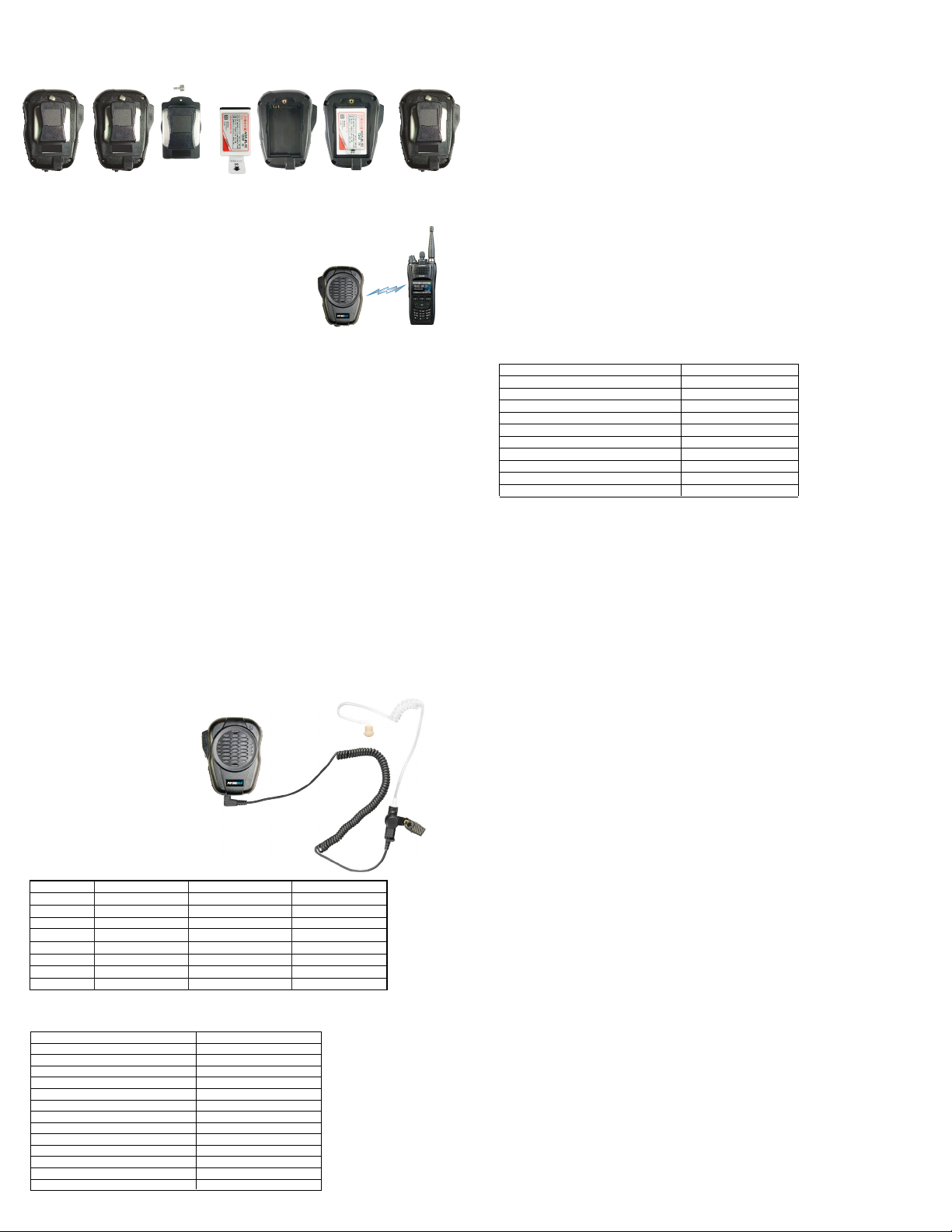

Installing or Replacing the Battery Pack
The BTH-600-HA BT Speaker Microphone gets its power from a rechargeable Lithium-Ion type battery pack.
The battery pack must be installed inside the Microphone prior to operation. Under normal usage, this battery
should have a lifespan of over 1,500 charge/discharge cycles before needing to be replaced.
To access the battery compartment:
1. Rotate the thumbscrew counter-clockwise until the cover opens. Remove the battery door.
2. Insert the rechargeable battery pack into the battery compartment. Ensure that the battery
terminals are properly lined up with the contacts inside of the battery compartment.
3. Reinstall the battery compartment cover and rotate the thumbscrew clockwise to tighten.
DO NOT over tighten.
Pairing with a Harris Two-Way Radio
When pairing the PRYMEBLU Speaker Microphone with a Harris
Two-Way radio, make sure that the Speaker Microphone is powered
off to start.
• Hold down the Multifunction Button on the PRYMEBLU Speaker Microphone. Continue to hold the
button down for approximately 3 seconds, until you see the LED on the Speaker Microphone begin to
quickly flash RED-BLUE-RED-BLUE in sequence. The PRYMEBLU Speaker Microphone is now in pairing
mode.
• Follow the instructions provided by Harris to have the radio scan for nearby headset devices.
Once it finishes scanning, select the PRYMEBLU lapel microphone from the list of nearby devices.
• After a few seconds, the two devices should sync to one another. Once the PRYMEBLU Speaker
Microphone and Radio are paired with each other the status LED on the Speaker Microphone will
then show one FLASH every few seconds.
• Once successfully paired, you will be able to operate your 2-way radio using the PRYMEBLU Speaker Mic.
Reconnecting a Previously Paired Speaker Microphone and Harris Two-Way Radio
Once the PRYMEBLU Speaker Microphone and radio have been successfully paired together, both devices will
remember that connection. The radio and Speaker Mic will attempt to re-establish their link whenever the devices
are both powered on and in within range of each other. Re-establishing this connection can take 10-60 seconds.
1 3
2
