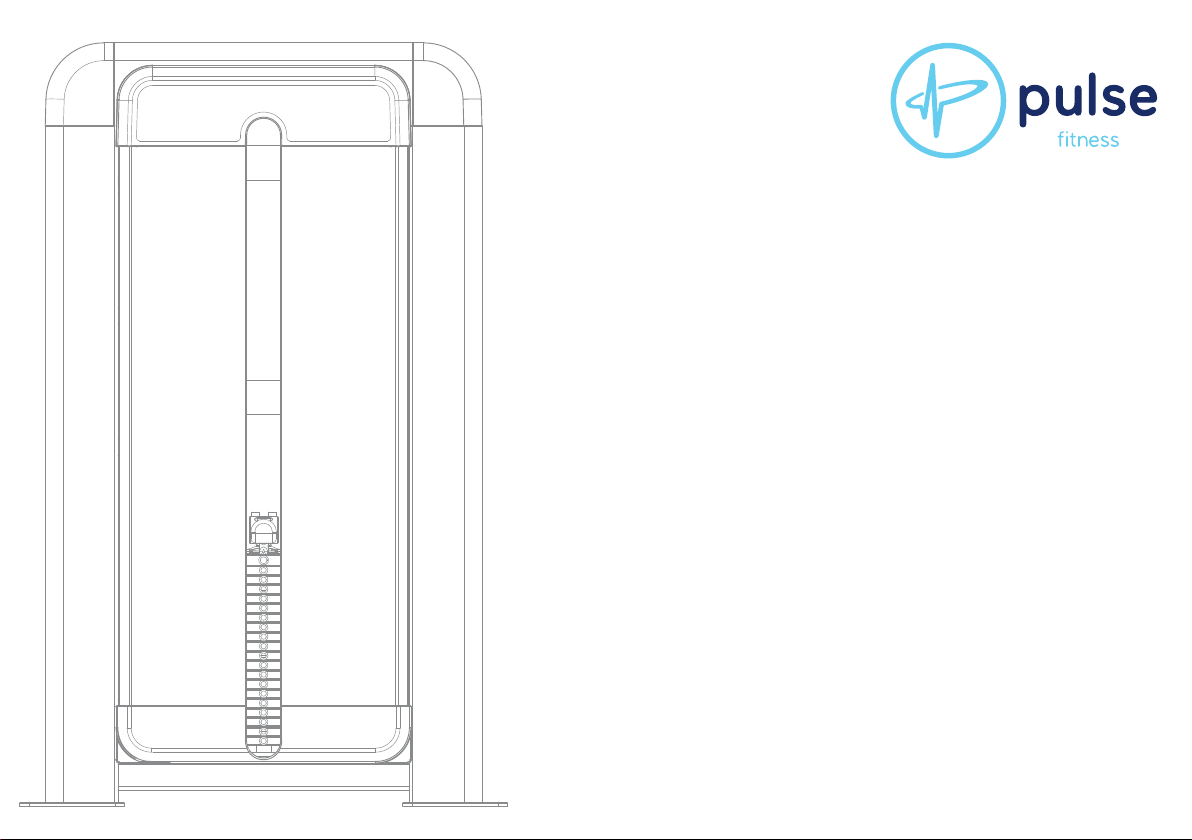

Pulse fitness Strength User manual

Strength
Installation,
Maintenance,
Safety &
(Reference) Parts Manual
EU/US

COMPANY ADDRESSES
02
COMPANY ADDRESSES
Global Corporate Headquarters
Address:
Pulse Fitness Ltd., Radnor Park, Greenfield Road, Congleton,
Cheshire, CW12 4TW, England, United Kingdom
Sales/Marketing:
Tel: [phone]
Fax: [phone]
Email: [email protected]
Service:
Tel: [phone]
Email: [email protected]
Corporate Website:
www.pulsefitness.com
Regional (Distributor/Dealer) Address(es)
Current List of Distributors/Dealers:
https://www.thepulsegroup.co.uk/pulse-global

03
OVERVIEW
1 OVERVIEW
Before using this range of equipment, it is essential to read ALL of this manual and the documents it
references prior to, choosing a location, assembling or operating this piece of equipment. This manual
describes the equipment's setup and instructs how to use it correctly and safely. It is of the utmost
importance that any User of the PULSE FITNESS Strength range is fully trained in its operation! Please
ensure that the instructions given in General Safety Precautions section are understood by ALL Users.
Keep this manual for future reference.
WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. PULSE FITNESS STRONGLY
recommends gaining professional medical advice before using fitness equipment, particularly if the user has a family history of
high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly
in the past year.
Always warm up by exercising gently before progressing to a full programme of strenuous exercise. Similarly, reduce the level of
activity gradually towards the end of the exercise programme.
Over exercise may result in serious injury or death. If you feel faint, light-headed, dizzy or suffer from any kind of pain or
exhaustion, STOP exercising immediately.
NOT suitable for Medical/Therapeutic purposes.
Ensure equipment is checked regularly for signs of damage and wear. Do not use equipment if faulty or damaged, repair using
only genuine PULSE FITNESS parts fitted by an authorised person.
SERIOUS INJURY MAY OCCUR IF THESE PROCEDURES ARE NOT FOLLOWED.

04
OVERVIEW
OVERVIEW (CONT.)
Statement of Purpose:
As with all Pulse Fitness products, the Strength range has been designed and built to be the best in their class - aiming to exceed
the expectations of gym owners, operators and users.
The concisely balanced range of machines covers all the major muscle groups satisfying user requirements in the most effective
way possible.
In terms of versatility, adjustability, ease and appropriateness of use, this range has no equal.
It is both stylish and robust, with carefully crafted, non-intimidating functional design, intelligent, painstaking engineering,
precision and finish, and exemplary manufacturing build quality, ensuring an optimum performance standard that is built to last.
All Pulse Fitness products are manufactured from the highest quality materials and components. They are subject to careful
evaluation, rigorous usage tests and production checks. This ensures the strength and longevity to withstand the demands of
the busiest facility for years to come.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
Any service, other than cleaning or user maintenance, must be performed by an authorised service representative. There are no
user serviceable parts.

05
CONTENTS
1 03 Overview
2 05Contents
3 07 General Safety Information
3.1 Introduction 07
3.2 Access Control 07
3.3 Installation 07
3.4 Proper Usage 07
3.5 Inspection 08
3.6 Operating Warnings 08
3.7 Selectorised Weight Stack Systems 09
3.8 Information 09
3.9 Tool Box 10
4 11 Installation
4.1 Location 11
4.2 Where to Place the Equipment 12
4.3 How to Stabilise the Equipment 12
5 13Warranty
5.1 Warranty 13
5.2 How to Obtain Product Service 14
5.3 Warning Labels 14
6 15Exercise & Product Information
6.1 Exercise & Equipment Information 15
6.2 IFI (Inclusive Fitness Initiative) 15
6.3 PulseMove Professional (Training Partner) 15
6.4 QR Codes 16
7 17Maintenance Procedures
7.1 Preventive Maintenance Tips 17
7.2 Cleaning the Equipment 17
7.3 Compatible Cleaners 17
7.4 Preventive Maintenance Schedule 18
8 19Daily Maintenance & Inspection
9 21Monthly Maintenance & Inspection
10 23Six Monthly Maintenance
11 25Tensioning Belt (From Weight Stack Clamp)
12 27Removing & Fitting (New Belt)
13 31Belts
13.1 Key Inspection of the 15mm Belt 31
13.2 Fitting New 15mm Belt 32
13.3 Securing The Attachment Clamp 33
13.4 Securing The End Clamp 34
14 35Replacing Worn Handgrips
2 CONTENTS

06
CONTENTS
15 37Replacing A Plunger
16 37Replacing Upholstery
17 40Daily Checklist (Photocopy Template)
18 41Monthly Checklist (Photocopy Template)
19 42Six Monthly Checklist (Photocopy Template)
20 43 Parts Lists & Exploded Diagrams
20.1 Parts Lists & Exploding Diagrams 44
21 45User Notes
CONTENTS (CONT.)

07
GENERAL SAFETY INFORMATION
3 GENERAL SAFETY INFORMATION
3.1 Introduction
It is the sole responsibility of the purchaser of PULSE FITNESS products to read this manual (in its entirety), any warning labels
and to instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the PULSE FITNESS
Strength range.
UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARNINGS ARE UNCLEAR,
CONTACT PULSE FITNESS GLOBAL SERVICE IMMEDIATELY AT: [phone] OR EMAIL: [email protected].
The PULSE FITNESS H-Strength range of equipment is designed for Class S (Studio) as per BS EN 957-1. As such this equipment
is only intended for commercial, institutional and/or studio facilities. It is not intended for home use. Contact PULSE FITNESS
with any questions regarding this classification.
It is recommended that all users of PULSE FITNESS exercise equipment be informed of the following information prior to use.
CAUTION: 3.2 . PULSE FITNESS recommends that all commercial fitness equipment be used in a supervised Access Control
area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the facility
owner.
CAUTION: 3.3 . SECURING EQUIPMENT - PULSE FITNESS recommends that all equipment be secured to a solid, Installation
level surface to stabilize it and eliminate rocking or tipping over. This must be performed by a licensed contractor.
See Section 4.3
CAUTION: 3.4 Proper Usage
(1) Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that PULSE
FITNESS equipment is used properly to avoid injury.
(2) Injuries may result if exercising improperly or excessively. It is recommended that all individuals consult a physical prior to
commencing an exercise program. If at any time during exercise you feel faint, dizzy or suffer from any kind of pain or
exhaustion, STOP EXERCISING and consult your physician.
(3) Keep body parts (hands, feet, hair, etc.), loose clothing, shoelaces, and towels away from moving parts to avoid injury.

08
GENERAL SAFETY INFORMATION (CONT.)
(4) Do not use these products in bare feet. Always wear shoes. Wear shoes with rubber or high-traction soles. Do not use
shoes with heels, leather soles, cleats or spikes. Make sure no stones are embedded in the soles.
(5) The Strength range is not intended for use by persons (including children) with reduced physical, sensory, or mental
capabilities, or lack of experience or knowledge unless they have supervision or been given instruction concerning the use of
the appliance by a person responsible for their safety.
(6) When adjusting any seat, knee hold down pad, range of motion limiter, foothold pad, pulley or any other type of adjuster,
make certain that the weight stack pin is fully engaged in the hole to avoid injury.
CAUTION: 3.5 Inspection
(1) DO NOT use or permit use of any equipment that has been dropped, damaged and/or has worn or broken parts. For all
PULSE FITNESS equipment use only replacement parts supplied by PULSE FITNESS.
(2) Cables and belts pose an extreme liability if used when frayed. Always replace any cable or belt at first sign of wear (consult
PULSE FITNESS if uncertain).
(3) Routinely inspect all accessory clips that join attachments to the cables or belts and replace them at the first sign of wear.
(4) MAINTAIN LABELS AND NAME PLATES - Do not remove labels for any reason. They contain important information. If
unreadable or missing, contact PULSE FITNESS for a replacement(s).
(5) Warning labels are shipped with every product and should be installed before product is used. PULSE FITNESS is not
responsible for missing or damaged warning labels.
(6) EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating equipment as well as to keep your
liability to a minimum. Equipment needs to be inspected at regular intervals.
(7) Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
PULSE FITNESS are able to provide service and maintenance training upon request.
(8) Before any use, examine all accessories approved for use with the PULSE FITNESS equipment for damage or wear. Do not
use attachments that have not been recommended by PULSE FITNESS, as such attachments may cause injury.
(9) DO NOT ATTEMPT TO USE OR REPAIR ANY ACCESSORY APPROVED FOR USE WITH THE PULSE FITNESS EQUIPMENT WHICH
APPEARS TO BE DAMAGED OR WORN.
CAUTION: 3.6 Operating Warnings
(1) It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper operating
GENERAL SAFETY INFORMATION

09
procedures of all PULSE FITNESS equipment.
(2) Keep children away from strength equipment. Parents or others supervising children must provide close supervision of
children if the equipment is used in the presence of children.
(3) Do not allow users to wear loose fitting clothing or jewellery while using equipment. It is also recommended to have users
secure long hair back and up to avoid contact with moving parts.
(4) All bystanders must stay clear of all users, moving parts and attached accessories and components while machine is in
operation.
CAUTION: 3.7 Selectorised Weight Stack Systems
(1) Use only weight stack pins supplied by PULSE FITNESS. Substitutions are forbidden.
(2) Fully insert weight stack pins. Partial insertion can cause weight plates to fall unexpectedly.
(3) Never fix the weight stack plates in an elevated position.
(4) Never remove the weight stack pin if any weights are suspended.
(5) Never attempt to release jammed weights or parts.
(6) Never use dumbbells or other means to incrementally increase the weight resistance. Use only those means provided by
PULSE FITNESS.
(7) Upon first use (installation), ALWAYS test the belt has been securely clamped (see sections 11 & 12).
3.8 Information
Do not stand or sit on plastic moulded covers.
Never place liquids of any type directly on the equipment, except in an accessory tray or holder. Containers with lids are
recommended.
Do not allow other people to interfere in any way with the user or equipment during a workout.
Do not reach into, or underneath, the equipment or tip it on its side during operation.
Never insert objects into any opening in these products. If an object should drop inside carefully retrieve it. If the item cannot
GENERAL SAFETY INFORMATION (CONT.)
GENERAL SAFETY INFORMATION

10
be reached contact PULSE FITNESS Global Service immediately at: [phone] or email:
[email protected].
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information refer to the European Commission Regulation (EC) No. 1907/2006 (REACH) and the California Safe
Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65).
3.9 Tool Box
Included in your PULSE FITNESS machine package is a tool box. These tools are displayed at the top of each page and are
highlighted when required. (Images may vary from tools provided.)
Note: Belts will stretch in the first 4 to 6 weeks of operation depending on use. Therefore tensioning is recommended,
thereafter the belt stretch will be minimal. (Refer to Section 11).
Note: The wooden blocks used in Section 10 are not part of the PULSE FITNESS tool kit and will not be supplied.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION (CONT.)
GENERAL SAFETY INFORMATION

11
INSTALLATION
4 INSTALLATION
4.1 Location
Select a suitable location for the PULSE FITNESS Strength range equipment before moving it. The site you choose should meet
the following requirements:
ŸA stable, solid, flat, level and clean surface.
Note: The Strength range is not suitable for outdoor use.
If the chosen surface is carpet then the Strength range equipment can be pushed to the desired position (this is a four person
procedure). However, if the surface is more resistant, or the Strenth range equipment has to be lifted and lowered into place,
then six people will be required.
CAUTION
This equipment is heavy! We do not recommend attempting to lift it without assistance, at least
6 people should lift the H-Strength range when necessary.
NEVER attempt to lift the H-Strength range equipment by its Handlebars.

0.6m /
2.0ft
1.0m /
3.28ft

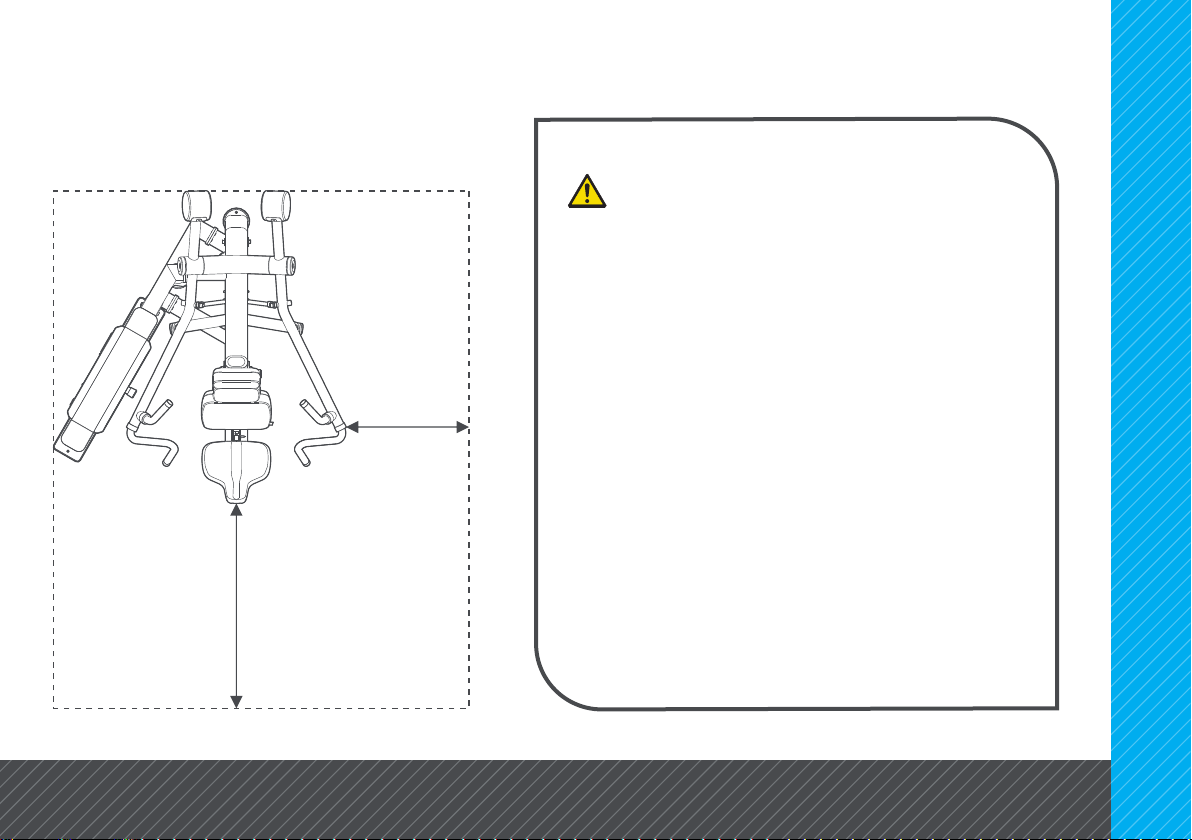

4.2 Where to place the PULSE FITNESS Strength
range
WARNING: Following all safety instructions move the
PULSE FITNESS Strength range to the location in which it
will be used. See Section 6, titled Exercise & Product
Information, for the dimensions of the footprint. Allow a
clearance of 1.0m (3.28ft.) in the direction the Strength
range is accessed from. Generally allow at least 0.6m
(2ft.) towards the sides of the Strength range [Figure A].
4.3 How to Stabilise the PULSE FITNESS
Strength range
Make sure the PULSE FITNESS Strength equipment is
stable and placed on a solid surface. After placing, check
the unit’s stability by attempting to rock it. Any slight
rocking indicates that the unit must be securely fixed to
the floor!
The equipment is designed to be freestanding; however, it
can be bolted to the floor for extra stability. PULSE
FITNESS highly recommends that the equipment be
bolted to the floor to reduce the risk of toppling the
equipment due to improper use. Since floor
constructions can vary, please consult a professional
building engineer for proper fastening.
12
INSTALLATION
Figure A
Positioning (example)
INSTALLATION (CONT.)

13
5 WARRANTY
5.1 Warranty
PULSE FITNESS warrants to the original purchaser only of new equipment purchased directly from PULSE FITNESS or from
authorised distributors or resellers, for its own use not for resale, that all Strength machines shall be free from defects in
materials and workmanship in accordance with the following schedule effective from the original date of delivery.
5 years: Frames and welds.
2 years: Mechanical components. Drive transmission belts.
1 year: Rubberised materials, e.g. grip materials, safety walks.
6 months: Upholstery.
This warranty does not cover any part of the equipment which has been:
(1) Modified, altered or subjected to abuse, misuse, negligence or accident, or improperly operated, maintained or stored.
(2) Improperly installed or installed in conjunction with any equipment for which it was not designed.
(3) Repaired or replaced by any party other than PULSE FITNESS or its authorised service agents.
(4) Damaged or destroyed by disasters such as fire, flood, lightning or earthquake.
(5) Subject to usage or wear above that expected as being normal in the warranty period and classed as wear and tear items.
In no event shall PULSE FITNESS be liable for any special, incidental, consequential or other damages, costs or expenses.
If a defect involves a component, part or accessory that is already in service and can reasonably be replaced or serviced by the
purchaser, PULSE FITNESS will be responsible only for providing, at no charge, a suitable replacement and instructions for the
purchaser.
Warranty will be void if non-genuine PULSE FITNESS parts are used in replacement work.
WARNING: Failure to carry out the maintenance activities described in this manual could result in serious injury and void your
warranty.
WARRANTY

Figure B
Warning Label (example)
14
WARRANTY (CONT.)
WARRANTY
NB: Image for illustration only
5.2 How to Obtain Product Service
(1) Verify the symptom and review the operating
instructions. The problem may be unfamiliarity with
the product and its features and workouts.
(2) Locate and write down the serial number of the unit
which is located on the rear panel of the Weight
Stack Tower.
(3) Contact Pulse Fitness Global Services Team (refer to
page 02).
5.3 Warning Labels
PULSE FITNESS products come equipped with a number
of standard warning labels. The illustration [Figure B]
shows a sample of the safety labelling on the Strength
range equipment.
(1) MAINTAIN LABELS AND NAME PLATES - Do not
remove labels for any reason. They contain important
information. If unreadable or missing, contact PULSE
FITNESS for a replacement(s).
(2) Warning labels are shipped with every product and
should be installed before product is used. PULSE
FITNESS is not responsible for missing or damaged
warning labels.
(3) Decals may be removed using paraffin(kerosene).
When the solvent will not penetrate decal material,
apply heat (hairdryer) to soften the adhesive and
promote removal. PETROL(GASOLINE) SHOULD NOT
BE USED.

Powering the
best of British
design.
#DesignedToPerform
15
6 EXERCISE & PRODUCT INFO.
EXERCISE & PRODUCT INFORMATION
6.1 Exercise & Equipment Information
PULSE FITNESS Strength range is designed for
heavy/commercial usage.
For product specifications, features, details, exercises and
muscles used; physical dimensions, machine and stack
weights please refer to document:
135-1954-* Pulse Fitness Brochure [Figure C]
6.2 IFI (Inclusive Fitness Initiative)
PULSE FITNESS Strength range has been designed to be
inclusive. The range can also be upgraded, to comply to
the IFI’s Stage 2 accreditation. For details please refer to
document:
135-1954-* Pulse Fitness Brochure [Figure C]
6.3 PulseMove Professional (Training Partner)
PULSE FITNESS Strength range has the option to be
upgraded to function as part of a global digital fitness
data-tracking eco-system (PulseMove). For details please
refer to document:
135-1954-* Pulse Fitness Brochure [Figure C]
Figure C
Pulse Fitness Brochure (example)
NB: Image for illustration only

16
EXERCISE & PRODUCT INFORMATION
6.4 QR Codes
Intro: QR Code decals [Figure D] have been attached to
all PULSE FITNESS Strength equipment that does not have
PulseMove Professional (indicated by no additional
Training Partner console).
Users can still track their workouts by registering with
www.pulsemove.com and using their smartphone/tablet
in conjunction with the PulseMove Tracker app. The
®
Cirrus (Android ) console and PULSE FITNESS’ PulseMove
software/app to provide product demo videos, strength
tracking and product setup guidelines.
How it works: Select the QR Codes feature within the
PulseMove Tracker app. Using the QR Code scanner, scan
the QR Code on the equipment. Once scanned the
PulseMove Tracker app will provide product demo videos,
strength tracking and product setup guidelines.
If the QR Code is scanned by a device without the
PulseMove Tracker app, it will direct the device to the
Apple ® ®
App Store or Google Play Store to download the
PulseMove app.
Figure D
QR Code Decal (example)
EXERCISE & PRODUCT INFO. (CONT.)
305H
NB: Image for illustration only

17
7 MAINTENANCE PROCEDURES
MAINTENANCE PROCEDURES
7.1 Preventive Maintenance Tips
PULSE FITNESS products are backed by the engineering excellence and reliability of PULSE FITNESS and are one of the most
rugged and trouble-free pieces of exercise equipment on the market today.
Note: Safety can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use
until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below.
The following preventive maintenance tips will keep the PULSE FITNESS product operating at peak performance:
7.2 Cleaning the Equipment
PULSE FITNESS Approved Cleaners (United States Availability Only)
Two preferred cleaners have been approved by PULSE FITNESS reliability experts: PureGreen 24 (or equivalent) and Gym Wipes.
Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 (or equivalent) and the
antibacterial formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1. PureGreen 24 (or
equivalent) is available in a spray which is convenient to use. Apply the spray to a micro fibre cloth and wipe down the
equipment. Use PureGreen 24 (or equivalent) on the equipment for at least 2 minutes for general disinfection purposes and at
least 10 minutes for fungus and viral control. Gym Wipes are large, durable pre-moistened wipes to use on the equipment
before and after workouts. Use Gym Wipes on the equipment for at least 2 minutes for general disinfection purposes.
Contact PULSE FITNESS Global Service Team to order these cleaners [phone] or email:
[email protected].
7.3 Compatible Cleaners
DO NOT use water based solutions (on the following): Clean the display console, all exterior surfaces and the frame with a
mild, non-abrasive silicon based household cleaner. Apply via a soft micro fibre cloth. Apply the cleaner to the cloth before
cleaning. DO NOT use ammonia or acid based cleaners. DO NOT use abrasive cleaners. DO NOT use paper towels. DO NOT
apply cleaners directly to the equipment surfaces.

Action Daily Monthly As Needed
Upholstery Clean
Check
Guide Bars
Acrylic Panels Clean
Lubricate
Check Tension
Clean
Inspect
Lubricate
Hand Grips Clean
Frames
Inspect
Wax
Inspect
Inspect
Inspect
Inspect
Inspect
Powdercoat
Belt
Hardware
Function Test
18
MAINTENANCE PROCEDURES
MAINTENANCE PROCEDURES (CONT.)
DO use water based solutions (on the following): Clean the upholstery and handgrips with a mild soap and water solution.
7.4 Preventive Maintenance Schedule
Inspect and vacuum the area directly surrounding and under the unit regularly.
Inspect exterior parts regularly for wear. Use polishing compound (such as car wax) and remove shoe scuffs from powder coated
surfaces as necessary. Adherence to regular and proper cleaning procedures is recommended to preserve the appearance.
Note: Spray the approved cleaner on a towel, and then wipe down the acrylic panels to avoid saturation.
Do not use scrubbing brushes on the acrylic panels. Fresh paint splashes, grease and smeared glazing compounds can be
removed easily before drying by rubbing lightly with isopropyl alcohol. Afterward, a warm final wash should be made.
Check to make sure the unit is properly levelled.
Clean all exterior surfaces with an approved or compatible cleaner (see PULSE FITNESS Approved Cleaners) and a micro fibre
cloth.
WARNING: Failure to carry out maintenance on the equipment as per this manual could result in serious injury and void your
warranty. Please ensure all publications supplied with PULSE FITNESS equipment are read and understood.
Figure E
Preventive Maintenance Schedule

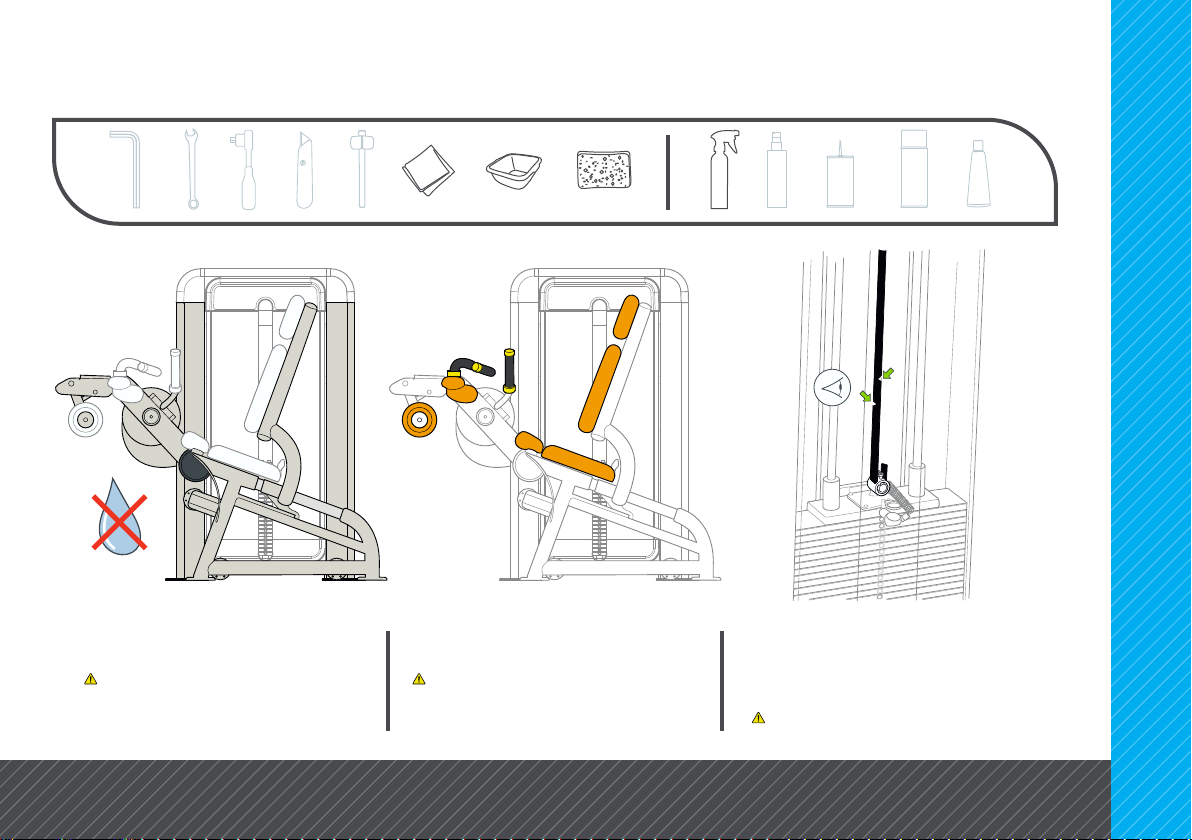

Clean frame with silicon based polish
and a lint free cloth.
Do not use water based solutions.
Clean upholstery and grips with soapy
water.
Failure to remove sweat a minimum
of once a day will permanently dry out
and crack upholstery.
Visually inspect both the belt and clamp
for cuts or frays.
For more information on the 15mm
belt, refer to page 31.
Damaged belts are dangerous.
19
8 DAILY (MAINTENANCE & INSPECTION)
DAILY MAINTENANCE & INSPECTION

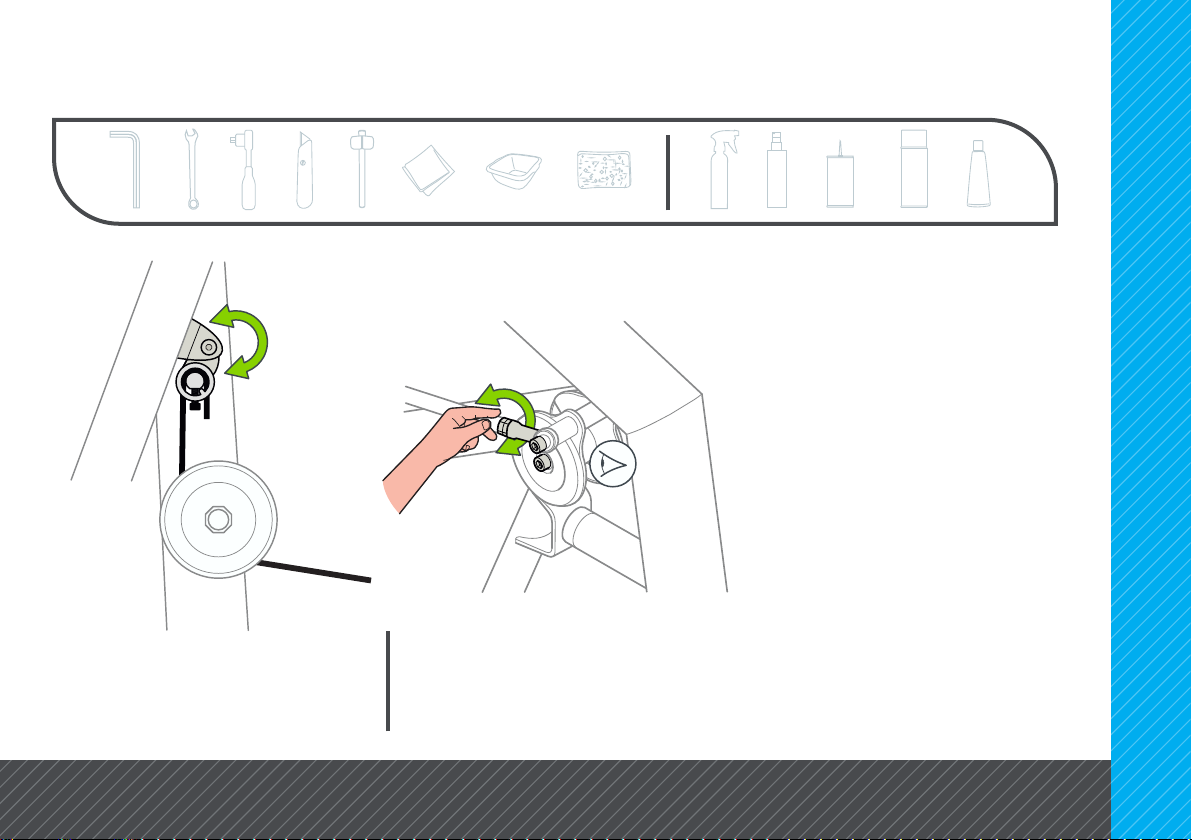

Ensure belt clamp pivots freely.
(Machine specific). Check that all nuts and bolts are securely
fastened.
Check all rod end bearings oscillate
smoothly, and have no play.
20
DAILY MAINTENANCE & INSPECTION
DAILY (MAINTENANCE & INSPECTION) (CONT.)
