PULSEEIGHT DOLBY DAC User manual

1
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
DOLBY DAC
The Pulse-Eight Dolby Digital to Analogue Audio Converter can decode S/PDIF coaxial or TOSLINK optical digital
audio sources and convert them to standard analogue stereo (L/R) audio. Through standard phono style (RCA)
jacks, stereo output signals can then be fed to external devices such as an amplier, Hi-Fi, recording deck, or
powered speakers. It ensures a smooth transition from modern digital sources to analogue sound systems, such
as DVD and Blu-ray players or AppleTV. With inputs for coaxial or optical connections, it is the ideal solution for
audio conversion needs.
INTRODUCTION
FEATURES
• Includes digital interpolation lter
• Optical & digital coaxial inputs
• LED power indication
• Compact design
• Supports audio signals up to 24-bit with sampling rates up to 192 kHz
• 5.1 Compressed audio supported
• Low-latency digital ltering
• Dynamic Range: 106 dB A-wt
• THD+N (Total harmonic distortion plus noise) rating: -93dB
• Support for Dolby Audio
INSIDE THE BOX (KIT)
• 1 x Dolby DAC
• 1 x Power Cable
• 1 x Installation Guide

2
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
SKU: P8-DDAC
Input Digital Coax or S/PDIF
Outputs: L+R RCA
Distortion < 0.001% @ 1kHz at 2V RMS
Signal to Noise Ratio > 90dB (20Hz - 20kHz)
Output Impedance 500Ω
Output Voltage 1.8V RMS @ Max Input (0dBFS)
Frequency Response < +/- 0.5dB
Electrical Fast Transient/Burst: Data communication cord:1 kV Power cord : 2 kV
Power Supply: 5v DC / 5W power supply (CE/FCC certied)
Power Consumption: 1.0w (max)
ESD Protection: ± 8kV (Air-gap discharge) ± 4 kV (Contact discharge)
Surge Protection: IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20μs)
Product Dimensions: 64 x 24 x 64mm
Product Weight: 86g
Operating Temp Range: 0 to +35°C (32 to +95°F)
Operating Humidity Range: 5 to 90 % RH (no condensation)
Certication: CE, FCC, RoHS
SPECIFICATIONS

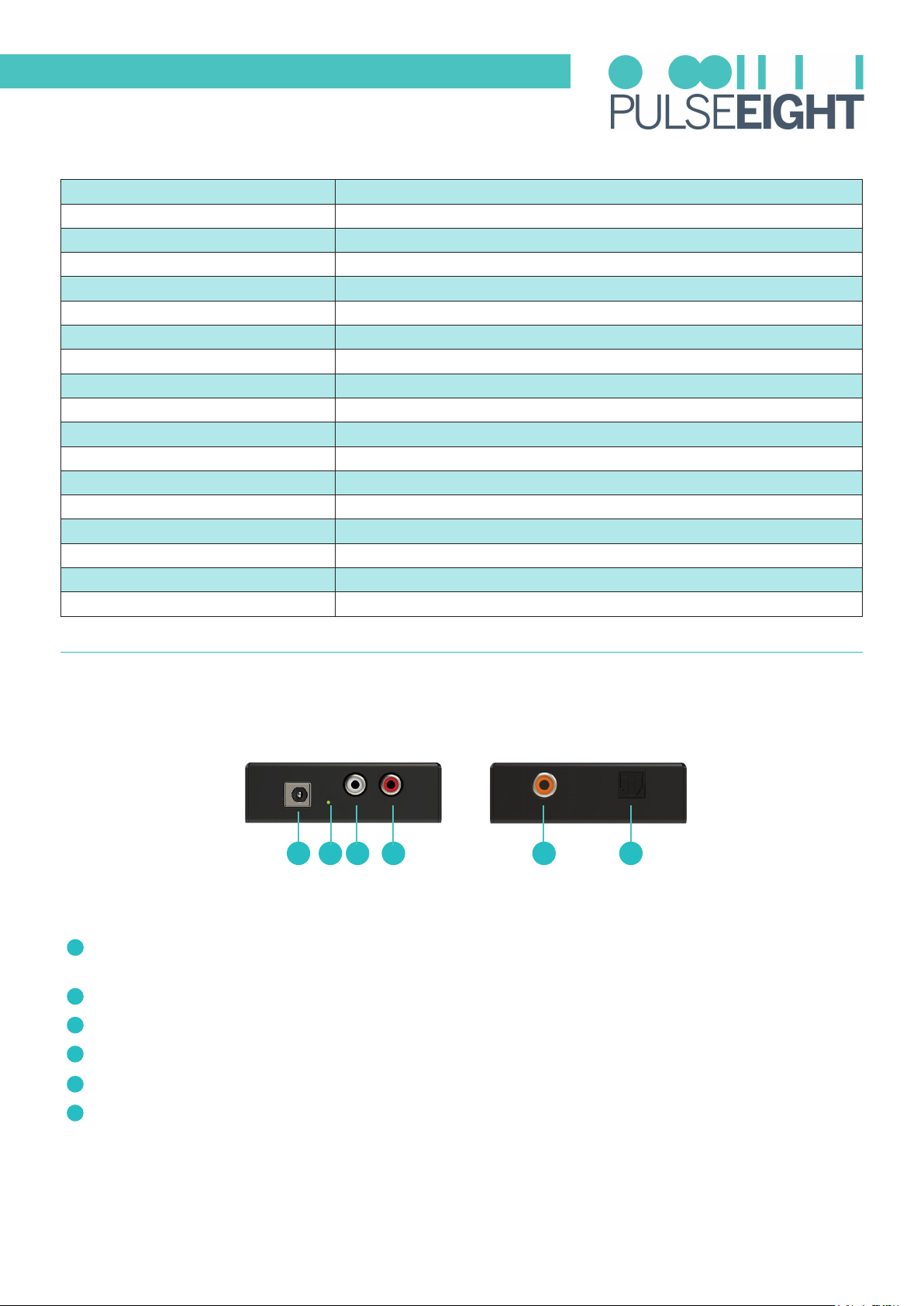

PANEL DESCRIPTIONS
DC 5V - Use the supplied mains power cable and connect to the chassis. Do not use any other power cables
with this product.
PWR - Power Status LEDlight.
Audio Out (L) - RCA connection outputs 2 channels down-mixed audio (left side).
Audio Out (R) - RCA connection outputs 2 channels down-mixed audio (left side).
Coax In - Connect to coaxial S/PDIF audio output of source device (ie DVD player/TV).
S/PDIF (Sony/Philips Digital Interface Format) In - Connect to Toslink optical S/PDIF audio output of source
device (ie DVD player/TV).
A
B
C
D
F
E
A DCB E F
Rear PanelFront Panel

3
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
INSTALLATION
1. Connect the audio source (e.g. Bluray player) to ‘Audio Input’ port (Coax In or Optical In).
2. Connect the audio receiver (e.g. amplier) to the audio output of the ‘Audio Out’ ports (Red & White).
3. Connect the supplied power supply to the DC 5V port on both the transmitter and receiver.
TROUBLESHOOTING
Should you encounter installation difficulties or issues with device communication, the following checklist of
common issues and causes should help resolve your issues. If you still continue to experience issues, please
contact your local representative for further assistance.
No Audio
1. Check the source, and if the output is channeled into optical or coax.
2. Switch the source to the other if possible. (For example, if switching from optical to S/PDIF or TOSLINK to coax).
3. If possible, try dierent RCA sources at the output.
4. If you still do not receive a response, please contact a Pulse-Eight representative or your Installer.

4
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
WARRANTY PROCEDURE
The following policies covers all Pulse-Eight products.
Unless otherwise instructed, please do not open any of our products. Doing so will invalidate your warranty. As
part of the troubleshooting procedure, you may be instructed to open the device, but you can only proceed with
this once consent has been given.
To open a support ticket, please visit: www.pulse-eight.com/support.
Please Note: Warranty cover for ALL products starts from date of receipt of goods NOT date of installation.
Should we nd that your product does need replacing, we will send your replacement directly to the distributor
you purchased from, if not purchased directly from Pulse-Eight.
From 1st April any products purchased will have new warranty lengths. The length of warranty is determined by
the type of product purchased. Our cover can be broken down into 3 categories:
Gold, Silver and Bronze.
GOLD: Pulse-Eight Audio and Video Matrices
• 5-year warranty as standard
- 2-year advanced replacements
- 3-year return to base for repair
SILVER: Pulse-Eight Amps, Extender Sets and Accessories
• 3-year warranty as standard
- 1-year advanced replacements
- 2-year return to base for repair
BRONZE: IR, Cables, Brackets and our Tech Tools
• 1-year advanced replacements
Pulse-Eight Current Product—Within the advanced replacement warranty year(s)
1. Contact support via phone or a support ticket. Pulse-Eight will try to help troubleshoot and resolve the issue
remotely.
2. If unable to resolve the fault remotely and the unit needs replacing an advanced replacement will be raised with
the installer who purchased it. If you purchased from a distributor you will need to return to your distributor
and they will contact Pulse-Eight to get the RMA raised. All distributor advanced replacements will be sent to
the distributor and cannot be sent direct to their installer.
Pulse-Eight Current Product—Within return to base warranty
1. Contact support via phone or a support ticket. Pulse-Eight will try to help troubleshoot and resolve the issue
remotely.
2. If unable to resolve the fault remotely and the unit needs to be repaired, an RMA will be raised with the installer
if purchased direct from Pulse-Eight. Or if purchased from a distributor, the installer will be directed back to
their distributor who will raise an RMA.
Pulse-Eight Products Purchased Before 1st April, 2022.
Please visit: Warranty Page. Or Contact support via phone, opening a support ticket or emailing
[e-mail].

5
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
WARRANTY TERMS & CONDITIONS
IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY
TO YOU. YOUR RIGHTS AND THIS LIMITED WARRANTY
This Limited Warranty gives you specic legal rights. You may also have other legal rights that vary by state, province, or jurisdiction. The
disclaimers, exclusions, and limitations of liability under this Limited Warranty will not apply to the extent prohibited by applicable law. For
a full description of your legal rights, you should refer to the laws applicable in your jurisdiction and you may wish to contact a relevant
consumer advisory service.
1. WHAT THIS LIMITED WARRANTY COVERS; PERIOD OF COVERAGE
Pulse-Eight Limited (“Pulse-Eight”), 8-12 Alder Hills, Poole, BH12 4AL, UK, warrants to the owner of the enclosed product that the product
contained in this box (“Product”) will be free from defects in materials and workmanship for a period of three years from the date of delivery
following the original purchase (the “Warranty Period”), or if this product has been professionally installed, the warranty start date is from
the date your installer purchased the item, not your system commissioning date. Please check with your installer for their purchase date. If
the Product fails to conform to this Limited Warranty during the Warranty Period, Pulse-Eight will, at its sole discretion, either (a) repair or
replace any defective Product or component; or (b) accept the return of the Product and refund within 45 days of return the money actually
paid by the original purchaser for the Product. Repair or replacement may be made with a new or refurbished product or components, at
Pulse-Eight’s sole discretion.
If the Product or a component incorporated within it is no longer available, Pulse-Eight may replace the Product with a similar product of
similar function, at Pulse-Eight’s sole discretion. This is your sole and exclusive remedy for breach of this Limited Warranty. Any Product
that has either been repaired or replaced under this Limited Warranty will be covered by the terms of this Limited Warranty for the longer
of ninety (90) days from the date of delivery or the remaining Warranty Period. This Limited Warranty is transferable from the original
purchaser to subsequent owners, but the Warranty Period will not be extended in duration or expanded in coverage for any such transfer.
2. TOTAL SATISFACTION RETURN POLICY
If you are the original purchaser of the Product and you are not satised with this product for any reason, you may return it in its original
condition within thir ty (30) days of the original purchase and receive a full refund. If this is a professionally installed product, you must check
with your installer regarding their own returns policy.
3. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU WANT TO CLAIM UNDER THIS LIMITED WARRANTY
Before being able to claim under this Limited Warranty, the owner of the Product must (a) notify Pulse-Eight of the intention to claim by
emailing [e-mail] during the Warranty Period and providing a description of the alleged failure, and (b) comply with Pulse-
Eight’s return shipping instructions, and (c) ship the Product at owner’s cost (except where prohibited by applicable law) to Pulse-Eight for
repair or replacement. Pulse-Eight will have no warranty obligations with respect to a returned Product if it determines, in its reasonable
discretion after examination of the returned Product that the Product is an Ineligible Product (dened below). Pulse-Eight will bear all costs
of return shipping to the owner, except with respect to any Ineligible Product, for which the owner will bear all shipping costs.
4. WHAT THIS LIMITED WARRANTY DOES NOT COVER
This warranty does not cover the following (collectively “Ineligible Products”): Products marked as “sample” or sold “AS IS”; or Products
that have been subject to: (a) modications, alterations, tampering, or improper maintenance or repairs; (b) handling, storage, installation,
testing, or use not in accordance with the Installation Guide or other instructions provided by Pulse-Eight; (c) abuse or misuse of the Product;
(d) breakdowns, uctuations, or interruptions in electric power or the telecommunications network; or (e) Acts of God, including lightning,
re, ood, tornado, earthquake, or hurricane. This warranty does not cover consumable parts, including batteries unless damage is due to
defects in materials or workmanship of the Product, or software (even if packaged or sold with the product). Pulse-Eight recommends that
you use only authorized service providers for maintenance or repair. Unauthorized use of the Product or software can impair the Product’s
performance and may invalidate this Limited Warranty. Pulse-Eight does not warrant that operation of the Product will be error-free or
uninterrupted or that the Product will in every case process all data correctly.

6
QUICK REFERENCE GUIDE - DOLBY DAC (P8-DDAC)
5. DISCLAIMER OF WARRANTIES
Except as stated above in this limited warranty, and to the maximum extent permitted by applicable law, Pulse-Eight disclaims all express,
implied, and statutor y warranties and conditions with respect to the product, including the implied warranties of merchantability, tness for
a particular purpose. To the maximum extent permitted by applicable law, also limits the duration of any implied warranties or conditions
to the duration of this limited warranty.
6. LIMITATION OF DAMAGES
In addition to the above warranty disclaimers, in no event will Pulse-Eight be liable for any consequential, incidental, exemplary, or special
damages, including any damages for lost data or lost prots, arising from or relating to this limited warranty or the product, and Pulse-
Eight’s total cumulative liability arising from or related to this limited warranty or the product will not exceed the amount actually paid for
the product by the original purchaser.
7. LIMITATION OF LIABILITY
Pulse-Eight disclaims all liability of any kind of Pulse-Eight’s suppliers. The Pulse-Eight online services (“services”) may provide you with
information (“product information”) regarding your product’s performance and/or peripherals connected to your product (“product
peripherals”). The type of product peripherals that may be connected to your product may change from time to time. Without limiting the
generality of the disclaimers above, all product information is provided for your convenience, “as is”, and “as available”. Pulse-eight does
not represent, warrant, or guarantee that product information will be available, accurate, or reliable. You use all product information, the
services, and the product at your own discretion and at risk. You will be solely responsible for (and Pulse-Eight disclaims) any and all loss,
liability, or damages, including to your HVAC system, plumbing, home, product, product peripherals, computer, mobile device, and all other
items and pets in your home, resulting from your use of the product information, services, or product. The product information provided
by the services is not intended as a substitute for direct means of obtaining the information.
8. VARIATIONS THAT MIGHT APPLY TO THIS LIMITED WARRANTY
Some jurisdictions do not allow limitations on how long an implied warranty lasts or exclusions/limitations on incidental or consequential
damages, so some of the limitations set out above may not apply to you.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its parts translated into any
language or computer le, in any form or by any means (electronic, mechanical, magnetic, optical, chemical, manual, or otherwise) without
express wrote permission and consent from Pulse-Eight Limited.
© Copyright 2022 Pulse-Eight Limited. All Rights Reserved.
